Fender 1000 Roc-Pro 22-6878 User manual

P/N 050337
Reference and
Owner's Manual
T
Tube-Driven
ube-Driven
Hybrid
Hybrid
Amplifier
Amplifier
tone •tradition •innovation
1000
Roc•Pro
TM

Fender Musical Instruments
7975 North Hayden Road, Scottsdale, Arizona 85258 U.S.A.
Since 1946, Fender realized the importance of your amplifier. You see, your amplifier
is more than just a combination of dials, wires and speakers. Your amplifier is a
musical instrument. And like any fine musical instrument, it should be treated with
special care and attention to detail.
At Fender, we know what building guitar amplifiers is all about. For over half a century,
we have been designing and producing some of the world's best amplifiers helping
shape the face of music. In fact, many of the world's most classic and best sounding
amplifiers have proudly worn the Fender name.
Whether you're after that classic Fender tone, a clean crisp sound for your Bass or
Keyboard or the raw driving power of modern distortion, your decision to purchase a
Fender amplifier is one you will appreciate with each passing note for years to come.
Wishing you years of enjoyment and a heartfelt thank you,
Bill Schultz
Chairman
Fender Musical Instruments Corporation
Fender • Tone
Bill Schultz

FENDER®TUBE-DRIVEN HYBRID AMPLIFIERS
• A UNIQUE MELDING OF FENDER TUBE TONE AND STANDARD SERIES
TECHNOLOGY BRINGS OUT THE BEST OF BOTH CIRCUIT DESIGNS
• ROAD WORTHY AND MUSICAL COMPONENTS CAPABLE OF HANDLING THE
MOST DEMANDING PERFORMANCE SITUATIONS
• FENDER'S UNIQUE UNDERDAMPED POWER AMPLIFIER DESIGN PRODUCES
SPARKLE, PUNCH AND AN INCREASE IN AMPLIFIER'S LOUDNESS
• SOPHISTICATED POWER AMPLIFIER PROTECTION SCHEME PREVENTS
AMPLIFIER FAILURE DUE TO BAD SPEAKER CORDS OR INCORRECTLY
CONNECTED SPEAKER JACKS
• THREE-WAY VARIABLE EFFECTS LOOP CIRCUITRY ALLOWS THE USE OF
VIRTUALLY ANY EFFECTS DEVICE
• MAGNETIC INTERFERENCE REDUCING ALUMINUM CHASSIS HELPS
ELIMINATE UNWANTED NOISE AND RADIO INTERFERENCE
• FENDER SPECIAL DESIGN 12" HIGH PERFORMANCE SPEAKER FOR THAT
GREAT FENDER TONE
• UNPARALLELED TUBE DRIVE CHANNEL OFFERS AN INCREDIBLE MIX
OF VERSATILITY
• CABINETRY CONSTRUCTED FROM HAND-SELECTED WOODS EMPLOYING
RUGGED CORNER JOINERY FOR ENDURING RELIABILITY
• COVERED IN GENUINE TOLEX WITH TOUGH METAL GRILLE FRONTS FOR
LONG LIFE AND LASTING GOOD LOOKS
Fender • Tradition

Roc Pro 1000 REFERENCE AND OWNER'S MANUAL
INTRODUCTION
Fender • Innovation
Congratulations on your purchase of a Roc Pro
Tube-Driven Hybrid Amplifier, a melding of Fender’s
distinctive Tube -Tone and cutting edge Standard
Series technology. Designed for today’s innovative
guitarists, our Roc Pro amplifiers have what it takes
to define your sound.
Whether you have chosen the Roc Pro 1000 or the
Roc Pro 1000 HEAD you now have in your posses-
sion an amplifier of incredible versatility and enduring
reliability.
Read through this manual and familiarize yourself with
the Roc Pro’s many features, then experiment! Take
the time to uncover the broad spectrum of tone
colors available via the front panel’s EQ and GAIN
controls. And don’t forget the VOLUME and TONE
controls on your guitar! An inherent feature of the
Roc Pro's Hybrid tube design is its sensitivity to
subtle changes in the input signal level. Dial in a
crunch rhythm tone with your guitar’s volume on 10 ,
then slowly roll off the volume and listen to the
cleansing effect. Change your pick attack from light
to heavy, push, pull, thump and pump your axe, your
Roc Pro will respond to every nuance of your playing !
•All Roc Pro amplifiers use a real 12AX7 / ECC83
preamp tube in their TUBE DRIVE channel to gener-
ate a stunning array of Fender tones from Vintage
Overdrive to Sonic Explosion.
•Select the NORMAL channel and dial up ultra
clean… fat and funky… power crunch… And every-
thing in between.
•Combine your Roc Pro 1000 with the optional GE
112 or GE 412 extension cabinets and get ready to
move some air!
FEATURES: Roc Pro 1000
100 Watts into 4 ohms, 1-12” Fender Special Design
Speaker (Combo only), Dual Selectable channels
(Normal and Tube Drive), each with dedicated and
independent tone controls, Mid Shift Select,
12AX7 / ECC83 preamp tube, Variable EFX Loop
with Mix control, Line Out, Extension speaker out ,
3 Button footswitch (Reverb, Channel Select, Gain
Select), Genuine Black Tolex and Rugged Metal
Speaker Grill.

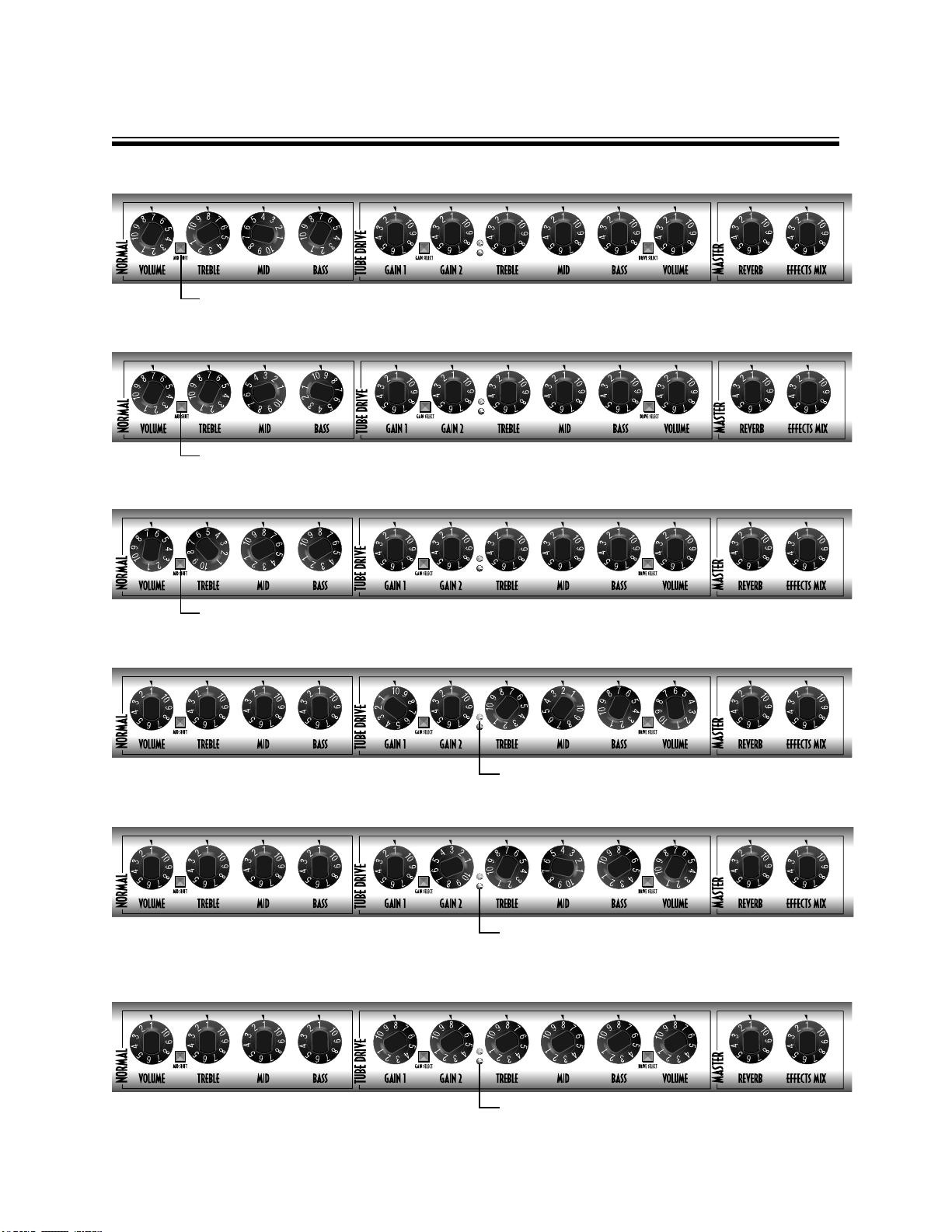

Roc Pro 1000 SOUND SETTINGS
Ultra Clean
Fat 'N' Funky
Country Cookin'
Thrash 'N' Smash
IN
RED
Crazy 8's
Crunch to Clean
IN
IN
YELLOW
YELLOW
Lower the guitar volume to 7 to clean and sweeten the tone
TO TASTE
TO TASTE
TO TASTE
TO TASTE
TO TASTE
TO TASTE

A. INPUT - Plug your guitar in here.
B. VOLUME - Adjusts the overall volume of the Normal channel.
C. MID SHIFT - Select to move the frequency center of the normal channel MID control up one octave.
The tonal effect is a slight increase in the bass response and a slight reduction of upper mids for a cleaner
sound.
D. TREBLE - Adjusts the amount of high frequency boost or cut in the Normal channel.
E. MID - Adjusts the amount of mid frequency boost or cut in the Normal channel.
F. BASS - Adjusts the amount of low frequency boost or cut in the Normal channel.
G. GAIN 1 - Adjusts the amount of distortion in the Red Drive channel. Lower settings provide a gradual
compression distortion, while higher settings provide more sustain. This control works in conjunction with
the drive channel volume control (item O) to set the overall volume of the Red Channel.
H. GAIN SELECT - This switch selects between the Red and Yellow channels. The IN position selects
the Red channel, the OUT position selects the Yellow channel.
I. GAIN 2 - Adjusts the amount of distortion in the Yellow drive channel. Lower settings provide a gradual
compression distortion, while higher settings provide more sustain. This control works in conjunction with the Drive
channel Volume control (item O) to set the overall volume of the yellow channel.
J. DRIVE CHANNEL INDICATORS - The RED LED is illuminated while the RED channel is in use.
The YELLOW LED is illuminated while the Yellow channel is in use.

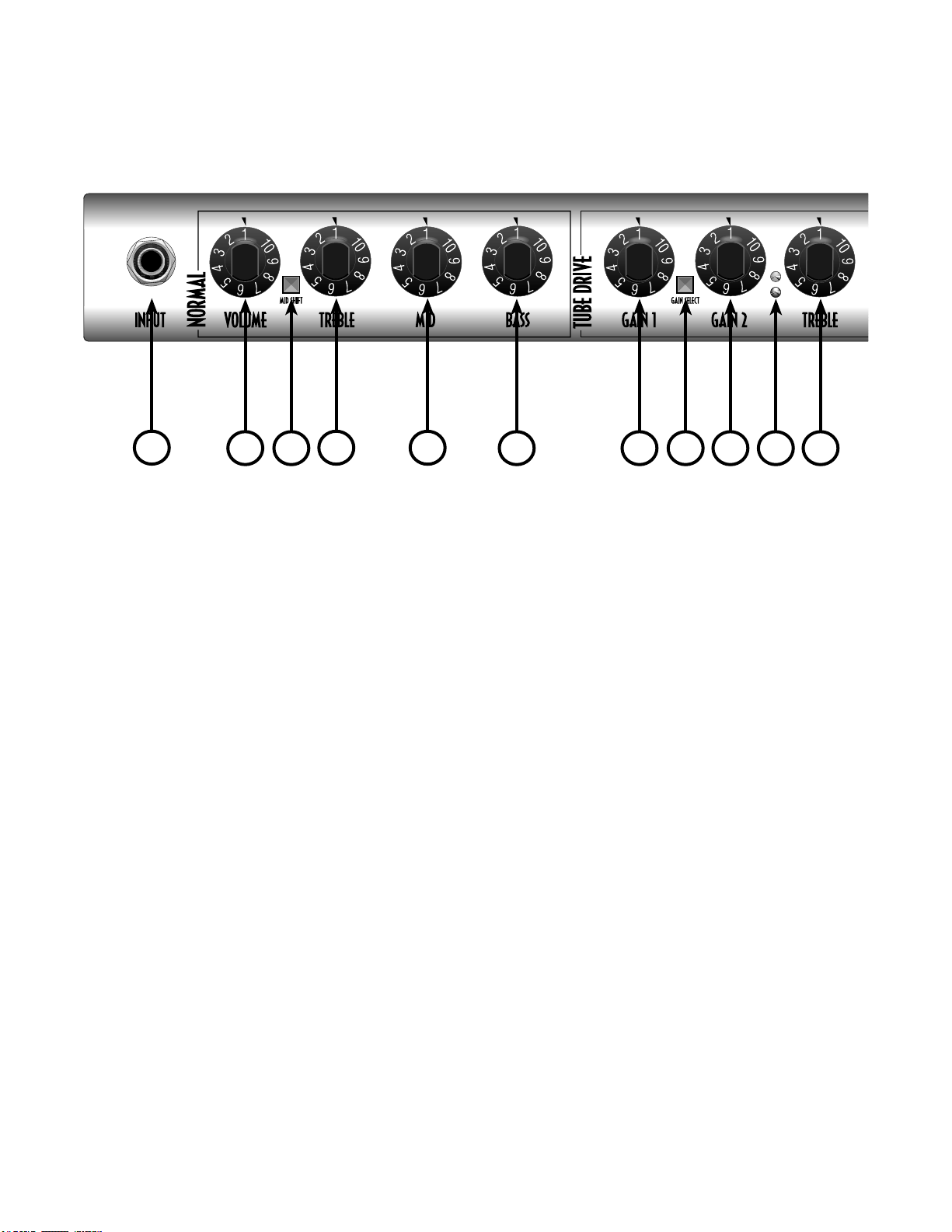

Roc Pro 1000 Front Panel Functions
ABCDEFG
H
I
J
K

TM
LM
N
OPQR S
T
K. TREBLE - Adjusts the amount of high frequency boost or cut in the Drive channel. This control is post
distortion and is useful in adjusting the distortion from smooth to brash.
L. MID - Adjusts the overall tone quality of the DRIVE channel . High Mid settings will emphasize mid
frequencies. A lower setting will notch the midrange to produce the “crunch” sound
characteristic in most heavy metal music.
M. BASS - Adjusts the amount of low frequency boost or cut in the Drive channel. This control is post
distortion and is useful for adjusting the amount of “thump” or “chunk” produced by the drive channel.
N. DRIVE SELECT - When this button is depressed, the amp switches from the normal channel to the
gain select switch (item H).
O. VOLUME - Adjusts the overall volume of the drive channel .
P. REVERB - Adjusts the amount of reverb present in both the Drive and Normal channels.
Q. EFFECTS MIX - Adjusts the amount of audible effects (wet) signal while using the variable effects loop
(located on the rear panel). Lower effects mix settings will produce less “wet” signal. Depending on the
effects device used, when the effects mix control is set to “10” only the “wet” signal will be heard. With
nothing inserted into the Return Jack (item F), the control is disconnected.
R. FOOTSWITCH (INCLUDED) - Plug-in connection for a remote footswitch to switch between the normal
and drive channels, red and yellow channels, and to turn the reverb on and off. Using the footswitch over-
rides the front panel select buttons. NOTE: Any good quality patch cord will work with the remote
footswitch, however, a speaker grade cord is preferable to a coax guitar cord.
S. POWER INDICATOR - This LED is illuminated when the power is ON.
T. POWER SWITCH - Turns the AC power ON and OFF.

A. LINE CORD - the Roc Pro 1000 is equipped with a grounding type supply cord to reduce the possibility
of shock hazard. Be sure to connect it to a grounded AC receptacle. DO NOT ALTER THE AC PLUG.
B. 8 OHM SPEAKER JACK (COMBO & HEAD MODELS) - Plug-in connection on rear panel for 8 ohm
speakers only.
C. 4-OHM ADDITIONAL SPEAKER JACK (HEAD MODEL ONLY) - Plug-in connection on rear panel for
4 ohm speakers or a second 8 Ohm speaker enclosure. The combined minimum impedance for all speaker
enclosures should be 4 ohms (i.e. two 8 ohm enclosures in parallel).
D. LINE OUT - This jack provides an output signal taken directly off the amplifier output and speaker and is
used for direct connection to recording and sound reinforcement equipment. Using a stereo cord in this
jack will provide a quasi-balanced signal. A mono cord will provide an unbalanced signal.
E. SEND - This unbalanced jack provides an output signal from the preamp and pre-reverb. It may be used
to drive effects units in an effects loop, to drive additional amplifiers in a multi-amp set up or as a preamp
send to a mixing console.
F. LEVEL SWITCH - This switch directly effects the Send (item E) jack by boosting or attenuating the signal
sent to the effects. External rack effects usually require -7dB or +4dB settings. Effects pedals usually
require a -16dB setting.
G. RETURN - This jack provides a return from your effects units and is pre-reverb. Plugging into this jack
activates the effects mix control (item Q). This jack can also be used as a power amp input.
Roc Pro 1000 REAR PANEL FUNCTIONS
E
B
ADF
CG

If the amp is set up but does not function, check the following items:
• Is the power cord properly plugged into an electrical outlet?
• Is there power at the outlet?
• Is the speaker properly connected to the amplifier?
• Are all the control knobs turned above zero?
• Is the volume control on the instrument turned up?
• Is the instrument properly plugged into the amplifier?
(Eliminate any effects pedal and try using another cord.)
If after checking all of the above and your amplifier is still not performing
correctly, consult your authorized Fender Service Center.
TROUBLESHOOTER'S CHECKLIST
The Roc Pro 1000 circuitry consists of one Fender
special design 12AX7A tube (part #099-5091) . For
continued optimum performance from your amplifier,
this tube should only be replaced with a tube of the
same type and specification.
TUBE REPLACEMENT
TOLEX COVERING CARE
Your Roc Pro 1000 is covered in genuine Tolex for
long life and lasting good looks. To clean the Tolex
covering, use a sponge and a light soapy water
solution. Avoid spilling liquids on the operating
surfaces, grill, volume and tone controls, switches and
speakers. ALWAYS unplug your amplifier before
cleaning or approaching it with fluids.

Roc Pro 1000 Specifications
TYPE: PR 209
PART NUMBER: Combo Head
22-6878 (100V) 22-6877 (100V)
22-6808 (120V) 22-6807 (120V)
22-6868 (230V) 22-6867 (230V)
22-6838 (240V) 22-6837 (240V)
INPUT IMPEDANCE : > 1 MΩ
NOMINAL LEVEL: 100mV
POWER OUTPUT: 69W into 8Ωat 5% THD
94W into 4Ωat 5% THD
EFFECTS LOOP: Nominal Level; Selectable +4, -7, -16 dBV
Output Impedance: 1.2 kΩmax.
Input Impedance: 100kΩ
POWER REQUIREMENTS: 100V AC, 50/60 Hz, 300W
120V AC, 60 Hz, 300W
230V AC, 50 Hz, 300W
240V AC, 50 Hz, 300W
SPEAKER: 8Ω12” Fender Special Design (P/N 040598)
EXTERNAL SPEAKER: Combo Version
(Not Included) Fender recommends Guitar enclosure GE-112 21-1660 @ 8Ω
Head Version
Fender recommends Guitar enclosure GE-412 21-1662 @ 4Ω
FOOTSWITCH: 3 Button Footswitch Controls Gain, Gain Select and Reverb On/Off
(Included)
DIMENSIONS: Combo Head
Height: 17.5 in. 44.5 cm 8.5 in. 21.6 cm
Width: 22.5 in. 56.8 cm 22.5 in. 56.8 cm
Depth: 10.25 in. 25.9 cm 9.5 in. 24.1 cm
Weight: 41 lbs. 18.6 kg 25 lbs. 11.4 kg
WARNING: TO PREVENT FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
NO USER SERVICEABLE PARTS INSIDE,
REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
THIS UNIT MUST BE EARTH GROUNDED.
THIS EQUIPMENT CONFORMS TO
THE FOLLOWING DIRECTIVES :
EMC 89/336/EEC AND LV 73/23/EEC

A Product of:
Fender Musical Instruments Corporation
Corona, CA 91720 USA
Our manuals are intended to be a reference source throughout
the lifetime of your product. We appreciate any suggestions,
and/or comments regarding this manual.
Please send your comments to:
Fender Musical Instruments Corp.
Research and Development
7975 North Hayden Road
Scottsdale, Arizona 85258, USA
Product specifications are subject to change without notice.
