Feniex AI-0817 User manual

Feniex AI Instruction Manual
1.800.615.8350 / feniex.com
Feniex Product Copyrights This price List and the mentioned Feniex products include or describe copyrighted Feniex material. Laws in the
United States and other countries preserve for Feniex Industries and its licensors certain exclusive rights for copyrighted material, including the
exclusive right to copy, reproduce in any form, distribute and make derivative works of the copyrighted material. Accordingly, any copyrighted
material of Feniex and its licensors contained herein or in the Feniex products described in this Price List may not be copied, reproduced,
distributed, merged or modied,transmitted, transcribed, stored in retrieval system or translated into any language or computer language, in any
form or by any means, without prior written permission of Feniex Industries, Inc.. Feniex and the stylized Feniex logo are registered in the U.S.
Patent & Trademark Oce.
AI Light Bar Part #
AI 8" AI-0817
AI 14" AI-1417
AI 20" AI-2017
AI 27" AI-2717
AI 33" AI-3317
AI 40" AI-4017
AI 46" AI-4617
AI 52" AI-5217

Feniex Industries, Inc.
1.800.615.8350 / feniex.com
2
Table of Contents
Safety Regulations & Warranty 3
Service after Expiration 3
Copyright 3
Feniex Product Copyright 3
System Specication 4
Equipment Dimensions 5
Box Contents 6
Mounting Instructions 7
Wiring Diagram 8
Controller Functions 9
Software 10

Operational times are from 10 a.m. to 5 p.m.
central time, Monday through Friday. Please
do not send in product without contacting
support rst for a RMA number.
Service After Expiration
Feniex Industries will still provide service for
all products after expiration of the warranty.
For any issues, call the customer support
line. In some instances it may be necessary
for the product to be shipped, freight prepaid
and insured for loss or damage to Feniex
headquarters.
Copyright
This instruction manual and the Feniex
products described in this instruction manual
may include or describe copyrighted Feniex
material. Laws in the United States and other
countries preserve for Feniex Industries
and its licensors certain exclusive rights for
copyrighted material, including the exclusive
right to copy, reproduce in any form, distribute
and make derivative works of the copyrighted
material. Accordingly, any copyrighted
material of Feniex and its licensors contained
herein or in the Feniex products described in
this instruction manual may not be copied,
reproduced, distributed, merged or modied
in any manner without the express written
permission of Feniex Industries, Inc.
Feniex Product Copyrights
The products described in this document
are the property of Feniex Industries, Inc. It is
furnished by express license agreement only
and may be used only in accordance with the
terms of such an agreement. Products and
documentation are copyrighted materials.
Making unauthorized copies is prohibited by
law. No part of the product or documentation
may be reproduced, transmitted, transcribed,
stored in retrieval system or translated into any
language or computer language, in any form or
by any means, without prior permission from
Feniex Industries, Inc.
Safety Regulations
The following provides all the information
necessary to safely operate the previously
listed products of Feniex Industries, Inc. Please
read this manual thoroughly before installing or
operating your new product in order to prevent
any damage or injury. Failure to follow the
listed instructions in this manual may result in
damage to your products or personal injury.
• Proper installation of this product requires
good knowledge of automotive systems,
electronics and procedures.
• Please guarantee all vital components
of the vehicle are not in danger of being
damaged by drilling holes necessary for
installation. Check all sides of the mounting
surface before drilling any holes into the
vehicle.
• Do not install this product in any way
that interferes with the deployment of
the air bag. Doing so may damage the
eectiveness of the air bag and can lead
to serious personal and vehicle injury. The
installer will assume full responsibility of
proper installation of the new unit.
• Please clean the mounting surface before
installation of the unit when using tape,
brackets, magnet, Velcro or suction cups.
• The product's ground wire must be
connected directly to the Negative (-)
battery post for eective use of the unit.
Please follow all wiring guidelines provided
to guarantee long lifespan and productivity.
Failing to follow these instructions may
result in damage to the product.
Warranty
Feniex Industries, Inc. warrants to the original
purchaser that the product shall be free
from defects in material and workmanship
for 5 years from the date of purchase for all
LED products. Feniex Industries warranties
speakers, sirens, ashers, and controllers for
2 years.
If a warranty problem occurs, please contact
customer support at 1.800.615.8350 or visit
the web site at www.Feniex.com. If the product
needs to be returned for repair or replacement,
call our customer support line to receive a
return merchandise authorization number.
Warning! Utilizing non-factory screws and mounting
brackets may result in loss of warranty coverage.
Feniex Industries, Inc.
1.800.615.8350 / feniex.com
3
Safety Regulations & Warranty

Feniex Industries, Inc.
1.800.615.8350 / feniex.com
4
System Specication
System Specications:
Operating Current (see table)
Operating Voltage 9-15V (must have 11.5 V to turn on)
Modules Current Draw Total Lumens Standby Current Fuse
1 6 6,500 125mA 10A
2 11 12,500 145mA 20A
3 16 19,000 160mA 30A
4 21 25,000 180mA 40A
5 26 31,000 195mA 40A
6 31 37,500 215mA 50A
7 36 44,000 230mA 60A
8 41 50,000 250mA 60A

Feniex Industries, Inc.
1.800.615.8350 / feniex.com
5
Equipment Dimensions
14"
3.53"
5.37"
4.30"
3.75"
2.97"
1.3"
Modules Length
1 7.8"
2 14.06"
3 20.32"
4 26.58"
5 32.84"
6 39.1"
7 45.36"
8 51.62"

Feniex Industries, Inc.
1.800.615.8350 / feniex.com
6

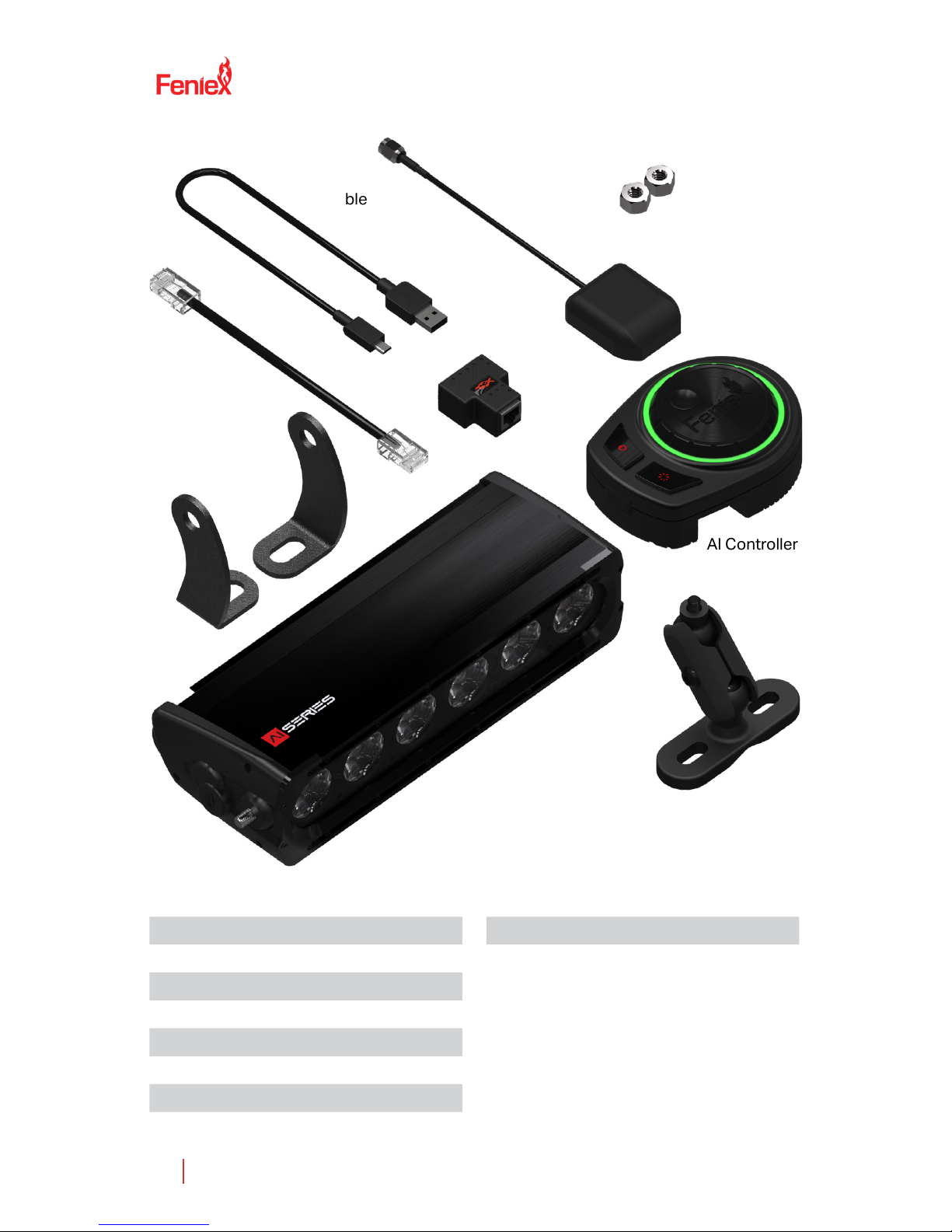

Box Contents
Light Bar Contents Quantity
AI Light Bar 1
AI Controller 1
Brackets 2
Swivel Mount 5
USB Cable 1
RJ45 Cable 1
Antenna 1
Nuts 2
RJ45 Cable
RJ45 Hub
USB Cable
AI Controller
Swivel Mount
Brackets
AI Light Bar
Antenna
3/8 16th" Nut
Add-on Accessories Quantity
RJ45 Hub yes 1
RJ45 Cable yes 1

Feniex Industries, Inc.
1.800.615.8350 / feniex.com
7
1.) Use the provided
hardware to attach the
left and right bracket on
either end of the light bar
(recommended torque
setting of 25ft/lbs).
2.) Once secured, place
the light bar on the
intended mounting
surface. Mark the
hole placement of the
brackets.
Caution! Attach the light
bar to a secure area of the
vehicle that can support the
weight . Do not drill into any
parts that may have wiring
or might tamper with the
functionality of the vehicle.
3.) Drill the 2 holes
marked in step 2 for the
brackets.
4.) Secure the light bar
and brackets to the
mounting surface.
5.) Route the wires away
from any sharp edges
and follow the wiring
diagram on the following
page.
Mounting Instructions

Feniex Industries, Inc.
1.800.615.8350 / feniex.com
8

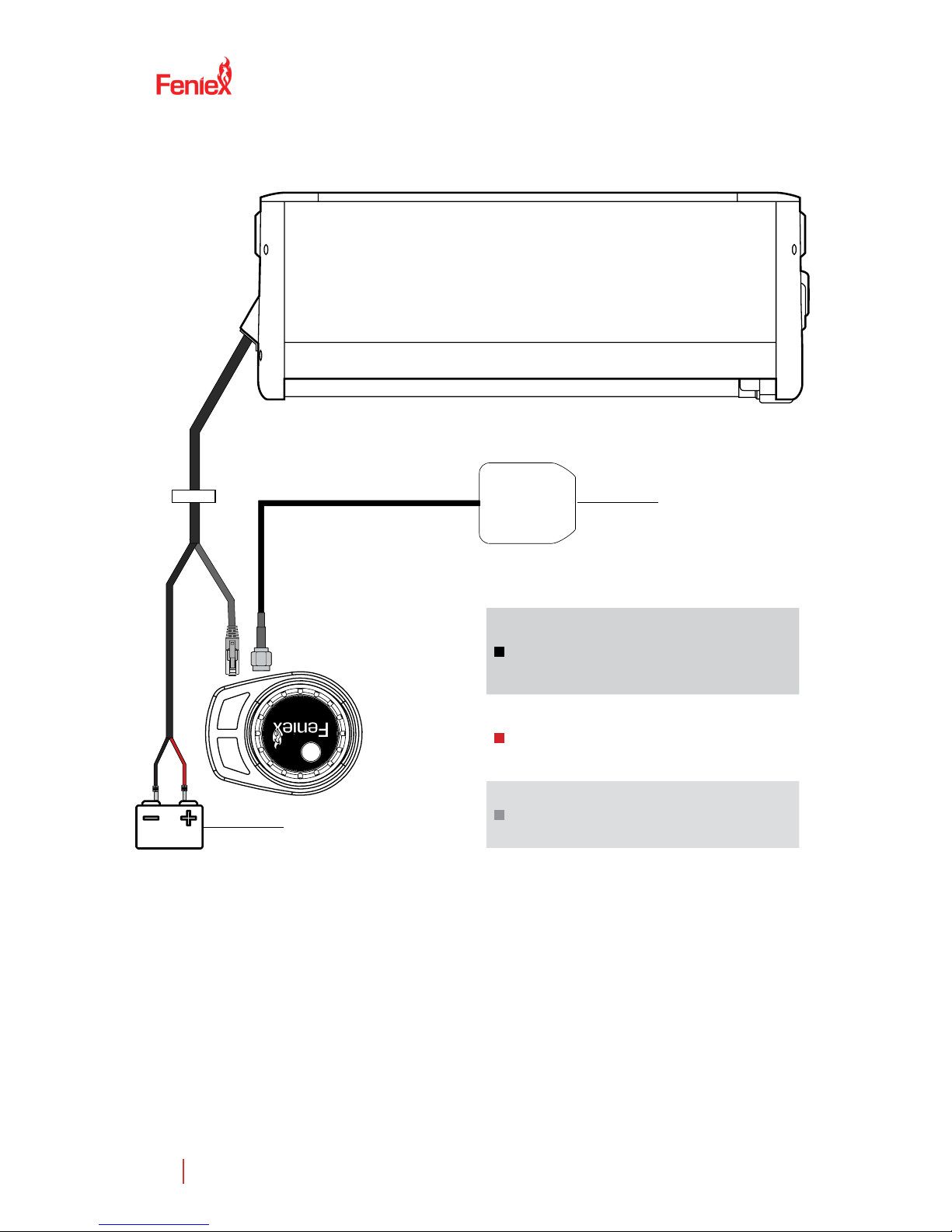

Wiring Diagram
Color: Function: Connection
Black
Ground
Connects to the
negative terminal
of the vehicle's
battery.
Red
Battery
(+12VDC)
Connects to the
positive terminal
of the vehicle's
battery.
Gray
Controller
Connects to the
RJ45 Port in the
AI Controller
*See page 4 for fuse specifications
Vehicle's Battery
FUSE*
Antenna
1.) Connect the AI Controller to the AI Light
Bar using the RJ45 cable.
2.) Mount the Antenna on the roof the
vehicle and connect it to the controller
Wiring Instructions
3.) Connect the light bar to the battery,
attaching the red 12V+ wire to the positive
terminal of the vehicle's battery. Ground
the black wire or connect it to the 12V-
terminal of the vehicle's battery.
4.) Press the power button twice to turn on
the controller and light bar.

Feniex Industries, Inc.
1.800.615.8350 / feniex.com
9

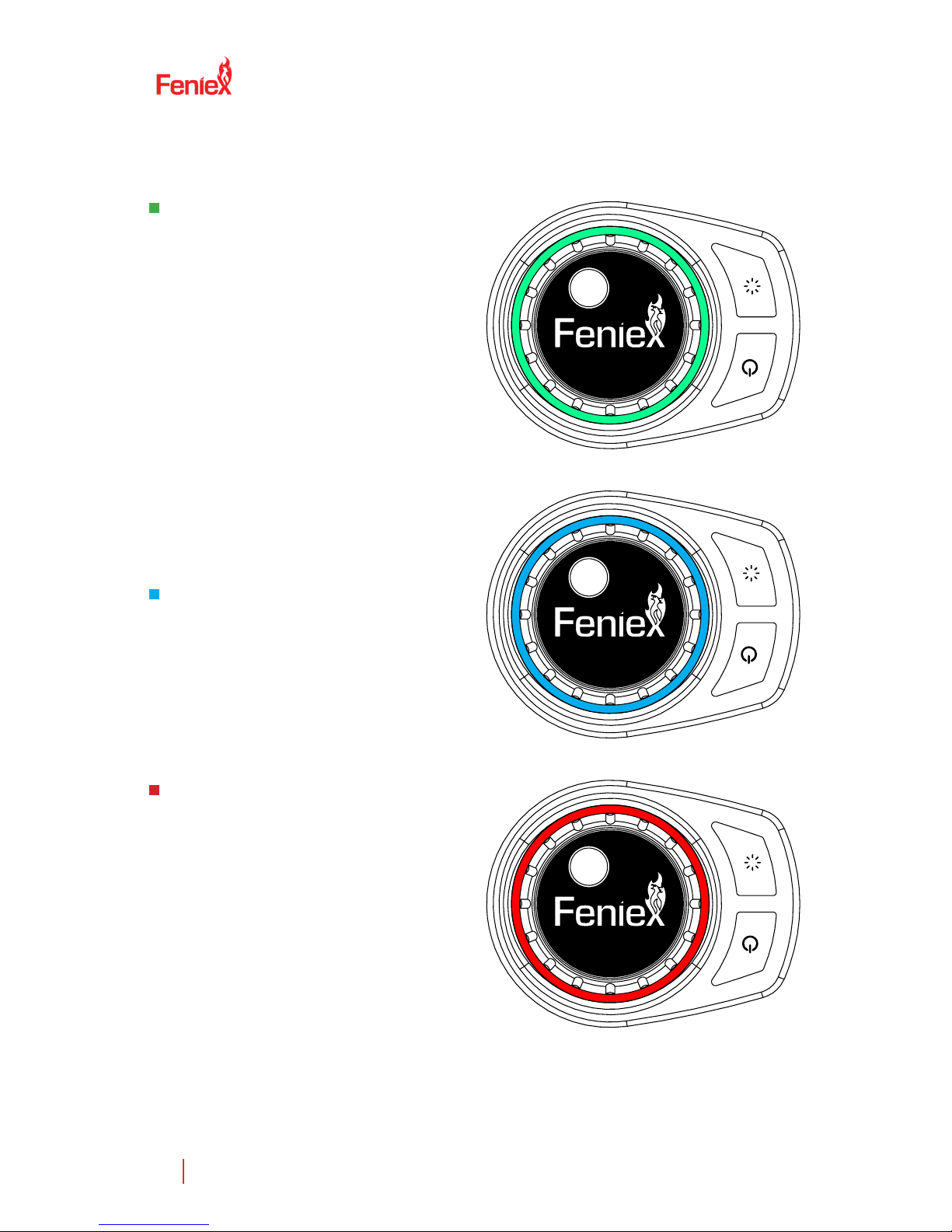

Controller Functions
Autonomous Mode: Press the dial
button to turn on Autonomous Mode.
Download the AI Software (feniex.com) to
select from 2 dierent options:
AI Mode: Monitors the speed of the vehicle
and adjusts the light spread accordingly,
without the user's control.
Custom Mode: Select your preferred
turn sensitivity and speed for light spread
adjustments.
The led ring will brighten as the speed
increases, thereby narrowing the light
spread.
Dim Mode: Select the dim button to
turn on dim mode. Rotate the dial to adjust
the brightness. When the led screen is
completely dim, no lights will be on. When
the led screen is completely on, the bar will
be at 100% brightness.
Focus Mode: Turn the power on to
select focus mode. Rotate the dial to
adjust the focus on the lights. When the
led screen is completely dim, the lights will
be in full spread. When the led screen is
completely on, the lights will be in full spot.
Memory Presets: Memory presets are
the default settings if the controller is
disconnected from the light bar. To set:
1.) Set the focus (Focus Mode)
2.) Set the brightness (Dim Mode)
3.) Press and hold the brightness button

Feniex Industries, Inc.
1.800.615.8350 / feniex.com
10
Software
1. Download: Download and install the AI
software from feniex.com
2. Connect: Using the provided USB
cable, connect the AI Controller to your
computer.
3. Launch: Launch the AI Software.
4. Initialize: Click run set up.
5. Speed: Select Custom or AI.
6. Turn: Turn Detection controls the light
bar's Turn Angle and Sensitivity. Turn Angle
changes the light spread based on the
sharpness of the turn. Sensitivity controls
how the light spread will change over the
duration of the turn.
7. Review: Check your nal settings of the
light bar. Click continue to program the bar
or previous to change your settings.
AI mode changes the light spread based
on your driving characteristics. Custom
mode allows the user to manually input
values for turn sensitivity and speed.
8. Program: Programming Successful
indicates your bar has been programed
and is ready to use.
