Feniex DOWN LUX D-4600 User manual

Down Lux Instruction Manual
1.800.615.8350 / feniex.com
Feniex Product Copyrights This price List and the mentioned Feniex products include or describe copyrighted Feniex material. Laws in the
United States and other countries preserve for Feniex Industries and its licensors certain exclusive rights for copyrighted material, including the
exclusive right to copy, reproduce in any form, distribute and make derivative works of the copyrighted material. Accordingly, any copyrighted
material of Feniex and its licensors contained herein or in the Feniex products described in this Price List may not be copied, reproduced,
distributed, merged or modied,transmitted, transcribed, stored in retrieval system or translated into any language or computer language, in any
form or by any means, without prior written permission of Feniex Industries, Inc.. Feniex and the stylized Feniex logo are registered in the U.S.
Patent & Trademark Oce.
DOWN LUX: INTENSE SCENE LIGHTING
Equipment Dimensions
pp. 03
Specifications
pp.03
Wiring Diagram
pp.04
Feniex University
feniexuniversity.com
DOWN LUX
D-4600
DOWN LUX
D-3700
DOWN LUX
D-7900

If the product needs to be returned for repair
or replacement, call our customer support line
to receive a return merchandise authorization
number.
Operational times are from 10 a.m. to 5 p.m.
central time, Monday through Friday. Please
do not send in product without contacting
support rst for a RMA number.
Service After Expiration
Feniex Industries will still provide service for
all products after expiration of the warranty.
For any issues, call the customer support
line. In some instances it may be necessary
for the product to be shipped, freight prepaid
and insured for loss or damage to Feniex
headquarters.
Copyright
This instruction manual and the Feniex
products described in this instruction manual
may include or describe copyrighted Feniex
material. Laws in the United States and other
countries preserve for Feniex Industries
and its licensors certain exclusive rights for
copyrighted material, including the exclusive
right to copy, reproduce in any form, distribute
and make derivative works of the copyrighted
material. Accordingly, any copyrighted
material of Feniex and its licensors contained
herein or in the Feniex products described in
this instruction manual may not be copied,
reproduced, distributed, merged or modied
in any manner without the express written
permission of Feniex Industries, Inc.
Feniex Product Copyrights
The products described in this document
are the property of Feniex Industries, Inc. It is
furnished by express license agreement only
and may be used only in accordance with the
terms of such an agreement. Products and
documentation are copyrighted materials.
Making unauthorized copies is prohibited by
law. No part of the product or documentation
may be reproduced, transmitted, transcribed,
stored in retrieval system or translated into any
language or computer language, in any form or
by any means, without prior permission from
Feniex Industries, Inc.
Safety Regulations
The following provides all the information
necessary to safely operate the previously
listed products of Feniex Industries, Inc. Please
read this manual thoroughly before installing or
operating your new product in order to prevent
any damage or injury. Failure to follow the
listed instructions in this manual may result in
damage to your products or personal injury.
• Proper installation of this product requires
good knowledge of automotive systems,
electronics and procedures.
• Please guarantee all vital components
of the vehicle are not in danger of being
damaged by drilling holes necessary for
installation. Check all sides of the mounting
surface before drilling any holes into the
vehicle.
• Do not install this product in any way
that interferes with the deployment of
the air bag. Doing so may damage the
eectiveness of the air bag and can lead
to serious personal and vehicle injury. The
installer will assume full responsibility of
proper installation of the new unit.
• Please clean the mounting surface before
installation of the unit when using tape,
brackets, magnet, Velcro or suction cups.
• The product's ground wire must be
connected directly to the Negative (-)
battery post for eective use of the unit.
Please follow all wiring guidelines provided
to guarantee long lifespan and productivity.
Failing to follow these instructions may
result in damage to the product.
Warranty
Feniex Industries, Inc. warranties to the original
purchaser that all our products shall be free
from defects in material and workmanship.
Feniex Industries' speakers, sirens, rocker
panels, AM600 Beacons, Torch Lights, AI
lightbars, AI Cubes, AM900 Work Lights, 8.5”
Dome Lights, ashlights, Remote Spot Lights
and controllers are warrantied for 2 years from
the manufacturing date. In addition, all other
products are warrantied for 5 years from the
manufacturing date.
If a warranty problem occurs, please contact
customer support at 1.800.615.8350 or visit
the web site at www.Feniex.com.
Warning! Utilizing non-factory screws and mounting
brackets may result in loss of warranty coverage.
Feniex Industries, Inc.
1.800.615.8350 / feniex.com
2
SAFETY REGULATIONS & WARRANTY

Feniex Industries, Inc.
1.800.615.8350 / feniex.com
3

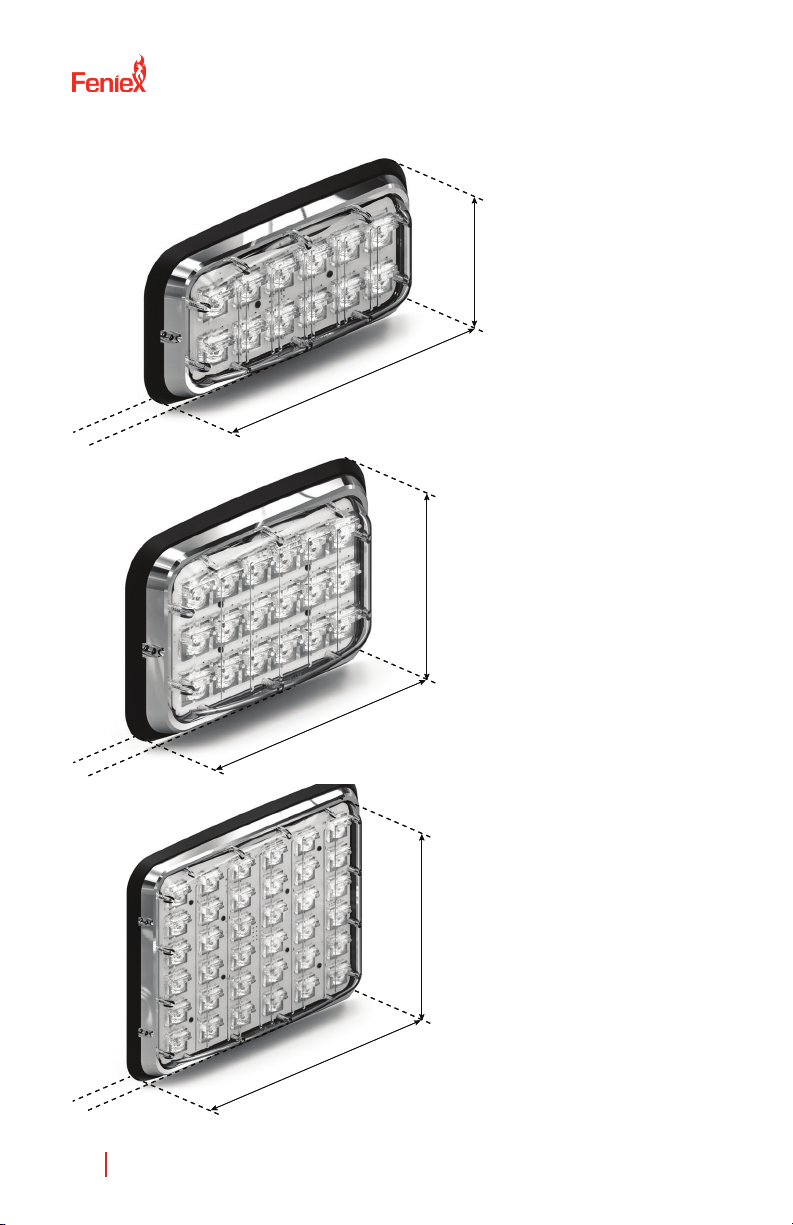

EQUIPMENT DIMENSIONS
3.75"
8"
1"
7.1"
4.75"
1"
1"
7.75"
10"

Feniex Industries, Inc.
1.800.615.8350 / feniex.com
4
SPECIFICATIONS
12V DCOperating Voltage
10mA
6x4: 18 LEDs
Standby Power
LED Count:
7x3: 12 LEDs
9x7: 36 LEDs
Waterproof:
Mounting Options:
Surface Mount Bezel
Rear Mount (no bezel)
IP67
WIRING DIAGRAM
■Activation
In order to activate the unit,
extend the red, 12v+ wire to
the 12V+ post of the vehicle's
battery. Extend the black
and green, 12v- wires to the
ground post of the vehicle's
battery.
12V+/Constant Power
12v+, Mode 1
Red
Yellow
Feniex University
Watch our instructional videos
at Feniex University to see an
in-depth look at our product's
features and functions.
Use the link below:
feniexuniversity.com
12V+, Mode 2
Sync/Pattern Change
White
Blue
12V-/GroundGreen
12V-/GroundBlack
Note: Both ground wires must
be tied together and used
Note: Constant power must
be powered for the unit to
function.
6x4: 1.0APower Drive
7x3: 0.75A
9x7: 2A

Feniex Industries, Inc.
1.800.615.8350 / feniex.com
5
Single Slow
Single Fast
1
2
Single Combo
Dual Slow
3
4
Dual Fast5
Dual Combo6
PATTERNS
Triple Slow
Triple Fast
7
8
Triple Combo
Attack 1
9
10
Attack 211
Break Pop12
Tail 10%13
Steady On 100%14
■Syncing Flash Patterns
1. Connect 12v+ to red and a
mode wire. Connect 12v- to
black and green wires. During
the ash hold the blue wire to
ground for 3 seconds to set
the phase.
2. It will turn all steady on
to indicate as a "follower"
or if no lights appear after 3
seconds then it's a "leader".
3. Set desired units on the
same phase to sync ash
together. Combine color
coded wires together and
momentarily tap the blue wire
to 12v- to change the desired
ash pattern
■Alternating Flash Patterns
1. Connect 12v+ to red and a mode wire. Connect 12v- to black and green
wires.
2. During the ash hold the blue wire to ground for 3 seconds to set the
phase. It will turn all steady on to indicate as a "follower" or if no lights
appear after 3 seconds then it's a "leader". Set one unit as a "leader" and
the other unit a "follower".
3. Combine the color coded wires together with multiples units and
momentarily tap the blue wires to 12v- to change the desired ash pattern.
