Fermax 1088 User manual

16
INTERFACE TELEFÓNICO
INTERFACE TELEFÓNIC
O
« TELEPHONE INTERFACE MANUAL »
Ref.1088 - Telephone Interface for ADS systems.
Ref. 4300 - Telephone Interface for 4+N systems.
Technical publication of informative nature edited by FERMAX ELECTRONICA S.A.E.
FERMAX ELECTRONICA S.A.E., in a policy of ongoing enhancement, reserves the right to modify the
contents of this document as well as the features of the products described herein at any time and without
prior notice. Any modifications will be reflected in subsequent editions of this document.
ENGLISH

17
INTERFACE TELEFÓNICO
INTERFACE TELEFÓNICO
INDEX
INTRODUCTION ............................................................................................................................................... 4
CONFIGURATION ............................................................................................................................................. 5
TYPICAL SETUP ........................................................................................................................................... 5
MIXED SETUP ............................................................................................................................................... 5
SETUP WITH TELEPHONE SWITCHBOARD, CONNECTION IN EXTENSIONS ..................................... 6
SETUP WITH TELEPHONE SWITCHBOARD, CONNECTION ON LINE .................................................. 6
INSTALLATION DIAGRAM - CONVENTIONAL SYSTEM (4+n) ..................................................................... 7
INSTALLATION DIAGRAM - ADS SYSTEM ..................................................................................................... 8
PROGRAMMING INSTALLATION PARAMETERS .......................................................................................... 9
PROGRAMMING EXAMPLE 1 .................................................................................................................. 10
PROGRAMMING EXAMPLE 2 .................................................................................................................. 10

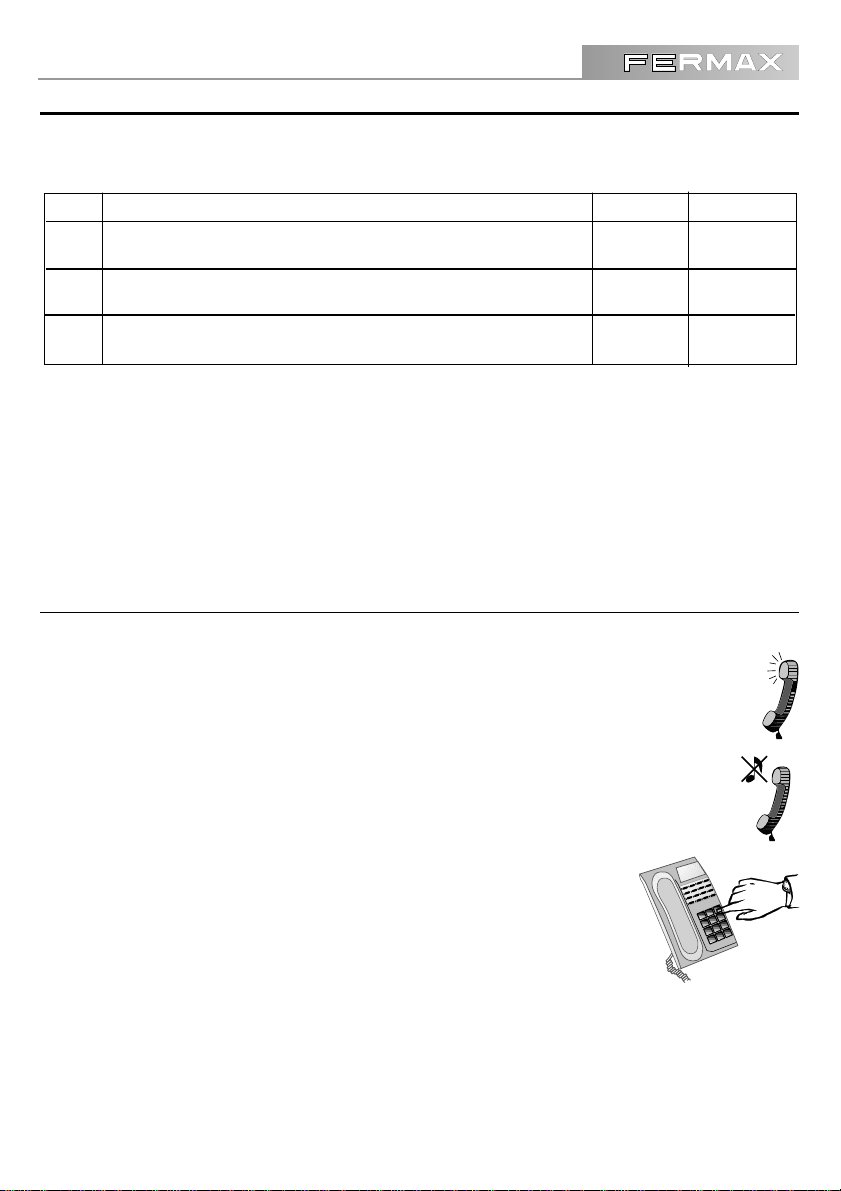

PROGRAMMING USER PARAMETERS ........................................................................................................ 11
PROGRAMMING EXAMPLE ..................................................................................................................... 11
OPERATION..................................................................................................................................................... 12
ADDITIONAL OPERATIONS WITH OUTDOOR PANEL ........................................................................... 13

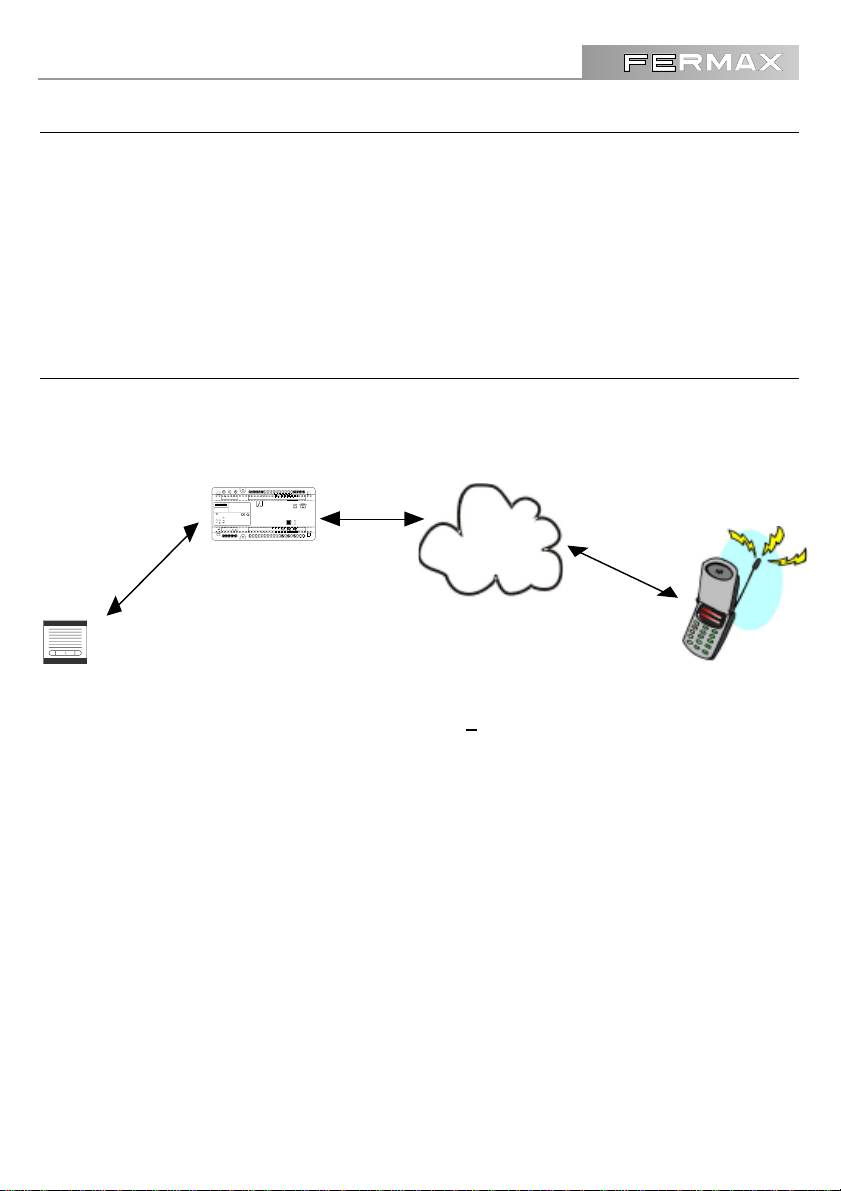

CALL DIVERT FUNCTION.......................................................................................................................... 13
TROUBLESHOOTING ..................................................................................................................................... 14
TECHNICAL FEATURES ................................................................................................................................. 15

18
INTERFACE TELEFÓNICO
INTERFACE TELEFÓNIC
O
INTRODUCTION
TheTelephone Interface is supplied in two different versions:
- For Conventional 4+N System (Ref.4300)
Compatible with all Fermax conventional system amplifiers (both electronic call and buzzer)
- For ADS System (Ref.1088)
The maximum number of telephones connected to the Telephone Interface to ensure correct operation is 4
(the same as with telephone companies).
1- Green LED, in use.
Lights up when Interface is being used and blinks
when divert number is keyed in.
2- Yellow LED, programming.
Lights up when programming mode is entered.
3- Red LED, power.
Lights up when power supply is switched on.
4- Contacts for divert switch
Connect switch here to activate or deactivate call
divert (optional).
5- Relay contacts
6- Telephone line connection (LN,LN)
7- Line output to telephones (TF,TF)
8- Power input
9- Panel/telephone audio adjustments
10- Audio adjustments in divert
11- Door control connection (or panel bus) 4+N
12- Door control connection (or panel bus) ADS
ANTES DE CONECTAR A LA ALIMENTACIÓN.
BEFORE CONNECTION TO THE SUPPLY.
- VEASE LAS INSTRUCCIONES DE INSTALACIÓN
- SEE INSTALLATION INSTRUCTIONS
INTERFACE TELEFONICO ADS
MADE IN SPAIN
ADS TELEPHONIC INTERFACE
-+
LNNONCD
-DC LN TFTFUSE PRG PWR
FORWARD
REF. 1088
18 V, 400 mA
1 V, 300 mA
1 V, 700 mA, 50-60 Hz
+
INPUT
L-AUDIO ADJUST
12 3 4 5 6
9
7
810
12
REF. 4300
4+N TELEPHONIC INTERFACE
INTERFACE TELEFONICO 4+N
PRG
MADE IN SPAIN
NC CUSE PWR D D NO
-
INPUT
1 3 4 6
TFLNLN TF
AUDIO ADJUST
FORWARD
1 V, 700 mA, 50-60 Hz
1 V, 400 mA
ANTES DE CONECTAR A LA ALIMENTACIÓN.
BEFORE CONNECTION TO THE SUPPLY.
- VEASE LAS INSTRUCCIONES DE INSTALACIÓN
- SEE INSTALLATION INSTRUCTIONS
12 3 4 5 6
9
7
81011
Telephone Interface 4+N Ref. 4300 Telephone Interface ADS Ref. 1088

19
INTERFACE TELEFÓNICO
INTERFACE TELEFÓNICO
CONFIGURATION
The Telephone Interface enables the house telephones to receive and answer calls from the automatic
porter and it is also possible to divert them out by means of the telephone line.
Here are some examples in block diagram format:
TYPICAL SETUP
All the telephones also carry out electronic door control functions.
MIXED SETUP
In this example, some telephones perform door control operations and others do not.
TELEPHONE ONLY
ANTES DE CONECTAR A LA ALIMENTACIÓN.
BEFORE CONNECTION TO THE SUPPLY.
- VEASE LAS INSTRUCCIONES DE INSTALACIÓN
- SEE INSTALLATION INSTRUCTIONS
INTERFACE TELEFONICO ADS
MADE IN SPAIN
ADS TELEPHONIC INTERFACE
-+
LNNONCD
-DC LN TFTFUSE PRG PWR
FORWARD
18 V, 400 mA
1 V, 300 mA
1 V, 700 mA, 50-60 Hz
INPUT
AUDIO ADJUST
TELEPHONE / DOOR CONTROL
RTB
ANTES DE CONECTAR A LA ALIMENTACIÓN.
BEFORE CONNECTION TO THE SUPPLY.
- VEASE LAS INSTRUCCIONES DE INSTALACIÓN
- SEE INSTALLATION INSTRUCTIONS
INTERFACE TELEFONICO ADS
MADE IN SPAIN
ADS TELEPHONIC INTERFACE
-+
LNNONCD
-DC LN TFTFUSE PRG PWR
FORWARD
18 V, 400 mA
1 V, 300 mA
1 V, 700 mA, 50-60 Hz
INPUT
AUDIO ADJUST
TELEPHONE LINE
RTB
TELEPHONE LINE

20
INTERFACE TELEFÓNICO
INTERFACE TELEFÓNIC
O
PABX
SETUP WITH TELEPHONE SWITCHBOARD, CONNECTION ON LINE
SETUP WITH TELEPHONE SWITCHBOARD, CONNECTION IN EXTENSIONS
Telephone Interface intercepts the telephone line at an outbound switchboard extension.
Telephone Interface intercepts the line before it enters the switchboard and so all the extensions depending
on the inbound line will receive the calls from the outdoor panel.
• The Interface intercepts 1 of the 3 telephone lines (L1, L2, L3)
coming into the switchboard.
• The extensions set up to receive outside calls from Line 1 (e.g:
Ext. 2 and Ext. 4), can also act as a door control .
ANTES DE CONECTAR A LA ALIMENTACIÓN.
BEFORE CONNECTION TO THE SUPPLY.
- VEASE LAS INSTRUCCIONES DE INSTALACIÓN
- SEE INSTALLATION INSTRUCTIONS
INTERFACE TELEFONICO ADS
MADE IN SPAIN
ADS TELEPHONIC INTERFACE
-+
LNNONCD
-DC LN TFTFUSE PRG PWR
FORWARD
18 V, 400 mA
1 V, 300 mA
1 V, 700 mA, 50-60 Hz
INPUT
AUDIO ADJUST
TELEPHONE LINES
Ext. 1
Ext. 2
Ext. 3 Ext. 4
Ext. 5
Ext. 6
EXAMPLE:
L1
L2
L3
TELEPHONE ONLY
TELEPHONE / DOOR
CONTROL
TELEPHONE ONLY
TELEPHONE /
DOOR CONTROL
TELEPHONE ONLY
TELEPHONE ONLY
RTB
• Interface intercepts an outbound switchboard extension Ext. 2.
• Telephones depending on this extension will perform door control
functions.
ANTES DE CONECTAR A LA ALIMENTACIÓN.
BEFORE CONNECTION TO THE SUPPLY.
- VEASE LAS INSTRUCCIONES DE INSTALACIÓN
- SEE INSTALLATION INSTRUCTIONS
INTERFACE TELEFONICO ADS
MADE IN SPAIN
ADS TELEPHONIC INTERFACE
-+
LNNONCD
-DC LN TFTFUSE PRG PWR
FORWARD
18 V, 400 mA
1 V, 300 mA
1 V, 700 mA, 50-60 Hz
INPUT
AUDIO ADJUST
TELEPHONE LINE
PABX
Ext. 1
Ext. 2
TELEPHONE / DOOR CONTROL
RTB
Ext. 3
Ext. 4
Ext. 5
√√
√√
√
IMPORTANT NOTES:
• The Telephone Interface will only accept tone dialling .
• For use in ISDN or ADSL lines the necessary filters or adaptors must be installed.
EXAMPLE:

21
INTERFACE TELEFÓNICO
INTERFACE TELEFÓNICO
NOTE:
• You can place the Telephone Interface at any point of the conventional installation connecting cables 1, 2, 3, 6 and 4 (call )
INSTALLATION DIAGRAMS - CONVENTIONAL SYSTEM (4+n)
APARTMENT
GENERAL INSTALLATION
RTB
REF. 8980
12 Vac - 1A
PRIM
SEC. 12Vac
Vac
4
6321
6
3
2
1
REF. 4300
4+N TELEPHONIC INTERFACE
INTERFACE TELEFONICO 4+N
PRG
MADE IN SPAIN
NC CUSE PWR D D NO
-
INPUT
1 3 4 6
TFLNLN TF
AUDIO ADJUST
FORWARD
1 V, 700 mA, 50-60 Hz 1 V, 400 mA
ANTES DE CONECTAR A LA ALIMENTACIÓN.
BEFORE CONNECTION TO THE SUPPLY.
- VEASE LAS INSTRUCCIONES DE INSTALACIÓN
- SEE INSTALLATION INSTRUCTIONS
6321
MADE IN SPAIN
+ CALL WIRES
DIVERT SWITCH(OPTIONAL)
GENERAL INSTALLATION

22
INTERFACE TELEFÓNICO
INTERFACE TELEFÓNIC
O
+
-
L
RTB
PRIM
SEC. 12Vac
Vac
ANTES DE CONECTAR A LA ALIMENTACIÓN.
BEFORE CONNECTION TO THE SUPPLY.
- VEASE LAS INSTRUCCIONES DE INSTALACIÓN
- SEE INSTALLATION INSTRUCTIONS
INTERFACE TELEFONICO ADS
MADE IN SPAIN
ADS TELEPHONIC INTERFACE
-+
LNNONCD
-DC LN TFTFUSE PRG PWR
FORWARD
REF. 1088
18 V, 400 mA 1 V, 300 mA 1 V, 700 mA, 50-60 Hz
+
INPUT
L-AUDIO ADJUST
+
-L
+L
-
REF. 8980
12 Vac - 1A
MADE IN SPAIN
INSTALLATION DIAGRAM - ADS System
NOTE:
• The Telephone Interface can be placed at any point of the ADS installation, intercepting the 3 cables ( +, - , L )
APARTMENT
GENERAL INSTALLATION
DIVERT SWITCH (OPTIONAL)
GENERAL INSTALLATION

23
INTERFACE TELEFÓNICO
INTERFACE TELEFÓNICO

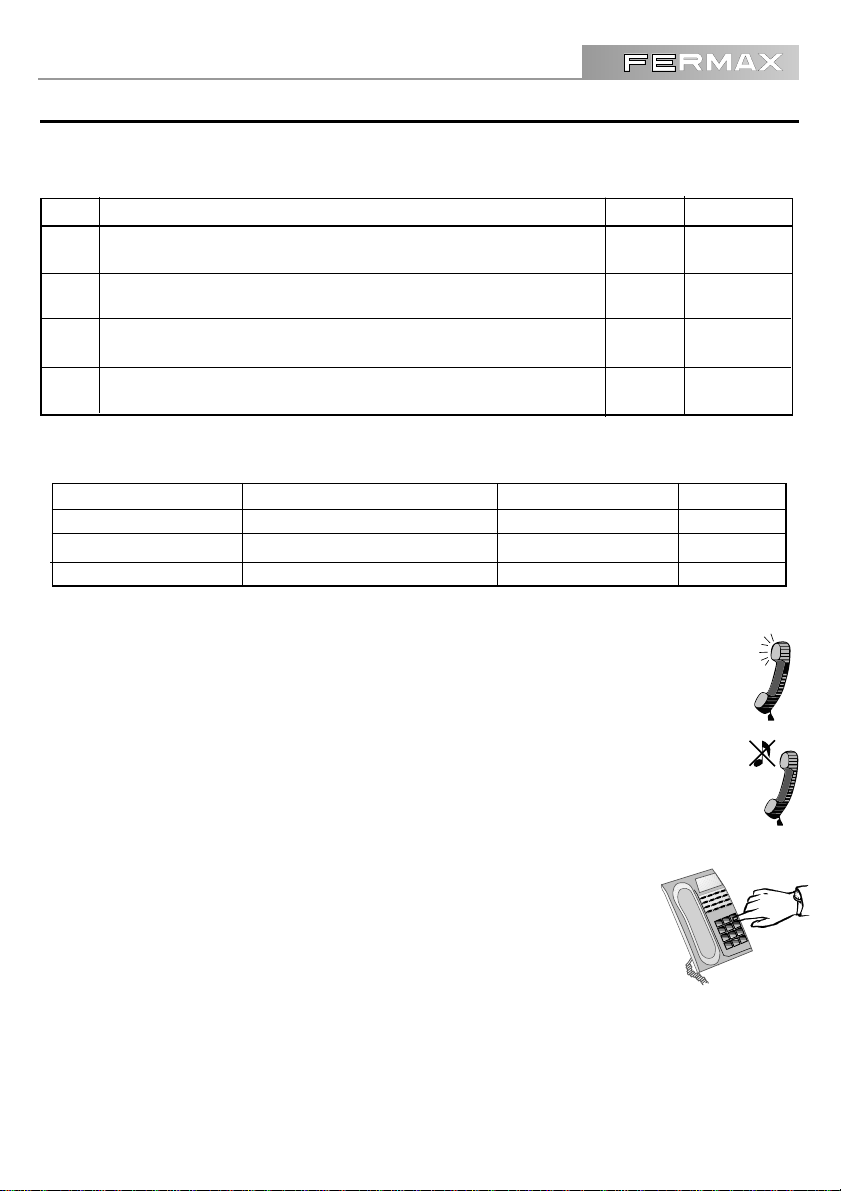

PROGRAMMING INSTALLATION PARAMETERS
Installation Parameters are configured when the Interface is installed and are not usually modified
afterwards. The following table shows some of these parameters.
√√
√√
√
NOTES:
• The Telephone Interface must be connected to the telephone line for programming.
• The Ring Pattern may be changed to make it easier to distinguish when a door control call is received
and when it is a normal telephone call.
System
House number (ADS Number)
Number the panel identifies Interface with.
Digit Parameter Value
0
2
5
6
ADS
4+N
BOTH
BOTH
1-199
Open door timing
Time door release mechanism is activated. 1-200
Relay timing
Time relay is activated.
Ring pattern(Call type)
Number of tones heard at telephone when call is received.
1-60
1-10
The system can be programmed from any telephone connected to the Interface. To do so:
12
4
3
6
789
*0#
AB
1- Unhook the telephone handset you are going to program the Interface from.
Dialling tone sounds.
2- Press the ‘#’ key.
Now the PRG LED lights up and the dialling tone stops.
5- Press ‘#’ again to exit programming mode.
Or wait 30 seconds without pressing any keys.
4- Use the keypad to input the new value.
The green LED lights up every time you press a key.
3- On the telephone, press the digit corresponding to the parameter you want to program.
Parameter Value entered Equivalent time
Open door timing
Relay timing
Ring tone
N (1....200)
N (1......60)
N (1.....10)
t= N / 4 sec.
t= N / 2 sec.
t=N sec.
Default
4 sec.
2.5 sec.
1 sec.
When entering the Open Door Timing, the Relay Timing or Ring Tone, we take the following table into
account:

24
INTERFACE TELEFÓNICO
INTERFACE TELEFÓNIC
O
PROGRAMMING EXAMPLE 2
Let’s see how to program the ADS number:
This only needs to be done if you have Telephone Interface Ref. 1088.
- Proceed with the first 2 steps as in the example above. In step 3, key in 0, (digit corresponding to the
ADS Number parameter as appears in the table on the previous page).
The maximum door open timing we can set corresponds to the maximum N:
To program the Open Door Timing or Ring Pattern, proceed in the same way and assign Nthe
value needed to obtain the desired timing.
5- Press ‘#’ again to exit programming mode or wait 30 seconds without pressing any keys.
12
4
3
6
789
*0#
AB
If you want an opening time of 5 seconds, select an N value, so that:
- Step 4, enter the parameter value (ADS telephone nº between 1 and 199)
You must enter the same number as the FERMAX electronic door control system .
- Press ‘#’ to exit programming mode.
You also exit programming mode after 30 seconds without pressing any key.
PROGRAMMING EXAMPLE 1
To program the Relay Timing; take the following steps:
1- Unhook the telephone handset you are going to program the Interface from.
2- Press the ‘#’ key. The PRG LED will light up and the dialling tone stops.
3- Enter the digit corresponding to the parameter you wish to program.
In this example it would be 2
4- Key in the new parameter value. To introduce this value, consult the table on the
previous page, where:
Here are a couple of practical examples of how to program the Interface installation parameters:
t = 5 seconds N = t*4 N = 20
N = 200 t = N / 4 50 seconds

25
INTERFACE TELEFÓNICO
INTERFACE TELEFÓNICO
The User Parameters are those that may be modified most often in line with the user’s needs. The
following table shows what these are:
PROGRAMMING USER PARAMETERS
PROGRAMMING EXAMPLE

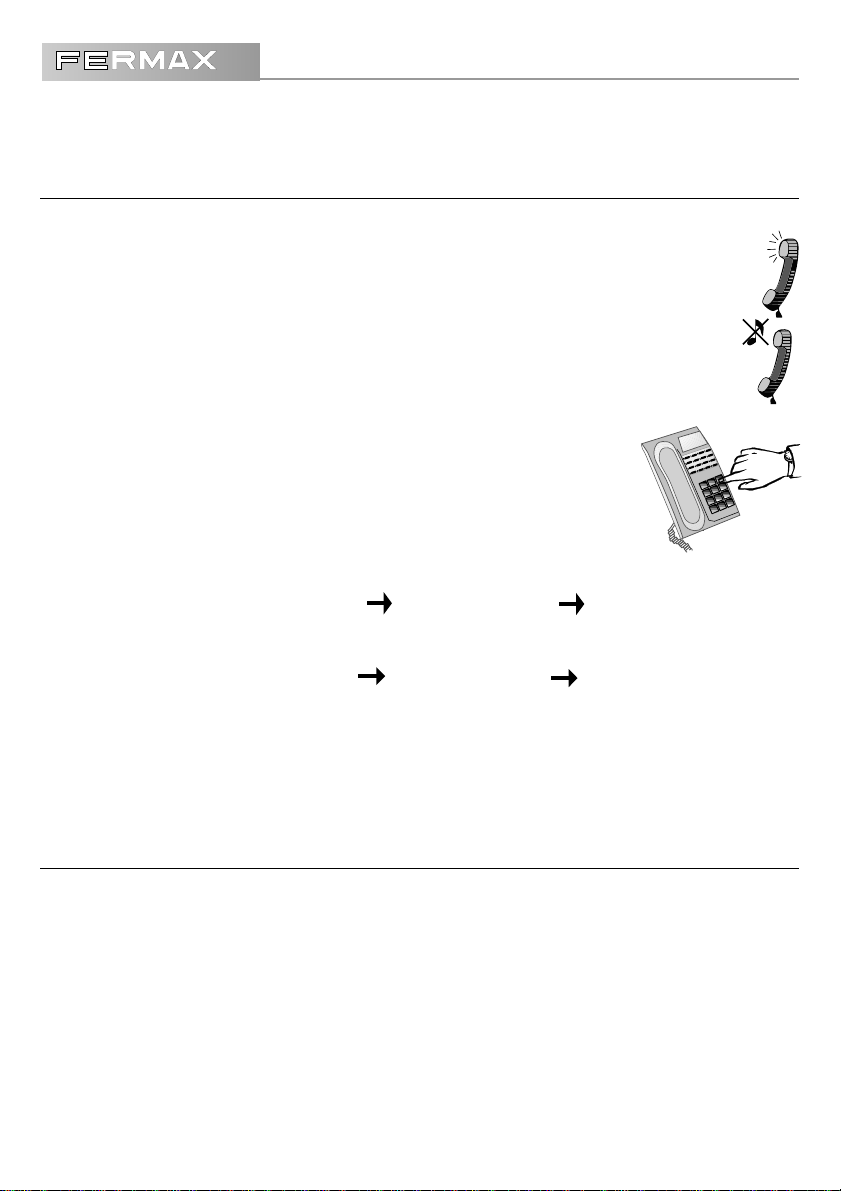

To program the divert Telephone, proceed as follows:
1- Unhook the telephone handset you want to program the Interface from.
2- Press the ‘#’ key. The PRG LED will light up and the dialling tone stops.
3- Key in the digit corresponding to the parameter you wish to program.
In this example it would be 3
4- Key in the new parameter value, in this case the telephone number
you want to divert the door call to. For example: 612 345678
5- Press ‘#’ again to exit programming mode or wait 30 seconds without pressing any keys.
12
4
3
6
789
*0#
AB
The telephone number to which the call will be diverted has now been programmed (in this case a mobile
phone). Remember that the maximum length of the divert number is 16 digits.
System
Divert Telephone.
Telephone number calls will be diverted to.
Digit Parameter Value
3
7
8BOTH
TELEPHONE
NUMBER
Call divert activation.
Lets you activate the divert from the telephone. NO
Call divert deactivation.
Lets you deactivate the divert from the telephone. NO
BOTH
BOTH
√√
√√
√
NOTES:
• Maximum length of the divert telephone is 16 figures.
• It is not necessary to enter any value for divert activation or deactivation.
• It is possible to activate or deactivate the divert by means of an additional switch (see
installation diagrams).
