(FWE-INPOD) IndustriPOD
USER INSTRUCTIONS
IndustriPOD® Instructions: ID# 00195-V1- 03/2013
Australia
The IndustriPOD® is a heavy duty, versatile and durable tripod that exceeds the criteria of most international
standards. It has built in safety factors equivalent to internationally recognised rescue systems. Its unique
design and simplicity makes it ideal for any heavy duty conned space requirement where guaranteed
performance is mandatory.
HEAD OFFICE: 11 Johnstone Road, Brendale, QLD 4500
Toll Free: 1800 804 647 | Tel: [phone] | Email: [email protected]om.au | www.ferno.com.au 1
TECHNICAL SPECIFICATIONS
WEIGHT 23 kgs
OVERALL HEIGHT 2465 mm extended, 1650 mm collapsed
FOOT PRINT 2185 mm inside diameter of feet
CONSTRUCTION Steel, aluminium and stainless steel
SWL 550 kg o centre eyebolt
360 kg o side plate attachment points
RATING 2 Person rescue - 1 Person working
TRIPOD SUPPLIED WITH 1 x Adustable Foot Tether sling
3 x Leg Pins
1
7
7
5
4
6
6
3
21
5
4
3
2

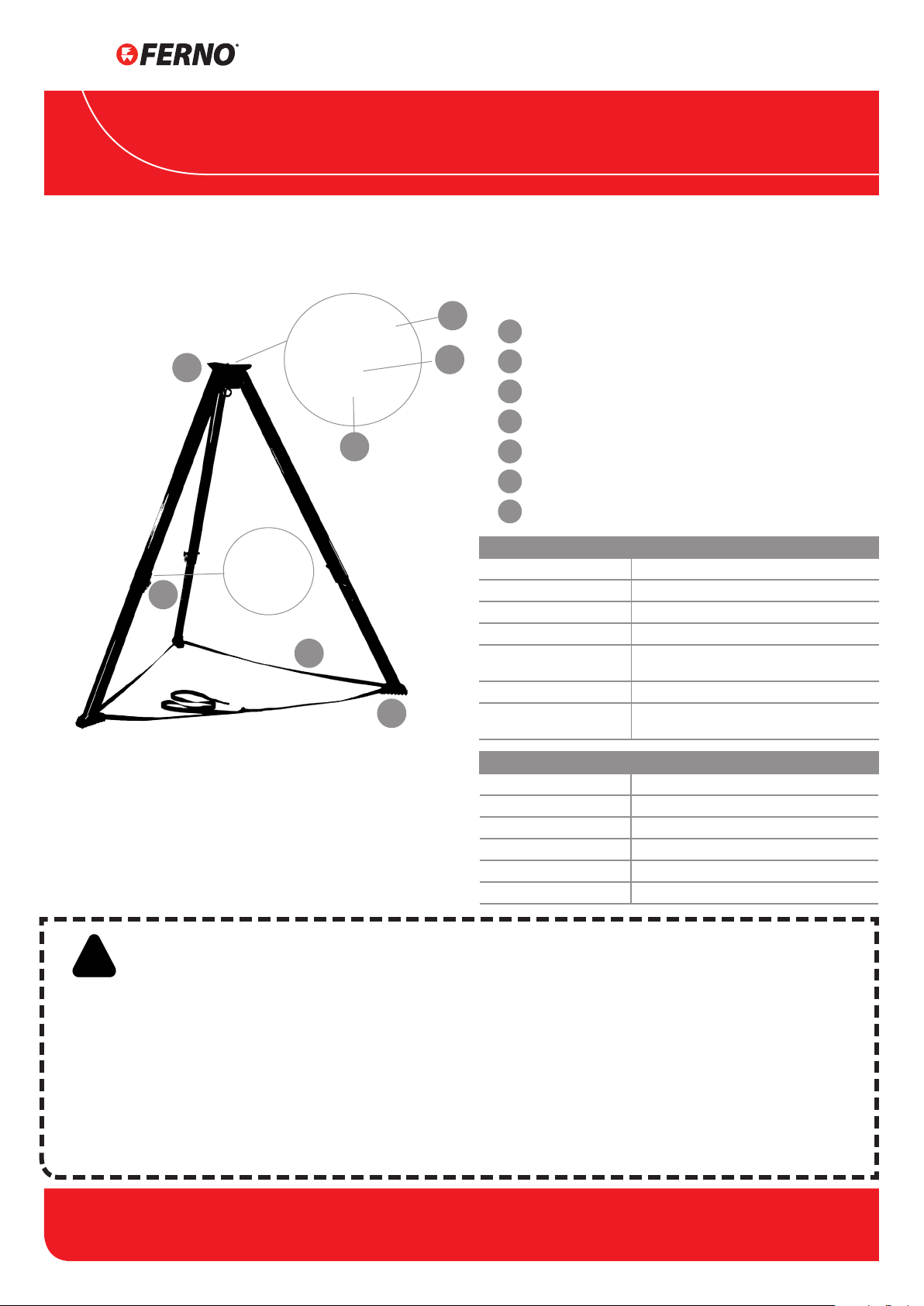

TRIPOD PARTS IDENTIFIER
Tripod Head
Stabilisation Point (3)
Side Plate Attachment Point (3)
Eyebolt (1)
Leg Pin (3)
Adjustable Foot Tether (1)
Tripod Feet (3)
FEATURES
• Rectangular fully adjustable legs with quick action ball
lock leg pins
• One piece fabricated steel head
• Adjustable feet with aggressive non-slip tread pattern
• One swivel eyebolt
• Three karabiner attachment points
• Three tie-o points for rigging or stabilisation
WARNING
Activities conducted at height can be dangerous resulting in
injury or death. Do not use this device unless you have:
1. Read and understood the User’s Instructions
2. Received appropriate training
3. Ensured a competent person has conducted a risk
assessment for the specic task
4. Carried out a preoperational check of the tripod, associated
hardware and rigging before each use
5. Accepted total responsibility for your safety, and all risk
assessments are completed.
These instructions are not intended as a substitute for
appropriate training. Training, practice and experience in
technical rigging are essential for safe use.
Operator Responsibility
The product liability of the manufacturer does not cover damage
to property or body injuries which may occur as a result of
improper use or function. It is the responsibility of the operator/s
to ensure the correct personal protective equipment (PPE) is
used when operating the unit. The manufacturer is not liable
for the correct or incorrect use of PPE. Any modications to the
product or disregarding the Operator Instructions or safety rules
voids any liability extended towards the manufacturer.
OPTIONAL ACCESSORIES
36-1019 IndustriPOD® Bag
16-1046-0 Hold-down Stake
07-1026-0 Step
90-0119 Equipment Bracket
APOD-W10/W20/W25 10m/20m/25m Winch & Mount - 6mm cable
APOD-FA 15m Type 3 Fall Arrestor & Mount
Fig 1

(FWE-INPOD) IndustriPOD
USER INSTRUCTIONS
HEAD OFFICE: 11 Johnstone Road, Brendale, QLD 4500
Toll Free: 1800 804 647 | Tel: [phone] | Email: [e-mail] | www.ferno.com.au
5. Thread the leg tether strap
through each leg foot of
the IndustriPOD®. (Fig 4)
This operation should be per-
formed by two people.
1. Stand IndustriPOD upright
with legs together (Fig 2)
2. Extend leg lengths to achieve the desired Head
height. To extend legs:
a. Remove the leg pins from
each leg by depressing
the pin release button at
the head of the pin. (Fig 3)
b. When legs are at required height, align the holes on
the leg sections an re-insert the leg pins.
3. With assistance, carefully move the tripod to
the desired location and open the three legs to
maximum width ensuring the feet are correctly
placed as shown in Figure 1 on front page.
4. Double check the leg pins are locked in place and
the tripod is at the correct height.
WARNING: DO NOT attempt to erect IndustriPOD®
over an open hole. Erect IndustriPOD® away from
the hole and move it into the required position once
legs have been extended and locked in to place with
leg pins.
TRIPOD ASSEMBLY
Fig 3
Fig 2
Fig 4
Fig 5
6. When foot tether is threaded through all feet
holes of the IndustriPOD®, feed the tail end of the
foot tether sling through the buckle and tighten,
ensuring there is no slack in the tether. (Fig 5)
