21st century design for 21st century life
High efficiency
Condensing combination boilers
26c, 27c , 31c, 32c and 38c
System boilers
18s, 25s and 35s
Open vent boilers
18ov and 25ov
SEDBUK
A
Domestic Boilers
High efficiency
condensing combination,
system and open vent boilers

Ferroli is one of Europe’s leading
manufacturers of heating solutions
for domestic, commercial and
industrial requirements. We pride
ourselves on using the latest
technological advances to achieve
optimum energy efficiency whilst
ensuring environmental protection.
This means that when you choose
a new Ferroli high efficiency
condensing boiler for your home,
you can be assured that you
have chosen one of the most
sustainable and cost-effective
ways to generate heat and
hot water.
We also understand that reliability
is your number one concern and
this is why we provide you with
the further reassurance of our
5 year manufacturer’s warranty*
on the Modena HE and Optimax
HE PLUS ranges.
Reliability reassurance with
update boiler to MODENA
* Excludes The Republic of Ireland. UK warranty is subject to terms and conditions – please refer to the document enclosed
with the boiler or contact our service department for further information.
2

Free back up
Manufacturer
Engineer
Customer Services
Trainer
Designer
Ferroli offers a complete one-stop-shop solution
SPECIFICATION AND
TECHNICAL SUPPORT
Installers, merchants, specifiers
and developers can call Ferroli’s
technical support team at any
time for specification guidance
or technical support.
SERVICE AND SPARES
With a national team of dedicated
engineers across the UK, Ferroli is
always ready and able to provide
support to installers and homeowners
alike. Be that a repair or annual service,
our aim is to ensure your Ferroli boiler
works efficiently for years to come.
Ferroli engineers carry a comprehensive
stock of spare components to ensure
first fix where possible and we also have
a nationwide network of Ferroli spare
part stockists.
We pride ourselves on
being able to offer much
more than simply high
specification, value for
money products.
We aim to provide our
customers with unbeatable
knowledge, support and
service that extends beyond
the sale of the product.
with every Ferroli boiler
Calls to these numbers are charged at national rate from BT landlines. Calls from mobile networks may be considerably more.
Engineer Customer services Training Designer
Manufacturer
Engineer
Customer services Training DesignerManufacturer
Engineer
Customer services
Training DesignerManufacturer
Engineer Customer services
Training
DesignerManufacturer
Engineer Customer services Training
Designer
Manufacturer
Service & Technical Support
0843 479 0479
Sales & Spares
0843 479 4790
General Enquiries
0843 479 0009
3

• Height 600mm, Width 400mm, Depth 320mm
• Weight 28kg (18s & 25s), 29kg (27c) and 31.5kg (32c)
• Operating noise level <40dB
• NOx Class 5+ & SEDBUK A rated for extremely
low emissions and high performance
• Operates on both natural gas and LPG
• System models have only 3 moving parts - pump, fan,
gas valve; combi models have only 4 moving parts
including DHW water flow meter
• Combi models condense in hot water mode
• All components can be serviced or removed
via front panel
• Central ueing for easy replacement installations
• Microprocessor control and adjustment system with
advanced self-diagnosis
• Robust stainless steel burner for long life
• Integral lling loop and easy to read contents/pressure
gauge as part of the isolation valve kit
• All Modena boilers are fully compatible and ready to
work with renewable energy products
• DHW/central heating heat exchangers can be
chemically cleaned and flushed in situ
The Modena HE range
sets a new standard
for the domestic boiler
market. It is the smallest,
lightest and quietest
boiler in its class and
comes with a choice of a
5 or 2 year full parts and
labour manufacturer’s
warranty*.
NOx Class 5+ and
SEDBUK A ratings
demonstrate the
Modena’s outstanding
energy efficiency
standards to provide
what every customer
wants – an exceptionally
reliable boiler that
combines high
performance with
lower fuel bills.
At just 600mm high
the Modena can be
sited in the most
awkward of spaces; a
liftweight of between
28kg and 31.5kg allows
for one-man installation
and an operating noise
level of less than
40dB means it can
hardly be heard.
Up to
31.3 kW
Max
OUTPUT
32c
DHW flow rate
13.1l/min
@ ∆t 35°C
7
OPTIONAL
BUILT-IN
Day/Week
TIMER
MODENA
comes with
filling
loop
Modena HE
High efficiency boilers
Combination 27c and 32c
System 18s and 25s
2year
warranty
Choice of 5 or 2 year full parts and
labour manufacturer’s warranty for
total peace of mind and reassurance*
5year
warranty
4

e
n
e
r
g
y
s
a
v
i
n
g
The Optimax HE PLUS
range was one of the
first boilers on the
market with a leading
5 year manufacturer’s
warranty, such was
our confidence in its
high specification and
reliability.
Ultra-low NOx emitting,
high efficiency rated
Optimax HE PLUS
boilers provide the
perfect solution for any
domestic application.
In addition, Ferroli
operates a programme of
continuous improvement
on all products to ensure
the Optimax HE PLUS
boiler maintains its
high standards of quality
without compromising the
safety of the environment.
Low NOx
(22mg/kWhr)
* Excludes The Republic of Ireland. UK warranty is subject to terms and conditions – please refer to
the document enclosed with the boiler or contact our service department for further information.
DHW
flow rate
15.4l/min
@ ∆t 35°C
7
OPTIONAL
BUILT-IN
Day/Week
TIMER
OPTIMAX
comes with
filling
loop
Optimax HE PLUS
High efficiency boilers
Combination 31c and 38c
5year
warranty
Choice of 5 or 2 year full parts and
labour manufacturer’s warranty for
total peace of mind and reassurance*
5 year manufacturer’s parts
and labour warranty for total
peace of mind and reassurance*
High efficiency condensing boilers providing cost saving benefits
NOx Class 5+ rated for high environmental performance
Stylised casing with simple aesthetics
High density foam lining for reduced operational noise
Built-in by pass for quicker installation and assurance of minimum flow
rates through the heat exchanger at all times
Integral filling loop as part of the boiler’s valve assembly for easy
installation
Easily removed single piece case for easy access during
installation/maintenance
Full diagnostic software and easy to use controls with LCD
Built-in weather compensation software
Optional built-in 7 day/week digital timer
Complete with pre-wired cable
Photograph shows
optional timer fitted.
5

Ferroli boilers
compatible
with renewable
technologies
Ultra-low NOx emitting,
high efficiency rated
condensing Optimax HE
PLUS boilers provide
the perfect solution
for any domestic
application, built to
Ferroli’s high quality
cutting edge technology.
All Optimax HE PLUS
system and open vent
boilers have been
specially designed to
be fully compatible with
renewable technologies.
When incorporated into
the system they will
work in tandem with
any solar or heat pump
installation, providing
efficient and effective
supplementary support.
Low NOx
(19-23mg/kWhr)
Econcept 51a
If a greater boiler output is required for large domestic or light
commercial applications, then the Ferroli Econcept 51Awall mounted
boiler can be considered. Up to five units can be connected together
to create up to 250kW output in cascade operation. Please see
individual Econcept brochure for more details.
Choice of open vent or system boilers suitable for any domestic heating
and hot water requirements
Available for natural gas or to be converted for use with LPG
Outputs from 18kW to 35kW for accurate sizing to suit the application
High efficiency condensing boilers providing cost saving benefits
NOx Class 5+ rated for high environmental performance
18ov model sized to easily fit in a standard kitchen wall unit
Fully compatible and ready to work with renewable energy products
such as solar
Boilers ideally matched with the Ferroli Aquacyl and
Aquasol XS range of stainless steel cylinders
Stylised casing with simple aesthetics
High density foam lining for reduced operational noise
Easily removable single piece case for easy access
during installation/maintenance
Full diagnostic software and easy to use controls with LCD
All models are compact and light
Up to
35 kW
Max
OUTPUT
18ov
weighs only
19 kg
5year
warranty
5 year manufacturer’s parts
and labour warranty for total
peace of mind and reassurance*
Domestic Hot Water
Twin Coil
Cylinder
Boiler Central Heating Output
Expansion
Vessel
Expansion Vessel
Pump
Station
Solar
Collectors
Optimax HE PLUS
High efficiency boilers
System 18s, 25s and 35s
Open Vent 18ov and 25ov
6

Why Ferroli
combination
boilers?
With environmental
safety a primary concern
within both the domestic
and commercial heating
markets, we all need to
take responsibility for
the protection of the
world’s resources and
the reduction of harmful
greenhouse gasses.
Ferroli is still leading the
way in the development
of new generation,
high efficiency gas
condensing boilers that
reduce these harmful
emissions.
The Ferroli
DOMIcondens boiler
is specifically designed
to burn less gas and
reduce CO2emissions
to save the homeowner
money whilst helping
to conserve energy and
protect the environment.
The DOMIcondens combination boiler provides the
convenience of ambient heating and instantaneous hot
water for a wide range of domestic dwellings whilst also
delivering a low running cost solution for homeowners with
its SEDBUK Band A rated high fuel efficiency.
Supplied with integral filling loop
Superb domestic hot water flow rates
SEDBUK A rated for fuel economy and cost
saving benefits
NOx Class 3 rated for environmental performance
Proven technology for greater reliability
Optional wireless remote thermostat
Optional built-in 7day/week digital timer
Simple, discreet case styling
Easily removed single piece case for ease of access
during installation/maintenance
Simple user-friendly controls with LCD
Compact for easy installation
* Excludes The Republic of Ireland. UK warranty is subject to terms and conditions – please refer to
the document enclosed with the boiler or contact our service department for further information.
Up to
26 kW
Max
OUTPUT
DHW
flow rate
10l/min
@ ∆t 35°C
7
OPTIONAL
BUILT-IN
Day/Week
TIMER
DOMIcondens
comes with
filling
loop
2year
warranty
2 year manufacturer’s parts
and labour warranty for total
peace of mind and reassurance*

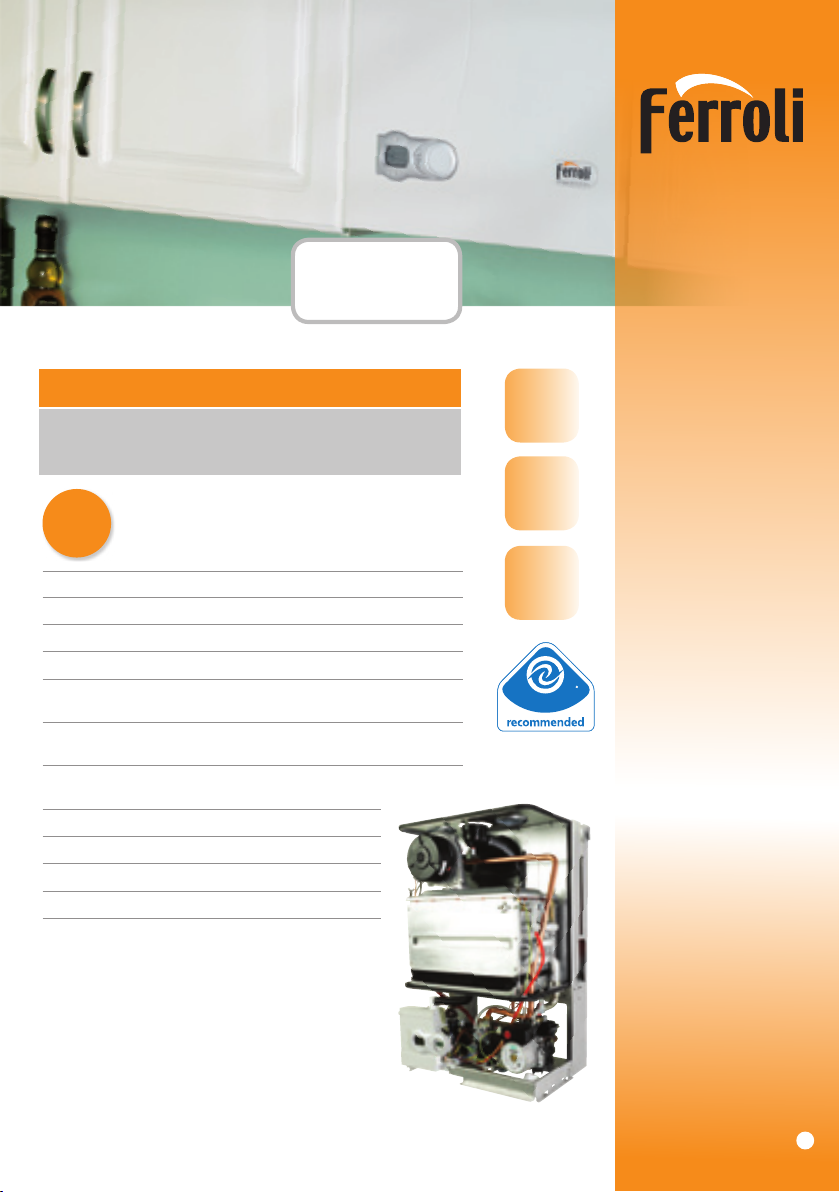

DOMIcondens HE
High efficiency combination boiler 26c
Photograph shows
optional timer fitted.
7

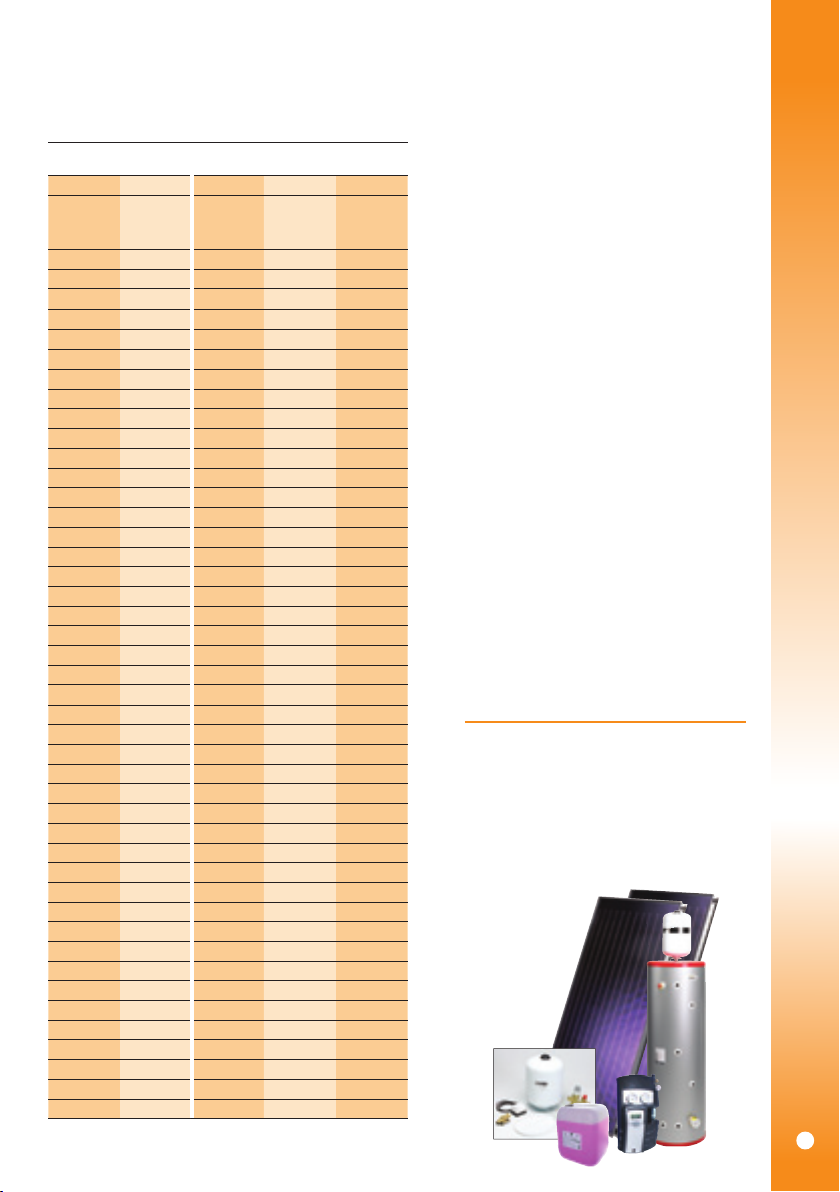

Flues
Accessories Manufacturer’s Ref
Flue Std Horizontal 60/100mm Ø – nominal length 1m 041025G0
Flue Extension 60/100mm Ø – nominal length 1m 1KWMA57W
Elbow 45°– 60/100mm Ø 1KWMA64W
Elbow 90°– 60/100mm Ø 041051X0
Flue Vertical Termination 60/100mm Ø 1KWUK356
Appliance Adaptor for Vertical Flue 60/100mm Ø 041002X0
Bracket – Flue Support 100mm Ø 1KWMR46A
Roof Flashing Plate – Flat Roof Ø 1KWMA81U
Roof Flashing Plate – Pitched Roof Ø 1KWMA82U
Pluming Kit – 60/100/60mm Ø 041042G0
Appliance Adaptor (Pair) for Twin 80mm Ø 041039X0
Flue Extension 80mm Ø – nominal length 1m 222952
Elbow 45°– 80mm Ø 222954
Elbow 90°– 80mm Ø 222955
Terminal (Air Intake) for Twin 80mm Ø Horizontal 1KWMA85A
Terminal (Flue Exhaust) for Twin 80mm Ø Horizontal 1KWMA86A
Bracket – Flue Support 80mm Ø 1KWMR48A
Flue Vertical Termination Twin Connection 80mm Ø 010027X0
Boiler Control and Accessory Options Manufacturer’s Ref
Digital (wireless R/F) Programmable Thermostat 30800009
Electro – Mech (wireless R/F) Programmable Thermostat 30800013
External Compensator (combi only) 1KWMA62U
Digital (built-in) Programmer 013001X0
Chromotherm Programme (open therm) 013100XA
Back Plate – Concealed Pipe work jig (25sand 31c) 046007G0
Back Plate – Concealed Pipe work jig (35sand 38c) 046008G0
Back Plate – Concealed Pipe work jig (26c) 046033G0
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
S
S
Note For non standard flue lengths over 1m a fall of 3mm (or preferably greater) per
metre length should be incorporated back to the boiler. Consult manufacturer’s installation
instructions for full guidance and options for flueing.
Please contact Ferroli Sales for other 80/125 mm Ø flue options and accessories not shown.
A A
B
C
D
CLEARANCES
A 0.5cm (minimum)
B 20cm (minimum)
C 30cm (minimum)
D 60cm (minimum)
via an openable panel
Essential to the boiler’s operation is the
availability of fresh, clean air and the ability
to dispose of combustion products. This is
achieved through the installation of a flue
which provides ducts to the outside of the
premises.
To optimise safety and performance, Ferroli
flues must always be used with Ferroli
boilers. Ferroli has a comprehensive range
of accessories to suit complex installations
and to enable the extension of flue lengths.
The diagram above shows typical flueing
options.
A
K
L
O
P
N
M
A
D
B
F
C
E
B
F
I
S
C
B
A
A
B
A
D
A
8

HH
I
J,K
B
IQ
A
G
I
I
M
N
F
L
D,E
C
Likely flue positions requiring
a flue terminal guard
P
Q
A
P
N
M
I
G
I
HH
K
J
Q
C
I
Q
DE
B
F
L
Flue terminal positions mm
Directly below an opening, air brick, opening windows etc. 300
Above an opening, air brick, opening windows etc. 300
Horizontally to an opening, air brick, opening windows etc. 300
Below gutters, soil pipes or drain pipes 75
Below eaves 200
Below balconies or car port 200
From a vertical drain pipe or soil pipe 150
From an internal or external corner 100
Above ground roof or balcony level 300
From a surface facing the terminal 600
From a terminal facing the terminal 1200
From an opening in the car port (ie.door, window) into the dwelling 1200
Vertically from a terminal on the same wall 1500
Horizontally from a terminal on the same wall 300
From the wall on which the terminal is mounted N/A
From a vertical structure on the roof 150
Above intersection with roof 300
300 min
Terminal
Assembly
Top View
Rear Flue
Property
Boundary Line
Notes
In addition, the terminal must not be
nearer than 300mm to an opening in the
building fabric formed for the purpose of
accommodating a built-in element such as
a window frame.
Condensing terminal positions: if the flue is to
be terminated at low level then the potential
effect of the plume must be considered.
The plume should not be directed:
– across a frequently used access route
– towards a window
– across a neighbouring property
For more information on terminal positions
please contact our technical department.
The distance from a fanned draught appliance
terminal installed parallel to a boundary may
not be less than 300mm in accordance with
the diagram below.
Flue terminal positions
Electro – Mech
(Wireless R/F)
Programmable Thermostat
Digital (Wireless R/F)
Programmable Thermostat
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
Radio Thermostat
Clock Receiver
(c/w external
mounting and cable) 9

Combination Open Vent
Modena HE Optimax HE PLUS DOMI
condens HE
Optimax HE PLUS
27c 32c 31c 38c HE 26c 18ov 25ov
Ferroli product codes 0T1R2IGA
5yr
ZU0T1R2IGA
2yr
0T1R3IGA
5yr
ZU0T1R3IGA
2yr
0M7F6IGA 0M7F7IGA 0CAJ5ITA 0M7Q3IGA 0M7Q4IGA
Warranty* 5/2 5/2 5 5 2 5 5
NOxemissions class (mg/kWhr) 5 5 5+(23) 5+(22) 3+(126) 5+(19) 5+(23)
Energy marking rating (92/42 EEC directive) HHHH HHHH HHHH HHHH HHHH HHHH HHHH
SAP 2009 annual/2005 seasonal efficiency % NG 89.2/90.3 89.2/90.3 89.0/90.4 89.3/90.5 88.4/90.0 89.4/90.4 89.1/90.5
LPG 90.4/92.2 90.4/92.2 90.2/92.0 90.5/92.5 90.7/92.1 90.6/92.6 89.9/91.4
Output max/min
Heat input kW 25.0/5.8 29.5/6.7 25.2/5.3 30.8/6.6 25.0 18.0/3.0 28.0/8.3
Useful heat output 80°C – 60°C kW 24.5/5.7 28.9/6.6 24.6/5.2 30.2/6.3 24.4 17.7/2.9 24.7/7.3
Useful heat output 50°C – 30°C kW 26.5/6.2 31.3/7.2 26.6/5.7 32.5/6.9 26.0 19.0/3.2 26.4/8.0
Central heating
Maximum operating temperature ºC 90 90 90 90 90 85 80
Operating pressure central heating Max. bar 3 3 3 3 3 3 3
Min. bar 0.8 0.8 0.8 0.8 0.8 0.3 0.3
Expansion vessel capacity litres 8 10 8 10 8 N/A N/A
Expansion vessel pre-fill pressure bar 0.8 0.8 1 1 1 N/A N/A
Boiler water content litres 1.7 2.1 1.5 2.0 1.5 1.0 1.5
DHW
Maximum DHW production ∆t 25°C l/min 15.5 18.3 17.6 21.6 14.0 - -
∆t 30°C l/min 12.9 15.3 14.7 18.0 11.6 - -
∆t 35°C l/min 11.1 13.1 12.6 15.4 10.0 - -
Operating pressure DHW Max. bar 9 9 9 9 9 - -
Min. bar 0.3 0.3 0.25 0.25 0.25 - -
Dimensions & weights
Height mm 600 600 700 700 700 630 630
Width mm 400 400 400 450 400 320 400
Depth mm 320 320 330 330 330 280 280
Weight (empty) kg 29 31.5 37 42 35 19 27
Fittings
Gas fitting mm 22 22 22 22 22 22 22
Central heating fittings mm 22 22 22 22 22 22 22
DHW circuit fittings mm 15 15 15 15 15
Power supply
Max power input W 100 120 130 140 135 50 50
Power supply voltage/frequency V/Hz 230V/50Hz 230V/50Hz 230V/50Hz 230V/50Hz 230V/50Hz 230V/50Hz 230V/50Hz
Index of protection IP IPX5D IPX5D IPX5D IPX5D IPX5D IPX5D
Maximum equivalent flue lengths
Max horizontal flue length 60/100mm Ø m7 7 5 5 5 5 5
Max vertical flue length 60/100mm Ø m8 8 6 6 6 6 6
Max horizontal flue length 80/125mm Ø m20 20 14 14 11 15 15
Max vertical flue length 80/125mm Ø m20 20 15 15 12 16 16
Total equivalent length two pipe 80mm Ø m 80 70 75 55 55 95 95
Filling loop Yes Yes Yes Yes Yes No No
Hanging bracket Yes Yes Yes Yes Yes Yes Yes
Pre-wired mains cable supplied Yes Yes Yes Yes Yes Yes Yes
Technical specifications
*Excludes The Republic of Ireland. UK warranty is subject to terms and conditions – please refer to the document enclosed with the boiler or contact our service department for further information.
10

System
Modena HE Optimax HE PLUS
18s 25s 18s 25s 35s
0T2O1IGA
5yr
ZU0T2O1IGA
2yr
0T2O2IGA
5yr
ZU0T2O2IGA
2yr
0M703IGA 0M704IGA 0M707IGA
5/2 5/2 5 5 5
5 5 5+(19) 5+(23) 5+(22)
HHHH HHHH HHHH HHHH HHHH
89.2/90.2 89.2/90.2 89.4/90.5 87.0/88.0 89.4/90.6
90.4/91.4 90.5/91.5 90.6/92.5 88.2/89.0 90.6/92.6
17.4/4 25/5.8 18.0/3.0 25.2/5.3 34.8/6.5
17/3.9 24.5/5.7 17.7/2.9 24.6/5.2 34.2/6.3
18.5/4.3 26.5/6.2 19.0/3.2 26.6/5.7 36.7/6.9
90 90 95 95 95
3 3 3 3 3
0.8 0.8 0.8 0.8 0.8
8 8 7 8 10
0.8 0.8 1 1 1
1.7 1.7 1.0 1.5 2
- - - - -
- - - - -
- - - - -
- - - - -
- - - - -
600 600 700 700 700
400 400 320 400 450
320 320 300 330 330
28 28 31 36 41
22 22 22 22 22
22 22 22 22 22
- -
100 100 115 115 140
230V/50Hz 230V/50Hz 230V/50Hz 230V/50Hz 230V/50Hz
IPX5D IPX5D IPX5D IPX5D IPX5D
7 7 5 5 5
8 8 6 6 6
20 20 15 15 15
20 20 16 16 16
80 80 95 95 95
No No No No No
Yes Yes Yes Yes Yes
Yes Yes Yes Yes Yes
Install energy efficient appliances
and products throughout the home
Homeowners will save money on fuel bills
when replacing older boilers with a new high
efficiency condensing appliance because new
boilers adjust automatically to ensure optimum
efficiency from the energy being used.
Choose the right type of boiler for
the size of the property
For larger homes, open vent or system boilers
combined with storage cylinders are one of the
most cost-effective ways of producing a larger
amount of domestic hot water. Combi boilers,
on the other hand, provide a highly efficient and
effective solution for smaller households as they
only heat water on demand, meaning energy
is not wasted on heating water that is surplus
to requirements. A correctly sized system is
always important for energy efficiency. A system
should be able to suit the needs of a household
without the need for regular overrides of the
programmed timings.
Heating homes and hot water efficiently, cost
effectively and in a sustainable way is high
on everyone’s agenda in the current climate.
Choosing the right products is a good start
but it is also about the way we use the
energy we generate and, more importantly,
the way we retain it.
Energy efficiency
advice and tips
Ferroli also offers a range of renewable heat
products consisting of solar heat systems
and air source heat pumps. For further
information about these products please
contact the Ferroli sales team.
Renewable energy
11

DBoilers/V2/01.12
