Ferroli Domina 102 User guide

Appr. nr. B99.06 A - CE 0461 AU 0431
DOMINA 102
COPPER WALL-MOUNTED COMBINATION,
GAS FIRED BOILER FOR CENTRAL HEATING
AND DOMESTIC HOT WATER PRODUCTION,
FAN ASSISTED, ROOM SEALED COMPARTMENT,
ELECTRONIC FLAME IGNITION AND CONTROL
3543837/0 - 06/2001
INSTALLATION, SERVICING AND
USERINSTRUCTIONS
G.C. NO: 47-267-24

DOMINA 102
2
CE MARK
CE mark documents that the Ferroli gas appliances comply with the requirement contained in
European directives applicable to them.
In particular, the appliances comply with the following CEE directives and the technical specifications
provided from them:
• Gas appliances directive 90/396
• Efficiencies directive 92/42
• Low tension directive 73/23 (modified from the 93/68)
• Electromagnetic compatibility directive 89/396 (modified from the 93/68)
Year 2000 Compliance Declaration
We will guarantee that this products is altogether suitable for the data change in the Year
2000 (boiler has no dependence from date change) and that no disruptions will occur which is
caused by this product.
IMPORTANT
Your"benchmark" Installation,CommissioningandService RecordLogBookwill beenclosed
in yourcustomer information pack.
"Thisrecordmustbecompletedandleftwiththeenduser"
"All CORGI RegisteredInstallerscarryaCORGI IDcardandhavearegistration number.Bothshould
berecordedin yourcentral heatinglogbook. Youcan checktheinstaller's CORGI registration
by callingCORGI on 01256 372300".
Ferroli is a member of the Benchmark initiative and fully supports the aims of the programme. Benchmark
has been introduced to improve the standards of installation and commissioning of central heating
systems in the UK and to encourage the regular servicing of all central heating systems to ensure safety
and efficiency. Please see installation and servicing guidelines.
INDEX
1DESCRIPTION 3
2TECHNICAL AND DIMENSIONAL CHARACTERISTICS 4

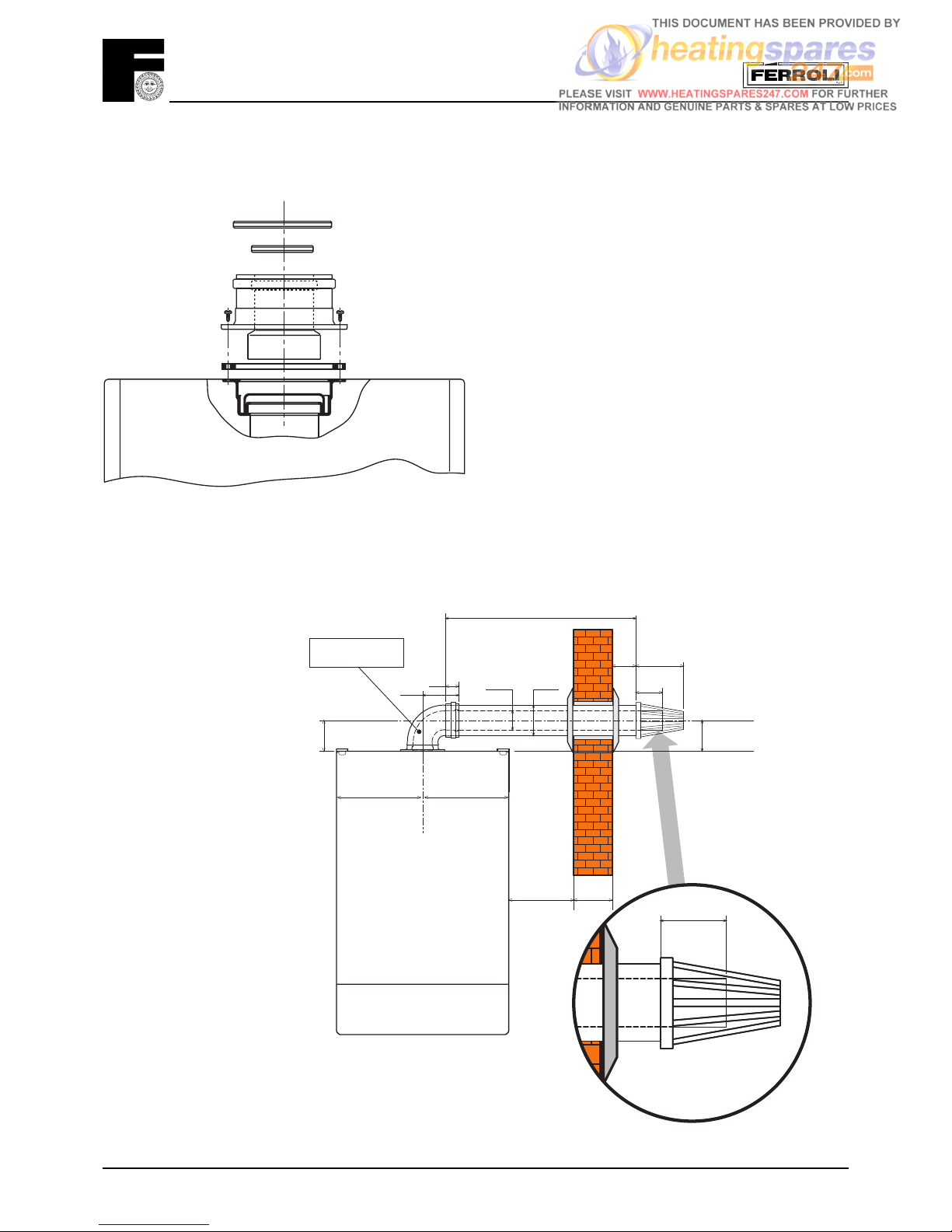

3 INSTALLATION DETAILS 9
COMMISSIONIN AND TESTIN
ADUSTMENT AND ASCONVERSION 3
MAINTENANCE AND CLEANIN
REPLACEMENT O PARTS
AULTINDIN 3
ELECTRICAL AND NCTIONAL SCHEME39
10 USER INSTRUCTIONS 4

DOMINA 102
3
1DESCRIPTION
1.01 Introduction
The Domina102is definedas a“room sealed” combination boiler, all air requiredfor combustion is takenfrom
outside the room in which it is installed. It is anewhigh performance gas firedheat generator for central heating and
domestic hot waterproduction. Aspecial feature of this boileris its built-in electronic flame ignition and control unit
making burneroperation completely automatic and safe.The main components are as follows:
•Copperheat exchangerconsisting of three finnedtubesspecifically shapedfor high efficiency.
•There are three coppercoils insertedin the three heating circuit tubes. These represent the domestic hot waterheat
exchanger. Their shape and high exchange surface areaenable the full output of the boilerto be absorbed.
•Ceramic fibre insulatedcombustion chamber
•16 stainless steelbladedburners specifically designedfor this boiler.
•Fan for discharge of combustion products and intake of combustion air.
•Differential air pressure switch.For safety reasons, this ensuresthe burnerignitesonly whenthe fan
is functioning correctly.
•Hermetically sealedcompartment made from corrosion-resistant steelenclosing the above components.
•Combination gas safety valve with modulator, complete with pressure stabiliser.
•Flowmetergiving the domestic hot watercircuit precedence overthe central heating circuit.
•Pressure reliefvalve for the central heating circuit setto openat 3bar.
•Built-in Expansion vessel.
•Variable speedpump.
•Central heating flow temperature adjustment thermostat.
•Domestic hot waterflow temperature adjustment thermostat.
•Central heating limit thermostat.
•Overheat safety thermostat.
•Electronic control unit for automatic flame ignition and control.
•Central heating low waterpressure cut off switch.
•Domestic hot waterflow temperature sensor.
•Central heating flow temperature sensor.
•Safety bracket
1.02Instructionsand regulations
Assembly, installation, first start up and maintenance must be carriedout by competent persons only, in accordance
with all current technical regulations and directives.
OSHH
Materials usedin the manufacture of this appliance are non hazardous and no special precautions are
requiredwhenservicing.
Related Documents
Thisappliancemust beinstalled strictlyin accordancewiththese instructions.
The Gas Safety Regulations (Installations &Use)1996.
The Local Building Regulations.
The Building Regulations.
The Buildings Standards (Scotland -Consolidated)Regulations.
British Standards Codesof Practice:
B.S. 75931992 TREATMENT OF WATERINDOMESTIC HOT WATERCENTRALHEATING SYSTEMS
B.S. 55461990 INSTALLATIONOF HOT WATERSUPPLIES FORDOMESTIC PURPOSES
B.S. 5440 Part 12000 FLUES
B.S. 5440 Part 21989 AIRSUPPLY
B.S. 5449 1990 FORCED CIRCULATIONHOT WATERSYSTEMS
B.S. 6798 1987 INSTALLATIONOF GAS FIRED HOT WATERBOILERS
B.S. 68911989 GAS INSTALLATIONS
B.S. 76711992 IEE WIRING REGULATIONS
B.S. 48141990 SPECIFICATIONFOREXPANSIONVESSELS
B.S. 5482 1994 INSTALLATIONOF LPG
ModelWaterBye Laws
For Northern Ireland the rulesin force apply

DOMINA 102
4
Fig. 1
2TECHNICALANDDIMENSIONAL CHARACTERISTICS
2.01 Technical information
Domina 102 boilers are central heating and domestic hot water heat generators and are produced as standard
to function with natural gas or liquid petrolium gas converted.
Key
1 -3/4"central heating flow outlet
2-1/2"domestichot water flow outlet
3-1/2“gasinlet
4-1/2"domestichot water inlet
5-3/4"central heating return inlet
363
75
15 430
760
15
692
460
36 155
95 54 60
2
53
1
60
189
175
13 5
2
Top view
4
4
202
150
Ø80 Ø80 Ø80
120 12070
Bottom view

DOMINA 102
5
N.B. - The gas pressures at the burner and gas flows during the central heating phase given in the table refer
to nominal boiler output.To reduce this output (where necessary), gas pressure must be reduced untilthe
required output levelis reached (see figures 4and 5).
During domestic hotwater production,gas pressures to the burner must correspondtothe maximum
outputgiven in table forthe type ofgas.
Gas pressure must beadjustedduring maximum draw-off ofdomestic hotwater.
•Maximum working temperature forcentral heating flow:85°C
•Maximum temperature ofdomestic hotwater:55°C, adjustable between 40°C and55°C.
•Minimum domestic coldwater pressure requiredfor95% heat input:
- Flowrestrictorfitted(standard)- 1,2 bar;
- Flowrestrictorremoved- 0,5 bar
TechnicalData
MODEL Heat output Heat input
Net
Domestic hot
water heat
input
Gross
Boiler water
contents
Domestic hot
water circuit
contents
kW kW kW kW kW Litres Litres
Domina 102 30,0 12,7 33,1 14,5 30,0 1,5 0,8
MODEL
Connections Expansion vessel
Max. working
pressure
central
heating
circuit
Max.
working
pressure hot
water circuit
12345Capacity Pre-pressurising
value
ØØØØØLitres bar bar b
Domina 102 3/4” 1/2” 1/2” 1/2” 3/4” 10 1 3 6
MODEL
Main injectors (mm) Gas flow rates to main burners
for central heating Gas valve
Ø1/2”
G20 - NG G31 - LPG G20 - NG G31 - LPG
ØØ m
3/h kg/h
Domina 102 16x1,25 16x0,75 3,5 2,6 H. V K4105G
MODEL
Gas supply pressures
working Gas pressure at main burner for central heating
Safety valve
G20 - NG G31 - LPG G20 - NG G31 - LPG
min. max. min. max.
mbar mbar mbar mbar mbar mbar bar
Domina 102 20 31 2,5 13,0 7,0 35,5 3
MODEL
Domestic hot
water production
with ∆t 30°C
Domestic hot
water production
with ∆t 35°C
Max. working
pressure domestic
hot water Protection
level
Weight
G20 - NG G31 - LPG
l/min. l/min. mbar mbar kg
Domina 102 14,3 12,3 13,0 35,5 IP44 48
