Modena HE
High efficiency
condensing combination
and system boilers
21st century design for 21st century life
High efficiency
Condensing combination boilers
27c and 32c
System boilers
18s, 25s and 32s
SEDBUK
A
only4 moving parts
5year
full 5 year parts and
labour warranty
2year
full 2 year parts and
labour warranty
or

*UK warranty is subject to terms and conditions – please refer to the document enclosed with the boiler
or contact our service department for further information.
Ferroli is one of Europe’s leading
manufacturers of heating solutions for
domestic, commercial and industrial
requirements. We pride ourselves on
using the latest technological advances
to achieve optimum energy efficiency
whilst ensuring environmental
protection. This means that when you
choose a new Ferroli high efficiency
condensing boiler for your home, you
can be assured that you have chosen
one of the most sustainable and
cost-effective ways to generate heat
and hot water.
We also understand that reliability is
your number one concern and that is
why the Modena HE range is available
with a choice of a 5 or 2 year full parts
and labour manufacturer’s warranty*.
Reliability reassurance with
Modena HE
High efficiency combination and system boilers
2

Free backup
Ferroli offers a complete one-stop-shop solution
SPECIFICATION AND
TECHNICAL SUPPORT
Installers, merchants, specifiers
and developers can call Ferroli’s
technical support team at any
time for specification guidance or
technical support.
AFTERSALES
With a national team of dedicated
engineers across the UK, Ferroli is
always ready and able to provide
support to installers and homeowners
alike. Be that a repair or annual service,
our aim is to ensure your Ferroli boiler
works efficiently for years to come.
Ferroli engineers carry a comprehensive
stock of spare components to ensure
first fix where possible and we also have
a nationwide network of Ferroli spare
part stockists.
Service & Technical Support
T: 0843 479 0479
F: 0843 479 0082
Sales & Spares
T: 0843 479 4790
F: 0843 479 0081
General Enquiries
T: 0843 479 0009
We pride ourselves on
being able to offer much
more than simply high
specification, value for
money products.
We aim to provide our
customers with unbeatable
knowledge, support and
service that extends beyond
the sale of the product.
with every Ferroli boiler
Calls to these numbers are charged at national rate from BT landlines. Calls from mobile networks may be considerably more.
Engineer Customer services Training Designer
Manufacturer
Engineer
Customer services Training DesignerManufacturer
Engineer
Customer services
Training DesignerManufacturer
Engineer Customer services
Training
DesignerManufacturer
Engineer Customer services Training
Designer
Manufacturer
3

2year
warranty 5year warranty
Modena HE
High efficiency boilers
Combination 27c and 32c
System 18s, 25s and 32s
Height 600mm, Width 400mm, Depth 320mm
Weight 28kg (18s & 25s), 29kg (27c), 30kg (32s) and 31.5kg (32c)
Operating noise level <40dB
NOx Class 5 rated for extremely low emissions and high performance
SEDBUK Band A rated for excellent fuel cost economy and energy efficiency
Operates on both natural gas and LPG
Combi models have only 4 moving parts – DHW water flow meter,
pump, fan and gas valve - and system models have only 3
Accessories available include valve cover, rear pipe space frame and a choice
of four mechanical and digital clocks and room thermostat controls
Combi models condense in hot water mode
All components can be serviced or removed via front panel
Central flueing for easy replacement installations
Microprocessor control and adjustment system with advanced self-diagnosis
The Modena HE range sets a
new standard for the domestic
boiler market. It is the smallest,
lightest and quietest boiler in its
class and comes with a choice
of a 5 or 2 year full parts and
labour manufacturer’s warranty.
NOx Class 5 and SEDBUK
A ratings demonstrate the
Modena’s outstanding energy
efficiency standards to provide
what every customer wants
– an exceptionally reliable
boiler that combines
high performance with
lower fuel bills.
At just 600mm high the
Modena can be sited in
the most awkward of spaces;
a liftweight of between
28kg and 31.5kg allows for
one-man installation and an
operating noise level of less
than 40dB means it can
hardly be heard.
Choice of 5 or 2 year full parts and
labour manufacturer’s warranty* for
total peace of mind and reassurance
Please note: System models come without a timer.
*UK warranty is subject to terms and conditions – please refer to the document
enclosed with the boiler or contact our service department for further information.
up to
31.3 kW
max
OUTPUT
32c DHW
flow rate
13.1 l/min
@ ∆t 35°C
MODENA
comes with
filling
loop
moving
parts
only
4
optional
digital RF
programmable
room
thermostat
4

Robust stainless steel
burner for long life
Optional external
temperature sensor kit
Dry fit sensors
mean they can be
replaced without
draining the system
Flexible flue options from
coaxial single pipe to twin
pipe; white or translucent
options for visual
inspection in voids
All Modena boilers
are fully compatible
and ready to work
with renewable
energy products
DHW/central heating
heat exchangers can be
chemically cleaned and
flushed in situ

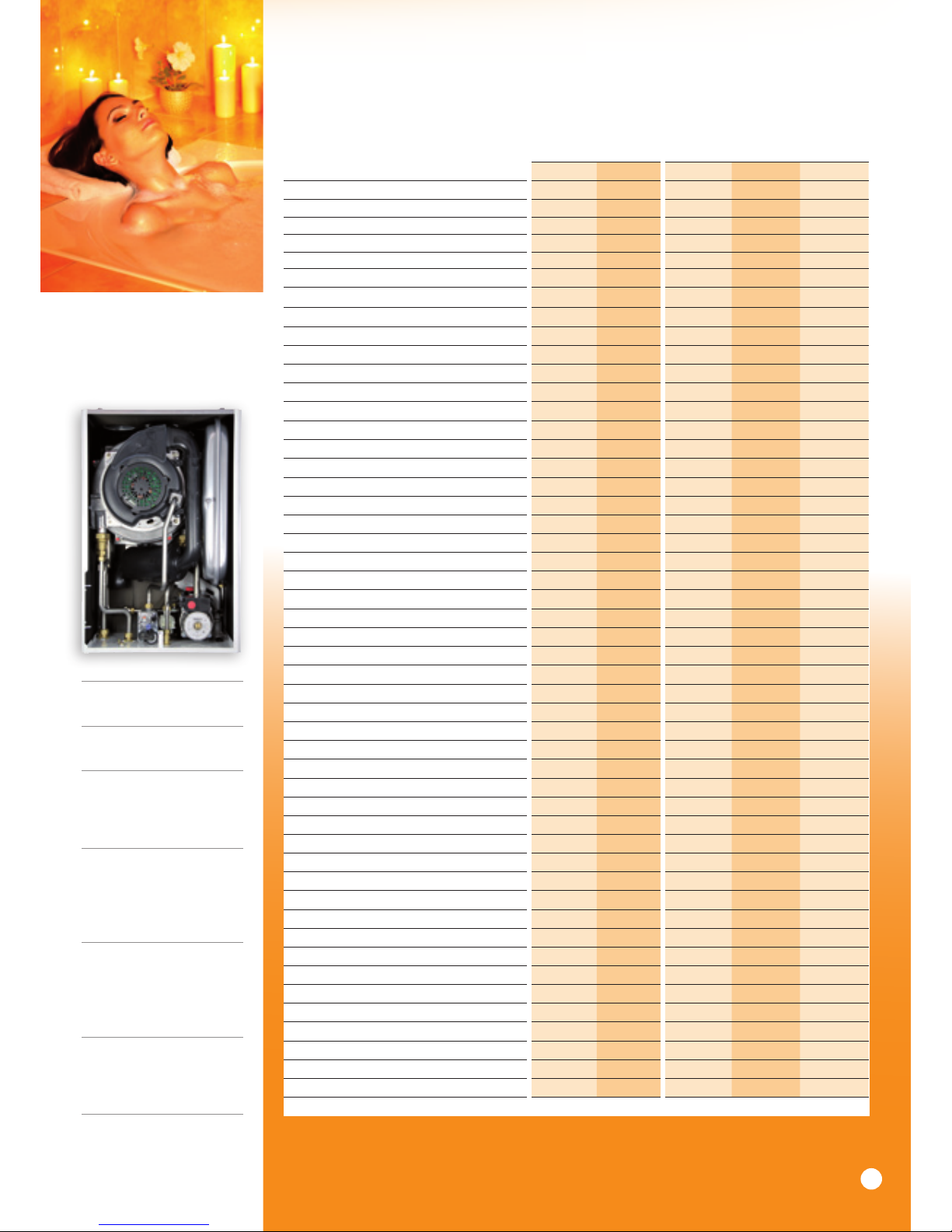

Combination System
27c 32c 18s 25s 32s
Ferroli product codes
Natural Gas 5yr Warranty 0T1R2IGA 0T1R3IGA 0T2O1IGA 0T2O2IGA 0T2O3IGA
Natural Gas 2yr Warranty ZU0T1R2IGA ZU0T1R3IGA ZU0T2O1IGA ZU0T2O2IGA ZU0T2O3IGA
LPG 5yr Warranty 0T1R2KGA 0T1R3KGA 0T2O1KGA 0T2O2KGA 0T2O3KGA
LPG 2yr Warranty ZU0T1R2KGA ZU0T1R3KGA ZU0T2O1KGA ZU0T2O2KGA ZU0T2O3KGA
NOx emissions class (mg/kWhr) 5 5 5 5 5
Energy marking rating (92/42 EEC directive) HHHH HHHH HHHH HHHH HHHH
SAP 2009 annual/2005 seasonal efficiency % NG 89.2/90.3 89.2/90.3 89.2/90.2 89.2/90.2 89.3/90.4
LPG 90.2/92.2 90.2/92.2 90.3/92.3 90.3/92.3 90.3/92.3
Output max/min
Heat input kW 25.0/5.8 29.5/6.7 17.4/4 25/5.8 32/6.07
Useful heat output 80°C – 60°C kW 24.5/5.7 28.9/6.6 17/3.9 24.5/5.7 31.4/6.6
Useful heat output 50°C – 30°C kW 26.5/6.2 31.3/7.2 18.5/4.3 26.5/6.2 34/7.2
Central heating
Maximum operating temperature ºC 80 80 80 80 80
Operating pressure central heating Max. bar 3 3 3 3 3
Min. bar 0.8 0.8 0.8 0.8 0.8
Expansion vessel capacity litres 8 10 8 8 10
Expansion vessel pre-fill pressure bar 0.8 0.8 0.8 0.8 0.8
Boiler water content litres 1.7 2.1 1.7 1.7 1.7
DHW
Maximum DHW production ∆t 25°C l/min 15.5 18.3 - - -
∆t 30°C l/min 12.9 15.3 - - -
∆t 35°C l/min 11.1 13.1 - - -
Operating pressure DHW Max. bar 9 9 - - -
Min. bar 0.3 0.3 - - -
Dimensions & weights
Height mm 600 600 600 600 600
Width mm 400 400 400 400 400
Depth mm 320 320 320 320 320
Weight (empty) kg 29 31.5 28 28 30
Fittings
Gas fitting mm 22 22 22 22 22
Central heating fittings mm 22 22 22 22 22
DHW circuit fittings mm 15 15 - - -
Power supply
Max power input W 100 120 100 100 100
Power supply voltage/frequency V/Hz 230V/50Hz 230V/50Hz 230V/50Hz 230V/50Hz 230/50
Index of protection IP IPX5D IPX5D IPX5D IPX5D IPX5D
Maximum equivalent flue lengths
Max horizontal flue length 60/100mm Ø m 7 7 7 7 7
Max vertical flue length 60/100mm Ø m 8 8 8 8 8
Max horizontal flue length 80/125mm Ø m 28 28 28 28 28
Max vertical flue length 80/125mm Ø m 28 28 28 28 28
Total equivalent length two pipe 80mm Ø m 80 70 70 70 70
Filling loop Yes Yes No No No
Hanging bracket Yes Yes Yes Yes Yes
Pre-wired mains cable supplied Yes Yes Yes Yes Yes
Technical
specifications
5

Flues
Accessories Manufacturer’s Ref
Telescopic Flue 60/100mm – nominal length 610mm 041049G0
Flue Extension 60/100mm Ø – nominal length 1m 1KWMA57W
Elbow 45°– 60/100mm Ø 1KWMA64W
Elbow 90°– 60/100mm Ø 041051X0
Flue Vertical Termination 60/100mm Ø 1KWUK356
Appliance Adaptor for Vertical Flue 60/100mm Ø 041002X0
Bracket – Flue Support 100mm Ø 1KWMR46A
Roof Flashing Plate – Flat Roof Ø 1KWMA81U
Roof Flashing Plate – Pitched Roof Ø 1KWMA82U
Pluming Kit – 60/100/60mm Ø (with flue kit combined) 041042G0
Appliance Adaptor (Pair) for Twin 80mm Ø 041039X0
Flue Extension 80mm Ø – nominal length 1m 222952
Elbow 45°– 80mm Ø 222954
Elbow 90°– 80mm Ø 222955
Terminal (Air Intake) for Twin 80mm Ø Horizontal 1KWMA85A
Terminal (Flue Exhaust) for Twin 80mm Ø Horizontal 1KWMA86A
Bracket – Flue Support 80mm Ø 1KWMR48A
Flue Vertical Termination Twin Connection 80mm Ø 010027X0
Standard Rigid Flue Kit 60/100mm – 1m 041025G0
Boiler Control and Accessory Options Manufacturer’s Ref
Digital Timer (diameter 61.5mm) 013021XA
Mechanical Timer ZU0800510
Digital RF Programmable Room Thermostat ZU0800009
Mechanical RF Programmable Room Thermostat ZU0800013
Rear Pipe Space Frame (depth 65mm) 056000G0
Valve Cover 046035G0
External Weather Compensator (combi only) 013018X0
Digital Timer (diameter 40mm) 013001X0
S
Please contact Ferroli Sales for other 80/125 mm Ø flue options and accessories not shown.
Note For non standard flue lengths over 1m a fall of 3o per metre per length should be incorporated
back to the boiler. Consult manufacturer’s installation instructions for full guidance and options for flueing.
A A
B
C
D
Clearances
A 0.5cm (minimum)
B 20cm (minimum)
C 30cm (minimum)
D 60cm (minimum)
via an openable panel
Essential to the boiler’s operation is the
availability of fresh, clean air and the ability
to dispose of combustion products. This is
achieved through the installation of a flue
which provides ducts to the outside of
the premises.
To optimise safety and performance,
Ferroli flues must always be used with
Ferroli boilers. Ferroli has a comprehensive
range of accessories to suit complex
installations and to enable the extension
of flue lengths. The diagram above shows
typical flueing options.
A
K
L
O
P
N
M
S
D
B
F
C
E
B
F
I
C
B
S
S
B
S
D
S
S
or
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
6

Digital RF Programmable
Room Thermostat
Mechanical RF Programmable
Room Thermostat
HH
I
J,K
B
IQ
A
G
I
I
M
N
F
L
D,E
C
Likely flue positions requiring
a flue terminal guard
P
Q
A
P
N
M
I
G
I
HH
K
J
Q
C
I
Q
DE
B
F
L
Flue Terminal Positions mm
Directly below an opening, air brick, opening windows etc. 300
Above an opening, air brick, opening windows etc. 300
Horizontally to an opening, air brick, opening windows etc. 300
Below gutters, soil pipes or drain pipes 75
Below eaves 200
Below balconies or car port 200
From a vertical drain pipe or soil pipe 150
From an internal or external corner 100
Above ground roof or balcony level 300
From a surface facing the terminal 600
From a terminal facing the terminal 1200
From an opening in the car port (ie. door, window) into the dwelling 1200
Vertically from a terminal on the same wall 1500
Horizontally from a terminal on the same wall 300
From the wall on which the terminal is mounted N/A
From a vertical structure on the roof 150
Above intersection with roof 300
300 min
Terminal
Assembly
Top View
Rear Flue
Property
Boundary Line
Notes
In addition, the terminal must not be nearer than
300mm to an opening in the building fabric
formed for the purpose of accommodating a
built-in element such as a window frame.
Condensing terminal positions: if the flue is
to be terminated at low level then the potential
effect of the plume must be considered.
The plume should not be directed:
– across a frequently used access route
– towards a window
– across a neighbouring property
For more information on terminal positions
please contact our technical department.
The distance from a fanned draught appliance
terminal installed parallel to a boundary may not
be less than 300mm in accordance with the
diagram below.
Flue terminal positions
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
Digital Timer
Mechanical Timer
RF Receiver
(internal)
RF Receiver
(internal)
+
+
Valve Cover
Rear Pipe
Space Frame
7

Modena/10.13
CONTACT US IN THE UK
SALES
T: 0843 479 4790
F: 0843 479 0081
[e-mail]
SERVICE
T: 0843 479 0479
F: 0843 479 0082
[e-mail]
GENERAL ENQUIRIES
T: 0843 479 0009
[e-mail]
TWITTER
twitter.com/ferroliuk
Ferroli Limited
Lichfield Road
Branston Industrial Estate
Burton-upon-Trent
Staffordshire DE14 3HD
Ferroli has been producing heating
appliances and equipment since
the 1950s. Today, their ultra-
modern factories in Europe
employ over 2,500 people and
produce a wide range of wall
hung, cast iron and welded
steel boilers, making Ferroli
one of the largest and most
successful heating appliance
manufacturers in the world.
Ferroli Domestic Boilers Offering
gas wall mounted units with outputs of
up to 50kW, Ferroli’s stylish, compact
domestic boilers provide maximum
comfort with minimal fuel usage. With
a choice of conventional, condensing
and combi technologies, there’s a
boiler to match the heating and hot
water requirements of every home.
Ferroli Commercial and
Industrial Boilers Ferroli
commercial boilers for pressure jet
oil, forced air gas or dual fuel are
factory matched with high efficiency
burners to provide outputs of up
to 12,350kW, whilst meeting the
strictest emissions demands.
Ferroli Renewable Energy
Products Ferroli continues to meet
the latest demands for renewable
energy technologies. From domestic
air source heat pumps to drain
back and pressurised solar systems,
Ferroli has the products to suit the
most popular renewable energy
system options.
Ferroli Spares The popularity
of Ferroli as first choice for
both domestic and commercial
installations means that heating
parts stockists offer readily available
spares for Ferroli boilers. Ferroli has
a UK-based fully stocked warehouse
enabling same-day despatch of
just about any part needed to keep
your Ferroli boiler running.
www.ferroli.co.uk
Calls to the above numbers are charged at national rate from BT landlines. Calls from mobile networks may be considerably more.
Whilst every effort is taken to ensure the accuracy of the information contained within the brochure, the details are offered in
good faith and Ferroli Ltd. accepts no liability for matters arising as a result of errors and/or omissions. The information in this
brochure was correct at the time of printing, however specifications and designs may be changed owing to Ferroli’s policy of
continuous product research and development. The technical specifications in the product instruction manual supersedes and
should always be referred to during installation and maintenance. Reproduction of this publication, or any part, is not permitted
without the written consent of Ferroli Ltd at [e-mail]. The statutory rights of the consumer are not affected.
Your local Ferroli stockist
Training Well trained installers are the key to a safe and efficient heating system.
We offer a choice of training and product awareness courses on our key product
range, including the Modena HE, at Ferroli’s fully equipped training centre in
Burton-upon-Trent and at specialist training locations across the UK. Courses are
aimed at engineers of all levels to ensure that everyone comes away with the skills
and knowledge needed to deliver the first class service that customers expect and
deserve. For more details visit www.ferroli.co.uk/training or ring 0843 479 0009.
