GB BR 10
14
Original operating manual
The specified illustrations appear at
the beginning of the Operating In-
structions.
1 Symbols
2 Safety instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this device near water.
6. Clean only with dry cloth.
7. Do not install near any heat
sources such as radiators, heat
registers, stoves, or other device
(including amplifiers) that pro-
duce heat.
8. Protect the cables and switching
adapter from being walked on or
pinched particularly the plugs,
convenience receptacles, and the
point where the cable exits from
the switching adapter.
9. Only use attachments/accesso-
ries specified by the manufactur-
er.
10. Use only with stands,
tripods, or brackets
specified by the man-
ufacturer, or sold with
the device. When a cable is used,
use caution when moving the ca-
ble/device combination to avoid
injury from tip-over.
11. Unplug the switching adapter and
device during lightning storms or
when the device is not in use for
longer periods of time.
12. Leave all maintenance to quali-
fied service personnel. Mainte-
nance is required when the device
has been damaged in any way,
Symbol Significance
Warning of general dan-
ger
Risk of electric shock
Read operating instruc-
tions and safety notices!
Do not dispose of as
domestic waste.
Do not tip over!
Do not listen at high vol-
ume levels!

15
BR 10 GB
such as switching adapter is
damaged, liquid has been spilled,
the device has been exposed to
rain or moisture, does not oper-
ate normally, or fell down.
13. To Reduce the Risk of Fire or Elec-
tric Shock, Do not Expose This Ap-
pliance To Rain or Moisture.
14. The Shock Hazard Marking and
Associated Graphical Symbol is
provided at the bottom of the de-
vice.
15. The device shall not be exposed to
dripping or splashing. No objects
filled with liquids may be placed
on the device.
16. The switching adapter should not
be removed far from the radio,
and remain easily accessible so
that during an emergency, the
power source can be easily re-
moved.
17. Where the MAINS plug or an ap-
pliance coupler is used as the dis-
connect device, the disconnected
device shall remain readily oper-
able.
18. The battery pack shall not be ex-
posed to excessive heat such as
direct sunlight, fire etc.
For more information read the
safety instructions provided with
your battery pack.
19. To prevent possible
hearing loss, do not
listen at high volume
levels for extended pe-
riods of time periods.
CAUTION: To reduce the risk of elec-
tric shock, do not perform any main-
tenance other than that detailed in
the operating instructions unless you
are qualified to do so.
WARNING! Warranty becomes void
once the radio housing has been
opened or any modifications or al-
terations to the radio have been
made!
3 Technical data
Radio SYS ROCK BR 10
Power requirements switching adapter Output: DC 19V/1A center
pin positive
battery pack 10.8 -18V
recommended: 18V

GB BR 10
16
4 Machine features
Radio - SysRock
Menu buttons and display
Frequency coverage FM 87.50 - 108 MHz
Bluetooth®version 4.1 EDR compliant
profiles HFP, A2DP, AVRCP pro-
files
transition power max. +4dBm Class 2 output
power
transition range max. 10 m (varies according to
usage conditions
Supported codec SBC/AAC
Circuit feature Loudspeaker 2.5" 8 Ω x1
Output power 19V:10W 3%THD
Input terminal 3.5 mm dia. (AUX IN)
Permitted operating temperature range -10 °C to +45 °C
Dimension (W x H x D) 100 x 150 x 105 mm
Weight (without external battery pack) 0.7 kg

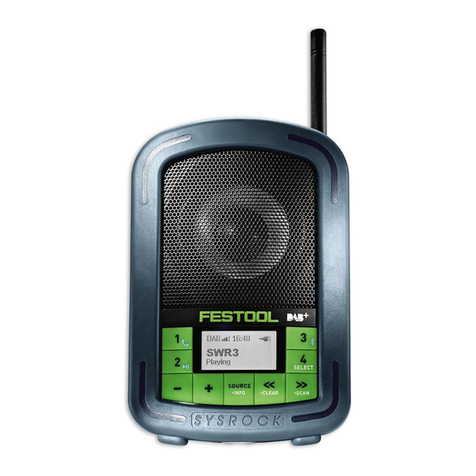

Radio SYS ROCK BR 10
[1-1] Folding attachment handle
[1-2] Connecting socket for switch-
ing adapter
[1-3] Antenna
[1-4] Auxiliary input (AUX-IN)
[1-5] Power button
[1-6] Speaker
[1-7] Built-in microphone
[1-8] Display
[1-9] Switching adapter
[2-1] Threaded socket for tripod
UNC 1/4"-20
[a] Volume control -

17
BR 10 GB
5 Operation
5.1 Operating with switching
adapter
Plug in switching adapter
[1-9] in connecting sock-
et [1-2] and power outlet.
5.2 Operating with external Fes-
tool battery pack [2A] + [2B]
The device can operate with any Fes-
tool battery pack from the BP, BPC or
BPS series. When connected to the
external Festool battery pack, the de-
vice only consumes power from this
battery pack.
CAUTION Always attach the battery
pack completely. If not, it may acci-
dentally fall out of the battery bay,
causing injury to you or someone
around you.
CAUTION Do not force attach the bat-
tery pack. If the battery pack does not
slide in smoothly and does not en-
gage, it is not being inserted correct-
ly.
CAUTION For optimal performance,
we recommend connecting to an 18V
Li-Ion battery pack.
5.3 Switch on/off
 To switch on: Press the power but-
ton
[1-5] .
The radio is ready for operation.
 To switch off: Press and hold the
power button [1-5] for a second.
5.4 Volume control
Press the volume control [a]
and [k] to adjust the desired
volume.
[b] Preset button 2
Bluetooth mode: Play and
pause
[c] Preset button 1
Bluetooth mode: Call button
[d] Clock time (only with RDS)
[e] Battery status indicator
[f] Preset button 3
Bluetooth mode: Pair button
[g] Preset button 4
Bluetooth mode: Reset button
for Bluetooth pairings
[h] Tuning control - up
Bluetooth mode: next track
[i] Tuning control - down
Bluetooth mode: previous track
[j] Source button
[k] Volume control +

GB BR 10
18
 For a better sound quality using
an external device, adjust the
volume on the external device
to maximum 70%.
5.5 Checking battery status
To check the current battery level,
press the power button
[1-5] to
switch on the radio. The battery sta-
tus indicator
[e] will show the current
battery level (only with Li-Ion battery
pack).
5.6 Operating your radio - FM
 Straighten up the antenna [1-3].
 Press the source but-
ton [j] until the FM mode
is selected.
FM auto-tune
 Press and hold (~1 sec.) the Tuning
control [i] , [h] to carry out an auto-
tune.
Your radio will stop scanning when it
finds a station of sufficient strength.
The display will show the frequency
of the signal found. If the signal is
strong enough and there is RDS data
present, the radio may display the
station name, radio text and clock
time.
Finding other stations
 Press the Tuning control [i] , [h] as
before.
When the end of the waveband is
reached, your radio will restart tun-
ing from the opposite end of the
waveband.
 If you find that FM reception is
poor, try repositioning the an-
tenna.
Manual tuning -FM
 Press the Tuning control [i] , [h] to
tune to a station.
The frequency will change in steps of
0.1 MHz.
5.7 Using preset stations
You may store your preferred FM ra-
dio stations to the preset stations.
There are four memory presets in
your radio.
 Press and hold (~1 sec.) the Preset
button [b] , [c] , [f] or [g] until the
display show <SET MEMO>.
Battery is fully charged
Battery is partially
charged
Battery low - charging
required
battery critical - alterna-
tive power source
required immediately.

19
BR 10 GB
The station will be accessible via the
chosen preset button. The preset
number P1 to P4 will be shown in the
display.
Repeat this procedure as required for
the remaining presets. Stations
stored in preset memories may be
overwritten by retracing the steps
above.
Recalling preset stations
 Press the required Preset button
[b] , [c] , [f] or [g] to tune to the sta-
tion stored in preset memory.
5.8 Clock time - Radio Data Sys-
tem
Your radio will synchronize and dis-
play clock time [d] whenever it tunes
to a radio station using RDS with CT
signals. If the station has sufficient
signal strength the clock will auto-
matically synchronize within one or
two minutes. The radio clock time
will be valid for 24 hours each time
the radio time is synchronized with
RDS CT.
 If no RDS-signal is received, the
clock time is not shown.
5.9 Listening to music via Blue-
tooth streaming
You need to pair your Bluetooth de-
vice with your SysRock before you can
auto-link to play/stream Bluetooth
music through your SysRock. Pairing
creates a "bond" so two devices will
recognize each other and establish a
link that enables data transfer.
Pairing your Bluetooth device for the
first time
 Press the Source button [j] to se-
lect the Bluetooth mode.
The Bluetooth status icon
flashes to show the SysRock
is discoverable.
 Activate Bluetooth on your mobile
device according to the device's
user manual to link up to the Sys-
Rock.
 Locate the Bluetooth device list
and select <SysRock>. Some mo-
bile devices (which are equipped
with bluetooth interfaces older
than the BT2.1 standard.), require
entering the pass code “0000”.
Once the connection is es-
tablished, the Bluetooth
icon will cease flashing and
display a check mark next to it. Sim-
ply select and play any music from
your source device.
 NOTE:
– If two Bluetooth devices, which
are not yet paired to the SysRock
both simultaeneously search for
your SysRock, it will show its

GB BR 10
20
availability on both devices. How-
ever, if one device establishes a
connection with the SysRock first,
then the other Bluetooth device
won't find it on its list.
– If you take your source device out
of range, the connection will be
temporarily lost. Your SysRock
will automatically reconnect, if
the source device is brought back
in range. Be aware that while the
connection is lost, no other Blue-
tooth device can pair or link with
your SysRock.
– If <SysRock> shows in your Blue-
tooth device’s list but your device
cannot connect with it, please de-
lete the item from your list and
pair up the device with the Sys-
Rock again following the steps
described previously.
– The effective operation range be-
tween the system and the paired
device is approximately 10 meters
(30 feet). Any obstacle between
the system and the device can re-
duce the operational range.
– Bluetooth connectivity perfor-
mance may vary depending on the
connected Bluetooth devices.
Please review the Bluetooth ca-
pabilities of your device before
connecting to your SysRock.
Some features may not be sup-
ported on your Bluetooth device.
Playing audio files in Bluetooth
mode
As soon as your SysRock is success-
fully connected with the chosen Blue-
tooth device, you can start to play
your music using the controls on your
connected Bluetooth device.
 Once the SysRock plays adjust the
volume to the desired level using
the Volume control
[a] , [k] on ei-
ther your SysRock or your connect-
ed Bluetooth device.
 Use the controls on your device to
play/pause and navigate tracks. Al-
ternatively, control the playback
using Play/Pause [b] , Next track
[h] , Previous track buttons [i] on
the SysRock.
The currently-played track informa-
tion (i.e. the track name /the artist
name) will be displayed as scrolling
text at the bottom of display.
 NOTE:
– Some player applications or de-
vices may not respond to all of
these controls.
– Some mobile phones may tempo-
rarily disconnect from your Sys-
Rock when you make or receive
calls. Some devices may tempo-

21
BR 10 GB
rarily mute their Bluetooth audio
streaming when they receive text
messages, emails or for other
reasons unrelated to audio
streaming. Such behaviour is a
function of the connected device
and does not indicate a fault with
your SysRock.
Playing previously-paired devices
This unit can save up to 8 sets of
paired devices. When the amount is
exceeded, the earliest device will be
over written. If your Bluetooth device
has already been paired with the Sys-
Rock previously, the unit will recog-
nize your Bluetooth device and will
automatically attempt to reconnect
with the device it was last connected
with. If the last connected device is
not available, the SysRock will try to
connect to the second last device, and
so forth.
Deleting Bluetooth device pairings
 To delete all Bluetooth device pair-
ings, press and hold the Preset 4
button [g] until <BT-RESET>
shows on the display. The SysRock
will turn off automatically after the
memory is cleared.
Disconnecting your Bluetooth device
 Press the Source button [j] to se-
lect any mode other than Bluetooth
mode.
 Alternatively, press (~2 sec.) the
Bluetooth pair button
[f] to discon-
nect the link.
If you disconnect the Bluetooth de-
vice when you are in Bluetooth mode,
the Bluetooth icon will then start to
flash, indicating Bluetooth is avail-
able again for pairing.
Using your hands-free call feature
Your unit can be used as a
hands-free accessory for
your phone. When music is
playing through your SysRock and
you receive a call on your phone it can
pause the music automatically to al-
low you to answer your phone.
 If you receive a call while playing
music through your SysRock, press
and release the Call button
[c] to
answer your phone call.
 Speak in direction of the built-in
microphone [1-7] .
 Note that a very high volume
setting may decrease sound
quality.
 Press and release the Call button
[c] to end the phone call.

GB BR 10
22
5.10 Auxiliary input (AUX-IN)
A 3.5 mm Auxiliary input
[1-4] is provided on the
top panel of your SysRock to permit
an audio signal to be fed into the unit
from an external audio device such as
an MP3 or CD player.
 Connect a stereo or mono audio
source (for example MP3 or CD
player) to the Auxiliary input
[1-4] .
 Press the Source button [j] to se-
lect the Aux mode.
 Adjust the Volume control on your
MP3 or CD player (max. 80%) to en-
sure an adequate signal and then
adjust the volume on the SysRock
for comfortable listening.
 Never use the Aux-In socket in
rainy or moist conditions to pre-
vent moist from entering the
SysRock. Make sure that the
rubber cover on top fits thightly
when operating in a moist envi-
ronment.
5.11 Setup options
Attachment handle [1-1]
The folding attachment handle allows
you to hang the device from scaffold-
ing or similar structures.
 If you decide to power the device
with an external Festool battery
pack, the attachment handle
must be detached beforehand
[2A] .
Tripod
A standard photographic tripod with
UNC 1/4"-20 thread can be attached
to the threaded tripod socket [2-1].
6 Service and maintenance
Customer service and re-
pair only by manufacturer
or service workshops:
Find your nearest address
online at www.fes-
tool.com/service
Always use original Fes-
tool spare parts! Order no.
at: www.festool.com/ser-
vice
– Always clean the display [1-8]
and speaker grill [1-6] on the
SysRock using a soft, dry cloth to
prevent any damage. Do not use
solvents.
– Keep the contacts on the SysRock
and battery pack clean.
7 Environment
Do not dispose of the de-
vice in household waste!
Recycle devices, accesso-
ries and packaging. Ob-
serve applicable national regula-
tions.
EKAT
1
235
4

23
BR 10 GB
EU only: In accordance with Europe-
an Directive on waste electrical and
electronic equipment and implemen-
tation in national law, used electric
power tools must be collected sepa-
rately and handed in for environmen-
tally friendly recycling.
Information on REACh: www.fes-
tool.com/reach
The company reserves the right to
amend the specification without no-
tice.
"The Bluetooth®" word mark and lo-
gos are registered trademarks
owned by Bluetooth SIG, Inc. and any
use of such marks by Festool GmbH
is under license.

EG-Konformitätserklärung.
Wir erklären in alleiniger Verantwortung,
dass dieses Produkt mit den folgenden Normen
oder normativen Dokumenten übereinstimmt:
EC-Declaration of Conformity.
We declare at our sole responsibility that
this product is in conformity with the following
standards or standardised documents:
CE-Déclaration de conformité commu-
nautaire.
Nous déclarons sous notre propre responsa-
bilité que ce produit est conforme aux normes
ou documents de normalisation suivants:
CE-Declaración de conformidad.
Declaramos bajo nuestra exclusiva res-
ponsabilidad que este producto corresponde a
las siguientes normas o documentos normaliza-
dos:
CE-Dichiarazione di conformità.
Dichiariamo sotto la nostra esclusiva re-
sponsabilità che il presente prodotto e confor-
me alle norme e ai documenti normativi
seguenti:
EG-conformiteitsverklaring.
Wij verklaren op eigen verantwoordelijk-
heid dat dit produkt voldoet aan de volgende nor-
men of normatieve documenten:
EG-konformitetsförklaring.
Vi förklarar i eget ansvar, att denna
produkt stämmer överens med följande nor-
mer och normativa dokument:
EY-standardinmukaisuusvakuutus.
Vakuutamme yksinvastuullisina, etta tuo-
te on seuraavien standardien ja normatiivisten
ohjeiden mukainen:
EF-konformitetserklæring
Vi erklærer at have alene ansvaret for, at
dette produkt er i overensstemmelse med de føl-
gende normer eller normative dokumenter:
CE-Konformitetserklæring
Vi erklærer på eget ansvar at dette produk-
tet er i overensstemmelse med følgende normer
eller normative dokumenter:
CE-Declaração de conformidade:
Declaramos, sob a nossa exclusiva respon-
sabilidade, que este produto corresponde às nor-
mas ou aos documentos normativos citados a
seguir:
Д екларация соответствия ЕС: Мы
заявляем с исключительной
ответственностью, что данный продукт
соответствует следующим нормам или
нормативным документам:
ES prohlašeni o shodě: Prohlašujeme s
veškerou odpovědnosti, že tento vyrobek je
ve shodě s nasledujicimi normami nebo
normativnimi dokumenty:
.
Oświadczenie o zgodności z normami UE:
Niniejszym oświadczamy na własną
odpowiedzialność, że produkt ten spełnia
następujące normy lub dokumenty normatywne:
________________________________________
1999/5/EG, 2004/108/EG (bis/until 19.04.2016),
2014/30/EU (ab/from 20.04.2016), 2006/95/EG
(bis/until 19.04.2016), 2014/35/EU (ab/from
20.04.2016), 2011/65/EU, VO (EC) 1275/2008
EN 55013:2013, EN 61000-3-2:2014, EN 61000-3-
3:2013, EN 55020:2007, EN 61000-4-2:2009, EN
61000-4-4:2012, EN 301489-01 V1.9.2 (2011-09),
EN 301489-17 V2.2.1 (2012-09), EN 300328:V1.8.1
(2012-06), EN 60065:2014, EN 62479:2010, EN
60950-1:A12:2011
________________________________________
W.Zondler 2015-10-20
Leiter Forschung, Entwicklung, technische Dokumentation
Head of Research, Development and Technical Documentation
Directeur recherche, developpement, documentation technique
Festool GmbH
Wertstr. 20
D-73240 Wendlingen
Radio Serien-Nr.
Serial no.
N° de série
SYSROCK BR 10 200188
Jahr der CE-Kennzeich-
nung, Year of CE mark,
Année du marquage CE
2015
