Festool CT SYS HEPA User manual

708070_002
Festool GmbH
Wertstraße 20
73240 Wendlingen
Germany
www.festoolusa.com
Instruction manual - Dust extractor
Page 6
IMPORTANT: Read all instructions before using.
Guide d’utilisation - Aspirateur
Page 16
IMPORTANT: Lire toutes les instructions avant de démarrer les travaux.
Manual de instrucciones - Sistemas móviles de aspiración
Página 27
IMPORTANTE: Lea todas las instrucciones antes de usar.
Instruction manual
Guide d’utilisation
Manual de instrucciones
CT SYS HEPA

1
1-4 1-5
1-6
1-7
1-10
1-3
1-9 1-8
1-1
1-2
2

6
Original operating manual
Symbols
Symbols ...................................................... 6
About this manual ...................................... 7
Safety instructions...................................... 7
IMPORTANT SAFETY INSTRUCTIONS . 7
GROUNDING INSTRUCTIONS.............. 8
Further safety instructions.................. 9
Health hazard by dust.......................... 9
Intended use ............................................... 9
Technical data............................................. 10
Functional description................................ 10
Operation .................................................... 10
Extension Cord..................................... 10
Connect dust extractor ........................ 11
Connecting electric power tools .......... 11
Connecting the suction hose................ 11
Settings ...................................................... 12
Connect with the T-Loc ........................ 12
Use/Adjust carrying strap .................... 12
Temperature monitoring ...................... 13
The antistatic system ........................... 13
Working with the dust extractor ................ 13
Service and maintenance........................... 14
Changing the filter bag......................... 15
Changing the filter element [9]............ 15
Transport.................................................... 15
Environment............................................... 15
Sym-
bol
Significance
Warning of general danger
Risk of electric shock
Read operating instructions and safety
notices!
Wear a dust mask.
Tip or advice
Handling instruction
Warning! The machine may contain
hazardous dust!
Climbing prohibited
Do not leave in the rain!
Do not absorb any water or liquids!
Risk of tilting!
Wwatt
hhour
min minutes
sseconds
kg kilograms
Pa pascal
dB decibel
Vvolts
A amperes
Hz hertz
~ a.c. alternating current
d.c. direct current
n
0
no load speed
Class II construction
rpm
min
-1
revolutions per minute
’’ inch
lbs. pound
diameter
Sym-
bol
Significance

7
About this manual
Save these instructions
It is important for you to read and understand this manual. The information it contains relates to protecting
your safety and preventing problems . The symbols below are used to help you recognize this information.
Safety instructions
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basis precautions should always be followed, in-
cluding the following:
READ ALL INSTRUCTIONS
BEFORE USING THIS DUST EXTRACTOR :
WARNING - To reduce the risk of fire, electric shock, or injury :
– Do not leave the dust extractor when plugged in. Unplug from outlet when not in use
and before servicing.
– WARNING - to Reduce the Risk Of Electric Shock - Do not use outdoors or on
wet surfaces.
– Do not allow to be used as a toy. Close attention is necessary when used by or near chil-
dren.
– Use only as describes in this manual. Use only manufacturer's recommended attach-
ments.
– Do not use with damaged cord or plug. If the dust extractor is not working as it should,
has been dropped, damaged, left outdoors, or dropped into water, return it to a service
center.
– Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord
around sharp edges or corners. Do not run dust extractor over cord. Keep cord away
DANGER Description of imminent haz-
ard and failure to avoid hazard
will result in death.
WARNING Description of hazard and
possible resulting injures or
death.
CAUTION Description of hazard and
possible resulting injuries.
NOTICE Statement including nature of
hazard and possible result.
HINT Indicates information, notes,
or tips for improving your suc-
cess using the tool.

8
from heated surfaces.
– Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
– Do not handle plug or dust extractor with wet hands.
– Do not put any object into openings. Do not use with any opening blocked; keep free of
dust, lint, hair, and anything that may reduce air flow.
– Keep hair, loose clothing, fingers, and all parts of body away from openings and moving
parts.
– Turn off all controls before unplugging.
– Use extra care when cleaning on stairs.
– Do not use to pick up flammable or combustible liquids, such as gasoline, or use in ar-
eas where they may be present.
– Connect to a properly grounded outlet only. See Grounding instructions.
– Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot
ashes.
– Do not use without dust bag and/or filters in place.
SAVE THESE INSTRUCTIONS
GROUNDING INSTRUCTIONS
This appliance must be grounded. If it should malfunction or breakdown, grounding pro-
vides a path of least resistance for electric current to reduce the risk of electric shock.
This dust extractor is equipped with a cord having an equipment-grounding conductor
and grounding plug. The plug must be inserted into a appropriate outlet that is properly
installed and grounded in accordance with all local codes and ordinances.
WARNING - Improper connection of the equipment grounding conductor
can result in a risk of electric shock. Check with a qualified electrician or service person
if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug
provided with the dust extractor - if it will not fit the outlet, have a proper outlet installed
by a qualified electrician.

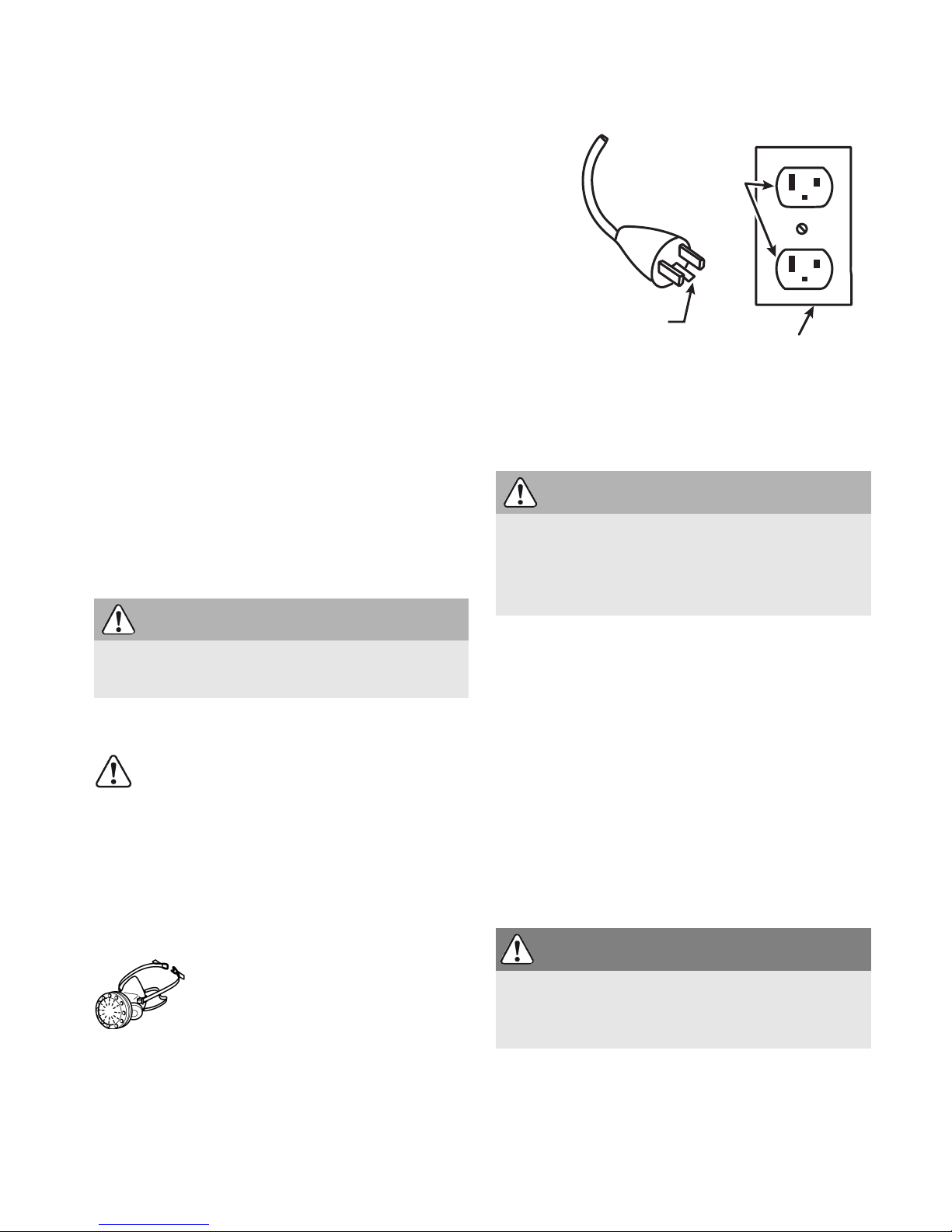

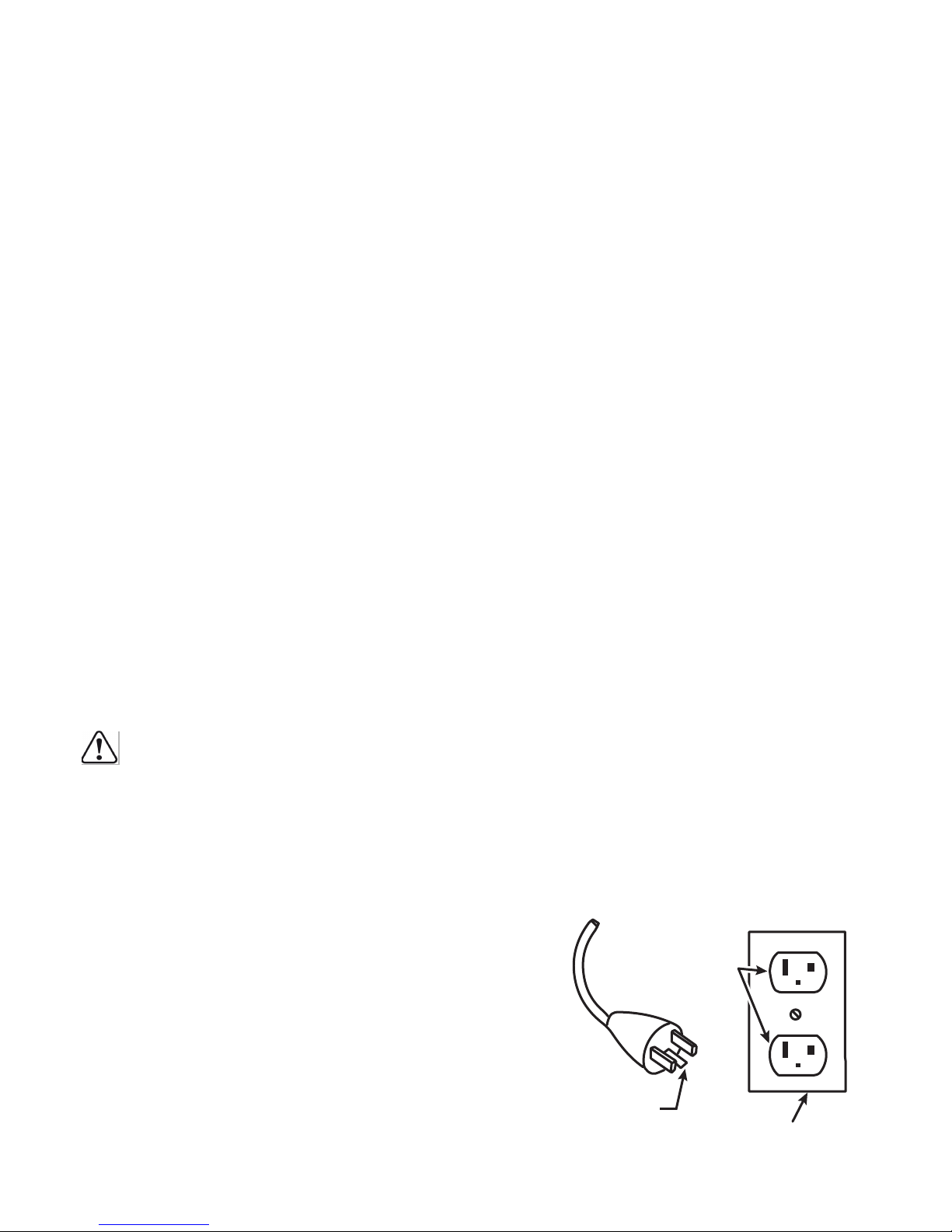

This appliance is for use on a nominal 120-V circuit
and has a grounding attachment plug that looks like
the plug illustrated in sketch A in Figure beside.
Make sure that the appliance is connected to an out-
let having the same configuration as the plug. No
adaptor should be used with this appliance.
GROUNDED
OUTLET BOX
GROUNDED
PIN
GROUNDED
OUTLET
GROUNDING METHODS - SKETCH A

9
Further safety instructions
– This appliance must not be used by persons (in-
cluding children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge. Children need to be supervised to
ensure they do not play with the appliance.
Health hazard by dust
WARNING! Various dust created by power sanding, sawing, grinding, drilling and other construction
activities contains chemicals known (to the State of California) to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other
masonry products, and
• arsenic and chromium from chemically treated
lumber.
The risk from these exposures varies,
depending on how often you do this type
of work. To reduce your exposure to
these chemicals: work in a well ventilated area, and
work with approved safety equipment, such as dust
masks that are specially designed to filter out micro-
scopic particles. Wash hands after handling.
Intended use
Dust extractor suitable for
– Extracting non-hazardous dust, dirt, sand and
chips,
– for increased loads during commercial use,
according to IEC/EN 60335-2-69.
The filtering performance of the overall unit, which
is fitted with a HEPA filter element, corresponds to
HEPA quality H 13 (medium degree of filtration
99.95%).
Dust extractor not recommended for continuous
aspiration and extraction of fine dust, such as ce-
ment dust or filler.
Dust extractor
not suitable for extracting water and
liquids.
The user is liable for improper or non-in-
tended use.
WARNING
This machine is for dry use only.
CAUTION
This machine is for indoor use only.
This machine shall be stored indoors only.
WARNING
TO REDUCE THE RISK OF INJURY, USER MUST
READ INSTRUCTION MANUAL.

10
Technical data
Functional description
The pictures for the functional description are on a
fold-out page at the beginning of the instruction
manual. When reading of the manual you can fold
out this page for having always an overview of the
machine.
Operation
Consider the pictures on the fold-out page.
Extension Cord
If an extension cord is required, it must have suffi-
cient cross-section to prevent an excessive drop in
voltage or overheating. An excessive drop in voltage
reduces the output and can lead to failure of the
motor. The table below shows you the correct cord
diameter as a function of the cord length for this
tool.
Use only U.L. and CSA listed extension cords.
Never use two extension cords together. Instead,
Dust extractor
Power consumption 8.3 A
Maximum appliance socket connected load 12 A
Max. suction capacity (air), extractor/turbine 108 m³/h / 180 m³/h
Max. vacuum, turbine 96 static water lift (200 hPa)
Filter surface area 4.08 ft² (3786 cm²)
Suction hose D 1 1/16 x 3/32"
(D 27 mm x 3.0 m-AS)
Length of the net cable 16.4 ft (5.0 m)
Sound pressure level as per EN 60704-2-1 / Uncertainty K 67 dB(A) / 3 dB
Protection class IP X0
Container capacity 1.19 gal. (4.5 l)
Dimensions L x W x H only CT SYS HEPA 15.6 x 11.7 x 6.2" (396 x 296 x 162 mm)
CT SYS HEPA with storage box 15.6 x 11.7 x 10.6" (396 x 296 x 270 mm)
Weight CT SYS HEPA with storage box 15.2 lbs. (6.9 kg)
[1-1] Dust extractor
[1-2] Storage box
[1-3] Extractor hose
[1-4] Handle
[1-5] Angle adapter
[1-6] T-LOC latch for Systainers
[1-7] Cold-device plug
[1-8] On/Off switch
[1-9] AUTO/MAN switch
[1-10] Appliance socket
WARNING
Unauthorised voltage or frequency!
Risk of accidents
 Observe the specifications on the machine’s
name plate.
 Observe country-specific regulations.
Total Extension Cord
Lenght (feet)
25 50 100 150
Cablesize(AWG) 18161412
