Fiberlink®
6654 Series
Single Mode Optical Power Source
Communications Specialties’ Fiberlink® 6654 User’s Manual
The Fiberlink® 6654 Dual
Wavelength Single Mode Optical
Power Source is a cost eective,
compact, handheld light source
essential for the testing and
installation of single mode ber
optic links.

Page 2 Fiberlink® 6654 Series User’s Manual
Fiberlink® 6654 Series
Contents
Welcome .................................................................4
Features ..................................................................4
Package Contents .........................................................4
Technical Specications ...................................................5
Functions .................................................................6
Warranty .................................................................8
Operating Pointers ........................................................9
Troubleshooting ..........................................................9
Maintenance and Repairs .................................................9
Contents

Page 3Fiberlink® 6654 Series User’s Manual
Fiberlink® 6654 Series
This page intentionally left blank

Page 4 Fiberlink® 6654 Series User’s Manual
Fiberlink® 6654 Series
Welcome
The Fiberlink® 6654 Dual Wavelength Single Mode Light Source is a cost eective, compact,
handheld light source. The temperature compensated outputs are calibrated to couple
-20dBm of optical power into single mode ber.
The light source comes installed with 1310nm & 1550nm LED sources. The source has an
intuitive two-button interface - one button for turning the unit ON or OFF and the other for
wavelength selection. LED indicators highlight the selected source and verify that battery
power is sucient to maintain the calibrated output power.
Features
• Stable and temperature compensated LED sources
• User selectable output wavelength:1310nm or 1550nm
• Comes equipped with industry preferred ST connectors
• Extended battery life - up to 30 hours on one 9V battery
• Combination selected source / Low battery indicator LEDs
• Simple two-button operation
• NIST traceable
• Comes equipped with a rugged and durable rubber boot to protect
the instrument from drops and other hazards
• Optional ruggedized carrying cases available to accommodate 3 or 6 test devices
Package Contents
• One Fiberlink® 6654
• This User’s Manual
• One Non-Rechargeable Lithium Battery (Pre-installed in unit)
Welcome | Features | Package Contents

Page 5Fiberlink® 6654 Series User’s Manual
Fiberlink® 6654 Series
Specications
Launch Method FP Laser
Connector ST, FC, SC
Output Power (Approximately): -10 dBm into single mode ber
Initial Accuracy: +/- 0.10dB @ 25ºC
Center Wavelength: 1310nm +/- 30nm
1550nm +/- 30nm
Spectral Width: 2nm @ 1310nm
2nm @ 1550nm
Operating Temperature 0 - 55º C
Power Requirements: 9 Volt battery or optional
Power Supply for use with
rechargable battery
Dimensions: 4.94 x 2.175 x 1.28 (inches)
Weight 154g
Technical Specications
Technical Specications
This device emits invisible infrared electromagnetic
radiation which can be harmful to human eyes. The
radiation from this optical connector, if viewed at close
range with no ber optic cable connected to the optical
connector, may be sucient intensity to cause
instantaneous damage to the retina of the eye. Direct
viewing of this radiation should be avoided at all times!

Page 6 Fiberlink® 6654 Series User’s Manual

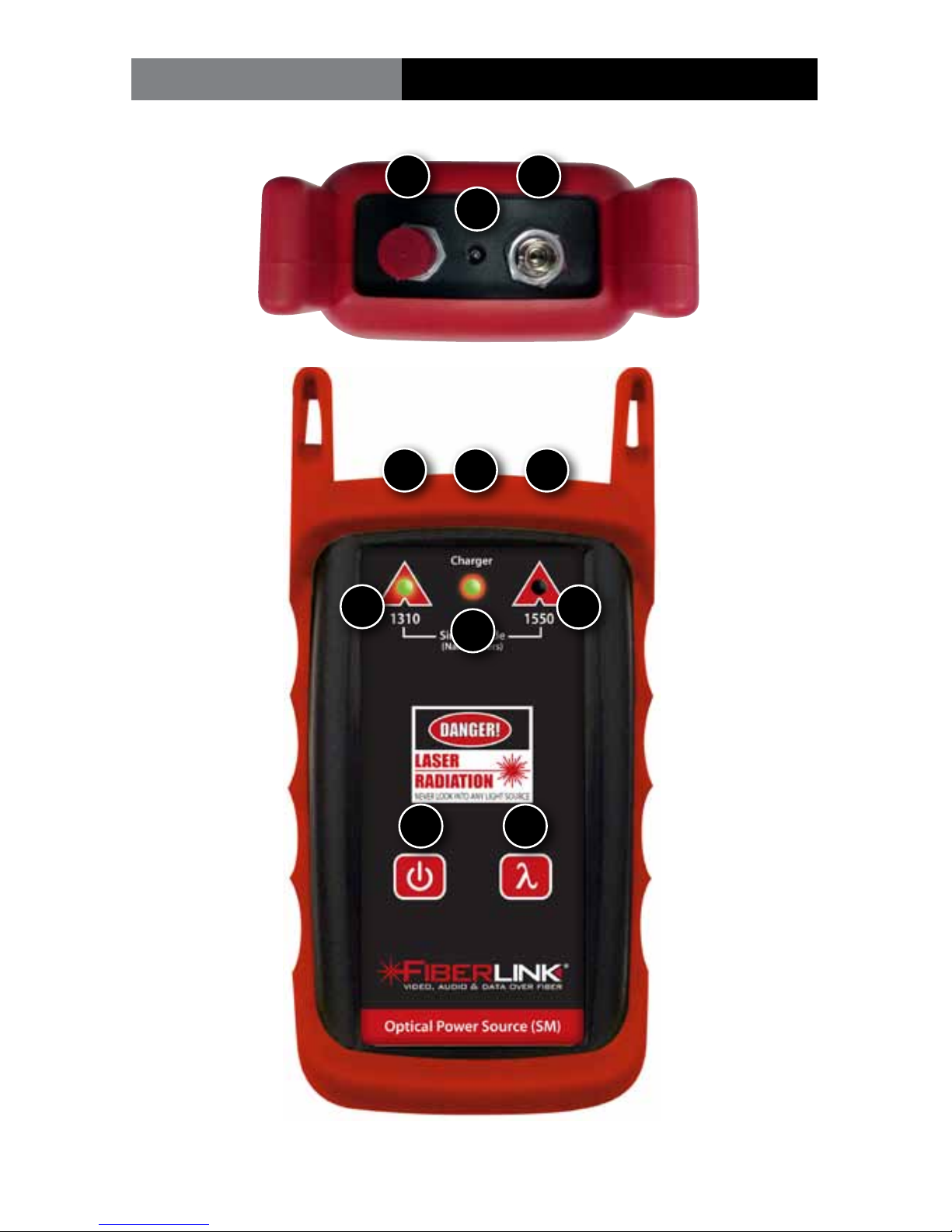

Fiberlink® 6654 Series Functions
1
1
3
3
2
2
4
7 8
6
5

Page 7Fiberlink® 6654 Series User’s Manual
Fiberlink® 6654 Series Functions
1
2
3
4
5
6
7
8
1310nm ST equipped Optical Port:
Ensure optical connectors are clean prior to use. Always replace dust cap after use.
Shown here with dust cap.
Battery Charger Port:
Allows for charging of rechargeable 9 Volt batteries, as well as wall power
operation (Power Supply optional and not included. 9 Volt re-chargeable
battery not included).
Do not use battery charging port with non-rechargeable
batteries. There is the potential for explosion and damage
may occur to the unit and/or the user.
1550nm ST equipped Optical Port:
Ensure optical connectors are clean prior to use. Always replace dust cap after use.
Shown here without dust cap.
1310nm Operation Indicator:
When illuminated, the 1310nm port is operational.
Charger Indicator:
When illuminated, the optional power supply is connected to the unit and the
battery is charging.
1550nm Operation Indicator:
When illuminated, the 1550nm port is operational
Power Button:
Pressing the button powers the unit ON or OFF.
Wavelength Select Button:
Pressing the button toggles the operation of 1310nm and 1550nm.

Page 8 Fiberlink® 6654 Series User’s Manual
Fiberlink® 6654 Series
Communications Specialties, Inc. (CSI) warrants that, for a period of three years after
purchase by the Buyer, this product will be free from defects in material and workmanship
under normal use and service. A Return Material Authorization (RMA) number must be
obtained from CSI before any equipment is returned by the Buyer. All materials must be
shipped to CSI at the expense and risk of the Buyer.
CSI’s obligation under this warranty will be limited, at its option, to either the repair or
replacement of defective units, including free materials and labor. In no event shall CSI be
responsible for any incidental or consequential damages or loss of profits or goodwill.
CSI shall not be obligated to replace or repair equipment that has been damaged by fire,
war, acts of God, or similar causes, or equipment that has been serviced by unauthorized
personnel, altered, improperly installed, or abused.
RMA numbers and repairs can be obtained from:
Communications Specialties, Inc.
125 Comac Street
Ronkonkoma, New York 11779 USA
Tel: [phone]
Fax: [phone]
RMA numbers can also be obtained from our web site: commspecial.com
Please have your serial number available.
Warranty

Page 9Fiberlink® 6654 Series User’s Manual
Fiberlink® 6654 Series
Operating Pointers
Remember to check attenuation of the ber optic cable. The system will only operate
properly if these specications fall within the range of the system’s loss budget.
Troubleshooting
Multimode ber optic cable contains an optical ber with a light carrying “core” that is
only .0025 inches (62.5 microns) in diameter. Single mode ber optic cable has an even
smaller “core,” only .00032 to .0004 inches (8-10 microns). This is smaller than a human hair!
Therefore, any minute particles of dirt or dust can easily block the ber from accepting or
radiating light. To prevent this from happening, always use the provided dust caps when
ever optical connectors are exposed to air. It is also a good idea to gently clean the tip of an
optical connector with a lint-free cloth moistened with alcohol whenever dust is suspected.
The status of the LED’s should provide the rst clue as to the origin of any operational
failure. If these are o, it usually means that the battery has failed in the unit.
If, after reviewing the above possibilities, the system is still not operating, please contact
the Customer Service Department for further assistance. If you suspect your problem is
caused by the optics or the ber optic cable, and you have an optical power meter, please
take the appropriate measurements prior to contacting support.
Maintenance and Repairs
The Fiberlink® 6654 Series has been manufactured using the latest semiconductor devices
and techniques that electronic technology has to oer. They have been designed for long,
reliable and trouble-free service and are not normally eld repairable.
Should diculty be encountered, Communications Specialties maintains a complete
service facility to render accurate, timely and reliable service of all products.
The only maintenance that can be provided by the user is to ascertain that optical
connectors are free of dust or dirt that could interfere with light transmission and that
connections are secure and accurate.
All other questions or comments should be directed to our Customer Service Department.
It should be noted that many “problems” can easily be solved by a simple telephone call.
Operating Pointers | Troubleshooting
Maintenance & Repair

Page 10 Fiberlink® 6654 Series User’s Manual
Fiberlink® 6654 Series
This page intentionally left blank

Page 11Fiberlink® 6654 Series User’s Manual
Fiberlink® 6654 Series
This page intentionally left blank
