FIELD OF VIEW GeoSnap Pro User manual

Getting Started with Your GeoSnap Pro
For full GeoSnap Pro Manual, visit www.fieldofviewllc.com/downloads
1. Installing the GeoSnap Pro 2. Setting up the CONFIG file
1. Insert the GeoSnap µSD card into a computer
2. Open the CONFIG file (using Notepad), make
the following changes, and save the CONFIG file
For Bench Testing
@2: File_name = camera dependent
@3: Trigger_mode = 1
@4: Trigger_time_sec = 2
@7: Control_mode = 4
For Flight Operations (with distance triggering)
@2: File_name = camera dependent
@3: Trigger_mode = 2
@5: Trigger_dist_m = flight plan dependent
@7: Control_mode = 0
@20: Antenna_offset_m = installation dependent
3. Replace the card in the GeoSnap before
powering it on
2. Plug in the GPS antenna
then rotate the cable under
the strain relief. Note: mount
the GPS antenna with the
top facing up and with a
clear view of the sky. See
reverse side of this card for
ground plane
recommendation.
1. Slide the GeoSnap hotshoe
module onto the hotshoe of
the camera and tighten
down lock by twisting the
ring clockwise
3. Plug the hardwire trigger
cable into the hotshoe
module and the camera.
Top
Code
Description
GeoSnap powered
on.
Checking
µSD card access. NOTE: if pattern persists, check
that card is correctly seated in the slot.
No GPS lock.
GPS lock.
If GeoSnap is set to distance triggering, the first
trigger command will be sent when GPS lock is obtained.
Trigger command sent.
Capture confirmation received from camera.
All data logging stopped and safe
to power down. (Press
and hold onboard button for
approx. 3 seconds).
LED Code Meanings
GPS Ground Plane (optional)
Image Log File (001-IMG.TXT)
The IMG log file is a log of the image name and position of
the camera at the moment of image capture.
Pix4D Image Log file (001-P4D.TXT)
The P4D log file is a Pix4D compatible log of the image name
and position of the camera at the moment of image capture.
Flight Log File (001-FLT.TXT)
The FLT log file is a 25Hz log of the position of the camera
throughout the flight.
IMAGENUM.TXT
This file keeps track of the numbering of the images in the
IMG log file. To restart numbering at one, simply delete this
file from the GeoSnap microSD card.
GeoSnap File Descriptions
The GeoSnap does not get the actual image names from the
camera but just logs the correct image name format with a
sequential numbering scheme. Because of this, it is
important that the camera and the GeoSnap be set up so
that they both start numbering the images at 1 and remain
synchronized through use.
It is recommended to set the camera’s file numbering
setting to Reset. Then, before you start a new mission, clear
all images off of the camera’s SD card and delete the
IMAGENUM.TXT file off of the GeoSnap card. This will reset
both systems to start image numbering at 1.
Image Name Synchronization
To improve your GPS accuracy, place a
10cm round or square ground plane
under the GPS antenna. This could be
as simple as placing some aluminum
tape (that you can buy from a
hardware store) around a 10cm piece
of wood or cardboard, sticking the
antenna to the center of the plate,
and attaching that whole assembly to
the top of your aircraft.
Full GeoSnap manual available at
fieldofviewllc.com/downloads

Other manuals for GeoSnap Pro

1

Other FIELD OF VIEW Camera Accessories manuals

FIELD OF VIEW GeoSnap Pro User manual

FIELD OF VIEW

FIELD OF VIEW GeoSnap Pro User manual

FIELD OF VIEW GEOSNAP EXPRESS User manual

FIELD OF VIEW

FIELD OF VIEW GEOSNAP EXPRESS User manual

Popular Camera Accessories manuals by other brands

ToupTek WUCAM1080P Series Help Manual

ToupTek

ToupTek WUCAM1080P Series Help Manual

Hama heavy-duty batteries operating instructions

Hama

Hama heavy-duty batteries operating instructions

Rollei Pro Transmitter Mark IIs manual

Rollei

Rollei Pro Transmitter Mark IIs manual

Bosch HSG9583 Series Specifications

Bosch

Bosch HSG9583 Series Specifications

PROAIM ST-LHWK-01 Assembly manual

PROAIM

PROAIM ST-LHWK-01 Assembly manual

Bioenno Power BLF-1209T user manual

Bioenno Power

Bioenno Power BLF-1209T user manual

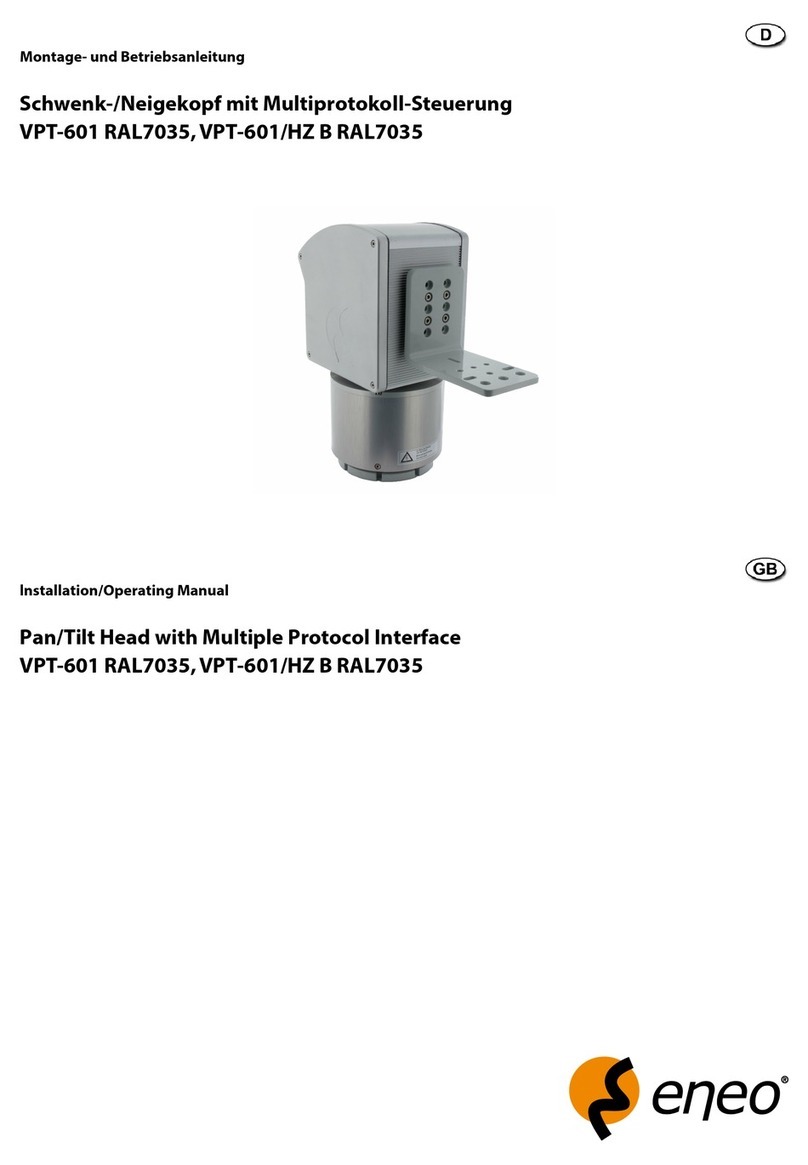

Eneo VPT-601/HZ B RAL7035 Installation & operating manual

Eneo

Eneo VPT-601/HZ B RAL7035 Installation & operating manual

Gemtor TP-7 owner's manual

Gemtor

Gemtor TP-7 owner's manual

Camtree C-MB-23-CF Assembly manual

Camtree

Camtree C-MB-23-CF Assembly manual

American Dynamics AD1314 Specifications

American Dynamics

American Dynamics AD1314 Specifications

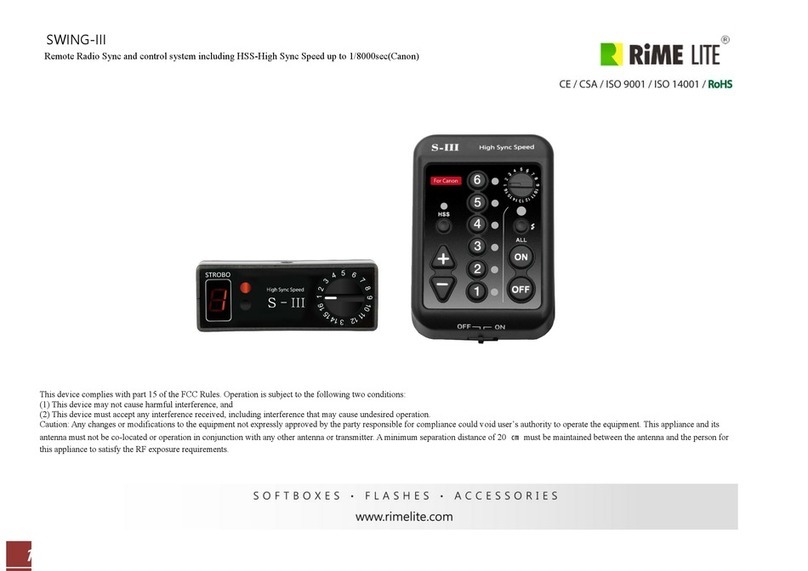

Rime Lite SWING-III instruction manual

Rime Lite

Rime Lite SWING-III instruction manual

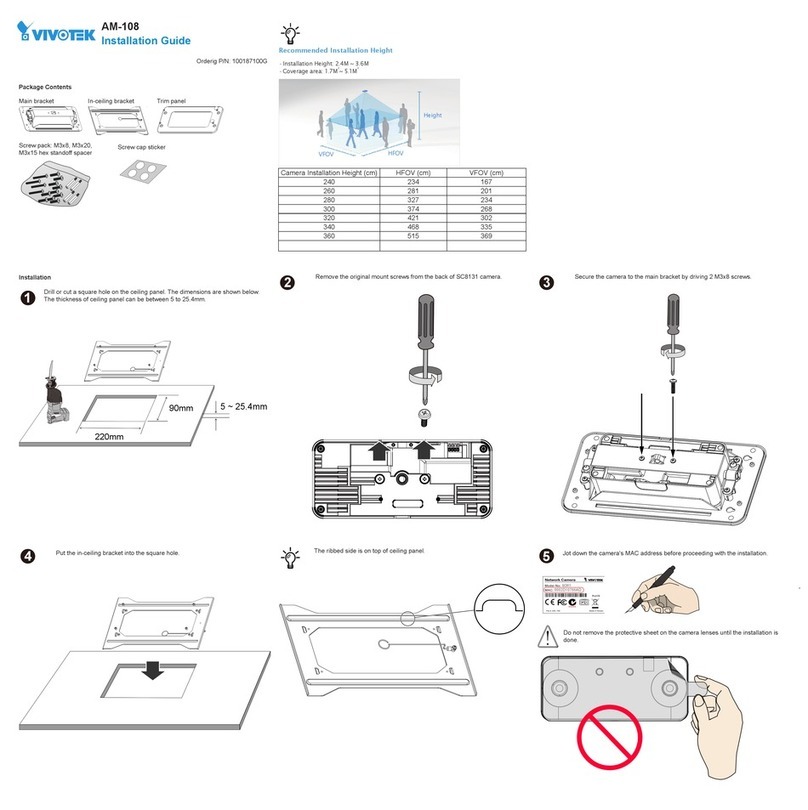

Vivotek AM-108 installation guide

Vivotek

Vivotek AM-108 installation guide

Pentax Hot Shoe Grip operating manual

Pentax

Pentax Hot Shoe Grip operating manual

Panasonic Lumix DMW-BGG9 operating instructions

Panasonic

Panasonic Lumix DMW-BGG9 operating instructions

Activeallbrite VECINO A-VEC-600-S quick start guide

Activeallbrite

Activeallbrite VECINO A-VEC-600-S quick start guide

VONROC CD803AA Original instructions

VONROC

VONROC CD803AA Original instructions

Carton Focus 12 User Manual/Maintenance

Carton

Carton Focus 12 User Manual/Maintenance

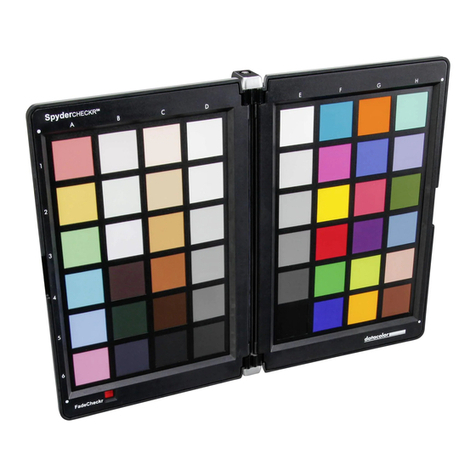

Datacolor SpyderCHECKR quick start guide
