Filler BAL-5020 User manual

Tabletop Aluminum Cap Sealer - Manual
BAL-5020 BAL-5015 BAL-5013
Dimension
Height : 35cm
Weight : 5 kg
Size of clip : BAL-5020 20mm
BAL-5015 15mm
BAL-5013 13mm
Introduction:
Portable and convenient laptop
sealing machine specialized in
aluminum lips. Competitive price,
easy operating, can achieve safety
speed and time saving requirements.
Application:
Injection pharmacy,medicine,
cosmetic,contact lenses…etc.
Accessories :
item Name of article No. Quantity Description
1Manual 1 copy
2Special screw
(round head) 3 PCS backup
3 PCS
1 PC
1 PC
1 tin
backup3Special screw (flat
head)
4Cross-screwdriver
5Nut fixing tool
6Accessory
Filler Co., Ltd.
Tel :[phone] www.filler.com.tw
Fax :[phone] E-mail: [email protected]
Note : Only 2 pieces of clip and above attach the tool and
accessories.

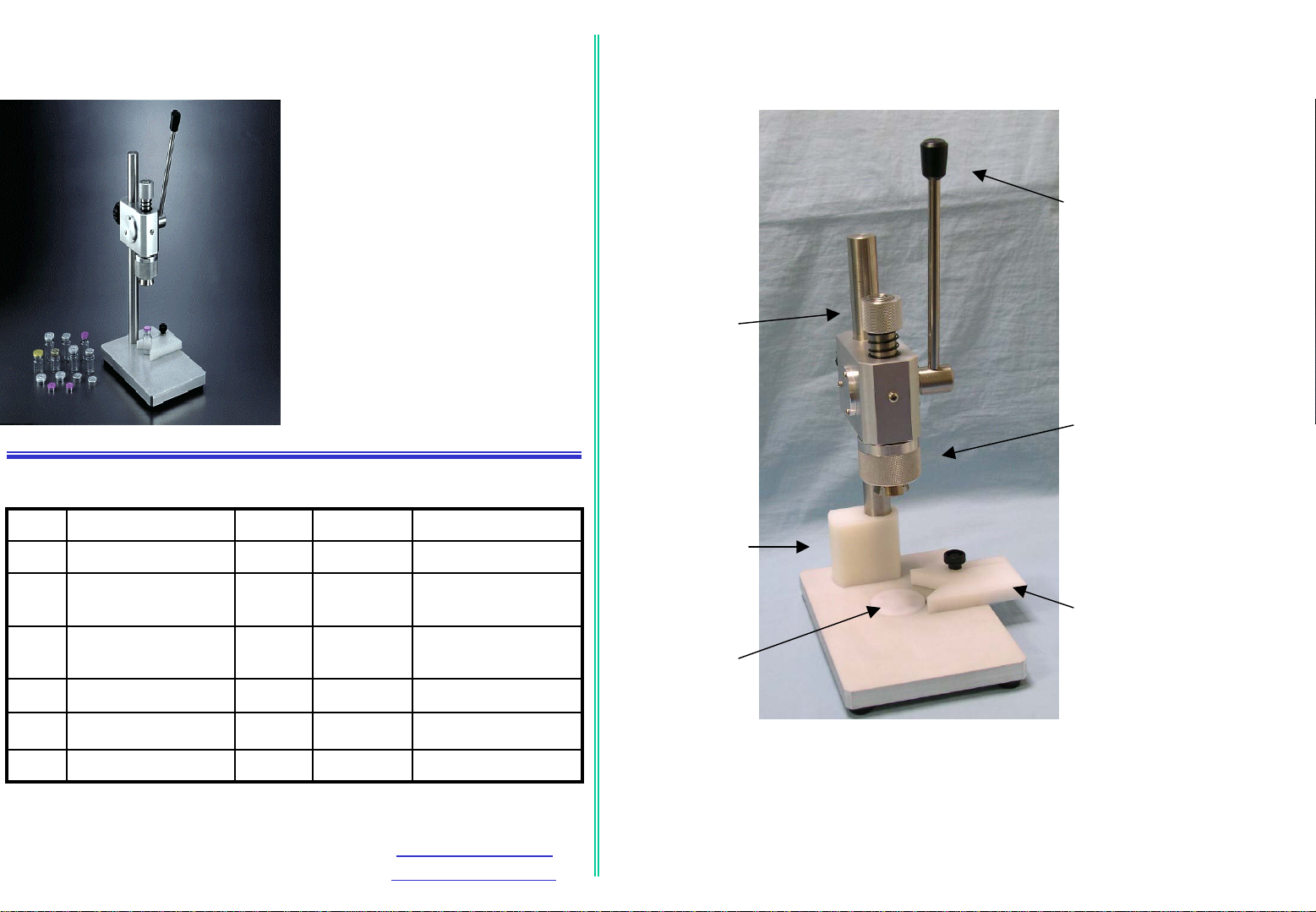

Structure :
Thickness
adjustment
screw nut
for head
Lever
Clip head
Bottle fixing tool
Spring
cushion
Height
measure tool

Assembling Procedure :
( 1 ) ( 2 )
1. First, screw the clip head( 1 ) counterclockwise. Insert the nut fixing
tool(2) for assistant.
2. Press the lever( 1 ) then screw ( 2 ) under the clip head
by cross-screwdriver( 3 ), assembling procedure completed.
( 1 )
( 3 )
( 2 )
Disassembling Procedure : reverse step according to the assembling procedure.
( 1 )
When the clip head can’t suit the size of aluminum lip in normal use,
adjust the nut(1) to loosen or fasten.
Screw the nut clockwise--loosen
Screw the nut counterclockwise--fasten

Height Adjustment:
1. Put the bottle without the plug and cap under the height measure
tool (1).
Loosen the screw (2) to put down the main machine on the height
tool (3) then screw it on.
2 . Put the bottle with the plug and cap under the clip head (1), please
note the position should be in the center of cushion.
Press the lever to seal the cap(2) then move the fixing bottle tool (3)
to fix the bottle. Start the sealing process.
( 1 )
( 2 ) ( 1 )
( 2 )
( 3 )
( 3 )
