1 Introduction
The FILTR Revolution Air Filtration System was engineered to combat all forms of air
pollution, from mold spores and smoke particles to viruses and microbes. Using FDA
regulations as a base, the Revolution provides superior protection and filtration in a
mobile, affordable package.
The Revolution combines VOC reduction, HEPA filtration, and patented bipolar
ionization technology to protect everyone and everything in the environment. Onboard
sensors track particle count and VOC (Volatile Organic Compound) increases to detect
outbreaks, while the multi-stage filter system provides Clean Room grade filtration
down to .01 microns.

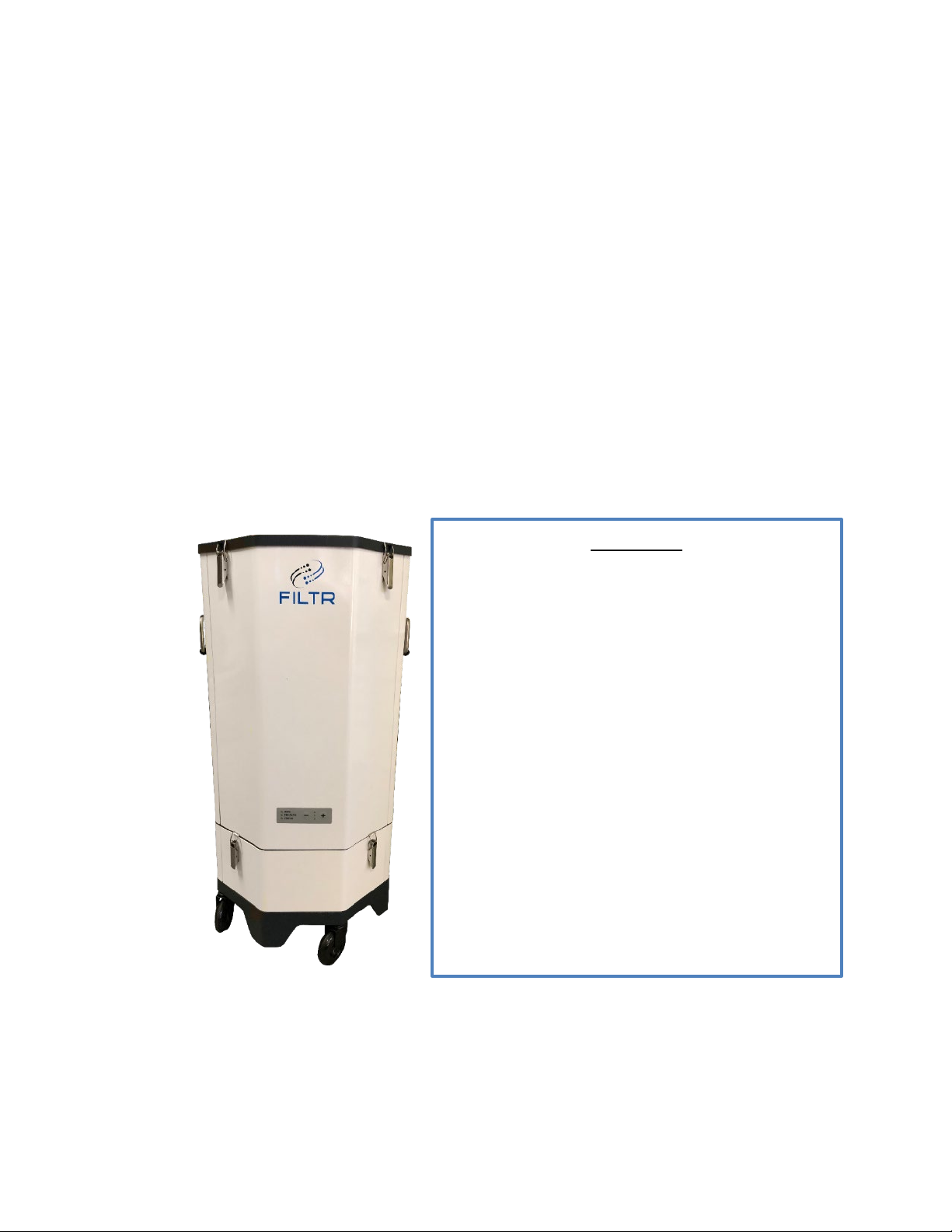

Figure 1-1
FEATURES
•3 stages of Superior Filtration
•Patented Bi-Polar Ionization
•Measurement and Tracking of Temp, RH,
PM2.5, and VOCs
•Multiple placement options including wall
and ceiling mounting
•Easy integration into existing HVAC duct
systems
•FILTR app for remote monitoring and
control, plus email alerts from
customizable alarm settings
•Easy replacement of filters
•Quiet running: max of 60 dB
•Up to 700CFM flow rate

Operators Manual FILTR Revolution
2 248083486-1 R2
Superior Filtration
Pre-Filter
The Revolution starts the filtration process with a Pre-Filter rated at MERV 8.

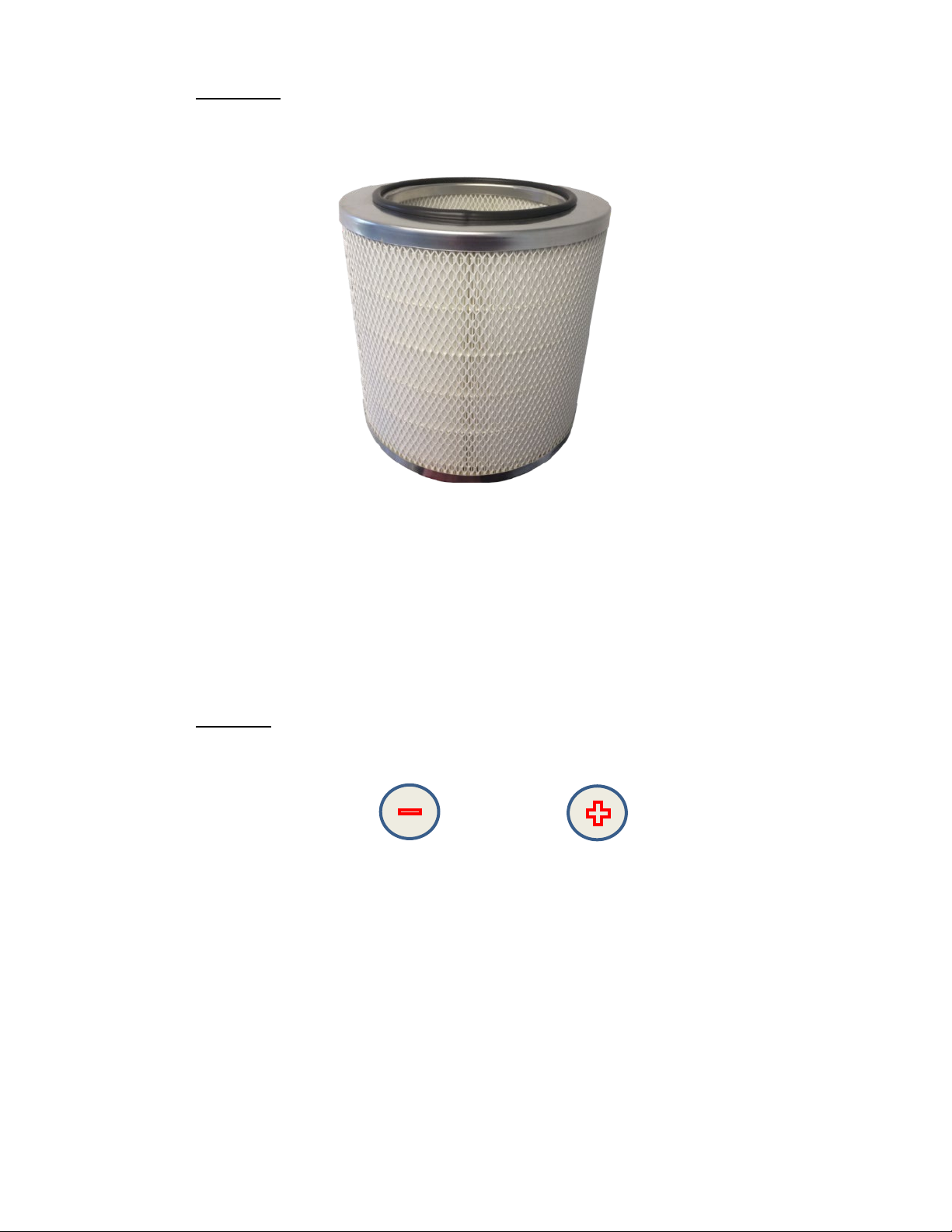

Figure 1-2
MERV stands for Minimum Efficiency Reporting Value, a standard scale to rate the
effectiveness of air filters. The MERV 8 rating of the Pre-Filter represents the filters
ability to control contaminants of down to 3.0 microns in size, removing contaminants
like textile fibers, pollen, and mold spores from the air.
Carbon Filter
The second stage of filtration in the Revolution is a custom-designed carbon/potassium
permanganate filter.
Figure 1-3
Carbon filtering uses activated carbon in a process called chemical adsorption. This
process traps air contaminants and VOCs, and helps to remove odors from the filtered
air.

FILTR Revolution Operators Manual
248083486-1 R2 3
HEPA Filter
The third filtration stage is the HEPA filter.
Figure 1-4
Air is forced through the HEPA filter before returning to the environment. This filter is
rated at MERV 17, representing a 99.98% efficiency at removing particles as small as 0.3
microns from the environment. This filter is capable of capturing carbon dust, viruses,
bacteria, and smoke particles, providing an exceptionally clean output from the
Revolution.
Bipolar Ionization
Ionization
In the output of the Revolution unit is the Ionizer. This patented bi-polar ionizer
produces both negatively charged air molecules and positively charged air molecules.
These charged molecules produce several effects:
•Ionized particles can kill live bacteria in surrounding atmosphere. This provides
an immediate benefit of cleaning the Revolutions output air even more, and
helping to scrub clean the air around the unit.
•The charged molecules attach themselves to airborne contaminants and
allergens. The change in mass for the particles causes them to become heavier
than the surrounding air molecules, enabling gravity to pull down the
contaminated air and prevent it from spreading.
•VOCs (Volatile Organic Compounds) in the surrounding area can be neutralized
by these charged particles, removing chemical contaminants that could cause
long-term health effects.

Operators Manual FILTR Revolution
4 248083486-1 R2
Onboard Sensors
The Revolution unit comes with a Sensor Pack that expands the user’s ability to track
the environment surrounding the unit. The Sensor Pack can communicate information
about the Temperature, Relative Humidity, VOC levels, and Particulate Matter levels.
The FILTR app is required to view the data generated by these sensors, and enables
users to track these metrics from anywhere they have a data connection.
Figure 1-5
Temperature
The FILTR app can display the temperature at the Revolution unit. This display is able to
be set to Fahrenheit or Celsius, and is accurate to within 0.9 degrees F/ 0.5 degrees C.
The FILTR app is able to alert the user based on Alarm Settings to conditions that are
outside of those desired.
Relative Humidity
A RH sensor within the Revolution unit provides Relative Humidity information to the
user via the FILTR app. This sensor has an accuracy of +/- 3%.
The RH sensor information accessible via the app allows the user to track RH trends, and
alerts the user to undesired changes. Updates are provided every ten minutes.
Volatile Organic Compounds
VOCs are organic chemicals that have a high vapor pressure at room temperatures.
These chemicals can cause health issues via both short-term and long-term exposure.
This class of contaminants is analyzed by the Sensor Pack on the Revolution unit, and is
communicated to users via updates on the FILTR app every 10 minutes. Measurement is
recorded and displayed in parts per billion.
Particulate Matter
The Revolution unit’s Sensor Pack contains a PM2.5 sensor. This sensor measures
Particulate Matter in the environment less than or equal to 2.5 microns in diameter.
The FILTR app updates the PM reading every ten minutes, and records and displays the
measurement in micrograms per cubic meter, ug/m³.

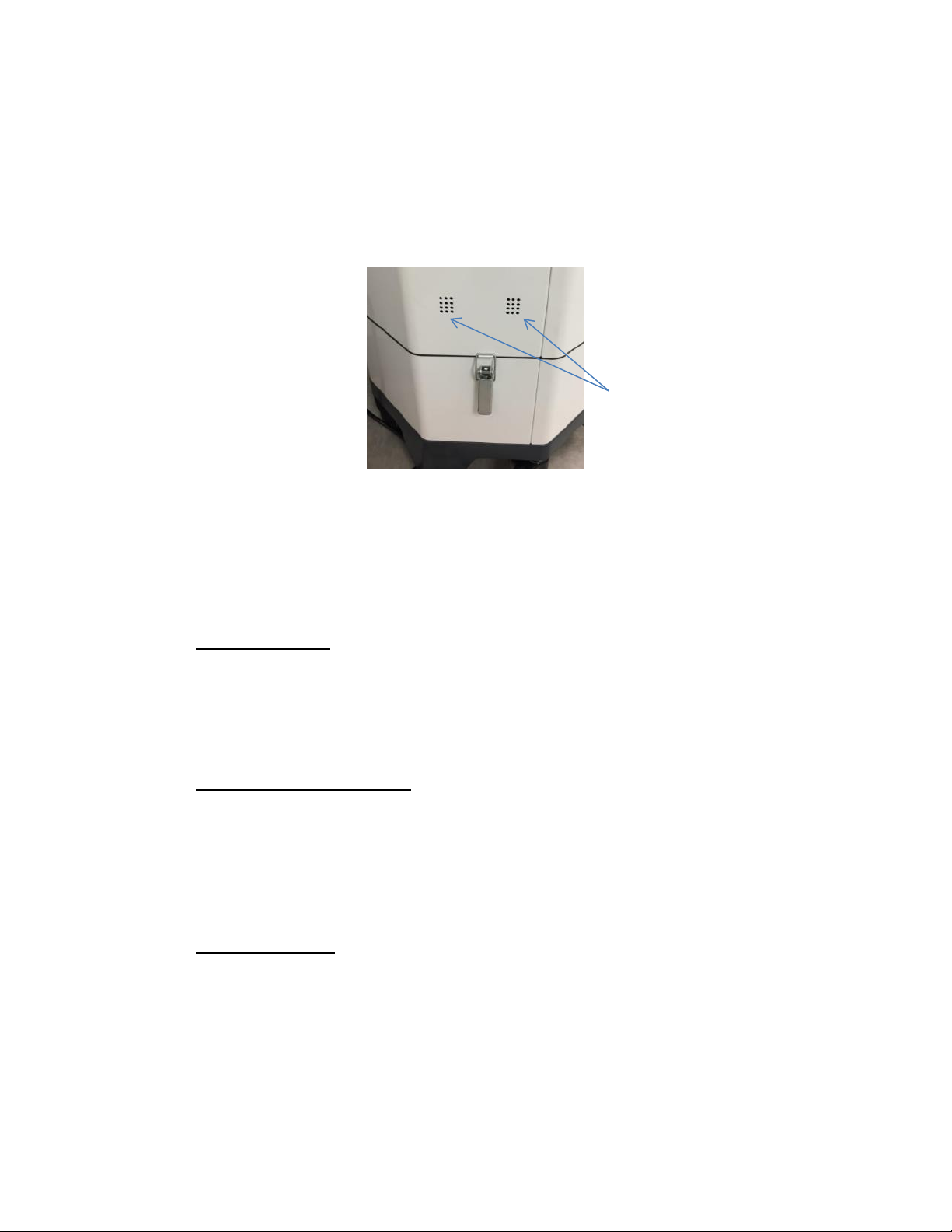

The Sensor Pack, located on the
lower left side of the Revolution,
pulls in and exhaust air through
these holes

FILTR Revolution Operators Manual
248083486-1 R2 5
Mounting and Integration
The Revolution has optional hardware that enables the user to mount the unit onto
wooden studs in a wall, onto Structural Insulated Panels (SIPs) or other metal framing,
and even be integrated into a HVAC duct system or ducted on its own.
Figure 1-6
Figure 1-7
A wall mounting kit is available
to mount the Revolution to a
suitable vertical surface
The Ceiling Mount Kit offers
the ability to hang the
Revolution from overhead
anchors (overhead anchors
and cabling not included)
The Ducting Kit can be
applied in tandem with
any mounting option
Duct Adapters make connecting
the Revolution to ducting
simple

Operators Manual FILTR Revolution
6 248083486-1 R2
Revolution Smartphone App
While the Revolution unit maintains all of its physical functionality via the keypad
interface, the FILTR app expands the capability of the user to control the Revolution
remotely and monitor the environment the unit is in.
Figure 1-8
Using the FILTR app (listed as FILTR in the Google Play store and FILTR AIR in the Apple
App Store), a user can perform the following with the Revolution unit:
•Control the Fan speed
•Turn the Ionizer on and off
•View the current Temperature, RH, PM, and VOC readings
•View a graph of all measured sensor data points for the last day, week, or month
•Adjust the Alarm thresholds for each measured data type
•…. and more!
The FILTR app also sends the registered user email alerts based on filter usage and user-
defined Alarm thresholds.
As long as the Revolution unit is within range of its local wireless router, and the user
has a data connection, the user of the FILTR app is always connected to their unit, no
matter the distance.

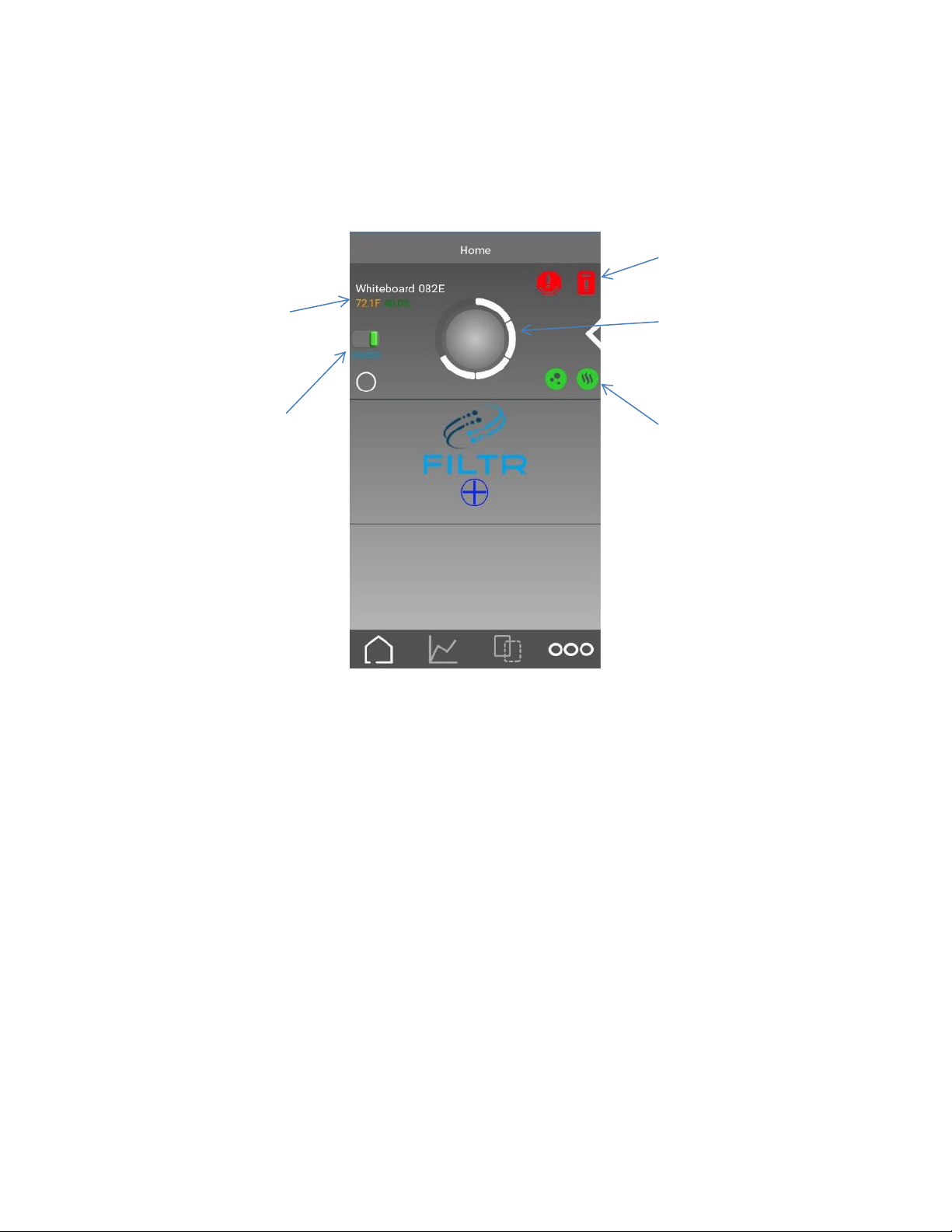

Temperature and Relative
Humidity readings
Fan Speed indicator and
control button
Ionizer control
PM and VOC readings
Filter life alerts

FILTR Revolution Operators Manual
248083486-1 R2 7
Simple Filter Replacement
The Revolution was designed with serviceability in mind. While the unit can operate
without constant physical interaction, as with any filtration device physical access will be
necessary for filter maintenance.
Revolution is engineered to make filter replacement quick and easy. Access to each filter
compartment is gained via four latches being released and the unit opened.

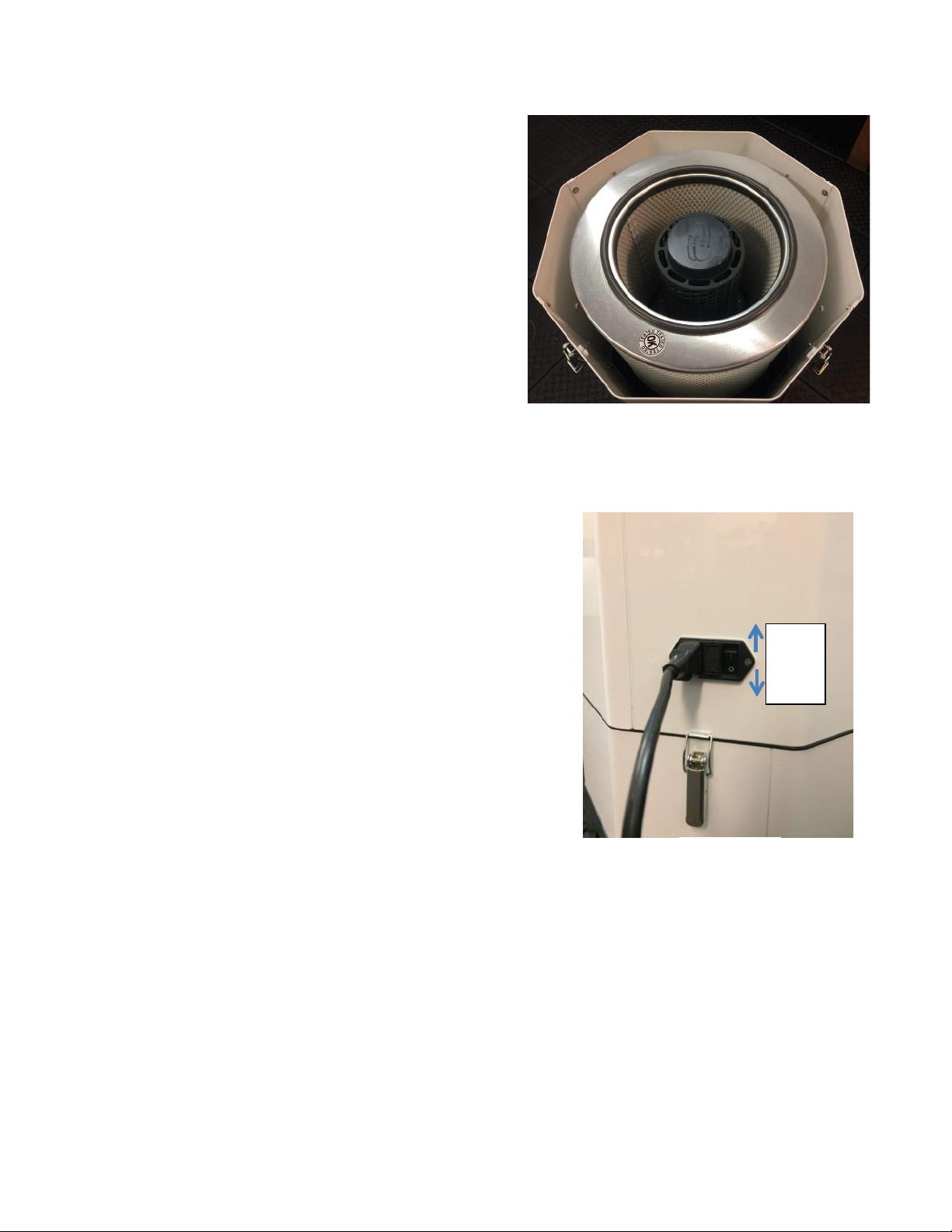

Figure 1-9 Figure 1-11
Each contained filter is designed for drop-in replacement – no extra clamps, fittings, or
latches. Simply remove the old filter and place in a new one.
For replacements, contact your local distributor, or Lighthouse Sales at 541-454-8308.
LWS Filter Part Numbers:
•HEPA Filter: 211317419-1
•Carbon Filter: 211317420-1
•Pre-Filter: 211317421-1
Figure 1-10

Operators Manual FILTR Revolution
8 248083486-1 R2
End Of Chapter
This Page Intentionally Left Blank.

FILTR Revolution Operators Manual
248083486-1 R2 9
2 Initial Set Up
The Revolution unit has a number of optional accessories. Options include external
components such as the wall mounting hardware, ceiling mounting hardware, and 10”
ducting kit. See Chapter 5 for setup and use of these.
Listed internal components are all shipped installed in the Revolution unit. These
include the Carbon Filter, Sensor Pack, and Ionizer.
The Revolution requires little in the way of set up for initial use.
Unpacking
Upon receipt of the packaged unit, inspect the package for damage. If it is damaged,
notify the shipper immediately.
If the package is not damaged, open in carefully. Be sure to inspect each item as it is
removed for broken parts, scratches, dents, and other damage. Be sure to document
any damage found and inform the shipping company and Lighthouse of any findings.
Take photographs of damage upon initial discovery.
With the top of the package opened, the unit casters will be visible as shown below.
Remove the casters and set them aside for later installation (if desired), then remove
the top shipping foam. This foam extends a short way down the sides of the Revolution
unit to keep the unit firmly secured in the shipping package.
Figure 2-1
With the upper foam removed, reach down into the box and grasp the handles on the
sides of the unit. Lift up to remove the unit from the shipping package.

Operators Manual FILTR Revolution
10 248083486-1 R2
Installing the Casters
If desired, the casters can be attached to the pedestal on the bottom of the Revolution
unit for easier mobility. To install them, lay the unit on its side to expose the pedestal as
shown in Figure 2-2.
Figure 2-2
To install the casters, firmly push the post of each one into the four mounting locations
shown in Figure 2-2. The casters will sit snugly up against the pedestal as shown in
Figure 2-4.
Figure 2-3
Figure 2-4

FILTR Revolution Operators Manual
248083486-1 R2 11
Powering on the Unit
The power cable for the Revolution unit
comes shipped inside the upper
compartment of the unit. Flip up the four
latches around the top cover, remove the
top cover (see Figure 2-6), and obtain the
cable from the inner cavity. Re-install the
top cover before proceeding.
The Revolution unit comes with all ordered filters installed. To begin running the unit,
locate the power port on the side of the unit above the Filter Tray.
Attach the supplied power cord to the unit and a
power source.
Flip the power switch to the ON position.
On the keypad, press the (+) button to cause the
fan to start and the unit will begin pulling air
through and filtering it.
See Chapter 3, Using the Keypad, for instruction on using the keypad to control the unit,
including activating the Ionizer and setting the unit up for wifi communication.
See Chapter 4, Using the FILTR app, for instruction on connecting the unit to the FILTR
app and using the app to control the unit.
End Of Chapter
ON
OFF
Figure 2-6
Figure 2-5

Operators Manual FILTR Revolution
12 248083486-1 R2
This Page Intentionally Left Blank.
