FINE AUDIO NV-03345 User manual

1

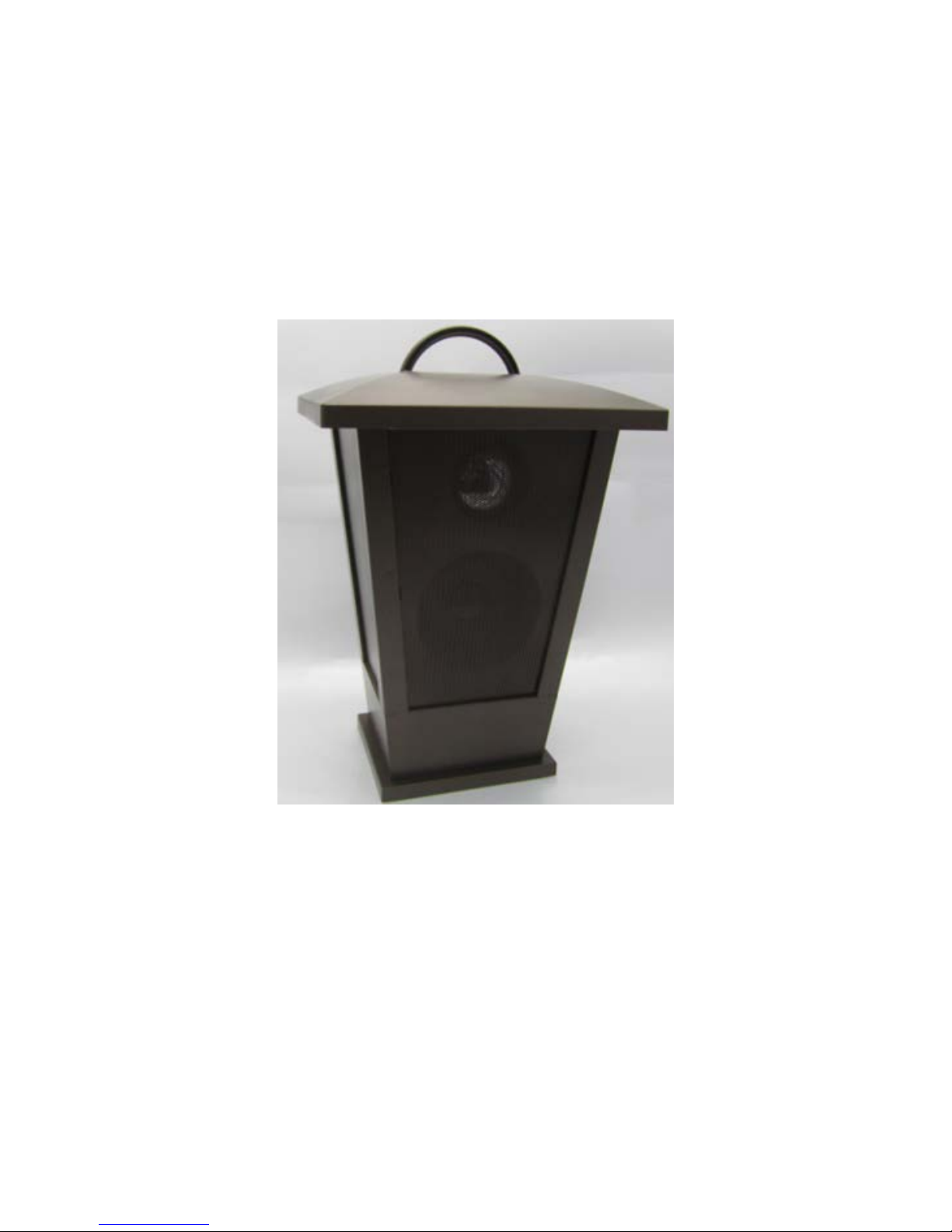

Bluetooth Garden Speaker
NV-03345
INSTRUCTION MANUAL
PLEASE READ ALL INSTRUCTIONS CAREFULLY
AND RETAIN FOR FUTURE USE

2
Getting started
•Remove the Bluetooth speaker & accessories from the box.
•Remove all packaging from the Bluetooth speaker.
•Retain instructions for future reference
•Place the packaging inside the box to either store or dispose of safely.
In the Package
•Bluetooth Garden Speaker
•AUX Cable
•USB Charging Cord
•Remote Control
•Instruction Manual
Features
•Enjoy music wirelessly
•Connect via Bluetooth or AUX in.
•Every time the speaker is turned on, it connects to last connected device automatically
•Built-in rechargeable battery
•Clear sound with bass effect
•Music listening time 8 to 10 hours
Safety Instructions
Keep the unit away from heat sources, direct sunlight, humidity, water and any other liquids.
Do not operate the unit if it has been exposed to water, moisture or any other liquids to prevent
against electric shock, explosion and/or injury to yourself and damage to the unit.
Do not use the unit if it has been dropped or damaged in any way.
Repairs to electrical equipment should only be performed by a qualified electrician. Improper
repairs may place the user at serious risk.
Do not use the unit with wet hands.
Do not put objects into any of the openings.
Keep the unit free from dust, lint etc.
Do not use this unit for anything other than its intended use.
Keep the unit out of reach of children.
This product is not a toy.

3
Description of Parts
INSTRUCTIONS FOR USE
Charging Instructions
The speaker comes with a built in rechargeable battery. Before using it for the first time it is
recommended you charge the battery fully.
Connect the USB cable to a computer USB port and the Micro USB plug to the charging slot of
the speaker(2). The Red LED illuminates(4) while the speaker is being charged. It takes
around 3-4 hours for the unit to fully charge. When the battery is fully charged the red LED will
turn off. When the battery is low, the Speaker will emits twice beep tones every 30 seconds.
When this occurs, please charge the speaker.
1 ON/OFF switch
2 Micro USB charging slot
3 Line in 3.5mm jack
4 LED Indicator
5 LED light switch
6 “” button: Decrease Volume & Previous track
7 ““ button: Increase Volume & Next track
8 “ ” button : Pause and Restart music
9 “ ” button :Power button & Repair bluetooth
10 LED light
11 “MUTE” function
12 Receiver of remote

4
Turning on/off the speaker
There is an on/off switch at the back of the speaker. You can turn on/off the speaker with this
switch. In order to save power, put the switch to off position when the speaker is not in use.
Pairing the speaker with Bluetooth devices (phone or music device)
Switch on the speaker(1), and short press the Power button(9), the LED indicator will flash.
Place the speaker and Bluetooth device (phone or music device) so that they are no further
than 3 feet apart;
Activate the Bluetooth function on your Bluetooth device (phone or music device). Please refer
to the manufacturer’s instructions for instructions on enabling Bluetooth on your device.
Once you have activated Bluetooth on your device, select the speaker “BT SPEAKER” from
the list of available Bluetooth devices.
If required, enter the password ‘0000’ to confirm & finalize pairing.
Once paired successfully, the blue LED indicator will bright.
You can now start to use the speaker.
If pairing is unsuccessful, turn off the speaker first and then re-pair following the above steps.
Once you have paired the speaker with a device, the speaker will remember this device and
will pair automatically when the device’s Bluetooth is activated and in range. You do not need
to re-pair any previously connected devices.
The speaker will attempt to automatically connect to the last device it was paired with when
switched on. If you want to pair it with a new device please long press Power button(9) to
search for the new device.
Once the speaker is paired with your device the music will transmit directly to the speaker.
Please refer to your device’s user manual for further information.
Function Summary
Listening to Music
Once the speakers are paired with your device you can stream music wirelessly through the
speaker. Select the track you wish to listen to and it will be streamed to your Bluetooth speaker.
Should you encounter any problems while streaming please refer your device’s user manual
for further information.
Control Function
If your Bluetooth device supports AVCRP (Audio/Video Remote Control Profile) you can use
the Bluetooth speakers to perform basic remote functions once paired while listening to music.
The functions in the below table may differ depending on your device. Please refer to your
device’s user manual for further information.
Function Operation Button
Previous track Playing music A short press on the button once

5
Decrease Volume Playing music A long press on the button once
Next track Playing music Ashort press on the button once
Increase Volume Playing music A long press on the button once
Pause and Restart
Playing music Ashort press on the button once
An indication tone will alert you when the volume is adjusted to the maximum level.
Please note that your Bluetooth device must support AVCRP (Audio/Video Remote
Control Profile) in order to operate the above functions.
AUX cable
You may also connect any device with headphone socket using the 3.5mm AUX
cable(included), Connect this cable to your headphone socket of your device and to the AUX
input(3).
Use your media device's music controls to control the music and volume. The volume control will work on
the remote control and the button on back of Garden Speaker, but the rest will not function when using
Garden Speakers as a wired speaker.
Note: When connect AUX cable, the BT mode will disconnect
LED light
Switch on the speaker.
You can short press the LED light button(5), the LED light will bright, and short press this
button again, the LED light will turn off.
Please Note
•Not all mobile phones support all the functions listed above. Please refer to your cell
phone’s user’s manual for further information.
•Certain functions and indication tones maybe vary depending on your mobile phone.
•When the volume is adjusted to max, you will hear an indication tone.
LED indicator
Please refer to the below tables for a list of the LED statuses while using the speaker.
LED Indication
LED indicator Status of the speakers
Red LED Charging
Red LED turns off Charging Completed
Blue LED flashes quickly Pairing mode

6
Tone Indication
Indication tone Status of the speakers
Emits short tones Enter pairing mode
Emits tones twice every
30 seconds Low Battery Power
Care and Maintenance
Read the following recommendations before using the speaker. Following these you will be
able to enjoy the product for many years.
•Do not expose the speaker to liquid, moisture or humidity to avoid the product’s internal
circuit being affected.
•Don’t use abrasive cleaning solvents to clean the speaker.
•Do not expose the speaker to extremely high or low temperature as this will shorten the life
of electronic devices, destroy the battery or distort certain plastic parts.
•Don’t dispose of the speaker in a fire as it will result in an explosion.
•Don’t expose the speaker to contact with sharp objects as this will cause scratches and
damage.
•Don’t let the speaker fall on the floor. The internal circuit might get damaged.
•Don’t attempt to disassemble the speaker as this can damage the speaker or cause injury.
Specifications
Bluetooth specification
Bluetooth V3.0
Bluetooth profiles
HSP, HFP,A2DP and AVRCP
Operating distance 33 Feet, Class II
Working time
Music: 8 to 10 hours
LED light work time
10 hours
Standby time
28 hours
Charging input voltage
DC5V---1000mA
Charging time About 5-6 hours
Dimensions 200 x 180 x 300mm
Weight 1100g
Note: Battery life & charging time may vary based on usage & types of devices used.

7
WARNING：Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
NOTE: The Grantee is not responsible for any changes or modifications not expressly
approved by the party responsible for compliance. Such modifications could void the user’s
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
— Consult the dealer or an experienced radio/ TV technician for help.
