Fine Offset Electronics WH18B User manual

1
PROFESSIONAL WEATHER STATION
(WIND AND AIR PRESSURE)
Operation Manual
About this manual
Thank you and congratulations on selecting this professional weather station! We are positive
you will enjoy the benefits of accurate weather readings that our instruments offer.
This manual will guide you step-by-step through setting up your device. Use this manual to
become familiar with your professional weather station, and save it for future reference.
Glossary of Common Terms
LCD
―LCD‖ is an acronym for ‖Liquid Crystal Display‖. This is a common type of display screen
used in televisions, computers, watches, and digital clocks.
BAROMETER & BAROMETRIC PRESSURE
A barometer is a device that measures the pressure of the air pushing on it—this
measurement is called the barometric pressure. We don’t actually feel the barometric
pressure because the air pressure is pushing equally in every direction.
RELATIVE AIR PRESSURE
Relative air pressure is the same as the barometric pressure. The calculation of relative air
pressure is a combination of the absolute air pressure and the altitude.
ABSOLUTE AIR PRESSURE
Absolute air pressure is the actual air pressure on the barometer without regard to altitude.
INCHES OF MERCURY (inHg)
Inches of Mercury is the common unit of measurement for air pressure in the United States.
HECTOPASCALS (hPa)
Hectopascals are the common units of measurement for air pressure in the International
System (SI) of measurement. The hectopascal holds the same value
Important Note:
The Professional weather station includes a base station (receiver), a transmitter unit, one
wind direction sensor, one wind speed sensor, one rain gauge, USB cable and a PC software
package on CD-ROM.
An added feature of the Weather Station is the readout of all measured and displayed
time and weather data on a PC.

2
OVERVIEW
Display console
QTY
Item
1
Display Console
1
Outdoor sensor(Thermo-hygrometer with solar panel / Rain Gauge / Wind Speed
Sensor/ Wind Direction)
1
CD contains PC software
1
Pole
1
pole mounting clamps
1
User manual
2
AA rechargeable batteries
Note:
Adaptor is not included.
Features
Time and date, Moon phase.
Indoor temperature and humidity
Outdoor temperature and humidity
Wind chill, wind direction.
Rainfall
Display rain level and rainfall data in 24 hours, one week, one month, one year, total rain
and rainfall event.
Wind speed in mph, km/h, m/s, knots or Beaufort
The direction of the wind with 360 degree
Wind chill, dew point and heat index temperature display.
Barometric, weather forecast.
MAX, MIN value with time stamp.
DC connector
USB interface

3
High/ low alarm.
With message panel showing indication of alarms/Min/Max data, with time stamps
Light and UV index
Save the data when batteries are changed
PC software
Upload the data to internet (optional)
Set up Guide
Before placing and installing all components of the weather station at there final destination,
please set up the weather station with all parts being nearby for testing the correct function.
Setting up the base station and transmitter
1) Insert 2XAA 1,5V alkaline rechargeable batteries first into the battery compartment of the
remote sensor and immediately afterwards 3XAA 1,5V alkaline batteries in the base
station, observing the correct polarity. When battery is first inserted, the red LED light on
the remote sensor will be light up for 3-4 seconds. (If no LED light up or is lighted
permanently, make sure the battery is inserted the correct way or a proper reset is
happened)
2) When the base station is powered up, the LCD display activates for 3 seconds and after
the ―Beep‖, it begins measuring indoor temperature, humidity and air pressure. The unit
then enter the RF(Radio Frequency) state, where it receives data from the remote sensor.
RF (Radio Frequency) Receiving Mode
1. After power-on, the weather station enters RF receiving state for 180s
2. Base station receive the temperature, humidity, wind speed and rain data each 48s, receive
illuminance date each 60s. If there is no new effective signal from the sensor in constance
receiption failure in 10minutes, the outdoor temperature and humidity will display ―----‖. If base
LED Indicator
Sensor Sockets
Battery
Compartment
Battery cover
Thermo-hygro Sensor
Setting up using batteries:

4
station didn’t receive the signal in 240 minutes, the base station will start search and register
new sensor.
3. If the outdoor data lost or a battery change for the transmitter, press the reset button on the
solar power cabinet to re-send the signal and set the reregister on at display console to
register new transmitter.
4. Do not press any key before outdoor sensor data received, otherwise the outdoor sensor
learning mode will be terminated. When outdoor transmitter has been registered, the base
station will automatically switch to the normal display mode from which all further settings can
be performed by the user.
5. If there is no temperature reading in the base station, make sure the units are within range of
each other or repeat the battery installation procedure.
Note:
Commonly the radio communication between receiver and transmitter in the open field can
reach a distance of up to 330 feet providing that there are no interfering obstacles such as
buildings, trees, vehicles, high voltage lines, etc.
Radio interferences such as PC screens, radios or TV sets can, in bad cases, entirely cut off
radio communication. Please take this into consideration when choosing standing or mounting
locations.
Mounting the sensor
Important Notes:
On the edge of wind direction sensor, there are four alphabet letter of ―N‖,‖E‖,‖S‖and ―W‖
representing for the direction of North, East, South and West. Wind direction sensor has to be
adjusted so that the directions on the sensor are matching with your real location. Permanent
wind direction error will be introduced when the wind direction sensor is not positioned
correctly during installation.

5
Anemometer wind direction sensor
Mounting the dual wind sensor holder
Mounting the rain sensor Thermo-hygro sensor with solar panel

6
Mounting the thermo-hygro sensor
Fix the whole set to a pole
same as rain sensor
with the two adjustable hoops.
The anemometer’s cable is connected
to the input on the wind direction
sensor.
The wind direction sensor’s cable is
connected to the input marked Wind on
the thermo-hygro sensor
The rain sensor’s cable is connected to
the input marked Rain on the solar
panel
The solar panel’s cable is connected to
the input marked Rain on the
thermo-hygro sensor.
The solar transmitter
The solar transmitter makes use of solar energy to power the instruments they are connected
to.
Note: It use AA size alkaline rechargeable batteries. For the solar transmitters to function
properly, make sure the solar receptors on the transmitters are exposed to sunlight and the
connectors of the connection cable are securely plugged in.
For best results, direct solar panel as follows:
Solar panel facing north if you reside in the southern hemisphere; Solar panel facing south if
you reside in the northern hemisphere.
Display Unit
1. Display Console Layout

7
1.Time
2.Indoor Temperature
3.Indoor Humidity
4.Barometric Pressure
5. Barometric Pressure graph
6.Weather icon
7. Message panel showing indication of
alarms/Min/Max data
8. Minimum
9.Time stamp
10.RF signal
11.Memory status
12.Wind direction
13.Rain fall
14.Wind speed
15.Dew point
16. Outdoor humidity
17.Outdoor Temperature
18.UV
19.Light
20.Date
2.Initial Display Console Set Up
2.1 The unit will turn on all segments of the LCD for 3 seconds after power on and display
setting value. Then the unit will start to register the outdoor channel which takes 3 minutes.
2.2 Full display

8
2.3 Key function
SET: Enter the setting mode
HISTORY: Display history records / return to normal mode
ALARM: Display high or low alarm function / turn on/off the alarm
MAX/MIN: Display the MAX, MIN value
: Increase the setting parameter/ Move to next message of the selected segment
on the message panel
: Decrease the setting parameter/ Move to previous message of the selected
segment on the message panel
: Move to previous segment/move to main menu during setting.
: Move to next segment/ move to sub menu during setting.

9
Console Operation
Program mode
The screen is divided into 10 segments for selection and there are message display panel on
the bottom.
There are six program modes: normal, setting mode, history mode, alarm mode, max/min
mode and calibrated mode.
All the modes can be exited at any time by pressing the HISTORY key, or waiting for a 30
second timeout to take effect.
Normally, if the segment selected has multi parts, press SET key to choose different part.
Example: the current section is RAIN, you can press SET key to select among RAIN RATE,
RAIN EVENT, DAY, WEEK, MONTH, YEAR and TOTAL.
1. Quick Display Mode(Update every 5 Seconds)
In the normal mode and once some segment is selected ( Different segments can be chosen
by pressing‖ ‖or ‖‖key. And the default selected segment is time and date), there will
be messages take turns to show on the message panel. If there are alarms occurred, the alarm
information will be displayed in real time as well. The messages are showing one by one
automatically or you can transfer by pressing‖ ‖ or ― ‖ button.
Note: Press fast switch to next message
Press fast switch to previous message.
Press or select segments.

10

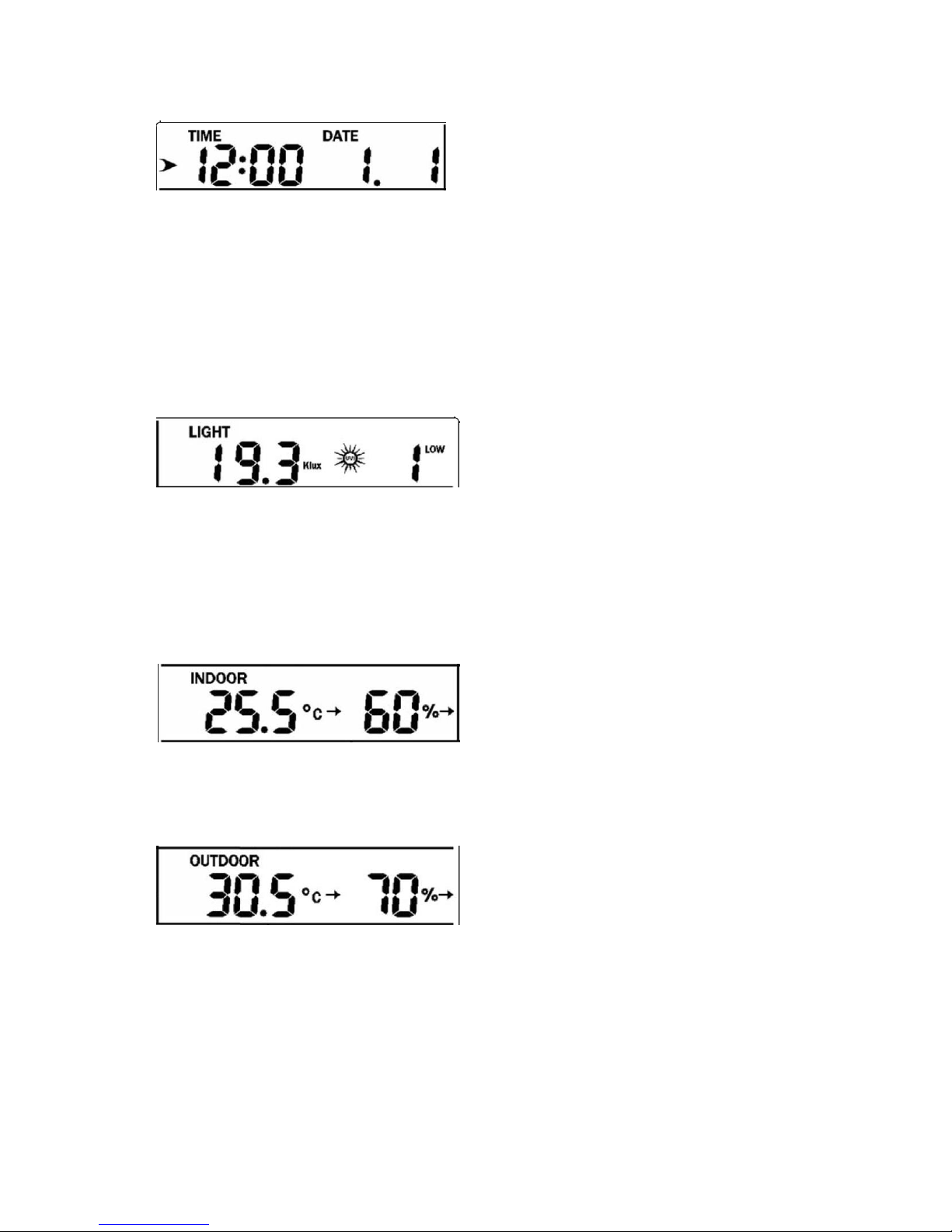

Time and date
a) Week and year (TUESDAY 2013)
b) Alarm time
c) Moon phase. (see moon phases part illustration on Page 19)
d) The DST flag is ON, will display ―DAYLIGHT SAVING TIME‖.
e) If device is connected to outdoor transmitter successfully, it will display transmitter ID
for 120 second.
Light and UVI
a) The max light of the day.
b) The max light since last reset
c) The max UVI of the day.
d) The max UVI since last reset.
Indoor temperature
a) The max and min temperature/ humidity of the day.
b) The max and min temperature/ humidity since reset.
Outdoor temperature/ humidity
a) The max and min temperature/ humidity of the day
b) The max and min temperature/ humidity since last reset.
Barometric

11
a) The max and min absolute barometric of the day
b) The max and min absolute barometric since last reset.
c) The max and min relatively barometric of the day
d) The max and min relatively barometric since last reset.
Wind and gust speed
a) The max wind speed of the day
b) The max wind speed since last reset.
c) The max gust of the day
d) The max gust since last reset.
Wind chill, dew point, heat index
a) The max of dew point, heat index of the day.
b) The min of wind chill, dew point of the day.
c) The max of dew point, heat index since last reset.
d) The min of wind chill, dew point since last reset.
Rainfall
a) The max Rainfall of rainfall rate of the day.

12
b) The max Rainfall since last reset (including rainfall rate during 1 day, 1 week, 1 month,
and 1 year).
2. Setting Mode
2.1 In normal mode, press SET key for 2 seconds to enter the setting mode.
Then press ‖‖button, you will transfer among the main menu with options of :
TIME SETTING
UNIT SETTING
Record save interval
Rain sensor setting
Barometric setting
Contrast setting
Key Beep Setting
REREGISTER Transmitter
Calibration setting
Transmitter ID
IP address (this function is only available in Network version)
Choose one option and then press ‖ ‖ button, you will enter the sub menu.
Press / key to transfer the unit or change the value. Hold the / key for 2
seconds will increase/decrease digits in great steps. Press HISTORY key or wait for 30
seconds at any time, device will return to normal mode.
Sub menus of every option:
TIME SETTING
a) 12H/24H format select
b) MM-DD-YYYY / DD-MM-YYYY / YYYY-MM-DD select
c) Set time (hour, minute)
d) Set clock (month, day, year)
e) Time Zone select
f) Daylight saving settings (DST ON/OFF)
g) Set NORTH or SOUTH for moon phase
h) RCC ON/OFF select (if have RCC function)
UNIT SETTING
a) Light unit select (lux, fc, w/m2)
b) Temperature unit select (C, F)
c) Pressure unit select (hpa, inhg, mmhg)
d) Wind speed unit select (km/h, m/s, bft, mph, knots)
e) Rainfall unit select (mm, inch)
Save record interval time setting:16S, 32S, 48S, 1M, 2M, …, 239M, 240M.
S; Seconds
M: Minute

13
RAIN SEASON BEGIN (JAN, FEB, MAR, APR, MAY, JUN, JUL, AUG, SEP, OCT, NOV,
DEC)
Default: January. The total rain falls before that will be cleared once it comes to 0:00 of
January 1st. Means the new statistic annual of rain fall begins from 0:00 of January 1st.Users
can choose from January to December
PRESSURE SETTING
a) Current weather setting.
b) Select the synoptic chart, Pre-set the value of weather and Pre-storm value.
c) Select the historical time coordinates of pressure graph.
LCD contrast setting.
Level 1-9 for option. Default: 5.The higher the level is, the brighter the display is.
KEY BEEP ON/OFF
Register new transmitter(REREGISTER ON/OFF)
Calibration setting
a) LIGHT FACTOR
LUX index calibration coefficient: default 1. (Range is 0.1-10)
b) UV FACTOR
UV factor calibration coefficient: default 1 (Range is 0.1-10)
c) IN TEMP CORRECT
Indoor temperature can be calibrated within measuring range.
d) IN HUMI CORRECT
Indoor humidity can be calibrated within measuring range.
e) OUT TEMP CORRECT
Outdoor temperature can be calibrated within measuring range.
f) OUT HUMI CORRECT
Outdoor humidity can be calibrated within measuring range.
g) ABS PRESS CORRECT
Absolute pressure can be calibrated within measuring range.
h) REL PRESS CORRECT
Relatively pressure be calibrated within measuring range.
i) WIND DIR CORRECT

14
Wind direction can be adjusted by 0-359°.For southern hemisphere installations, the wind
direction need to change by 180°.
j) WIND FACTOR
Wind speed calibration coefficient: default 1 (range is Range is 0.1-2.5)
k) RAIN FACTOR
Rain factor calibration coefficient: default 1 (range is Range is 0.1-2.5)
l) RAIN DAY CORRECT
Calibration for total rain falls of 1 day. (Range is 0-9999mm)
m) RAIN WEEK CORRECT
Calibration for total rain falls of 1 week (Range is 0-9999mm)
n) RAIN MONTH CORRECT
Calibration for total rain falls of 1 month (Range is 0-9999mm)
o) RAIN YEAR CORRECT
Calibration for total rain falls of 1 year (Range is 0-9999mm)
p) RAIN TOTAL CORRECT
Calibration for total rain falls since last reset. (Range is 0-9999mm)
Transmitter ID
Display the transmitter ID.
2.2 ALARM SETTING MODE
In normal mode, press ALARM key you will enter high alarm mode, and press ALARM key
again you will switch to low alarm mode.
HIGH ALARM SETTING
Press / key to transfer among the different segments and press / key to adjust the
value of the high alarm.
a) TIME ALARM –Set time alarm.
b) LIGHT HIGH ALARM --Set light high alarm
c) UVI HIGH ALARM --Set UVI high alarm
d) In TEMP HIGH ALARM --Set indoor temperature high alarm
e) In HUMI HIGH ALARM --Set indoor humidity high alarm
f) Out TEMP HIGHALARM Set outdoor temperature high alarm
g) Out HUMI HIGHALARM Set outdoor humidity high alarm
h) ABS BARO HIGH ALARM --Set absolute barometric pressure high alarm
i) REL BARO HIGH ALARM --Set relatively barometric pressure high alarm
j) WIND HIGH ALARM --Set wind speed high alarm
k) GUST HIGHALARM --Set gust speed high alarm

15
l) DEW POINT HIGH ALARM --Set dew point high alarm
m) HEAT INDEX HIGH ALARM --Set heat index high alarm
n) RAIN RATE HIGH ALARM --Set rainfall rate high alarm
o) RAIN DAY HIGH ALARM --Set rainfall day high alarm
LOW ALARM SETTING
a) In TEMP LOW ALARM--Set indoor temperature low alarm
b) In HUMI LOW ALARM --Set indoor humidity low alarm
c) In TEMP LOW ALARM --Set outdoor temperature low alarm
d) Out HUMI LOW ALARM --Set outdoor humidity low alarm
e) ABS BARO LOW ALARM --Set absolute barometric low alarm
f) REL BARO LOW ALARM --Set relatively barometric low alarm
g) WIND CHILL LOW ALARM --Set wind chill low alarm
h) DEW POINT LOW ALARM --Set dew point low alarm
In alarm setting mode, you can press the SET key to choose turn on or/off the alarm. Press
ALARM key, you can switch between high alarm and low alarm setting. Press HISTORY key or
wait for 30 seconds at any time, you will return to normal mode.
When alarm occurs, the alarm information will be displayed in real time on the message panel.
You can press any key to stop it. But the alarm ICON will still flash until the weather data
doesn’t meet the user set alarm level.
3. Max/Min Mode
In Normal Mode, press the MIN/MAX key to enter the max/min mode.
Press MIN/MAX select today max/history max /today min/history min.
Press / key to enter the sub menu of the each 4 options and display the maximum or
minimum values of each parameter together with the time and date stamp.
Today max and total max:
Today max: The Maximum of 1 day
Total max: The Maximum of total since last reset
a) LIGHT TODAY MAX, LIGHT TOTAL MAX-- Maximum Light
b) UV TODAY MAX, UV TOTAL MAX-- Maximum UVI.
c) IN TEMP TODAY MAX, IN TEMP TOTAL MAX -- Maximum Indoor temperature.
d) IN HUMI TODAY MAX, IN HUMI TOTAL MAX -- Maximum Indoor humidity.
e) OUT TEMP TODAY MAX, OUT TEMP TOTAL MAX –Maximum Outdoor temperature.
f) OUT HUMI TODAY MAX, OUT HUMI TOTAL MAX -- Maximum Outdoor humidity.
g) ABS BARO TODAY MAX, ABS BARO TOTAL MAX -- Maximum Absolute barometric.
h) REL BARO TODAY MAX, REL BARO TOTAL MAX -- Maximum Relatively barometric.
i) WIND SPEED TODAY MAX, WIND SPEED TOTAL MAX -- Maximum Wind speed.
j) GUST SPEED TODAY MAX, GUST SPEED TOTAL MAX -- Maximum Gust speed.
k) DEW POINT TODAY MAX, DEW POINT TOTAL MAX -- Maximum Dew point
temperature.
l) HEAT INDEX TODAY MAX, HEAT INDEX TOTAL MAX -- Maximum Heat index

16
temperature.
m) RAIN RATE TODAY MAX, RAIN RATE TOTAL MAX -- Maximum Rainfall rate.
n) RAIN 24H TOTAL MAX -- Maximum Rainfall within 24 hours.
o) RAIN WEEK TOTAL MAX -- Maximum Rainfall within 1 week
p) RAIN MONTH TOTAL MAX -- Maximum Rainfall within 1 month
q) RAIN YEAR TOTAL MAX -- Maximum Rainfall within 1 year.
Today min and total min:
Today min: The Maximum of 1 day
Total min: The Maximum of total since last reset
a) IN TEMP TODAY MIN, IN TEMP TOTAL MIN -- Minimum Indoor temperature.
b) IN HUMI TODAY MIN, IN HUMI TOTAL MIN -- Minimum Indoor humidity.
c) OUT TEMP TODAY MIN, OUT TEMP TOTAL MIN -- Minimum Outdoor temperature.
d) OUT HUMI TODAY MIN, OUT HUMI TOTAL MIN -- Minimum Outdoor humidity.
e) ABS BARO TODAY MIN, ABS BARO TOTAL MIN -- Minimum Absolute barometric.
f) REL BARO TODAY MIN, ABS BARO TOTAL MIN -- Minimum Relatively barometric
g) WIND CHILL TODAY MIN, WIND CHILL TOTAL MIN -- Minimum Wind chill temperature
h) DEW POINT TODAY MIN, DEW POINT TOTAL MIN -- Minimum Dew point temperature
Each Maximum/minimum value can be cleared by pressing SET key for 2 seconds during this
mode.
Press the HISTORY key or wait for 30 seconds will lead to Normal Mode.
5. History mode
In normal mode, press the history key switch to history.
If no history data, it will show ―HISTORY‖ and ―NONE RECORD‖ on the message pane..
Otherwise it will display message like‖HISTORY P/R 1.01‖and ―YEAR / SECOND 13.06‖.
P means PAGE, R means RECORD. 1 is PAGE No., 01 is record No.. Every page includes
32 records of history data.
―YEAR / SECOND 13.06‖. is a time stamp of the record. 13 means 2013 year,06 is the second
stamp. The hour, minute, and date stamp will be shown on the time segment.
Press the / key to switch to next/pre record.
Press the / key to switch to next/pre page record.
Other Console Functions
Weather Tendency indicators
There are tendency indicators besides the indoor/outdoor temperature and humidity
segments. The standard of detection is as bellow:
Tendency
humidity
Temperature

17
indicators
Rising
Rising rate>= 10%
within 30 minutes
Rising >= 1℃within 30
minutes
Steady
Change rate < 10%
within 30 minutes
Change rate < 1℃within
30 minutes
Falling
Falling rate >= 10%
within 30 minutes
Falling >= 1℃within 30
minutes
Moon Phases
Icon: Northern Hemisphere
Moon Phase Description
Icon: Southern Hemisphere
NEW MOON
WAXING CRESCENT MOON
FIRST QUARTER MOON
WAXING GIBBOUS MOON
FULL MOON
WANING GIBBOUS MOON
LAST QUARTER MOON
WANING CRESCENT
MOON
Beaufort Scales (Wind Speed)
Wind speed
Beaufort number
Description
0-1mph（0-1.6kph）
0
Calm
1-3mph（1.6-4.8kph）
1
Light air
3-7mph（4.8-11.3kph）
2
Light breeze
7-12mph（11.3-19.3kph）
3
Gentile breeze
12-18mph（19.3-29.0kph）
4
Moderate breeze
18-24mph（29.0-38.6kph）
5
Fresh breeze
24-31mph（38.6-49.9kph）
6
String breeze
31-38mph（49.9-61.2kph）
7
Near gale
38-46mph（61.2-74.1kph）
8
Gale
46-54mph（74.1-86.9kph）
9
Strong gale
55-63mph（88.5-101.4kph）
10
Storm
64-73mph(103-117.5kph)
11
Violent storm
74mph or above（119.1kph）
12
Hurricane

18
Specification
Factory Default Settings
1) Time: 1/1/2000 0:00:00 31/12/2099 23:59:59 (default: 1/1/2014 0:00 00 WED)
2) Time zone: -12 +12
3) 12/24 hour format (default: 24hr)
4) DD-MM-YYYY / MM-DD-YYYY / YYYY-MM-DD format (default: DD-MM-YYYY)
5) Temperature unit C or F (default: C)
6) Wind speed units: km/h, m/s, bft, mph, knots (default: km/h)
7) Average wind speed / gust wind speed (default: average wind speed)
8) Pressure units: hpa, mmHg, inHg (default: hpa)
9) Weather forecast: 2, 3, 4 (default: 2)
10) Storm: 39 (default: 4)
11) Time format of history graph: 12h, 24h (default: 12h)
12) Pressure display: absoluteness or relative (default: relative)
13) Forecast : sun, partly cloudy, cloudy, rain, rain storm (default: partly cloudy)
14) Temperature exponent: wind chill, dew point, heat index (default: dew point)
15) Light units: lux, fc, w/m2 (default: w/m2)
16) Rainfall units: mm, inch (default: mm)
17) Rainfall display: rainfall rate/rainfall event/24H/WEEK/MONTH/YEAR (default:
RAINFALL RATE)
18) Rainfall of year season begin (default: JAN)
19) Time alarm: 0:00 23:59 (default: 0:00, disable)
20) Indoor temperature high alarm: -40.0 60.0C (14F 140F) (default: 20.0C, disable)
21) Indoor temperature low alarm: -40.0 60.0C (14F 140F) (default: 0.0C, disable)
22) Indoor humidity high alarm: 1% 99% (default: 65%, disable)
23) Indoor humidity low alarm: 1% 99% (default: 35%, disable)
24) Outdoor temperature high alarm: -40.0 60.0C (-40F 140F) (default: 30.0C,
disable)
25) Outdoor temperature low alarm: -40.0 60.0C (-40F 140F) (default: -10.0C,
disable)
26) Outdoor humidity high alarm: 1% 99% (default: 75%, disable)
27) Outdoor humidity low alarm: 1% 99% (default: 45%, disable)
28) Wind chill temperature low alarm: -40.0 60.0C (-40F 140F) (default: 0.0C,
disable)
29) Dew point temperature high alarm: -40.0 60.0C (-40F 140F) (default: 10.0C,
disable)
30) Dew point temperature low alarm: -40.0 60.0C (-40F 140F) (default: -10.0C,
disable)
31) Heat index temperature high alarm: -40.0 60.0C (-40F 140F) (default: 27.0C,
disable)
32) Rainfall alarm: rainfall rate and rainfall 24H: 0-999.9mm (default: 0.0mm, disable)

19
33) Wind speed alarm: 0-50.0m/s (default: 1.8km/h, disable)
34) Guest speed alarm: 0-50.0m/s (default: 3.6km/h, disable)
35) Light high alarm: 0 to 300000 (default: 200000lux, disable)
36) UVI high alarm: 0 to 15 (default: 10, disable)
Specifications
1) Indoor temperature measure range: -10 to 60C
2) Outdoor temperature measure range: -40 to 60C
3) Humidity measuring range: 10% to 99%
4) Wind speed measure range: 0 to 50.0m/s
5) Wind direction: 0 to 359 degree
6) Rainfall range: 0 to 9999.9mm
7) Light range: 0 to 300000.0lux
8) UVI range: 0 to 15 index (0 to 20000 w/m2)
Troubleshooting Guide
Problem
Solution
Wireless remote (outdoor unit) not
reporting in to console.
There are dashes (--) on the display
console.
Check the thermo-hygrometer-transmitter LED for
flashing. You must remove the radiation shield to view
the LED.
The outside sensor has an LED under the plastic, just
above the battery compartment. The LED will flash
every 48 seconds.
If the LED is not flashing every 48 seconds, Replace the
batteries in the outside thermo-hygrometer-transmitter.
If the batteries were recently replaced, check the polarity.
If the sensor is flashing every 48 seconds, proceed to the
next step.
There may be a temporary loss of communication due to
reception loss related to interference or other location
factors,
or the batteries may have been changed in the remote and
the console has not been reset. The solution may be as
simple as powering down and up the console.
1. Make sure you have fresh batteries in the
display console.
2. With the sensor array and console 10 feet
away from each other, remove the batteries

20
Problem
Solution
from the display console and wait 10
seconds. Put the batteries back in.
3. Do not touch any buttons for several
minutes.
4. The remote sensor search icon will
splash on the display. Wait several minutes
for this icon to turn off.
5. If the search icon turns off and the outdoor
temperature and humidity are still showing
dashes (--), the remote sensor is defective. If
the sensor properly syncs up, proceed to the
next step “How to prevent intermittent
wireless communication”
How to prevent intermittent wireless communication
issues: 1. Install a fresh set of batteries in the remote
sensor array and console. For cold weather
environments, install lithium batteries.
2. The maximum line of sight communication
range is 300’ but most users will get 100’ or
less due to environmental conditions.
Move the sensor and remote closer together.
3. If the sensor assembly is too close (less than
5’), move the sensor assembly away from
the display console.
4. Make sure the remote sensors are not
transmitting through solid metal like
aluminum siding (acts as an RF shield), or
earth barrier (down a hill).
5. Move the display console around electrical
noise generating devices, such as computers,
TVs and other wireless transmitters or
receivers.
6. Move the remote sensor to a higher location.
Move the remote sensor to a closer location.
Temperature sensor reads too high in the
day time.
Make sure the thermo-hygrometer is mounted in a
shaded area on the north facing wall.
Indoor and Outdoor Temperature do not
agree
1. Allow up to one hour for the sensors to stabilize
due to signal filtering. The indoor and outdoor
temperature sensors should agree within 4 °F
(the sensor accuracy is ± 2 °F).
2. Perform a temperature calibration (reference
Section 2.1)
Indoor and Outdoor Humidity do not
1. Allow up to one hour for the sensors to stabilize
