Oregon Scientific BAR122HGN User manual

Digital Weather Forecaster
with Remote Thermo-Hygro Sensor
and Radio Controlled Clock
Model: BAR122HGN
User Manual
SE138_COVER_M_REV0.indd 1 3/13/08 9:38:00 AM
P/N:086L002706-173 REV1
1/99

1
EN
Digital Weather Forecaster
with Remote Thermo-hygro Sensor
And Radio Controlled Clock
MODEL NO.: BAR122HGN
USER MANUAL
CONTENTS
Introduction ............................................................... 2
Main Features: Main Unit ......................................... 2
Features: Remote Thermo-hygro
Sensor - THGR228N ................................................. 4
Before You Begin ...................................................... 4
Battery Installation: Main Unit ................................. 5
Battery and Channel Installation:
Remote Unit .............................................................. 5
Low Battery Warning ................................................ 6
How to use the Table Stand or Wall Mounting ....... 6
The Reset Button ...................................................... 6
Getting Started .......................................................... 6
How to Check Remote and Indoor
Temperature & Humidity .......................................... 7
Disconnected Signals .............................................. 7
Transmission Collision ............................................ 7
How to Read the Kinetic Wave Display .................. 8
Remote Sensor Scanning ........................................ 8
The Comfort-level Icons ........................................... 8
Temperature, Humidity & Pressure
Trend Indicators ........................................................ 9
Maximum and Minimum Temperature
And Humidity ............................................................ 9
How to use Channel-1 Temperature/
Humidity Alarm ......................................................... 9
Weather Forecast Function ................................... 11
Calendar Clock Display Modes ............................. 11
About Radio Reception .......................................... 11
How to Set the Clock Manually ............................. 12
How to Set and arm the Alarms ............................. 13
How to Stop an Alarm ............................................ 13
Precautions ............................................................. 13
Specifications ......................................................... 14
About Oregon Scientific ........................................ 14
EC-declaration of Conformity ................................ 15
Troubleshooting Guide - BAR122HGN ................. 15
BAR122HGN_UM_EN.indd 1 2/26/08 9:39:27 AM
P/N:086L002706-173 REV1
2/99

2
EN
INTRODUCTION
Congratulations on your purchase of the Weather
forecaster with cable free sensor and radio-controlled
calendar clock (BAR122HGN).
this unit has a large four-line liquid crystal display (LCD)
for displaying weather forecast information, in/outdoor
temperatures and relative humidity, radio frequency (RF)
controlled calendar clock, clock display of 2nd time-zone
and dual daily alarms. Also, the main unit can support up
to three remote sensors.
Other features include weekday display in four
abbreviated languages, four-step crescendo alarm and
interchangeable clock display modes.
MAIN FEATURES: MAIN UNIT
BAR122HGN_UM_EN.indd 2 2/26/08 9:39:28 AM
P/N:086L002706-173 REV1
3/99

3
EN
A . FRONT DISPLAY
A four line easy-to-read LCD
A1. WEATHER FORECAST WINDOW
Graphically illustrates a weather forecast
A2. [ SNOOZE ] BUTTON
Activates the 8-minute snooze function when the
clock alarm goes off
B. [ ] Battery-low indicator
Activates when the remote-sensor or main unit battery
power is low
C. [ ] Radio-reception signal
Indicates the condition of radio reception
D. [MEMORY] BUTTON
Displays minimum and maximum temperature and
humidity readings, and erases memory data
E. [CHANNEL] BUTTON
Toggles among the remote sensor channels
F. [MODE/SET] BUTTON
Changes the display mode of the clock and alters
time/datesetting
G. [ ] / [ ] Alarm-on iconS
Appears when the alarm is activated
H. [((1))] / [((2))] Alarm iconS
Appears when the alarm time is displayed
I. [ TIME ] Button
Decreases the value of a setting
J. [ TIME ] Button
Advances the value of a setting
K. [ ] BUTTON
Displays the alarm time, or changes the alarm set
time
L. [ON/OFF] Button ( Temp/% rh alarm )
Enables / disables HI/LO temp alarm and HI/LO %
RH alarm
M. [HI/LO] Button ( Temp/% rh alarm )
- Set the upper or lower temperature alarm limits of
individual channels
- Confirms alarm settings
N. [ ] Button ( Temp/% rh alarm )
Sets the readings for the upper or lower temperature
and humidity of individual channels
O. [AL clock] Button
Enables or disables the daily alarms
P. [RESET] Button
Returns all settings to default values
Q. Wall-Mount Hole
For mounting the unit on a wall
R. Battery Compartment
Accommodates four (4) UM-3 or “AA” size batteries
S. Removable Table Stand
For standing the main unit on a flat surface
BAR122HGN_UM_EN.indd 3 2/26/08 9:39:31 AM
P/N:086L002706-173 REV1
4/99

4
EN

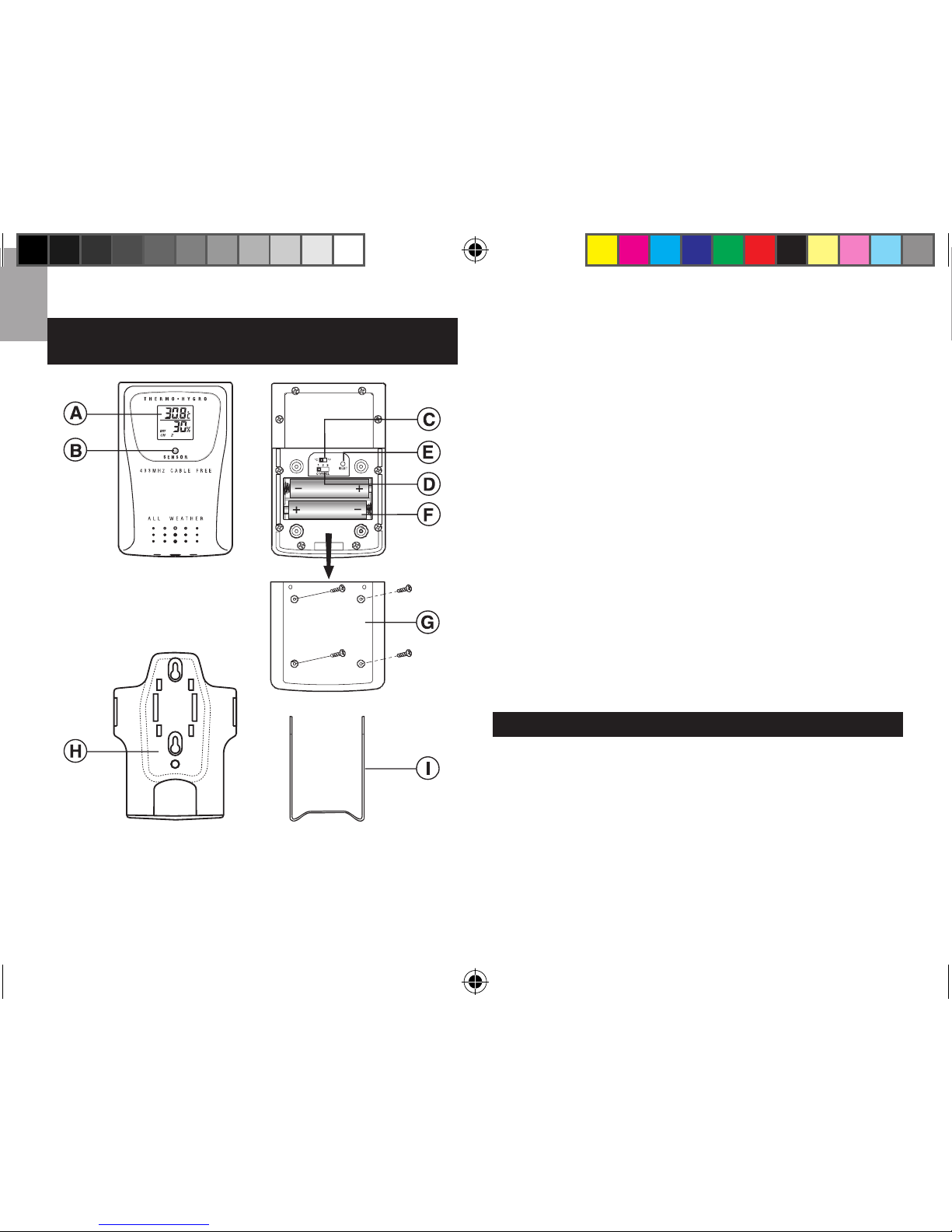

FEATURES: REMOTE THERMO-HYGRO
SENSOR - THGR228N
A. Two-line LCD
Displays the current temperature and humidity
monitored by the remote unit
B. LED indicator
Flashes when the remote unit transmits a reading
C. °C/°F slide switch
Selects between Centigrade (°C) and Fahrenheit
(°F)
D. Channel slide switch
Designates the remote unit Channel 1, Channel 2 or
Channel 3
E. RESET
Returns all settings to default values
F. Battery compartment
Accommodates two AAA-size batteries
G. BATTERY DOOR
H. Wall-mount holder
Supports the remote unit in wall-mounting
I. Removable table stand
For standing the remote unit on a flat surface
BEFORE YOU BEGIN
For best operation,
1. Assign different channels to different remote units.
2. Insert batteries for remote units before doing so for
the main unit.
3. Place the main unit as close as possible next to
the remote unit, reset the main unit after installing
batteries. This will ensure easier synchronization
between the transmission and receptionof signals.
BAR122HGN_UM_EN.indd 4 2/26/08 9:39:31 AM
P/N:086L002706-173 REV1
5/99

5
EN
4. Position the remote unit and main unit within effective
transmission range, which, in usual circumstances,
is up to 100 meters.
NOTE that the effective range is vastly affected by the
building materials and where the main and remote units
are positioned. Try various set-ups for best result.
Though the remote units are weather proof, they should
be placed away from direct sunlight, rain or snow.

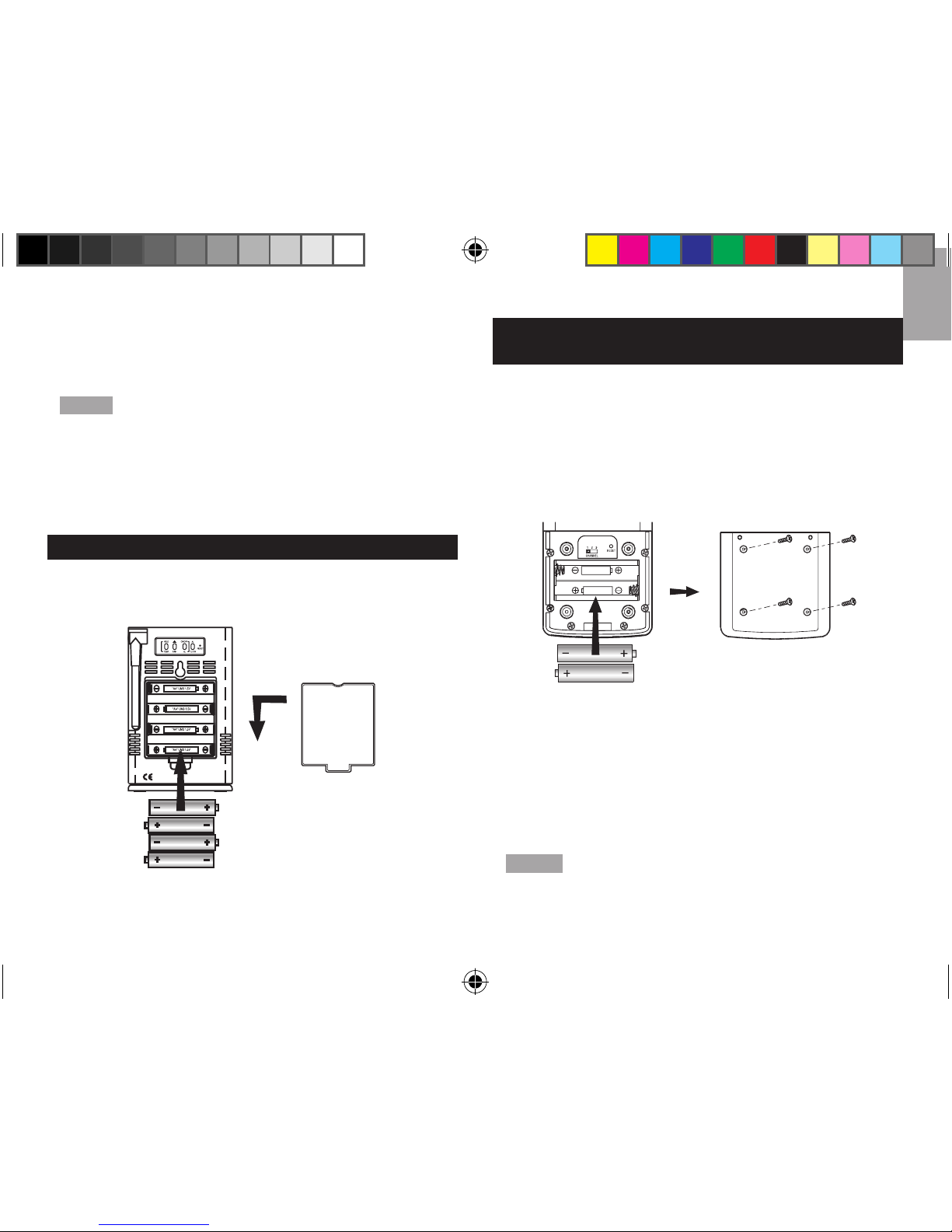

BATTERY INSTALLATION: MAIN UNIT
1. Gently lift up the tab on the battery compartment
door.
2. Insert four UM-3 or “AA” size batteries.
3. Replace the battery compartment door.
BATTERY AND CHANNEL INSTALLATION:
REMOTE UNIT
The remote thermo-hygro sensor unit uses two (2) UM-4
or “AAA” size batteries.
Follow these steps to install / replace batteries:
1. Remove the screws on the battery compartment.
2. Select the channel number on the [CHANNEL] slide
switch.
3. Select the temperature display unit on the °C/°F slide
switch.
4. Insert the batteries strictly according to the polarities
shown therein.
5. Replace the battery compartment door and secure
its screws.
Replace the batteries when the low-battery indicator of
the particular channel lights up on the main unit. (Repeat
the steps described in section “BEFORE YOU BEGIN”)
NOTE that once a channel is assigned to a remote
unit, you can only change it by removing the batteries
or resetting the unit.
BAR122HGN_UM_EN.indd 5 2/26/08 9:39:34 AM
P/N:086L002706-173 REV1
6/99

6
EN
LOW BATTERY WARNING
When it is time to replace batteries, the respective
low-battery indicator will show up when the respective
channel is selected. The battery level of the main unit
will be shown on the indoor temperature when it is
running low.
HOW TO USE THE TABLE STAND OR WALL
MOUNTING
The main unit has a removable table stand, which when
connected, can support the unit on a flat surface. Or you
can remove the stand and mount the unit on a wall using
the recessed screw hole.
As for the remote unit, it comes with a wall-mount holder and
a removable stand. Use either to hold the unit in place.
Main unit
Wall-mount Table Stand
Remote unit
Wall-mount Table Stand
THE RESET BUTTON
This button is only used when the unit is operating in an
unfavorable way or malfunctioning. Use a blunt stylus
to hold down the button. All settings will return to their
default values.
GETTING STARTED
Once batteries are placed in a given remote sensor
unit, it will start transmitting information at 40-second
intervals.
Also, for approximately a 3-minute duration, the main
unit will automatically search for signals once batteries
are installed. Upon successful reception, the individual
channel temperature reading will be displayed on the top
BAR122HGN_UM_EN.indd 6 2/26/08 9:39:36 AM
P/N:086L002706-173 REV1
7/99

7
EN
line and the respective humidity reading on the bottom
line. The main unit will automatically update its readings
at about 40-second intervals.
If no signals are received, blanks “---” will be displayed
and the kinetic wave icon will not show.
To force a signal search:
• Press and hold [CHANNEL] & [MEMORY] for 2
seconds to enforce a 3-minute search.
This is useful in synchronizing the transmission and
reception of the remote and main units.
Repeat this step whenever you find discrepancies
between the readings shown on the main unit and that
on the respective remote unit.
HOW TO CHECK REMOTE AND INDOOR
TEMPERATURE & HUMIDITY
Display of readings from a remote sensor or the main
unit is a one-step procedure. The remote sensor channel
or the main unit display is indicated in a box under the
kinetic-wave icon.
Indoor
Display
Designated
Display
Remote
Display
Channel 1
Kinetic-wave
Icon
Remote
Display
Channel 2
Remote
Display
Channel 3
To display temperature / humidity readings from
the main unit:
• Press [CHANNEL] until a dot is displayed in the box
under the kinetic-wave.
To display temperature / humidity readings from a
remote sensor:
• Press [CHANNEL] until the appropriate remote sensor
channel is displayed in the box under the kinetic-wave.
DISCONNECTED SIGNALS
If without obvious reasons the display for a particular
channel goes blank, press [CHANNEL] & [MEMORY]
to enforce an immediate search.
If that fails, check:
1. The remote unit of that channel is still in place.
2. The batteries of both the remote unit and main unit.
Replace as necessary.
NOTE that when the temperature falls below freezing
point, the batteries of outdoor units will freeze, lowering
their voltage supply and the effective range.
3. The transmission is within range and path is clear
of obstacles and interference. Shorten the distance
when necessary.
TRANSMISSION COLLISION
Signals from other household devices, such as door
bells, home security systems and entry controls, may
BAR122HGN_UM_EN.indd 7 2/26/08 9:39:39 AM
P/N:086L002706-173 REV1
8/99

8
EN
interfere with those of this product and cause temporarily
reception failure. This is normal and does not affect the
general performance of the product. The transmission
and reception of temperature and humidity readings will
resume once the interference recedes.
HOW TO READ THE KINETIC WAVE DISPLAY
The kinetic wave display shows the signal receiving
status of the main unit. There are three possible forms:
The unit is in searching mode.
Transmission data are securely
registered.
No signal received in search
mode.
REMOTE SENSOR SCANNING
The unit can be set to automatically scan and display
readings from the remote sensors and indoor readings.
When the remote-sensor mode is active, the display will
show the readings from one channel for about 4-second
and then proceed to the next channel display.
To activate the remote-sensor scanning mode:
• Press and hold [CHANNEL] for 2-seconds.
To deactivate the remote-sensor scanning mode:
• Press either [CHANNEL], [MEMORY], [HI/LO], [ ],
[ON/OFF] (TEMP % RH AL)
THE COMFORT-LEVEL ICONS
The comfort level indicators COMFORT, WET or DRY
will tell you if the curent environment is comfortable, too
wet or too dry.
The comfort indicator will appear on the display when
the following conditions are satisfied:
Indicator
displays
on the unit
COMFORT
WET
Temperature
Range
20°C to 25°C
(68°F to 77°F)
-5°C -+ 50°C
(23°F - 122°F)
-5°C -+ 50°C
(23°F - 122°F)
Humidity
Range
40%RH-
70%RH
OVER-
70%RH
Below
40%RH
Shows that the
Current
Environment
Ideal range for
both relative
humidity and
temperature
Contains excess
moisture.
Contains
inadequate
moisture
No
Indicator
Less than
20°C( 68°F)
or More than
25°C (77°F)
40%RH
to
70%RH No comment
DRY
BAR122HGN_UM_EN.indd 8 2/26/08 9:39:39 AM
P/N:086L002706-173 REV1
9/99

9
EN
TEMPERATURE, HUMIDITY & PRESSURE
TREND INDICATORS
The temperature-trend, humidity-trend and pressure
trend indicators show the trends of collected readings.
Arrows indicate a rising, steady or falling trend.
Rising
Arrow indicator
Humidity Trend Steady Falling
Rising
Arrow indicator
Temperature
Trend Steady Falling
Rising
Arrow indicator
Pressure Trend Steady Falling
NOTE If the readings goes above or below the
measuring range of the main unit or the remote unit (
stated in specification), the display will show “HHH”
or “LLL”.
MAXIMUM AND MINIMUM TEMPERATURE
AND HUMIDITY
The maximum and minimum recorded temperature
and humidity readings will automatically be stored in
the memory.
To display the maximum and minimum display
memory:
1. Select the channel to be checked.
2. Press [memory] once to display the maximum
temperature and humidity and again the minimum
temperature and humidity. The respective indicators,
MAX or MIN will be displayed.
To clear the memory:
• Press and hold [MEMORY] for 2-seconds.
If you press [MEMORY] now, the maximum and minimum
recordings will have the same values as the current ones
until different readings are recorded.
HOW TO USE CHANNEL-1 TEMPERATURE/
HUMIDITY ALARM
Upper and lower temperature and humidity limits for
channel-1 can be set so that an alarm activates when
the limits are exceeded.
The high and low temperature and humidity displays are
selected by sequentially pressing HI/LO.
BAR122HGN_UM_EN.indd 9 2/26/08 9:39:40 AM
P/N:086L002706-173 REV1
10/99
