Fini HYPRO5-165 User manual

OPERATOR’S MANUAL
HYPRO5-165
5 GALLON PERMALUBE WHEELED AIR COMPRESSOR
HYPRO5-165 OM Ver. 06/19
CUSTOMER SERVICE
1-866-242-4298
Thank you for buying a FINI product.
Your air compressor has been engineered and manufactured to FINI’s high standard for dependability, ease of operation,
and operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
SAVE THIS MANUAL FOR FUTURE REFERENCE
WARNING:
To reduce the risk of injury, the user must read and understand the operator’s manual before using this product.

2
This tool has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability
have been given top priority in the design of this product making it easy to mantain and operate.
PRODUCT FOR CONSUMER USE ONLY. Not intended for commercial use.
Introduction ......................................................................................................................................................................2
General Safety Rules ....................................................................................................................................................3-4
Specific Safety Rules .......................................................................................................................................................5
Symbols.........................................................................................................................................................................6-7
Electrical...........................................................................................................................................................................8
Glossary of Terms ............................................................................................................................................................9
Features ....................................................................................................................................................................10-11
Assembly...................................................................................................................................................................11-12
Transport ........................................................................................................................................................................13
Operation...................................................................................................................................................................14-16
Maintenance...................................................................................................................................................................17
Service ...........................................................................................................................................................................18
Troubleshooting..............................................................................................................................................................19
Replacement Parts List .............................................................................................................................................20-23
Warranty.........................................................................................................................................................................24
TABLE OF CONTENTS
INTRODUCTION
NOTICE
This unit was fully tested and inspected prior to shipment and will operate properly when instructions are followed. Refer to your owner’s manual for basic
troubleshooting. To avoid unnecessary return to the store, simply call Compressor Support toll free for additional assistance.
DO NOT RETURN TO STORE
IMPORTANT
STOP STOP
Compressor Support: 1-866-242-4298

• Air Compressor will automatically shut off when maximum PSI is reached. When the tank pressure drops to the cut in pressure (low pressure) and the on/off switch
is in the ON position, the unit will automatically restart.
• Onoccasion,maximumpressureintankwillremainuntilnextusethusresultinginasenseofnopower(Seebulletabove).
• Toavoidpowerloss,overheatingandensurepower,useadditionalairhoseratherthanextensioncords.
• Itistheconsumer’sresponsibilitytodrainoillubedunitspriortoshipmenttomeetICC,stateandlocalfireregulations.
Pleasehaveyourmodelnumberandserialnumberavailable.Thesecanbefoundonthedatalabelonyourproduct.Retainacopyofyourreceiptwithpurchase
date for reference.
DANGER
This compressor/pump is not equipped and should not be used to supply breathing quality air. Additional equipment
would be necessary to properly filter and purify the air to meet minimal specifications for Grade D breathing as described
in Compressed Gas Association Commodity Specification G 7.1 - 1996, OSHA 29 CFR 1910.134.
Compressed Gas Association, 14501 George Carter Way, Suite 103, Chantilly VA 20151-1788, [phone],
www.cganet.com. Any such additional equipment has not been examined and no implication of proper use for breathing
air is intended or implied.
If this compressor is altered in any way, existing warranties shall be voided. Seller disclaims any liabilities whatsoever
for any loss, personal injury, or damage.

3
WARNING:
Read and understand all instructions. Failure to
follow all instructions listed below may result in electric
shock, fire, and/or serious personal injury.
SAVE THESE INSTRUCTIONS
WORK AREA
Keep your work area clean and well lit. Cluttered
benches and dark areas invite accidents. The floor
must not be slippery from wax or dust.
Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases, or dust. Power tools create sparks
which may ignite the dust or fumes.
Keep bystanders, children, and visitors away while
operating tools. Distractions can cause you to lose
control.
Operate the air compressor in an open area at
least 18 in. away from any wall or object that could
restrict the flow of fresh air to ventilation openings.
ELECTRICAL SAFETY
Avoid body contact with grounded surfaces such as
pipes, radiators, ranges, and refrigerators. There is an
increased risk of electric shock if your body is grounded.
Don’t expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
Do not abuse the cord. Never use the cord to carry
the tool or pull the plug from an outlet. Keep the
cord away from heat, oil, sharp edges, or moving
parts. Replace damaged cords immediately.
Damaged cords increase the risk of electric shock.
When operating a power tool outside, use an
outdoor extension cord marked “W-A” or “W”.
These cords are rated for outdoor use and reduce the
risk of electric shock.
PERSONAL SAFETY
Eye protection which conforms to ANSI
specifications and provides protection against
flying particles both from the FRONT and SIDE
should ALWAYS be worn by the operator and
others in the work area when loading, operating, or
servicing this tool. Eye protection is required to guard
against flying fasteners and debris, which could cause
severe eye injury.
The employer and/or user must ensure that proper
eye protection is worn. We recommend a Wide Vision
Safety Mask for use over eyeglasses or standard safety
glasses that provide protection against flying particles
both from the front and side. Always use eye protection
which is marked to comply with ANSI Z87.1.
Additional safety protection will be required in
some environments. For example, the working area
may include exposure to a noise level which can lead to
hearing damage. The employer and user must ensure
that any necessary hearing protection is provided
and used by the operator and others in the work
area. Some environments will require the use of head
protection equipment. When required, the employer
and user must ensure that head protection marked to
comply with ANSI Z89.1 is used.
Stay alert, watch what you are doing, and use
common sense when operating a power tool. Do
not use tools while tired or under the influence
of drugs, alcohol, or medication. A moment of
inattention while operating power tools may result in
serious personal injury.
Dress properly. Do not wear loose clothing or
jewelry. Contain long hair. Keep your hair, clothing,
and gloves away from moving parts. Loose clothes,
jewelry, or long hair can be caught in moving parts.
Do not overreach. Keep proper footing and balance
at all times. Proper footing and balance enables better
control of the tool in unexpected situations.
Use safety equipment. Always wear eye protection.
A dust mask, nonskid safety shoes, hard hat, or hearing
protection must be used for appropriate conditions.
Do not use on a ladder or unstable support. Stable
footing on a solid surface enables better control of the
tool in unexpected situations.
TOOL USE AND CARE
Do not exceed the pressure rating of any
component in the system.
Protect material lines and air lines from damage or
puncture. Keep the hose and power cord away from
sharp objects, chemical spills, oil, solvents, and wet
floors.
Check hoses for weak or worn condition before
each use, making certain all connections are
secure. Do not use if a defect is found. Purchase a
new hose or notify an authorized service center for
examination or repair.
Release the pressure within the system slowly. Dust
and debris may be harmful.
Store idle tools out of the reach of children and
other untrained persons. Tools are dangerous in the
hands of untrained users.
Maintain tools with care. Follow maintenance
instructions. Properly maintained tools are easier to
control.
Check for misalignment or binding of moving parts,
breakage of parts, and any other condition that
may affect the tool’s operation. If damaged, have
the tool serviced before using. Many accidents are
caused by poorly maintained tools.
GENERAL SAFETY RULES

4
Never point any tool toward yourself or others.
Keep the exterior of the air compressor dry, clean,
and free from oil and grease. Always use a clean
cloth when cleaning. Never use brake fluids, gasoline,
petroleum-based products, or any strong solvents to
clean the unit. Following this rule will reduce the risk of
deterioration of the enclosure plastic.
SERVICE
Tool service must be performed only by qualified
repair personnel. Service or maintenance performed
by unqualified personnel may result in a risk of injury.
GENERAL SAFETY RULES
Disconnect the power supply, open the drain valve
to decompress the tank and allow water to drain,
and allow the air compressor to become cool to the
touch before servicing. Turn the pressure regulator
knob fully counterclockwise after shutting off the
compressor.
When servicing a tool, use only identical
replacement parts. Follow the instructions in
the Maintenance section of this manual. Use of
unauthorized parts or failure to follow the Maintenance
instructions may create a risk of injury.

5
Know your power tool. Read the operator’s manual
carefully. Learn its applications and limitations, as well
as the specific potential hazards related to this tool.
Following this rule will reduce the risk of electric shock,
fire, or serious injury.
Drain the tank of moisture after each day’s use.
If the unit will not be used for a while, it is best to leave
the drain valve open until such time as it is to be used.
This will allow moisture to completely drain out and help
prevent corrosion on the inside of tank.
Risk of Fire or Explosion. Do not spray flammable
liquid in a confined area. The spray area must be well
ventilated. Do not smoke while spraying or spray where
sparks or a flame is present. Keep compressors as far
from the spraying area as possible, at least 15 feet from
the spraying area and all explosive vapors.
Risk of Bursting. Do not adjust the regulator to result
in output pressure greater than the marked maximum
pressure of the attachment. Do not use at a pressure
greater than the rated maximum pressure of this
compressor.
If connected to a circuit protected by fuses, use
time-delay fuses with this product.
To reduce the risk of electric shock, do not expose to
rain. Store indoors.
Inspect the tank yearly for rust, pin holes, or other
imperfections that could cause it to become unsafe.
Never weld or drill holes in the air tank.
Make sure the hose is free of obstructions or snags.
Entangled or snarled hoses can cause loss of balance
or footing and may become damaged.
Use the air compressor only for its intended use. Do
not alter or modify the unit from the original design
or function.
Always be aware that misuse and improper handling
of this tool can cause injury to yourself and others.
Never leave a tool unattended with the air hose
attached.
Do not operate this tool if it does not contain a
legible warning label.
Do not continue to use a tool or hose that leaks air
or does not function properly.
Always disconnect the air supply and power supply
before making adjustments, servicing a tool, or when a
tool is not in use.
Do not attempt to pull or carry the air compressor
by the hose.
Your tool may require more air consumption than
this air compressor is capable of providing.
When a combustible liquid is sprayed there can be
danger of fire or explosion, especially in a closed
area. Read instruction manual before operating.
SPECIFIC SAFETY RULES
Arcing parts. Use spray gun hose at least 25 feet long
and keep the compressor/motor at least 20 feet away
from explosive vapors.
Always follow all safety rules recommended by the
manufacturer of your tool, in addition to all safety
rules for the air compressor. Following these rules
will reduce the risk of serious personal injury.
Never direct a jet of compressed air toward people
or animals. Take care not to blow dust and dirt
towards yourself or others. Following this rule will
reduce the risk of serious injury.
Protect your lungs. Wear a face or dust mask if the
operation is dusty. Following this rule will reduce the
risk of serious personal injury.
Do not use this air compressor to spray chemicals.
Your lungs can be damaged by inhaling toxic fumes. A
respirator may be necessary in dusty environments or
when spraying paint. Do not carry while painting.
Inspect tool cords and hoses periodically and, if
damaged, have repaired at your nearest Authorized
Service Center. Constantly stay aware of cord location.
Following this rule will reduce the risk of electric shock or fire.
Never use an electrical adaptor with this grounded plug.
Check damaged parts. Before further use of the
air compressor or air tool, a guard or other part
that is damaged should be carefully checked to
determine that it will operate properly and perform
its intended function. Check for alignment of
moving parts, binding of moving parts, breakage of
parts, mounting, and any other conditions that may
affect its operation. A guard or other part that is
damaged should be properly repaired or replaced
by an authorized service center. Following this rule
will reduce the risk of shock, fire or serious injury.
Make sure your extension cord is in good
condition. When using an extension cord, be sure
to use one heavy enough to carry the current your
product will draw. A wire gauge size (A.W.G.) of at
least 14 is recommended for an extension cord 50
feet or less in length. A cord exceeding 100 feet is
not recommended. If in doubt, use the next heavier
gauge. The smaller the gauge number, the heavier
the cord. An undersized cord will cause a drop in line
voltage resulting in loss of power and overheating.
Save these instructions. Refer to them frequently
and use them to instruct others who may use this air
compressor. If you loan someone this tool, loan them
these instructions also.
WARNING:
This product can expose you to chemicals including
lead, which is known to the state of California to cause
cancer and birth defects or other reproductive harm.
For more information go to www.p65warnings.ca.gov

6

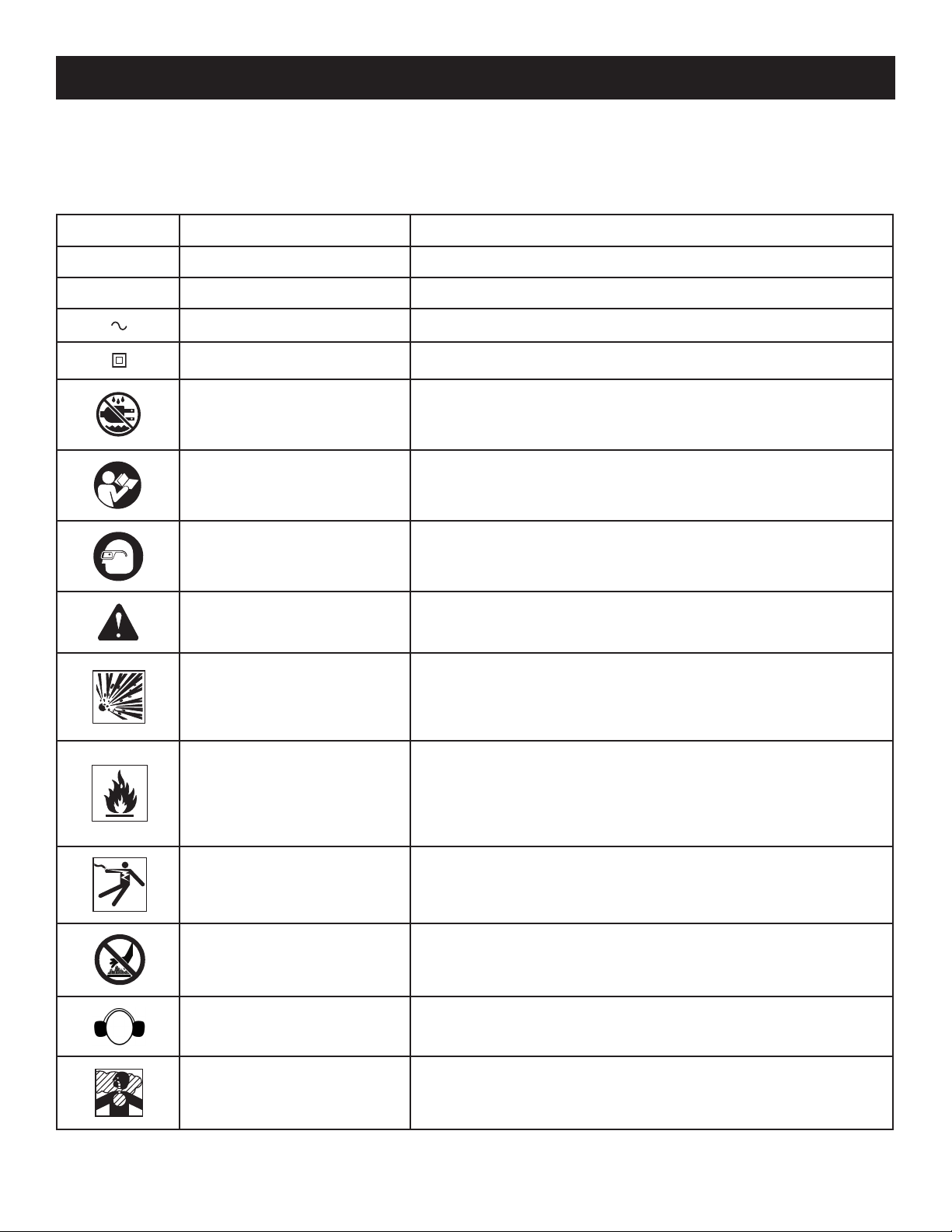

Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper interpretation
of these symbols will allow you to operate the tool better and safer.
SYMBOL NAME DESIGNATION / EXPLANATION
V Volts Voltage.
A Amperes Current.
Hz Hertz Frequency (cycles per second).
Alternating Current Type of current.
Class II Construction Double-insulated construction.
Wet Conditions Alert Do not expose to rain or use in damp locations.
Read the Operator's Manual To reduce the risk of injury, user must read and understand
operator's manual before using this product.
Eye Protection Always wear safety goggles, safety glasses with side shields, or a
full face shield when operating this product.
Safety Alert Precautions that involve your safety.
Risk of Bursting
Do not adjust the regulator to result in output pressure greater
than the marked maximum pressure of the attachment. Do not
use at a pressure greater than the rated maximum pressure of this
compressor.
Risk of Fire of Explosion
Do not spray flammable liquid in a confined area. Spray area must
be well ventilated. Do not smoke while spraying or spray where
spark or flame is present. Keep compressors as far from the
spraying area as possible, at least 15 feet from the spraying area
and all explosive vapors.
Risk of Electrical Shock Hazardous Voltage: disconnect from power source before
servicing. Compressor must be grounded.
Hot Surface To reduce the risk of injury or damage, avoid contact with any hot
surface.
Risk to Hearing Always wear ear protection when using this tool. Failure to do so
may result in hearing loss.
Risk to Breathing Air obtained directly from the air compressor should never be used
to supply air for human consumption.
SYMBOLS

7
SERVICE
Servicing requires extreme care and knowledge and
should be performed only by a qualified service technician.
For service we suggest you contact Customer Service at
1-866-242-4298.
SYMBOLS
WARNING:
To avoid serious personal injury, do not attempt to use
this product until you read thoroughly and understand
completely the operator's manual. Save this operator's
manual and review frequently for continuing safe
operation and instructing others who may use this
product.
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER: Indicates an imminently hazardous situation, which, if not avoided,
will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation, which, if not avoided,
may result in minor or moderate injury.
CAUTION: (Without Safety Alert Symbol) Indicates a situation that may result
in property damage.
WARNING:
The operation of any power tool can result in foreign objects being thrown into your eyes, which
can result in severe eye damage. Before beginning power tool operation, always wear safety
goggles, safety glasses with side shields, or a full face shield when needed. We recommend
Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields.
Always use eye protection which is marked to comply with ANSI Z87.1.
SAVE THESE INSTRUCTIONS

8
SPEED AND WIRING
The no-load speed of the electric motor varies by model and
specification. The motor speed is not constant and decreases
under a load or with lower voltage. For voltage, the wiring
in a shop is as important as the motor’s horsepower rating.
A line intended only for lights cannot properly carry a power
tool motor. Wire that is heavy enough for a short distance will
be too light for a greater distance. A line that can support one
power tool may not be able to support two or three tools.
GROUNDING INSTRUCTIONS
This product must be grounded. In the event of an electrical
short circuit, grounding reduces the risk of electric shock
by providing an escape wire for the electric current. This
air compressor is equipped with an electric cord having an
equipment-grounding conductor and a grounding plug. The
plug must be plugged into a matching outlet that is properly
installed and grounded in accordance with all local codes
and ordinances.
Do not modify the plug provided. If it will not fit the outlet,
have the proper outlet installed by a qualified electrician.
The conductor with insulation having an outer surface that
is green with or without yellow stripes is the equipment-
grounding conductor. If repair or replacement of the electric
cord or plug is necessary, do not connect the equipment-
grounding conductor to a live terminal.
Check with a qualified electrician or service personnel if the
grounding instructions are not completely understood, or if in
doubt as to whether the tool is properly grounded.
Repair or replace a damaged or worn cord immediately.
This product is for use on a nominal 120-V circuit and has
a grounding plug similar to the plug illustrated in Figure 1.
Only connect the product to an outlet having the same con-
figuration as the plug. Do not use an adapter with this product.
Never use an electrical adapter with this grounded plug.
WARNING:
Improper connection of the equipment-grounding
conductor can result in a risk of electric shock.
EXTENSION CORDS
Use only 3-wire extension cords that have 3-prong
grounding plugs and 3-pole receptacles that accept the
air compressor’s plug. When using the air compressor at
a considerable distance from the power source, use an
extension cord heavy enough to carry the current that the
compressor will draw. An undersized extension cord will
cause a drop in line voltage, resulting in a loss of power
and causing the motor to overheat. Use the chart provided
below to determine the minimum wire size required in
an extension cord. Only round jacketed cords listed by
Underwriter’s Laboratories (ULC) should be used.
** Ampere rating (on air compressor data plate)
0-2.0 2.1-3.4 3.5-5.0 5.1-7.0 7.1-12.0 12.1-16.0
Cord Length Wire Size (A.W.G.)
25’ 14 14 14 14 14 14
50’ 14 14 14 14 14 12
100’ 14 14 14 12 10 –
** Used on 12 gauge - 20 amp circuit.
NOTE: AWG = American Wire Gauge
When working with the air compressor outdoors, use an
extension cord that is designed for outside use. This is
indicated by the letters “WA” on the cord’s jacket.
Before using an extension cord, inspect it for loose or
exposed wires and cut or worn insulation.
fNOTE: Use longer air hoses instead of long extension
cords. Your air compressor will run better and last longer.
ELECTRICAL CONNECTION
This air compressor is powered by a precision built electric
motor. It should be connected to a power supply that is
120 volts, 60 Hz, AC only (normal household current).
Do not operate this tool on direct current (DC). A substantial
voltage drop will cause a loss of power and the motor will
overheat. If the air compressor does not operate when
plugged into an outlet, double check the power supply.
WARNING:
Keep the extension cord clear of the working area.
Position the cord so that it will not get caught on lumber,
tools, or other obstructions while you are working with a
power tool. Failure to do so can result in serious personal
injury.
WARNING:
Check the extension cords before each use. If damaged,
replace immediately. Never use the air compressor with
a damaged cord since touching the damaged area could
cause electrical shock resulting in serious personal injury.

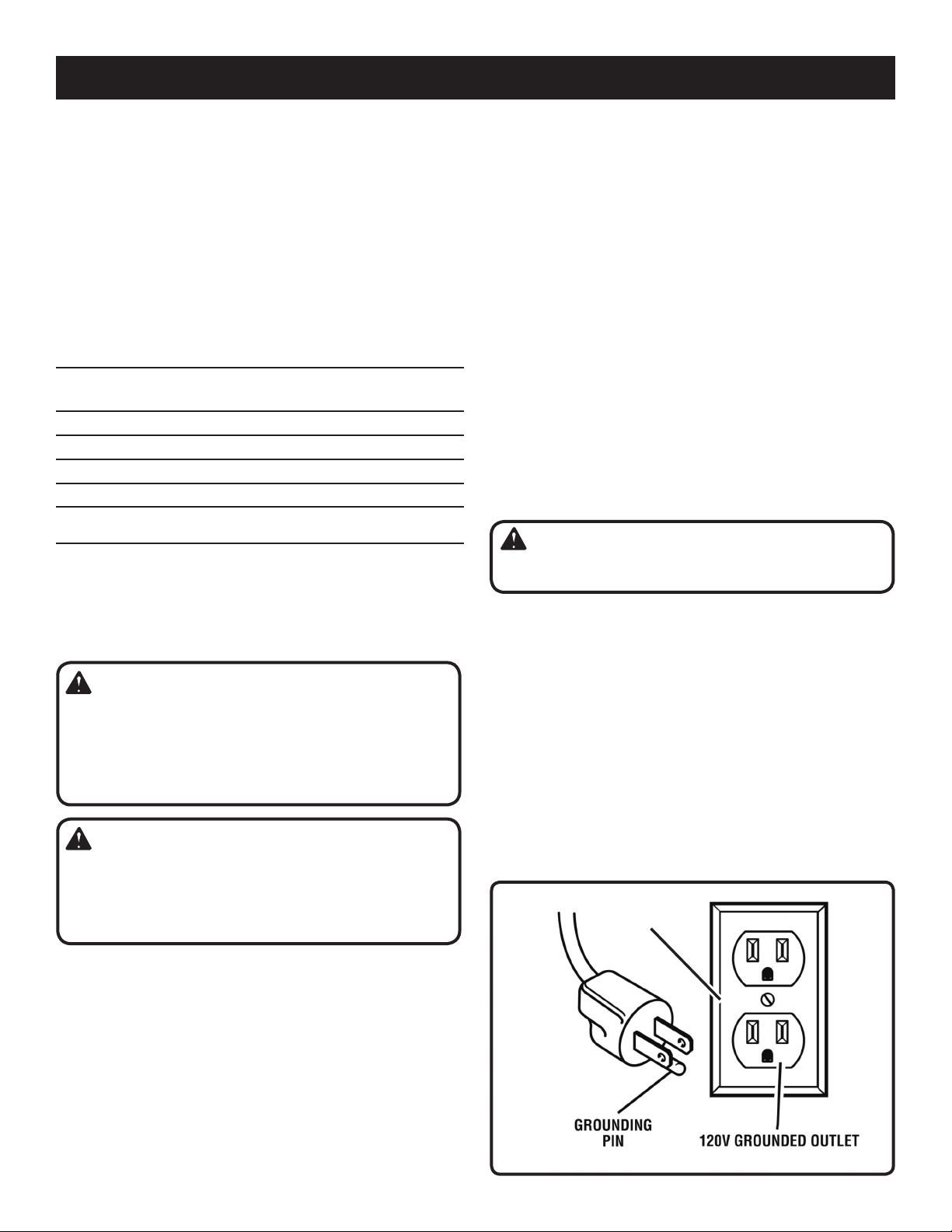

ELECTRICAL
GROUND
OUTLET BOX
Fig. 1

9
Air Filter
Porous element contained within a metal or plastic housing
attached to the compressor cylinder head which removes
impurity from the intake air of the compressor.
Air Tank
Cylindrical component which contains the compressed air.
Check Valve
Device that prevents compressed air from flowing back
from the air tank to the compressor pump.
Cut-In Pressure
The low pressure at which the motor will automatically
restart.
Cut-Off Pressure
The high pressure at which the motor will automatically shut
off.
Electric Motor
Device which provides the rotational force necessary to
operate the compressor pump.
Manual On/Off Switch
Control which turns the air compressor on or off. The
pressure switch will not automatically start and control the
compressor unless the manual on/off switch is in the ON (
l) position.
NPT (National Pipe Thread)
National Pipe Thread is a U.S. standard for tapered (NPT)
or straight (NPS) threads used to join pipes and fittings.
A thread sealing tape must be used to provide a leak-free
seal on pipe threaded connections.
Pressure Regulator Knob
Regulates the outgoing pressure from the air outlet to the
tool. It is possible to increase or decrease the pressure at
the outlet by adjusting this control knob.
Pressure Switch
Automatically controls the on/off cycling of the compressor.
It stops the compressor when the cut-off pressure in the
tank is reached and starts the compressor when the air
pressure drops below the cut-in pressure.
PSI (Pounds Per Square Inch)
Measurement of the pressure exerted by the force of the
air. The actual psi is measured by a pressure gauge on the
compressor.
Pump
Produces the compressed air with a reciprocating piston
contained within the cylinder.
Regulator Pressure Gauge (Outlet pressure)
Displays the current line pressure. Line pressure is adjusted
by rotating the pressure regulator knob.
Safety Valve
Prevents air pressure in the air tank from rising over a
predetermined limit.
SCFM (Standard Cubic Feet Per Minute)
A unit of measure of air delivery.
L/min (Liter Per Minute)
A unit of measure of air delivery.
Tank Pressure Gauge
Indicates the pressure in the air tank.
Thermal Overload Switch
Automatically shuts off the compressor if the temperature of
the electric motor exceeds a predetermined limit.
GLOSSARY OF TERMS

10
FEATURES
Fig. 2
REGULATOR
PRESSURE
GAUGE
TANK
PRESSURE
GAUGE
HANDLE
PRESSURE
REGULATOR
KNOB
QUICK
COUPLER
SAFETY
VALVE
RUBBER
FOOT TANK
MANUAL
ON/OFF
SWITCH
DRAIN
VALVE
CHECK
VALVE
WHEEL
PRODUCT SPECIFICATIONS
Running Horsepower................................................ 1.5 HP
Air Tank Capacity.........................................................5 gal.
Air Pressure....................................................165 PSI max.
Air Delivery ..........................................3.2 SCFM @ 90 PSI
Duty Cycle ........... S3/50% - 5 minutes ON and 5 minutes OFF
Lubrication...................................Permanent Lubricated Oil
Gauges........................................................1.5 in. diameter
Input................................120 V, 60 Hz, AC only, 13.5 Amps
Net Weight (compressor only)...................................42 lbs.

11
ASSEMBLY
UNPACKING
This product has been shipped completely assembled.
Carefully remove the compressor from the box. Make
sure that all items listed in the packing list are included.
Inspect the compressor carefully to make sure no
breakage or damage occurred during shipping.
Do not discard the packing material until you have
carefully inspected and satisfactorily operated the tool.
If any parts are damaged or missing, please call 1-866-
242-4298 for assistance.
PACKING LIST
Air Compressor (1)
Operator’s Manual (1)
WARNING:
If any parts are missing, do not operate the compressor
or air tools until the missing parts are replaced. Failure
to do so could result in possible serious personal injury.
WARNING:
Do not attempt to modify this tool or create accessories not
recommended for use with this tool. Any such alteration
or modification is misuse and could result in a hazardous
condition leading to possible serious personal injury.
FEATURES
KNOW YOUR AIR COMPRESSOR
See Figure 2.
Before attempting to use this product, familiarize yourself with all
operating features and safety rules.
OIL-FREE UNIVERSAL MOTOR
Your air compressor features permanently lubricated bearings.
ON/OFF POWER SWITCH
This switch is used to start or stop the air compressor. Moving the
switch to the (ON) position will provide automatic power to the
pressure switch which will allow the motor to start when the air
tank pressure is below the factory set cut-in pressure. When in
the (ON) position, the pressure switch stops the motor when the
air tank pressure reaches the factory set cut-out pressure. Moving
the switch to the (OFF) position will remove power from the motor
and stop the air compressor.
MOTOR THERMAL OVERLOAD
The electric motor has a thermal overload protector. If the motor
overheats for any reason, the thermal overload will cut off power,
thus preventing the motor from being damaged. Wait until the
motor is cool. Motor resets automatically.
AIR INTAKE FILTER
This filter is designed to clean air coming into the pump. To ensure
the pump continually receives a clean, cool, dry air supply this
filter must always be clean and ventilation opening free from
obstructions.
AIR COMPRESSOR PUMP
To compress air, the piston moves up and down in the cylinder.
On the down stroke, air is drawn in through the air intake valve
while the exhaust valve remains closed. On the upstroke, air is
compressed, the intake valve closes and compressed air is forced
out through the exhaust valve, into the discharge line, through the
check valve and into the air tank.
SAFETY VALVE
This valve is designed to prevent system failures by relieving
pressure from the system when the compressed air reaches a
predetermined level. The valve is preset by the manufacturer and
must not be modified in any way. To verify the valve is working
properly, pull on the ring. Air pressure should escape. When the
ring is released, it will reset.
DRAIN VALVE
The drain valve is used to remove moisture from the air tank after
the air compressor is shut off.
TANK PRESSURE GAUGE
The tank pressure gauge indicates the pressure of the air in the tank.
REGULATOR PRESSURE GAUGE
The current line pressure is displayed on the regulator pressure gauge.
This pressure can be adjusted by rotating the pressure regulator knob.
PRESSURE REGULATOR KNOB
Use the pressure regulator knob to adjust the amount of air being
delivered through the hose.
The air pressure coming from the air tank is controlled by the regulator
knob. Turn the pressure regulator knob clockwise to increase discharge
pressure and counterclockwise to decrease discharge pressure.
Follow tool operating instructions for recommended pressure range.

12
ASSEMBLY
BREAKING IN THE PUMP
See Figures 4 - 5.
Check and tighten all bolts, fittings, etc.
Turn the pressure regulator knob fully clockwise to
open the air flow.
Place the switch in the OFF (O) position and plug in the
power cord.
Open the drain valves completely.
Turn the air compress ON ( l ) and run the air
compressor for 10 minutes to break in pump parts.
Place the switch in the OFF (O) position.
Close the drain valves.
PRESSURE
REGULATOR
KNOB
ON/OFF
SWITCH
Fig. 4
Fig. 5
DRAIN VALVE
(open)
DRAIN VALVE
(closed)
Fig. 3
ATTACHING HOSE
See Figure 3.
Insert the hose into the quick coupler already installed
on the compressor (Fig. 3).
Firmly grasp the open end of the hose; hold facing
away from yourself and others.
WARNING:
Do not attach any tools to the open end of the hose until
start-up has been completed.

13

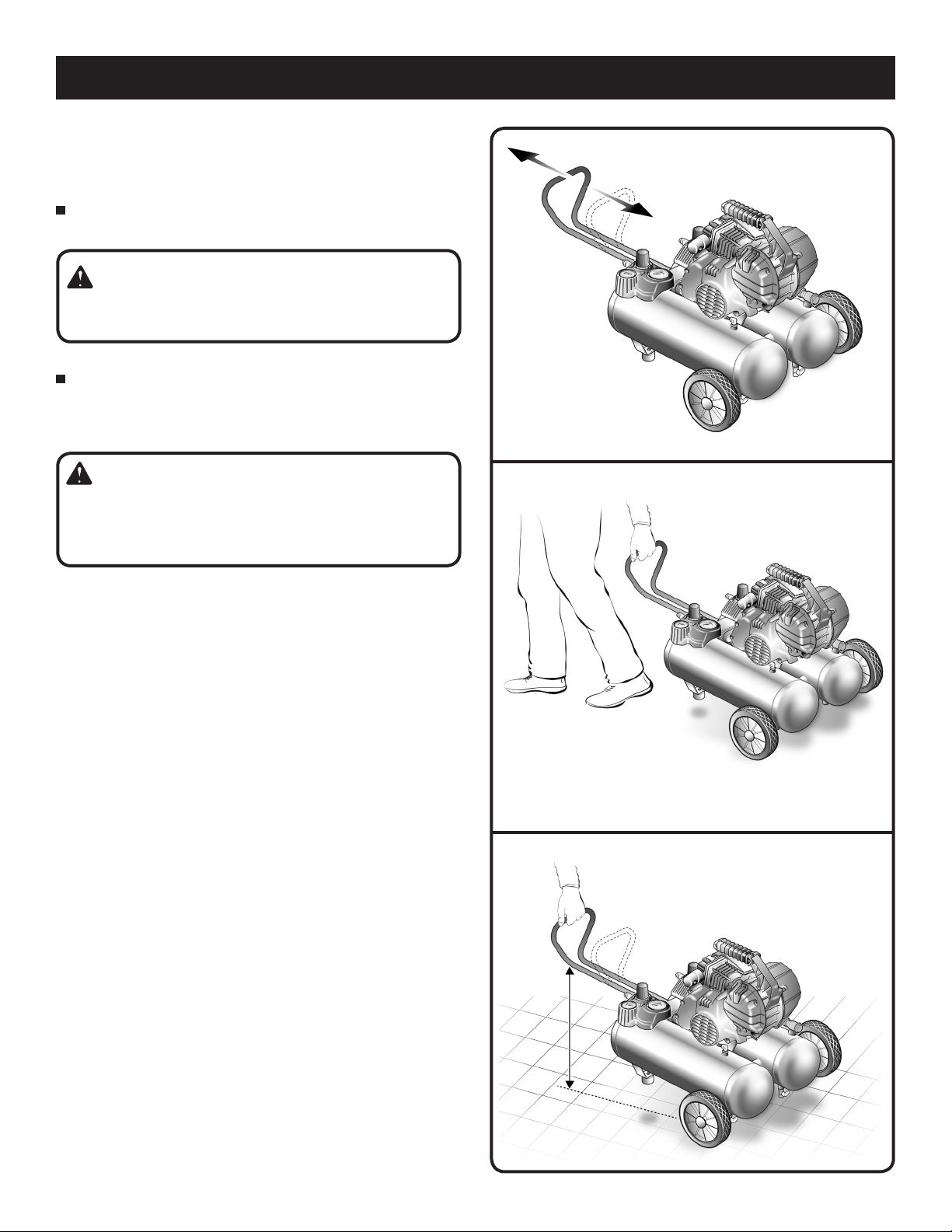

TRANSPORT
TRANSPORT
See Figures 6 - 8.
Pull telescopic handle out until it locks into place.
To collapse the handle, apply pressure for the first few
inches to unlock, then slide the handle strait in until it
stops.
Fig. 6
Fig. 7
Fig. 8
IMPORTANT:
This handle is only for pulling the unit.
DO NOT lift the unit by this handle.
WARNING:
Do not exceed the height of 25 inches (when the handle
is fully extended - see Fig. 8), to transport or tilt or operate
the compressor.
25 in.
max.

14
OPERATION
APPLICATIONS
Air compressors are utilized in a variety of air system
applications. Match hoses, connectors, air tools, and
accessories to the capabilities of the air compressor.
You may use this tool for purposes listed below:
Operating air powered tools requiring less than
3.2 SCFM @ 90 PSI.
Powering pneumatic nail guns, inflating tires, cleaning /
blowing with pressurized air.
USING THE AIR COMPRESSOR
See Figures 9 - 10.
Ensure the tank drain valves are closed (see Fig. 9).
Ensure the ON/OFF switch is in the OFF (O) position
and the air compressor is unplugged (see Fig. 9).
Ensure the pressure regulator knob is turned fully
counterclockwise (see Fig. 9).
If not already installed, attach the hose to the compressor.
Connect the air powered tools to the air hose by
inserting the male quick-connect plug to the quick-
coupler at the end of the hose (see Fig. 10).
Connect the power cord to the power supply.
Turn the ON/OFF switch to the ON (I) position.
Rotate the pressure regulator knob to the desired
line pressure. Turning the knob clockwise increases
air pressure at the outlet; turning the knob
counterclockwise reduces air pressure at the outlet.
NOTE: Before connecting or disconnecting air tools, turn
the regulator knob counterclockwise to stop the flow of air.
Following all safety precautions in this manual and the
manufacturer’s instructions in the air tool manual, you
may now use your air-powered tool.
If using an inflation accessory with a quick-connect
fitting, control the amount of air flow with the pressure
regulator knob. Turning the knob fully counterclockwise
will completely stop the flow of air.
NOTE: Always use the minimum amount of pressure
necessary for your application. Using a higher pressure
than needed will drain air from the tank more rapidly
and cause the unit to cycle on more frequently.
When finished, always drain the tank and unplug the unit.
Never leave the unit plugged in and/or running unattended.
WARNING:
Check the air tool manual to ensure the correct air pressure
regulator setting for optimum operation of your air tools. If you
are using an air tool not originally included with the air tool kit
supplied with this air compressor, your tool may require more
air consumption than this air compressor is designed to supply.
Always read your air tool owner’s manual to match the correct air supply
to your air tool to avoid damage to the tool or risk of personal injury.
WARNING:
Always wear safety goggles or safety glasses with
side shields when operating power tools. Failure to do
so could result in objects being thrown into your eyes
resulting in possible serious injury.
WARNING:
Do not allow familiarity with tools to make you careless.
Remember that a careless fraction of a second is
sufficient to inflict serious injury.
CAUTION:
Do not use in an environment that is dusty or otherwise
contaminated. Using the air compressor in this type of
environment may cause damage to the unit.
DRAIN
VALVE
PRESSURE
REGULATOR
KNOB
ON/OFF
SWITCH
Fig. 9
Fig. 10
MALE QUICK-
CONNECT
PLUG
WARNING:
Always ensure the switch is in the OFF (O) position and the
regulator pressure gauge reads zero before changing air
tools or disconnecting the hose from the air outlet. Failure
to do so could result in possible serious personal injury.
PNEUMATIC
TOOL
(NOT INCLUDED)
AIR HOSE WITH QUICK COUPLER
FITTING (NOT INCLUDED)

15
Fig. 11
DRAIN VALVE
(open)
DRAIN VALVE
(closed)
WARNING:
If air leaks after the ring has been released, or if the
valve is stuck and cannot be actuated by the ring,
do not use the air compressor until the safety valve
has been replaced. Use of the air compressor in this
condition could result in serious personal injury.
OPERATION
DRAINING THE TANK
See Figure 11.
To help prevent tank corrosion and keep moisture out of
the air used, the tank of the compressor should be drained
daily.
To drain:
Verify that the compressor is turned off.
Holding the handle, tilt the compressor toward the drain
valves so that it’s set in a lower position.
Open the drain valves by rotating them ¼ turn
counterclockwise.
Keep the compressor tilted until all moisture has been
removed.
Drain moisture from tank into a suitable container.
NOTE: Condensate is a polluting material and should
be disposed of in compliance with local regulations.
If drain valve is clogged, release all air pressure by
pulling the safety valve. Remove and clean valve, then
reinstall.
Close the drain valves by rotating them ¼ turn clockwise .

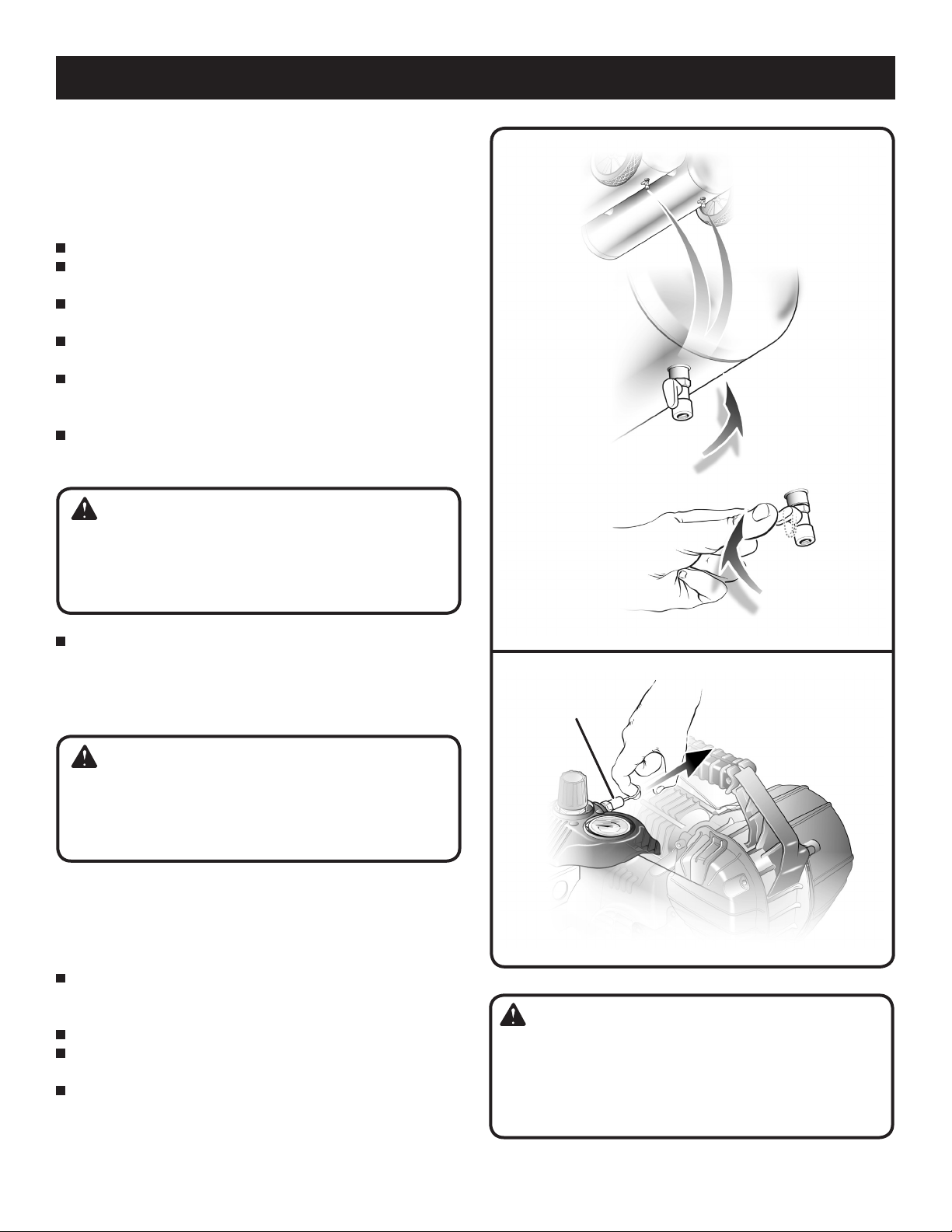

CHECKING THE SAFETY VALVE
See Figure 12.
The safety valve will automatically release air if the air
receiver pressure exceeds the preset maximum. The valve
should be checked before each day of use by pulling the
ring by hand.
Turn the air compressor on and allow the tank to
fill. The compressor will shut off when the pressure
reaches the preset maximum.
Turn the air compressor off.
Pull the ring on the safety valve to release air for twenty
seconds.
Release the ring. Air must immediately stop escaping
when the ring is released. Any continued loss of air
after releasing the safety valve ring indicates a problem
with the safety valve. Discontinue use and seek service
before continued use of the air compressor.
WARNING:
Unplug the air compressor and release all air from
the tank before servicing. Failure to depressurize tank
before attempting to remove valve may cause serious
personal injury.
WARNING:
Do not attempt to tamper with safety valve. Anything
loosened from this device could fly up and hit you.
Failure to heed this warning could result in death or
serious personal injury.
SAFETY
VALVE
Fig. 12

16
END OF OPERATION/STORAGE
Turn the ON/OFF switch to the OFF (O) position.
Unplug power cord from wall outlet and wrap around
handle area to prevent damage when not in use.
Wearing safety glasses, drain tank of air by pulling the
ring on the safety valve. Use other hand to deflect fast
moving air from being directed toward your face.
Drain tank of condensation by opening drain valves on
bottom of tank. Tank pressure should be below 10 PSI
when draining tank.
Air hose should be disconnected from compressor and
hung open ends down to allow any moisture to drain.
Compressor and hose should be stored in a cool, dry
place.
OPERATION
OVERLOAD PROTECTOR
This air compressor is equipped with a thermal overload
device which will turn the air compressor off automatically,
if the air compressor becomes overheated. If the motor
turns OFF repeatedly, check for the following possible
causes first: Low Voltage from the outlet. Lack of proper
ventilation or outside air or room temperature too high.
Extension cord too long or wrong gauge wire used.
To reset the air compressor:
Turn the air compressor off.
Unplug the air compressor and allow it to cool for 30
minutes.
Plug the air compressor into an approved outlet.
Turn the air compressor on.
DUTY CYCLE:
To avoid overheating of the electric motor, this
compressor is designed for intermittent operation as
indicated on the dataplate: S3-50 means 5 minutes ON
and 5 minutes OFF.
If the compressor run time exceeds the S3-50 duty
cycle, then the application requires more air than the
compressor is capable to deliver.
To ensure tool performance, the SCFM output of the
compressor should exceed the CFM requirement of the
tool by 20%.

17
MAINTENANCE
WARNING:
When servicing, use only identical replacement parts.
Use of any other parts may create a hazard or cause
product damage.
WARNING:
Always wear safety goggles or safety glasses with side
shields during power tool operation or when blowing
dust. If operation is dusty, also wear a dust mask.
WARNING:
Always release all pressure, disconnect from power
supply, and allow unit to cool to the touch before
cleaning or making repairs on the air compressor.
GENERAL MAINTENANCE
Humidity in the air causes condensation to form in the air
tank. This condensation should be drained daily and/or
every hour, using the instructions found in Draining the
Tank.
The safety valve automatically releases air if the air
receiver pressure exceeds the preset maximum. Check
the safety valve before each use following the instructions
found in Checking the Safety Valve.
Inspect the tank yearly for rust, pin holes, or other
imperfections that could cause it to become unsafe.
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use.
Use clean cloths to remove dirt, dust, oil, grease, etc.
BEARING LUBRICATION
All the bearings in this tool are lubricated with a sufficient
amount of high grade lubricant for the life of the unit
under normal operating conditions. Therefore, no further
lubrication of the bearings is required.
WARNING:
Do not at any time let brake uids, gasoline, petroleum-
based products, penetrating oils, etc., come in contact
with plastic parts. Chemicals can damage, weaken or
destroy plastic which may result in serious personal
injury. Electric tools used on berglass material, wall-
board, spackling compounds, or plaster are subject
to accelerated wear and possible premature failure
because the berglass chips and grindings are highly
abrasive to bearings, brushes, commutators, etc.
Consequently, we do not recommend using this tool for
extended work on these type of materials. However, if
you do work with any of these materials, it is extremely
important to clean the tool using compressed air.

18
CHECKING THE OIL LEVEL

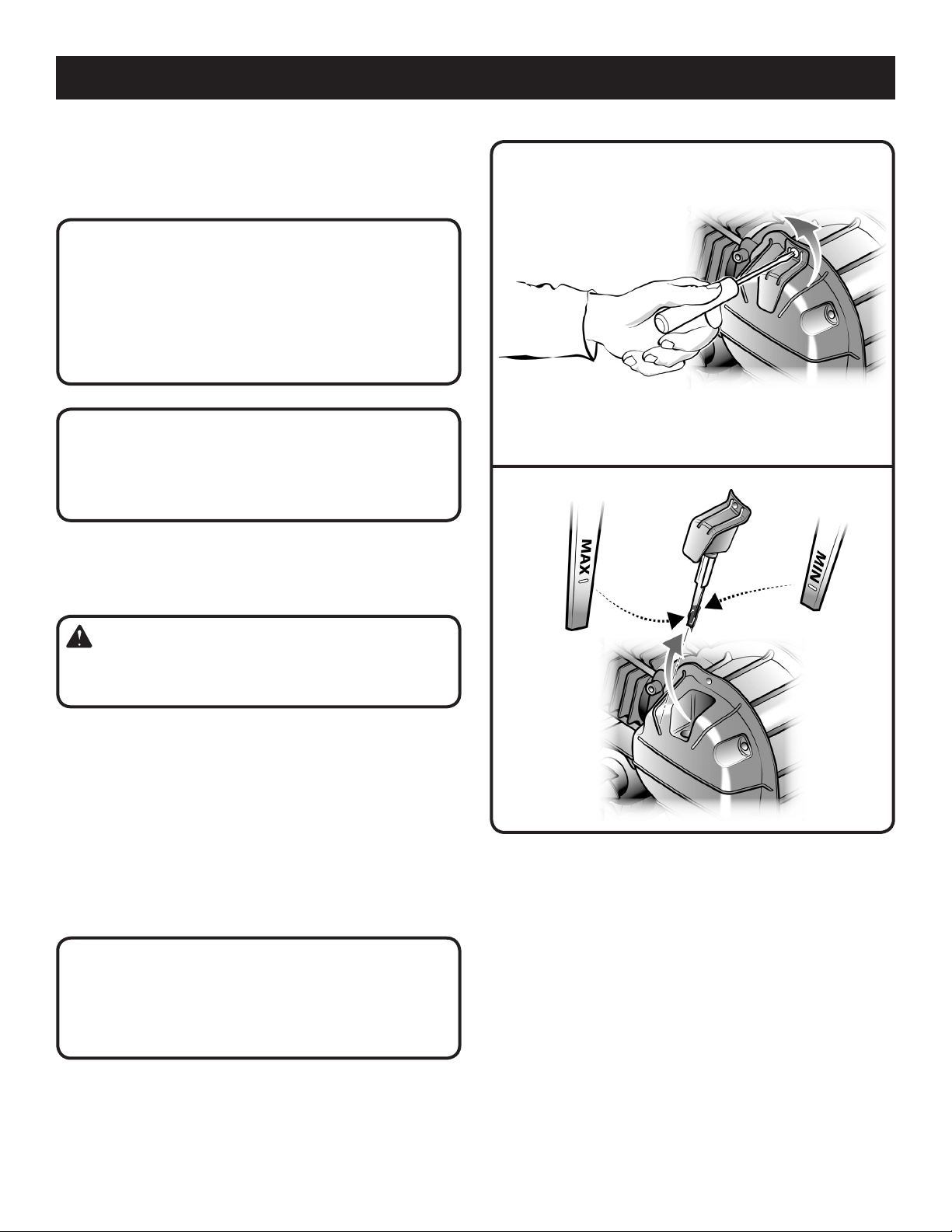

(1.) Place the compressor on a level even surface. (2.)
Remove the screw securing the dipstick and remove the
dipstick (Fig 13). (3.) Wipe the dipstick clean and re-insert
the dipstick making sure to push it all the way down. (4.)
Pull the dipstick out to check the oil level - Looking at the
dipstick the oil level should be between the two marks
Max and Min (Fig 14). If oil is low add oil USE ONLY SAE
40 NON-DETERGENT MOTOR OIL. Do not overfill. (5.)
Repeat steps 3 and 4. (6.) Install dipstick and secure with
screw.
SERVICE
This compressor is manufactured with a PERMALUBE oil
filled crankcase. Under normal operating conditions no
maintenance to the oil is required.
Fig. 13
Fig. 14
WARNING:
Hot surfaces. do not touch Hot Surfaces.
Allow compressor to cool prior to servicing.
CAUTION:
Use care to avoid tipping the unit over. Oil can leak and
damage can occur to the compressor or surrounding
items if the compressor is tipped over. In the event
oil lose has occurred, follow the instructions below
for CHECKING THE OIL LEVEL before operating the
compressor.
CAUTION:
Do not remove the oil from the crankcase. Operating the
compressor without sufficient oil will cause premature
compressor failure.
CAUTION:
Risk of unsafe operation. Overfilling with oil above
the MAX level will cause oil leakage and premature
compressor failure. Do not operate the compressor if oil
is filled above the MAX level on the dipstick.

19
Problem Possible Cause Solution
The compressor does not run. Loss of power or overheating.
There is no electrical power being
supplied to compressor or the power
switch is in the OFF position.
A fuse has blown at the power supply.
A breaker has tripped at the power
supply.
Thermal overload open.
The pressure switch is bad.
Tank is full of air.
Check for proper use of extension cord.
Check to be sure the compressor is plugged
in and the power switch is in the ON position .
Replace the fuse at the power supply.
Reset the breaker at the power supply and
determine why the problem happened.
First unplug the compressor and wait until it
becomes cool. Motor will restart when cool .
Replace the pressure switch.
Compressor will turn on when tank
pressure drops to cut-in pressure.
The motor hums, but does not run
or runs slowly.
The voltage from the power supply is low.
The gauge wire or the length of
extension cord is wrong.
The motor winding is shorted or broken.
The unloader or check valve is defective.
Check the voltage with a voltmeter.
Use the correct wire gauge and length
extension cord.
Take the compressor to a service center.
Take the compressor to a service center.
The fuses blow or the circuit
breaker trips repeatedly.
The fuse size is incorrect or the circuit
is overloaded.
The gauge wire or the length of
extension cord is wrong.
The unloader or check valve is defective.
Check the fuse or breaker at the power supply is the correct
size and type. Be sure to use only time-delay fuses to avoid
overloading a curcuit, disconnect other electrical appliances
from circuit or operate compressor on its own branch circuit.
Use the correct wire gauge and length
extension cord.
Take the compressor to a service center.
The thermal overload protector cuts
out repeatedly.
The voltage from the power supply is low.
A poorly ventilated room is causing the
motor to overheat.
The gauge wire or the length of
extension cord is wrong.
Check the voltage with a voltmeter.
Move the compressor to well-ventilated
area.
Check for proper gauge wire and cord
length.
The air receiver pressure drops
when the compressor shuts off.
The connections are loose or leaking
(fittings, tubing, etc.).
The drain valve is loose.
The check valve is leaking.
Check all the connections with soapy water and look for
bubbles. Tighten any loose conections until the leak stops.
Tighten the drain valve.
Take the compressor to a service center.
There is excessive moisture in the
air discharge.
There is excessive water in the air tank.
The humidity is high.
Drain the tank to remove water.
Move the compressor to an area of less humidity or use
an air line filter to reduce moisture discharge in the tank.
Air is leaking from the compressor. The hose connection is loose or
improperly sealed.
The air hose is broken or damaged.
Ensure connections are sealed with
thread sealing tape and tightened.
Replace the air hose.
The compressor runs continuously. The tank drain valve is open.
The pressure switch is defective.
The usage is excessive.
Ensure the tank drain valves are closed.
Take the compressor to a service center.
Decrease the amount of tool run-time; the compressor is
not large enough to supply the air requirement of the tool.
The compressor vibrates. The compressor mounting bolts are loose. Tighten mounting bolts.
The air output is lower than normal. The inlet valves are broken.
The connections are leaking.
Take the compressor to a service center.
Apply thread sealing tape to fitting and tighten.
WARNING:
Do not disassemble check valve while
air is in tank - empty the all the air out of
the tank before dissasembly.
TROUBLESHOOTING

20
REPLACEMENT PARTS LIST
PARTS DIAGRAM − AIR COMPRESSOR
