FCPS-24F/FCPS-24FE
Field Charger/Power Supply
Installation, Operation and Application Manual
P/N 50079:D ECN 97-145
D
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

WARNING: This equipment generates, uses, and can radiate radio frequency
energy and if not installed and used in accordance with the instruction manual, may
cause interference to radio communications. It has been tested and found to comply
with the limits for class A computing device pursuant to Subpart B of Part 15 of FCC
Rules, which is designed to provide reasonable protection against such interference
when operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference, in which case the user will be required
to correct the interference at his own expense.
Installation Precautions - Adherence to the following will aid in problem-free installation with long-term reliability:
WARNING - Several different sources of power can be connected to the fire alarm
control panel. Disconnect all sources of power before servicing. Control unit and
associated equipment may be damaged by removing and/or inserting cards,
modules, or interconnecting cables while the unit is energized. Do not attempt to
install, service, or operate this unit until this manual is read and understood.
CAUTION - System Reacceptance Test after Software Changes: To ensure
proper system operation, this product must be tested in accordance with NFPA 72-
1993 Chapter 7 after any programming operation or change in site-specific software.
Reacceptance testing is required after any change, addition or deletion of system
components, or after any modification, repair or adjustment to system hardware or
wiring.
All components, circuits, system operations, or software functions known to be
affected by a change must be 100% tested. In addition, to ensure that other
operations are not inadvertently affected, at least 10% of initiating devices that are
not directly affected by the change, up to a maximum of 50 devices, must also be
tested and proper system operation verified.
This system meets NFPA requirements for operation at 0-49OC/32-120OF
and at a relative humidity of 85% RH (non-condensing) at 30O C/86OF.
However, the useful life of the system's standby batteries and the electronic
components may be adversely affected by extreme temperature ranges and
humidity. Therefore, it is recommended that this system and its peripherals be
installed in an environment with a nominal room temperature of 15-27OC/60-80O
F.
Verify that wire sizes are adequate for all initiating and indicating device loops.
Most devices cannot tolerate more than a 10% I.R. drop from the specified device
voltage.
Like all solid state electronic devices, this system may operate erratically or can
be damaged when subjected to lightning induced transients. Although no system is
completely immune from lightning transients and interferences, proper grounding will
reduce susceptibility. Overhead or outside aerial wiring is not recommended, due to
an increased susceptibility to nearby lightning strikes. Consult with the Technical
Services Department if any problems are anticipated or encountered.
Disconnect AC power and batteries prior to removing or inserting circuit boards.
Failure to do so can damage circuits.
Remove all electronic assemblies prior to any drilling, filing, reaming, or punching
of the enclosure. When possible, make all cable entries from the sides or rear.
Before making modifications, verify that they will not interfere with battery,
transformer, and printed circuit board location.
Do not tighten screw terminals more than 9 in-lbs. Over tightening may damage
threads, resulting in reduced terminal contact pressure and difficulty with screw
terminal removal.
This system contains static-sensitive components. Always ground yourself with a
proper wrist strap before handling any circuits so that static charges are removed
from the body. Use static suppressive packaging to protect electronic assemblies
removed from the unit.
Follow the instructions in the installation, operating, and programming manuals.
These instructions must be followed to avoid damage to the control panel and
associated equipment. FACP operation and reliability depend upon proper
installation.
Fire Alarm System Limitations
While installing a fire alarm system may make lower insurance
rates possible, it is not a substitute for fire insurance!
An automatic fire alarm system - typically made up of smoke detectors, heat
detectors, manual pull stations, audible warning devices, and a fire alarm control
with remote notification capability can provide early warning of a developing fire.
Such a system, however, does not assure protection against property damage or
loss of life resulting from a fire.
Any fire alarm system may fail for a variety of reasons:
Smoke detectors may not sense fire where smoke cannot reach the detectors such
as in chimneys, in walls, or roofs, or on the other side of closed doors. Smoke
detectors also may not sense a fire on another level or floor of a building. A second
floor detector, for example, may not sense a first floor or basement fire. Further-
more, all types of smoke detectors - both ionization and photoelectric types, have
sensing limitations. No type of smoke detector can sense every kind of fire caused
by carelessness and safety hazards like smoking in bed, violent explosions,
escaping gas, improper storage of flammable materials, overloaded electrical
circuits, children playing with matches, or arson.
IMPORTANT! Smoke detectors must be installed in the same room as the
control panel and in rooms used by the system for the connection of alarm
transmission wiring, communications, signaling, and/or power. If detectors are
not so located, a developing fire may damage the alarm system, crippling its
ability to report a fire.
Audible warning devices such as bells may not alert people if these devices are
located on the other side of closed or partly open doors or are located on another
floor of a building.
A fire alarm system will not operate without any electrical power. If AC power fails,
the system will operate from standby batteries only for a specified time.
Rate-of-Rise heat detectors may be subject to reduced sensitivity over time. For
this reason, the rate-of-rise feature of each detector should be tested at least once
per year by a qualified fire protection specialist.
Equipment used in the system may not be technically compatible with the control.
It is essential to use only equipment listed for service with your control panel.
Telephone lines needed to transmit alarm signals from a premise to a central
monitoring station may be out of service or temporarily disabled.
The most common cause of fire alarm malfunctions, however, is inadequate
maintenance. All devices and system wiring should be tested and maintained by
professional fire alarm installers following written procedures supplied with each
device. System inspection and testing should be scheduled monthly or as required
by National and/or local fire codes. Adequate written records of all inspections should
be kept.
FCC Warning
Canadian Requirements
This digital apparatus does not exceed the Class A limits for radiation noise
emissions from digital apparatus set out in the Radio Interference Regulations of the
Canadian Department of Communications.
Le present appareil numerique n'emet pas de bruits radioelectriques depassant les
limites applicables aux appareils numeriques de la classe A prescrites dans le
Reglement sur le brouillage radioelectrique edicte par le ministere des Communica-
tions du Canada.
Technical Publishing Document PRECAULG.P65 12/31/96
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

Document # 50079 Rev. D 05/23/97 Page 3
Table of Contents
Chapter 1 System Overview 4
Section 1.0: Description 4
Section 1.1: Features 4
Section 1.2: LED Indicators 4
Section 1.3: Configuration Jumpers, Resistors & Diodes 5
Section 1.4: Optional Device MPM-4F Description 5
Section 1.5: Specifications 6
Section 1.6: Installation Standards and Codes 6

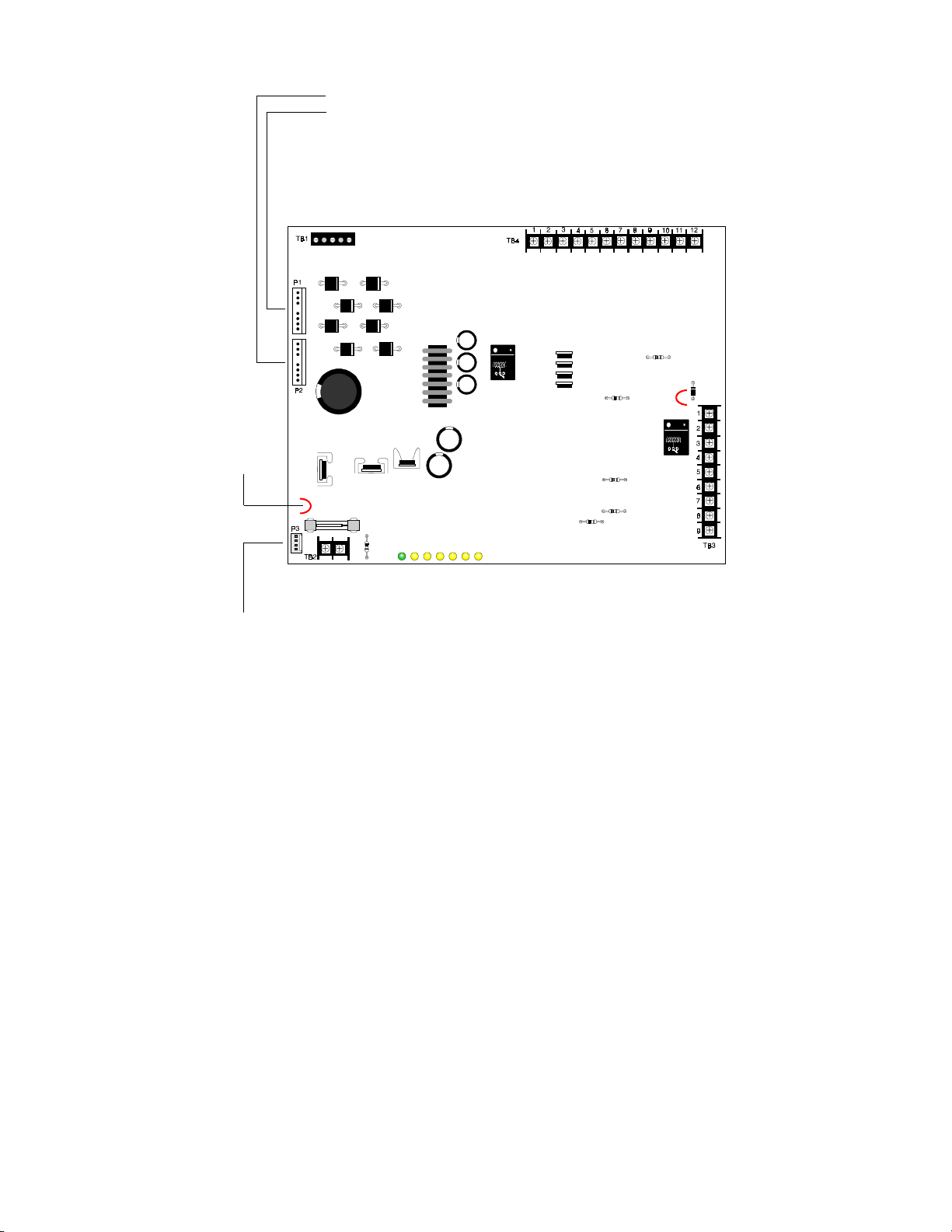

Figure 1-1: FCPS Board Layout 7
Section 1.7: General 8

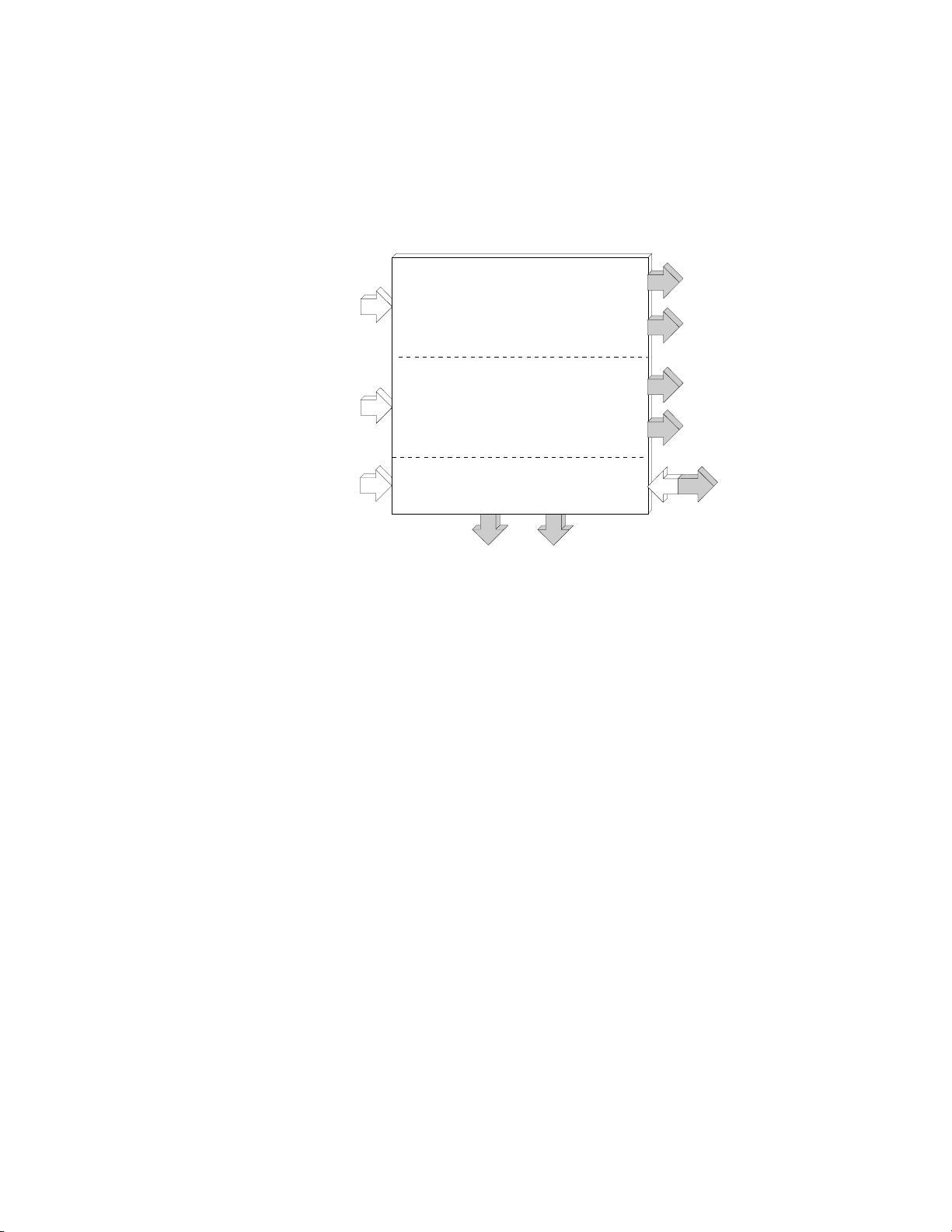

Figure 1-2: Simplified FCPS Block Diagram 8
Chapter 2 Installation 9
Section 2.0: General 9
Section 2.1: Backbox Mounting 9
Section 2.2: MPM-4F Installation 9
Figure 2-1: Backbox Mounting Dimensions 10
Figure 2-2: MPM-4F Installation Diagram 10
Section 2.3: UL Power-limited Wiring Requirements 11
Figure 2-3: Power-limited Wiring Requirements 11
Chapter 3 Operation 12
Section 3.0: Trouble Supervision 12
Section 3.1: Supervision via FACP Notification Appliance Ckt 12

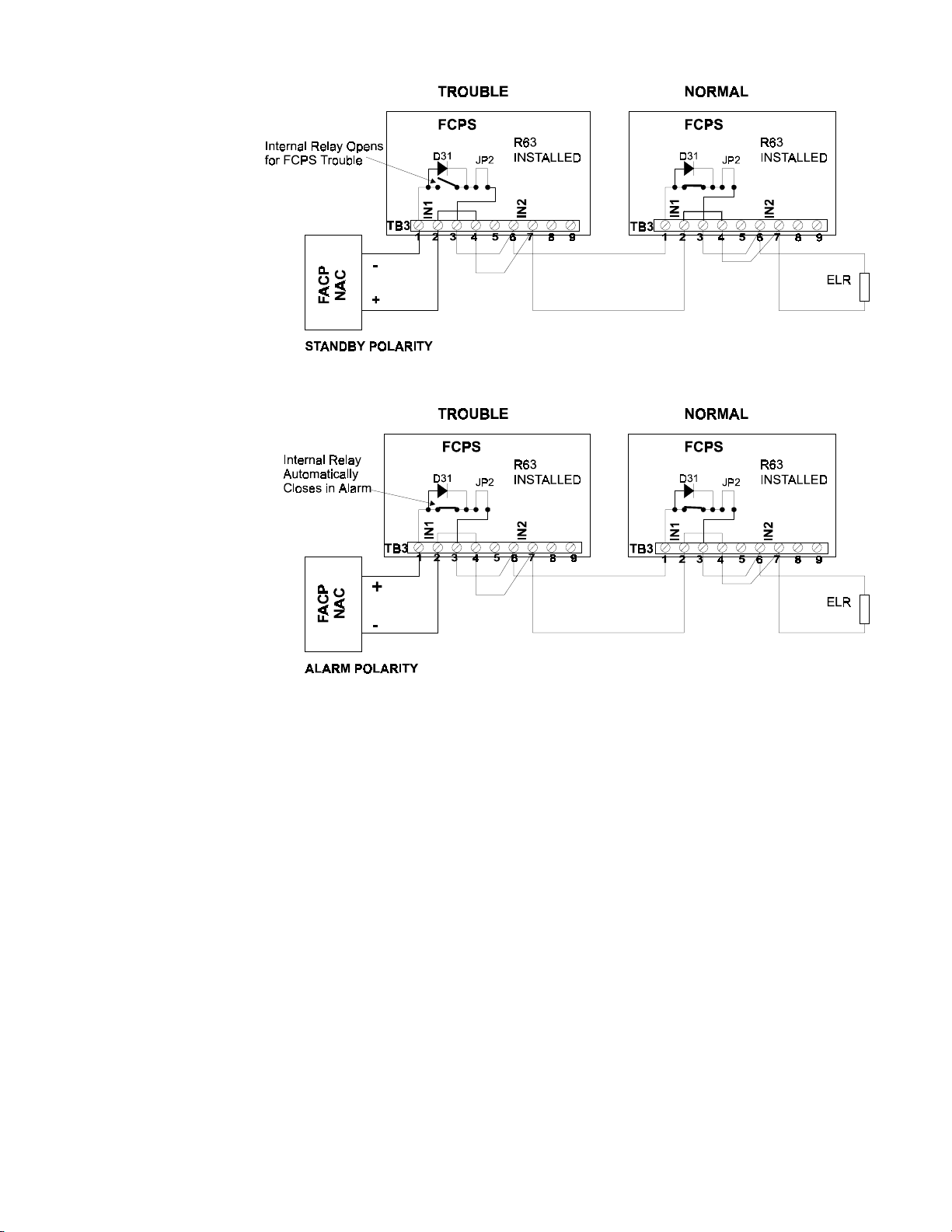

Figure 3-1: Wiring Diagram for Multiple FCPS Units 13
Section 3.2: Full Supervision via Input Circuit or Monitor Module 13
Chapter 4 Special Applications 14
Section 4.0: Specific Applications 14
Section 4.1: Controlling Four Outputs from One Input 14
Figure 4-1a: Control Module Application (Style Y) 14
Figure 4-1b: Control Module Application (Style Z) 15
Section 4.2: Controlling Four Outputs from Two NAC Inputs 16
Figure 4-2: Two Inputs Controlling Four Outputs 16
Section 4.3: Controlling Four Outputs from One NAC Input 17
Figure 4-3: One NAC Input Controlling Four Outputs 17
Section 4.4: Stand-alone Power Supply - Nonresettable 18
Figure 4-4: Stand-alone Power Supply 18
Section 4.5: Remote Power Supply resettable/Nonresettable 19
Figure 4-5: One NAC Input - Resettable & Nonresettable 19
Section 4.6: Control Module Activation of Output Circuits 20
Figure 4-6: Control Module Activation of Outputs 20
Section 4.7: Door Release Service Application 21
Figure 4-7: Using the FCPS with 24 VDC Door Holders 21
Chapter 5 Battery Calculations 22
Section 5.0: External Device Power 22
Section 5.1: Device Standby Current Draw 22
Table 5-1: Load in Standby 22
Table 5-2: Load in Alarm 23
Table 5-3: Secondary Power Source Calculations 24
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

Document # 50079 Rev. D 05/23/97
Page 4
C HAPTER O NE
System Overview
1.0 Description
The FCPS-24F is a compact, cost-effective, remote power supply and battery charger.
This remote power supply consists of a filtered 24 VDC output that may be configured
todrivefourNotificationApplianceCircuits(twoStyleYorStyleZ,andtwoStyleYonly).
Alternately, the four Notification Appliance Circuits may be configured as resettable or
nonresettable power outputs. The FCPS-24FE offers the same features as the FCPS-
24F but allows connection to 220/240 VAC input.
1.1 Features
• Self contained in lockable cabinet.
• 24 VDC remote power supply.
• Outputs are completely power-limited.
• Two optically-isolated input/control circuits.
• Two Style Y/Style Z Notification Appliance Circuits.
• Two additional circuits that are configurable as Style Y Notification Appli-
ance Circuits.
• Alternately, all four or a combination of the circuits may be configured as
24 VDC power outputs.
• Output power circuits may be configured as resettable or nonresettable.
• 3.0 amps maximum current available for any one output circuit.
• 4.0 amps total of continuous current available.
• 6.0 amps maximum short term (one hour maximum) current can be
provided.
• Fully filtered power output.
• Integral supervised battery charger.
• Up to 7.0 AH batteries in remote power supply cabinet.
• Fullysupervisedpowersupply,battery,andNotificationApplianceCircuits.
• Selectable Earth Fault detection.
• Delay of AC loss reporting (8 or 16 hours).
• Fixed terminal blocks for field wiring that are capable of accepting up to 12
AWG wire.
• Normally closed trouble contact.
• MPM-4F optional charger Voltmeter/Ammeter.
1.2 LED Indicators
• AC power on (green).
• AC Fail/Earth Fault (yellow).
• Battery/charger trouble (yellow).
• Circuits field wiring faults (yellow). Circuits 1 through 4 are supervised for
shorts and opens during the inactive state.
Note: Unless otherwise specified, the term 'FCPS' shall be used in this manual, where
appropriate, to refer to both the FCPS-24F and FCPS-24FE power supplies.
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

Document # 50079 Rev. D 05/23/97 Page 5
1.3 Configuration Jumpers, Resistors & Diodes
• BatteryChargingCircuit(JP1) -Todisablelocalbatterycharger,cutjumper
JP1 (an external charger listed for fire protective signaling is required).
• Optional MPM-4F Voltmeter/Ammeter - To enable charger current mea-
surement with MPM-4F, cut JP1 and plug-in MPM-4F connector to the P3
header.
• Earth Fault Detection (R27) - To disable local earth fault detection, cut
resistor R27. Note that Earth Fault detection is required in Canada.
• Trouble Supervision (R63, D31, JP2) - These components are used to
configure local trouble reporting through the remote power supply trouble
contact. Refer to the Trouble Supervision section for a complete descrip-
tion.
• DelayAC Loss Reporting(R76 and R134) -When a DigitalAlarmCommu-
nicatorTransmitter(DACT) is installedintheFACP, the reportingofanAC
loss condition to a central station must be delayed. With 24-hour battery
standby, cut R134 to delay AC loss reporting for 8 hours. With 60-hour
battery standby, cut R76 and R134 to delay the report by 16 hours.
• Disable Resettable Power Function for Output Circuit #2 or #4 (R175 and
R176).
Cut R175 to make Output #2 nonresettable power.
Cut R176 to make Output #4 nonresettable power.
1.4 Optional Device MPM-4F Description
The MPM-4F is used for:
• Monitoring battery/charger voltage (Voltmeter)
• Monitoring charger current (Ammeter)
The MPM-4F is most commonly required in military installations. It consists of
two analog edge meters (a voltmeter and an ammeter) which connects to the
P3 Header.
The voltmeter measures battery and charger voltage. It is electrically con-
nected across battery terminals TB2.1 and TB2.2. When the battery is
disconnected, the voltmeter measures charger voltage only. Periodically
(approximately2secondsevery40seconds)theFCPSperforms a battery test
by disabling the charger. During this period, charger current that is measured
by the ammeter, drops to zero. The voltmeter now only measures the battery
voltage. Battery voltage ranges from 20.4 (low battery) to 27.6 (fully charged).
The ammeter is electrically connected across JP1 and measures current
deliveredfromthechargertothebattery,exceptfortheperiodduringthebattery
test. Charger current is normally limited to 250mA. In order to enable the
ammeter, JP1 must be cut.
1.5 Specifications
Primary (AC) Power
• FCPS-24F: 120 VAC 50/60 Hz, 2.0 A maximum.
• FCPS-24FE: 220/240 VAC 50/60 Hz, 1.0 A maximum.
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

Document # 50079 Rev. D 05/23/97
Page 6
• Wire size: minimum #14 AWG with 600V insulation
Control Input Circuit
• Trigger Input Voltage - 9 to 32 VDC
• Input Current Draw in Alarm Polarity
16 - 32V 2.0mA per input
9 - 16V 1.0mA per input
Trouble Contact Rating
• 5 amps at 24VDC
Output Circuits (19.1 - 26.4 VDC, filtered)
• 3.0 amps maximum for any one circuit
• 4.0 amps maximum total continuous current for all outputs
• 6.0 amps maximum total short term (one hour maximum) current for all
outputs
Auxiliary Power Output
• Specific Application Power - 45 mA Short Circuit.
Secondary Power (Battery) Charging Circuit
• Supports lead acid batteries only.
• Float Charge Voltage: 27.6V
• Maximum Charge Current: 250 mA
• Maximum Battery Capacity: 7.0 AH
1.6 Installation Standards and Codes
The FCPS complies with the following standards:
NFPA 72-1993 National Fire Alarm Code
UnderwritersLaboratories:
• UL 864 Standard for Control Units for Fire Alarm Systems
• UL 1481 Power Supplies for Fire Alarm Systems
In addition, the installer should be familiar with the following stan-
dards:
• NEC Article 300 Wiring Methods
• NEC Article 760 Fire Protective Signaling Systems
• Applicable Local and State Building Codes
• Requirements of the Local Authority Having Jurisdiction
Other documents supporting Fire•Lite Alarms products referenced in this
manual are listed below.
• Device Compatibility Document 15384
• The MS-9200 Instruction Manual, Document 15668
• The Sensiscan 2000 Installation Manual, Document 15017
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

Document # 50079 Rev. D 05/23/97 Page 7
Figure 1-1: FCPS Board Layout
Output 1 + (Style Y/Z) Output 1 - (Style Y/Z) Output 1 + (Style Z) Output 1 - (Style Z) Output 2 + (Style Y) Output 2 - (Style Y) Output 3 + (Style Y/Z) Output 3 - (Style Y/Z) Output 3 + (Style Z) Output 3 - (Style Z) Output 4 + (Style Y) Output 4 - (Style Y)
Battery (+)
Battery (-)
7AH, 24 VDC
AC On
AC Failure/Earth Fault
Battery/Charger Trouble
Output 1 Trouble Output 2 Trouble Output 3 Trouble Output 4 Trouble
JP1
R27
Battery fuse 10A 3AG slow blow
Earth AC Neutral AC Hot
To Transformer #1
To Transformer #2
D31
R175
JP2
R76
R176
R63
R134
In +
In -
Out +/Trouble Contact
Out -
Trouble Contact
In +
In -
(Control Input #1 from FACP)
(Control Input #2 from FACP)
Auxiliary Output (Specific Application
Power, 45 mA Short Circuit)
Common
To MPM-4F
(Voltmeter/Ammeter)
Connection
Cut JP1 to Enable
Voltmeter/Ammeter
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

Document # 50079 Rev. D 05/23/97
Page 8
1.7 General
The FCPS may be used in a number of different applications. It may be used as a
remotely-mounted power supply and battery charger where it can power up to four,
coded or non-coded, Notification Appliance Circuits. Alternately, any or all of these
circuits may be used as 24 VDC output circuits capable of powering four wire smoke
detectors or any device that requires filtered power. These circuits may be configured
as resettable or nonresettable outputs.
Notification
Appliance Circuit
Control Input #1
(from FACP)
Notification
Appliance Circuit
Control Input #2
(from FACP)
FCPS Trouble
Contact Output
Specific
Application
Power
Style Y/Style Z
Notification
Appliance Circuit or
24 VDC Output #1
Style Y Notification
Appliance Circuit or
24 VDC Output #2
Style Y/Style Z
Notification
Appliance Circuit or
24 VDC Output #3
Style Y Notification
Appliance Circuit or
24 VDC Output #4
Battery Charger
Figure 1-2: Simplified FCPS Block Diagram
One of the most common applications for the FCPS remote power supply utilizes the
NAC repeater feature. In this application, one or two Notification Appliance Circuits
(NAC) are connected from the main FACP NAC output(s) to the remote power supply
ControlInputcircuits. WhentheseControlInputcircuitsactivate(duetoreversepolarity
of the NAC output), the power supply will activate its corresponding outputs. NAC
ControlInput#1 controls power supply outputcircuits#1and#2. NAC Control Input #2
controls output circuits #3 and #4 (refer to Figure 4-2).
During the inactive state, the remote power supply supervises its NAC field wiring for
short and open circuits. If a fault is detected, the supply will enter a trouble condition
and illuminate the corresponding NAC trouble LED (Output Circuits 1-4). However,
once the Notification Appliance Circuits are activated, the supervision is disabled and
the circuits are no longer supervised. Supervision of other power supply faults such as
low battery, Earth Fault, AC loss and battery charger failure will continue and may be
monitored via the trouble relay contact.
Ifa specific applicationrequires that all fouroutputs activate atthe same time, onlyone
NAC control input from the FACP is necessary. For this application, the Notification
ApplianceCircuitfromtheFACPiswiredintoNACControlInput#1oftheremotesupply
andthenapairofwiresareconnectedfromNACControlOutput#1toNACControlInput
#2 (refer to Figure 4-3).
AC Power
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

Document # 50079 Rev. D 05/23/97 Page 9
C HAPTER T WO :
Installation
2.0 General
Carefully unpack the system and check for shipping damage. Select a location for the
cabinet that is in a clean, dry, vibration-free area where extreme temperatures are not
encountered.Theareashouldbereadilyaccessiblewithsufficientroomtoeasilyinstall
andmaintainthepanel. Locatethetopofthecabinetapproximatelyfivefeetabovethe
floor with the hinge mounting on the left.
Determine the number of conductors required for the devices to be installed and
determinetheappropriateknockouts. AllwiringmustbeinaccordancewiththeNational
and/or Local codes for fire alarm systems.
2.1 Backbox Mounting
1) RemovethemainPCboardassemblybyunscrewingthefourscrewsinthe
corners of the board. Two permanent standoffs support the board in the
center.
Set the board aside in a safe, clean place. Avoid static discharge which
may damage the board.
2) Mark and predrill holes for the top two keyhole mounting bolts.
3) Install two upper fasteners in the wall with the screw heads protruding
approximately 1/4".
4) Using the upper keyholes, mount the backbox over the two screws.
5) Mark the lower two holes, remove backbox and drill mounting holes.
6) Mount backbox, install remaining fasteners and tighten.
7) Whenthelocationisdryandfreeofconstructiondust,reinstallthemainPC
board (refer to Figure 2.1).
2.2 MPM-4F Installation
1) Cut Jumper JP1.
2) With a nut driver, loosen bottom nut of the lower transformer.
3) Slide in MPM-4F meter bracket between transformer and nut.
4) Fasten the nut.
5) Connect the meter assembly cable to P3 header (refer to Figure 2.2).
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

Document # 50079 Rev. D 05/23/97
Page 10
Figure 2-1: Backbox Mounting Dimensions
Bottom
1.125"
Backbox=14.5"
Door=15.218"
Top
Depth=3.562"
0.75"
10.625"
2.875"
2.7"9.1"
Figure 2-2: MPM-4F Installation Diagram
MPM-4F Meter
Bracket
Transformer
Bottom Nut
JP1
Meter Assembly
Cable
P3
Header
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

Document # 50079 Rev. D 05/23/97 Page 11
2.3 UL Power-limited Wiring Requirements
Power-limited and nonpower-limited circuit wiring must remain separated in the
cabinet. All power-limited circuit wiring must remain at least 0.25" away from any
nonpower-limited circuit wiring. Furthermore, all power-limited circuit wiring and
nonpower-limited circuit wiring must enter and exit the cabinet through different
conduits. One such example of this is shown below. Your specific application may
require different conduit knockouts to be used. Any conduit knockouts may be used.
For power-limited applications, use of conduit is optional.

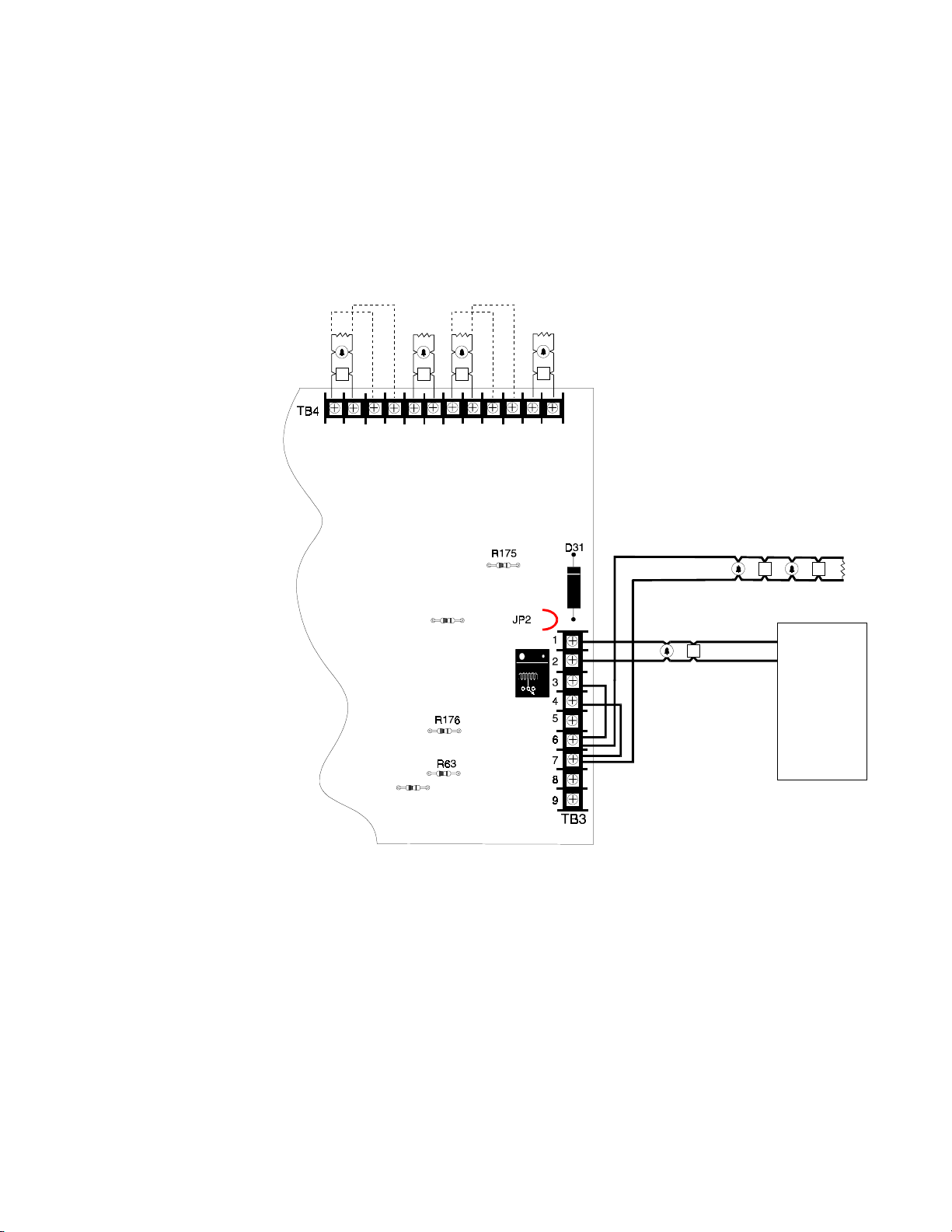

Figure 2-3: Power-limited Wiring Example
If input circuit wiring
is nonpower-limited, the 24
VDC output on terminals 8 & 9
cannot be used and all wiring
must be run in conduit.
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

Document # 50079 Rev. D 05/23/97
Page 12
C HAPTER T HREE :
Operation
3.0 Trouble Supervision
WhenatroubleoccursontheFCPS,itmustalsoappearonthemainFire Alarm Control
Panel. The remote power supply has two ways of sending this trouble signal to the
FACP. However, only one of the trouble reporting methods may be used.
3.1 Supervision via FACP Notification Appliance Circuit
Supervision of FACP to FCPS Wiring
The FACP supervises the connection between itself and the FCPS via an End-of-Line
Resistor(ELR). TheELRmustbeinstalledattheFCPSendofthecircuit. Ifnoadditional
devices are connected to these terminals, the ELR must be connected directly across
terminals 3 and 4. An open or short on this circuit will be detected at the FACP as an
NAC trouble (refer to Figure 4-2).
Supervision of FCPS Faults
TheFACP willdetect these powersupply faults asan opencircuit condition onits NAC.
AnyofthefollowingconditionswillcauseaninternaltroublecontactontheFCPStoopen
provided the FACP NAC is not in alarm:
a) A field wiring fault on any output of the power supply during the inactive state.
b) An AC fail condition at the power supply (may be delayed depending on R134).
c) A battery fail condition at the power supply.
d) Battery charger fail.
e) Earth Fault condition.
Any power supply trouble will break the connection between the FACP and the ELR
provided the FACP's NAC is not in alarm. The FACP's ELR must be placed after the
last NAC appliance connected to FCPS terminals 3 & 4 or, if no appliances are
connected to these terminals, the ELR must be connected directly across terminals 3
& 4 (refer to Figure 4-2 and 4-3).
Note:CircuitControlInput #2 cannotbeusedto supervise thepowersupplybutan ELR
is still required for FACP wiring supervision.
Multiple FCPS-24 Controlled by a Single NAC
In a standby condition with no troubles, the FACP NAC output produces a negative
voltage which forces current to flow through the ELR. If any FCPS is in a trouble state,
thatFCPSwillopenconnectionbetweeninputterminalTB3.1andTB3.3. Thiswillcause
a break in the NAC, which will then be reported by the FACP as a NAC open trouble.
ThealarmpolaritysentbytheFACPwillalwaysforcerestorationofconnectionbetween
TB3.1andTB3.3 onallFCPSunits,unlessthisfunction wasdisabledbycuttingresistor
R63 or by the removal of JP2 and D31 (refer to Figure 3-1).
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

Document # 50079 Rev. D 05/23/97 Page 13
3.2 Full Supervision via Input Circuit or Monitor Module
Thismethod of supervisionprovides FACP annunciation ofthe FCPS troublecondition
even if the FACP is in alarm. The FACP's Notification Appliance Circuit is not used for
supervision. Cut diode D31, jumper JP2 and resistor R63. Monitor FCPS trouble
contacts at terminals TB3-3 and TB3-5. Any trouble condition listed above will trigger
theinternaltroublecontactregardlessofvoltagepolarityontheinput1. Anaddressable
monitor module or any FACP input circuit may be used to track the condition of the
trouble contact (refer to Figures 4-4, 4-5 and 4-6).
Figure 3-1: Wiring Diagram of Multiple FCPS Units
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

Document # 50079 Rev. D 05/23/97
Page 14
C HAPTER F OUR :
Special Applications
4.0 Specific Applications
Figure 4-1a: Control Module Application (Style Y)
4.1 Controlling Four Outputs from One Input
All four FCPS output circuits can be controlled from one control input, which in Figures
4-1a and 4-1b is illustrated as a control module. The control module can be powered
from the FCPS auxiliary 24 VDC power output (TB3 terminals 8 & 9) and supervised by
an EOL relay.
All four remote power supply outputs are shown as Notification Appliance Circuits.
Alternately, circuits 2 and/or 4 could be used as nonresettable power output circuits
which is accomplished by cutting resistors R175 for circuit 2 or R176 for circuit 4 (refer
to Figures 4-4 and 4-5).
The control module is shown to demonstrate the use of the power supply on a
multiplexed system. The control module could be replaced with any circuit capable of
polarity reversal. Note that Figure 4-1a shows Style Y configuration and Figure 4-1b
shows Style Z configuration.
Optional Style
Z Return Optional Style
Z Return
SLC
Loop to Addressable
FACP
+ -
47 K ELR for Control Module
Part Number A2143-20 (F-ELR)
required in Canada
Control
Module
CKT #1 CKT #2 CKT #3 CKT #4
Refer to Section 1.1 for current ratings.
*
Style Y
* Use listed ELR (P/N R-2.2K) to terminate Style Y NAC. ELRs are not
required when Style Z return is wired.
Note: All Notification Appliance Circuits are supervised.
Style Y
24 VDC NAC Power
Common
Control
Input #2
**
*Style Y
Control
Input #1
EOL Power
Supervision Relay
(A77-716B)
Specific
Application
Power
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

Document # 50079 Rev. D 05/23/97 Page 15
Notes: (The following notes apply to Figure 4-1a)
1) When the remote power supply is in an inactive state (control module not active), a trouble
on the power supply will result in an open circuit condition on the control module. As an
alternative to monitor for trouble conditions, the trouble contact on the FCPS may be used for
independent trouble monitoring (refer to Figures 4-5 and 4-6).
2) Do not loop wires under screw terminals. Break wires to maintain proper supervision.
3)ForStyleYapplication,anELRmustbeinstalledbetweenTerminals6and7forcontrolmodule
wiring supervision (the ELR value is dependent on the module employed).
4) Supervise the wiring between the FCPS 24 VDC output on TB3 terminals 8 &9 and the control
module with an EOL relay (A77-716B).
5) For a list of compatible devices, refer to the Fire-Lite Device Compatibility Document.
* Use listed ELR (P/N R-2.2K) to terminate Style Y NAC. ELRs are
not required when Style Z return is wired.
Note: AllNotificationApplianceCircuitsare supervised.
Optional Style
Z Return Optional Style
Z Return
Figure 4-1b: Control Module Application (Style Z)
Notes: (The following notes apply to Figure 4-1b)
1) When the remote power supply is in an inactive state (control module not active), a trouble
on the power supply will result in an open circuit condition on the control module. As an
alternative to monitor for trouble conditions, the trouble contact on the FCPS may be used
for independent trouble monitoring (refer to Figures 4-5 and 4-6).
2) Do not loop wires under screw terminals. Break wires to maintain proper supervision.
3)Supervise thewiring betweenthe FCPS24 VDCoutput onTB3 terminals8 &9and thecontrol
module with an EOL relay (A77-716B).
4) For a list of compatible devices, refer to the Fire-Lite Device Compatibility Document.
Style Y **Style Y *Style Y
*
CKT #1 CKT #2 CKT #3 CKT #4
Refer to Section 1.1 for current ratings.
SLC Loop to
Addressable FACP
- +
Control
Module
EOL Supervision
Relay
(A77-716B)
24 VDC Power
Common Specific Application
Power
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

Document # 50079 Rev. D 05/23/97
Page 16
4.2 Controlling Four Outputs from Two NAC Inputs
This application expands notification appliance power by an additional 6.0 amps.
Use up to four Class B (Style Y) outputs or two Class A (Style Z) and two Class B
(Style Y) outputs. In this example, the FACP Notification Appliance Circuits will
activate the remote power supply when reverse polarity activation occurs due to an
alarm condition. NAC #1 will activate FCPS outputs 1 & 2 and NAC #2 will activate
outputs 3 & 4. Trouble conditions on the power supply are monitored by the FACP
via Notification Appliance Circuit #1. Since Input #1 can monitor troubles, it is
advisable to control silenceable notification appliances with this circuit and
nonsilenceable or resettable smoke detector power with Control Input #2.
Figure 4-2: Two Inputs Controlling Four Outputs
Optional Style
Z Return Optional Style Z Return
**
**
This circuit may be power-limited or nonpower-limited
Continuation of Notification Appliance
Circuit #1 from FACP
This circuit must be power-limited by the FACP
Control Input #1
Control Input #2
Continuation of Notification Appliance
Circuit #2 from FACP
FireAlarm
ControlPanel
Notification
Appliance
Circuit #1
Notification
Appliance
Circuit #2
Notes:
1) ELRs must be used on the Notification Appliance Circuits. Refer to the respective FACP
installation manual for corresponding ELR value. If no devices are installed on a branch,
dummy load the circuit with the ELR.
2) Do not loop wires under screw terminals. Break wires to maintain proper supervision.
3) For a list of compatible devices, refer to the Fire-Lite Device Compatibility Document.
* Use listed ELR (P/N R-2.2K) to terminate Style Y NAC. ELRs are
not required when Style Z return is wired.
Note: AllNotification Appliance Circuitsare supervised.
ELR
ELR
Note 1
Note 1
Refer to Section 1.1 for current ratings.
1 2 3 4 5 6 7 8 9 10 11 12
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

Document # 50079 Rev. D 05/23/97 Page 17
4.3 Controlling Four Outputs from One NAC Input
This application expands notification appliance power by an additional 6.0 amps. Use
up to four Class B (Style Y) outputs or two Class A (Style Z) and two Class B (Style Y)
outputs. In this example, the FACP Notification Appliance Circuit will activate the
remotepowersupplywhenreversepolarityactivationoccurs. Troubleconditionsonthe
power supply are sensed by the FACP through the Notification Appliance Circuit #1.
Since Control Input #1 can monitor the NAC and power supply for troubles only in the
nonactive state, it is advisable to control silenceable notification appliances with this
circuit and nonsilenceable or nonresettable power with Control Input #2.
Optional Style
Z Return Optional Style Z Return
*** *
Fire Alarm
Control Panel
Notification
Appliance
Circuit #1
Continuation of Notification Appliance
Circuit #1 from FACP
Notes:
1) Connect the Notification Appliance Circuit originating from the FACP to TB3 terminals 1 and
2 on the FCPS.
2) Jumper TB3 Terminal 3 to Terminal 6 and Terminal 4 to Terminal 7. This allows a single
Control Input to control the four FCPS outputs. Install the ELR across terminals 6 and 7 to
supervise the Notification Appliance Circuit originating from the FACP as well as the
jumpers. Refer to the respective FACP installation manual for corresponding ELR value.
3) If additional notification appliances are installed, remove the ELR from FCPS TB3 terminals
6 and 7, connect the devices to FCPS terminals 6 and 7 and install the ELR after the last
device.
4) Do not loop wires under screw terminals. Break wires to maintain proper supervision.
5) For a list of compatible devices, refer to Fire-Lite Device Compatibility Document.
* Use listed ELR (P/N R-2.2K) to terminate Style Y NAC. ELRs are
not required when Style Z return is wired.
Note:All NotificationAppliance Circuits aresupervised.
ELR
This circuit may be power-limited or nonpower-limited
Control Input #1
Control Input #2
Note 2
Note 1
Note 3
Figure 4-3: One NAC Input Controlling Four Outputs
Refer to Section 1.1 for current ratings.
1 2 3 4 5 6 7 8 9 10 11 12
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

Document # 50079 Rev. D 05/23/97
Page 18
4.4 Stand-Alone Power Supply for Nonresettable Outputs
The FCPS may be used as a remote stand-alone power supply to provide up to an
additional4.0ampsofpowertoanydevicesthatrequirefiltered,regulated,nonresettable
power. A nonresettable output is created by jumpering the auxiliary 24VDC output
[TB3-8 (+) & TB3-9 (-)] to Control Input circuits 1 and 2. For addressable panel
applications,amonitormodulemaybeusedtomonitorthetroublecontactoftheFCPS.
If the FCPS enters a trouble condition the normally closed contact will open. Cut JP2,
R63 and D31 for this application.
Notes:
1) If an addressable M302 Monitor Module is employed to monitor the trouble contacts of the
remote power supply, the module must be supplied with separate 24 VDC power. This
power is required so that the module may supervise the connection to the trouble contacts
of the power supply.
2) One of the FCPS nonresettable power outputs (TB4) can be used to supply 24 VDC to M302
terminals 3 and 4 or a separate power source can be used. The auxiliary power output of
the FCPS power supply (TB3 Terminals 8 & 9) should not be used for this purpose.
3) The specific ELR required to be installed on the FCPS trouble monitoring contacts at TB3-
3 and TB3-5 is dependent on the particular model of monitor module employed to supervise
the FCPS. The Fire-Lite model M300 and M301 require a 47K ELR. The Fire-Lite model
M302 requires a 3.9K ELR.
4) Do not loop wires under screw terminals. Break wires to maintain proper supervision.
5) For a list of compatible devices, refer to Fire-Lite Device Compatibility Document.
6) It may be necessary to use an EOL relay on normally activated outputs for proper
supervision.
PowerOutput
Circuit#4
SLC
LooptoAddressable
FACP
+ -
ELR
Monitor
Module
PowerOutput
Circuit#3
Aux 24VDC
Common
Control
Input#2
Control
Input#1
Trouble
Note 3
PowerOutput
Circuit#2
PowerOutput
Circuit#1 +
+
+
-
-
+
-
-
Figure 4-4: Remote Stand-Alone Power Supply
Notes 1 & 2
Power-limited non-supervised
End of line relay required for supervision.
Refer to Section 1.1 for current ratings.
1 2 3 4 5 6 7 8 9 10 11 12
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

Document # 50079 Rev. D 05/23/97 Page 19
4.5 Remote Power Supply - Resettable and Nonresettable
The FCPS may be used as a remote stand-alone power supply to provide up to an
additional 4.0 amps of power to any devices that require filtered, regulated, resettable
or nonresettable power. A monitor module may be used to monitor the trouble contact
of the FCPS. If the FCPS enters a trouble condition the normally closed contact will
open. AresettableoutputiscreatedbytyingtheresettableoutputfromtheFACPtoone
or both of the power supply inputs. A nonresettable output is created by cutting an on
board resistor (R175 for Output 2, R176 for Output 4). For addressable panel
applications, use a monitor module to sense the trouble status of the remote power
supply via the trouble relay contact. Cut JP2, R63 and D31 for this application.
Fire Alarm
Control Panel
Resettable
24VDC Output
Control Input #1
SLC
Control
Input #2
Trouble
ELR
Note 2
+-
Resettable
Power Output
Circuit #1 -+
Resettable
Power Output
Circuit #3
-
Notes:
1) Outputs 2 and 4 are also resettable 24 VDC power in this example. To make Output 2
nonresettable power, cut R175. To make Output 4 nonresettable, cut R176.
2) The specific ELR required to be installed on the FCPS trouble monitoring contacts at TB3-
3 and TB3-5 is dependent on the particular model of monitor module employed to supervise
the FCPS. Fire-Lite models M300 and M301 require a 47K ELR. Fire-Lite model M302
requires a 3.9K ELR.
3) Do not loop wires under screw terminals. Break wires to maintain proper supervision.
4) If an addressable M302 Monitor Module is employed to monitor the trouble contacts of the
remotepowersupply,themodulemust be suppliedwithseparate24VDCpower. Thispower
is required so that the module may supervise the connection to the trouble contacts of the
power supply.
5) One of the FCPS nonresettable power outputs (TB4) can be used to supply 24 VDC to M302
terminals 3 and 4 or a separate power source can be used. The auxiliary power output of
the FCPS power supply (TB3 Terminals 8 & 9) should not be used for this purpose.
6) For a list of compatible devices, refer to Fire-Lite Device Compatibility Document.
7) It may be necessary to use an EOL relay on outputs that are normally activated for proper
supervision.
Figure 4-5: One NAC Input - Resettable & Nonresettable Outputs
Note 1
+-
Power Output
Circuit #4
+
Power Output
Circuit #2
Resettableoutputs delivera negativepolarity
voltage of up to -5 VDC during reset. In the unlikely
case that this negative voltage causes a problem
resetting certain models of 4-wire smoke detectors,
use TB-4 terminals 3 (+) and 2 (-) for Output #1 and
terminals 9 (+) and 8 (-) for Output #3.
Monitor
Module
Notes 4 & 5
Refer to Section 1.1 for current ratings.
1 2 3 4 5 6 7 8 9 10 11 12
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

Document # 50079 Rev. D 05/23/97
Page 20
4.6 Control Module Activation of Output Circuits
ThisapplicationillustratestheuseofaddressablecontrolmodulesinsteadofNotification
Appliance Circuits on an FACP to activate the FCPS remote power supply. Typically,
this allows for mounting of the power supply at greater distances from the FACP and
expanding the system architecture in various applications.
Anaddressablecontrolmoduleisusedtoactivatethepowersupplyandanaddressable
monitor module is used to sense power supply trouble conditions. The Fire•Lite MS-
9200hasthecapabilityoflocating control and monitor modules upto10,000feetaway.
Cut JP2, R63 and D31 for this application.
Figure 4-6: Control Module Activation of Outputs
***
*
Optional Style
Z Return
Optional Style
Z Return
Note 6
SLC Loop
+ -
Control
Module
EOL Supervision
Relay (A77-716B)
Note 1
Note 2 & 3
Monitor
Module
SLC Loop
+ -
* Use listed ELR (P/N R-2.2K) to terminate Style Y NAC. ELRs are
not required when Style Z return is wired.
Note: AllNotification Appliance Circuitsare supervised.
Notes:
1) To control all four power supply outputs with one control module, connect output to TB3
Terminals 1 and 2 on the FCPS and jumper Terminal 1 to Terminal 6 and Terminal 2 to
Terminal 7.
2) An ELR must be installed between Terminals 6 and 7 for control module wiring supervision
(the ELR value is dependent on the module employed).
3) The specific ELR required to be installed on the FCPS trouble monitoring contacts at TB3-3
and TB3-5 is dependent on the particular model of monitor module employed to supervise the
FCPS. Fire-Lite models M300 and M301 require a 47K ELR. Fire-Lite model M302 requires
a 3.9K ELR.
4) If an addressable M302 Monitor Module is employed to monitor the trouble contacts of the
remote power supply, the module must be supplied with separate 24 VDC power. This power
is required so that the module may supervise the connection to the trouble contacts of the
power supply.
5) One of the FCPS nonresettable power outputs (TB4) can be used to supply 24 VDC to M302
terminals 3 and 4 or a separate power source can be used. The auxiliary power output of the
FCPS power supply (TB3 Terminals 8 & 9) should not be used for this purpose.
6) Use EOL relay (A77-716B) to supervise 24 VDC power from the FCPS, TB3 terminals 8 & 9.
7) Do not loop wires under screw terminals. Break wires to maintain proper supervision.
8) For a list of compatible devices, refer to Fire-Lite Device Compatibility Document.
Notes 4 & 5
Refer to Section 1.1 for current ratings.
1 2 3 4 5 6 7 8 9 10 11 12
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com
