WARNING - Several different sources of power can be
connected to the fire alarm control panel. Disconnect all
sources of power before servicing. Control unit and
associated equipment may be damaged by removing and/
or inserting cards, modules, or interconnecting cables while
the unit is energized. Do not attempt to install, service,
or operate this unit until this manual is read and understood.
CAUTION - System Reacceptance Test after Software
Changes: To ensure proper system operation, this product
must be tested in accordance with NFPA 72-1993 Chapter
7 after any programming operation or change in site-
specific software. Reacceptance testing is required after
any change, addition or deletion of system components,
or after any modification, repair or adjustment to system
hardware or wiring.
All components, circuits, system operations, or software
functions known to be affected by a change must be 100%
tested. In addition, to ensure that other operations are not
inadvertently affected, at least 10% of initiating devices
that are not directly affected by the change, up to a
maximum of 50 devices, must be tested and proper
system operation verified.
This system meets NFPA requirements for
operation at 0-49OC/32-120OF
and at a relative
humidity of 85% RH (non-condensing) at 30O C/86O
F. However, the useful life of the system's standby
batteries and the electronic components may be
adversely affected by extreme temperature ranges
and humidity. Therefore, it is recommended that this
system and its peripherals be installed in an
environment with a nominal room temperature of 15-
27OC/60-80OF.
Verify that wire sizes are adequate for all initiating and
indicating device loops. Most devices cannot tolerate
more than a 10% I.R. drop from the specified device
voltage.
Like all solid state electronic devices, this system may
operate erratically or can be damaged when subjected to
lightning induced transients. Although no system is completely
immune from lightning transients and interferences, proper
grounding will reduce susceptibility. Overhead or outside
aerial wiring is not recommended, due to an increased suscep-
tibility to nearby lightning strikes. Consult with the Technical
Services Department if any problems are anticipated or en-
countered.
Disconnect AC power and batteries prior to removing or
inserting circuit boards. Failure to do so can damage circuits.
Remove all electronic assemblies prior to any drilling, filing,
reaming, or punching of the enclosure. When possible, make
all cable entries from the sides or rear. Before making
modifications, verify that they will not interfere with battery,
transformer, and printed circuit board location.
Do not tighten screw terminals more than 9 in-lbs. Over
tightening may damage threads, resulting in reduced terminal
contact pressure and difficulty with screw terminal removal.
This system contains static-sensitive components. Always
ground yourself with a proper wrist strap before handling any
circuits so that static charges are removed from the body. Use
static suppressive packaging to protect electronic assemblies
removed from the unit.
Follow the instructions in the installation, operating, and pro-
gramming manuals. These instructions must be followed to avoid
damage to the control panel and associated equipment. FACP
operation and reliability depend upon proper installation.
Audible warning devices such as bells may not alert people
if these devices are located on the other side of closed or
partly open doors or are located on another floor of a building.
A fire alarm system will not operate without any electrical
power. If AC power fails, the system will operate from
standby batteries only for a specified time.
Rate-of-Rise heat detectors may be subject to reduced
sensitivity over time. For this reason, the rate-of-rise feature
of each detector should be tested at least once per year by
a qualified fire protection specialist.
Equipment used in the system may not be technically
compatible with the control. It is essential to use only
equipment listed for service with your control panel.
Telephone lines needed to transmit alarm signals from a
premise to a central monitoring station may be out of service
or temporarily disabled.
The most common cause of fire alarm malfunctions, how-
ever, is inadequate maintenance. All devices and system
wiring should be tested and maintained by professional fire
alarm installers following written procedures supplied with
each device. System inspection and testing should be sched-
uled monthly or as required by National and/or local fire codes.
Adequate written records of all inspections should be kept.
An automatic fire alarm system - typically made up of smoke
detectors, heat detectors, manual pull stations, audible warn-
ing devices, and a fire alarm control with remote notification
capability can provide early warning of a developing fire. Such
a system, however, does not assure protection against prop-
erty damage or loss of life resulting from a fire.
Any fire alarm system may fail for a variety of reasons:
Smoke detectors may not sense fire where smoke cannot
reach the detectors such as in chimneys, in walls, or roofs, or
on the other side of closed doors. Smoke detectors also may
not sense a fire on another level or floor of a building. A
second floor detector, for example, may not sense a first floor
or basement fire. Furthermore, all types of smoke detectors
- both ionization and photoelectric types, have sensing limi-
tations. No type of smoke detector can sense every kind of
fire caused by carelessness and safety hazards like smoking
in bed, violent explosions, escaping gas, improper storage of
flammable materials, overloaded electrical circuits, children
playing with matches, or arson.
IMPORTANT! Smoke detectors must be installed in the
same room as the control panel and in rooms used by the
system for the connection of alarm transmission wiring,
communications, signaling, and/or power. If detectors are
not so located, a developing fire may damage the alarm
system, crippling its ability to report a fire.
While installing a fire alarm system may make lower insur-
ance rates possible, it is not a substitute for fire insurance!
Fire Alarm System Limitations
Installation Precautions Adherence to the following will aid in problem-free
installation with long-term reliability:
Technical Publishing Document PRECAUSM.PM6 07/12/96
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

APS-6RF Installation Instructions PN 50893:A 4/15/98 iii
7DEOHRI&RQWHQWV
2YHUYLHZ Introduction.........................................................................1
Description...........................................................................2
Specifications.......................................................................3
,QVWDOODWLRQ Introduction.........................................................................4
Mounting the APS-6RF......................................................5
Mounting an APS-6RF in a CAB-200 Backbox .............5

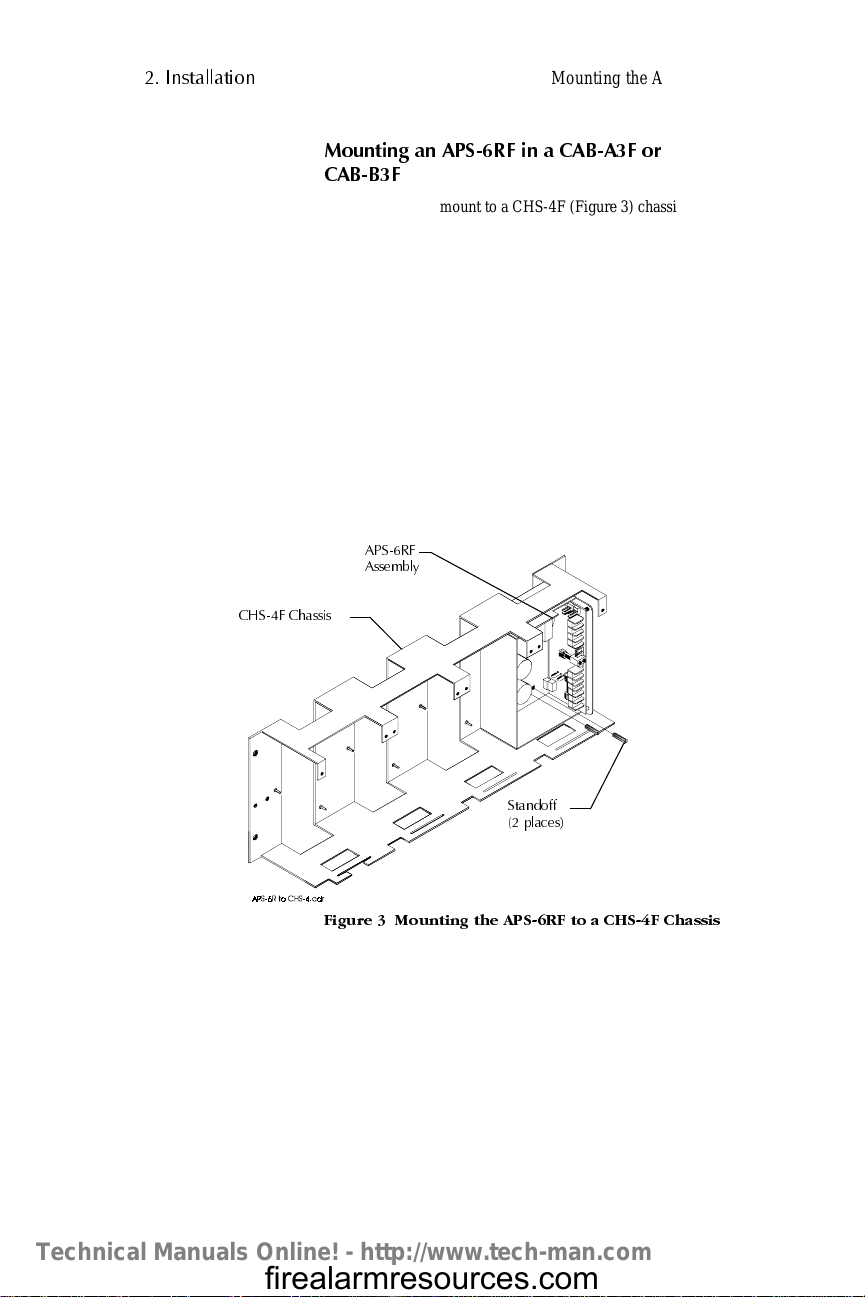

Mounting an APS-6RF in a CAB-A3F or CAB-B3F......6
Wiring the APS-6RF...........................................................7

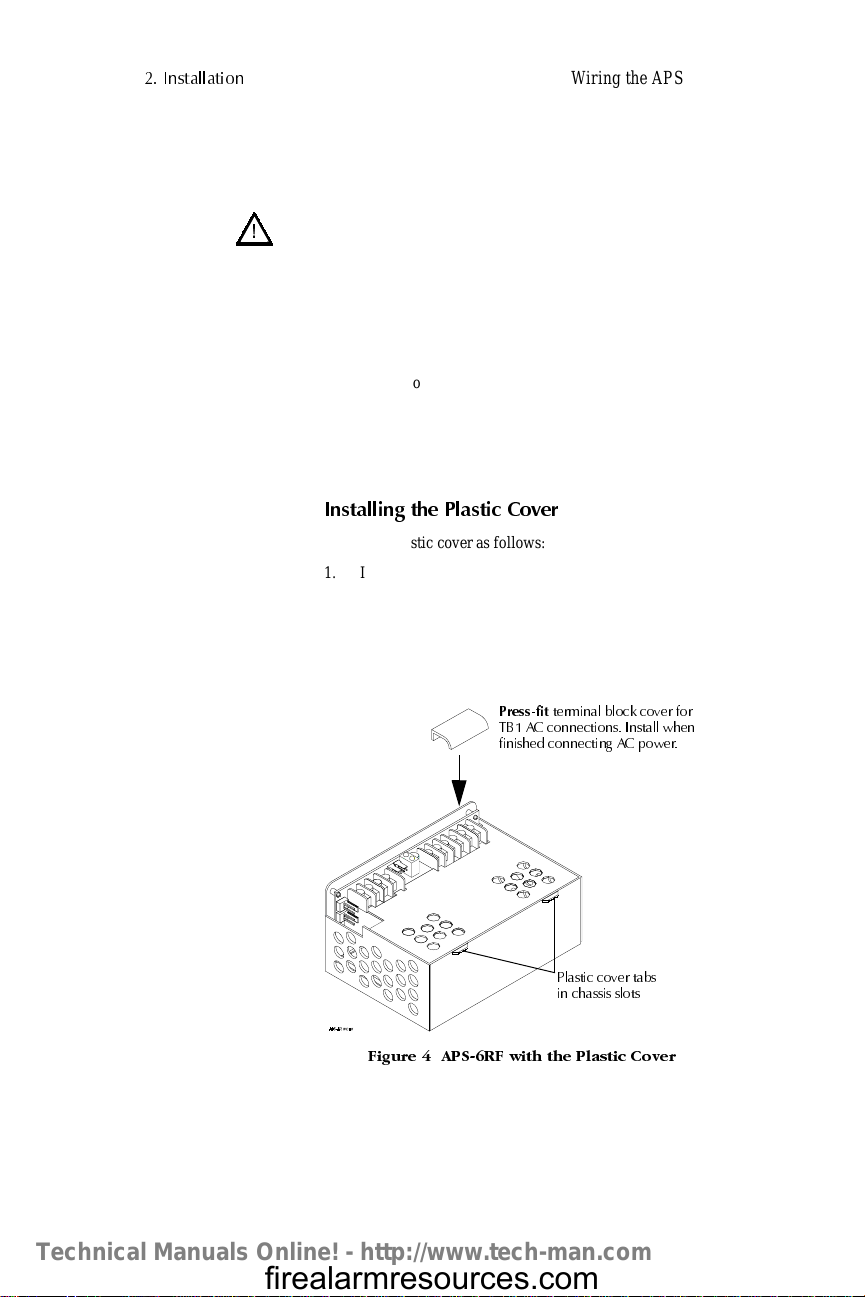

Installing the Plastic Cover..............................................7

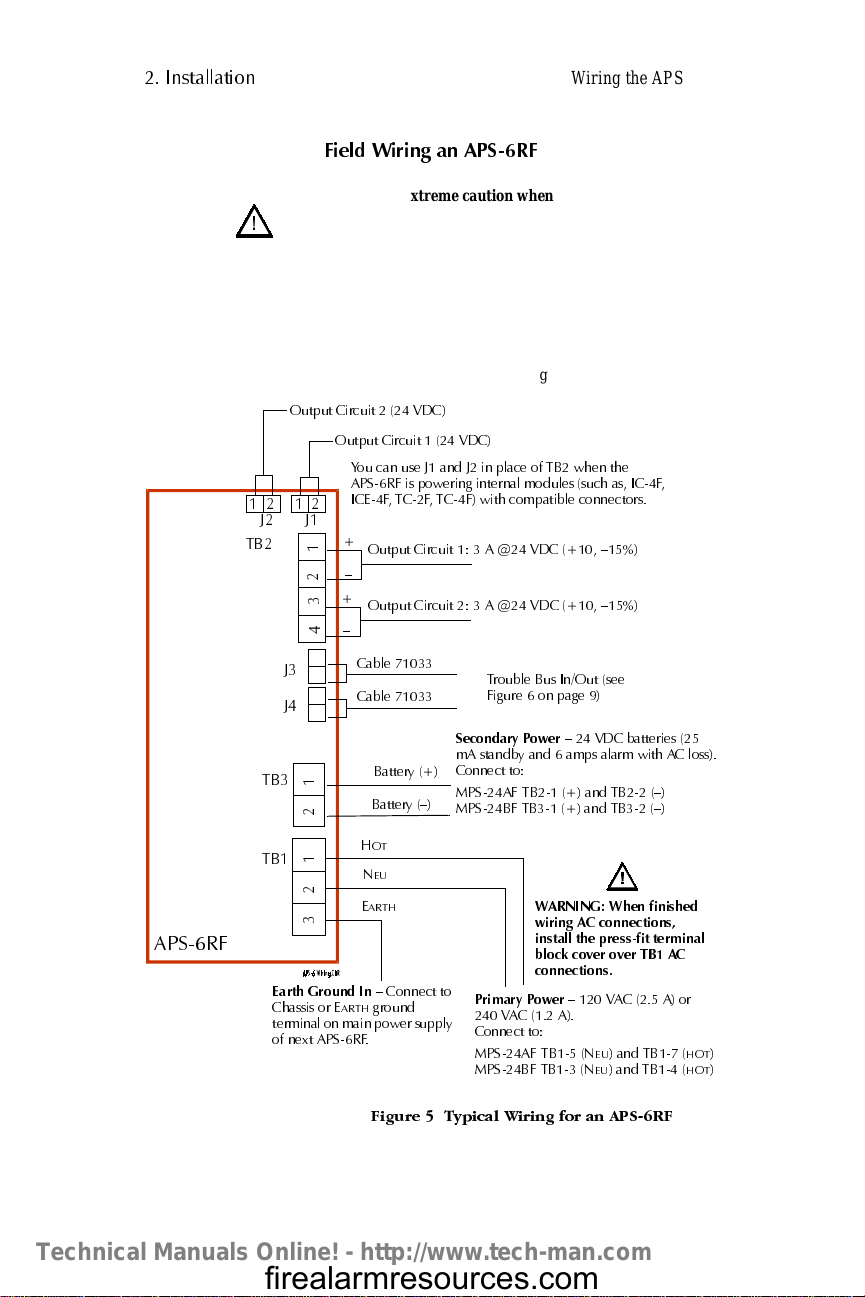

Field Wiring an APS-6RF...............................................8

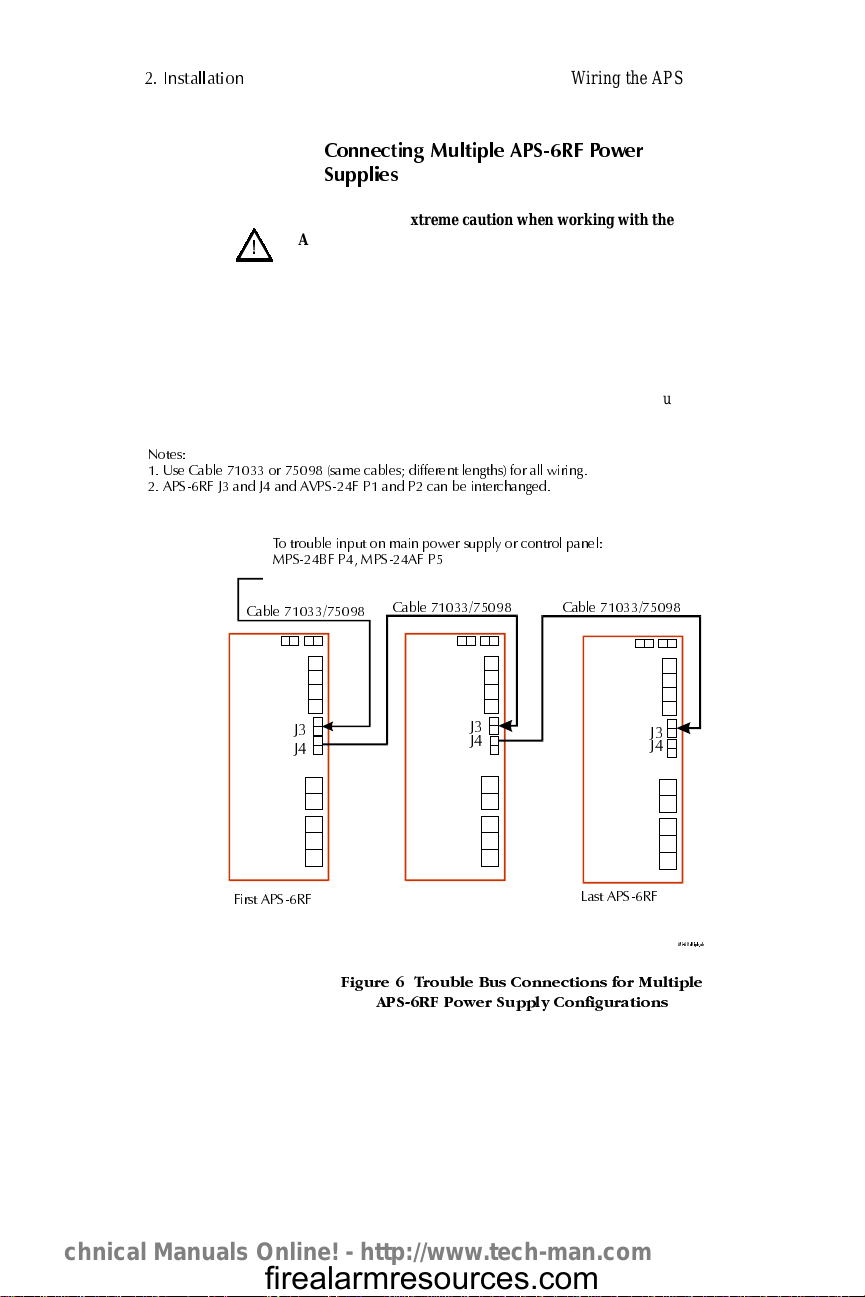

Connecting Multiple APS-6RF Power Supplies .............9
Wiring Applications..........................................................10
Connecting the APS-6RF to an IC-4F/ICE-4F Module 11

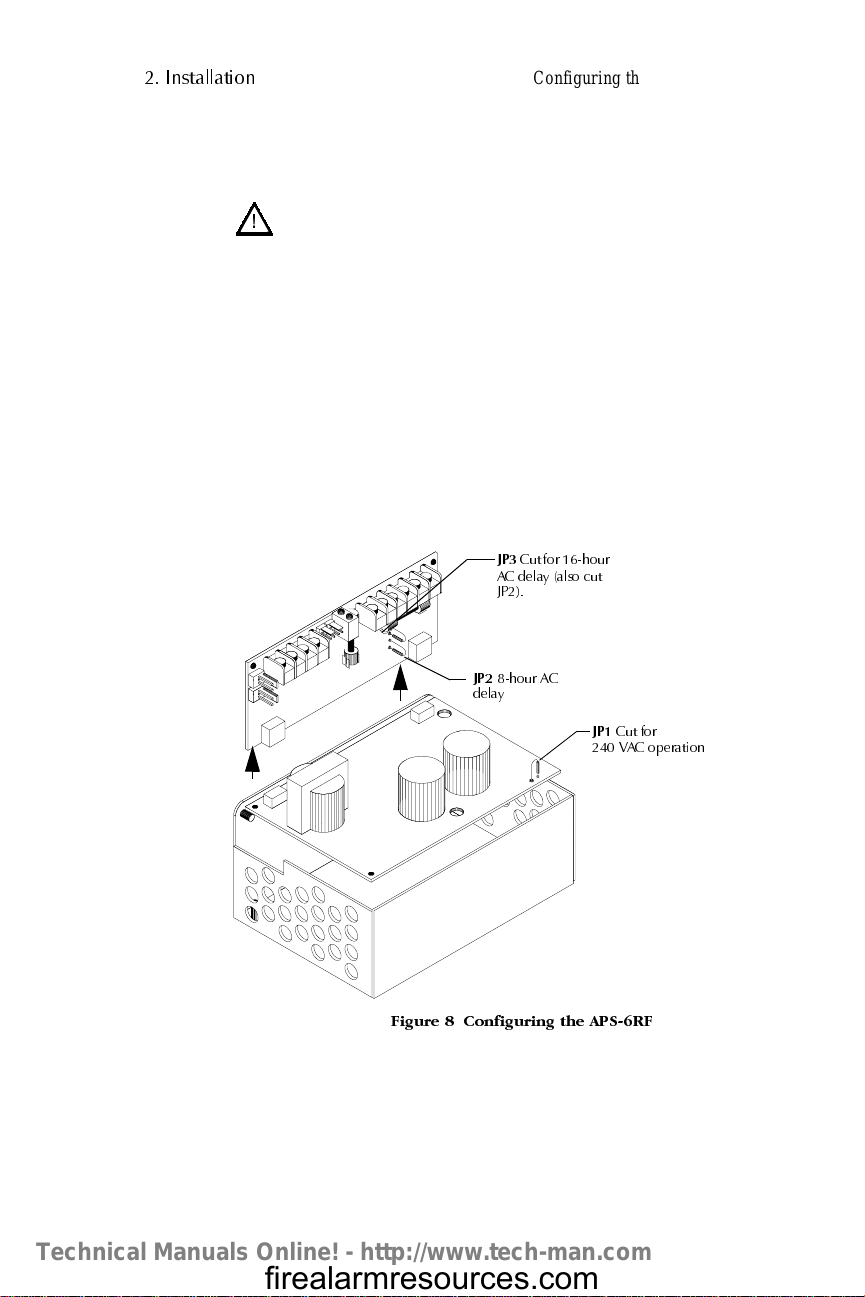

Configuring the APS-6RF................................................12

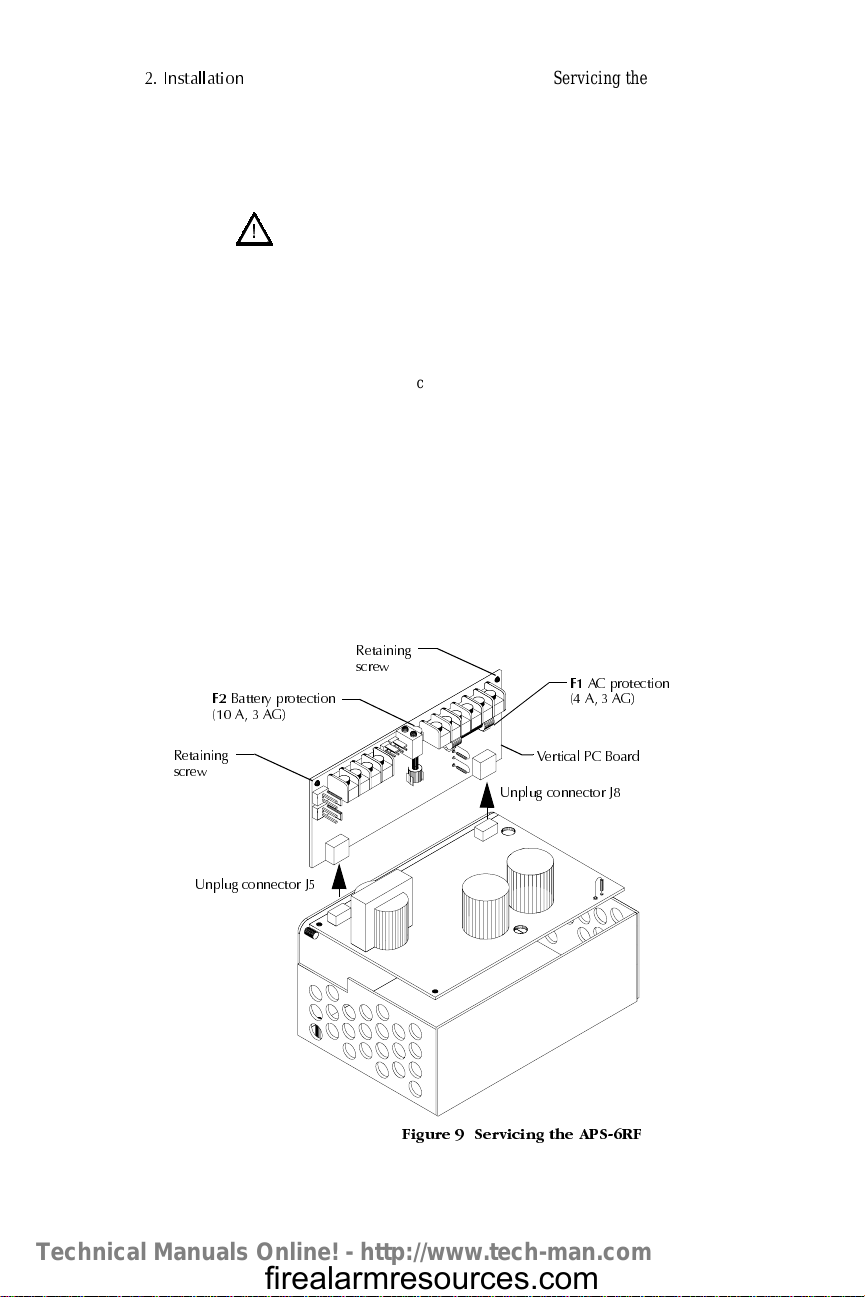

Servicing the APS-6RF.....................................................13
Notes...................................................................................14
Notes...................................................................................15
Notes...................................................................................16
faps6ia0TOC.fm Page iii Monday, June 15, 1998 2:28 PM
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

iv APS-6RF Installation Instructions PN 50893:A 4/15/98
1RWHV
faps6ia0TOC.fm Page iv Monday, June 15, 1998 2:28 PM
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

 2YHUYLHZ Introduction
APS-6RF Installation Instructions PN 50893:A 4/15/98 1
2YHUYLHZ
,QWURGXFWLRQ This document contains information for installing, servicing,
and configuring the APS-6RF Auxiliary Power Supply. Table
1 contains a list of document sources for supplemental
information:
Table 1 Supplemental Documentation
Control Panels Refer to... Part
Number
Sensiscan 2000 Sensiscan 2000
Installation Manual 15017
Sensiscan 200 Sensiscan 200 Manual 15032
All Fire•Lite Device
Compatibility
Document
15384
faps6ia0.fm Page 1 Monday, June 15, 1998 2:19 PM
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

 2YHUYLHZ
Description
2 APS-6RF Installation Instructions PN 50893:A 4/15/98
'HVFULSWLRQ The APS-6RF Auxiliary Power Supply is a 150W cabinet-
mounted power supply, designed to power devices that require
filtered, regulated, non-resettable power, such as Notification
Appliance Circuit Modules and Control Modules. The
APS-6RF provides two 24 VDC (filtered) output circuits (3 A
each, 6 A total, 4 A continuous). Figure 1 shows an exploded
view of the APS-6RF that identifies the features and
components of the power supply:
)LJXUH  $365) $VVHPEO\
) )XVH IRU $& SURWHFWLRQ
$ $* VORZ EORZ
)XVH ) IRU EDWWHU\ SURWHFWLRQ
$ $* VORZ EORZ
&KDVVLV
-XPSHUV -3 DQG -3 IRU VHOHFWLQJ
KRXU RU KRXU GHOD\ IRU $&
ORVV UHSRUWLQJ GHIDXOW LV
LPPHGLDWH
7ZR  9'& RXWSXW
FLUFXLWV
/(' 6WDWXV ,QGLFDWRUV
*UHHQ /(' ² ,QGLFDWHV $& SRZHU RQ
<HOORZ /(' ² ,QGLFDWHV ORVV RI $& RU EDWWHU\
7URXEOH ,Q - DQG 7URXEOH 2XW
- ´3µ VW\OH FRQQHFWRUV IRU
LQWHUQDO FDELQHW FRQQHFWLRQV
-XPSHU -3 IRU
VHOHFWLQJ $& LQSXW
YROWDJH  9$&
GHIDXOW FXW -3 IRU
 9$& RSHUDWLRQ
faps6ia0.fm Page 2 Monday, June 15, 1998 2:19 PM
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

 2YHUYLHZ Specifications
APS-6RF Installation Instructions PN 50893:A 4/15/98 3
6SHFLILFDWLRQV The APS-6RF is compatible with the Sensiscan 2000, and
Sensiscan 200 control panels. Specifications for the APS-6RF
are:
Table 2 APS-6RF Specifications
Electrical Specifications
AC primary input power (TB1)
Wire Size: #14 AWG with
600 VAC insulation
120 VAC, 60 Hz, 2.5 A
240 VAC, 50 Hz, 1.2 A
24 VDC Secondary input power
(lead-acid batteries only)
TB3-1 (+)
TB3-1 (–)
Current draw with AC power loss
25 mA DC standby current
16 mA DC standby current (with AC fail delay operating)
6 amps maximum alarm current
Use these values in battery calculations for Fire Alarm Control Panel.
Note: Batteries are charged by the system power supply.
24 VDC output power (TB2)
Circuit 1 (TB2-1, TB2-2; or J1)
Circuit 2 (TB2-3, TB2-4; or J2)
Total 6 A (4 A continuous)
3 A @24 VDC power-limited (+10, –15%)
3 A @24 VDC power-limited (+10, –15%)
Fuses
F1 (AC supervision)
F2 (battery supervision) 250 VAC, 4A, 3 AG, slow blow 32 VAC, 10 A, 3 AG, slow blow
Trouble supervision bus
J3 output
J4 input
Note: J3 and J4 can be
interchanged.
Form-A contact (open collector)
Form-A contact (open collector)
Loss of AC Indication Immediate indication (default)
8 hour delay (cut JP2)
16 hour delay (cut JP2 and JP3)
Mechanical Specifications
Size of APS-6RF in enclosure 6.09 in. x 4.23 in. x 2.92 in.
Cabinets for mounting CAB-A3F or CAB-B3F, using CHS-4F chassis, for
Sensiscan 2000 control panel.
Sensiscan 200 can mount one APS-6RF.
Note: An optional module (such as an IC-4F) without an expansion card can mount above an
APS-6RF in a CHS-4F and a Sensiscan 200.
faps6ia0.fm Page 3 Monday, June 15, 1998 2:19 PM
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

 ,QVWDOODWLRQ
Introduction
4 APS-6RF Installation Instructions PN 50893:A 4/15/98
,QVWDOODWLRQ
WARNING: Use extreme caution when working with the
APS-6RF—high voltage and AC line-connected circuits are
present in the APS-6RF. Turn off and remove all power
sources. To reduce the risk of electric shock—make sure to
properly ground the APS-6RF.
Before field wiring, install the APS-6RF cover (Figure 4 on
page 7). When finished field wiring, install the press-fit
terminal block cover (Figure 4 on page 7) over TB1.

,QWURGXFWLRQ This section contains instructions for field-wiring the
APS-6RF to a control panel, field-wiring multiple APS-6RFs,
and mounting the APS-6RF. Table 3 contains the installation
topics covered in detail:
Table 3 Installation Topics
Topic Refer to...
Mounting the APS-6RF to a
CAB-200 Backbox Figure 2 on page 5
Mounting the APS-6RF to a
CAB-A3F, CAB-B3F Figure 3 on page 6
Installing the Plastic Cover Figure 4 on page 7
Wiring the APS-6RF Figure 5 on page 8
Wiring Multiple APS-6RFs Figure 6 on page 9
Connecting the APS-6RF to an IC-
4F/ICE-4F Module Figure 7 on page 11
Configuring the APS-6RF Figure 8 on page 12
Servicing the APS-6RF Figure 9 on page 13
faps6ia0.fm Page 4 Monday, June 15, 1998 2:19 PM
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

 ,QVWDOODWLRQ Mounting the APS-6RF
APS-6RF Installation Instructions PN 50893:A 4/15/98 5
0RXQWLQJWKH$365)
This section contains instructions for mounting the APS-6RF
to the following:
• CAB-200 Backbox
•CAB-A3F or CAB-B3F cabinets
0RXQWLQJ DQ $365) LQ D &$% %DFNER[
Mount the APS-6RF to a CAB-200 as shown in Figure 2. To
mount the APS-6RF, follow these instructions:
1. Place the APS-6RF onto the mounting studs in the
CAB-200 (Figure 2).
2. Insert a standoff through each of the APS-6RF mounting
slots; then thread each standoff to the mounting stud.
3. Tighten the standoffs until the APS-6RF is securely
fastened to the CAB-200.
4. Install the APS-6RF plastic cover (Figure 4 on page 7)
and the press-fit terminal block cover over TB1 AC
connections.
)LJXUH  0RXQWLQJ DQ $365) WR D &$%
%DFNER[
6WDQGRII
 SODFHV
$365)
$VVHPEO\
&$%
%DFNER[
0RXQWLQJ
6WXGV
faps6ia0.fm Page 5 Monday, June 15, 1998 2:19 PM
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

 ,QVWDOODWLRQ
Mounting the APS-6RF
6 APS-6RF Installation Instructions PN 50893:A 4/15/98
0RXQWLQJ DQ $365) LQ D &$%$) RU
&$%%)
An APS-6RF can mount to a CHS-4F (Figure 3) chassis for
use in a CAB-A3F or CAB-B3F cabinet. To mount the
APS-6RF, follow these instructions:
1. Place the APS-6RF onto the mounting studs of the
CHS-4F chassis.
2. Insert a standoff through each of the APS-6RF mounting
slots; then thread each standoff to the mounting stud on
the chassis.
3. Tighten the standoffs until the APS-6RF is securely
fastened to the chassis.
4. Mount the CHS-4F to the cabinet backbox.
5. Install the APS-6RF plastic cover (Figure 4 on page 7)
and the press-fit terminal block cover over TB1 AC
connections.
)LJXUH  0RXQWLQJ WKH $365) WR D &+6) &KDVVLV
6WDQGRII
 SODFHV
$365)
$VVHPEO\
&+6) &KDVVLV
faps6ia0.fm Page 6 Monday, June 15, 1998 2:19 PM
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

 ,QVWDOODWLRQ Wiring the APS-6RF
APS-6RF Installation Instructions PN 50893:A 4/15/98 7
:LULQJWKH$365)
WARNING: Use extreme caution when working with the
APS-6RF—high voltage and AC line-connected circuits are
present in the APS-6RF. Turn off and remove all power
sources. To reduce the risk of electric shock—make sure to
properly ground the APS-6RF.
Before field wiring, install the APS-6RF cover (Figure 4 on
page 7). When finished field wiring, install the press-fit
terminal block cover (Figure 4 on page 7) over TB1.

This section contains instructions for wiring the APS-6RF
assembly as follows:
• Typical field wiring from an APS-6RF to a control panel and
optional devices.
• Wiring multiple APS-6RF power supplies.
,QVWDOOLQJ WKH 3ODVWLF &RYHU
Install the plastic cover as follows:
1. Insert the tabs into the slots on the APS-6RF chassis
(Figure 4).
2. Snap the plastic cover into place as shown in Figure 4.
3. Install the press-fit terminal block cover over TB1 AC
connections.
)LJXUH  $365) ZLWK WKH 3ODVWLF &RYHU
3ODVWLF FRYHU WDEV
LQ FKDVVLV VORWV
3UHVVILW WHUPLQDO EORFN FRYHU IRU
7% $& FRQQHFWLRQV ,QVWDOO ZKHQ
ILQLVKHG FRQQHFWLQJ $& SRZHU
faps6ia0.fm Page 7 Monday, June 15, 1998 2:19 PM
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

 ,QVWDOODWLRQ
Wiring the APS-6RF
8 APS-6RF Installation Instructions PN 50893:A 4/15/98
)LHOG :LULQJ DQ $365)
WARNING: Use extreme caution when working with the
APS-6RF—high voltage and AC line-connected circuits are
present in the APS-6RF. Turn off and remove all power
sources. To reduce the risk of electric shock—make sure to
properly ground the APS-6RF.
Before field wiring, install the APS-6RF cover (Figure 4 on
page 7). When finished field wiring, install the press-fit
terminal block cover (Figure 4 on page 7) over TB1.

Figure 5 shows typical field wiring for an APS-6RF:
)LJXUH  7\SLFDO :LULQJ IRU DQ $365)
&DEOH 
-
-
-
-
7%
7%
7%
+ 27
(DUWK *URXQG ,Q ² &RQQHFW WR
&KDVVLV RU (
$57+ JURXQG
WHUPLQDO RQ PDLQ SRZHU VXSSO\
RI QH[W $365)
&DEOH 
2XWSXW &LUFXLW   $ # 9'&  ²
$365)
3ULPDU\ 3RZHU ²  9$&  $ RU
 9$&  $
&RQQHFW WR
036$) 7% 1
(8  DQG 7%  +27 
036%) 7% 1
(8  DQG 7%  +27 
%DWWHU\ 
%DWWHU\ ²
2XWSXW &LUFXLW   9'&
2XWSXW &LUFXLW   9'&
<RX FDQ XVH - DQG - LQ SODFH RI 7% ZKHQ WKH
$365) LV SRZHULQJ LQWHUQDO PRGXOHV VXFK DV ,&)
,&() 7&) 7&) ZLWK FRPSDWLEOH FRQQHFWRUV
1 (8
( $57+
6HFRQGDU\ 3RZHU ²  9'& EDWWHULHV 
P$ VWDQGE\ DQG  DPSV DODUP ZLWK $& ORVV
&RQQHFW WR
036$) 7%  DQG 7% ²
036%) 7%  DQG 7% ²




7URXEOH %XV ,Q2XW VHH
)LJXUH  RQ SDJH 
`
 

²

²
:$51,1* :KHQ ILQLVKHG
ZLULQJ $& FRQQHFWLRQV
LQVWDOO WKH SUHVVILW WHUPLQDO
EORFN FRYHU RYHU 7% $&
FRQQHFWLRQV

2XWSXW &LUFXLW   $ # 9'&  ²
faps6ia0.fm Page 8 Monday, June 15, 1998 2:19 PM
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

 ,QVWDOODWLRQ Wiring the APS-6RF
APS-6RF Installation Instructions PN 50893:A 4/15/98 9
&RQQHFWLQJ 0XOWLSOH $365) 3RZHU
6XSSOLHV
WARNING: Use extreme caution when working with the
APS-6RF—high voltage and AC line-connected circuits are
present in the APS-6RF. Turn off and remove all power
sources. To reduce the risk of electric shock—make sure to
properly ground the APS-6RF.
Before field wiring, install the APS-6RF cover (Figure 4 on
page 7). When finished field wiring, install the press-fit
terminal block cover (Figure 4 on page 7) over TB1.

Figure 6 shows typical trouble bus connections for multiple
APS-6RF power supplies using trouble connectors J3 and J4:
)LJXUH  7URXEOH %XV &RQQHFWLRQV IRU 0XOWLSOH
$365) 3RZHU 6XSSO\ &RQILJXUDWLRQV
'69 3[RZO
V
RKIJX
7R WURXEOH LQSXW RQ PDLQ SRZHU VXSSO\ RU FRQWURO SDQHO
036%) 3 036$) 3
-
-
)LUVW $365) /DVW $365)
-
- -
-
&DEOH 
&DEOH 
&DEOH 
1RWHV
 8VH &DEOH  RU  VDPH FDEOHV GLIIHUHQW OHQJWKV IRU DOO ZLULQJ
 $365) - DQG - DQG $936) 3 DQG 3 FDQ EH LQWHUFKDQJHG
faps6ia0.fm Page 9 Monday, June 15, 1998 2:19 PM
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

 ,QVWDOODWLRQ
Wiring Applications
10 APS-6RF Installation Instructions PN 50893:A 4/15/98
:LULQJ$SSOLFDWLRQV
WARNING: Use extreme caution when working with the
APS-6RF—high voltage and AC line-connected circuits are
present in the APS-6RF. Turn off and remove all power
sources. To reduce the risk of electric shock—make sure to
properly ground the APS-6RF.
Before field wiring, install the APS-6RF cover (Figure 4 on
page 7). When finished field wiring, install the press-fit
terminal block cover (Figure 4 on page 7) over TB1.

This section contains instructions for wiring the APS-6RF
assembly as follows:
• Connecting the APS-6RF to an IC-4F/ICE-4F module
faps6ia0.fm Page 10 Monday, June 15, 1998 2:19 PM
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

 ,QVWDOODWLRQ Wiring Applications
APS-6RF Installation Instructions PN 50893:A 4/15/98 11
&RQQHFWLQJ WKH $365) WR DQ ,&),&()
0RGXOH
WARNING: Use extreme caution when working with the
APS-6RF—high voltage and AC line-connected circuits are
present in the APS-6RF. Turn off and remove all power
sources. To reduce the risk of electric shock—make sure to
properly ground the APS-6RF.
Before field wiring, install the APS-6RF cover (Figure 4 on
page 7). When finished field wiring, install the press-fit
terminal block cover (Figure 4 on page 7) over TB1.

Figure 7 shows typical connections for wiring an APS-6RF to
any IC-4F /ICE-4F module:
)LJXUH  7\SLFDO $365) :LULQJ WR DQ ,&),&()
0RGXOH
&DEOH 
-
-
-
-
7%
7%
7%

²
+RW
1HXWUDO
&KDVVLV RU (DUWK
&DEOH 
2XWSXW &LUFXLW  QRW XVHG
2XWSXW &LUFXLW  QRW XVHG
$365)
$OO IRXU 1$&V RQ WKH ,&) DUH SRZHUHG IURP
$365) RXWSXW FLUFXLW  - 7KH 1$&V VKDUH
WKH WRWDO $ DYDLODEOH IURP $365) RXWSXW
FLUFXLW 
$OO IRXU 1$&V RQ WKH ,&() DUH SRZHUHG
IURP $365) RXWSXW FLUFXLW  - 7KH 1$&V
VKDUH WKH WRWDO $ DYDLODEOH IURP $365)
RXWSXW FLUFXLW 
$& SULPDU\ SRZHU
LQSXW 6HH )LJXUH  RQ
SDJH 
'& 6HFRQGDU\ EDWWHU\
SRZHU  9'& 6HH
)LJXUH  RQ SDJH 
%DWWHU\ 
%DWWHU\ ²
$X[LOLDU\ %HOO 3RZHU +DUQHVV
31 
,&()
%ODFN
%OXH
,&)
7URXEOH %XV ,Q
2XW VHH )LJXUH 
RQ SDJH 
`
`


`




²

²
%ODFN
%OXH
faps6ia0.fm Page 11 Monday, June 15, 1998 2:19 PM
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

 ,QVWDOODWLRQ
Configuring the APS-6RF
12 APS-6RF Installation Instructions PN 50893:A 4/15/98
&RQILJXULQJWKH$365)
WARNING: Use extreme caution when working with the
APS-6RF—high voltage and AC line-connected circuits are
present in the APS-6RF. Turn off and remove all power
sources. To reduce the risk of electric shock—make sure to
properly ground the APS-6RF.
Before field wiring, install the APS-6RF cover (Figure 4 on
page 7). When finished field wiring, install the press-fit
terminal block cover (Figure 4 on page 7) over TB1.

Figure 8 shows how to configure the APS-6RF for the
following:
• 8-hour delay for reporting loss of AC: cut jumper JP2.
• 16-hour delay for reporting loss of AC: cut jumper JP2 and JP3.
• 120 VAC/240 VAC operation.
Figure 8 contains an exploded view of the APS-6RF, that
shows the location of jumpers JP2 and JP3.
)LJXUH  &RQILJXULQJ WKH $365)
-3 &XW IRU KRXU
$& GHOD\ DOVR FXW
-3
-3 KRXU $&
GHOD\
-3 &XW IRU
 9$& RSHUDWLRQ
faps6ia0.fm Page 12 Monday, June 15, 1998 2:19 PM
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

 ,QVWDOODWLRQ Servicing the APS-6RF
APS-6RF Installation Instructions PN 50893:A 4/15/98 13
6HUYLFLQJWKH$365)
WARNING: Use extreme caution when working with the
APS-6RF—high voltage and AC line-connected circuits are
present in the APS-6RF. Turn off and remove all power
sources. To reduce the risk of electric shock—make sure to
properly ground the APS-6RF.
Before field wiring, install the APS-6RF cover (Figure 4 on
page 7). When finished field wiring, install the press-fit
terminal block cover (Figure 4 on page 7) over TB1.

The only serviceable components on the APS-6RF are fuses
F1 and F2. If a fuse fails, replace with a fuse of the same type
and rating (see specs). If replacing fuse F1 (AC), remove the
vertical PC board as follows:
1. Turn off and remove all power sources.
2. Remove the two retaining screws (Figure 9).
3. Unplug the vertical PC board from the connectors as
shown in Figure 9.
Figure 9 contains an exploded view of the APS-6RF that
shows how to remove the APS-6RF PC boards from the
chassis.
)LJXUH  6HUYLFLQJ WKH $365)
) $& SURWHFWLRQ
 $  $*
) %DWWHU\ SURWHFWLRQ
 $  $*
8QSOXJ FRQQHFWRU -
8QSOXJ FRQQHFWRU -
5HWDLQLQJ
VFUHZ
5HWDLQLQJ
VFUHZ
9HUWLFDO 3& %RDUG
faps6ia0.fm Page 13 Monday, June 15, 1998 2:19 PM
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

 ,QVWDOODWLRQ
Notes
14 APS-6RF Installation Instructions PN 50893:A 4/15/98
1RWHV
faps6ia0.fm Page 14 Monday, June 15, 1998 2:19 PM
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

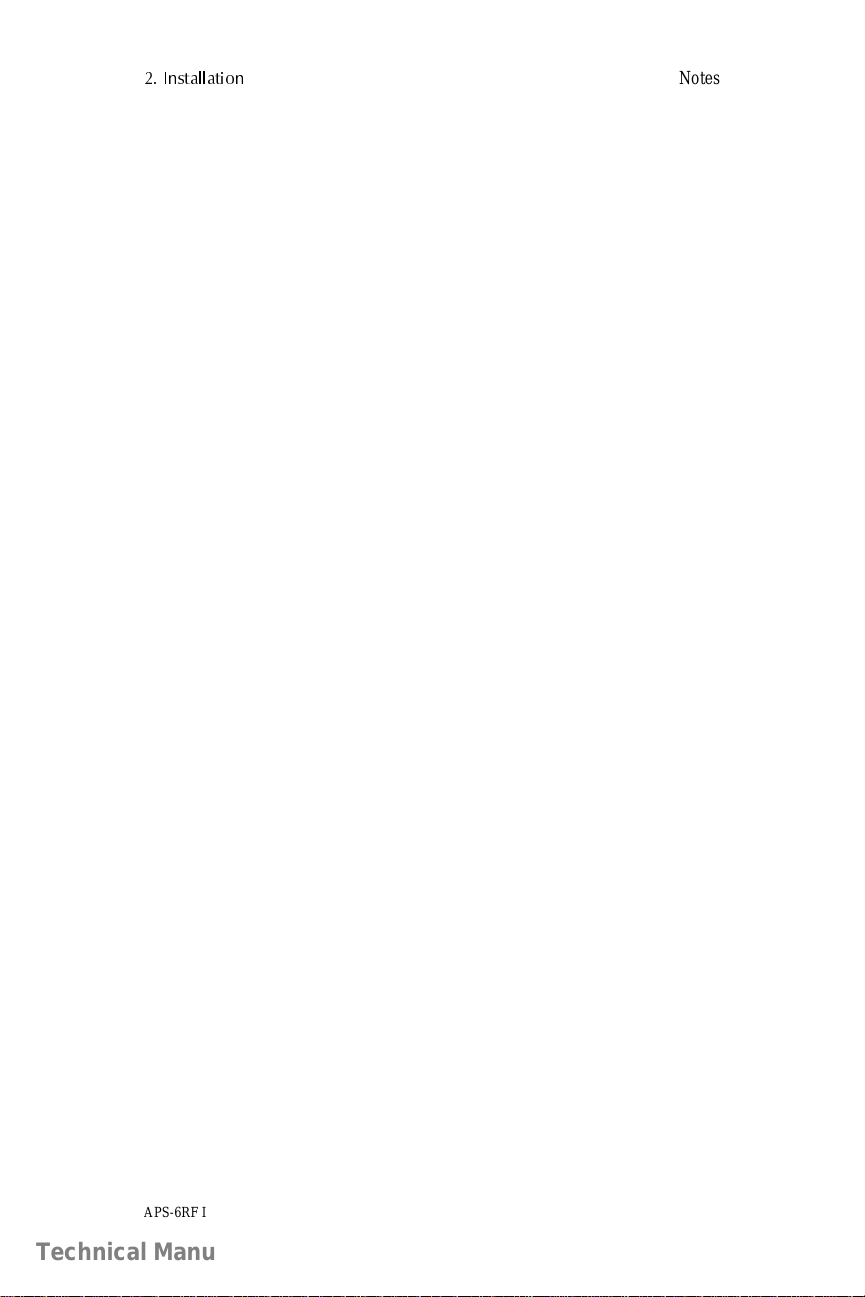

 ,QVWDOODWLRQ Notes
APS-6RF Installation Instructions PN 50893:A 4/15/98 15
1RWHV
faps6ia0.fm Page 15 Monday, June 15, 1998 2:19 PM
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com

Limited Warranty
Fire-Lite®warrantsits products tobe free fromdefects inmaterials andworkmanship
for eighteen (18) months from the date of manufacture, under normal use and
service. Products are date stamped at time of manufacture. Thesole and exclusive
obligation of Fire-Lite®is to repair or replace, at its option, free of charge for parts
and labor, any part which is defective in materials or workmanship under normal
use and service. For products not under Fire-Lite®manufacturing date-stamp
control, the warranty is eighteen (18) months from date of original purchase by
Fire-Lite®'s distributor unless the installation instructions or catalog sets forth a
shorter period, in which case the shorter period shall apply. This warranty is void if
the product is altered, repaired or serviced by anyone other than Fire-Lite®or its
authorized distributors or if there is a failure to maintain the products and systems
in which they operate in a proper and workable manner. In case of defect, secure
a Return Material Authorization form from ourcustomer service department. Return
product, transportation prepaid, to Fire-Lite®, 12 Clintonville Road, Northford,
Connecticut 06472-1653.
This writing constitutes the only warranty made by Fire-Lite®with respect to its
products. Fire-Lite®does not represent that its products will prevent any loss by
fire or otherwise, or that its products will in all cases provide the protection for
which they are installed or intended. Buyer acknowledges that Fire-Lite®is not an
insurer and assumes no risk for loss or damages or the cost of any inconvenience,
transportation, damage, misuse, abuse, accident or similar incident.
Fire-Lite®GIVES NO WARRANTY, EXPRESSED OR IMPLIED, OF
MERCHANTABILITY, FITNESS FOR ANY PARTICULAR PURPOSE, OR
OTHERWISE WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE
HEREOF. UNDERNOCIRCUMSTANCES SHALLFire-Lite®BELIABLEFOR ANY
LOSS OF OR DAMAGE TO PROPERTY, DIRECT, INCIDENTAL OR
CONSEQUENTIAL, ARISING OUT OF THE USE OF, OR INABILITY TO USE
Fire-Lite®PRODUCTS. FURTHERMORE,Fire-Lite®SHALLNOT BELIABLEFOR
ANY PERSONAL INJURY OR DEATH WHICH MAY ARISE IN THE COURSE OF,
ORAS A RESULTOF, PERSONAL,COMMERCIAL OR INDUSTRIAL USE OF ITS
PRODUCTS.
This warranty replaces all previous warranties and is the only warranty made by
Fire-Lite®. No increase or alteration, written or verbal, of the obligation of this
warranty is authorized.
"Fire-Lite" is a registered trademark.
12 Clintonville Road,
Northford, CT 06472
Phone: [phone]
FAX: [phone]
Technical Publishing Document WARFSM-C.PM6 04/02/96
Technical Manuals Online! - http://www.tech-man.com
firealarmresources.com
