Fire Mountain K116BFI3S User manual

0
6 Burner + Side Burner BBQ
PLEASE READ AND KEEP THESE INSTRUCTIONS FOR FUTURE USE
SAP Code: JB03705601
For further assistance, other products and more, join us at:
Website: www.firemountain.co.uk
Facebook: www.facebook.com/fire-mountain

1
Thank you for choosing our Fire Mountain 6 Burner + Side Burner BBQ. Please read
this user manual carefully and keep it for future reference. If you need any assistance,
please contact our customer service team on the details provided on the back page
of this manual.
IMPORTANT: Read all instructions and operations before operating this unit.
FOLLOW ALL STEPS IN ORDER. NEVER ALLOW CHILDREN TO OPERATE THIS UNIT.
Warnings:
Only to be used outdoors.
Read the instructions before using the appliance.
Accessible parts maybe very hot, keep young children away.
Do not move the appliance during use.
Turn off the gas supply at the gas container after use.
Any modification of the appliance may be dangerous.
Parts sealed by the manufacturer or his agent must not be altered by the
user.
Attention:
Some parts of this appliance become very hot, take special care when children or
elderly are present.
For your safety:
Do not store or use Petrol or mentholated fuels or any other flammable
vapors and liquids in the vicinity of this or any other appliance.
Never light a gas BBQ with Petrol or comparable fluids!
Suggestion: user should not change the assembly that the manufacturer
packaged.
The gas cylinder is recommend to 5kg LPG gas bottle, it is sufficient for a heating
period of approx.4.0 hours with full power.

2
1
Model: K116BFI3S
1. Technical data

3
1
2
3
4
5
6
7
8
9
11
12
18
19
17
10
27
20
21
22
23
24
25
26
28
29
30
31
32
33
35
36
34
13
14
15
37
16
2. Exploded View

4
NO appellation qty NO appellation qty
1 Lid set 1 2 Thermometer 1
3 Lid handle 14 Warming rack 1
5 Iron casting cooking grill
415x185mm
16 Iron casting cooking grill
415x240mm
2
7 Flame tamer 68 Greasy tray 1
9 Holder of Greasy cup 110 Greasy cup 1
11 Pot holder 112 Side burner set 1
13 Right side table
decoration strip
114 Side burner knob 1
15 supporting metal of right
rear side table
116 Side burner Led light set 1
17 Circlip 618 Main burner 6
19 Firebox set 120 Door magnet 2
21 Beam of cart 122 Back panel of cart 1
23 Right side panel of cart 124 Bottom panel of cart 1
25 triangular supporting of
cart
226 Wheel 4
27 Left side panel of cart 128 Door set 2
29 Knob set 630 Led light set 1
31 Control panel set 132 Left Side table decoration strip 1
33 Left side table 134 supporting metal of left rear
side table
1
35 1/4 connector 136 Battery box 1
37 Iron casting cooking
plate 450x240mm
1
3. Single part list

5
Make sure your grill is assembled properly. Detailed assembly instructions are packed
with each grill giving specific assembly procedures for each model. Follow these
instructions carefully to ensure the correct and safe assembly of the grill.
Caution: Although we take every effort to ensure that the assembly process is as
easy as possible, it is inherent with fabricated steel parts that corners and edged can
cause cuts if improperly handled during assembly procedures. Be careful while
handling any parts during assembly. It is strongly recommended that you protect
hands with a pair of work gloves.
4. Fixing elements
5 . Assembly Instructions

6

7

8

9

10
EX2

11

12

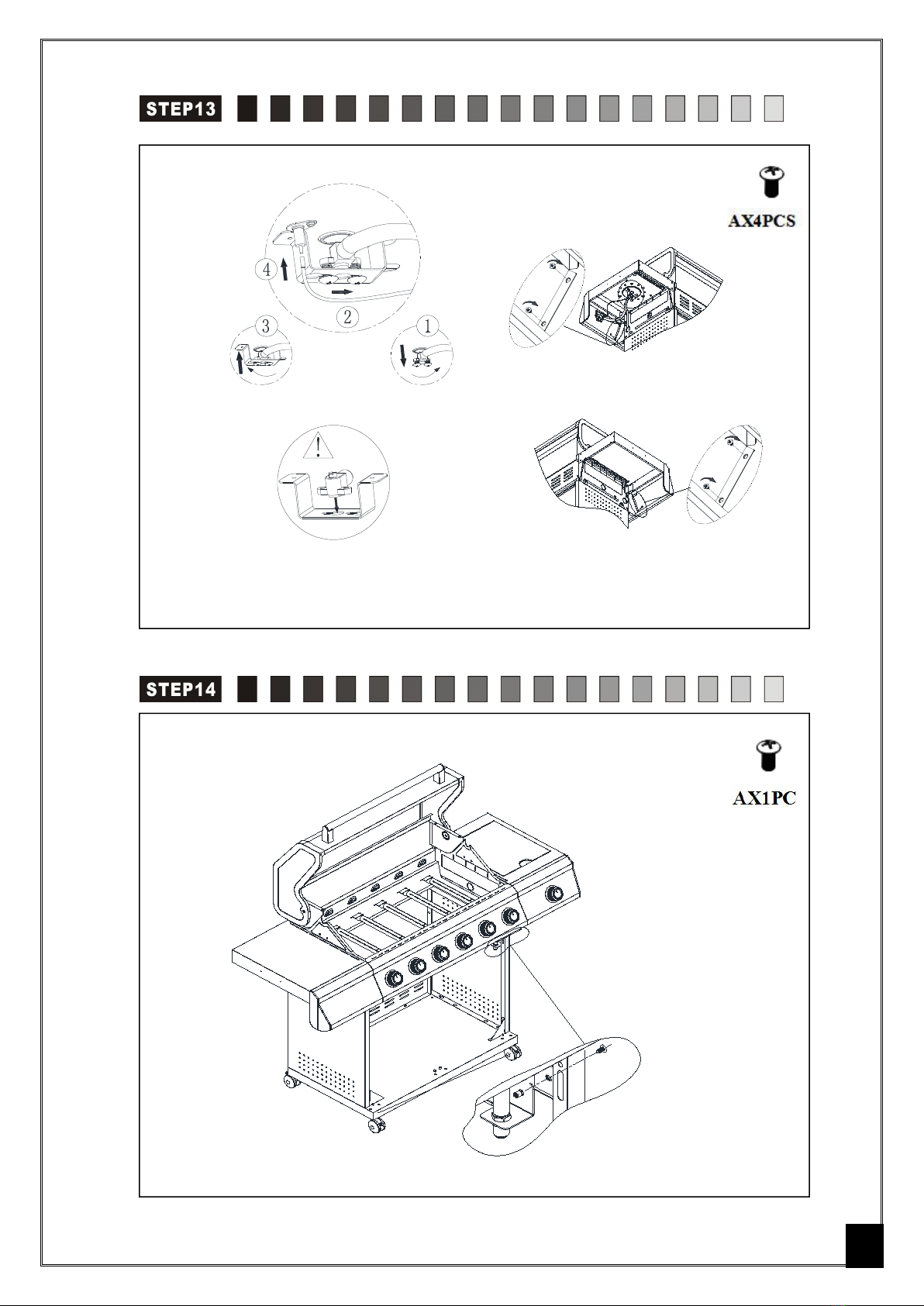

13

14
HOT

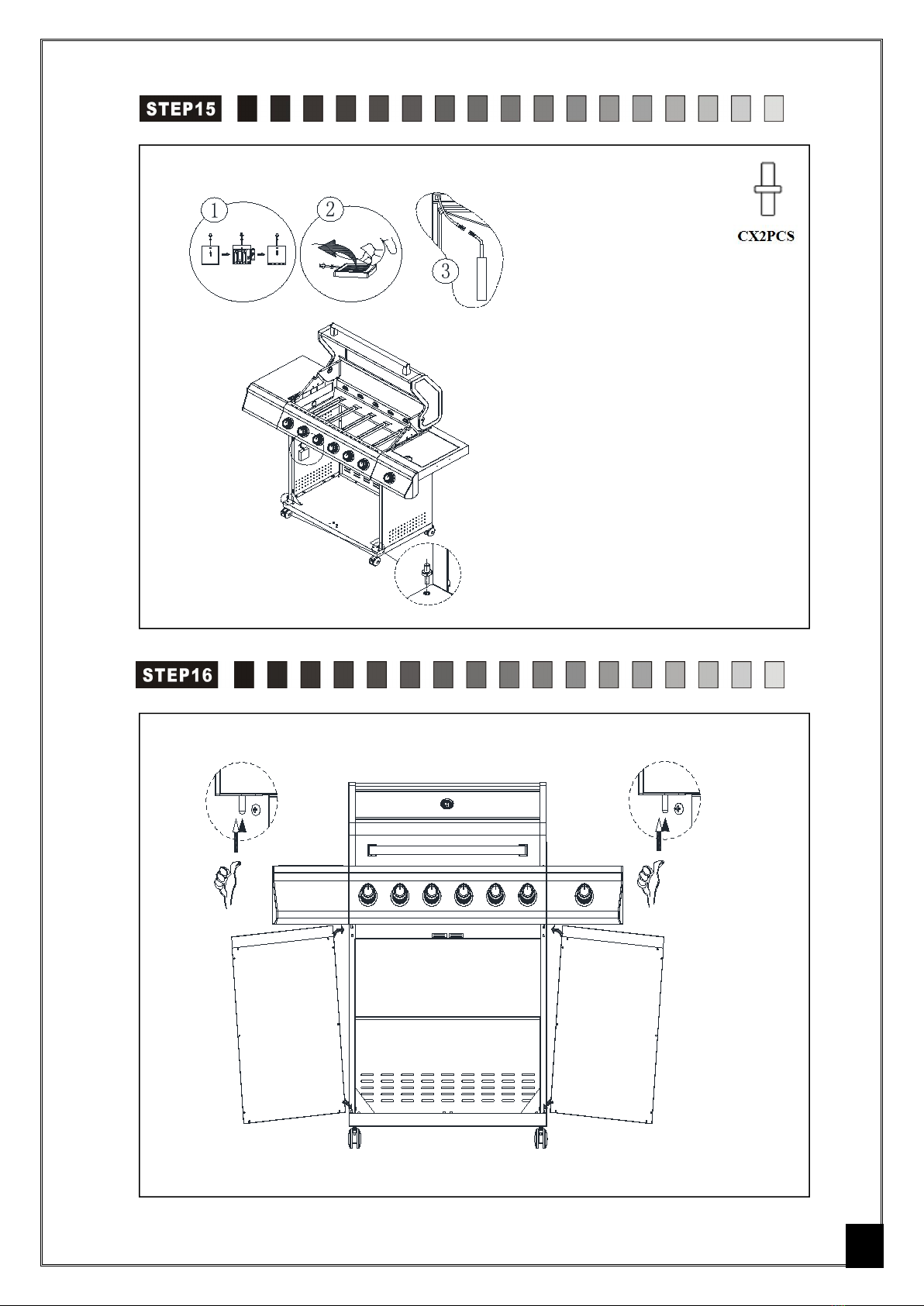

15

16

You will need to purchase a5kg LPG gas bottle and the pressure regulator should
correspond to the pressure and gas category of the appliance, which can be obtained
from your nearest Gas Retailer. The regulator should be comply with EN16436 0r
EN16129 and EN16436 with current version and national regulation.
You will need to purchase a gas bottle and a 28-30/37 mbar regulator for I3+ and
28-30mbar regulator for I3B/P(30), 50 mbar regulator for I3B/P(50) to operate this
gas grill which can be obtained from your nearest Gas Retailer.
See point 9 for farther instructions.
Strongly Recommends Information:
a) The gas cylinder is to be used only in the upright position.
b) Only to be used with a gas cylinder that does not exceed 500 mm in height
and >240mm<310 mm in diameter.
c) This appliance must only be used with an approved hose and regulator.
Energy saving tips:
a) Reduce the opening time of the lid.
b) Turn the grill off as soon as cooking is completed.
c) Preheat the gas grill for 10 to 15 minutes only.(Except for the first use)
d) Do not preheat longer then recommended.
e) Do not use a higher setting than required.
Connect the hose and regulator to the gas container at the right side of the gas
grill .Keeping in mind that the gas container must be kept away from heat and in a
safe position .The hose dimension is 8mm diameter.
6.6ddd
6. Preparation
17

18
After purchasing your gas bottle you will then be ready to set it up with your gas grill.
a) When changing the gas bottle which shall be carried out away from any source
of ignition. Position the gas bottle at the side of your gas grill, not underneath,
keeping in mind that the bottle must be kept away from heat and in a safe
position.
b) When ready to use your gas grill insert the regulator into the gas bottle valve and
tighten firmly. The maximum length of hose shall not exceed 1.5m.
Warning: Before attempting to light your gas grill you must refer to your
lighting instructions and warning / safety points.
Check the hose before each use, searching for cracking, cuts or any abrasions. If the
hose is found to be faulty in any way do not attempt to use your gas grill.
When changing your gas bottle ensures that there are no sources of ignition close by
i.e. fires, cigarettes, naked flames etc. Make sure that the appliance is switched off.
Ensure that the hose is not subjected to twisting which will affect the gas flow when
using your gas grill. Also the hose must not have undue tension and must not touch
any part of the gas grill which may be hot.
Please choose flexible hose whose heatproof higher than 80℃.
Every 2 years changing the flexible hose when the national conditions require it.
How to connect a gas bottle
a) Turn the orange cap so that the arrow is pointing to the gap in the shroud.
b) Remove the orange safety cap by pulling the lanyard out, then out. Do not use
tools. Leave the cap hanging.
c) Check that the black sealing washer is fitted inside the cylinder valve. Place the
regulator down over the valve with switch.
d) Turn the switch clockwise on gas bottle-then turn on the gas grill as instructed.
Warning: Always test gas line for leaks at connector with soap water
finishing all connections.
7. Installation

19
How to disconnect a gas bottle
a) Except for twin-cylinder installations with a changeover valve, turn off the gas tap
if fitted to the appliance. Wait until the burner and pilot light have gone out. For
installations with a changeover valve, it is only necessary to switch off the empty
cylinder.
b) Replace the orange safety cap onto the empty cylinder.
GENERAL
Although all gas connections on the grill are leak tested at the factory prior to
shipment, a complete gas tightness check must be performed at the installation site
due to possible mishandling in shipment, or excessive pressure unknowingly being
applied to the unit. Periodically check the whole system for leaks following the
procedures listed below. If the smell of gas is detected at anytime you
should immediately check the entire system for leaks.
BEFORE TESTING
Make sure that all packing material is removed from the grill including tie-down
straps.
DO NOT SMOKE WHILE LEAK TESTING. NEVER PERFORM LEAK TEST WITH AN
OPEN FLAME.
Make a soap solution of one part liquid detergent and one part water. You will need a
spray bottle, brush, or rag to apply the solution to the fittings. For the initial leak test,
make sure the L.P. cylinder is 80% full.
TO TEST
1.Make sure the control valves are in the OFF position, and turn on the gas supply.
2.Check all connections from the gas regulator and supply valve up to and including
the connection to the manifold pipe assembly (the pipe that goes to the burners).
Soap bubbles will appear where a leak is present.
3.If a leak is present, immediately turn off the gas supply and tighten the leaky
fittings.
4.Turn the gas back on and recheck.
5. Should the gas continue to leak from any of the fittings, turn off the gas supply.
