The Firecom FHW and UHW series Electronic Headsets protect you from dangerous
noise while keeping other audio at a comfortable listening level. It protects your
hearing without sacrificing your safety or situational awareness. You can hear
alarms, music, or even have a face-to-face conversation while still being protected.
Simultaneous integration with two-way radios, cell phones, and MP3 players is
available via wired and optional Bluetooth inputs. DECT7 models extend conference
call like team communication up to 1,600 feet (line of sight). The rugged and
comfortable design ensures this headset is ready for tough work environments.
Model Matrix
FHW507
UHW507
UHW505
FHW505
UHW503
DW501
BT
DW501
Boom
Microphone





Listen Through





Wired AUX





Radio
Transmit





Wireless
Bluetooth





Wireless
DECT7





= Included
= Not Available
Replacement Parts
Silicone Ruggedizers
Earseals
Mic Muffs
Head Bands and Head Straps
Batteries
Speaker Covers
Contents in Box
Headset
1 ea x Firecom Headset
Manual and Reference
1 ea x Quick Reference Guide
1 ea x Manual (online at: www.firecom.com)
1 ea x FCC / IC / NRR compliance sheet
1 ea x Warranty Card
1 ea x Accessory Sheet
Charging
1 ea x AC Wall Adaptor
1 ea x Heavy Duty DC Charging Adaptor
Accessories
1 ea x USB Cable
1 pair x Black Ruggedizers (installed)
1 pair x ComLeather Earseals
Tools
1 ea x Headband/Battery Removal Tool
(Sonetics Screw Driver)
Accessories (not included)
Hard Hat Adaptors (FHW & DW only)
PR Radio Interface - Connect to any portable two-way-radio and many
other devices
Silicone Ruggedizers in a variety of colors to meet your team’s needs
Earseals to enhance comfort
Worldwide Power Adaptor
DC Cigarette Adaptor
DC Fuse Assembly

2 | P a g e
Features
Common Features, All Models
Adjustable Volume Control
The Headset has a user adjustable volume control. The Headset will remember the
last setting at each power up for convenience.
Automatic Loud Noise Suppression
The Headset will limit high impulse sounds, such as gun shots, from being
transmitted to the user when using the Stereo Listen Through.
Convertible Headband (FHW, DW models only)
The Headset is user configurable for overhead, behind-head, or hard hat (with hard
hat accessory). This gives the user the ability to change the way they use the
Headset over time without needing to invest in a new one.
Multi-Color Ruggedizers
The ruggedizers offer additional abrasion and impact protection. They are available
in many colors (sold separately) to give the user the ability to define teams, roles, or
enhance safety.
Extreme Environmental Design
The Headset has an IP-66 dust and water egress rating. Even when worn in heavy
rain, the Headset will still be useable. Operation has been verified to -22F / -30C for
extreme cold weather environments.
Flexible Charging
An AC adaptor and DC automotive charging cable are included to allow charging in
most environments.
Hearing Protection
The Headset conforms to many hearing protection standards, keeping the user safe
from harmful noise.
In Headset Charging
The Headset has charging circuitry built in allowing it to be charged from multiple
sources. These include the supplied AC wall adaptor and multiple DC charging
options from a variety of sources including most cars, trucks, and aircraft. Refer to
specification for charging voltages and power requirements.
Light Weight
Through the use of the latest weight saving technologies, Firecom is able to deliver
a wireless headset that is lighter than many wired headsets.
Listen Through Situational Awareness
The Headset has two listen through microphones to give the user stereo situational
awareness. The microphones are placed on the forward edge of the headset to give
the user the perception of sounds in the front versus from the rear. The listen
through has a programmable volume level and limits all sounds the user hears to
82dB.
Long Battery Life
With over 24 hours of battery life on DECT7 Headsets, and 44 hours of battery life
on those without, the Headset works whenever the user needs it.
Multimode Auto Shutdown
To extend the life of the batteries, the Headset will automatically shut down.
Bluetooth and DECT7 Wireless Shutdown: If a DECT wireless connection has been
established, the Headset will power down after 5 minutes if the connection is lost.
Non-Activity Shutdown: Headsets shut down after 1 hour if not used.
The headset will announce when it is about to shut down. Shutdown may be
cancelled by pressing any button.
Two Stage Low Battery Alert
The Electronic Headset has a two stage low battery alert system to notify the user
of a depleted battery before communications are lost.
USB Programmable
Using its USB port, a Headset can be configured using a Windows PC. Many of the
features may be customized and saved. Refer to the Sonetics Headset Software for
details.
User Replaceable Battery
The Electronic Headset uses a replaceable battery. This allows the user to replace
the battery at end-of-life and have spares in the field for extended operation times.
Only Sonetics batteries should be used.
Voice Prompts
Voice prompts allows the user to make all adjustments without removing the
headset. There is no need to look for lights, text, or knob positions. The voice
prompts automatically adjust volume to ensure intelligibility in changing
environments.

3 | P a g e
Wired Line-in
The wired line-in is used to interface with cell phones and hand held radios. This
gives the user more flexibility in their communication needs. The wired connection
features a mono input and mono PTT output. See your Sonetics dealer for
accessories to match your equipment.
Common Features, Communication Headsets
Auto-Leveling Microphone
The Headset automatically detects the voice of the user against noise in the
background. This gives the headset an automatic VOX (noise gate or squelch) that
needs no adjustment when transitioning from areas of differing noise levels.
Noise Cancelling Microphone
Noise cancelling microphones remove background noise right at the mic element.
This lets listeners hear the person talking and not the background noise.
Radio PTT
The Headset interfaces with any two-way portable radio using the wired AUX input
or wireless DECT connection. When there is a wireless DECT connection, the PTT
signal is passed to the wireless DECT7 Wireless Base Station and onto the Digital
Intercom. Otherwise, the PTT signal is passed to the wired AUX input.
Wireless Bluetooth® Technology
Available on the FHW507, UHW507, & DW501BT headsets.
Bluetooth enabled Wireless Headsets can connect with other wireless Bluetooth
enabled devices. This lets you connect an additional audio or communications
device. Cell phones, mp3 players, mobile radios, computers, etc. expand your
communications potential.
A2DP Audio Streaming
The Headset features integrated A2DP streaming audio functionality, so you can
listen to music or podcasts, and hear turn-by-turn direction information from a GPS
application on your phone. You can also use this feature to stream audio from a
Bluetooth-enabled computer to the headset.
Wireless DECT7 Communications
Available on the FHW507, UHW507, UHW505, & UHW503 headsets
The Sonetics Wireless DECT7 Headsets enable full duplex, conference call like
communications to others on the same channel. The Headsets will connect to
standalone Sonetics Wireless Base Stations or Sonetics IP-DECT7 wireless systems. A
DECT7 network gives up to 1600ft of range (line of sight) from its wireless base,
with interference free, digitally encrypted communications.
Backwards Compatibility
Firecom Wireless Headsets are backwards compatible with Firecom first generation
wireless DECT, and DECT6 Wireless Base Stations with minimal loss in functionality.
Broadcast Mode
The Headset may be paired into a listen only mode of operation, reducing power
consumption considerably. This also allows many more headsets to be connected to
a Wireless Base Station simultaneously. Pressing the Radio PTT button allows the
headset to momentarily talk on any available slot. A tone will let the user know
when they can talk. After talking, there will be a slight delay when other users
cannot be heard. Refer to the Wireless Base Station manual for details.
Dual Dome Antenna Design
Each dome has a separate DECT7 antenna using diversity switching to lock onto the
best signal. The user never needs to worry about head position relative to the
wireless base. The best possible connection is delivered at all times.
Radio PTT or Intercom Only Selection
The Headset may be configured to send a transmit signal to radios connected via a
DECT7 Wireless Base Station or Intercom. The user can transmit over multiple
radios depending on the configuration.
Out of Range Warning
The user is notified when DECT7 signal is weak, or when it goes out of range.
Proximity Pairing
To enhance security, the Wireless Base Station will only pair to wireless DECT7 units
in close proximity. This adds another layer of protection for users.
Signal Strength Reporting
The Headset may be placed into a field diagnostic mode to detect signal strength at
The Headset. This can be used to optimize placement of Comhubs or Base Stations.
Wide Band Audio
Wireless DECT7 communications are transmitted in a high definition wide band
audio format. This gives better sound quality, greater intelligibility, and improves
with voice activated control systems. The Headset can also be used in narrow band
if necessary.

4 | P a g e
Configuring the Headset
The Firecom 500 Series Electronic Headset may be set up for use in overhead,
under-helmet, or hard hat (sold separately) configurations. Different headbands are
attached through a secure snap joint on the side of the ear domes. It keeps the ear
dome correctly oriented while providing full freedom of movement, allowing the
dome to seat comfortably against the users head.
Headband Removal
Tools Required: Sonetics Screwdriver

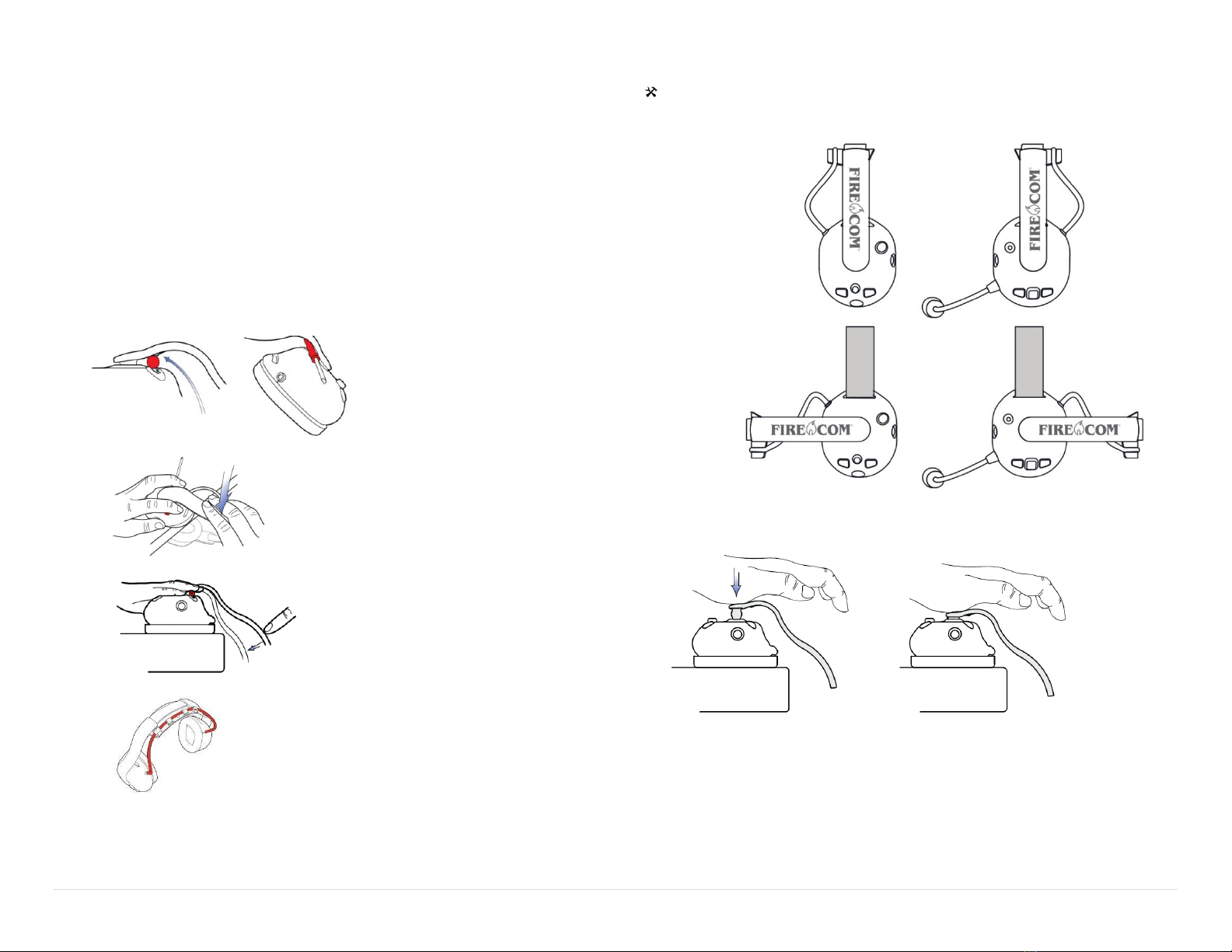

1. Place the handle of your Sonetics Screwdriver between the headband and the
dome. Make sure the handle is behind the notch on the inside of the
headband.
2. Use one hand to hold the dome on a flat surface
3. Gently push with the headband with the other hand.
4. Route the headband cable through the headband as shown.
Headband Installation
Tools Required: None
1. Align the headband with the domes as shown.
Over
Head
Behind
Head
2. Place the Dome onto a flat surface.
3. Press Down on the headband until the ball joint snaps into place.

5 | P a g e
Headstrap Installation
Tools Required: None
1. Insert the strap at dome opening.
2. Affix the strap using the hook and loop.

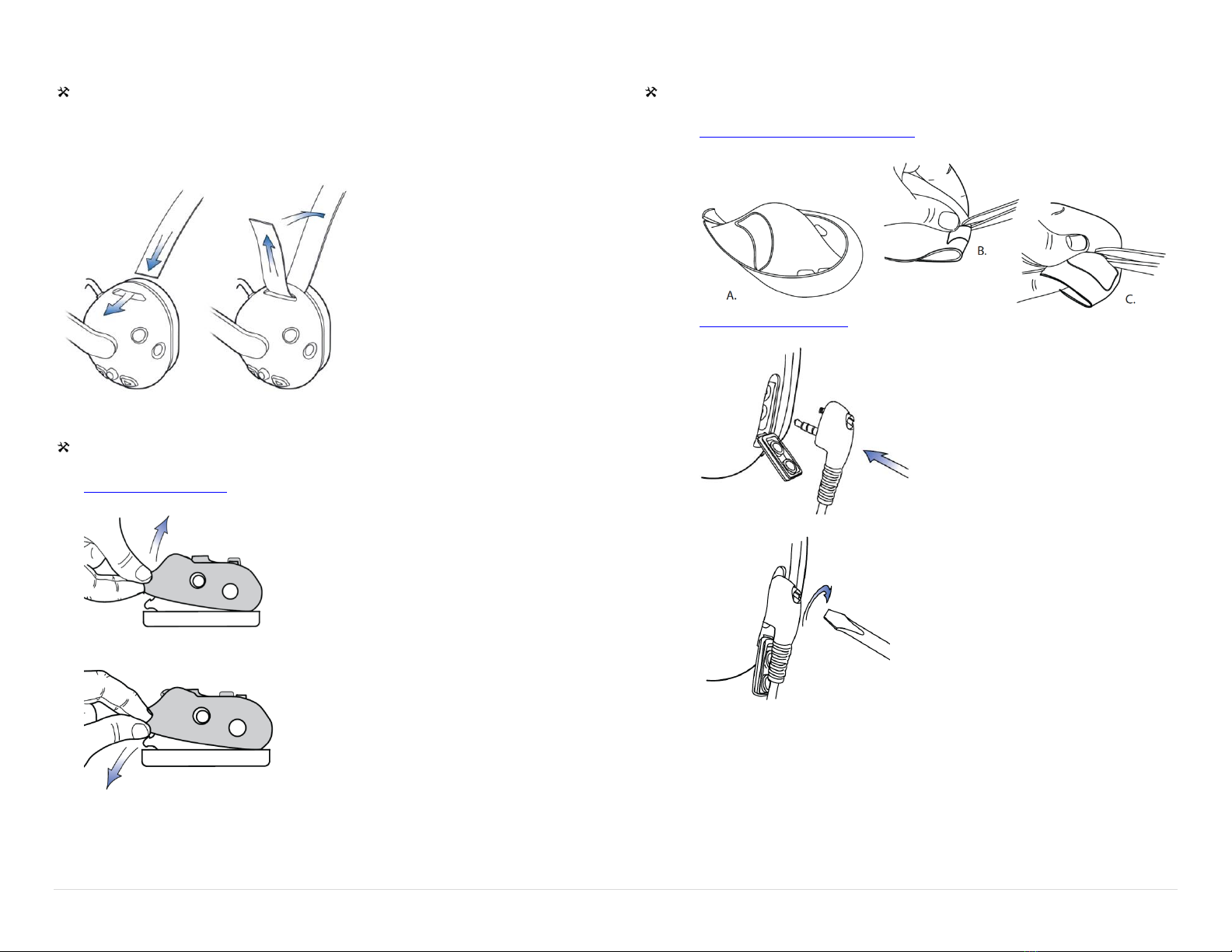

Replacing the Ruggedizer
Tools Required: None
1. Remove the headband
2. Peel back the ruggedizer
Replace the ruggedizer. Note the left and right.
Connecting a Two-way Radio
Tools Required: Scissors, Firecom screwdriver
1. Remove the left dome ruggedizer. (with the microphone boom attached)
2. Cut the along the groove on the underside of the ruggedizer.
3. Replace the ruggedizer.
4. Open the Radio Cover and plug in the Firecom PR Radio Adaptor.
5. Screw the adaptor into place.
6. Connect the Sonetics PR Radio Adaptor to the Radio.

6 | P a g e
Fitting
Proper fitment is required to achieve the rated hearing protection levels.

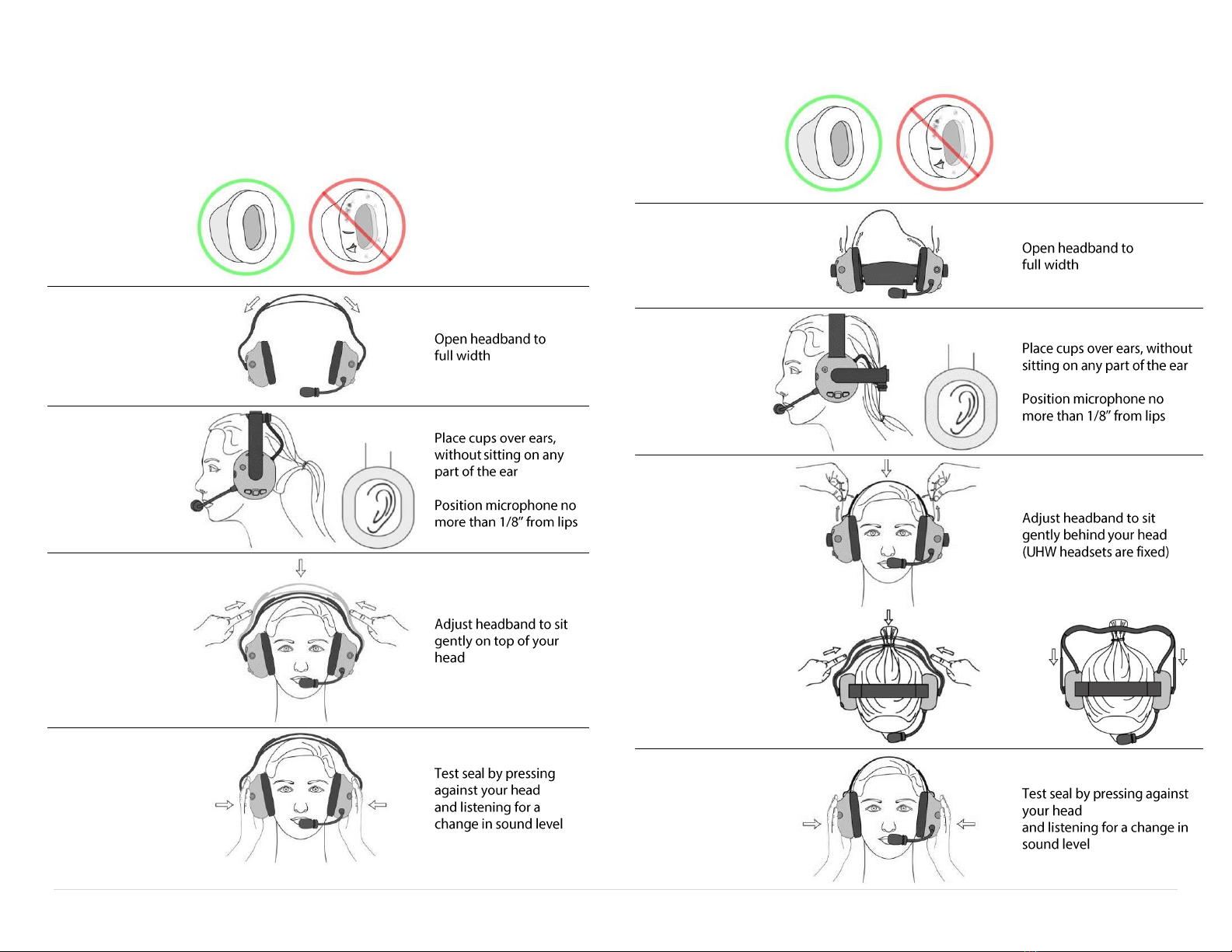

Overhead Fitment
1. Inspect
Ensure no damage to
the earseals or the
Headset
2. Expand
3. Place
4. Adjust
5. Seal
Behind Head Fitment
1. Inspect
Ensure no damage to the
earseals or the Headset
2. Expand
3. Place
4. Adjust
5. Seal

7 | P a g e
Fitment Warnings
Improper Placement and Adjustment
Obstructions
Ensure headwear and hair does not cause gap in the earseal.
Glasses
Ensure Glasses do not cause a gap in the earseal.

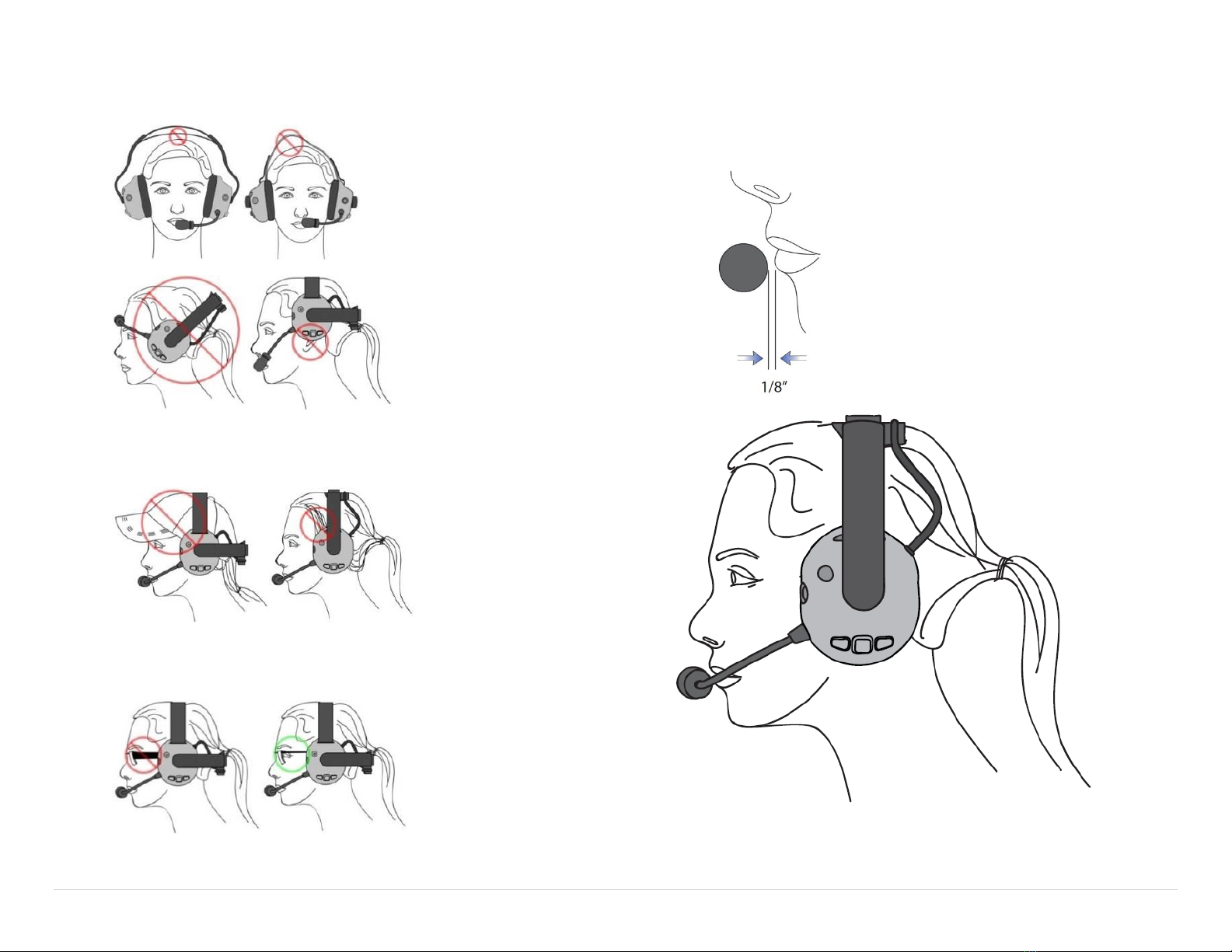

Microphone Placement
To optimize speech, a noise cancelling microphone is used. This type of microphone
is designed to enhance sounds from very close, while reducing sounds from afar.
Ensure proper placement for best results.

8 | P a g e
Charging
The Firecom Electronic Headsets use a barrel charging jack with the connections
shown below.
Wall Adapter Charging
Only charge the Headset using the supplied 12VDC regulated wall adapter.
WARNING: Using unregulated wall adapters will damage the Headset and
void the warranty.
Vehicle Charging
Connect the RED wire to +12VDC and the BLACK wire to battery chassis ground.
Install the fuse no further than 18" from the battery.
WARNING: Only replace fuse with the same type, 1.5A AGU.
WARNING: Voltages exceeding the Headset charging specification will
damage the Headset. Verify the Headset voltage specification to the vehicle
battery and charging system specifications.

9 | P a g e
Battery Replacement
Firecom Electronic Headsets use a Lithium Ion battery. Firecom batteries are the
only batteries that have been tested and verified to operate correctly with the
Headset. Use only Firecom approved batteries (Firecom part #320-0015-00).Use of
batteries from other sources will void your warranty.
WARNING: Use only Sonetics approved batteries.
Tools Required: Sonetics Screwdriver (Flat Head Screwdriver)
1. Pull back the right ruggedizer if the Headset has one installed.
2. Open the battery door on the right dome using the screwdriver.
3. Remove the battery, and recycle or discard per local laws. Refer to
Rechargeable Battery Information.
4. Insert the replacement battery, positive end first.
5. Close the battery door and tighten the screw.
6. Replace the ruggedizer if installed.
LED Indications
The Firecom Electronic Headset uses a multicolor LED indicator to give additional
information on the status of the Headset. The table below describes the behavior
while charging or in use (not all functions are available on all models).
Charging
Non-Charging
Function
Red Flash

Headset On
Blue Flash

Bluetooth® Connection Established and in
progress
Red/Green

Headset in DECT pairing mode
Green Flash

DECT Connection Established and in
progress
Blue/Green

Both Bluetooth and DECT connections
Established and in progress
Flash

Led color will vary
Depending on
connection type
Battery Level




= Battery >75%
= Battery 50-75%
= Battery 25-50%
= Battery <25%
Red Solid
—————
Charging
Green Solid
—————
Fully Charged

10 | P a g e
Settings & Operation

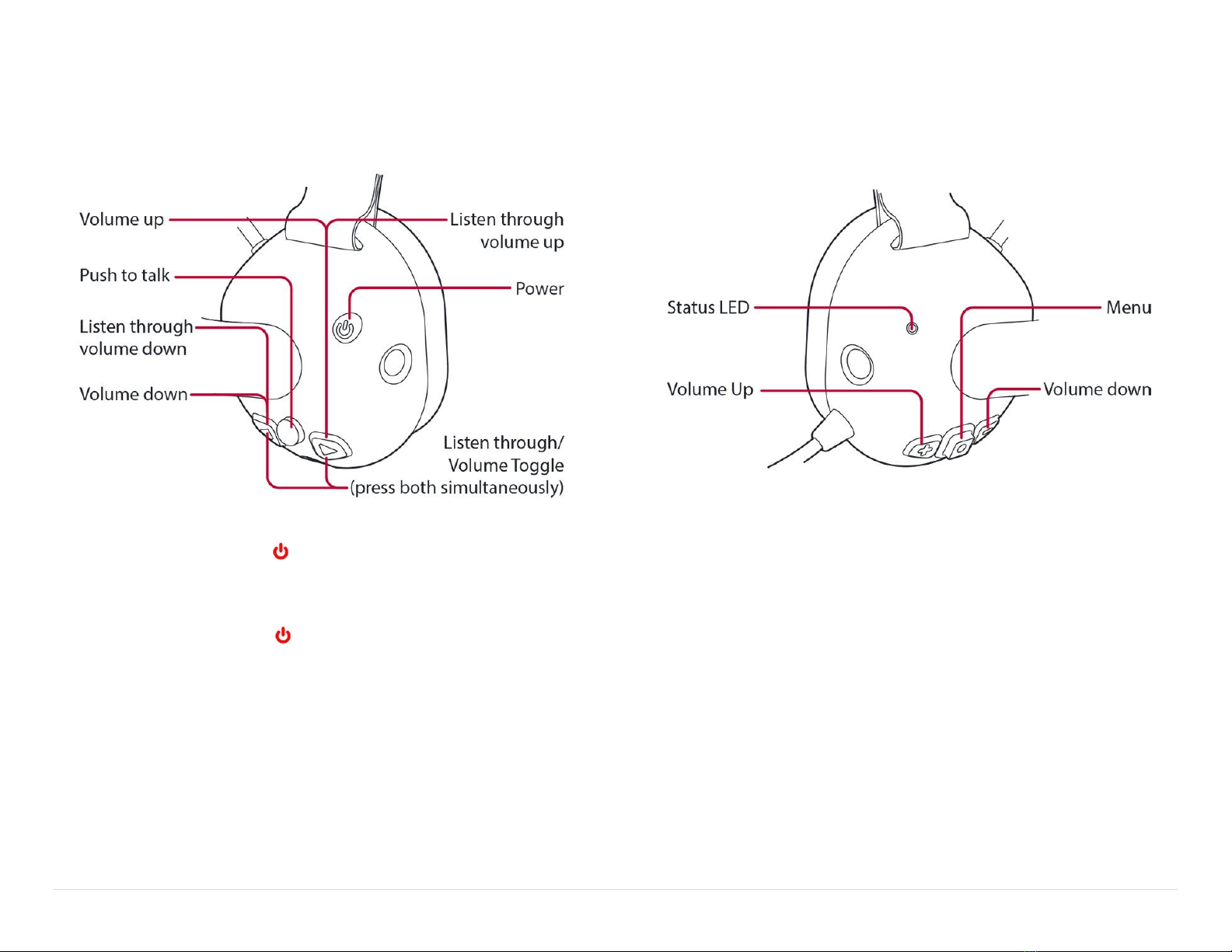

Buttons
Right Side
Turn On
Press and briefly hold the power button. You will hear a welcome message and
the status LED will begin to flash periodically.
Turn Off
Press and briefly hold the power button. You will hear a power down message
and the status LED will turn off.
Left Side
Adjusting the Main Volume
You can use either the plus and minus –buttons on the left side of the Headset,
or the forward and back arrow buttons on the right side of the Headset to
adjust the Main Volume.
Adjusting the Listen Through Volume
Press both the and buttons on the right-hand side of the Headset to toggle
between the Main Volume and Listen Through volume. A voice prompt will tell you
which is active.
When Listen Through is active, press the arrow buttons (or ) on the right side
of the Headset to adjust the Listen Through volume setting.

11 | P a g e
Advanced Menu
The Advanced Menu is to set-up and configure the Headset for use. Caution must
be taken with these adjustments, as they change the operational characteristics of
the Headset. When in the menu system, all functions except PTT and Power are
locked out.
To Enter the Advanced Menu
1. Turn the headset off.
2. Simultaneously press and hold the forward , back , and Power
buttons until you hear “Advanced Menu”.
To Adjust Advanced Menu settings
1. Enter the Advanced Menu.
2. Repeatedly press the menu button until you hear your setting.
3. Press either the plus or minus –to cycle through the options.
To Exit the Advanced Menu
1. Press the forward , PTT , or back button or wait 30 seconds to
automatically exit.
Radio & Intercom Function
Sets the function of the PTT and Intercom.
Radio Transmit: For Radio PTT, when the Headset has a DECT connection, the PTT
will activate only the DECT Radio wireless connection. When the Headset does not
have a DECT connection, the PTT will activate the AUX Radio wired connection.
Intercom: This configures how the PTT and Noise Gate interact with each other
while a person is talking with their local wireless team. If you can hear yourself
through the side tone, others can hear you.
Factory Setting
Options:
“Radio VOX”:
Radio Transmit
on PTT , Hands
Free Intercom
“Radio VOX”: Radio Transmit on PTT , Hands Free Intercom
“Radio PTT”: Radio Transmit on PTT , Push to Talk Intercom
“Intercom VOX”: Hands Free Intercom only
“Intercom PTT”: Push to Talk Intercom only
“Intercom Toggle”: Toggle to Talk Intercom only
Version Number ("Version 1")
Indicates what firmware version your headset is running.
DECT Bandwidth ("DECT Wide")
Factory Setting
Options:
“DECT Wide”
“DECT Wide" –Better sound quality.
“DECT Narrow” –Better resistance to interference.
"Radio On" or "Radio Off"
Enabling this setting makes the headset read out RSSI (Received Signal Strength
Indicator) numbers that tell you how strong the connection to The Base Station or
Comhub is. This can be used to improve system installations.
Mic Sensitivity
The Mic sensitivity may be configured into multiple modes of operation to tailor to
the user’s application.
To turn on the microphone always use “Mic ON”. This disables the Mic noise
gate completely. A whisper will be heard by all.
"Mic Auto" settings are automatic noise gates with increasing sensitivities.
"Mic XX" settings are for stable SPL environments of increasing volume.
Firecom 30XXR and 10 series intercoms require specific Mic Sensitivity settings
for correct operation. "Firecom 4", "Firecom 5", and "Firecom 6", are tailored
specifically to work with these Legacy Intercoms. Use with other mic sensitivity
settings will result in poor audio quality and clipped communications.
When the user presses the Radio PTT, any noise gate will be removed.
Factory Setting
Options:
“Mic Auto 1”
“Mic On” (No Noise Gate)
“Mic Auto 1” (Highest Sensitivity Automatic Noise Gate)
“Mic Auto 2”
“Mic Auto 3” (Lowest Sensitivity Automatic Noise Gate)
“Mic 80” (Noise Gate set to 80dB Environment)
“Mic 90” (Noise Gate set to 90dB Environment)
“Mic 100” (Noise Gate set to 100dB Environment)
“Mic 110” (Noise Gate set to 110dB Environment)
"Firecom 4" (Legacy Setting –N/A to DW501, DW501BT)
"Firecom 5" (Legacy Setting –N/A to DW501, DW501BT)
"Firecom 6" (Legacy Setting –N/A to DW501, DW501BT)

12 | P a g e
Wireless Bluetooth®
To create a new Bluetooth pairing
1. Turn off the Headset, then turn on the Headset.
2. The Headset will enter Bluetooth pairing mode for 10 minutes.
3. Enter connectivity options on your Bluetooth device and search for new
devices. Once the search is complete select Sonetics-HS##. If prompted for a
password, enter four zeros (0000).
To answer or hang up a call
Quickly press and release the menu button.
Wireless DECT7
DECT7 headsets have the ability to use the Sonetics DECT, DECT6, DECT7 and IP-
DECT7 wireless bases for communication. Protected regional frequencies in each
region ensure interference free operation.
Pairing a DECT7 Headset
DECT7 Wireless Headsets use a semi-permanent link to a DECT7 Base Station or IP-
DECT7 system. No additional steps are required once a Headset has been paired.
Each time thereafter, the Headset will remember the Wireless Base Station and
automatically reconnect.
To Create a New DECT Pairing
1. Turn off the Headset.
2. Put the Wireless Base Station into Pairing Mode.
3. Hold down the PTT and power buttons to turn on the Headset.
4. Keep holding the PTT and Power buttons until the LED begins to flash
Red/Green .
5. Release the PTT button.
6. If successful, the LED will begin to flash Green .
7. If not, repeat all steps.
To erase a DECT pairing, follow the pairing sequence above without putting the
Wireless Base Station into pairing mode.

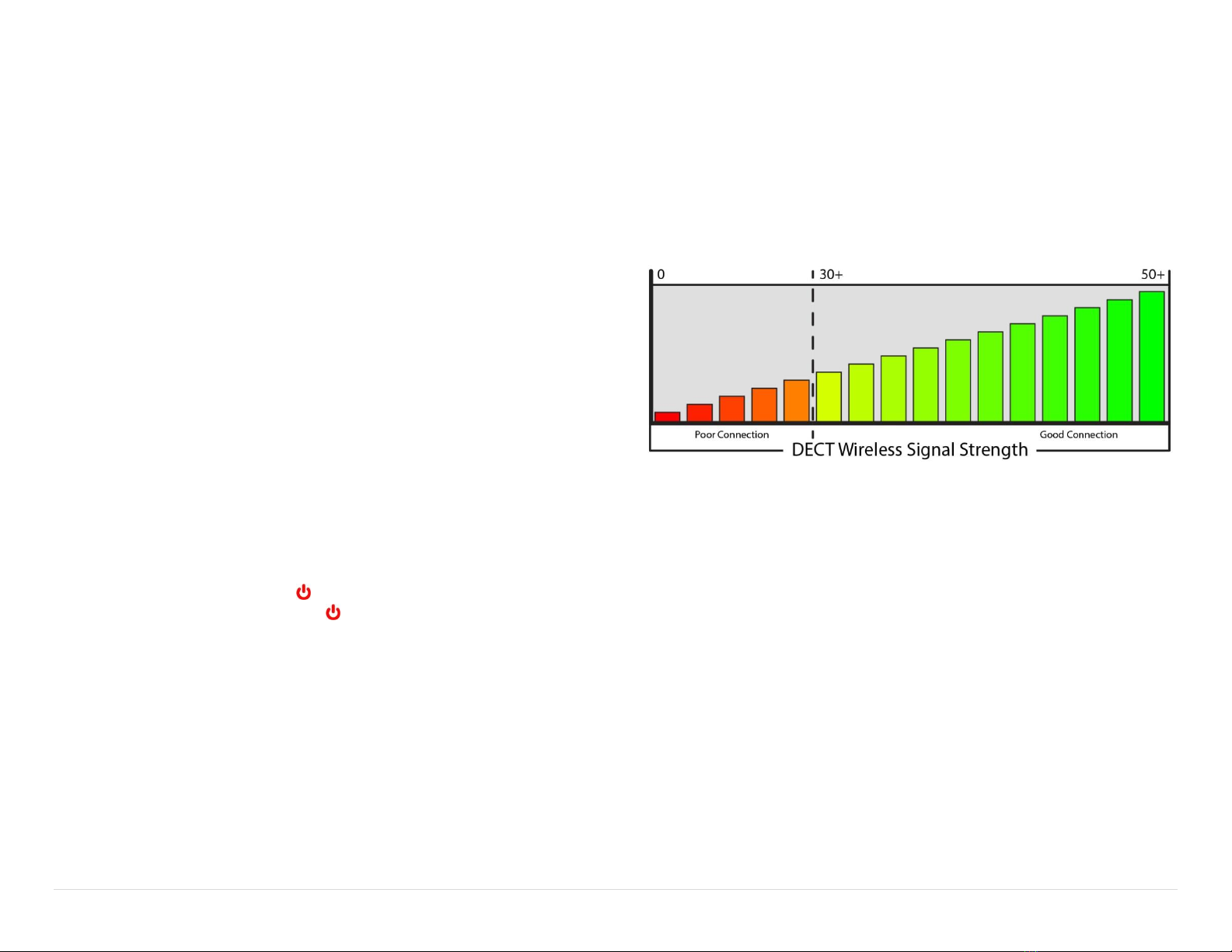

DECT Signal Strength
To use signal strength reporting
1. Make sure your headset has a DECT wireless connection.
2. Enter the Advanced Menu
3. Use the menu button to scroll through settings until you hear "Radio Off".
4. Use the or minus –buttons to change the setting to "Radio On".
5. If the headset has a DECT connection, it will announce the signal strength every
10 seconds. If no DECT connection is present, there will be no announcement.
6. To exit, cycle power on the headset.

13 | P a g e
Quick Launch
Most menu items are available directly via a series of buttons. Two buttons in the
same row requires both buttons to be pressed.
Action
Button
–





Power On/Off
Long
Volume Up

Volume Down

Volume Up

Volume Down

Radio PTT

Radio PTT

Main Volume / Listen Through
Toggle


Listen Through Up

Listen Through Down

Bluetooth Answer / Hang-Up
Short
Advanced Menu (available at
startup only)
Long
Long
Long
DECT Pairing
Long
Long
= Press & Release
Short = Short Press & Release, <3 seconds
Long = Long Press, >3 seconds

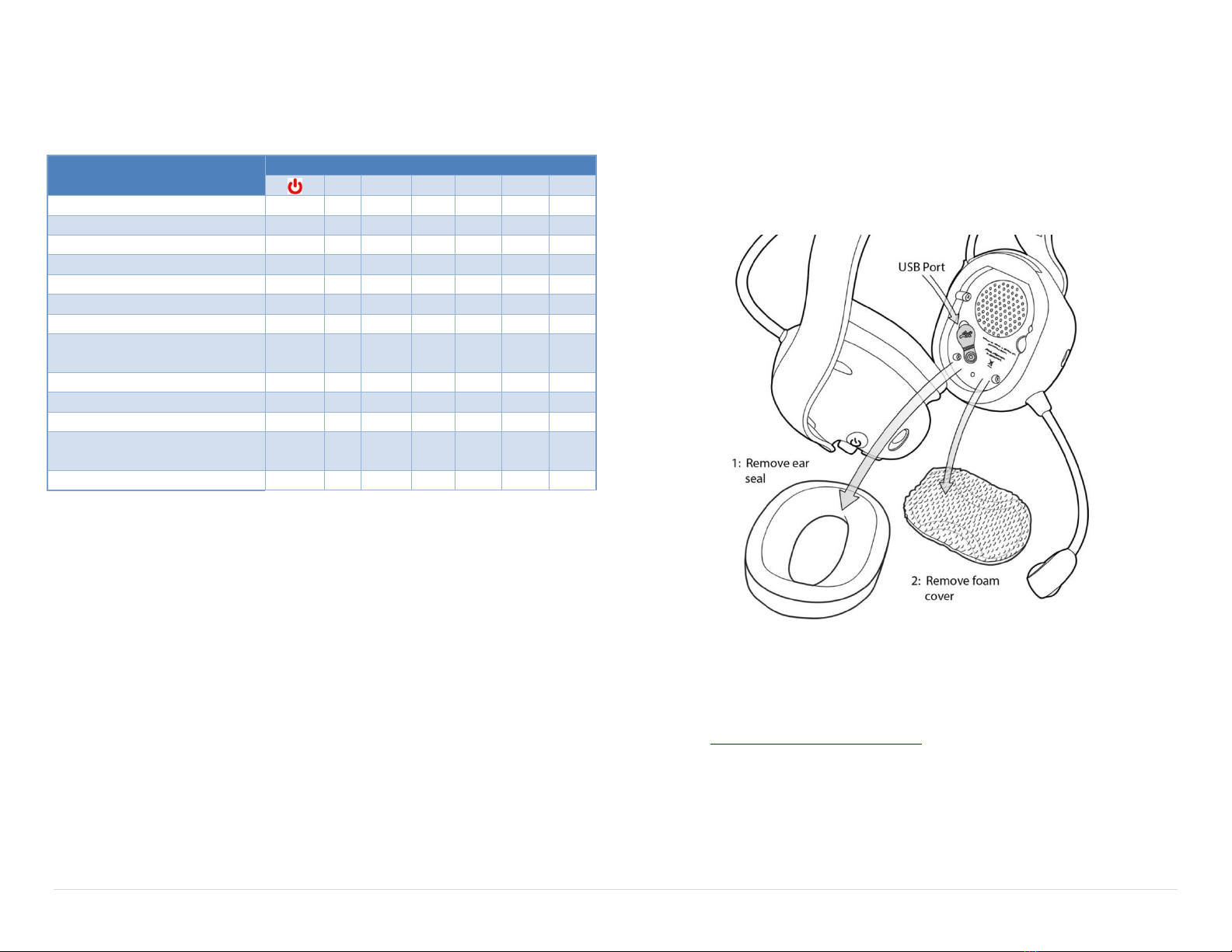

PC Programming
All 500 Series Headsets have a USB port located inside the left dome. A Windows PC
with the Sonetics Configurator software installed is required to adjust headset
features. Refer to the software for additional information.
Locating the USB Port
Installation of Sonetics Configurator Software for
Windows
1. Go to www.FirecomCorp.com/software.
2. Download and Install the software for the Headset.
3. Plug in the USB cable from the Headset to the computer.
4. Open the software.
5. Follow the directions of the configurator software.

14 | P a g e
Care and Maintenance
Regularly inspect your ear seals and mic muff for wear. Replace as needed. If your
headset sustains significant damage (holes or cracks in the ear domes, or
headband, etc., the Headset should be immediately repaired or replaced.
Clean the Headset and ear seals with a mild soap and water mixture only. The
foam mic muff may be removed and cleaned using a mild detergent, or replaced
by ordering from Firecom.
WARNING: Do not store the Headset in high temperature environments or
direct sunlight.
Mic Muff Replacement
Replace the mic muff every 3 months for optimal performance.
To replace the Mic Muff:
1. Remove the old mic muff and o-ring holding it in place.
2. Slide the new mic muff over the microphone.
3. Slide the o-ring over the mic muff to hold it in place on the microphone as
shown.
Ear Seal Replacement
Replace the ear seals every 6 months for optimal performance and to maintain the
headset NRR.
WARNING: Worn ear seals will degrade the Headsets ability to reduce noise
and protect the users hearing.
To replace the ear seals:
1. Remove the old ear seal by pulling on the edge and peeling it over the lip
of the ear dome.
2. Starting at the bottom, place the new ear seal on the dome. Pull over the
lip of the ear dome using your finger. Do not use any sharp tool as it may
damage the ear seal and reduce hearing protection.

15 | P a g e
Troubleshooting
If you are experiencing symptoms not covered here, or are having difficulty
troubleshooting, call us or visit our website. We’re here to help.
Service Contact:
Phone: [phone], [e-mail]
General Connection Issues
1. Verify the Headset is turned on.
2. Verify the battery is charged and within its useable life.
Wired Auxiliary
1. Verify the connection to the 2-way radio.
2. Verify the programming in the radio.
3. Verify the PR adaptor to the make and model of the radio.
4. Verify the headset radio settings.
Wireless Bluetooth
Disconnects, intermittent connectivity, or difficulty finding, pairing, or
connecting.
1. Verify your device and Headset model are Bluetooth compatible.
2. Check that you are in range of the Bluetooth accessory with which you are
trying to pair your device.
3. Turn on Bluetooth on your device.
4. Turn on discoverable mode on your device.
5. Make sure no previously paired devices are turned on.
6. Cycle the power on the Headset and/or the device being connected to.
7. On your device, find the Headset in the list. If your device says Not Connected,
tap the name of your Headset to attempt to connect it.
8. Fully charge both Headset and the device.
9. Delete the Headset from your device and create a new pairing.
10. Update your device to the latest Bluetooth firmware.
Wireless DECT
Disconnects, intermittent connectivity, or difficulty finding, pairing, or
connecting.
1. Verify the Headset is a Wireless DECT model.
2. Check that you are in range of the DECT Wireless Base Station.
3. Verify the Wireless Base Station and the Headset are in pairing mode.
4. The Firecom DECT7 Wireless Headset will only pair with other Firecom DECT7
Wireless Base Stations.
5. Cycle the power on the Headset and/or the Wireless Base Station.
6. Fully charge both the Headset and the Wireless Base Station (if applicable).
7. Check location of the Wireless Base Station and external antenna location. The
Wireless Base Station should not be installed inside metal enclosures or any
other location closer than 4 inches to a metal object or surface.
No audio communication and/or PTT from or to the base.
1. Ensure that power is turned on to the Wireless Headset and it is connected.
2. Ensure that the modular communication cable is connected between the
Wireless Base Station and Intercom.
3. Check the modular communication cable between the Wireless Base Station
and Intercom for continuity.
4. Ensure correct polarity of the modular plug on both ends of the modular cable.
5. Verify the Headset radio settings.
Poor quality audio, low or distorted received or transmitted audio.
1. Verify the ‘talk’ text is facing the user’s mouth on the microphone and located
within 1/8” of the user’s mouth.
2. Make sure that the volume level is properly adjusted on the Intercom. For
Digital Intercoms, set the volume level as high as possible on the Intercom
without causing distorted audio on the Headset, and then adjust the volume
control on the Headset for comfortable listening.
3. Ensure that the proper Wireless Base Station model for your Intercom is used.
4. Poor quality audio can be caused by a defective Headset. Confirm operation
with a Headset known to be functioning properly.
Audible interference from portable and mobile radios.
The wireless system is tested and proven to be immune to interferences from
portable and mobile communication equipment operated anywhere in the
frequency spectrum from 30MHz to 18GHz. However, care should be taken with
installation of communication cables between the Intercom and the Wireless Base
Station. These cables should be routed away from portable and mobile radios and
antenna cabling in order to prevent RF interference from such devices.
If a problem persists contact Firecom Service for additional help.

16 | P a g e
Glossary
Wireless Base Station
Wireless DECT7 base unit through which Wireless DECT7 Headsets pair and link for
voice communications.
Bluetooth
Wireless standard in the 2.4GHz wireless range.
dBA
A-Weighted SPL (Sound Pressure Level) unit of measure.
DECT
Digital Enhanced Cordless Telecommunications. A wireless standard in the 1.9GHz
wireless range.
DECT7
DECT7 has all of the benefits of DECT with wider audio bandwidth and added
features such as multiple channels and broadcast mode.
Link(ing)
When a paired device re-connects to a paired device.
Pair(ing)
To create a semi-permanent wireless connection to a Base Station
PTT
Push to Talk. Typically used to describe radio transmitting.
SPL
Sound Pressure Level. Measurement of sound loudness. Measured in dBA.

17 | P a g e
Specifications
Headset
Weights
Over Head: 15.8oz / 448g | 17.8oz / 504g with Ruggedizers
Behind Head: 16.2oz / 458g | 18.1oz / 514g with Ruggedizers
Power
Battery: 3.7V rechargeable lithium ion
Battery Life: >24 hours @ 25C
Protection: Over voltage, under voltage, over current and over
temperature protection
AC Charge source: Supplied 12VDC, 500mA wall charger
DC Charge source: 5VDC to 16VDC, 1.5A minimum
Charge Time: <4 hours for fully discharged battery
Environmental
Operating temperature: -22°F to 140°F / -30°C to 60°C
Storage temperature: -4°F to 122°F / -20°C to 50°C
Charging Temperature: 32°F to 113°F / 0°C to 45°C
IP-Rating: IP66
Regulatory
FCC
FCC ID FHW507: V9N950325200V1
FCC ID UHW507: V9N950325200V1
FCC ID UHW505: V9N950325300V1
FCC ID UHW503: V9N950325300V1
FCC ID DW501B: V9N950325400V1
FCC Part 15: All Models
Industry Canada
IC UPN FHW507: 7895A-95032520
IC UPN UHW507: 7895A-95032520
IC UPN UHW505: 7895A-95032530
IC UPN UHW503: 7895A-95032530
IC UPN DW501B: 7895A-95032540
ISO
Conducted Transients: 7637-2
Quality Management System Control: ISO 9001:2008
MIL SPEC
Chemical Exposure: Intermittent Exposure MIL-STD 810 Method 504:
Isopropyl alcohol, Formula 409®, WD-40®, Windex®,
Bleach/Water (1:1), Mineral oil, Synthetic Sweat,
Jet A Fuel, Kerosene, Gasoline,
Deicing (Ethylene or Propylene Glycol mixtures),
Potassium-Acetate based solution, Ansulite.
Not Approved for exposure to Skydrol®.
Humidity: MIL-STD 810F and 810G
Temperature Shock: MIL-STD 810F and 810G
NFPA
NFPA1500: This device meets requirements
NRR
Behind Head NRR Rating: 20dB
Over Head NRR Rating: 20dB
SAE
Conducted Immunity: J1113-11
Electrostatic Discharge: J1113-13
Radiated Emissions: CISPR 25
Radiated Immunity: ISO 11452-2
Salt Spray: J1455, Sec. 4.3
Vibration: J1455 Sec. 4.9
UL
UL1642 Standard for Lithium Batteries
UN
UN38.3 UN Transportation Testing for Lithium Batteries
