Firegear PRO Series User manual

Outdoor Fire Pit Pro Spur Burners with
Match Throw (MT) Ignition System
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
Warning: For Outdoor Use Only
INSTALLATION PRECAUTION:
This system requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation will void the warranty.
Natural Gas Models Propane Gas Models Description
FPB-19RPSBR14MT-N FPB-19RPSBR14MT-P 19” Round Pan with 14” Pro Brass Burner
FPB-25RPSBR21MT-N FPB-25RPSBR21MT-P 25” Round Pan with 21” Pro Brass Burner
FPB-29RPSBR21MT-N FPB-29RPSBR21MT-P 29” Round Pan with 21” Pro Brass Burner
FPB-33RPSBR21MT-N FPB-33RPSBR21MT-P 33” Round Pan with 21” Pro Brass Burner
FPB-20SPSBR14MT-N FPB-20SPSBR14MT-P 20” Square Pan with 14” Pro Brass Burner
FPB-26SPSBR21MT-N FPB-26SPSBR21MT-P 26” Square Pan with 21” Pro Brass Burner
FPB-32SPSBR21MT-N FPB-32SPSBR21MT-P 32” Square Pan with 21” Pro Brass Burner
Round Pan
MODEL:
SERIAL #:
PN#90088
Square Pan
“PRO SERIES”

FPB Pro Spur Burners Fire Pits with MT System REV. A Page 2
CALIFORNIA PROPOSITION 65
WARNING
This product is designed to operate with one of the following fuel sources: Liquid Propane or Natural Gas. The fuel used to
operate this product, and the products of combustion of such fuel, can expose you to chemicals including Benzene which is known to
the State of California to cause cancer, birth defects and other reproductive harm and Carbon Monoxide which is known to the State
of California to cause birth defects or other reproductive harm.
(For more information go to: www.p65Warnings.ca.gov.)
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed area can kill you.
Never use this appliance in an enclosed
space such as a camper, tent, car or home.
If you smell gas:
1. Shut off gas to the appliance
2. Extinguish any open ame.
3. If odor continues, keep away from
the appliance and immediately call
your gas supplier or re department.
DANGER WARNING
Do not store or use gasoline or other
ammable vapors and liquids in the
vicinity of this or other appliances.
Any LP cylinder not connected for use
shall not be stored in the vicinity of this
or other appliances.
WARNING
Do not leave unattended during use.
Do not use for cooking.
Follow all gas leak procedures in this
manual prior to operation.
WARNING
Improper installation, adjustment,
alteration, service or maintenance
can cause injury or property damage.
Read the installation, operating and
maintenance instructions thoroughly
before installing or servicing this
equipment.
WARNING
If the information in these instructions is not followed exactly, a re or explosion
may result causing property damage, personal injury or death.
FOR YOUR SAFETY
Do not store or use gasoline or other ammable vapors and liquids in the vicinity
of this or other appliances.

REV. A Page 3
FPB Pro Spur Burners Fire Pits with MT System
Specications 4
Gas Pipe Sizing 5
Removing Fire Pit from Carton 6
Preparation for Non-Combustible Structure 7
Hard Piping to Fire Pit 7
Cross Ventilation Requirements 7
Installation into an Approved Enclosure 8
Requirements 8
Installing Key Valve 8-9
Typical Installation Drawing 9
Operation 10
Lighting Instructions 10
Replacement Parts 11
Replacement Parts List 12
Fire Pit Maintenance/ Trouble Shooting 13
Optional Accessories 13
TABLE OF CONTENTS
NOTE: An exterior lid/cover is not required but highly recommended when the re pit is not in use. Even though
re pits are designed for outdoors they are not impervious to all weather
conditions if not protected. See the accessory page for information and sizes.
All media (i.e. lava rock, lava stones, lava boulders and re glass) has the potential of thermal
spalling. This is a process that may occur when media is wet and moisture gets trapped inside of
the material due to rapid temperature differences. When this happens the media has the potential
to crack or “pop” outside the replace.
WE HIGHLY RECOMMEND COVERING ALL FIRE FEATURES WHEN NOT IN USE
The use of a cover can lessen the impact of thermal spalling; however, heavy rains, high
humidity and the presence of moisture may still cause the media to pop.
ALWAYS USE CAUTION WHEN USING THE FIRE FEATURE
Extra caution should be taken when lighting a replace when heavy rains, high humidity and
moisture are present. Light the replace; leave the area allowing any moisture in the media to
dissipate. We strongly recommend that during this drying out time that you monitor the re feature
from a distance. This drying out period should be no less than 30 minutes. Continue monitoring
the ame from distance to ensure that all popping has ceased before fully enjoying the re.
Congratulations! You have just purchased a Firegear Outdoors “Pro Series” re pit that includes a
304 Stainless Steel burner pan with a Brass Burner. The Brass Burners come in two diameter sizes,
14-inch, and 21-inch models. Each burner leg incorporates individual injectors that take the place of
a standard main burner orice. Each burner is unique in the fact that the14-inch burner has three
(3) injectors per leg and the 21-inch burner has four (4) injectors per leg. These injectors provide a
unique ame pattern that differs from a typical steel burner.

FPB Pro Spur Burners Fire Pits with MT System REV. A Page 4
SPECIFICATIONS
Table 1 Fire Pit Specications
Fig. 1 Fire Pit Dimensions; refer to Table 1.
(Dimensions applicable to round or square pans)
Table 2 Btu Specications
Pressure NG LP
Min. Inlet 3.5” WC (0.87 kPa) 8.0” WC (1.99kPa)
Max. Inlet 10.5” WC (2.61kPa) 13.0” WC (3.23 kPa)
Normal Inlet 7.0” WC (1.74 kPa) 11.0” WC (2.73 kPa)
Table 3 Gas Pressures
Disclaimer: Btu listings are based on 7.0”WC for Natural Gas and
11.0”WC for Liquid Propane (LP) at the burner orice. Flex line
size and proper gas pipe sizing will also affect Btu’s. As a result
your Btu’s may vary slightly from Table 2 specications.
Fig. 2 Clearance to Combustibles (Not
to be used in an enclosed space)
F
E
G
Natural Gas Models: Propane Gas Models: A
Depth
B
Inside Pan
Dimension
C
Burner
Size
D
Ground
Level
E
Side
Wall
F
Combustible
Ceiling
G
Combustible
Floor
FPB-19RPSBR14MT-N FPB-19RPSBR14MT-P 2½” 19” Rd. 14” 8” 36” 120” 18”
FPB-25RPSBR21MT-N FPB-25RPSBR21MT-P 2½” 25” Rd. 21” 8” 36” 120” 18”
FPB-29RPSBR21MT-N FPB-29RPSBR21MT-P 2½” 29” Rd. 21” 8” 36” 120” 18”
FPB-33RPSBR21MT-N FPB-33RPSBR21MT-P 2½” 33” Rd. 21” 8” 36” 120” 18”
FPB-20SPSBR14MT-N FPB-20SPSBR14MT-P 2½” 20” Sq. 14” 8” 36” 120” 18”
FPB-26SPSBR21MT-N FPB-26SPSBR21MT-P 2½” 26” Sq. 21” 8” 36” 120” 18”
FPB-32SPSBR21MT-N FPB-32SPSBR21MT-P 2½” 32” Sq. 21” 8” 36” 120” 18”
Models:
N= Natural
P= Propane
Injector
Size
BTU’s
Natural
FPB-19RPSBR14MT-N
FPB-19RPSBR14MT-P
#61
(0.039)
125,000
(33.63KW)
FPB-25RPSBR21MT-N
FPB-25RPSBR21MT-P
#61
(0.039)
175,000
(51.28KW)
FPB-29RPSBR21MT-N
FPB-29RPSBR21MT-P
#61
(0.039)
175,000
(51.28KW)
FPB-33RPSBR21MT-N
FPB-33RPSBR21MT-P
#61
(0.039)
175,000
(51.28KW)
FPB-20SPSBR14MT-N
FPB-20SPSBR14MT-P
#61
(0.039)
125,000
(33.636KW)
FPB-26SPSBR21MT-N
FPB-26SPSBR21MT-P
#61
(0.039)
175,000
(51.28KW)
FPB-32SPSBR21MT-N
FPB-32SPSBR21MT-P
#61
(0.039)
175,000
(51.28KW)
A
B
Pan Side View

REV. A Page 5
FPB Pro Spur Burners Fire Pits with MT System
REFERENCE
GAS PIPE SIZING
Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4”
10 275 567 1071 2205 3307 6221 10140 17990 35710
20 189 393 732 1496 2299 4331 7046 12510 25520
30 152 315 590 1212 1858 3465 5695 10110 20620
40 129 267 504 1039 1559 2992 4778 8481 17300
50 114 237 448 913 1417 2646 4343 7708 15730
60 103 217 409 834 1275 2394 3908 6936 14150
70 89 185 346 724 1086 2047 3329 5908 12050
80 78 162 307 630 976 1811 2991 5309 10830
90 69 146 275 567 866 1606 2654 4711 9613
100 63 132 252 511 787 1496 2412 4281 8736
125 54 112 209 439 665 1282 2083 3618 7382
150 48 100 185 390 590 1138 1808 3210 6549
175 43 90 168 353 534 1030 1637 2905 5927
200 40 83 155 325 491 947 1505 2671 5450
300 37 77 144 303 458 887 1404 2492 5084
NATURAL GAS : PIPE SIZING CHART
•Natural Gas (NG) flow is given in
thousands of BTU/hr. = 1cubic
foot of NG gas - 1000 BTU
•Nominal pressure at the burner
for Natural Gas is 3.5” of water
column. (Typical machine supply
5”-7”)
•Pipe length must include
additional length for all fittings.
Add approximately 5 feet of pipe
per fitting.
•Natural Gas Example: A machine
with a burner that requires
440,000 BTU would need a 1 -1/4”
pipe for a 20” long run.
LIQUID PROPANE : PIPE SIZING CHART
NOTE: The sizing charts above list the specific pipe sizes required for the amount of BTU’s for a new gas line installations. If you
are using an existing gas line you must take into consideration the existing gas line capacities to ensure you will have proper
pressure. This chart is for reference only, we recommend you consult with a Licensed Plumber/Gas Fitter or NFPA54 (National Fuel
Gas Code - current edition) for more details.
Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4”
10 108 230 387 793 1237 2259 3640 6434 -
20 75 160 280 569 877 1610 2613 5236 9521
30 61 129 224 471 719 1335 2165 4107 7859
40 52 110 196 401 635 1143 1867 3258 6795
50 46 98 177 364 560 1041 1680 2936 6142
60 42 89 159 336 513 957 1559 2684 5647
70 38 82 149 317 476 896 1447 2492 5250
80 36 76 140 239 443 840 1353 2315 4900
90 33 71 133 275 420 793 1288 2203 4667
100 32 68 126 266 411 775 1246 2128 4518
125 28 60 117 243 369 700 1143 1904 4065
150 25 54 105 215 327 625 1008 1689 3645
175 23 50 93 196 303 583 993 1554 3370
200 22 47 84 182 280 541 877 1437 3160
300 17 37 70 145 224 439 686 1139 2539
•Liquid Propane (LP) Gas flow is
given in thousands of BTU/hr. =
1cubic foot of LP gas - 2500 BTU.
•This chart refers to low pressure LP,
after regulation, Standard nominal
pressure at the burner for Liquid
Propane Gas is 11” of water column.
•Pipe length must include additional
length for all fittings. Add
approximately 5 feet of pipe per
fitting.
•LP Example: A machine with a
burner that requires 440,000 BTU
would need a 1” pipefor a 20’ long
run.
GAS PIPE SIZING CHART
Table 4 Gas Pipe Sizing Chart

FPB Pro Spur Burners Fire Pits with MT System REV. A Page 6
MT Burner Pan Assembly
Carton Contents
REMOVING FIRE PIT FROM CARTON
The re pit comes assembled and requires a gas
connections after it is installed into the enclosure.
Open carton and remove contents. The box includes a ex
gas line, key valve, ange, key and ared tting with nipple.
Inspect for any damage or missing parts. See Fig. 4.
Install the ared tting and nipple into the bottom of the
burner and secure into place. See Fig. 5. Note: Check for
any gas leaks after gas is connected and turned ON.
Fig. 3 Shows carton contents. Note: Round pan was illustrated for this drawing.
Flared Fitting
& Nipple
Fig. 4 Installing nipple into bottom of burner.

REV. A Page 7
FPB Pro Spur Burners Fire Pits with MT System
WARNING: Proper clearances from combustible materials must be maintained from all sides, top and bottom of this
appliance. Use the specications listed on page 4 for proper clearance to combustibles.
PREPARING A NON-COMBUSTIBLE STRUCTURE
The re pit can be installed on a at, stable surface, away from any combustible materials. Install Fire pit on any level,
outdoor non-combustible, at stable surface or a combustible oor according to the clearances specied in this manu-
al. NOTE: Do not place re pit directly on grass, dirt, or rocks this may prevent proper ventilation (Fig.1, pg. 4). Ensure
proper water drainage is also incorporated into the re pit enclosure.
HARD PIPING TO FIRE PIT WITHOUT GAS PROXIMITY
NOTE: We recommend using ¾” black iron pipe; however please refer to the NFPA54 (National Fuel Gas Code) for
proper pipe sizing when exceeding 20-feet in length for re pits rated above 100,000 Btu’s.
1. Turn OFF gas supply system. NOTE: All gas connections (except for brass to brass) require the following. Clean pipe
threads using either a wire brush or steel wool. Apply pipe sealant to the ttings before making any connection.
BE CAREFUL! Ensure all gas connections are snug, but do not over tighten!
2. Extend the gas supply system using minimum of ¾” black iron pipe or an approved exible gas line from existing
house supply. This can be accomplished by teeing off or tapping into a gas line connection. Install necessary pipe for the
distance required and then install a manual shut-off valve at the exterior house wall. If pipe is to pass through a foundation
or house wall, make sure to re-seal the area around the pipe with weather sealant.
3. The primary gas shut-off (not supplied) will require a ½” male ared tting to enable connection of the stainless steel
ex gas line supplied with the re pit (see Fig. 7 page 9).
IMPORTANT
Installation of Natural or LP gas should be done by a qualied
installer, service agency or gas supplier. This appliance must
be isolated from the gas supply piping system by closing its
manual shutoff valve during any pressure testing of the gas
supply piping system at test pressures equal to or less than
½” psig (3.5kPa)
VENTILATION FOR NON-COMBUSTIBLE ENCLOSURE
Fire pits are subjected to many outdoor elements such as rain,
snow, wind, heat or cold. A minimum of 18 square inches
(per side) of cross ventilation is required to keep the
components in good working order. Use Fig. 5 as guide to
assist to incorporate proper ventilation.
Fire Pit
Enclousure
(2) 6”x12”
Fire Pit Pan/Disc
Examples of Cross Ventilation
2- Firegear 6 x12 vents
(Model # VENT-KIT-6X12)
Cross Flow Ventilation
(Min. 18 Sq. In. Per Side)
Fig. 5 Cross Ventilation Example

FPB Pro Spur Burners Fire Pits with MT System REV. A Page 8
REQUIREMENTS
1. Only non-combustible materials should come in direct contact with any part of the re pit. Underneath area should
be non-combustible or a at level combustible surface according to the clearances specied in this manual.
2. We recommend using ¾” black iron pipe; however please refer to the NFPA54 (National Fuel Gas Code) for
proper pipe sizing when exceeding 20-feet in length for re pits rated above 100,000 Btu’s.
3. Determine the size of the round or square re pit you are preparing to install (Refer to page 4).
4. You must provide a round or square opening out to place the re pit into the non-combustible enclosure.
Do not exceed the maximum opening from Table 1, dimension B.
5. Follow the local code requirements for the gas type being used. This re pit should be installed in accordance with
local codes and ordinances or in the absence of local codes, with the latest National Fuel Gas Code, ANSI Z223.1
NFPA54 or CSA B149.1, Natural and Propane Installation Code in Canada.
6. Fire pits create high temperatures, it is very important to have any combustibles at a safe distance.
7. CAUTION: A minimum of 18 square inches of cross ventilation (per side) is required to keep the enclosure
dry.
8. These products are designed for outdoor use only. Not approved for any indoor use.
9. This re pit is designed to have lava rock completely covering the spur burner, so that the burner is not visible. Do
not cover more than 1” above the top of the burner and do not block the injectors with any media. When purchasing
lava rock use 1” diameter as a base to ll the burner pan.
10. Gas lines and ttings must be installed in to the non-combustible structure. All gas connections must be leak tested
before installation of the re pit. Soapy water leak detection is required before regular use of the re pit.
11. Do not use material that will absorb moisture over time and will not release this moisture quickly. Moisture can boil in
this material and can rapidly break apart and cause damage or personal injury.
12. Never leave any other combustible material on top of the re pit. This could cause unsafe operation of this system
and damage to the component that will not be covered under our warranty.
Ensure proper water drainage is also incorporated into the re pit enclosure.
INSTALLATION OF FIRE PIT INTO AN APPROVED ENCLOSURE
INSTALLING KEY VALVE
The key valve contents: 1- key valve, 1- key and 1- ange. (See Fig. 6). The valve requires a 1¼” round clearance hole
in the non-combustible enclosure wall. See the instructions supplied with the key valve for more specic details. Note: Be
sure to leak test all tting before operation. Fig. 7 shows an example of a typical installation.
Primary Gas
Supply
ON
OFF
Fig. 6 Key valve components.

REV. A Page 9
FPB Pro Spur Burners Fire Pits with MT System
Key Valve
Gas Supply
Fire Pit Pan
Non-Combustible
Fire Pit Enclousure
Shut-O
Pro Spur Burner
Key Valve Flange
Non-
Combustible
Wall Material
Non-
Combustible
Wall Material
Key Valve
Primary Gas
Supply
K
e
y
V
a
l
v
e
S
i
d
e
V
i
e
w
D
e
t
a
i
l
Fig. 7 Typical installation.
NOTE: Key valve and exible gas lines are
supplied. Gas shut-off is not supplied.
Note: A 1¼” x 2” black iron or galvanized
coupler/nipple (not supplied) can be used
as a spacer between the manual valve
and the valve ange to add additional
support to hold the manual key valve in
place.
Key Valve Flange
Non-
Combustible
Wall Material
Non-
Combustible
Wall Material
Key Valve
Black Iron
Nipple

FPB Pro Spur Burners Fire Pits with MT System REV. A Page 10
CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to
avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance.
WARNING: Do not use this appliance if any part has been under water. Immediately call a qualied service technician
to inspect the appliance and to replace any part of control system and any gas control, which has been under water.
OPERATION
SAFETY WARNINGS
1. Never leave the re pit unattended during operation.
2. Clothing or other ammable materials should not be placed on or near the appliance.
3. Any guard or other protective device removed for servicing the appliance must be replaced prior to operating the
appliance.
4. Installation and repair should be done by a qualied service person. The appliance should be inspected before
use and at least annually by a qualied service person. More frequent cleaning may be required as necessary. It
is imperative the control compartment, burners and circulating air passageways of the appliance be kept clean.
5. Inspect the fuel supply connection before each use of the appliance.
6. Temporary storage of this appliance indoors is permissible only if it has been disconnected from its fuel supply
(Natural or L.P. gas line).
WARNING
1. This appliance is hot when operated and can cause severe burns if contacted.
2. Do not burn any solid fuels in this appliance.
LIGHTING INSTRUCTIONS
Key
Fig. 9 Inserting Key into Valve
ON
OFF
Fig. 8 Key Valve Face
Butane Lighter
Fig. 10 Lighting re pit with lighter
READ ALL WARNING AND SAFETY INFORMATION ABOVE BEFORE
ATTEMPTING TO LIGHT FIRE PIT
CAUTION: Ensure you have leak tested the re pit before operating.
TURNING ON FIRE PIT
1. Insert key into shut-off valve and secure into square end (see Figs. 8-10).
2. Light a long match or butane lighter and hold it near the burner.
3. Turn the key counter-clockwise in gas valve (until it stops) to allow gas to ow and
simultaneously apply the long burning match or Butane lighter as close to the end
burner as possible to light the re pit.
4. Gas should ignite within 10 seconds or less. If re pit does not light within 10 seconds
turn key clockwise to turn OFF the gas supply. Ensure there is not too much media on
top of the burner that might inhibit gas ow and try again in 5-minutes.
TURNING OFF FIRE PIT
1. Insert key into shut-off valve and secure into square end.
2. Turn key clockwise until it stops.
3. After cooling off install cover.

REV. A Page 11
FPB Pro Spur Burners Fire Pits with MT System
MT REPLACEMENT PARTS
12
6
3
8
4
9
10
Drawings not to scale.
ON
OFF
7
5

FPB Pro Spur Burners Fire Pits with MT System REV. A Page 12
19-inch Round Stainless Pan 1 PAN-SS19R
1 25-inch Round Stainless Pan 1 PAN-SS25R
1 29-inch Round Stainless Pan 1 PAN-SS29R
1 33-inch Round Stainless Pan 1 PAN-SS33R
2 20-inch Square Stainless Pan 1 PAN-SS20SF
2 26-inch Square Stainless Pan 1 PAN-SS26SF
2 32-inch Square Stainless Pan 1 PAN-SS32SF
3 14-inch Pro Spur Burner FG-PSBR-BS14
3 21-inch Pro Spur Burner 1 FG-PSBR-BS21
4 ½” Flex Gas Line (46-inch Length) 1 T200-9898-46
5½” MIP x 2” Nipple 1 113SS4-D2
6 Key Valve 1 BVL2S
7 12 Inch Chrome Key 1 KEY-PC-12
8 Chrome Cover Plate 1 CVR-BVL2CP
9 ½” NPT Male to ½” Male Flare Fitting 1 U1-8D-S
10 ½” NPT Female to Male Flare Fitting 1 U3-8D-S
Item Description Qty. Part Number
MT REPLACEMENT PARTS
1. The re pit should be inspected and cleaned before initial use at least annually by a qualied eld service person.
2. Any component that is found faulty must be replaced with an approved component.
3. Any tampering or modifying with the re pit is dangerous and voids all warranties.
4. During winter months in cold climates and various seasons operation the re pit may be affected by weather
conditions. It is recommended to use a ventilated cover overtop of your re pit to protect it from humid/rainy weather
conditions when not in use. Heavy rains/downpours could affect the re pit operation if not covered; if this occurs
ensure you allow the re pit time to dry out before attempting to operate. NOTE: If a combustible type cover is used
over the re pit when not in use be sure to remove it before operation to prevent a severe safety hazard.
5. Over time stainless steel parts can discolor when heated, usually a golden or brown hue. This discoloration is normal
and does not affect the performance of the appliance.
FIRE PIT MAINTENANCE
TROUBLE SHOOTING
Symptom Remedy
Fire pit won’t light 1. Bleed gas line.
2. Ensure all gas supply lines are turned ON.
3. Ensure there is not too much media over top of burner; it can inhibit gas from owing.
4. Check gas pressure.
Low ame 1. Ensure the base media is at least 1-inch in diameter and top media is no more than 1-inch over
top of burner and do not cover injectors.
2. Ensure all shut-off valves and key valve is fully open. See page 10; Fig. 9
3. Check gas pressure.
Water in my re pit 1. Excess dust/sand material from media may be blocking the weep holes to relieve water.
Remove all media and unplug weep holes. Clean or install new media free of dust and dirt.
2. Ensure re pit enclosure has proper drainage for water and proper ventilation to dry out.

REV. A Page 13
FPB Pro Spur Burners Fire Pits with MT System
ACCESSORIES
The following accessories are available from your local Firegear dealer/distributor.
Each accessory comes with a separate installation manual. Read each instruction thoroughly before installing.
Manual changes often occur, ensure to check the Firegear Outdoor
website for any recent updates and warranty information.
FOR TECHNICAL SERVICE, CALL:
Firegear Outdoors
17322 Gothard St
Huntington Beach, CA 92647
Web Site: www.regearoutdoors.com
[phone]
See Firegear Outdoors catalog for other accessories.
E-STOP
Gas shut-off valve with mechanical
timer and emergency shut-off.
Models:
ESTOP1-0H 1-hour timer
ESTOP2-5H 2.5 hour timer
Paver Vents
Model: PAVER-VENT-4-LNTS
2 - paver brackets, parts and 2 - 4”
vents. Provides 18 sq. in. of ventilation
Model: PAVER-VENT-6-LNTS
2 - paver brackets, parts and 2 - 6”
vents. Provides 18 sq. in. of ventilation
Model: PAVER-VENT-6X12SS
2 - 6”x12” vents and screws.
Provides 18 sq. in. of ventilation
Flexframe
Universal brackets to support a re
pit disc when using paver or other
non-combustible enclosures.
Models: FLEXFRAME-SS (2-piece)
Models: FLEXFRAME-SS3 (3-piece)

FPB Pro Spur Burners Fire Pits with MT System REV. A Page 14
Flared
Fitting &
Nipple
Pro Spur Burner
CVR-BVL2CP
BVL25
U1-8D-S
U1-8D-S
(Fitting)
Fire Pit Disc
Inlet Gas Supply

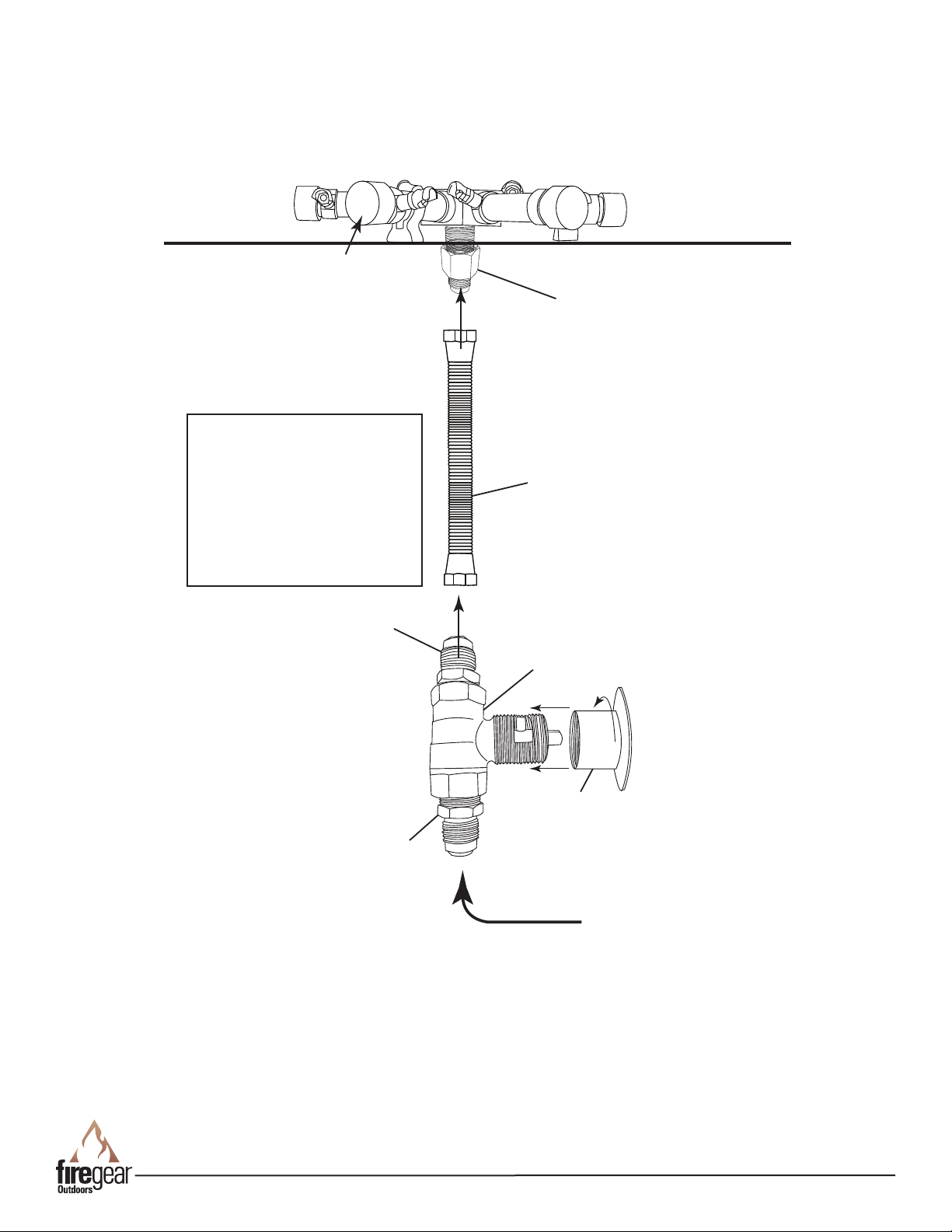

Expanded View of Match Throw (MT) Fire Pits
T200-9898-46
(Flex Connector)
Note: Use joint compound or
Teon tape resistant to all
gasses on all male NPT
threads; not ared ttings.
Ensure all connections are
tight and check for gas leaks
before and after assembly is
complete.
(Not Supplied)

REV. A Page 15
FPB Pro Spur Burners Fire Pits with MT System
FIREGEAR LIMITED WARRANTY - 2021
Firegear Outdoors hereby warrants to the end user that products will be free from material and workmanship
defects that prevent safe and correct operation of the product. The warranty commences from date of sale to
the end user for the following period:
CONSUMER RESIDENTIAL APPLICATIONS –MANUFACTURED AFTER 12/02/2019
BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES
• LIFETIME WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS
• LIFETIME WARRANTY - STAINLESS STEEL BURNERS AND PANS
• LIFETIME WARRANTY - BRASS BURNERS
• FIVE (5) YEAR WARRANTY - GAS VALVE, SPARK IGNITER, PILOT ASSEMBLIES
• FIVE (5) YEAR WARRANTY - AWS ELECONITC IGNITION SYSTEMS (24VAC, 30 VDC)
• FIVE (5) YEAR WARRANTY - TFS/TMSI ELECTRONIC COMPONENTS
• FIVE (5) YEAR WARRANTY –MT COMPONENTS (KEY VALVE)
• FIVE (5) YEAR WARRANTY - REFRACTORY GAS LOG SETS
• FIVE (5) YEAR WARRANTY - READY TO FINISH/ANF FIRE PIT ENCLOSURES
• FIVE (5) YEAR WARRANTY –SKYTECH MANUACFTURED OPTIONAL CONTROLS
OUTDOOR FIREPLACE –KALEA BAY
• LIFETIME WARRANTY - CONSTRUCTION AND MANUFACTURER DEFECTS
• LIFETIME WARRANTY - STAINLESS STEEL COMPONENTS
• FIVE (5) YEAR WARRANTY - GAS VALVE, PILOT ASSEMBLY, POWER SUPPLY, CONTROLS
• FIVE (5) YEAR WARRANTY –SKYTECH MANUACFTURED OPTIONAL CONTROLS
SANCTUARY SERIES –GFRC FIRE FEATURES
• THREE (3) YEAR WARRANTY - GFRC STRUCTURE
• REFER TO THE APPROPRIATE BURNER SYSTEM FOR WARRANTY
WARRANTY COVERS MANUFACTURING DEFECTS OR STRUCTURAL FAILURE. SMALL STRESS CRACKS AND SURFACE
CRAZING ARE A NATURAL OCCURRENCE IN GFRC PRODUCTS AND NOT COVERED BY WARRANTY.
READY TO FINISH/ANF ENCLOSURES
• FRAME – LIFETIME WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS
ACCESSORIES
• LIFETIME WARRANTY - CONSTRUCTION AND MANUFACTURER DEFECTS
• LIFETIME WARRANTY - STAINLESS STEEL COMPONENTS (LIDS, STAINLESS STEEL COVERS)
• ONE (1) YEAR WARRANTY –ESTOP1-OH, ESTOP2-5H WINDSHIELDS, HOSES AND REGULATORS

FPB Pro Spur Burners Fire Pits with MT System REV. A Page 16
COMMERCIAL APPLICATIONS – MANUFACTURED AFTER 12/02/2019
BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES
• TWO (2) YEAR WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS
• TWO (2) YEAR WARRANTY - STAINLESS STEEL BURNERS AND PANS
• TWO (2) YEAR WARRANTY - BRASS BURNERS
• TWO (2) YEAR WARRANTY - GAS VALVE, SPARK IGNITER, PILOT ASSEMBLIES
• TWO (2) YEAR WARRANTY - AWS ELECONITC IGNITION SYSTEMS (24VAC, 30 VDC)
• TWO (2) YEAR WARRANTY – MT COMPONENTS (KEY VALVE)
• TWO (2) YEAR WARRANTY - REFRACTORY GAS LOG SETS
• FIVE (5) YEAR WARRANTY - READY TO FINISH/ANF FIRE PIT ENCLOSURES
• TWO (2) YEAR WARRANTY – SKYTECH MANUACFTURED OPTIONAL CONTROLS
OUTDOOR FIREPLACE – KALEA BAY
• LIFETIME WARRANTY - CONSTRUCTION AND MANUFACTURER DEFECTS
• LIFETIME WARRANTY - STAINLESS STEEL COMPONENTS
• TWO (2) YEAR WARRANTY - GAS VALVE, PILOT ASSEMBLY, POWER SUPPLY, CONTROLS
• TWO (2) YEAR WARRANTY – SKYTECH MANUACFTURED OPTIONAL CONTROLS
SANCTUARY SERIES – GFRC FIRE FEATURES
• THREE (3) YEAR WARRANTY - GFRC STRUCTURE
• REFER TO THE APPROPRIATE BURNER SYSTEM FOR WARRANTY
WARRANTY COVERS MANUFACTURING DEFECTS OR STRUCTURAL FAILURE. SMALL STRESS CRACKS AND
SURFACE CRAZING ARE A NATURAL OCCURRENCE IN GFRC
PRODUCTS AND NOT COVERED BY WARRANTY.
READY TO FINISH/ANF ENCLOSURES
• FRAME – LIFETIME WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS
ACCESSORIES
• LIFETIME WARRANTY - CONSTRUCTION AND MANUFACTURER DEFECTS
• LIFETIME WARRANTY - STAINLESS STEEL COMPONENTS (LIDS, STAINLESS STEEL
COVERS)
• ONE (1) YEAR WARRANTY – ESTOP1-OH, ESTOP2-5H WINDSHIELDS, HOSES AND
REGULATORS

REV. A Page 17
FPB Pro Spur Burners Fire Pits with MT System
The end-user must provide a bill of sale, canceled check, or payment record to verify the purchase date and to establish
the warranty period. This Limited Warranty shall be valid and limited to the
original purchaser only.
WARNING: Any modication to the product will void the warranty.
This Limited Warranty shall be limited to the repair and/or replacement of parts that have been proven to be defective
under normal use and service. All warranty claims must be made by the
OEM/Distributor/Dealer account on behalf of the end-user. You may contact Technical Support at
800-966-8126.
Our Technical Service Department must conrm all approved defects. If a defect is conrmed and we approve the claim,
we will replace such parts without charge. This warranty gives you specic legal rights, and you may also have other
rights, which vary from state to state.
The manufacturer may request defective products returned with an RMA (Return Merchandise
Authorization) issued by Firegear Outdoors for specic products, which is considered to be the
nature of the defect and or warranty claim. Product to be returned should; be packed so as not to incur damages during
transportation. Firegear is not responsible for damages on returned items. RMA is valid for thirty (30) days from the date
issued. The RMA must be clearly marked on the outside of the package.
Please check with your local building code department or governing agency for proper approvals
before purchasing. Firegear Outdoors is not responsible for any violation of local codes.
Travel, diagnostic cost, service labor to repair the defect on warranty parts to and from the factory will be the responsibility
of the owner. We will not be responsible for labor charges and/or damage
incurred in installation, repair, and replacement. Firegear is not responsible for Issues related to gas or electrical installa-
tion.
The Limited Warranty is voided if not assembled, installed, and operated as intended. This Limited Warranty does not
cover any defects due to accident, abuse, misuse, alteration, misapplication,
vandalism, improper installation or improper maintenance or service, removal from the original
location, or re-installation into another location, or failure to perform normal and routine maintenance.
Damage due to severe weather conditions such as hail, hurricanes, earthquakes, tornadoes,
discoloration due to overheating, exposure to chemicals (including chlorine and salt), either directly or in the atmosphere,
or very high humidity, is not covered by this Limited Warranty. Costal, humid and/or salt environments are subject to man-
ufacturer review. All out-of-box claims must be made within 30 days of purchase and must be made prior to installation.
Any product installed damaged will be
considered damaged during installation and not covered under warranty.
There are no other express warranties except as set forth herein. For consumer applications, any
applicable implied warranties of merchantability and tness are limited induration to the period of
coverage of this Limited Warranty. Some states do not allow limitation on how long an implied
warranty lasts, so this limitation may not apply to you.
For Commercial Applications, the liability of Firegear Outdoors is limited to the express terms of this warranty. We ex-
pressly disclaim any and all implied warranties, including any warranties of tness for a particular purpose or merchantabi-
lity.

FPB Pro Spur Burners Fire Pits with MT System REV. A Page 18
Having problems getting the fire pit to operate? Don’t leave
the job site! We want to help! Call 800.966.8126for Technical
Support between the hours of 8:00AM to 5:00PM PST.
BEFORE YOU CALL WE WILL NEED THIS INFORMATION
1. Model Number: ___________________________
2. Serial Number: ___________________________
3. How long is the gas line run? Nat Gas ____ LP Gas ____
4. What size is gas line? _____
5. Inlet Gas Pressure: _____WC
Manifold Gas Pressure: _____ WC
6. What type of media are you using? __________________
7. Review the troubleshooting section in the installation manual.
8. What are the symptoms? Please be prepared to explain.
9. Be prepared to send photos to us when on the phone.
10. Found missing or damaged parts? Let us know ASAP or send photos.
FPSS 3-30-16
Fire Pits
