Firegear FG-FR-6SSK User manual

REV. A Page 1
Fire Ring Kit Description Natural Gas
FG-FR-6SSK 6-inch Fire Ring Burner 50,000 Btu’s
FG-FR-12SSK 12-inch Fire Ring Burner 50,000 Btu’s
FG-FR-18SSK 18-inch Fire Ring Burner 75,000 Btu’s
FG-FR-24SSK 24-inch Fire Ring Burner 100,000 Btu’s
FG-FR-30SSK 30-inch Fire Ring Burner 250,000 Btu’s
FG-FR-36SSK 36-inch Fire Ring Burner 250,000 Btu’s
FG-FR-48SSK 48-inch Fire Ring Burner 250,000 Btu’s
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
Warning: For Outdoor Use Only
Outdoor Fire Pit Burners
Installation and Operating Instructions
Fire Ring Kit
MODELS
INSTALLATION PRECAUTION:
This system requires a minimum 18 square inches (per side) of cross ventilation.
Failure to provide proper ventilation will void the warranty.
PN#90102A
These burners are manufactured from the factory for Natural gas only. If you intend using LP gas then you
must purchase a LP conversion kit. See Table of Contents for LP converstion kit information.

REV. A Page 2
Fire Ring Burners
Fuels used in gas red appliances, and the products of combustion such as fuels, contain
chemicals known to cause cancer, birth defects and/or other reproductive harm.
This warning is issued pursuant to the California Health & Safety Code Sec. 25249.1
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed area can kill you.
Never use this appliance in an enclosed
space such as a camper, tent, car or home.
If you smell gas:
1. Shut off gas to the appliance
2. Extinguish any open ame.
3. If odor continues, keep away from
the appliance and immediately call
your gas supplier or re department.
DANGER WARNING
Do not store or use gasoline or other
ammable vapors and liquids in the
vicinity of this or other appliances.
Any LP cylinder not connected for use
shall not be stored in the vicinity of this
or other appliances.
WARNING
Do not leave unattended during use.
Do not use for cooking.
Follow all gas leak procedures in this
manual prior to operation.
WARNING
Improper installation, adjustment,
alteration, service or maintenance
can cause injury or property damage.
Read the installation, operating and
maintenance instructions thoroughly
before installing or servicing this
equipment.
WARNING
If the information in these instructions is not followed exactly, a re or explosion
may result causing property damage, personal injury or death.
FOR YOUR SAFETY
Do not store or use gasoline or other ammable vapors and liquids in the vicinity
of this or other appliances.

Fire Ring Burners REV. A Page 3
Specications 4
Preparation for Non-Combustible Structure 5
High Elevation 5
Cross Ventilation Requirements 5
Pipe Sizing Chart 6
Installation into an Approved Enclosure 7

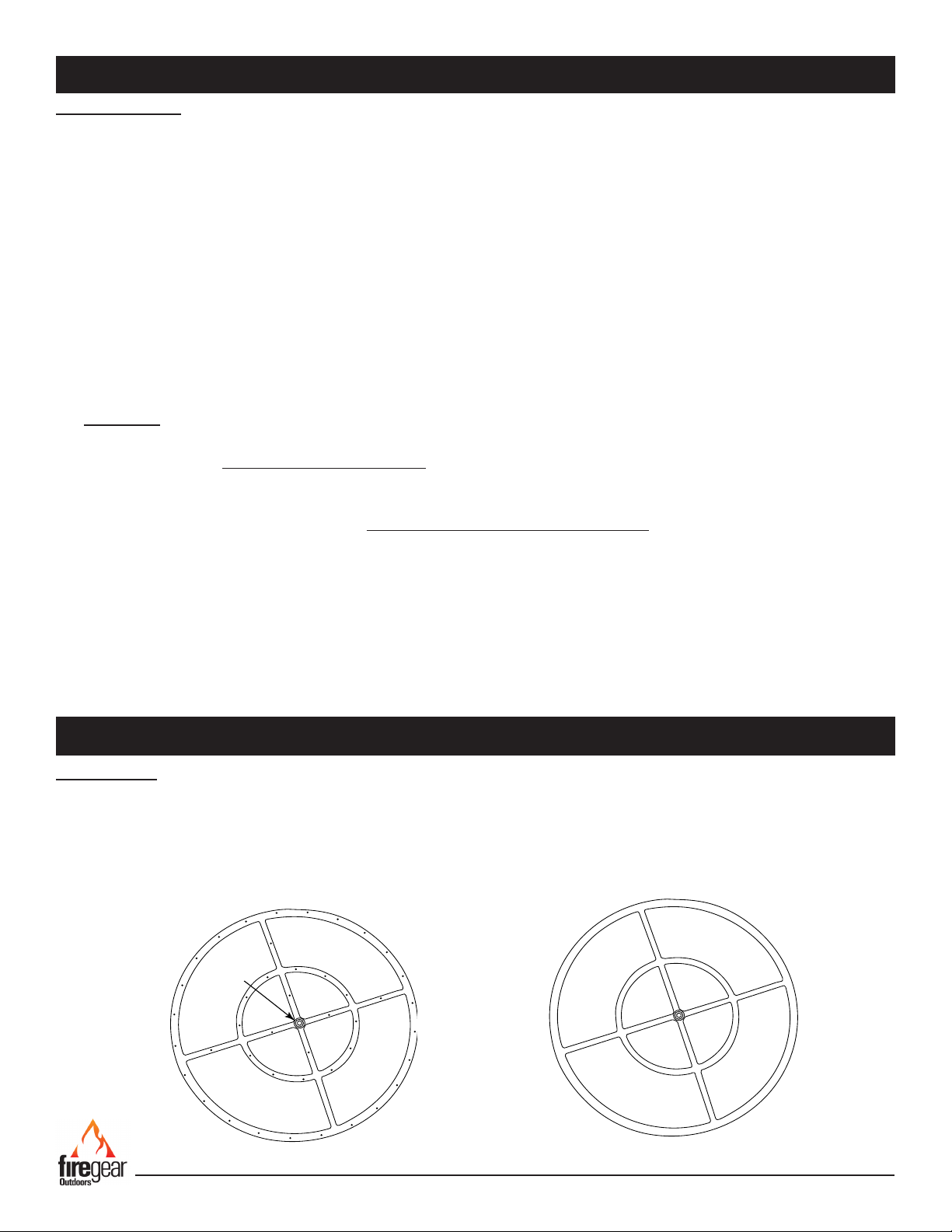

Fire Ring Information 7
Fire Ring Assembly 8-9
Installing Key Valve 9
Typical Installation Drawings 10
Operation 11
Lighting Instructions 11
Replacement Parts 12
Replacement Parts List 13
Fire Ring Part Contents (Models FG-FR-6/12/18/24SSK) 14
Fire Ring Part Contents (Models FG-FR-30/36/48SSK) 15
Converting to LP Gas 16
Optional Accessories 17
Fire Pit Maintenance 18
Trouble Shooting 18
TABLE OF CONTENTS
All media (i.e. lava rock, lava stones, lava boulders and fire glass) has the potential of
thermal spalling. This is a process that may occur when media is wet and moisture gets
trapped inside of the material due to rapid temperature differences. When this happens
the media has the potential to crack or “pop” outside the fire feature.
WE HIGHLY RECOMMEND COVERING ALL FIRE FEATURES WHEN NOT IN USE
The use of a cover can lessen the impact of thermal spalling; however, heavy rains, high
humidity and the presence of moisture may still cause the media to pop.
ALWAYS USE CAUTION WHEN USING THE FIRE FEATURE
Extra caution should be taken when lighting a fire feature when heavy rains, high humidity
and moisture are present. Light the fire feature; leave the area allowing any moisture in
the media to dissipate. We strongly recommend that during this drying out time that you
monitor the fire feature from a distance. This drying out period should be no less than 30
minutes. Continue monitoring the flame from distance to ensure that all popping has
ceased before fully enjoying the fire.
CAUTION
CALIFORNIA PROPOSITION 65
WARNING
This product can expose you to Chromium, which is
known to the state of California to cause cancer
and birth defects or other reproductive harm.
(For more information, go to www.p65warnings.ca.gov)

REV. A Page 4
Fire Ring Burners
FIRE RING SPECIFICATIONS
Table 1 Suggested pan sizes and clearance specications
Fig. 1 Fire Ring Dimensions; refer to Table 1.
Model: Orice NG Natural Gas Btu’s Orice LP
FG-FR-6SSK OAS-NG34 50,000 (14.65kW) OAS-LP47
FG-FR-12SSK OAS-NG34 50,000 (14.65kW) OAS-LP47
FG-FR-18SSK OAS-NG29 75,000 (21.9kW) OAS-LP41
FG-FR-24SSK OAS-NG22 100,000 (29.31kW) OAS-LP35
FG-FR-30SSK OAS-NG25/64” 250,000 (73.26kW) OAS-LP12
FG-FR-36SSK OAS-NG25/64” 250,000 (73.26kW) OAS-LP12
FG-FR-48SSK OAS-NG25/64” 250,000 (73.26kW) OAS-LP12
Table 2 Btu Specications
Table 3 Gas Pressures
Models
Fire Ring Kit
Center
Hub
Size
Pan/Disc
Depth
A
Fire Ring
Diameter
Min. Inside
Pan
Dimension
B
Combustible
Side Wall
C
Combustible
Ceiling
D
Combustible
Floor
FG-FR-6SSK ½” 2 ½” - 3” 6” 10” 36” 96” 18”
FG-FR-12SSK ½” 2 ½” - 3” 12” 16” 36” 96” 18”
FG-FR-18SSK ½” 2 ½” - 3” 18” 22” 36” 96” 18”
FG-FR-24SSK ½” 2 ½” - 3” 24” 28” 36” 96” 18”
FG-FR-30SSK ¾” 2 ½” - 3” 30” 34” 36” 96” 18”
FG-FR-36SSK ¾” 2 ½” - 3” 36” 40” 36” 96” 18”
FG-FR-48SSK ¾” 2 ½” - 3” 48” 52” 36” 96” 18”
Disclaimer: Btu listings are based on 7.0”WC for Natural Gas and 11.0”WC
for Liquid Propane (LP) at the burner orice. Flex line size and proper gas
pipe sizing will also affect Btu’s. As a result your Btu’s may vary slightly from
Table 2 specications.
BEFORE INSTALLING A FIRE RING DETERMINE PAN SIZE TO BE USED:
Fire Ring Kits listed above are not provided with a burner pan for installation. We suggest you provide an appropriate
non-combustible burner pan to install the Fire Ring. Suggested burner pans sizes in Table 1 are strictly recommended
based on the Fire Ring model size. The pans can be round, square, at disc or solid at surface. NOTE: It is
recommended to use 304 Stainless Steel. Burner pans should have ¼” drainage holes to prevent standing water in pan
and the center hole for burner connection should be 1-inch diameter for kits FG-FR-6SSK, FG-FR-12SSK, FG-FR-18SSK,
and FG-FR-24SSK. The FG-FR-30SSK, FG-FR-36SSK, and FG-FR-48SSK models require a 1¼” center hole.
A recommended material thickness for any burner pan or disc is 16 gage. Once a burner pan has been determined then
proceed with this manual to complete the installation.
CAUTION: DO NOT use stiff screen/perforated metal as a burner pan. Some gases are heavier than air and
screen/perforated metal can allow gas to ow downward in an enclosure which could cause delayed ignition or
explosions.
A
C
B
D
C
L
24”
Max
Overhang
(Center Line)
Fig. 2 Clearance to combustibles
Pressure NG LP
Min. Inlet 5.0” WC
(1.24kPa)
10.5” WC
(2.61kPa)
Max. Inlet 10.5” WC
(2.61kPa)
13.0” WC
(3.23kPa)
Normal Inlet 7.0” WC
(1.74kPa)
11.0” WC
(2.73kPa)

Fire Ring Burners REV. A Page 5
PREPARING A NON-COMBUSTIBLE STRUCTURE
The re pit can be installed on a at, stable surface, away from any combustible materials. Install Fire pit on any level,
outdoor non-combustible, at stable surface or a combustible oor according to the clearances specied in this manual.
NOTE: Do not place re pit directly on grass, dirt, or rocks this may prevent proper ventilation Fig. 3. In addition, do not
recess the re pit into the ground. Ensure proper water drainage is also incorporated underneath the re pit
enclosure.
HARD PIPING TO FIRE PIT WITHOUT GAS PROXIMITY
NOTE: Refer to the NFPA54 (National Fuel Gas Code) for proper pipe sizing. See gas line sizing chart on page 6 as a
reference.
1. Turn OFF gas supply system. NOTE: All gas connections (except for brass to brass) require the following. Clean pipe
threads using either a wire brush or steel wool. Apply pipe sealant to the ttings before making any connection.
2. Ensure all gas connections are snug, but do not over tighten! BE CAREFUL!
3. Consult a plumber for proper installation to ensure you are providing adequate gas supply for your application.
4. The primary gas shut-off (not supplied) will require a ½” male ared tting to enable connection of the stainless steel
ex gas line supplied with the re pit (see Fig. 12 page 10).
5. Do not place an LP tank inside any re pit enclosure. Locate all propane (LP) tanks outside the enclosure.
6. To prevent performance problems in Propane (LP) re pits, do not use a Propane tank less than 100lbs. capacity.
IMPORTANT
Installation of Natural or LP gas should be done by a qualied installer, service agency or gas supplier.
This appliance must be isolated from the gas supply piping system by closing its manual shutoff valve during any
pressure testing of the gas supply piping system at test pressures equal to or less than ½” psi (3.5kPa).
VENTILATION FOR NON-COMBUSTIBLE ENCLOSURE
Fire pits are subjected to many outdoor elements such as rain,
snow, wind, heat or cold. A minimum of 18 square inches
(per side) of cross ventilation is required to keep the
components in good working order. Use Fig. 3 as guide to
assist to incorporate proper ventilation.
Fire Pit
Enclousure
(2) 6”x12”
Fire Pit
Examples of Cross Ventilation
3 - 2”x3” Slots Per Side or
2- 1” x 9” Slots Per Side or
2- Firegear 6 x12 vents
Cross Flow Ventilation
(Min. 18 Sq. In. Per Side)
Fig. 3 Cross Ventilation Example
HIGH ELEVATION INSTALLATION
This appliance is listed for elevations from 0-4500 feet in Canada
and the U.S. If elevation exceeds 4500 feet it may be necessary
to decrease the input rating by changing the existing burner orice
to a smaller size. Input should be reduced 4% for each 1000 feet
beyond the 4500 feet above sea level. Check with your local gas
utility for assistance in determining the proper orice in your
location. In some cases the heating value may already be
reduced and downsizing the orice may not be necessary.
WARNING: Proper clearances from combustible materials must be maintained from all sides, top and bottom of this
appliance. Use the specications listed in Table 1 and Fig. 2 for proper clearance to combustibles.

REV. A Page 6
Fire Ring Burners
GAS PIPE SIZING CHART
REFERENCE
GAS PIPE SIZING
Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4”
10 275 567 1071 2205 3307 6221 10140 17990 35710
20 189 393 732 1496 2299 4331 7046 12510 25520
30 152 315 590 1212 1858 3465 5695 10110 20620
40 129 267 504 1039 1559 2992 4778 8481 17300
50 114 237 448 913 1417 2646 4343 7708 15730
60 103 217 409 834 1275 2394 3908 6936 14150
70 89 185 346 724 1086 2047 3329 5908 12050
80 78 162 307 630 976 1811 2991 5309 10830
90 69 146 275 567 866 1606 2654 4711 9613
100 63 132 252 511 787 1496 2412 4281 8736
125 54 112 209 439 665 1282 2083 3618 7382
150 48 100 185 390 590 1138 1808 3210 6549
175 43 90 168 353 534 1030 1637 2905 5927
200 40 83 155 325 491 947 1505 2671 5450
300 37 77 144 303 458 887 1404 2492 5084
NATURAL GAS : PIPE SIZING CHART
•Natural Gas (NG) flow is given in
thousands of BTU/hr. = 1cubic
foot of NG gas - 1000 BTU
•Nominal pressure at the burner
for Natural Gas is 3.5” of water
column. (Typical machine supply
5”-7”)
•Pipe length must include
additional length for all fittings.
Add approximately 5 feet of pipe
per fitting.
•Natural Gas Example: A machine
with a burner that requires
440,000 BTU would need a 1 -1/4”
pipe for a 20” long run.
LIQUID PROPANE : PIPE SIZING CHART
NOTE: The sizing charts above list the specific pipe sizes required for the amount of BTU’s for a new gas line installations. If you
are using an existing gas line you must take into consideration the existing gas line capacities to ensure you will have proper
pressure. This chart is for reference only, we recommend you consult with a Licensed Plumber/Gas Fitter or NFPA54 (National Fuel
Gas Code - current edition) for more details.
Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4”
10 108 230 387 793 1237 2259 3640 6434 -
20 75 160 280 569 877 1610 2613 5236 9521
30 61 129 224 471 719 1335 2165 4107 7859
40 52 110 196 401 635 1143 1867 3258 6795
50 46 98 177 364 560 1041 1680 2936 6142
60 42 89 159 336 513 957 1559 2684 5647
70 38 82 149 317 476 896 1447 2492 5250
80 36 76 140 239 443 840 1353 2315 4900
90 33 71 133 275 420 793 1288 2203 4667
100 32 68 126 266 411 775 1246 2128 4518
125 28 60 11 7 243 369 700 1143 1904 4065
150 25 54 105 215 327 625 1008 1689 3645
175 23 50 93 196 303 583 993 1554 3370
200 22 47 84 182 280 541 877 1437 3160
300 17 37 70 145 224 439 686 1139 2539
•Liquid Propane (LP) Gas flow is
given in thousands of BTU/hr. =
1cubic foot of LP gas - 2500 BTU.
•This chart refers to low pressure LP,
after regulation, Standard nominal
pressure at the burner for Liquid
Propane Gas is 11” of water column.
•Pipe length must include additional
length for all fittings. Add
approximately 5 feet of pipe per
fitting.
•LP Example: A machine with a
burner that requires 440,000 BTU
would need a 1” pipefor a 20’ long
run.
Table 4 Gas Pipe Sizing Chart

Fire Ring Burners REV. A Page 7
REQUIREMENTS
1. Only non-combustible materials should come in direct contact with any part of the re pit. Underneath area should
be non-combustible or a at level combustible surface according to the clearances specied in this manual.
2. Refer to the NFPA54 (National Fuel Gas Code) for proper pipe sizing. Determine the size of the re pit you are
preparing to install (Refer to page 6, Table 4).
3. Determine the size of the round or square re pit you are preparing to install (Refer to page 4).
4. You must provide a round or square opening to place the re pit into the non-combustible enclosure. A minimum
burner pan dimension is listed in Table 1.
5. Follow the local code requirements for the gas type being used. This re pit should be installed in accordance with
local codes and ordinances or in the absence of local codes, with the latest National Fuel Gas Code, ANSI Z223.1
NFPA54 or CSA B149.1, Natural and Propane Installation Code in Canada.
6. Fire pits create high temperatures, it is very important to have any combustibles at a safe distance.
7. Do not ll the enclosure with gravel, rock or sand. The enclosure requires free owing air underneath to keep
enclosure cool, provide ventilation to prevent moisture, and provide an outlet for gas in the case of a gas leak.
8. CAUTION: A minimum of 18 square inches of cross ventilation (opposite sides) is required to keep the
enclosure dry.
9. These products are designed for outdoor use only. Not approved for any indoor use or any enclosed space.
10. This re pit is designed to have Firegear Outdoors lava rock or glass media completely covering the burner tube,
so that the burner is not visible. Do not cover more than 1” above the top of burner. Use lava rock a minimum of 1”
diameter as a base to ll the burner pan. DO NOT USE STONE OR RIVER ROCK.
11. Gas lines and ttings must be installed in to the non-combustible structure. All gas connections must be leak tested
before installation of the re pit. Soapy water leak detection is required before regular use of the re pit.
12. Do not use material that will absorb moisture over time and will not release this moisture quickly. Moisture can boil
in this material and can rapidly break apart and cause damage or personal injury.
13. Never leave any other combustible material on top of the re pit. This could cause unsafe operation of this system
and damage to the component that will not be covered under our warranty.
14. Ensure proper water drainage is also incorporated into the re pit enclosure.
INSTALLATION OF FIRE PIT INTO AN APPROVED ENCLOSURE
FIRE RING INFORMATION
Top Center
Hub

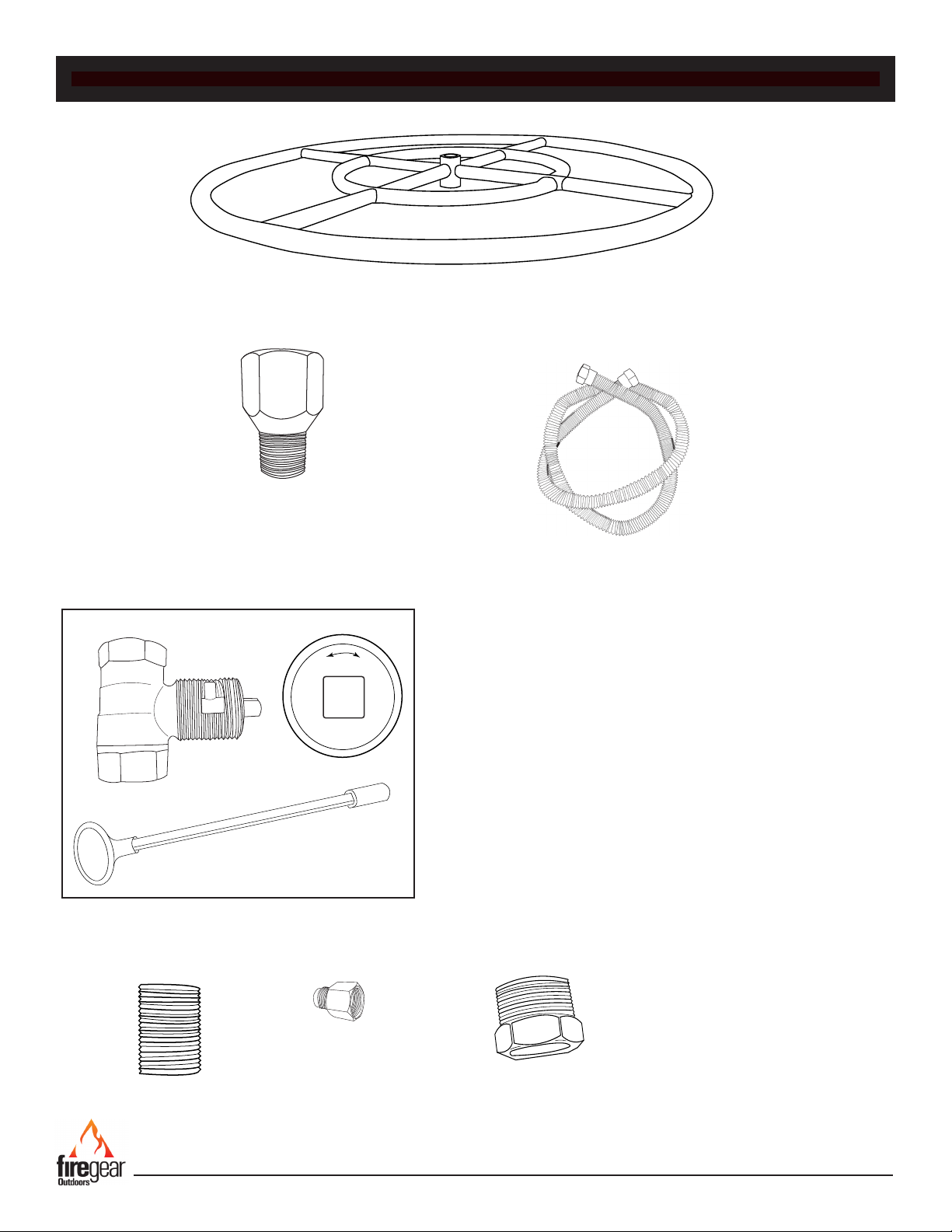

Fire Ring Kits include a manual key valve with 12-inch key, a ex line, and a plug to seal off one end of the top center
hub in the burner. Models FG-FR-6SSK, FG-FR-12SSK, FG-FR-18SSK, and FG-FR-24SSK use a ½” female center hub.
Models FG-FR-30SSK, FG-FR-36SSK, and FG-FR-48SSK use a ¾” female center hub. The top center hub (port holes
side) must be plugged to allow gas to ow into the burner. Each Fire Ring is designed for the port holes facing upward for
both Natural Gas (NG) and Liquid Propane (LP) gasses. All Fire Rings are provided with a main burner orice as listed in
Table 2 on page 4.
Fig. 4 Port Hole Side Fig. 5 Non-Port Hole Side

REV. A Page 8
Fire Ring Burners
Center Hub
B
u
r
n
e
r
T
u
b
e
U3-8D-S
OAS#
113-RB-D-LF
Nipple
½” Plug
GAS FLOW

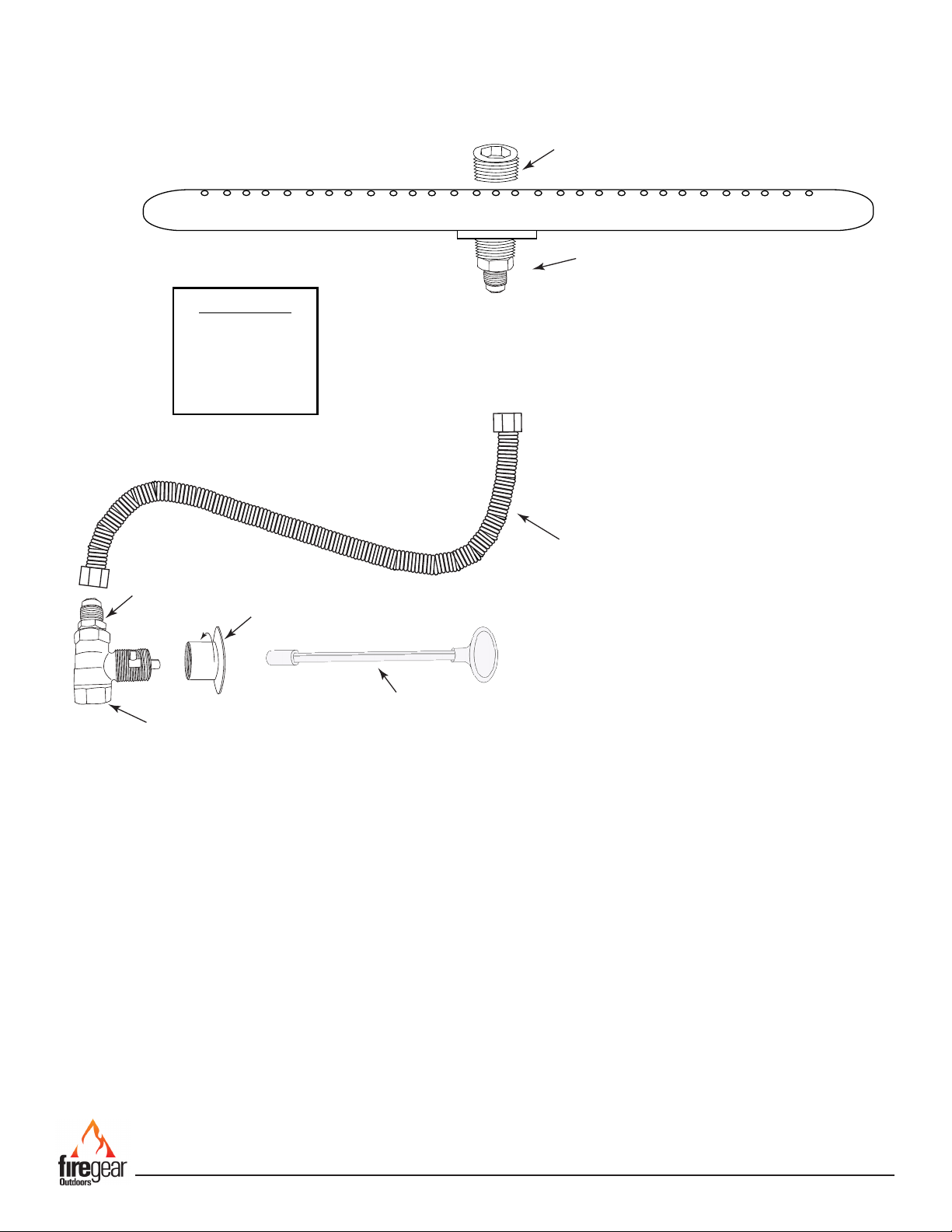

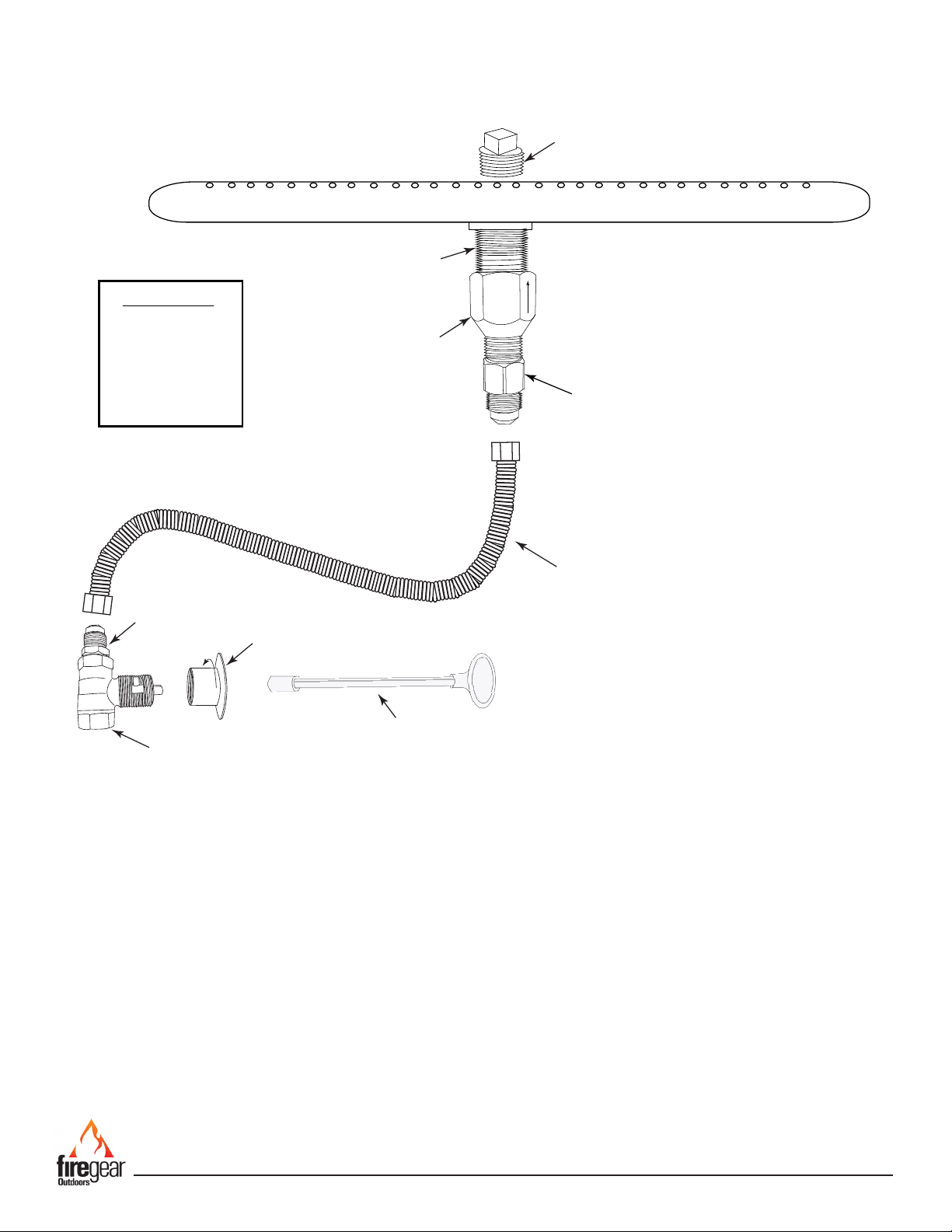

Fig. 7 Natural gas models 6/12/18/24-inch
re ring parts.
Before you begin installing the re ring into a burner pan
ensure the center hole is a minimum of 1-inch in diameter
(See Fig. 6). Models FG-FR-6SSK, FG-FR-12SSK, FG-FR-
18SSK, and FG-FR-24SSK are supplied with a ½” plug, ½”
nipple, OAS and FIP x MIP are ttings (U3-8D-S). These
items must be installed into the re ring as shown in Fig.
7. Position the Fire Ring port holes facing upward for both
Natural Gas and LP Gas. Ensure to seal each NPT tting
with thread tape or pipe compound. NOTE: Flared ttings
will not require tape or compound on the ared side.
Step 1: Install ½” plug on top of re ring and assemble the
remaining parts as shown in Fig. 7.
Step 2: Install the re ring through the pan (See Fig. 8) then
install the OAS and U3-8D-S to the nipple connect inlet gas
line as shown in Fig. 12 on page 10.
Min. 1- Inch Center Hole
Fig. 6 Minimum 1-inch center clearance hole in
burner pan.
FG-FR-6/12/18/24 MODELS
FIRE RING ASSEMBLY
CAUTION: Do not assemble the OAS and U3-8D-S until you are ready to install the re ring into the burner pan. The
OAS is 1½” in diameter and would not t the recommended center hole size per Fig. 6 and Fig. 9.
GAS FLOW
Fire Ring Burner
Burner Pan
Fig. 8 Fire Ring Installed into Burner pan/disc.

Fire Ring Burners REV. A Page 9
Center Hub
B
u
r
n
e
r
T
u
b
e
¾” Plug
U1-8E-S
¾” MIP to ½” Flare
Fitting
Inlet Gas
Fig. 10 Natural gas models 30/36/48-inch re ring parts.
The key valve contents: 1- key valve, 1- key and 1- ange. (See Fig 11). The valve requires a 1¼” round clearance hole in
the non-combustible enclosure wall. See the instructions supplied with the key valve for more specic details.
Note: Be sure to leak test all ttings before operation. Fig. 12 shows an example of a typical installation.
Primary Gas
Supply
ON
OFF
Fig. 11 Key valve components.
Note: It is recommended to use the key valve assembly provided in the Fire Ring kit. Otherwise, you will need to provide
a key valve for the installation.
Before you begin installing the re ring into your burner
pan ensure the center hole is a minimum of 1¼ -inch in
diameter (See Fig. 9). Models FG-FR-30SSK,
FG-FR-36SSK, and FG-FR-48SSK come with a ¾” plug,
½” nipple, OAS and FIP x MIP are ttings (U3-8E-S) and
¾” to ½” reducer (S4100-128).
Note: The ½” reducer may not be needed depending
on the size of the inlet gas line coming into the re ring.
These items must be installed into the re ring as shown
in Fig. 10. Position the Fire Ring port holes facing upward
if using Natural or Propane (LP) gas. Ensure each NPT
tting has thread tape or pipe compound.
NOTE: Flared ttings will not require tape or compound on
the ared side.
Step 1: Install ¾” plug on top of re ring and assemble the
remaining parts as shown in Fig. 10.
Step 2: Install the re ring through the pan and connect
inlet gas line as shown in Fig. 12 on page 10.
Fig. 9 Minimum 1¼ -inch center clearance hole
in burner pan.
Min. 1¼-inch Center Hole
FG-FR-30/36/48 MODELS
INSTALLING KEY VALVE

REV. A Page 10
Fire Ring Burners
Key Valve
Gas Supply
Fire Pit Pan
Non-Combustible
Fire Pit Enclousure
Shut-O
Burner
Steel Studs
Steel Studs
Steel Studs
Steel Studs
Key Valve Flange
Non-
Combustible
Wall Material
Non-
Combustible
Wall Material
Key Valve
Primary Gas
Supply
K
e
y
V
a
l
v
e
S
i
d
e
V
i
e
w
D
e
t
a
i
l
Fig. 12 Typical installation.
NOTE: Key valve and exible gas lines are
supplied. Gas shut-off is not supplied.
Note: A 1¼” x 2” black iron or galvanized
coupler/nipple (not supplied) can be used
as a spacer between the manual valve
and the valve ange to add additional
support to hold the manual key valve in
place.
Key Valve Flange
Non-
Combustible
Wall Material
Non-
Combustible
Wall Material
Key Valve
Black Iron
Nipple
TYPICAL INSTALLATION DRAWINGS

Fire Ring Burners REV. A Page 11
CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to
avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance.
WARNING: Do not use this appliance if any part has been under water. Immediately call a qualied service technician
to inspect the appliance and to replace any part of control system and any gas control, which has been under water.
OPERATION
SAFETY WARNINGS
1. Never leave the re pit unattended during operation.
2. Clothing or other ammable materials should not be placed on or near the appliance.
3. Any guard or other protective device removed for servicing the appliance must be replaced prior to operating the
appliance.
4. Installation and repair should be done by a qualied service person. The appliance should be inspected before
use and at least annually by a qualied service person. More frequent cleaning may be required as necessary. It
is imperative the control compartment, burners and circulating air passageways of the appliance be kept clean.
5. Inspect the fuel supply connection before each use of the appliance.
6. Temporary storage of this appliance indoors is permissible only if it has been disconnected from its fuel supply
(Natural or L.P. gas line).
WARNING
1. This appliance is hot when operated and can cause severe burns if contacted.
2. Do not burn any solid fuels in this appliance.
LIGHTING INSTRUCTIONS
Key
Fig. 14 Inserting Key into Valve
ON
OFF
Fig. 13 Key Valve Face
Butane Lighter
Fig. 15 Lighting re pit with lighter
READ ALL WARNING AND SAFETY INFORMATION ABOVE BEFORE
ATTEMPTING TO LIGHT FIRE PIT
CAUTION: Ensure you have leak tested the re pit before operating.
TURNING ON FIRE PIT
1. Insert key into shut-off valve and secure into square end (See Figs. 13 & 14).
2. Light a long match or butane lighter and hold it near the burner (see Fig. 15).
3. Turn the key slowly counter-clockwise in key valve (ON position) to allow gas to ow
and simultaneously apply the long burning match or Butane lighter as close to the end
burner as possible to light the re pit.
4. Gas should ignite within 10 seconds or less. If re pit does not light within 10 seconds
turn key clockwise to turn OFF the gas supply. Ensure there is not too much media on
top of the burner that might inhibit gas ow and try again in 5 minutes.
TURNING OFF FIRE PIT
1. Insert key into shut-off valve and secure into square end.
2. Turn key clockwise until it stops.
3. After cooling off install cover.

REV. A Page 12
Fire Ring Burners
FIRE RING REPLACEMENT PARTS
23
Drawings not to scale
6
4a
ON
OFF
1
7
5
4c
4b

Fire Ring Burners REV. A Page 13
1 6-inch Round Stainless Steel Fire Ring Burner (Used with FG-FR-6SSK) 1 FG-FR-6SS
1 12-inch Round Stainless Steel Fire Ring Burner (Used with FG-FR-12SSK) 1 FG-FR-12SS
1 18-inch Round Stainless Steel Fire Ring Burner (Used with FG-FR-18SSK) 1 FG-FR-18SS
1 24-inch Round Stainless Steel Fire Ring Burner (Used with FG-FR-24SSK) 1 FG-FR-24SS
1 30-inch Round Stainless Steel Fire Ring Burner (Used with FG-FR-30SSK) 1 FG-FR-30SS
1 36-inch Round Stainless Steel Fire Ring Burner (Used with FG-FR-36SSK) 1 FG-FR-36SS
1 48-inch Round Stainless Steel Fire Ring Burner (Used with FG-FR-48SSK) 1 FG-FR-48SS
2Orice Air Shutter - NG 50,000 Btu’s (Used with FG-FR-6SSK, FG-FR-12SSK) 1 OAS-NG34
2Orice Air Shutter - NG 50,000 Btu’s (Used with FG-FR-18SSK) 1 OAS-NG34
2Orice Air Shutter - NG 100,000 Btu’s (Used with FG-FR-24SSK) 1 OAS-NG22
2Orice Air Shutter - NG 250,000 Btu’s (Used with FG-FR-30SSK) 1OAS-NG25/64”
2Orice Air Shutter - NG 250,000 Btu’s (Used with FG-FR-36SSK) 1OAS-NG25/64”
2Orice Air Shutter - NG 250,000 Btu’s (Used with FG-FR-48SSK) 1OAS-NG25/64”
31/2” OD x 28” Long Flex Gas Line (Used with 6”, 12”, 18”, 24”) 1 T200-9898-28
31/2” OD x 34” Long Flex Gas Line (Used with 30”, 36” 48”) 1 T200-9898-34
4a Key Valve(Used with 6”, 12”, 18”, and 24”) 1 BVL2S
4a Key Valve (used with 30”, 36”, and 48”) 1 BVL3S
4b Chrome Plated Flange Cover For Key Valve 1 CVR-BVL2CP
4c 12-inch Chrome Key 1 KEY-PC-12
5½” OD x 1 ½” Long Black Nipple (6”, 12”, 18”, 24”) 1 113BS-D15
6½” OD Flare to ½” MIP (6”, 12” 18”, 24”) 1 U1-8D-S
7¾” to ½” reducer (provided with 30”, 36”, and 48” Fire Ring kits) 1 S4100-128
8½” Flare to ½” FIP (6”, 12” 18”, 24”) (Not shown) 1 U3-8D-S
9½” OD Flare to ¾” FIP Fitting (provided with 30”, 36”, and 48” Fire Ring kits) (Not shown) 2 U1-8E-S
10 ½” Female to ½” Female Coupling (All LPK kits) (Not shown) 1 99-8
Item Description Qty. Part Number
See the Firegear Outdoors catalogue for a variety of ttings and ex connectors also available.
FIRE RING REPLACEMENT PARTS

REV. A Page 14
Fire Ring Burners
12-inch Key
T200-9898-28
Key Valve
U1-8D-S Flange
Fire Ring Kit Contents
GAS FLOW
OAS#
U3-8D-S
Fire Ring Burner
½” Plug
½” Nipple
MODELS:
FG-FR-6SSK
FG-FR-12SSK
FG-FR-18SSK
FG-FR-24SSK

Fire Ring Burners REV. A Page 15
12-inch Key
T200-9898-34
Key Valve
U1-8E-S Flange
Fire Ring Kit Contents
MODELS:
FG-FR-30SSK
FG-FR-36SSK
FG-FR-48SSK
Fire Ring Burner
¾” Plug
U1-8E-S
Note: No orice
required for Natural
Gas

REV. A Page 16
Fire Ring Burners
When converting Burners to LP gas the main burner orice must be kept a minimum of 6-inches away from the burner
connection (nipple) to prevent any back pressure at the LP orice. See Fig. 14 below for details. Note: It is acceptable to
install a 90° elbow, if necessary, to run the gas line the opposite direction (see Fig 15). A 90° elbow is not provided with
the kit.
All NPT pipe threads must be sealed with approved gas Teon tape or pipe compound.
Check for any gas leaks before presuming normal operation after conversion is complete.
CAUTION: Ensure there is ventilation under the burner to provide fresh air for air shutter/orice.
CONVERTING TO LP GAS
Burner Pan
GAS FLOW
½” x 5-inch
Black Iron
Nipple
#113-BS-D5
½” OAS-LP Orifice
½” Flared Fitting
(U3-8D-S)
½” x ½” Coupling
Fig. 14 Proper LP conversion illustration. Fig. 15 Optional LP conversion illustration shows a 90º
elbow (not supplied).
Burner Pan
½” x 5-inch
Black Iron
Nipple
#113-BS-D5 ½” OAS-LP Orifice
½” Flared Fitting
(U3-8D-S)
½” x ½” Coupling
GAS FLOW
½” 90º Black
Iron Nipple
Converstion Kit Common Parts Btu Ratings LP Orice Models
78071 #99-8, #113-SS4-D5,
U3-8D-S
50,000
(14.65kW)
OAS-LP47 FG-FR-6SSK
FG-FR-12SSK
78072 #99-8, #113-SS4-D5,
U3-8D-S
75,000
(21.98kW)
OAS-LP41 FG-FR-18SSK
78073 #99-8, #113-SS4-D5,
U3-8D-S
100,000
(29.30kW)
OAS-LP35 FG-FR-24SSK
78079 #99-8, #113-SS4-D5,
U3-8D-S
250,000
(73.26kW)
OAS-LP12 FG-FR-30SSK
FG-FR-36SSK
FG-FR-48SSK
Table 6 LP conversion chart

Fire Ring Burners REV. A Page 17
ACCESSORIES
The following accessories are available from your local Firegear Outdoors dealer/distributor.
Each accessory comes with a separate installation manual. Read each instruction thoroughly before installing.
Vent Kits
Provide 18 sq. in of ventilation per side
of enclosure)
Model: VENT-KIT-6X12SS
Model: PAVER-VENT-4-LNTS
Model: PAVER-VENT-6-LNTS
Media
Lava Stones: 1” to 2” size (50 lbs)
Model: FG-LS-50
Lava Rock: 1” to 1½” size (40 lbs)
Model: FG-LAVA-40
Paver Control Panels
PAVER-CP-MT MT systems
Fireglass/Liquid Glass/
Reective Glass
Sold in 5lb bags in various colors.
See your Firegear dealer for various
options.
Log Sets
Model:
L-SF (Spit Fire) - 17pc (52lbs)
L-BF (Beach Fire) 8pc (20lbs)
L-Sedona (Sedona) 19pc (200lbs)
E-STOP
Mechanical gas timer valve with
emergency shut-off.
Model: ESTOP1-0H 1hr. timer
Model: ESTOP2-5H 2.5hr. timer
FLEXFRAME
Universal brackets to support re pit
disc when using paver blocks or other
non-combustible enclosures.
Model: FLEXFRAME-SS (2-piece)
Model: FLEXFRAME-SS3 (3-piece)
NOTE: See the Firegear Outdoors catalogue for a variety of ttings and ex connectors and other accessories.

REV. A Page 18
Fire Ring Burners
TROUBLE SHOOTING
Symptom Remedy
Fire pit won’t light 1. Bleed gas line.
2. Ensure all gas supply lines are turned ON.
3. Ensure there is not too much media overtop of burner; it can inhibit gas from owing.
4. Check gas pressure.
Low ame 1. Ensure the base media is at least 1-inch in diameter and top media is no more than 1-inch over
top of burner.
2. Ensure all shut-off valves and key valve is fully open. See page 11; Figure 14
3. Check gas pressure.
4. Check for spider webs blocking the air shutter orice.
Water in my re pit 1. Excess dust/sand material from media may be blocking the weep holes to relieve water.
Remove all media and unplug weep holes. Clean or install new media free of dust and dirt.
2. Ensure re pit enclosure has proper drainage for water and proper ventilation to dry out.
1. The re pit should be inspected and cleaned before initial use at least annually by a qualied eld service person.
2. Any component that is found faulty must be replaced with an approved component.
3. Any tampering or modifying with the re pit is dangerous and voids all warranties.
4. During winter months in cold climates and various seasons operation the re pit may be affected by weather
conditions. It is recommended to use a ventilated cover overtop of your re pit to protect it from humid/rainy weather
conditions when not in use. Heavy rains/downpours could affect the re pit operation if not covered; if this occurs
ensure you allow the re pit time to dry out before attempting to operate. NOTE: If a combustible type cover is used
over the re pit when not in use be sure to remove it before operation to prevent a severe safety hazard.
5. Over time stainless steel parts can discolor when heated, usually a golden or brown hue. This discoloration is normal
and does not affect the performance of the appliance.
FIRE PIT MAINTENANCE
Manual changes often occur, ensure to check the Firegear Outdoor
website for any recent updates and warranty information.
FOR TECHNICAL SERVICE, CALL:
Firegear Outdoors
17322 Gothard St
Huntington Beach, CA 92647
Web Site: www.regearoutdoors.com
[phone]

Fire Ring Burners REV. A Page 19
FIREGEAR LIMITED WARRANTY - 2020
Firegear Outdoors hereby warrants to the end user that products will be free from material and workmanship
defects that prevent safe and correct operation of the product. The warranty commences from date of sale to
the end user for the following period:
CONSUMER RESIDENTIAL APPLICATIONS –MANUFACTURED AFTER 12/02/2019
BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES
• LIFETIME WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS
• LIFETIME WARRANTY - STAINLESS STEEL BURNERS AND PANS
• LIFETIME WARRANTY - BRASS BURNERS
• FIVE (5) YEAR WARRANTY - GAS VALVE, SPARK IGNITER, PILOT ASSEMBLIES
• FIVE (5) YEAR WARRANTY - AWS ELECONITC IGNITION SYSTEMS (24VAC, 30 VDC)
• FIVE (5) YEAR WARRANTY - TFS/TMSI ELECTRONIC COMPONENTS
• FIVE (5) YEAR WARRANTY –MT COMPONENTS (KEY VALVE)
• FIVE (5) YEAR WARRANTY - REFRACTORY GAS LOG SETS
• FIVE (5) YEAR WARRANTY - READY TO FINISH/ANF FIRE PIT ENCLOSURES
• FIVE (5) YEAR WARRANTY –SKYTECH MANUACFTURED OPTIONAL CONTROLS
OUTDOOR FIREPLACE –KALEA BAY
• LIFETIME WARRANTY - CONSTRUCTION AND MANUFACTURER DEFECTS
• LIFETIME WARRANTY - STAINLESS STEEL COMPONENTS
• FIVE (5) YEAR WARRANTY - GAS VALVE, PILOT ASSEMBLY, POWER SUPPLY, CONTROLS
• FIVE (5) YEAR WARRANTY –SKYTECH MANUACFTURED OPTIONAL CONTROLS
SANCTUARY SERIES –GFRC FIRE FEATURES
• THREE (3) YEAR WARRANTY - GFRC STRUCTURE
• REFER TO THE APPROPRIATE BURNER SYSTEM FOR WARRANTY
WARRANTY COVERS MANUFACTURING DEFECTS OR STRUCTURAL FAILURE. SMALL STRESS CRACKS AND SURFACE
CRAZING ARE A NATURAL OCCURRENCE IN GFRC PRODUCTS AND NOT COVERED BY WARRANTY.
READY TO FINISH/ANF ENCLOSURES
• FRAME –LIFETIME WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS
ACCESSORIES
• LIFETIME WARRANTY - CONSTRUCTION AND MANUFACTURER DEFECTS
• LIFETIME WARRANTY - STAINLESS STEEL COMPONENTS (LIDS, STAINLESS STEEL COVERS)
• ONE (1) YEAR WARRANTY –ESTOP1-OH, ESTOP2-5H WINDSHIELDS, HOSES AND REGULATORS

REV. A Page 20
Fire Ring Burners
COMMERCIAL APPLICATIONS –MANUFACTURED AFTER 12/02/2019
BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES
• TWO (2) YEAR WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS
• TWO (2) YEAR WARRANTY - STAINLESS STEEL BURNERS AND PANS
• TWO (2) YEAR WARRANTY - BRASS BURNERS
• TWO (2) YEAR WARRANTY - GAS VALVE, SPARK IGNITER, PILOT ASSEMBLIES
• TWO (2) YEAR WARRANTY - AWS ELECONITC IGNITION SYSTEMS (24VAC, 30 VDC)
• TWO (2) YEAR WARRANTY –MT COMPONENTS (KEY VALVE)
• TWO (2) YEAR WARRANTY - REFRACTORY GAS LOG SETS
• FIVE (5) YEAR WARRANTY - READY TO FINISH/ANF FIRE PIT ENCLOSURES
• TWO (2) YEAR WARRANTY –SKYTECH MANUACFTURED OPTIONAL CONTROLS
OUTDOOR FIREPLACE –KALEA BAY
• LIFETIME WARRANTY - CONSTRUCTION AND MANUFACTURER DEFECTS
• LIFETIME WARRANTY - STAINLESS STEEL COMPONENTS
• TWO (2) YEAR WARRANTY - GAS VALVE, PILOT ASSEMBLY, POWER SUPPLY, CONTROLS
• TWO (2) YEAR WARRANTY –SKYTECH MANUACFTURED OPTIONAL CONTROLS
SANCTUARY SERIES –GFRC FIRE FEATURES
• THREE (3) YEAR WARRANTY - GFRC STRUCTURE
• REFER TO THE APPROPRIATE BURNER SYSTEM FOR WARRANTY
WARRANTY COVERS MANUFACTURING DEFECTS OR STRUCTURAL FAILURE. SMALL STRESS CRACKS AND SURFACE
CRAZING ARE A NATURAL OCCURRENCE IN GFRC PRODUCTS AND NOT COVERED BY WARRANTY.
READY TO FINISH/ANF ENCLOSURES
• FRAME –LIFETIME WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS
ACCESSORIES
• LIFETIME WARRANTY - CONSTRUCTION AND MANUFACTURER DEFECTS
• LIFETIME WARRANTY - STAINLESS STEEL COMPONENTS (LIDS, STAINLESS STEEL COVERS)
• ONE (1) YEAR WARRANTY –ESTOP1-OH, ESTOP2-5H WINDSHIELDS, HOSES AND REGULATORS
