FirstStreet Scootle User manual

User Manual
Please read this manual before using your Scootle® for safe operation.
firstSTREET for Boomers and Beyond, Inc.
If you have any questions about your Scootle, please
contact us at 800-958-8324. If you purchased from
a dealer, please contact your dealer for support.
Customer: If purchased from an
authorized retailer other than firstSTREET,
please note the company details here:

Table of contents
SAVE THIS MANUAL FOR FUTURE REFERENCE.
- 1 -
INTENDED USE
l Intended use of device
As a motorized portable electric vehicle for indoor or outside use by persons with
mobility conditions that require assistance.
l Device description
A battery operated lightweight 4- wheel portable mobility device designed for using
indoors and use outdoor on smooth surfaces. It is not intended for use in deep grass,
sand, large pebbles or rocks or similar surfaces.
It is to be used in a seated position and operated by a hand-controlled throttle located on
the handlebars. The brake is automatically controlled by releasing the throttle - the
electronic controller and magnetic motor brake will automatically stop the Scootle.
The product is supplied ready to use with a battery and charger and it can be
disassembled and folded for transport.
The battery will arrive with some charge. It is recommended to fully charge the battery
before extended use.
l Technological characteristics
Unique one-piece folding frame designed to suit users up to 264 lbs. The compact design
and minimal component weight are of benefit to those that need mobility assistance from
time to time. The electronically controlled speed reduction system which operates when
turning is a valuable safety feature for all users.
Contents Pages
Intended use- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -1
Safety Symbols, Words and Labels - - - - - - - - - - - - - - - - - 2
Safety Instructions - - - - - - - - - - - - - - - - - - - - - - - - - 3-6
Electromagnetic Interference - - - - - - - - - - - - - - - - - - - - - - 7-9
Assemble the Seat - - - - - - - - - - - - - - - - - - - - - - - - - - - 10
Folding Seat Frame - - - - - - - - - - - - - - - - - - - - - - - - - - - 11
Opening the Scootle - - - - - - - - - - - - - - - - - - - - - - - - 12-14
Anti-Tip Wheels - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -15
Arm Rest - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 16
Seat Post Clamp - - - - - - - - - - - - - - - - - - - - - - - - - - -17
Basket - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 17
Flat Pack Kit: (optional) -- - - - - - - - - - - - - - - - - - - - - - - - - 18-19
Spare Battery- (optional) - - - - - - - - - - - - - - - - - - - - - - - - - - - 19
Drive Wheel Release Mechanism- - - - - - - - - - - - - - - - - - - - - 20
Cruise Control, Lights and Switches - - - - - - - - - - - - - - - - 21-23
Auto Switch Off Electronic System - - - - - - - - - - - - - - - - - - - 23
Electronic Stability Control (ESC) - - - - - - - - - - - - - -- - - - - - - 24
Precautions- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 25
How To Clean the Scootle - - - - - - - - - - - - - - - - - - - - - - - - - -26
How To Close the Terminal Cover of Battery - - - - - - - - - - - - - 26
Folding the Scootle - - - - - - - - - - - - - - - - - - - - - - - 27-28
Charge Battery - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 29-31
Battery Charger - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 32
Instructions For Using Battery Module - - - - - - - - - - - - - - 33-34
Battery Care & Storage - - - - - - - - - - - - - - - - - - - - - - - - - 34
Battery Safety Instruction - - - - - - - - - - - - - - - - - - - - - - - - 35-36
Specifications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 37
Scootle Warranty - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 38
Purchaser information- - - - - - - - - - - - - - - - - - - - - - - - - - - - - 40
Manufacturer: Distributed exclusively by firstSTREET for
Boomers and Beyond, Inc. and its authorized distributor partners.

- 2 -
SAFETY SYMBOLS, WORDS AND LABELS
What You Need to Know About Safety Instructions
Warning and Important Safety Instructions appear in this manual are not meant to cover
all possible conditions and situations that may occur. Common sense, caution and care
must be exercised when operating or cleaning your Scootle®.
Always contact your dealer, distributor, service agent or manufacturer about problems or
conditions you do not understand.
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible
injury or death.
WARNING indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury.
Radio wave sources may affect motorized vehicle.
- 3 -
SAFETY INSTRUCTIONS
● Please read this manual before using the Scootle®.
● Check the frame lock and all clamps before using the Scootle.
● Do not turn your Scootle “On” before you are seated and ready to go.
● Practice riding in an open area free of vehicles, pedestrians and obstacles before using
your Scootle near other people.
● The Scootle was designed for hard solid surfaces. It should not be used on significantly
loose surfaces or heavy grass such as in a field.
● Reduce speed when turning. The Electronic Stabilization Control will assist controlling
speed on turns to help prevent tipping, but users should apply their own caution, as well.
● Take extra care when driving in wet conditions especially on inclined terrain.
● Do not change the Forward/Reverse switch when moving.
This could damage your Scootle.
● Do not use the Scootle on slopes over 8 degrees.
ADA ramps have inclines of about 5 degrees.
● Do not operate on slopes when the yellow battery light is on.
When it is on you should recharge your battery as soon as possible. If the red battery
light comes on or is flashing, you should stop using immediately and recharge the
battery. The battery can be replaced with a spare battery if you have one.
● Always switch the power “Off” before leaving your scooter or while it is unattended.
● Do not put your fingers on the Speed (throttle) Lever before you turn the key switch “On”.
This could cause the Scootle to move without warning.

- 4 -
A. ENVIRONMENTAL CONDITIONS WARNING: The scooter is not designed for use in
a heavy rain, or in snowy or icy conditions.
i. Contact with excessive moisture may cause an electrical malfunction. The frame,
motors and other scooter parts are not water-tight and may rust or corrode from the
inside.
To avoid a scooter failure:
● Minimize exposure of your scooter to rain or very wet conditions.
● Never take your scooter into a shower, tub, pool, or sauna.
● Do not use your scooter in fresh or salt water (such as at the edge of a stream,
lake or ocean).
● Make sure all electrical connections are secure.
ii. Proceed slowly and use extra care if you must operate your scooter on a wet or slick
surface.
● Do so only if you are sure it is safe.
● Stop if one or both main wheels lose traction. If this occurs, you may lose control
of your scooter or fall.
● Never operate your scooter on a slope or ramp if there is snow, ice, standing
water or oil film present.
iii. When not in use, keep your scooter in a clean, dry place.
B. TERRAIN
i. This scooter is designed for use on firm, even surfaces such as paved, solid, or
packed surfaces.
ii. Do not operate your scooter in sand, loose soil or over rough terrain. Doing so may
damage wheels, bearings, axles or motors, or loosen fasteners.
C. STREET USE WARNING: In most states, scooters are not legal for use on public
roads. Be alert to the danger of motor vehicles on roads or in parking lots.
i. Take caution if using at night, dusk or dawn (or other situations when it is hard to see)
and use reflective tape on your scooter and wear bright clothing.
ii. It may be hard for drivers to see you. Make eye contact with drivers before you
proceed. When in doubt, yield until you are sure it is safe.
- 5 -
D. MOTOR VEHICLE SAFETY
i. Never sit on this scooter while in a moving vehicle.
ii. Always move to an approved vehicle seat.
iii. Never transport this scooter in the front seat of a vehicle.
It may shift and interfere with the driver.
iv. Always secure this scooter so that it cannot roll or shift.
E. TRANSFERS WARNING:
Transferring out of the Scootle requires good balance and agility. Be aware that there
is a point during every transfer when the seat is not below you.
F. TO AVOID A FALL:
i. Always turn the key off before you transfer to or from your scooter. If you fail to
do so you may touch the throttle control lever and cause your scooter to move when
you do not expect it.
ii. If transferring to another device or seat, move your scooter as
close as you can to the seat you are attempting to transfer to.
iii. Transfer as far back onto the seat surface as you can. This will reduce the risk that
you will miss the seat and fall.
G. REACHING OR LEANING WARNING:
Reaching or leaning affects the center of balance of your scooter.
If done improperly, a fall or tip-over is possible.
To reduce the risk of injury and/or damage to the scooter:
i. Never reach or lean, it is safer to shift your weight sideways or rise up off the seat.
ii. Never try to pick up an object from the floor by reaching down between your knees.
iii. Never reach or lean over the top of the seat back.

- 6 -
i. Always position your scooter as close as you can to the object you wish to reach.
ii. Turn off the power to your scooter. If you fail to do so, you may touch the throttle
control lever and cause your scooter to move when you do not expect it.
G. DRIVING IN REVERSE WARNING: Use extra care when you drive your scooter in
reverse taking caution to avoid obstacles.
i. Operate your scooter slowly and at an even speed.
ii. Stop often and check to make sure your path is clear of obstacles.
H. WEIGHT LIMIT
i. Never exceed the weight limit of the scooter which is 264 pounds.
ii. The scooter is not designed for weight training and is unsafe for use as a seat while
weight training. Weight training from the scooter substantially changes the stability of
the scooter and may cause tipping.
iii. Exceeding the weight limit is likely to damage the seat, frame or fasteners and may
cause severe injury to you or others from scooter failure.
I. STAIRWAYS AND ESCALATORS WARNING:
The scooter is not designed to travel up or down stairs or escalators. Always use an
elevator. DO NOT use an escalator to move the scooter between floors. Serious bodily
injury may occur. DO NOT attempt to move an occupied scooter between floors using a
stairway.
- 7 -
ELECTROMAGNETIC INTERFERENCE
It is especially important that you read this information
regarding the possible effects of Electromagnetic Interference on
your Scootle.
This motorized scooter has an immunity of 20 V/m which should protect
it from Electromagnetic Interference (EMI) from Radio Wave Sources. These EM waves are
invisible, and their strength increases as one approaches the source. All electrical
conductors act as antennas to the EM signals and to varying degrees, all power wheelchairs,
scooters, and personal mobility devices are susceptible to electromagnetic interference
(EMI). This interference could result in abnormal, unintentional movement and/or erratic
control of the vehicle. Such vehicles may be susceptible to electromagnetic interference
(EMI), which is interfering electromagnetic energy (EM) emitted from sources such a radio
stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular
phones. The interference (from radio wave sources) can cause the motorized scooter to
release its brakes, move by itself, or move in unintended directions. It can also permanently
damage the motorized scooter control system. The intensity of the interfering EM energy
can be measured in volts per meter (V/m). Each motorized scooter can resist EMI up to
certain intensity. This is called its “immunity level.” The higher the immunity level, the
greater the protection. At this time, the current technology on the Scootle can achieve at
least a 20 V/m immunity level, which would provide useful protection from the more common
sources of radiated EMI. Because EM energy rapidly becomes more intense as one moves
closer to the transmitting antenna (source), the EM fields from hand-held radio wave
sources (transceivers) are of special concern. It is possible to unintentionally bring high
levels of EM energy close to the motorized scooter control system while using these devices.
Therefore, the warnings listed below are recommended to prevent possible interference with
the control system of the motorized scooter, which should reduce the chance of unintended
brake release or motorized scooter movement that could result in serious injury.

- 8 -
Do not operate hand-held personal communication devices such as
citizens band (CB) radios or use personal communication devices and cellular phones
while the motorized scooter is turned ON.
1) Be aware of nearby transmitters, such as radio or TV stations and try to avoid
coming close to them.
2) If unintended movement or brake release occurs, turn the motorized scooter OFF as
soon as it is safe.
3) Be aware that adding accessories or components, or modifying the motorized
scooter, may make it more susceptible to EMI; and NOTE: There is no easy way to
evaluate their effect on the overall immunity of the motorized scooter.
4) Report all incidents of unintended movement or brake release to the distributor listed
on the back of this manual and note whether there is a radio wave source of EMI
nearby.
TURN “OFF” YOUR SCOOTER AS SOON AS POSSIBLE WHEN EXPERIENCING
THE FOLLOWING:
‧ Unintended or uncontrollable movement.
‧ Unexpected brake release.
- 9 -
● Important Information
1) 20 Volts per meter (V/m) is a generally achievable and useful immunity level against
interference from radio wave sources (as of May 1994) (the higher the level, the greater
the protection).
2) This product has an immunity level of following:
Guidance and manufacturer’s declaration-electromagnetic immunity
The product is intended for use in the electromagnetic environment specified below. The customer or the user of the
product should assure that it is used in such an environment.
Immunity test
IEC 60601
test level
Compliance level
Electromagnetic
environment-guidance
Electrostatic
discharge(ESD) IEC
61000-4-2
± 8 kV contact
± 2 kV, ± 4 kV, ± 8
kV, ± 15 kV air
± 8 kV contact
± 2 kV, ± 4 kV, ± 8 kV,
± 15 kV air
Floors should be wood, concrete, or
ceramic tile. If floors are covered
with synthetic material, the relative
humidity should be at least 30%
Electrical fast
transient/burst IEC
61000-4-4
+ 2kV for power
supply lines
+ 1kV for input/output
lines
+ 2kV for power
supply lines
+ 1kV for input/output
lines
Mains power quality should be that
of a typical commercial or hospital
environment.
Surge IEC 61000 4-5
+ 1kV line(s) to line(s)
+ 2kV line(s) to earth
+ 1kV line(s) to line(s)
+ 2kV line(s) to earth
Mains power quality should be
that of a typical commercial or
hospital environment.
Voltage Dips, short
interruptions and voltage
variations on power
supply input lines IEC
61000-4-11
0% UT for 0,5 cycle
0% UT for 1 cycle
70% UT(30% dip in
UT) for 25 cycles
0% UT for 5 s
0% UT for 0,5 cycle
0% UT for 1 cycle
70% UT(30% dip in UT)
for 25 cycles
0% UT for 5 s
Mains power quality should be that
of a typical commercial or hospital
environment. If the user of the
product requires continued
operation during power mains
interruptions, it is recommended
that the product be powered from
an uninterruptible power supply or
a battery.
Power frequency (50,
60 Hz) magnetic field
IEC 61000-4-8
30 A/m
30 A/m
The product power frequency
magnetic fields should be at
levels characteristic of a typical
location in a typical commercial
or hospital environment.
NOTE UT is the ac main voltage prior to application of the test level.

- 10 -
ASSEMBLE THE SEAT
Assemble the seat frame in the manner illustrated.
The ARROW must be pointing to the
front when assembling the seat to the
frame.
THE SEAT HAS THREE MOUNTING POSITIONS A
、
B
、
C
Note: All 4 fixing screws must be used and tightened securely.
IN POSITION A
THE SEAT IS CLOSER
TO THE HANDLE BARS
IN POSITION B
THE SEAT IS IN THE MID
POINT POSITION
IN POSITION C
THE SEAT IS AT ITS
WIDEST DISTANCE
- 11 -
FOLDING SEAT FRAME
To open the seat frame
Pull out the knob “P” in the
direction of the arrow and lift the
seat tube “O” up as illustrated.
Push the support lever in the
direction of the arrow until it clicks
into position “R”.
Warning: Pin “R” must be locked into the
position before using.
To fold the seat frame
Pull out the knob “P” in the direction of the arrow
and push Q downward as arrow illustrated
then push seat tube “O” downward
to fold the seat frame.
Take extremely care when opening the backrest, anytime
NEVER put your fingers into both sides of the backrest
supporters to avoid the fingers from trapping and injuring.

- 12 -
TO OPEN THE SCOOTLE
● Use one hand to hold the tiller handle and use the other hand to
push the lock pin lever (A) per the illustration and lift the handle.
Continue lifting the tiller until you hear the “click”, the locking into position.
● Check to ensure that the pin “G”
is now locked into position.
- 13 -
● Fit the seat onto the frame, and insert the seat
frame tubes into the corresponding holes on the
main frame,
Open the terminal cover “L” of the
battery module first before locking
into scooter.
● Insert 2 block (B) into slots (C) as illustrated direction and push battery pack downward
until you hear “click”, the locking of cam locker “D”.
● Check that the battery module has locked into position.

- 14 -
● Inflate the tyres to the maximum of 40 PSI.
The partition board (PB) on your Scootle is not designed to be load
bearing, have your feet always stay on the footrest (M) as stated above.
DO NOT PUT EXCESSIVE WEIGHT ON THE PARTITION BOARD.
IT IS IMPORTANT THAT YOU TAKE EXTRA CARE TO PRACTICE IN AN OPEN
SPACE AWAY FROM OBSTRUCTIONS.
- 15 -
ANTI-TIP WHEELS
Ensure that the anti-tip wheels are extended and locked in position “H” when driving on
sloping ground. (As illustrated below)
Position “H” provides the greatest stability.
Return the sliding tube to position “J” for transportation or disassembly.
● Do not turn key switch “On” before you are seated and
ready to go.
● Always turn the key to “Off” position before getting off the Scootle.
NOTE: Please be aware that should the Scootle wheels meet an obstruction, you will
need to help it out manually. Attempting to drive through an obstruction when the wheel is
stuck could result in damage.

-16-
ARM REST
● Insert armrest as per below illustration.
● Tighten the screws L.
The armrests on your Scootle are not designed to load bearing.
DO NOT PUT EXCESSIVE WEIGHT ON THE ARMRESTS
- 17 -
SEAT POST CLAMP
● Insert the seat frame tubes into the corresponding holes on the
main frame, and then tighten the lever clamp “K” as illustration.
BASKET
● Fit the front basket as shown below.

- 18 -
FLAT PACK KIT:
To st or e f o lde d se at o nto sco o ter
Assemble the guide pin for each seat post as per illustration.
Make sure that stop pin “J” touches horizontal plate “H”.
Before tightening screws “D”, put the two guide pins into
corresponding seat post holes for adjustment, then
tighten screws “D”.
The guide pin can be folded to save
space as per illustration.
Caution: Please be cautious to avoid
pinching your fingers during operation.
- 19 -
When the seat is folded and positioned on the scooter, the seat post clamp “K”
must be tightened securely.
SPARE BATTERY – OPTIONAL
The battery bag clips
“M” attaches to “L”

- 20 -

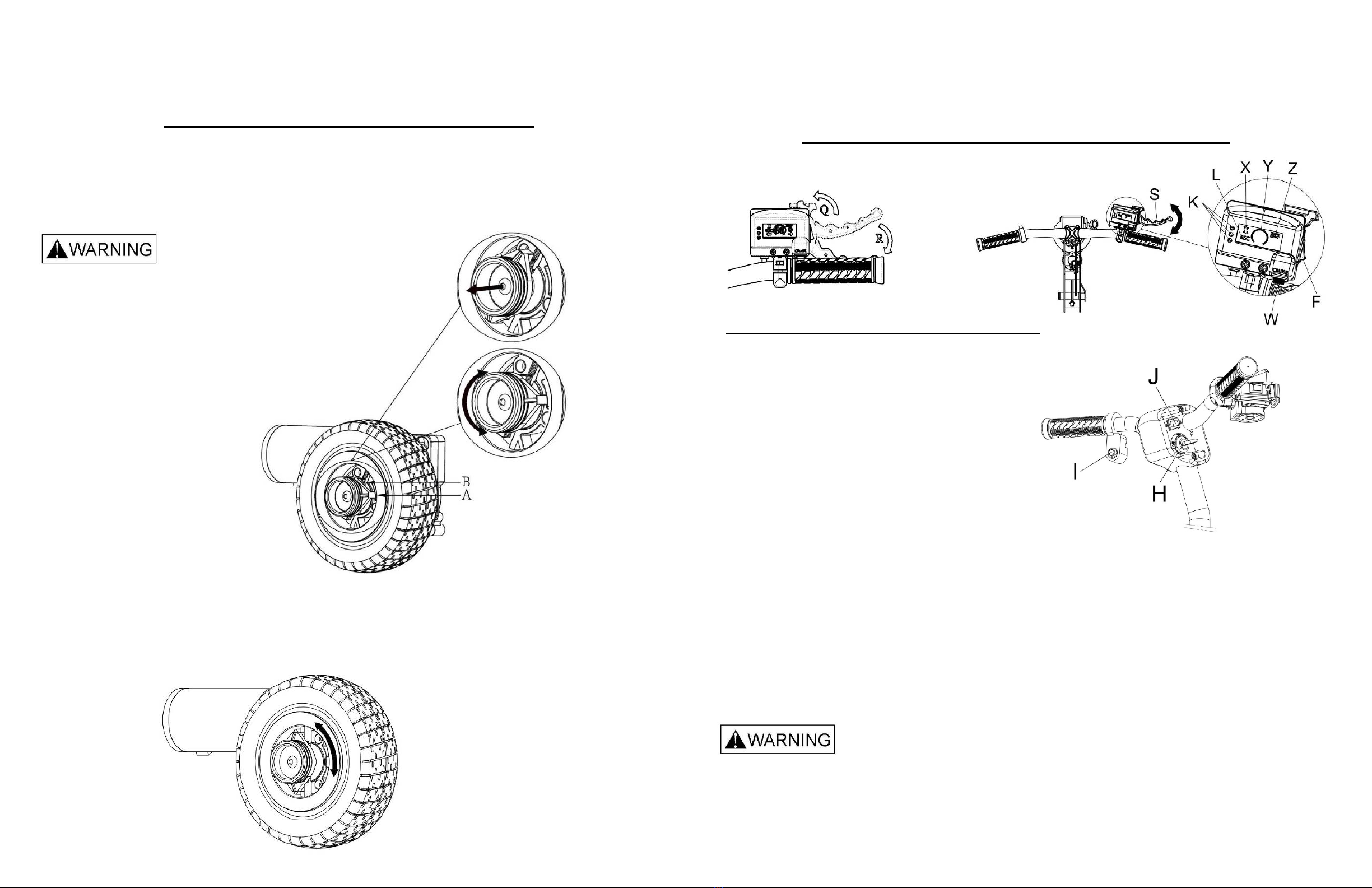

DRIVE WHEEL RELEASE MECHANISM
● The Scootle is equipped with a drive wheel release
mechanism. Your Scootle can be moved
manually after the drive wheels are released.
Do not operate this device on the slope.
As to disengage the drive wheels,
pull the drive collar (part “A”) out and
turn it left or right, then release it.
To reconnect the drive wheels
Turn the drive collar (part “A”) until it reconnects with the wheel and then move the
scooter until the collar connects with the drive. (a loud click)
- 21 -
CRUISE CONTROL, LIGHTS AND SWITCHES
To lock the speed lever for transportation:
CAUTION ! : ONLY BE USED WHEN POWER IS OFF.
Use one hand to pull the lever as
arrow direction “R” and use the other hand
to turn the locker as arrow direction “Q”
● F : Forward and Reverse switch.
● S : Speed lever.
● K : Battery level indicator.
● H : Key switch
● J : Speed selection: F / full speed, S / reduced speed
● I : Disable button for ESC ● X: Disable ESC indicator
● W: Cruise activate & deactivate button ● Y: Cruise control indicator
● Z: Battery green level gauge
Do not place your fingers on the speed lever before you turn the key switch “On”.
Do not operate speed selection switch “J” when scooter is moving.
Pull the speed lever “S” and accelerate slowly.

- 22 -
CRUISE CONTROL
When cruise control is activated, the scooter automatically maintains the stored speed.
To use Cruise Control:
You can operate cruise control at variable speed with pushing cruise button “W” and the
indicator “Y” will be light on.
To turn off Cruise Control:
Briefly push cruise control button “W” or pull down the speed
lever “S” then release immediately.
● Use cruise control only if road and traffic conditions make
it appropriate to maintain a steady speed for extended period.
● Always pay attention to traffic conditions even when cruise control is activated.
● Cruise control is only an aid designed to assist driving. You are responsible for the
scooter’s speed and brake at all times.
Do not use cruise control:
● In traffic conditions which are not allowed you to drive at a
constant speed, e.g. heavy traffic, winding or bumpy roads, where
may cause an accident.
● On slippery roads, the drive wheels may lose their grip when braking or accelerating
which may cause the scooter to skid.
● When there is low visibility, e.g. due to fog, heavy rain or snow.
● Cruise control may be unable to maintain the stored speed on uphill gradients. Hence,
do not use cruise control when the slope gradient is of 4 and or 4 degrees.
● Do not use cruise control when riding down hills or down inclines.
- 23 -
If the scooter does not move after the re-set, one of the following
indicator lights may be displayed:
The magnetic brake either turn off or
connectors are loose.
Batteries on scooter for recharging with the key switch turn on.
Low voltage of batteries detected.
Potentiometer fault.
Overload protection.
Battery needs recharging or connection fault - check grey
color connector.
Unusual current output.
AUTO SWITCH OFF ELECTRONIC SYSTEM
● The electronic system of this scooter is protected by a digital over current cut-off
system. If your Scootle stops, you will need to turn the main key switch to the “Off”
position, and then switch to “On” position to reset the system.
● Possible causes of over current cut-out are battery not fully charged or near the end of
its life, or the slope is too steep for the scooter. Do not continue to overload the system
as this may damage the controller.
● The electronic system of this scooter will switch itself “Off” after 3 minutes if the key
switch is left in the “On” position when the scooter is not in use. You will then need to
turn the key switch to the “Off” position, and then switch to “On” position to reset the
control system.
Green light flashes quickly
Yellow & Red light ON
Green light flashes slowly
Green, Red & Yellow light
ON
Red & Green lights
flash alternatingly
Red light on
Yellow light flashes
quickly

- 24 -
ELECTRONIC STABILITY CONTROL (ESC)
This is the most significant advancement in mobility scooter safety ever designed and
has dramatically reduced accidents due to operator misuse. Turning corners at
excessive speed has always been one of the most common causes of accidents but
with clever engineering and sophisticated electronics we have all but eliminated this
problem. The speed of the Scootle is now electronically governed in direct proportion to
the rotation of the handlebars, virtually eliminating any possibility of over speeding when
turning. With the handlebars at maximum rotation and the throttle at maximum speed
the scooter will turn at a very low speed with complete safety. Some situations may
require maximum power to be used when turning and we have allowed for this with a
handlebar mounted push button which will disable the ESC for 20 seconds if needed.
(Push button for one second).
Keep fingers and clothing away from the Electronic
Stability Control (ESC) sensor. This vital piece of
equipment is sensitive and could be damaged, or
could cause damage, if tampered with.
Warning. If the ESC is disconnected the Scootle will
continue to function normally but the speed will not
reduce when turning.
- 25 -
PRECAUTIONS
● When using your scooter for the first time you should practice at slow speed in a
flat open area free of obstacles, until you are confident in turning, stopping, reversing,
and judging braking distance.
● This scooter is designed for a maximum rider weight of 120kgs.
● Always switch power off (Key switch to “Off” position) before leaving your scooter.
● Do not store your Scootle outside without adequate protection.
● Keep the shipping carton in dry place after unpacking your Scootle in case it needs to
be shipped for service.
● This appliance is not intended for persons (including children) with insufficiency of
physical, sensory, or mental capabilities, or lack of experience and knowledge, unless
they have been given instructions concerning use of the appliance by a person
responsible for their safety. Children should be supervised to
ensure that they do not play with the appliance.
Your Scootle is extremely maneuverable and sharp turns must only be done at slow
speeds.
Do not operate the Forward/Reverse switch when scooter is moving. This could damage
your Scootle.

- 26 -
HOW TO CLEAN THE SCOOTLE®
Avoid power spray water washing of the scooter as this could cause damage to the wire
connectors and electronic system.
Completely dry off the scooter, if necessary, use a dry cloth after cleaning your scooter.
HOW TO CLOSE THE TERMINAL COVER OF BATTERY
TO CLOSE the terminal TO OPEN the terminal
To open or close the terminal cover “L” by above illustration per arrow direction.
For safety reason, you will need to close the terminal cover “L”
while battery in individual pack for transportation or being charged
off board.
- 27 -
FOLD THE SCOOTLE®
● Remove battery pack from scooter
● Use one finger to pull the ring “F”, and use the other hand to
pull the battery pack upward and then move the battery module away from scooter.
● Close the terminal cover “L” after moving the battery
module from scooter per arrow illustration.
● Remove the seat from scooter.

- 28 -
● Use one hand to hold the handle, and use the
other hand to pull the lock pin knob (G) and
turn it anticlockwise. Then fold the handle
down until you hear the “click” of the locking
pin fitting into position on the main frame.
INFREQUENT USE OF YOUR SCOOTLE
To st or e the Scootle for a period of a month or more, it is recommended that you remove
the battery away from scooter and close the terminal cover during storage or during a
period that the scooter is not used.
- 29 -
CHARGE BATTERY
● When you get your new battery, put it on charge for 24 hours.
● When recharging your battery, always charge it until the light on the charger turns
green.
● Never use the battery for any purpose but power your scooter.
● The battery charger can become hot during charging so your charger should be placed
in a suitable place with good air flow and away from children.
To recharge the batteries, follow the steps below:
● Place your Scootle close to a standard electrical wall
outlet.
● Turn the scooter key switch to
the “Off” position.
● Swing the charger’s cover away
(T) as arrow direction.
● Plug the charger power cord
(Round plug) (S) into the socket
indicated on battery pack.
● Plug the charger power plug
into a standard wall outlet.
● When charging is completed, the yellow LED will turn to
green.
● Disconnect the charger power cord from the wall outlet and the plug from the scooter
when the batteries are fully charged.

- 30 -
Or remove the battery from Scootle, and charge battery individually.
● Swing the charger’s cover away (T) as arrow direction.
● Plug the charger power cord (Round plug) (S) into the socket indicated on battery pack.
Do not place the battery on a concrete floor for charging. Raise the battery off the
concrete with wooden blocks or similar objects.
IMPORTANT NOTICE:
When removing battery away from scooter, the battery terminal covers must be kept
always closed to avoid the possibility of something contacting the terminals and causing
a short circuit. This could damage the battery or even cause it to explode.
To dispose of your battery, return it to your dealer or a recycler. Improper disposal of the
battery could result in an explosion causing injury and/or property damage.
- 31-
Estimated travel distance with 220lb load
24V 11.6ah Lithium
Battery
(6.2 to 8 miles)
Note:
When the YELLOW light comes on there is approx. 26 minutes
of travel time before the RED light comes on and a further 23
minutes before the battery runs out.
Figures are based on full charged battery with firm & even road surfaces. This will vary
according to passenger weight, battery age and road conditions.
.

- 32 -
BATTERY CHARGER
For your safety and proper use of battery module, we strongly recommend that you read
this manual completely before use.
● For indoor use only, do not expose to rain.
● Disconnect the mains power supply before making or breaking
the connections to the battery.
● This appliance is not intended to be used by persons (including
children) with insufficiency of physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they
have been given instructions concerning use of the appliance by
a person responsible for their safety. Children should be supervised.
to ensure that they do not play with the appliance.
● This charger is not for recharging non-rechargeable batteries.
● Do not use for charging any batteries which are not specified by the manufacturer.
Understand the LED lights on the charger:
NOTE: When starting to charge, if the LED on charger shows green or red after being
connected for a while, please reset by unplugging the charger from the battery
and power supply then reconnect the battery and charger again.
OR if the LED on charger flashes red/green alternately or yellow, you will need to
reset the charger by turning off the power until the flashing stops. Wait a few
seconds then switch on again.
RED: the charger is connected to a power source.
ORANGE: charging battery.
GREEN: (flashing) almost fully charged
SOLID GREEN fully charged
- 33 -
INSTRUCTIONS FOR USING BATTERY MODULE
1. Charge battery module:
1. The battery module can only be charged using dedicated charger which is specified
for this battery module. Do not charge this battery module with any other chargers.
2. Before using the battery module for the first time, fully charged battery module with the
specified charger.
Only use the specific and approved charger delivered with this battery module.
3. Before charging the battery module, plug power cord to the main electricity. The LED
indicator should display RED light. Connect the output supply of the charger to the
battery module, the charging process will start automatically, the LED indicator should
display ORANGE light. When charging process is completed, the LED indicator
should display GREEN light for a fully charged battery module. (Yellow led indicator
flashing means the charger is ready for charging, while green flashing means
constant voltage charging)
2. Use the battery module:
1. The battery module is particularly designed for the Scootle only. Do not use battery
module on any other equipment.
2. For your safety and the life of the battery module, always switch off the scooter when it
is not in use.
Important note:
The Lithium battery has a built-in power management module with overload protection. If
the scooter stops due to overloading, turn the key off and on again to reset.

- 34 -
Important notes to help prolong the life of the battery:
• Before the first use of your battery, put it on charge for 24 hours.
• Always recharge your battery as soon as possible after use.
• Never use the battery when the red light is “On”. You will discharge the battery below
its designated voltage and
damage it.
• Do not drop the battery.
Do not use any battery which is NOT specified by manufacturer.
Do not open the battery case, this may cause unexpected
danger and will void the warranty.
BATTERY CARE & STORAGE
1. STORAGE:
Remove charged battery module from scooter / charger and store in a place where the
ambient temperature is above 5 degrees and lower than 30 degrees Celsius.
Ensure that the terminal cover is closed.
Recharge it before the next use.
★STORAGE:
Charge your battery every 2-3 months when it is not in use.
2. Always contact our service agent before you try to replace the battery or the charger.
Using an incompatible battery or charger may affect the performance or cause
dangerous problem.
- 35 -
BATTERY SAFETY INSTRUCTION
1. Do not disassemble or modify battery module. The battery module contains safety and
protection devices, if damaged,
it may cause the battery to general heat, explode, or ignite.
2. Do not short circuit the (+) and (-) terminals with other metals.
3. Do not place battery in a device with the (+) and (-) incorrectly positioned (+ to –).
4. Do not use, leave battery module close to fire or in a car where temperature may be
above 140 degrees Fahrenheit. Also do not charge/ discharge in such conditions.
5. Do not charge battery by connecting to a 12 volt or cigarette lighter socket in a car.
6. Do not heat or throw old, failed battery module into a fire.
Please send back to local distributor for recycling.
7. Do not hit with a hammer (or any solid objects), step on, throw
or drop to cause a strong shock. Strong shocks could damage battery cells and
battery management system.
8. Do not immerse or wet the battery module in water/ sea water.
9. Stop using the battery if abnormal heat, odor, discoloration, deformation, or abnormal
condition is detected.
10. Be careful about protecting the lithium battery during moving it or storing it to avoid
any damage to the case or connectors.
11. Be careful to protect the lithium battery when moving.
Avoid dropping it or hitting it roughly.
Do not use this charger to charge any other batteries which are not specified by the
manufacturer.
Do not use any other charger which are not specified by manufacturer
to charge this battery module.

- 36 -
During use, charge, or storage
1. Do not put battery module in your pockets or bags together with metal objects such
as golf clubs, necklaces, hairpins, coins, or screws. Do not store batteries with such
objects.
2. When charging the battery module, use dedicated chargers and follow the specified
conditions.
3. Use battery module only to power the Scootle.
4. Stop charging the battery if charging is not completed within the specified time.
5. Always recharge your battery module as soon as possible
after use.
6. Batteries have life cycles. If the time that the battery powers equipment becomes
much shorter than usual, the battery life is at an end. Contact our service agent to
replace the battery or and charger.
7. While the battery is charged, used, and stored, keep it away from objects or
materials with static electric charges.
8. Do not store your battery module outside without adequate protection.
9. If the terminals of the battery become dirty, wipe with a dry cloth before using the
battery.
10. Remove a battery whose life cycle has expired.
11. When the battery is worn out, insulate the terminals by
closing the terminal cover.
12. DO NOT dispose of battery in fire. Improper storage and
disposal of the battery could result in explosion causing injury and or property
damage.
- 37 -
Specifications
Number of Wheels
4
Front Wheel Size
7” (175mm)
Rear Wheel Size
8” (200mm)
Ground Clearance
(tiller)
2.4” (60mm)
Length
39” (990mm)
Width
22.5” (570mm)
Weight Without Seat
31 lbs (14.3 kg)
Weight of Seat
11 lbs including seat frame (5kg)
Max Loading
264 lbs (120kg) on level ground
Turn Radius
36.6” (930mm)
Motor Output
260 Watt
Transmission
Worm Drive Differential Gearbox
Reverse
Forward/Reverse Switch
Brakes
Dynamic Braking and Electromagnetic Brake
Braking Distance /
time
39-59” (1-1.5 meter) / 0.6 - 0.7 second
Battery (Lithium)
Lithium 24V 11.6ah / 1.8 kg (4 lbs)
Charger (Lithium)
Off board 24-volt 2 amp - 0.5 kg (1.1 lbs)
Max Speed
6.5 kph (4 mph)
2nd speed choice
3.8 kph (2.4 mph)
Slope Grade Ability
Max. Recommended - 8 Degrees
Travel Distance
Up to 10-13 km (6.2- 8 miles) with 24V 11.6ah
lithium battery on a single full charge, depending on
user weight and surface.
