FISCHBEIN Saxon SH 2000 Instructions for use

SH2000
HOT AIR CONTINUOUS HEAT SEALER
INSTRUCTION
AND
MAINTENANCE
MANUAL
FISCHBEIN-SAXON LTD
Incorporating The Thames Packaging Equipment Company and Fischbein Ltd
Alexandra Business Centre, 274 Alma Road, Enfield, Middlesex, EN3 7RS, England
Telephone: [phone] Fax: [phone]
Manual No 82.150 Rev 100315

SH2000
82.150 Rev 100315
2
BELGIUM
Fischbein S.A.
Paepsem Business Park
Boulevard Paepsem 18b
B-1070 Brussels
Belgium
Phone: [phone]
Fax: [phone]
Email: [email protected]
FRANCE
Fischbein France
2 Rue de la Fontaine du Vaisseau/BP 100
F-94120 Fontenay-sous-Bois / Cedex
France
Phone: [phone]
Fax:: [phone]
Email: [email protected]
GERMANY
Fischbein Deutschland Gmbh
Meisenstrasse 96 - D-33607
Bielefeld
Deutschland
Tel: [phone]
Fax: [phone]
Email: [email protected]
SINGAPORE
Fischbein Singapore
n°37 Lorong 23 Geylang
02-03 Yu Li Industrial Building
Singapore 388371
Phone: [phone]
Fax: [phone]
Email: [email protected]ngnet.com

82.150 Rev 100315
SH2000
3
CONTENTS
1 SAFETY...................................................................................................................5
2 EXPERT MAINTENANCE.......................................................................................7
2.1 Bag Sealer Handing........................................................................................9
3 DATA.....................................................................................................................11
3.1 Speed Range & Capacity..............................................................................11
3.2 Total Power Consumption ............................................................................11
3.3 Nett Weight ...................................................................................................11
3.4 Voltage and Frequency ................................................................................11
3.5 Wiring ...........................................................................................................11
3.6 Environmental Conditions..............................................................................11
3.7 Operating Temperatures...............................................................................11
3.8 Relative Humidity ..........................................................................................11
3.9 Thermocouples .............................................................................................11
3.10 PID Controllers............................................................................................11
4 WORKING FUNCTIONS.......................................................................................12
4.1 Work Flow......................................................................................................12
5 CONTROLS...........................................................................................................13
5.1 Machine Controls...........................................................................................13
5.2 Switch On......................................................................................................13
5.3 Switch Off......................................................................................................14
6 SETTING UP.........................................................................................................15
6.1 Throughput Speed.........................................................................................15
6.2 Machine Positioning......................................................................................16
6.3 Bag Height.....................................................................................................16

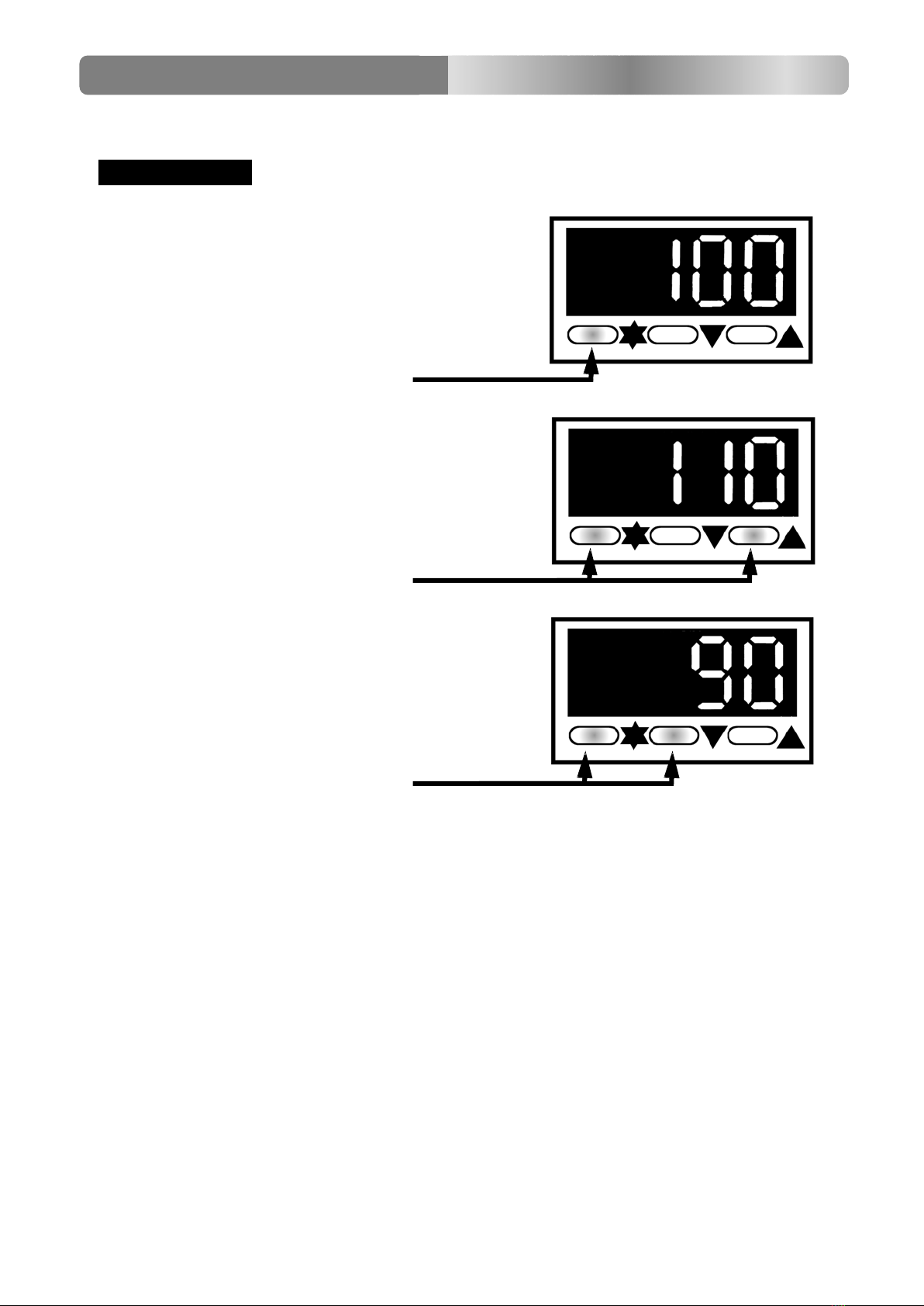

6.4 Change Temperature....................................................................................17

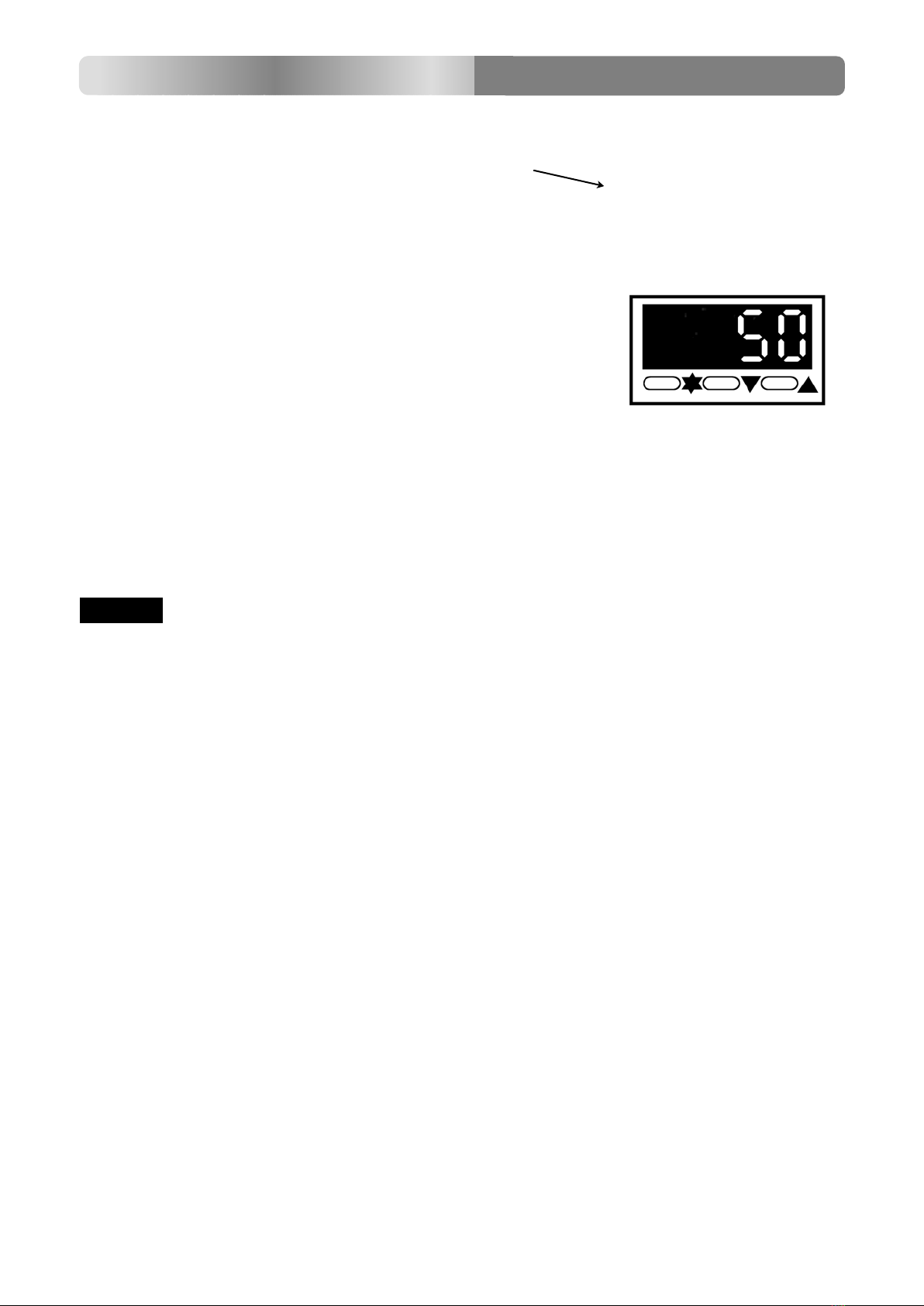

6.5 PID Controller - General................................................................................18

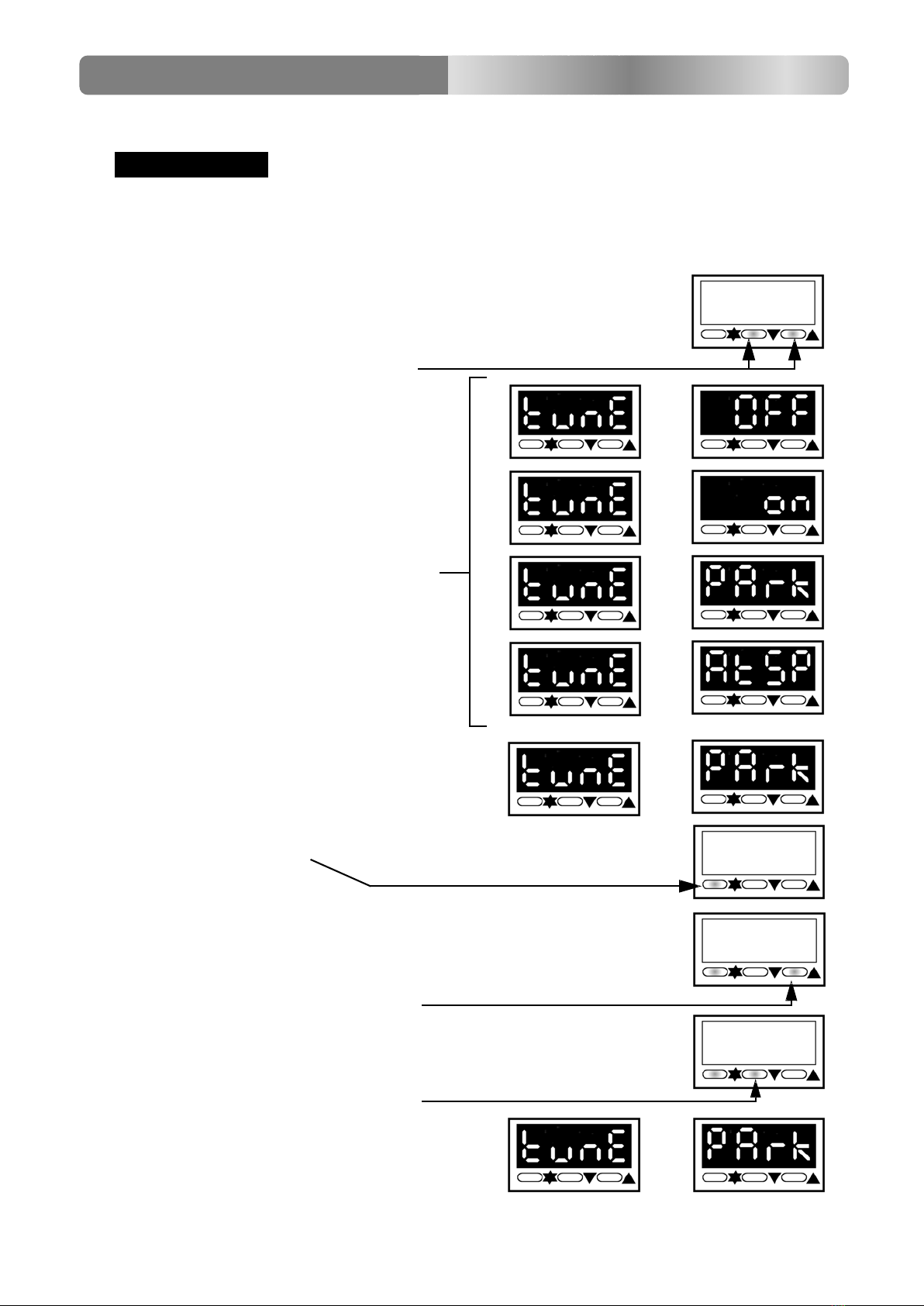

6.6 PID Controller - Autotune..............................................................................19
6.7 To Correct Any Setting Error..........................................................................21
6.8 Changing Bag Thickness...............................................................................22
6.9 Adjustment to Pressure Wheels....................................................................23
6.10 Adjusting Temperature for Bag Thickness..................................................24
6.11 Heating Capsule outlet height.....................................................................24
6.12 Setting Heater Capsule Height....................................................................25
6.13 Change Machine Speed..............................................................................26
6.14 Pressure Wheel Alignment..........................................................................27
6.15 Bag Feed Guides.........................................................................................28
7 MAINTENANCE.....................................................................................................29
7.1 Removing Heating Capsule...........................................................................29
7.2 Replacing Heater Capsule - HEATING CAPSULE 1....................................30
7.3 Change Heater Module.................................................................................31
7.4 Replacing Carrying Belts...............................................................................32
7.5 Change Pressure Wheels..............................................................................33
7.6 Replace Motor or Gearbox............................................................................34
7.7 PID Controller Fault Diagnostic Procedure...................................................35
7.8 PID Controller Replacement Procedure........................................................36
8 ROUTINE MAINTENANCE...................................................................................37
8.1 Daily...............................................................................................................37
8.2 Weekly / 40 Hours.........................................................................................38
8.3 Monthly / 160 Hours......................................................................................39
8.4 Yearly / 2000 Hours.......................................................................................40

SH2000
82.150 Rev 100315
4
CONTENTS
9 PARTS and SPARES.................................................................................................42
9.1 Mainframe Assembly..........................................................................................42
9.1.1 Mainframe Assembly Parts List..................................................................43
9.2 Bottom Plate RH Assembly................................................................................44
9.2.1 Bottom Plate RH Assembly Parts List........................................................45
9.3 Bottom Plate LH Assembly.................................................................................46
9.3.1 Bottom Plate LH Assembly Parts List.........................................................47
9.4 Heater Assembly 240V.......................................................................................48
9.5 Heater Assembly 115V.......................................................................................49
9.6 Main Drive..........................................................................................................50
9.7 Mainframe Air Duct Assembly............................................................................51
9.8 Bag Guide...........................................................................................................52
9.9 Control Panel......................................................................................................53
9.10 Rear Housing....................................................................................................54
9.11 Recommended Spares List..............................................................................55
9.11.1 6-12 Months Routine Maintenance.........................................................55
9.11.2 12+ Months Routine Maintenance...........................................................55
9.12 Electrical Schematic.........................................................................................56
9.13 Safely Disposing of a FSL Sealer.....................................................................56
10 MACHINE LAYOUTS...............................................................................................57
10.1 Head Unit - Right to Left Feed...........................................................................57
10.2 Pedestal Unit with Extension Arm - Right to Left Feed.....................................58
10.3 2000 Series Trolley Unit...................................................................................59
Annex Section 7. Plug and Socket Assembly..............................................................60

82.150 Rev 100315
SH2000
5
SAFETY
This machine must be installed and
maintained by a person trained to do so.
Incorrect fitting or electrical wiring may lead
to serious injury, loss of life and subsequent
legal liability.
1 SAFETY
IN THE INTEREST OF SAFETY THIS EQUIPMENT MUST BE
ISOLATED
FROM THE MAIN ELECTRICAL SUPPLY WHEN LEFT
UNUSED AND UNATTENDED (i.e. at night)
OR DURING CLEANING AND MAINTENANCE
SAFETY NOTICE
Fischbein-Saxon Ltd
Full Maintenance Contracts are available from

SH2000
82.150 Rev 100315
6

82.150 Rev 100315
SH2000
7
HEAT SEALER
2 EXPERT MAINTENANCE
QUALITY ATAN AFFORDABLE PRICE
At Fischbein-Saxon we are aware of the critical role played by our machines in your
production. We are also aware of how disruptive breakdowns can be
and how costly in wasted time and lost production.
Engineered to the highest quality, with regular maintenance your Fischbien-Saxon
machine will give reliable operation.
Fischbein-Saxon are able to offer a Service Contract specifically tailored to needs.
Servicing is carried out by our own experienced engineers backed up by the full
resources and expertise of ourselves – the manufacturer. Our engineers carry a
comprehensive range of parts. On each visit they will:
•Carry out a full inspection
•Dismantle as necessary
•Check all worn parts
•Replace worn/faulty parts
•Reassemble and test run
•Adjust and fine tune
•Test seal on customer’s bags
The benefits of a Fischbein-Saxon Service Contract include:
•Increased sealer efficiency
•Increased reliability
•Reduced breakdowns
•Expert maintenance
•Planned maintenance
•Value for money
We are sure you will agree the importance of regular quality maintenance.
Fischbein-Saxon is able to ensure it is carried out to the highest specification and on
time. Leave the worry to us.
If you have any queries or wish to discuss how we can best meet your requirements, do
not hesitate to contact us here at Fischbein-Saxon.

SH2000
82.150 Rev 100315
8

82.150 Rev 100315
SH2000
9
HANDING
2.1 Bag Sealer Handing
Left to Right Configuration
Right to Left Configuration

SH2000
82.150 Rev 100315
10

SH2000
82.150 Rev 100315 11
3.1 Speed Range & Capacity
3.1.1 Sealing Speed Range
The speed range available is between 2.7 - 22.2 m/min depending on bag thickness. Other
speeds outside this range are possible, to suit customer requirements.
3.1.2 Thickness of Film (Maximum):
Normal range of thermoweldable films up to 300 micron (1200 gauge or 12 mil).
3.2 Total Power Consumption
3584 watts (maximum).
3.3 Nett Weight
Sealingheadonly:77kg
Sealing Head with Adjustable Column and Trolley: 130 kg.
3.4 Voltage and Frequency
Voltage and frequency may vary ± 6%. It is important to be aware that a reduced voltage will
reduce the ‘Flat Out’ performance or maximum temperature. Also any deviation in Hertz will
affect the linear speed. If any conveyor running in conjunction with the machine is powered
by an induction motor, directly from the mains, then both units will usually be maintained in
synchronization.
3.5 Wiring
This machine may be hard wired or mains supplied via plug and socket, suitable for the
voltage and current requirements stated on the Machine Rating Plate.
3.6 Environmental Conditions
Compressed air must be clean, dried, filtered to at least 40 Microns, and supplied at 5.5 Bar.
3.7 Operating Temperatures
5°Cto35°C,
A LOW OPERATING TEMPERATURE WILL REDUCE THE ‘FLAT OUT’ PERFORMANCE.
3.8 Relative Humidity
85%(maximum).Storagewhennotinuseshouldbeat21°Cinadryindoorsituation.
If prolonged storage is anticipated, it is advised that the unit is thoroughly cleaned,
decommissioned and returned to its original packaging, or packaging of a comparable type.
3.9 Thermocouples
In the event of inaccuracy, it is possible to check the output voltage of the ‘K’ type
thermocouples at a given temperature. However, thermocouples either function correctly or
not at all, calibration is not possible.
3.10 PID Controllers
Calibration of the PID Controllers is not normally necessary. However, PIDs may be checked
for accuracy by substitution of a thermocouple simulator. Alternatively a D.C. millivolt source
may be used by ‘dialling in’ voltages that match the characteristics of a K type thermocouple.
It is also possible to check overall accuracy with an external temperature display. However, it
should be noted that the probe must be in exactly the same position as the thermocouple tip,
and even then, due to air flow characteristics, it is likely that a small variation will be evident.
Span and Zero adjustments are available, if required, via the PIDs menu system on ‘Level 3’
(further data available from Fischbein-Saxon Ltd if required).
If PID calibration shows a serious inaccuracy it should be returned to Fischbein-Saxon Ltd.
DATA
3 DATA

SH2000
82.150 Rev 100315
12
A Sealer Infeed Guides & Infeed Belts H Pressure Wheels
B Ploughs E Heating Section I Main Drive
C Feed Belts F Fan J Air Manifold
D Heating Capsules G Pressure Adjuster
4.1 Work Flow
4.1.1 The unsealed bag is fed into the Sealer Guides (1) where it is gripped by two
belts and is carried through the Plough Section or Trimmer (if fitted).
4.1.2 Still gripped by the belts, the bag now passes through a Heating Section. (2)
Here, opposing streams of hot air strike the bag side along a narrow band,
causing a heated bond to be formed on the inside surfaces of the bag.
4.1.3 After heating, the bag immediately passes through two Pressure Rollers (3) to
complete the weld.
4.1.4 With the weld completed, the bags pass out of the sealer (4).
The Hot Air temperature is controlled by PID Temperature Controllers. These
continuously monitor the output temperature from the Heating Capsules and
adjusts it to that preset on the control panel by the operator.
WORKING FUNCTIONS
4 WORKING FUNCTIONS
The Sealer uses a patented system of hot air bag sealing which gives a high
sealing efficiency together with reduced setting up and maintenance times.
B
A
D
C
E
F
G
H
I
J
1
2
3
4
J

SH2000
82.150 Rev 100315 13
CONTROLS
5 CONTROLS
5.1 Machine Controls
5.2.1 This will activate the machine mechanism and
begin the run up to working temperature.
At the same time, controllers will show “8888”
immediately followed by current air temperature.
This indicates self-test procedure.
5.2.2 To check the current preset working
temperature in memory: PRESS
1 PID 1
2 PID 2
3 PID 3 (See note)
4 PID 4 (See note)l
5 Emergency Stop
6 Column
7 Mode (Cool / OFF / Seal)
8 On Switch
5.2.3 Raising the machine to correct working temperature from cold takes 2 - 3 minutes,
depending on required temperature.
Do not attempt to run bags until required temperature is reached.
See “PID CONTROLER - AUTOTUNE” section.
Note:
If only 2 PIDs are installed, PID 3 and PID 4 will be
dummies and will not show a display.
For L-R configuration, PID numbers will read from
the other end.
8
5.2 Switch On
Press Start Button (8) and turn the
Cool/Off/Seal switch (7) to SEAL
Right to Left Control Panel Layout
2
7
8
14 3
6
5
527 8
1
643
Left to Right Control Panel Layout

SH2000
82.150 Rev 100315
14
CONTROLS
5.3.1 Machine will continue to run, but with the Carrying Belts
running in reverse direction, until the PID Display
indicates that the temperature has dropped to below
50°C. The machine will then stop automatically.
5.3.2 Turn Mode Switch (7) to “0” – OFF
For machines with 2 or 4 PIDs, setting instructions remain the same
FAILURE TO CARRY OUT THIS PROCEDURE MAY DAMAGE THE MACHINE
AND WILL NOT BE COVERED BY ANY SERVICE WARRANTY.
5.3 Switch Off
NOTE
Switch Mode (7) to “ ” – COOL DOWN
*
7

SH2000
82.150 Rev 100315 15
6 SETTING UP
A GOOD BAG SEAL IS OBTAINED BY THE VARIABLE INTERACTION OF
THREE OPERATING FACTORS ON THE MACHINE:
1) Throughput SPEED (A)
2) TEMPERATURE (B) of the Sealing Air.
3) The HEIGHT (D) of the Heating
Capsule Outlets (See Section 6.12).
4) CORRECT PRESSURE (C) between
the Pressure Wheels.
6.1 Throughput Speed
6.1.1 After installing the Sealer, check that the speed of the machine and the infeed
conveyor are synchronised.
6.1.2 If conveyor and machine speeds are not synchronised, the bags may tip, which in
turn will give partial or no sealing. This effect is most noticeable on narrower bags.
A
6.1.3 If the conveyor speed cannot be changed to correspond to the sealer, then the
sealer speed (If fitted) has to be changed to match the conveyor. This may require
the temperature to be adjusted for best seal.
Conveyor Faster than Sealer
Bag tips back Conveyor Slower than Sealer
Bag tips forward
SETTING UP
CB
D

SH2000
82.150 Rev 100315
16
6.2 Machine Positioning
THE INFEED CENTRE LINE OF THE MACHINE MUST BE DIRECTLY
ABOVE AND PARALLEL WITH THE CENTRE LINE OF THE CONVEYOR
6.2.1 The machine must be correctly levelled on a
sound base by four levelling screws S.
6.2.2 Height is adjustable by the electric column T.
6.2.3 When setting up the conveyor and sealer, it is
critical that the lines A-Aand B-B are parallel.
6.3 Bag Height
6.3.1 The required bag height measurement His taken from the top
surface of the conveyor belt to the underside of the machine infeed.
IMPORTANT
The top of the bag, when on the conveyor,
should be approximately at waist level to the operator.
SETTING UP
S
T
S
S
B
AB
A

SH2000
82.150 Rev 100315 17
6.4 Change Temperature
To prevent variations during production, temperature may have to
be autotuned. See AUTOTUNE section.
6.4.1 To check EXISTING
TEMPERATURE in memory
PRESS
6.4.2 To INCREASE working
temperature PRESS
6.4.3 To DECREASE working
temperature PRESS
Any change of temperature will automatically set that temperature into
current memory.
IMPORTANT
SETTING UP

SH2000
82.150 Rev 100315
18
6.5 PID Controller - General
The PID Controller is a programmable unit giving cyclic monitoring and fine
control of Sealing Air Temperature
TEMPERATURE RANGE 0 - 400°C
All controllers, whether fitted to new machines or supplied as replacement units, are
preset to 150°C. This setting gives a convenient start point in the sealing process to
determine the air temperature required for various applications.
6.5.1 PROGRAMMING
Incremental in single degree or multi-degree steps by use of the control buttons
referring to the instructions on the following pages.
6.5.2 AUTOTUNE
When Autotune is completed, temperature is maintained to within ±2°C.
6.5.3 DISPLAY
4-digit display provides:-
a) Continuous readout of sealing air temperature
or
b) Data on various aspects of the control system subject to use of the control
buttons and instructions on the following pages.
SETTING UP

SH2000
82.150 Rev 100315 19
6.6 PID Controller - Autotune
It is most important that the following sequence of instructions is
carried out in the CORRECT order.
If an error is made in the following sequence, e.g. if the ▲or ▼are not pressed
simultaneously, or are mis-used in any way, the Controller will move into another
non-related mode and display irrelevant data. If this occurs, STOP the sequence
IMMEDIATELY, and refer to the ‘To Correct Any Setting Errors’
instructions. (see Section 6.7)
6.6.1 PRESS AND HOLD
For approximately 5 seconds
6.6.2 THE DISPLAY WILL
ALTERNATE BETWEEN
tunE and one of these modes
and the modes will display
in this sequence
(see below)
6.6.3 Correct option required
for Autotune is (alternately)
6.6.4 If anything other than tunE and PArk is
displayed
PRESS and HOLD
6.6.5 PRESS momentarily to go UP the sequence
OR
6.6.6 PRESS momentarily to go DOWN the sequence
until
display reads:
IMPORTANT
SETTING UP
and
and
and
and
and

SH2000
82.150 Rev 100315
20
6.6.7 RELEASE
and then PRESS simultaneously
6.6.8 Display will alternate between
The actual temperature will be seen to be falling at each display.
6.6.9 Allow temperature to fall to 50°C or less before proceeding with the next stage
of AUTOTUNE.
6.6.10 Press for approximately 5 seconds
Until display alternates between
6.6.11 Press and HOLD
6.6.12 PRESS momentarily
6.6.13 To DISPLAY AtSP
and
and
6.6.14 Overshoot
If display shows
OFF and
PRESS to go
back one mode
SETTING UP
