Fish Hawk X4 User manual

OWNERS MANUAL
MODELS X4 & X4D
Trolling without a Fish Hawk is called BOATING .

FISH HAWK BEYOND
WARRANTY & DISCOUNT COVERAGE
We stand behind every system with the best warranty and service in the marine
electronics industry.
TWO-YEAR WARRANTY
Fish HawkSystems arefully guaranteedagainst anydefect in partsor workmanship
for two years from the date of purchase for the original owner.
DISCOUNT COVERAGE BEYOND TWO YEARS
In the event a product cannot be repaired for a fee in years three, four, or ve; a
new replacement product can be purchased at a 25% discount by the original owner.
CONDITONS
This warranty does not include repairs needed as a result of improper use, failure
to maintain, accidents, or loss.
Products must be registered at shhawkelectronics.com/register within 60-days
of purchase to be eligible for warranty and discount coverage.
REQUESTING WARRANTY SERVICE
Request warranty service at shhawkelectronics.com/service-request-form
SHIPPING
The owner is responsible for shipping products back for warranty service. Fish
Hawk Electronics will cover the cost of return shipping within the two-year war-
ranty period.

PERSONAL RECORDS
FISH HAWK BEYOND Warranty & Discount Coverage is activated upon registra-
tion of your system at shhawkelectronics.com/register
Original Owner Name:
Model:
Probe Serial Number (in battery compartment):
Display Serial Number:
Purchased From:
Purchase Date:
Notes:

TRANSDUCER INSTALLATION
The transducer listens for the signal sent by the Fish Hawk Probe. Properly
installing the transducer is key to getting the best performance.
The transducer should be mounted nearly ush with the bottom of the boat’s
hull, parallel with the surface of the water.
Select a location on the transom that is not affected by turbulence caused by the
motor used for trolling. Do not locate the transducer in front of a motor.
Do not remove the connector or cut the transducer cable. Coil any excess
cable out of the way. If more length is needed, 15’ transducer extension cables are
available for sale at shhawkelectronics.com.
DISPLAY INSTALLATION
Mount the Fish Hawk Display in a visible, protected location. The display
requires the power cord and transducer be connected. The 12-volt power cord has a
one amp in-line fuse for wiring directly to the battery.
DISPLAY OPERATION
The Fish Hawk Display is ready to sh right from the box. Press the power
symbol button to turn the display on. Screen settings are accessed by pressing the
SET button. Each time the SET button is pressed, the display will advance to the next
eld. Use the UP and DOWN arrow buttons to adjust settings and press the power
symbol button once to save changes.
Enable the screen backlight by pressing the UP arrow, turn the backlight off by
pressing the DOWN arrow. There are three backlight brightness levels.
FH
FH
FH
FH
S
FH Fish Hawk Transducer - 70 kHz
Single Outboard/Outdrive
Recommended Transducer Locations
Twin Outboard/Outdrive
Single Outboard with Kicker Motor
Twin Inboards
Sonar Transducer - 200/83/50 kHz, CHIRP
Mid-Ship Thru Hull Sonar Transducer
Operate at
200 kHz or CHIRP
Run Fish Hawk Probe
on same side as
Fish Hawk Transducer
S
S
S

If necessary, to restore factory settings, press and hold the SET button while the
display is off. Continue holding the SET button down and turn the display on. The
display will scroll through all elds and stop on a reset screen. After the decimal
points on the reset screen ash 10 times, all numbers will become zeros, indicating
factory settings have been restored. Release the SET button and press the power
symbol button one time to resume function.
THE FISH HAWK PROBE
Unscrew the battery cap and carefully remove the battery holder from the probe
housing [note how the battery holder is tted inside housing.] Install four high
quality AA batteries, paying attention to the polarity of each battery. Insert the
battery holder and thread the cap on nger-tight only. LO BAT will appear on the
display when the probes batteries need to be replaced.
The probe is water activated. Dry or remove the protective silicone bumper on
the front of the probe after each use to maximize
battery life.
PROBE MAINTENANCE
Follow these recommendations to insure proper
Fish Hawk Probe function for many years:
• Loosen the cap at the end of each shing day to
dry natural condensation from inside the battery
compartment to prevent corrosion.
• Press axle clips tight against paddle wheel arbor
daily.
• Do not disconnect the battery holder from the
probe.
• Apply a light coat of lubricant to the O-rings
annually. Do not over-lubricate.
• Remove the batteries from the battery holder and
store probe with the cap off during periods of
extended storage.
Probe
Speed
Probe
Temperature
Units of
Measure
Surface*
Speed
Surface
Temperature
POWER
Button
SET
Button
UP
Arrow
DOWN
Arrow
POWER
Button
SET
Button
UP
Arrow
DOWN
Arrow
Probe
Speed
Probe
Temperature
Units of
Measure
Probe*
Depth
Surface
Temperature
Surface
Bottom

BLUETOOTH® FUNCTIONS
(MODEL X4D BT ONLY)
The Fish Hawk X4D BT is equipped with Bluetooth® to communicate with cur-
rent mobile devices and Cannon® Optimum Downriggers.
The free Fish Hawk Mobile App is available at the App Store or Google Play. The
Fish Hawk App mirrors the Fish Hawk Display on a mobile device and features a
catch log to record the details of sh caught.
TROUBLESHOOTING
Troubleshooting information can be found at
shhawkelectronics.com/troubleshooting
Chat support and messaging are available at
shhawkelectronics.com
REQUEST SERVICE
Request service by completing the form found at
shhawkelectronics.com/service-request-form
Preferred Water Temperature Ranges
(shown in Fahrenheit)
Species Lower Limit Optimum Upper Limit
Brown Trout 44 60 75
Chinook Salmon 42 50 60
Coho Salmon 44 54 60
Crappie 60 70 75
Kokanee 55
Lake Trout 42 50
Largemouth Bass 50 65 75
Atlantic Salmon 54
Rainbow Trout 44 55 75
Smallmouth Bass 50 65 73
Steelhead 38 55 62
Walleye 50 67 75
Alewife 48 54 72
Cisco 53
Emerald Shiner 61
Gizzard Shad 69
Rainbow Smelt 43 50 57
Spottail Shiner 54

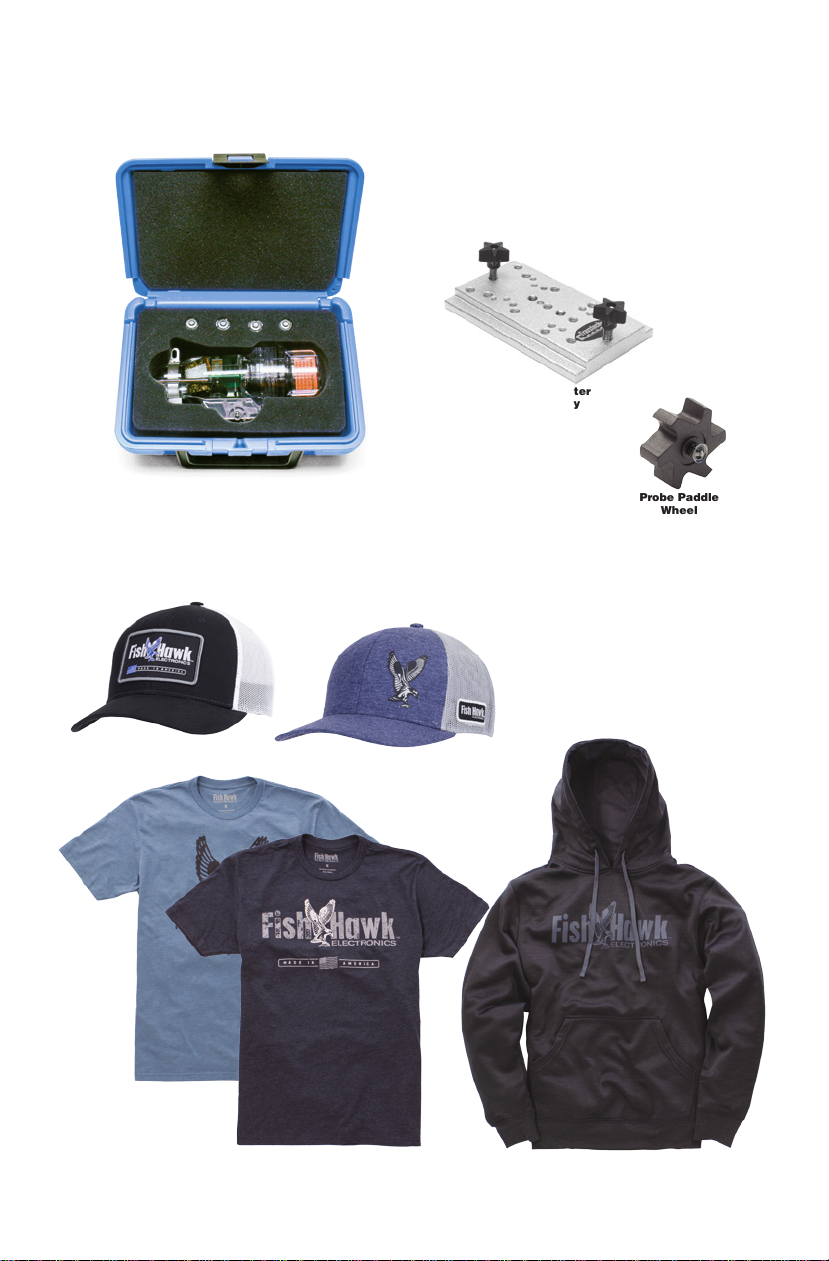

FISH HAWK ACCESSORIES & PARTS
Fish Hawk Accessories and Replacement Parts are available at:
shhawkelectronics.com
FISH HAWK APPAREL
Checkout hats, decals and apparel exclusively at:
shhawkelectronics.com/apparel
Probe Hard Case
Track Adapter
for Display
Probe Paddle
Wheel

Fish Hawk Electronics
Grayden Outdoor LLC
7845 Brians Way
Brainerd, MN 56401
fishhawkelectronics.com
