Fisher & Paykel DISHDRAWER DD24 User manual

Safety and warnings
Operating instru_;tions
(ontrois (modelb witls irsoIL,,£D)
Controls (modells witlh IL,£D)
Wash program chart

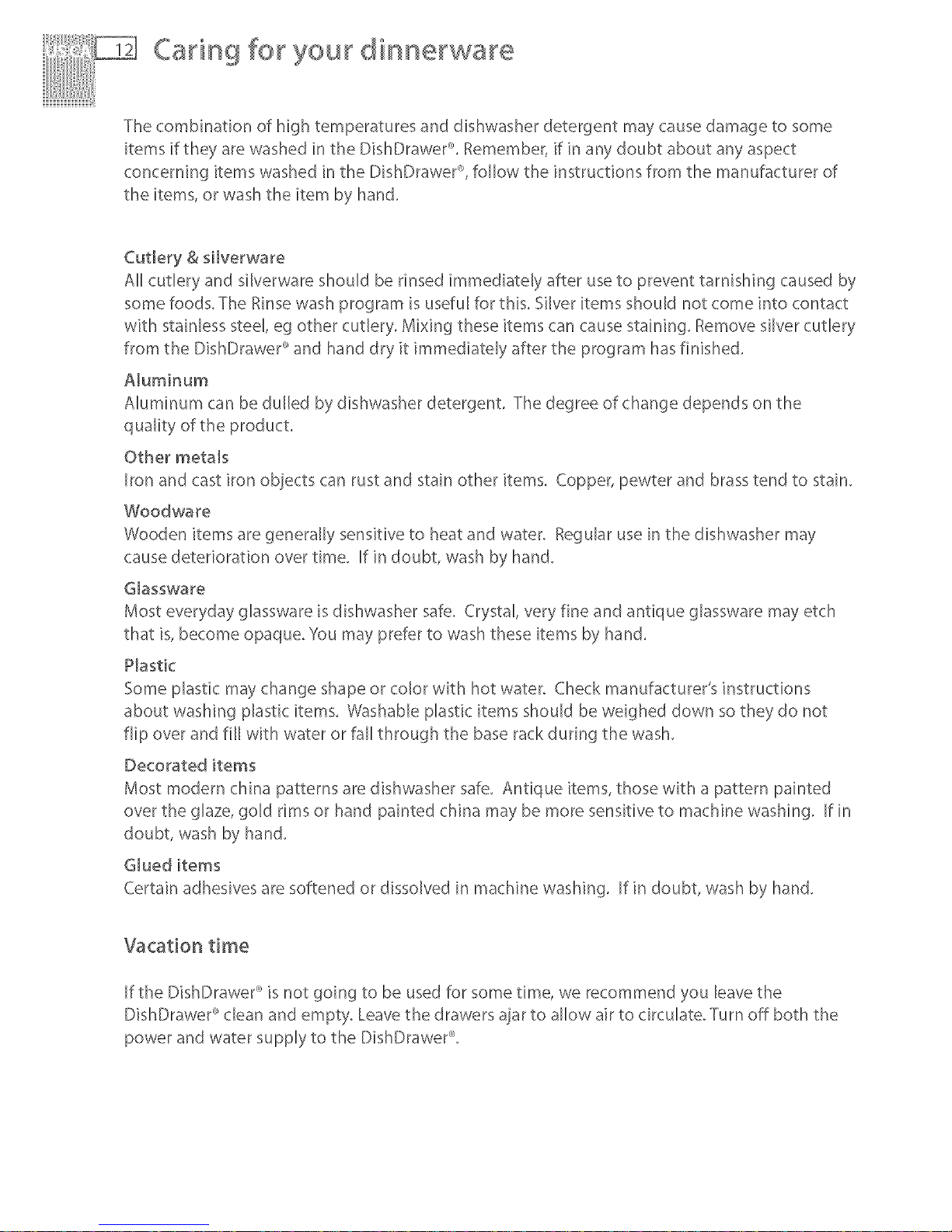

Caring for your dinnerware
Dishwasher standards test

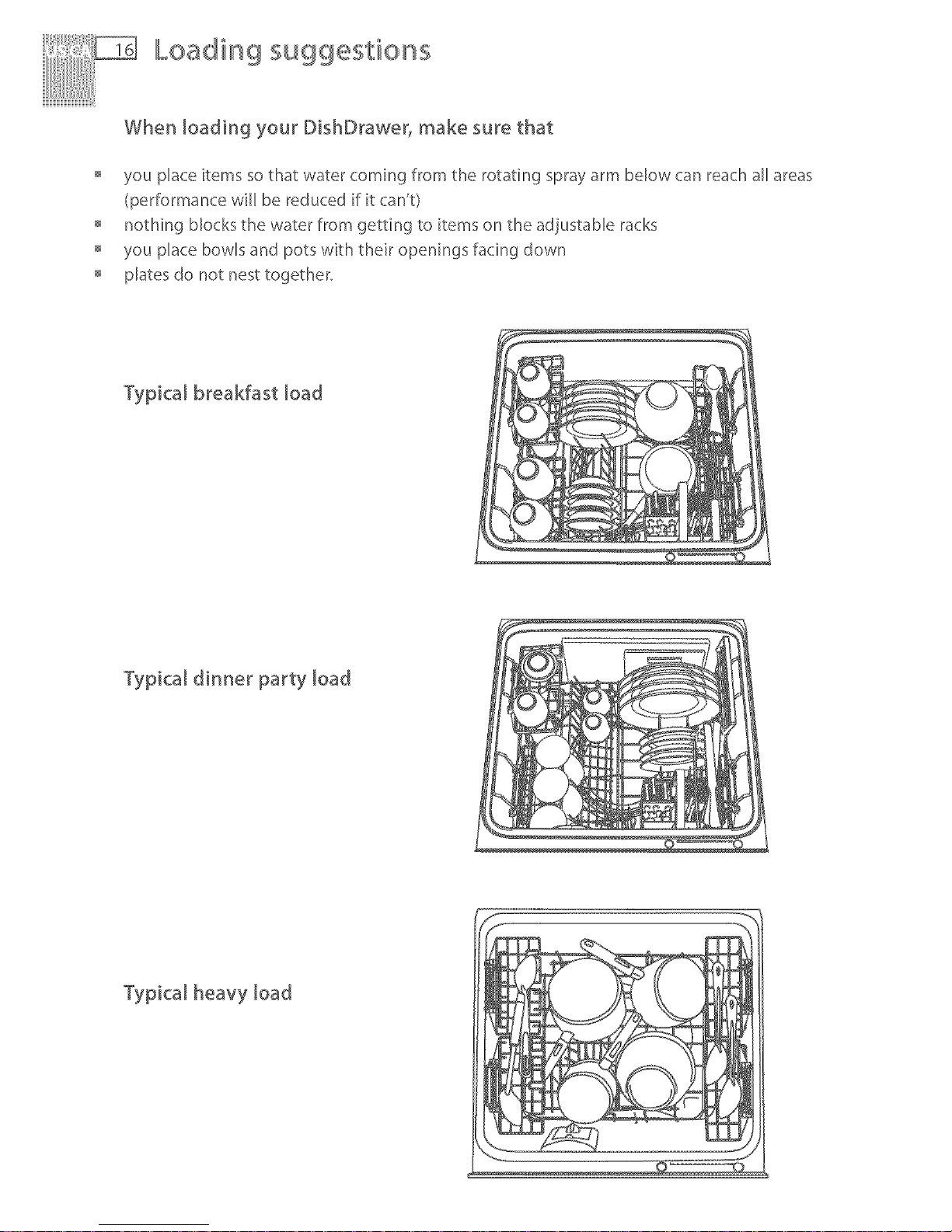

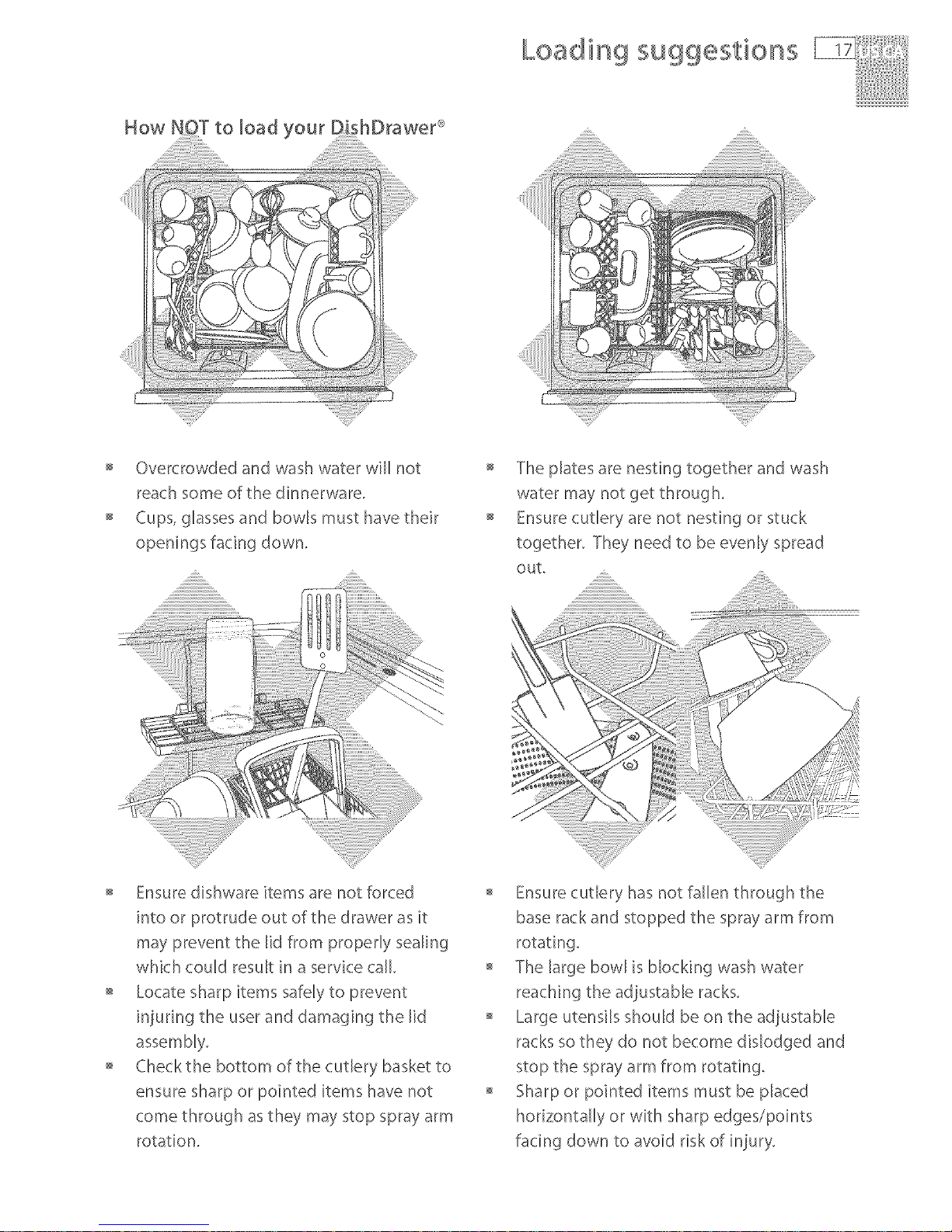

Loading suggestions

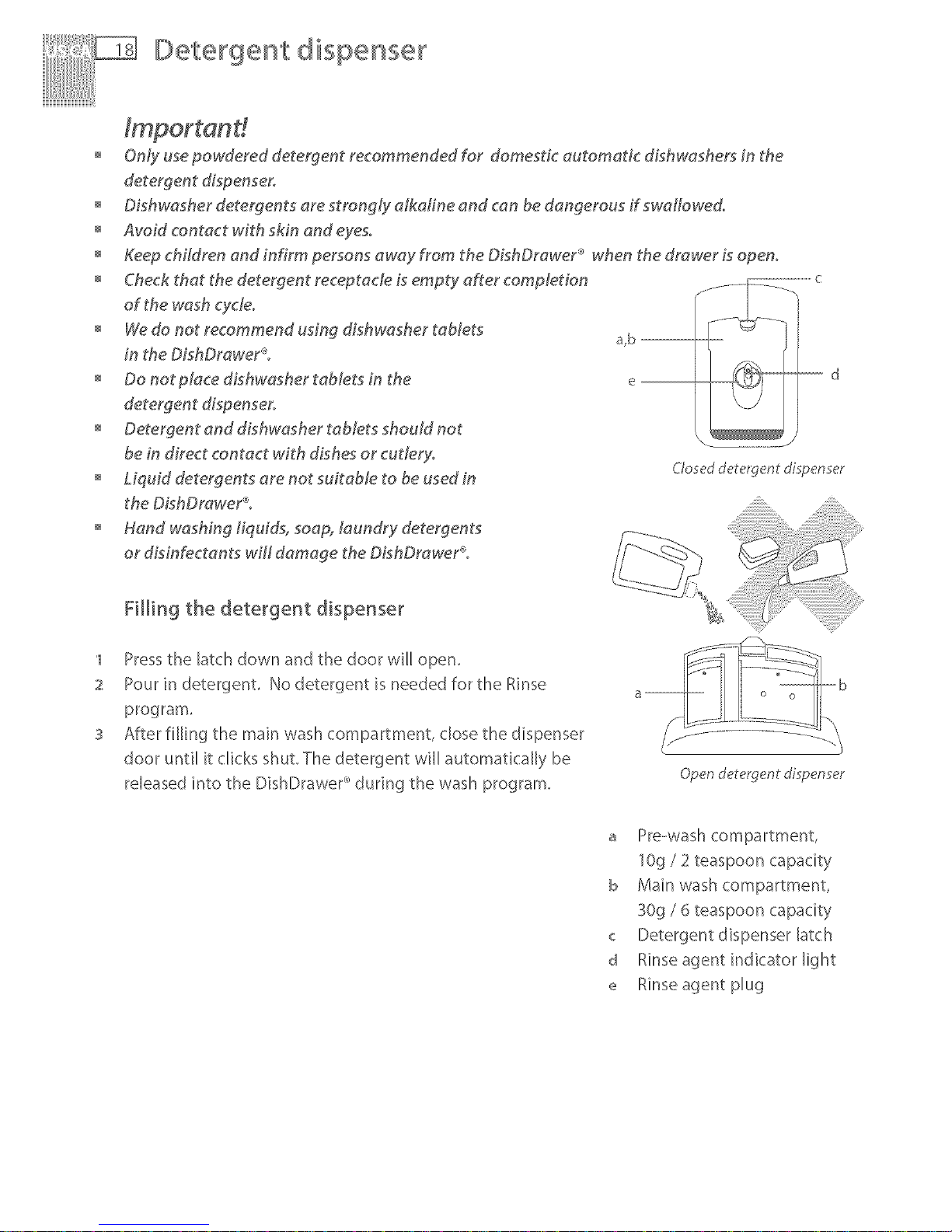

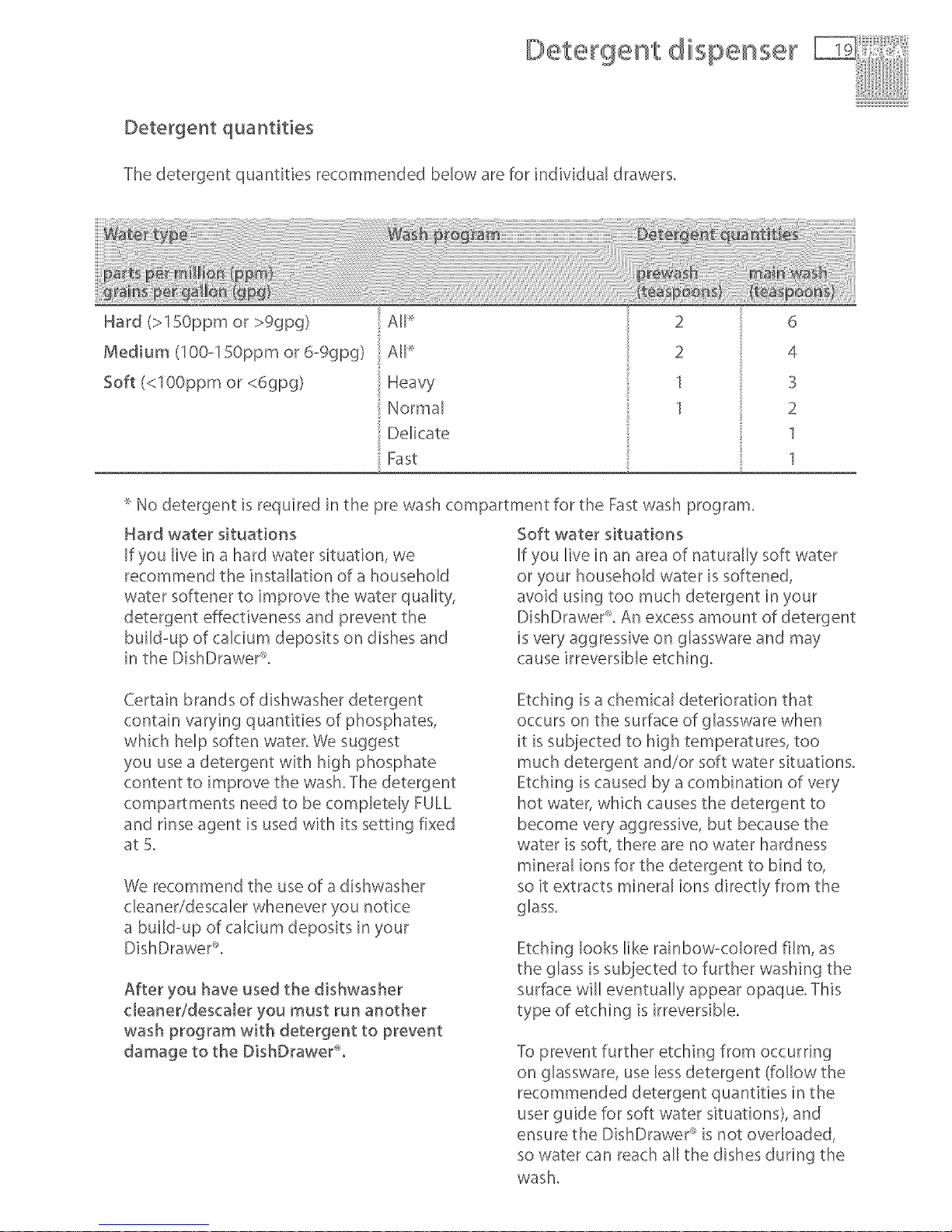

Detergent dispenser
Water softener
Rinse agent dispenser
Option adjustments
User maintenance instructions
Fault €:odes
Warranty and service
6
8
10
11
12
13
14
16
18
20
22
23
26
29
31
34
SAVE THESEINSTRUCTIONS
The r_o(/e/ hovvn it:, this User(}uid__r_y M,ot _,ge_vc4i/_tg/ein _// r_rke_ _t';,d_/#e
subject to chonge 08shy time. for current de_c_i/sshout mode/sad spedifmotk)n
ovdbi/obi/ity it:,your tour}itS p/eo evisit out_/oco/websitm/istmd on the book covet'
ot' con tc;c8yout' Iocol fishmt'& P#ykel dmolm_

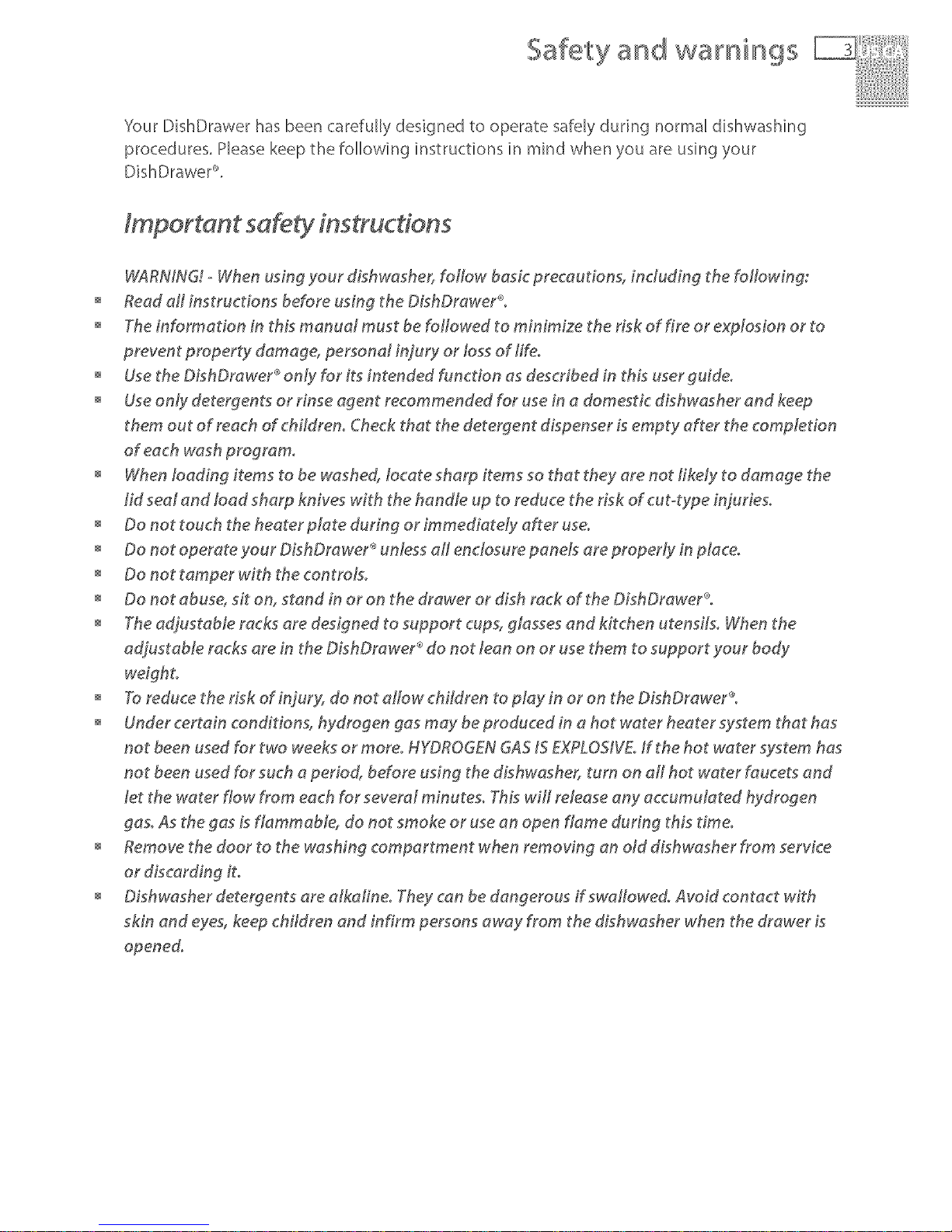

Safety and warnings
}'our DishDrawer has been carefully designed to operate safely during normal dishwashing
procedures, Please keep the following instructions in mind when you are using your
DishDraweP.
WARNINGf _When using },our dishwashe8 follow bas£ precautions, including the following:
Read aft instructions before using the DishDrawert
The information in this manual must be followed to minimize the risk of fire or explosion or to
prevent property damage, personal injury or loss of life.
" Use the DishDraw, er ®only for its intended function as described in this user guide,
Use only detergents or Nnse agent recommended for use in a domestic dishwasher and keep
them out of reach of children, Check that the detergent dispenser Lsempty after the completion
of each wash program.
When loading items to be washed, locate sharp items so that they are not likely to damage the
lid seal and load sharp knives with the handle up to reduce the risk of cut4ype i?_juNes,
Do not touch the heater plate during or immediately after use,
Do not operate your DishDrawer ®unless aH enclosure panels are properly in place,
Do not tamper with the controls,
Do not abuse, sit on, stand in or on the drawer or dish rack of the DishDrawer ®.
The adjustable racks are desoned to support cups, glasses and kitchen utensils, When the
adjustable racks are in the DishDrawer ®do not lean on or use them to support your body
weight,
To reduce the risk of injury, do not allow children to play in or on the DishDrawer ®.
Under certain conditions, hydrogen gas may be produced in a hot water heater system that has
not been used for two weeks or more, HYDROGEN GAS IS EXPLOSIVEo If the hot water system has
not been used for such aperiod, before using the dishw, ashe_ turn on all hot water faucets and
let the water flow from each for several minutes, This v_,,fltrelease any accumulated hydrogen
gas, As the gas is flammable, do not smoke or use an open flame duNng this time,
Remove the door to the washing compartment when removing an old dishwasher from service
or discarding it,
Dishwasher detergents are alkaline. They can be dangerous ff swaflowedo Avoid contact with
skin and eyes, keep children and infirm persons away from the dLshv_,asher when the drawer is
opened.

Safety and warnings
installation
This DishDrawer ®must be installed and located in accordance with the Installation k_structions
before it L_used. ff you did not receive fnstafiation k_struction sheets with your DishDrawer% you
can order them by calling your Authorized Service Agent or from the Fisher & Paykel website,
wwv_fisherpaykeLcom,
Installation and service must be performed by aqualified technician.
, ff the power supply cord is damaged, it must be replaced by adealer or AuthoMzed Service Center
or a similar qualified trades person in order to avoid a hazard,
Ensure the DishDrawer ®Lssecured to adjacent cabinetu using the brackets provided, Failure to
do so may result in an unstable product, which may cause damage or k_juu,
Do not operate this appliance ff it is damaged, malfunctioning, partially disassem bled or has
missing or broken part._ including adamaged power supply cord or plug,
Do not store or use petrol or other flammable vapors and liquids in the vidnity of the
DishDrawer%
Connect to aproperly rate4 protected and sized power supply circuit to avoid electrical overload,
Make sure that the power supply cord LSlocated so that it wilt not be stepped on, tripped over or
otherwise subject to damage or stress,
Do not install or store the DishDrawer ®where it will be exposed to temperatures below freezing
or exposed to weather°
Do not use an extension cord or aportable electrical outlet devke (e.g. multi-socket outlet box)
to connect the DishDrawer ®to the power supply.
This appHance must be grounded, ln the event of amatfunction or breakdown, grounding wHI
reduce the risk of electric shock by providk_g apath of least resistance for electric current, This
appliance Lsequipped with acord having an equipment-grounding conductor and a grounding
plug, The plug must be plugged into an appropriate outlet that is installed and grounded
in accordance with all local codes and ordinances, WARNING -Improper connection of the
equipment-grounding conductor can result in a risk of electric shock, Check with aqualified
electrician or service representative if you are in doubt as to whether the apph%nce L_properly
grounded. Do not modit_v the plug provided with the appliance;: ff it will not fit the outlet, have a
proper outlet k_stalted by aquahWed technician,
ff the DishDrawer® is instaHed as a permanently connected appliance:
GROUNDING INSTRUCTIONS - This apph%nce must be connected to agrounded metal permanent
wiring system, or an equipment-grounding conductor must be run with the cffcuit conductors
and connected to the equipment-grounding terminal or lead on the appliance,

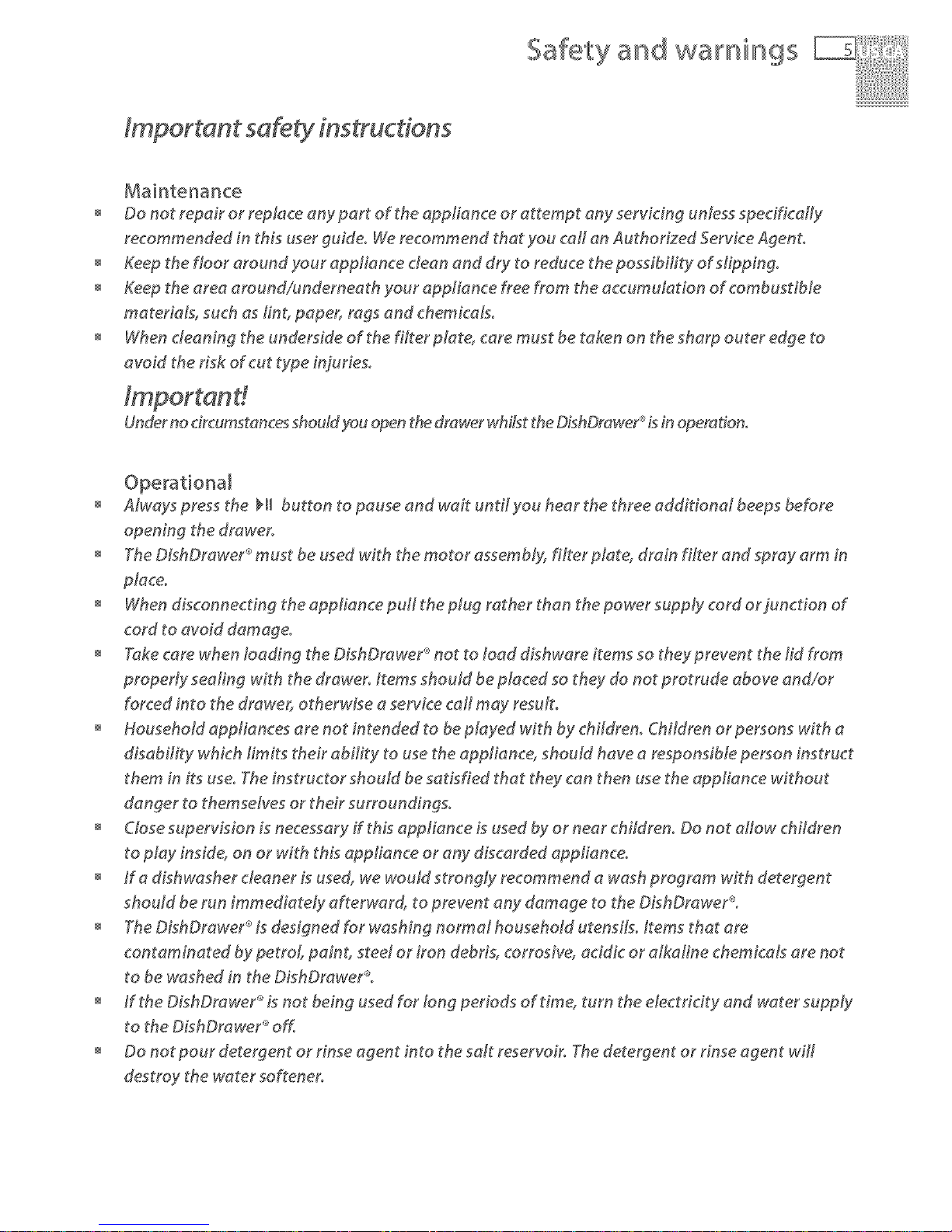

Safety and wamings
Maintenance
Do not repair or replace any part of the apph'ance or attempt any serv£ing unless specificaNy
recommended in this user guide. We recommend that you carl an Authorized Service Agent°
Keep the floor around your appliance dean and dry to reduce the possibility of stippingo
Keep the area around/underneath your appliance free from the accumulation of combustible
materials, such as h'nt, paper, rags and chemicMs°
When cleaning the undersMe of the fi#er plate, care must be taken on the sharp outer edge to
avoid the risk of cut type _jurieSo
Under no circumstances should you open the drawer whilst the Di@Drawer _i_in operation°
Always press the HI button to pause and wait until you hear the three additional beeps before
opening the drawer.
The DishDrawer ®must be used with the motor assembly, tiger plate, drain fi#er and spray arm in
place°
When disconnecting the appiiance puH the plug rather than the power suppiy cord or junction of
cord to avoid damage°
Take care when toading the DishDrawer ®not to load dishware items so they prevent the lid #om
pr@edy seah'ng with the drawer° items should be placed so they do not protrude above andl/or
forced into the drawe_ otherwise aservice carl may resu#.
Household app#ances are not #_tended to be played with by children° Children or persons with a
disab##y which Hm#s the# abi#ty to use the appliance, should have a responsible person #_struct
them in i% use° The instructor should be satisfied that they can then use the appliance without
danger to themselves or their surroundings°
Close supervision i._necessary ff this appliance iS used by or near children° Do not allow children
to play inside, on or with this appliance or any discarded apph'ance°
ira dishwasher deaner is used, we would strongty recommend a wash program with detergent
should be run immediately a#erward, to prevent any damage to the DishDrawer®.
The DishDrawer _ i._designed for wash#_g normM household utensils° items that are
contaminated by petrol, paint, steel or iron debris, corrosive, acidic or MkMine chemicMs are not
to be washed in the DishDrawer®°
If the DishDrawer ®is not being used for long periods of time, turn the electfidty and water supply
to the DishDrawer ®off.
Do not pour detergent or rinse agent into the sMt reservoir. The detergent or rinse agent will
destroy the water so#ener.

O_@_&ting instructions _ Contr©_s (modeB with no LCD}
If you have a double DishDrawer% each drawer has its own controls and can run independently
of the other.
Power button @
The @ button turns the DishDraweP_on or off, Opening
the drawer will automatically turn the DishDraweP_on for
30 seconds, To end awash program in mid cycle, press
the O button, Any water in the DishDraweP_will be
pumped out.
Start/Pause button _H o o
The bl_ button starts a wash program, Press the HI
button to pause or restart the DishDraweP _during a wash
program. When paused, wait for three beeps before
opening the drawer, Forcing the drawer open while in mid
cycle may cause damage or injury,
Delay start
The b_lbutton also setsthe Delaystart feature which can delay the start of awash program from
1to 12 hours.
To activate De_ay start
1 Press and hold the IH_button until the light above the bll button turns orange (or purple,
depending on your model),
2 Continue holding the bH button down until the desired delay time has been reached, The
DishDraweP will emit audible'beeps'as you hold the bH button down, each beep indicates
another hour delay,
s The DishDraweP _will start once the delay time has elapsed and the drawer is closed.
To cancel Delay start
Press the (D button,
Lock button _/@ (optional}
The _/@ button activates/deactivates the Keylock or the Childlock functions.

Operating instructions - ControB {mode swithnoLCD)
The Keylock feature disables all the buttons on the DishDraweP.
To activate, press and hold the _/@ button until you hear one beep (3 seconds), The light
above the _/@ button is lit when Keylock is activated.
To cancel the Keylock feature, press and hold the _/@ button until the light above the _/@
button disappears,
Chi[d[ock
The Childlock feature locks the drawer and disables all the buttons.
To activate, press and hold the _/@ button until you hear two beeps (5 seconds). The light
above the _/@ button is lit when Childlock is activated.
To cancel the Childlock feature, press and hold the _/@ button until the light above the
_/@ button disappears,
Wash program selector
Press the _ button to select a wash program. The D[shDraweP w[[[ remember the last program
used.
ECO ,
Eco button Eco (optional)
Press the 8CO button if you would like the wash program to use less energy. The red ECO light
wiI[ indicate the feature is om If your dishes are heavily soiled or you require enhanced dry
performance, we do not recommend ECO programmes,
Power faiJure
[f the DishDrawer _ is operating and a power failure occurs, it will stop. The DishDrawer _ may be
unable to be opened during this time When the power supply is resumed, the DishDraweP will
restart in the same part of the wash program,

O_@_&ting inStruCtiOnS _ Contr©_s (modeB with LCD}
If you have a double DishDrawer% each drawer has its own control panel and can run
independently of the other. Wash program Time Fault symbols - see'Fault
progress symbol remaining codes' if they appear
Salt reservoir is empty
(DD24-H models only)
oKeylock or Childlock is
activated
Delay start symboJ
Power button ©
Power Start/Pause Lock button
button button
The tD button turns the DishDraweP on or oE Opening the drawer will automatically turn the
DishDraweP on for 30 seconds, ]:o end a wash program in mid cycle, press the O button. Any
water in the DishDrawer _'_will be pumped out.
Start/Pause button _ll
The _1_button starts a wash program, Press the bll button to pause or restart the DishDraweP
during a wash program, When paused, wait for three beeps before opening the drawer. Forcing
the drawer open while in mid cycle may cause damage or injury.
Delay start
The _t button also sets the Delay start feature which can delay the start of a wash program from
1 to 12 hours,
To activate De_ay start
1 Press and hold the _H button until the delay symbol Q appears on the electronic display.
2Continue holding the bll button down until the desired delay time has been reache&
s The DishDraweP will start once the delay time has elapsed and the drawer is closed.
To cance_ Delay start
Press the O button.
Lock button @(optional}
The @ button activates/deactivates the Ke}4ock or the ChikJlock functions.

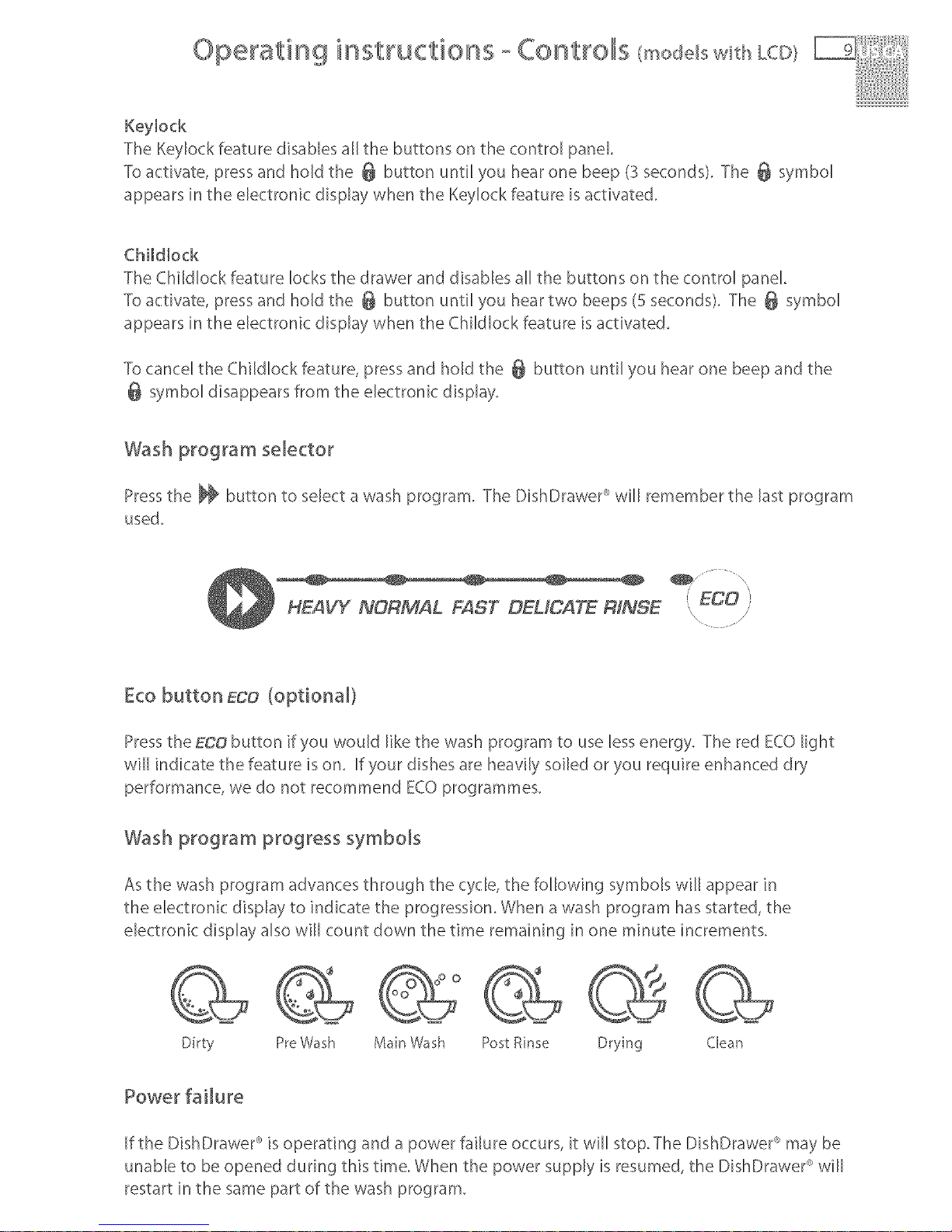

Operating instructions - Controls {mode sw thLCD/
Keybck
[he Keylock feature disables all the buttons on the control panel
To activate, press and hold the _ button until you hear one beep (3 seconds). The _ symbol
appears in the electronic display when the Keylock feature is activated.
Childbck
The Childlock feature locksthe drawer and disables all the buttons on the control panel,
Toactivate, pressand hold the @ button until you hear two beeps(5 seconds), The @ symbol
appears in the electronic display when the Childlock feature isactivated,
To cancel the Childlock feature, press and hold the @ button until you hear one beep and the
@ symbol disappears from the electronic display.
Wash program selector
Press the _ button to select a wash program. The DishDraweP will remember the last program
used.
(ECO
//
Eco button ECO(optional)
Press the££o button if you would like the wash program to use less energy, The red ECO light
will indicate the feature is on, If your dishes are heavily soiled or you require enhanced dry
performance, we do not recommend KO programmes.
Wash program progress symboJs
As the wash program advances through the cycle, the following symbols will appear in
the electronk display to indicate the progressiom When a wash program has started, the
electronic display also will count down the time remaining in one minute increments,
Drty Pre Wash Man Wash Post Rinse Drying Clean
Power failure
If the DishDraweP _is operating and a power failure occurs, it will stop, The DishDraweP _may be
unable to be opened during this time When the power supply is resumed, the DishDraweP will
restart in the same part of the wash program.

Operating instructions - Operation
1 Load dishes
Remove all food scraps and load the dishes.
2 Add detergent
S Check rinse agent
4 Press the _ button
5SeJect a wash program
The length of the wash program will appear
on the electronic display (models with LCD
only).
6 SeJect ££O(optionat}
7 Check
Ensure there is nothing obstructing the
spray arm. The drain filter must be level with
the filter plate.
8
9
Start
Close the drawer and press the H_ button.
Finish
The DishDraweP _will beep six times to
indicate the end of the wash program. At
the end of the wash program the drying fan
will continue to run for a set time or until the
drawer is opened. The fan assists with drying
and uses negligible amounts of energy. It
is normal for some water to remain in the
drain filter area after the wash program is
complete.
Double models only: At the end of a wash
program, you may find both drawers
draining simultaneously. This is normal.
23

Wash program chart liS!
Heavy Normal Fast DeJicate Rinse
Heavily soiled Disheswith Lighdy soiled Lightly soiled and Preventsodors and
pots,pansand noh'_Talsoils dishes, heat sensitive soilsdrying on dishes.
dishes, fbr optimum crockery.
washand dry
performance,
pre--wash 1 pre--wash 1 pre--wash pre--wash
pre wash 2 pre--wash 2
main wash 150°F main wash 140°F main wash 130°F main wash 120°F
post-rinse 1 post-rinse post-rinse post-rinse
post--rinse 2
final rinse 163°F final rinse 140°F final rinse 120°F final rinse 130°F
drying phase drying phase drying phase
Heavy Normat Fast Delicate
Heawttysoiled Normal soiled Lighdy soi/e4 non Lightly soile4
everydaydishes, dishesfor greasydishes, nongreasyand
optimum energy heat sensitive
use. crockery.
pre--wash 1 pre--wash pre--wash
pre--wash 2
main wash 150°F main wash 130°F main wash 115°F main wash 115°F
post--rinse 1 post-rinse post-rinse post-rinse
posbrinse 2
final rinse 150°F final rinse 130°F final rinse 115°F final rinse 120°F
drying phase drying phase drying phase
Note:
Wash times can vary depending on the incoming water temperature, ambient conditions, type
of dish load and whether the drawer has been opened during the wash. Wash times are only
APPROXIM£TE on the electronic display and based on 120°F incoming water.

Caring for your dinnerware
The combination of high temperatures and dishwasher detergent may cause damage to some
items if they are washed in the DishDrawePL Remember, if in any doubt about any aspect
concerning items washed in the DishDrawer _'_,follow the instructions from the manufacturer of
the items, or wash the item by hand.
Cudery & silverware
AHcutlery and silverware should be rinsed immediately after use to prevent tarnishing caused by
some foods. The Rinse wash program is useful for this. Silver items should not come into contact
with stainless steel, eg other cutlery. Mixing these items can cause staining. Remove silver cutlery
from the DishDrawer _'_and hand dry it immediately after the program has finished.
Aluminum
Aluminum can be dulled by dishwasher detergent. The degree of change depends on the
quality of the product.
Other metals
Iron and cast iron objects can rust and stain other items. Copper, pewter and brass tend to stain.
Woodware
Wooden items are generally sensitive to heat and water. Regular use in the dishwasher may
cause deterioration over time. If in doubt, wash by hand.
Glassware
Most everyday glassware is dishwasher safe Crystal, very fine and antique glassware may etch
that is, become opaque. You may prefer to wash these items by hand.
Plastic
Some pBtic may change shape or color with hot water. Check manufacturer's instructions
about washing plastic items. Washable plastic items should be weighed down so they do not
flip over and fi[[ with water or fall through the base rack during the wash.
Decorated items
Most modern china patterns are dishwasher safe. Antique items, those with a pattern painted
over the glaze, gold rims or hand painted china may be more sensitive to machine washing. If in
doubt, wash by hand.
Glued items
Certain adhesives are softened or dissolved in machine washing. If in doubt, wash by hand.
Vacation time
If the DishDraweP _is not going to be used for some time, we recommend you leave the
DishDraweP _dean and empty. Leave the drawers ajar to allow air to circulate. Turn off both the
power and water supply to the DishDrawer_L

Dishwasher standards test
The DishDrawePs are tested to various standards for both wash and dry performance,
The following are loading pattern diagrams, detergent quantities and rinse agent quantities used
for the DishDraweP.
Detergent quantities 5g (pre-wash) per drawer
lOg (main wash) per drawer
Water softener setting
(for DD24-H modeB onRy)
Recommended loading pa_em
Adjust the water softener to match the water
hardness_ Refer to the'Water softener' and
'Option adjustment' section.
Top (_rawer
1 2 3
Bottom drawe_
4 5 6

Racking features
Cudery basket
Mix spoons, knives and forks within each section to
stop cutlery nesting together.
Most cutlery is placed with the handle pointing
down.
For your safety, knives and sharp utensils should
have their handles up.
Small light items like baby bottle teats are best
placed under the anti-nesting grids to prevent
them from being displaced.
Stemware
notches
The six notches
on the left--
hand side
help support
long-stemmed
g lasswa re.
Folding tines
The front half is ideal for large, deep bowls.
Fold the tine sections down towards each other if you need the space for pots or other large
items.
Fold down the right-ohand section only and lean cups against the updght tines for extra stability.

Backing features
AdjustaNe racks
You can adjust these independently of each other to any height:
1 Fold up to unlockthe rack.
2 Adjust the height to suit by sliding up or down.
S Fold down to lock in position.
Fold the racks away if you need the space.
1 2 3
Glass supports
These clip on the rack
wires to give your tail
glasses extra stability.
'S[ideoar_dofo[d'
tines
Slide a[[ the way to the
left to fit larger dinner
plates.
Fold the tine sections
down towards each
other if you need the
space for pots or other
large items.

Loading suggestions
When [oading your DishDrawer, make sure that
you place items so that water coming from the rotating spray arm below can reach all areas
(performance wiI[ be reduced if it can't)
nothing blocks the water from getting to items on the adjustable racks
you place bowls and pots with their openings facing down
plates do not nest together,
Typical breakfast bad
Typica[ dinner party bad
Typica[ heavy bad

HowNOTtoloadyourDishDrawe¢_)
Loading suggestions l!!{!ii!Sliiii!!ili!!i
Overcrowded and washwater will not
reachsome of the dinnerware,
Cups,glassesand bowls must have their
openings facing down.
The plates are nesting together and wash
water may not get througL
Ensure cutlery are not nesting or stuck
together, They need to be evenly spread
out.
Ensure dishware items are not forced
into or protrude out of the drawer as it
may prevent the lid from properly sealing
which could result in a service ca&
Locate sharp items safely to prevent
iniuring the user and damaging the lid
assembly,
Checkthe bottom of the cutlery basket to
ensure sharp or pointed items have not
come through as they may stop spray arm
rotation,
Ensure cutlery has not fallen through the
base rack and stopped the spray arm from
rotating.
The large bowl is blocking wash water
reaching the adiustable racks,
Large utensils should be on the adjustable
racks so they do not become dislodged and
stop the spray arm from rotating,
Sharp or pointed items must be placed
horizontally or with sharp edges/points
facing down to avoid risk of injury.

Detergent dispense
OMy use powdered detergent recommended for domestic automatic dishwashers in the
detergent @:spenser°
Dishwasher detergents are strongly a&ah_ne and can be dangerous ff swMtowedo
Avoid contact with skin and eyes°
Keep chiMren and infirm persons away#om the DishDrawer ®when the drawer is open.
Check that the detergent receptacle iS empty after completion
of the wash cycle°
We do not recommend using dishwasher tablets a,b --
in the DishDrawer®°
Do not place dishwasher tablets in the e --
detergent dispenser°
Detergent and dishwasher tablets should not
be in direct contact with dishes or cuderyo
Liquid detergen% are not suitable to be used in
the DishDrawer®°
Hand washing Hquids, soap, Jaundry detergents
or disinfectan% will damage the DishDrawert
Closed detergent dispenser
Filling the detergent dispenser
1 Press the latch down and the door wi[[ open.
2 Pour in detergent. No detergent is needed for the Rinse
program,
s After filling the main wash compartment, close the dispenser
door until it dicks shut, The detergent will automatically be
released into the DishDraweP during the wash program. Open detergent dispen er
a Pre-wash compartment,
lOg /2 teaspoon capacity
b Main wash compartment,
30g /6 teaspoon capacity
c Detergent dispenser latch
d Rinse agent indicator light
e Rinse agent plug

Detergent dispense
Detergent quantities
The detergent quantities recommended beRoware for individuaRdrawers.
Hard (>150ppm or >ggpg) AR_
Medium (100-150ppm or 6-9gpg) AlP
Soft (<100ppm or <6gpg) Heavy
iNormal
Delicate
2
2
1
1s
6
4
3
2
1
_ No detergent is required in the pre wash compartment for the Fast wash program.
Hard water situations
If you live in a hard water situation, we
recommend the installation of a household
water softener to improve the water quality,
detergent effectiveness and prevent the
buiIdoup of calcium deposits on dishes and
in the DishDraweP,
Soft water situations
If you live in an area of naturally soft water
or your household water is softened,
avoid using too much detergent in your
DishDrawePL An excess amount of detergent
is very aggressive on glassware and may
cause irreversible etching.
Certain brands of dishwasher detergent
contain varying quantities of phosphates,
which help soften water. We suggest
you use a detergent with high phosphate
content to improve the wash. The detergent
compartments need to be completely FULL
and rinse agent is used with its setting fixed
at 5.
We recommend the use of a dishwasher
cleaner/descaler whenever you notice
a buildoup of calcium deposits in your
DishDraweP.
After you have used the dishwasher
c[eaneridesca[er you must run another
wash program with detergent to prevent
damage to the DishDrawer_L
Etching is a chemical deterioration that
occurs on the surface of glassware when
it is subiected to high temperatures, too
much detergent and/or soft water situations.
Etching is caused by a combination of very
hot water, which causes the detergent to
become very aggressive, but because the
water is soft, there are no water hardness
mineral ions for the detergent to bind to,
so it extracts mineral ions directly from the
g[ass_
Etching looks like rainbow<olored film, as
the glassis subiected to further washing the
surface will eventually appear opaque, This
type of etching isirreversible,
To prevent further etching from occurring
on glassware, use less detergent (follow the
recommended detergent quantities in the
user guide for soft water situations), and
ensure the DishDraweP is not overloaded,
so water can reach all the dishes during the
wash.
