Fisher & Paykel DishDrawer DD60 Series User manual

USER GUIDE
NZ AU US CA GB IE
DISHDRAWERTM DISHWASHER
DD60 and DD24
Double and Single models

This user guide is an accompaniment to your ‘Quick start guide’ which is included
with your dishwasher.
For operating instructions, see your ‘Quick start guide’. If you no longer have your
‘Quick start guide’, you can download it from our local website, listed on the back cover.
Refer to your ‘Quick start guide’ for information on:
●Starting a wash
●Wash programs and when to use them
●Controls
●Dos and don’ts of loading
●Preference options and how to change their settings

1
CONTENTS
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may not be available in all markets and are subject
to change at any time. For current details about model and specification availability in
your country, please go to our website www.fisherpaykel.com or contact your local
Fisher & Paykel dealer.
Safety and warnings 2
Caring for your dinnerware 9
Operating instructions

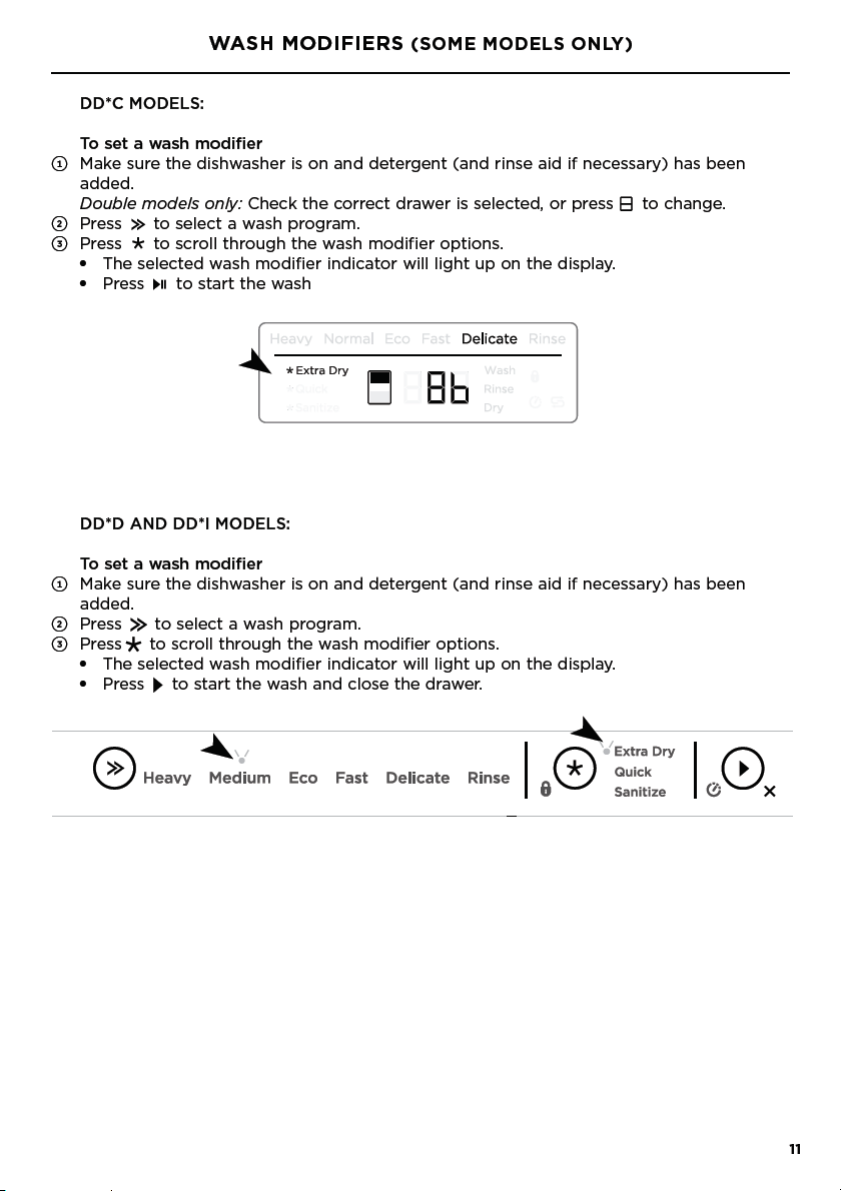

Wash modifiers (some models only) 10

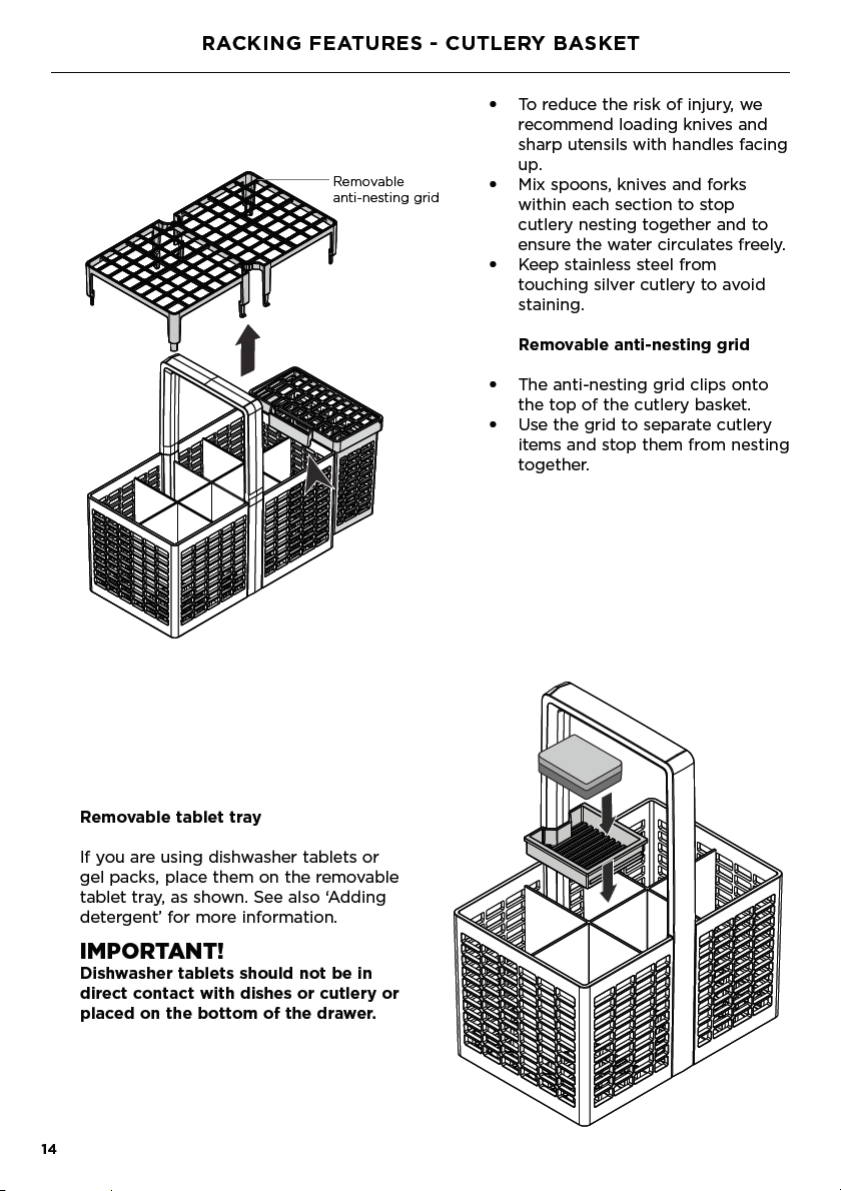

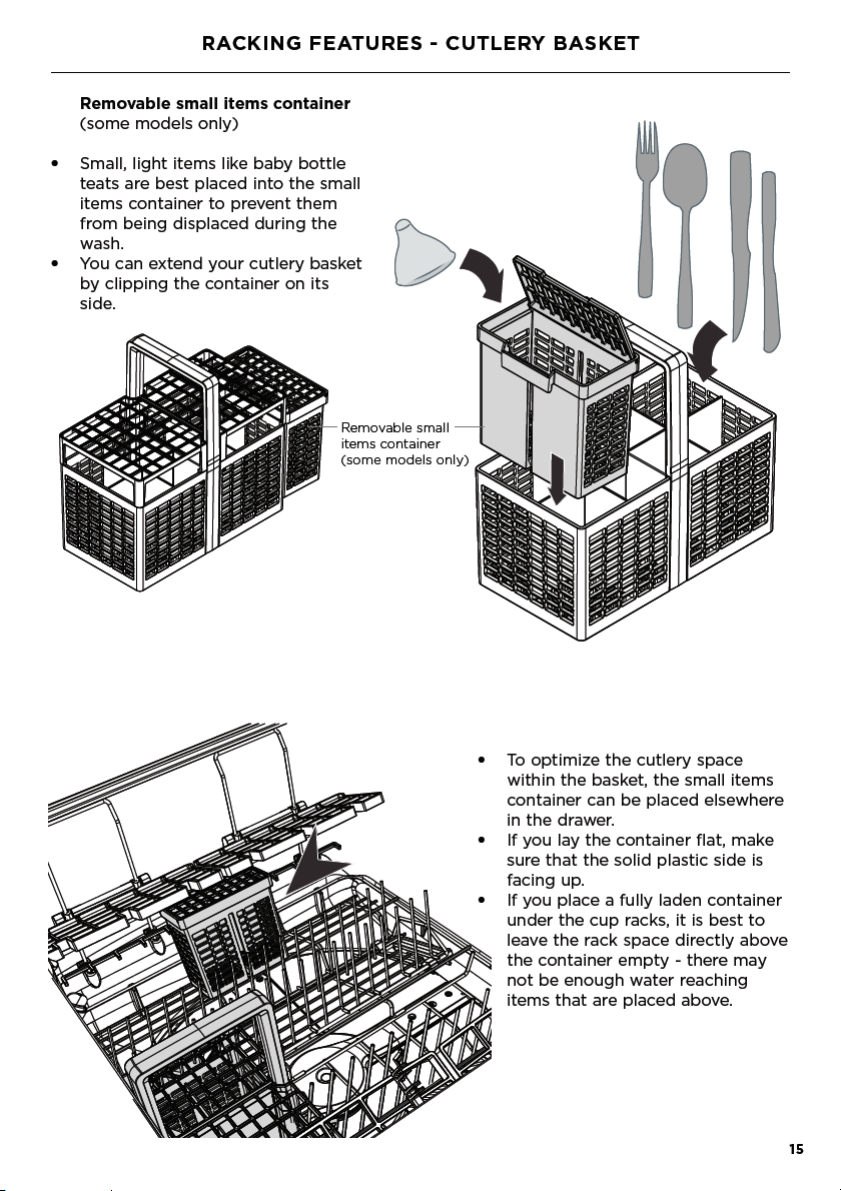

Racking features 14
Loading suggestions 20
Water hardness and dishwashing 21
Wash programs and detergent quantities 22
Adding detergent 23
Using rinse aid 27
Water softener (some models only) 28
Preference options 30
User maintenance instructions 34
Troubleshooting 39
If there is a fault 37
How to attend to a fault 44
Warranty and service 48
Wash program data 49
Standards tests 52

2
Your dishwasher has been carefully designed to operate safely during normal
dishwashing procedures. Please keep the following instructions in mind when you are
using your dishwasher.
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
• WARNING! - When using your dishwasher, follow
basic precautions, including the following:
• Read all instructions before using the dishwasher.
• The information in this manual must be followed to
minimise the risk of fire or explosion or to prevent
property damage, personal injury or loss of life.
• Use the dishwasher only for its intended function as
described in this user guide and in your ‘Quick start
guide’.
• This appliance is intended to be used in household
and similar applications such as:
– staff kitchen areas in shops, offices and other
working environments;
– farm houses;
– by clients in hotels, motels and other residential
type environments;
– bed and breakfast type environments.
• NSF 184-Certified residential dishwashers are not
intended for licensed food establishments.
• Use only detergents or rinse aid recommended
for use in a domestic dishwasher and keep them
out of reach of children. Check that the detergent
dispenser(s) is empty after the completion of each
wash program.
• When loading items to be washed, locate sharp
items so that they are not likely to damage the
internal lid of the dishwasher and load sharp knives
with the handle up to reduce the risk of cut-type
injuries.

3
SAFETY AND WARNINGS
• Do not touch the filter plate (in the dishwasher base)
during or immediately after use, as it may be hot.
• Do not operate your dishwasher unless all enclosure
panels are properly in place.
• Do not tamper with the controls.
• Do not abuse, sit on, stand in or on the drawer or
dish rack of the dishwasher.
• The drawer should not be left in the open position
since this could present a tripping hazard.
• The foldaway cup racks are designed to support
cups, glasses and kitchen utensils. When the
foldaway cup racks are in the drawer do not lean on
or use them to support your body weight.
• To reduce the risk of injury, do not allow children to
play in or on the dishwasher.
• Under certain conditions, hydrogen gas may be
produced in a hot water heater system that has not
been used for two weeks or more. HYDROGEN GAS
IS EXPLOSIVE. If the hot water system has not been
used for such a period, before using the dishwasher,
turn on all hot water taps and let the water flow
from each for several minutes. This will release any
accumulated hydrogen gas. As the gas is flammable,
do not smoke or use an open flame during this time.
• Remove the door to the washing compartment
when removing an old dishwasher from service or
discarding it.
• Some dishwasher detergents are strongly alkaline.
They can be extremely dangerous if swallowed.
Avoid contact with the skin and eyes and keep
children away from the dishwasher when the door is
open. Check that the detergent dispenser is empty
after completion of the wash program.

4
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
Installation
• This dishwasher must be installed and located
in accordance with the Installation instructions
before it is used. If you did not receive Installation
instructions with your dishwasher, you can order
them by calling your Authorised Repairer or
download them from our local Fisher & Paykel
website, listed on the back cover.
• Installation and service must be performed by a
qualified technician.
• If the power supply cord is damaged, it must be
replaced by a dealer or Authorised Repairer or a
similar qualified trades person in order to avoid a
hazard.
• Ensure the dishwasher is secured to adjacent
cabinetry using the brackets provided. Failure to
do so may result in an unstable product, which may
cause damage or injury.
• Do not operate this appliance if it is damaged,
malfunctioning, partially disassembled or has
missing or broken parts, including a damaged power
supply cord or plug.
• Do not store or use petrol, or other flammable
vapours and liquids in the vicinity of the dishwasher.
• Connect to a properly rated, protected and sized
power supply circuit to avoid electrical overload.
• Make sure that the power supply cord is located
so that it will not be stepped on, tripped over or
otherwise subject to damage or stress.
• Do not install or store the dishwasher where it will
be exposed to temperatures below freezing or
exposed to weather.
• Do not use an extension cord or a portable electrical
outlet device (e.g. multi-socket outlet box) to
connect the dishwasher to the power supply.

5
SAFETY AND WARNINGS
• This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of electric shock by providing a path of
least resistance for electric current. This appliance
is equipped with a cord having an equipment-
grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet
that is installed and grounded in accordance with all
local codes and ordinances. WARNING - Improper
connection of the equipment-grounding conductor
can result in a risk of electric shock. Check with a
qualified electrician or service representative if you
are in doubt as to whether the appliance is properly
grounded. Do not modify the plug provided with the
appliance; if it will not fit the outlet, have a proper
outlet installed by a qualified technician.
• If the dishwasher is installed as a permanently
connected appliance:
GROUNDING INSTRUCTIONS - This appliance must
be connected to a grounded metal, permanent
wiring system, or an equipment-grounding
conductor must be run with the circuit conductors
and connected to the equipment-grounding terminal
or lead on the appliance.
• Connected models only:
• This device complies with part 15 of the FCC Rules.
Operation is subject to the following conditions:
(1) This device may not cause harmful interference;
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
• Do not change or modify the wireless
communication device in any way. Changes or
modifications not expressly approved by Fisher &
Paykel could void the user’s authority to operate the
equipment.

6
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
Maintenance
• Disconnect the appliance from the power supply
before any cleaning or maintenance.
• When disconnecting the appliance pull the plug
rather than the power supply cord or junction of
cord to avoid damage.
• Do not repair or replace any part of the appliance
or attempt any servicing unless specifically
recommended in this user guide. We recommend
that you contact Customer Care to arrange service.
See your ‘Service and warranty’ booklet for contact
details.
• Keep the floor around your appliance clean and dry
to reduce the possibility of slipping.
• Keep the area around/underneath your appliance
free from the accumulation of combustible materials,
such as lint, paper, rags and chemicals.
• Models with a remote control: Do not attempt to
recharge, short-circuit, disassemble, heat or throw
the remote control battery into a fire. Dispose of an
old battery responsibly, keeping it out of reach of
children.

8
SAFETY AND WARNINGS
• Household appliances are not intended to be played
with by children. Children of less than 8 years
old must be kept away from the appliance unless
continuously supervised. This appliance can be
used by children aged from 8 years and above, and
persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge,
if they have been given supervision or instruction
concerning the use of the appliance in a safe way
and they understand the hazards involved.
• If a dishwasher cleaner is used, we would strongly
recommend a wash program with detergent should
be run immediately afterward, to prevent any
damage to the dishwasher.
• The dishwasher is designed for washing normal
household utensils. Items that are contaminated by
petrol, paint, steel or iron debris, corrosive, acidic
or alkaline chemicals are not to be washed in the
dishwasher.
• Do not wash plastic items unless they are marked
“dishwasher safe” or equivalent. For plastic
items not so marked, check the manufacturer’s
recommendations.

9
CARING FOR YOUR DINNERWARE
The combination of high temperatures and dishwasher detergent may cause damage
to some items if they are washed in the dishwasher. Remember, if in any doubt about
any aspect concerning items washed in the dishwasher, follow the instructions from the
manufacturer of the items, or wash the item by hand.
Cutlery & silverware
All cutlery and silverware should be rinsed immediately after use to prevent tarnishing
caused by some foods. The Rinse wash program is useful for this. Silver items should not
come into contact with stainless steel, eg other cutlery. Mixing these items can cause
staining. Remove silver cutlery from the dishwasher and hand dry it immediately after
the program has finished.
Aluminium
Aluminium can be dulled by dishwasher detergent. The degree of change depends on
the quality of the detergent or aluminium.
Other metals
Iron and cast iron objects can rust and stain other items. Copper, pewter and brass tend
to stain.
Woodware
Wooden items are generally sensitive to heat and water. Regular use in the dishwasher
may cause deterioration over time. If in doubt, wash by hand.
Glassware
Most everyday glassware is dishwasher safe. Crystal, very fine and antique glassware
may etch and will develop a cloudy appearance. You may prefer to wash these items by
hand.
Plastics
Some plastics may change shape or colour with hot water. Check manufacturer’s
instructions about washing plastic items. Dishwasher safe plastic items should be
weighed down so they do not flip over and fill with water or fall through the base rack
during the wash.
Decorated items
Most modern china patterns are dishwasher safe. Antique items, those with a pattern
painted over the glaze, gold rims or hand painted china may be more sensitive to
machine washing. If in doubt, wash by hand.
Glued items
Certain adhesives are softened or dissolved in machine washing. If in doubt, wash by
hand.

10
Along with setting the wash program, you may select one of the following the
additional options:
●Extra dry: Increases the final rinse temperature and the length of the drying phase for
improved drying performance.
●Quick: Uses additional water and energy for a faster wash time, while maintaining wash
performance.
●Sanitize: Raises the water temperature during the rinse phase to sanitize dishes. Ideal
for washing items such as baby bottles and preserving jars.
Note:
●Only one modifier can be set at a time
●Not all modifiers are available for every wash program. If a wash modifier is not
available for the chosen wash program, then that modifier cannot be selected.
DD*C MODELS:
DD*D AND DD*I MODELS:
WASH PROGRAM MODIFIER AVAILABLE
Heavy Extra Dry Quick Sanitize
Normal Extra Dry Quick Sanitize
Normal Eco ---
Fast Extra Dry - -
Delicate Extra Dry Quick -
Rinse ---
WASH PROGRAM MODIFIER AVAILABLE
Heavy Extra Dry Quick Sanitize
Medium Extra Dry Quick Sanitize
Eco ---
Fast Extra Dry - -
Delicate Extra Dry Quick -
Rinse ---
OPERATING INSTRUCTIONS
WASH MODIFIERS (SOME MODELS ONLY)

12
Using sanitize
The sanitize wash modifier adjusts the wash program to meet the conditions required by
Section 6, NSF 184 for sanitization to occur.
While sanitize is running, the wash program is monitored to ensure that these conditions
are met.
IMPORTANT!
●Only programs utilising the sanitize wash modifier are certified to meet the conditions
required by Section 6, NSF 184. Other wash programs may not reach the temperatures
required for sanitization to occur. See table on previous page for wash programs that
have sanitize available
●For sanitization to occur, the temperature of the water needs to reach 700C/1580F.
Check that all items are ‘dishwasher safe’ before running the sanitize modifier.
●If the wash is interrupted or the water supply is turned off during the program, then
the heating conditions for sanitization may not be met. You may need to run the
program again to ensure sanitization of your dishes.
At the end of a wash program with sanitize, always check to make sure that sanitization
has been successful.

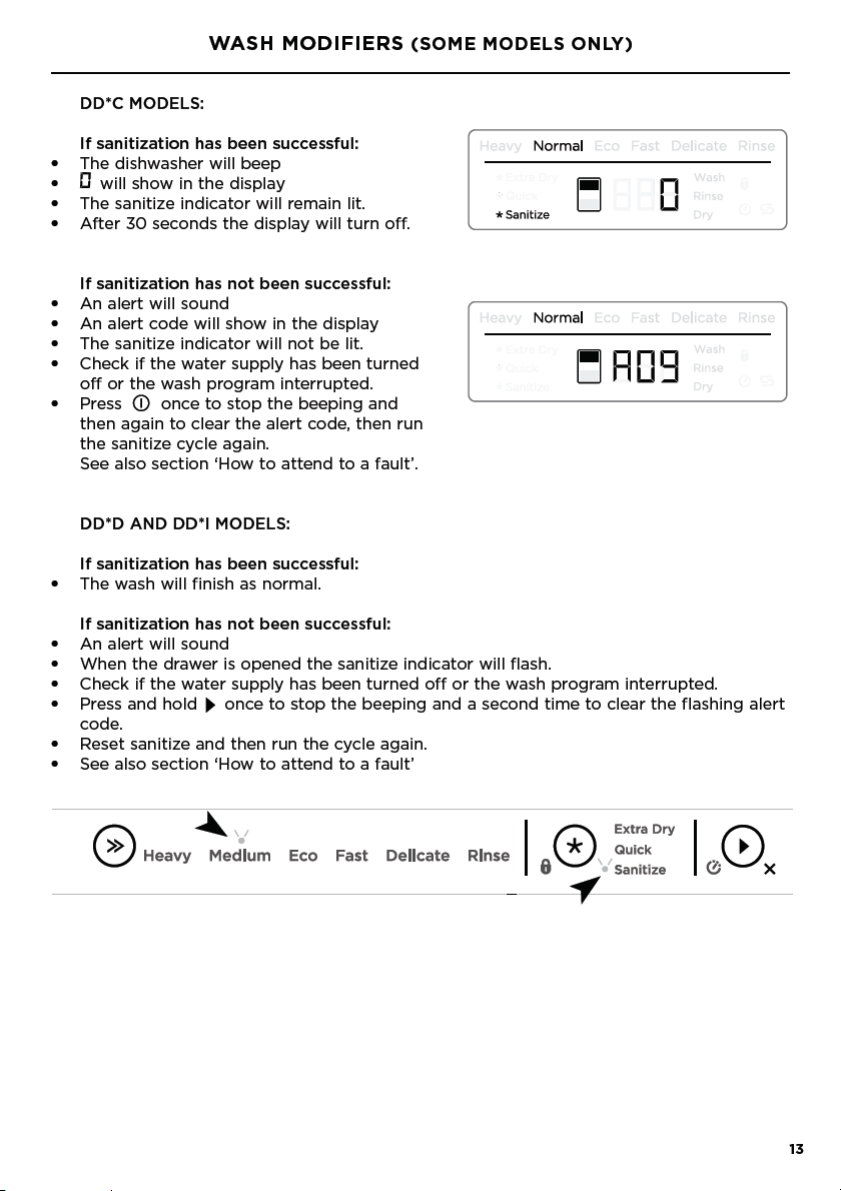

WASH MODIFIERS (SOME MODELS ONLY)
