Fisher & Paykel DishDrawer DD602I Owner's manual

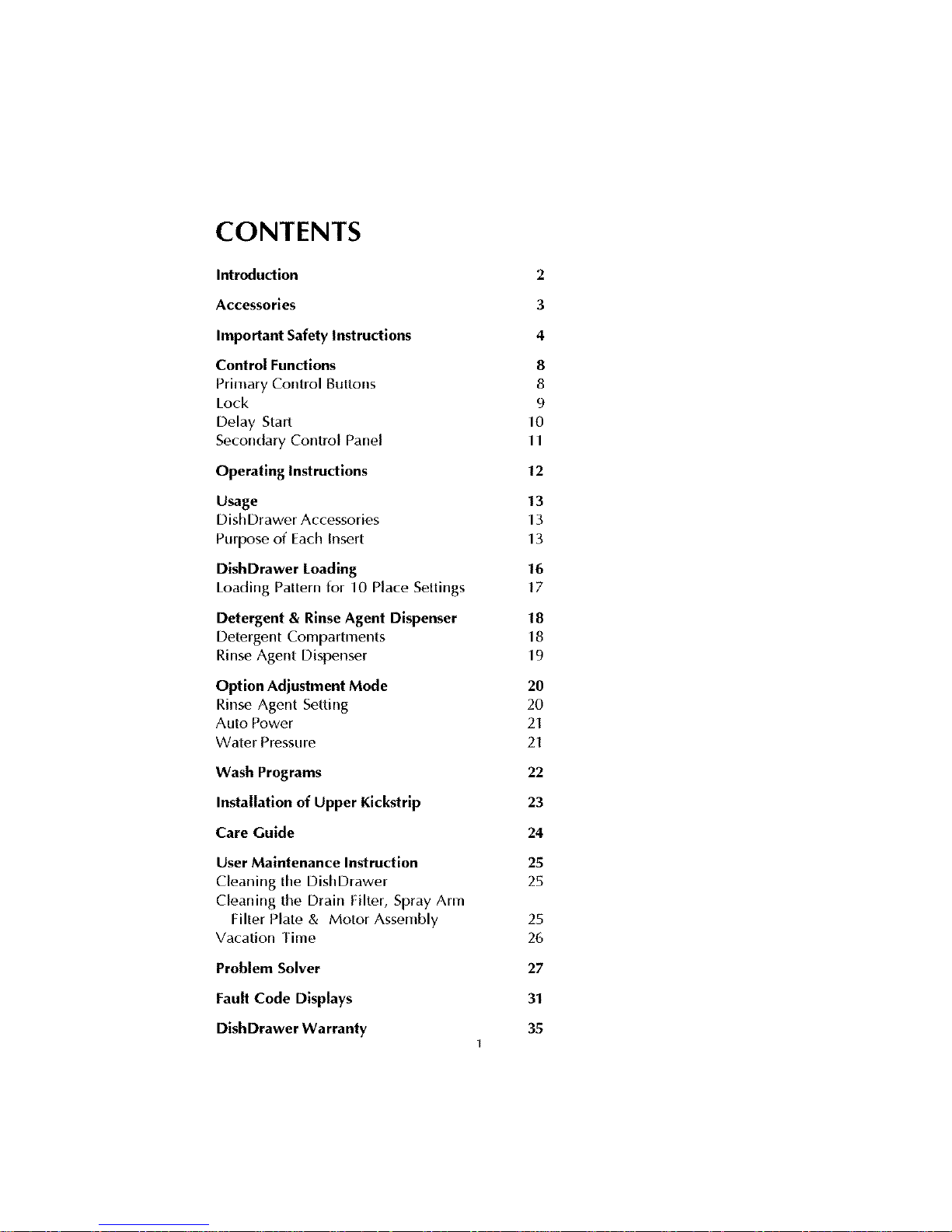

CONTENTS
Introduction
Accessories
Important Safety Instructions
Control Functions
Primary Control Buttons
Lock
Delay Start
Secondary Control Panel

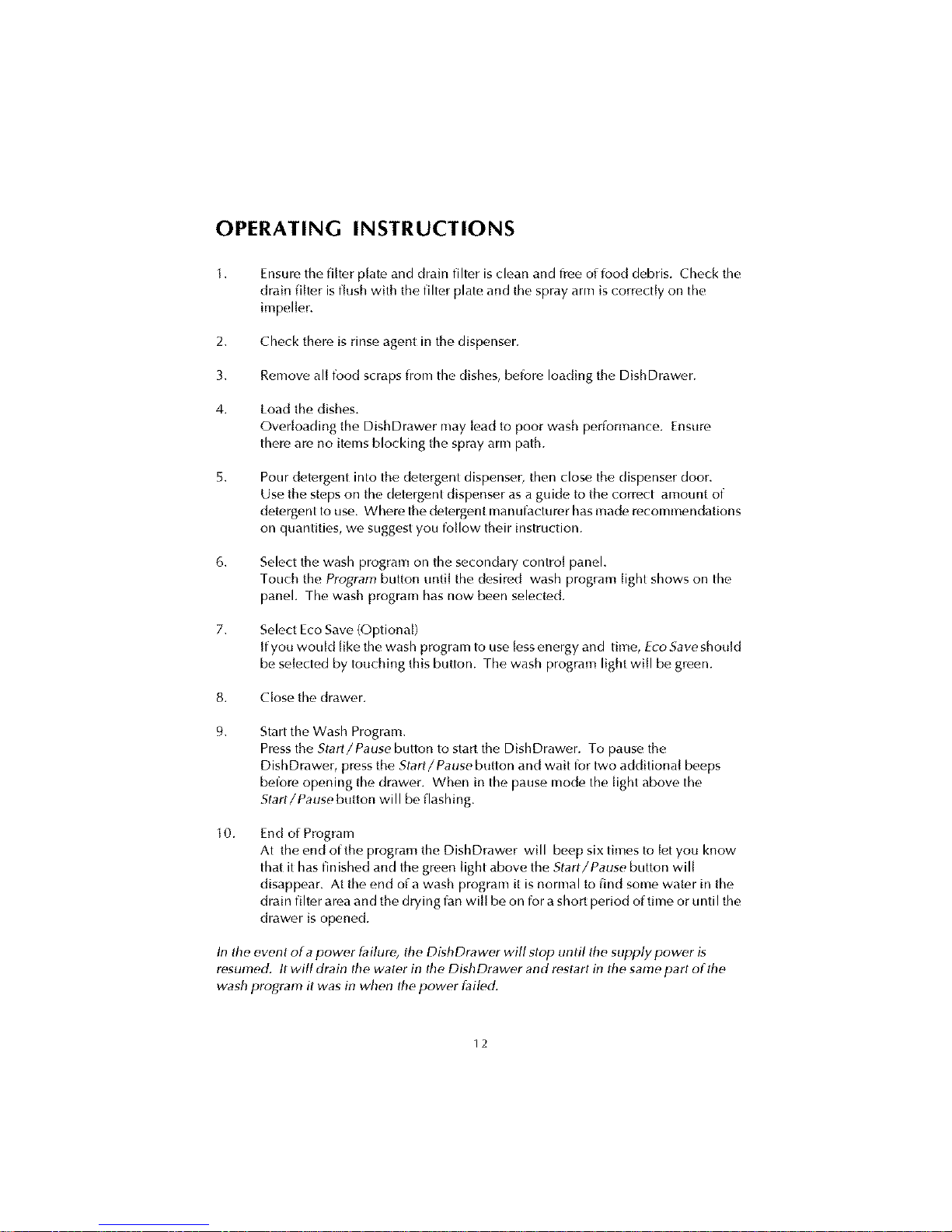

Operating Instructions
Usage
DishDrawer Accessories
Purpose of Each Insert
DishDrawer Loading
Loading Pattern Ior 10 Place Settings
Detergent & Rinse Agent Dispenser
Detergent Compartments
Rinse Agent Dispenser
Option Adjustment Mode
Rinse Agent Setting
Auto Power
Water Pressure
Wash Programs
Installation of Upper Kickstrlp
Care Guide
User Maintenance Instruction
Cleaning the DishDrawer
Cleaning the Drain Filter, Spray Arm
Filter Plate & Motor Assembly
Vacation [ime
Problem Solver
Fault Code Displays
DishDrawer Warranty
2
3
4
8
8
9
10
11
12
13
13
13
16
17
18
18
19
2O
2O
21
21
22
23
24
25
25
25
26
27
31
35

INTRODUCTION
Thank you and congratu[afions [or making the wise decision in purchasing your
Fisher & Paykel DishDrawer. Every cam has been taken in designing and
manut_tcturing your appliance. We are sure that you will enjoy using your
DishDrawer and will soon appreciate its many benefits. We wish you many years of
satis[ying use.
Unique Features of Your DishDrawer TM
By now you will be aware that Fisher & Paykel's DishDrawer isa unique
dishwasher, which oft_,rs benefits no other dishwasher can.
The DishDrawer takes the everyday kitchen drawer - long recognised asthe most
efficient, easy to access storage syst(,m in the kitchen - and turns it into the most
advanced dishwasher in the world.
Ifyou have chosen a double DishDrawer, or moro than one single DishDrawer, you
will have totally separate, independently operatc,d washing units, introducing loading
and washing possibilities that have never betore been possible.
Now you can treat precious glassware to a delicate wash and give pots and pans the
heavy duty treatment - all at the same time.
The Clutter-Free Counter Top Becomes A Reality
Now it really ispossible to keep your counter top lree from ew,ryday clutter like tall
glasses and awkward serving dishes, rhe double DishDrawer's spacious
configuration gives you many new ways to Mad your machine - and use it.
Used cleverly, two DishDrawers can even provide extra kitchen storage. Use clean
dishes directly from one drawer and load them back into the other drawer when dirty.
Design Your Own Rack System
With flexible, interchangablo inseris the DishDrawer can be arranged to
accommodate the way you live and the dishes you use most often. Inserts are easy to
remove so it is easy to change your layout as your daily needs change.
Ifyou have two DishDrawers, you can arrange one drawer ior all your lightly soiled
cups, saucers and fine glassware - inckJding Mng-stemmed glasses - and wash them
using a delicate cycle. Set up your other drawer ior your morn robust, heavily-soiled
items like plates, pots and pans. Inserts can easily be removed completely to fit
awkward preparation or serving dishes.

The Guilt-Free Small Load
At[ DishDrawer models make the small, guilt-free toad a reality. The DishDrawer
minimizes water and energy consumption with each drawer using less than half the
water of a conventional dishwasher. By washing smaller loads more frequently, you
need never run out of clean dishes.
Gentler Introduction of Detergent
The DishDraweds innovativo detergent dispenser thoroughly pre-mixes water with
detergent before it is introduced into the drawer, so your delicate dishes are protected
from "detergentburn". Precise markings inside the dispenser ensure you never use
too much or too tittle detergent lot each program.
Big On the Inside
Each DishDrawer has been careffd[y designed to give you more usable space than
ever before.
Each DishDrawer can accommodate 12 large dinner plates up to 11.4" in diameter. A
deeper drawer design means large plates can be loaded into the drawer while cups
and glasses can be sal_,lystacked into the two levels.
Fisher & Paykel strongly recommends that you read the information contained in
this Use & Care Manual before using the DishDrawer.
ACCESSORIES
Each DishDrawer is supplied with the following:
• Basket
• Cutlery Basket
• Mega Rack
• Drain Filter Access Pane[
• Hate Insert

IMPORTANT SAFETY
INSTRUCTIONS
Warning - When using your DishDrawer, follow
basic precautions, including the following:
lot your safety the inlornlatiorl in this manual must be Iollowed to mirfinlize
the risk of fire or explosion or to prevent property damage, personal injury or
loss of lile.
Please read all instructions before operating the DishDrawer.
•Use,the DishDrawe_ only for its ink,nded function as described in this Use and
Care Manual.
• Use only detergents or wetting agents recommended ior L_sein a Dishwasher
and keep them out of reach of children.
• When loading items to be washed
1. Locate sharp items so that they arc'not likely to damage the lid seal and
2. Load sharp knives with the handles L_pto redL_cethe risk of clottype
injuries.
• Do not touch the heater plate during or immediak_[y alter use.
• Do not operate your DishDrawer mqess all the enclosL_repanels are properly
in place.
• Do not tamper with the controls.
• Do not abuse, sit on, stand in or on the drawer or dish rack of the DishDrawer.

IMPORTANT SAFETY
INSTRUCTIONS
ro reduce the risk of injury, do not allow children to play in or on the
DishDrawer.
Under certain conditions hydrogen gas may be produced in a hot watc, r heater
system that has not been used Jor two weeks or more. HYDROGEN GAS IS
EXPLOSIVE. [f the hot water system has not been used ior such a period,
betore using the dishwasher, turn on al[ hot water iaucets and let the water flow
fron-_ each for several minutes. This wil[ release any accumulated hydrogen
gas. As gas is flammable, do not smoke or use an open f[an-te during this time.
Remove the door to the washing compartment when removing an old
dishwasher irom service or discarding it.
Installation
rhis DishDrawer must be installed and located in accordance with the
Installation Instructions before it is used. If you did not receive an Installation
Instruction book with your DishDrawer, you can obtain one by calling toll free
1 888 9 FNP USA (1 888 9 367 872).
• Installation and service must be performed by a qualified technician.
this appliance must be grounded. In the event of a maliunction or
breakdown, grounding will reduce the risk of electric shock by providing a
path of least resistance ior electric current. Fhis appliance is equipped with a
cord having an equipment - grounding conductor and a grounding plug. Fhe
plug must be plugged into an appropriate outlet that is installed and grounded
in accordance with all local codes and ordinances.
WARNING - hnproper connection of the equipment - grounding conductor
can result in a risk of electric shock. Check with a qualified electrician or
service ropresentative if you are in doubt whether the appliance is properly
grounded. Do not modily the plug provided with the appliance; if it will not fit
the outlet, have a proper outlet installed by a qualified electrician.
Ensure the DishDrawer is secured to the floor or adjacent joinery using the
brackets provided. Failure to do so may result in an unstable product, which
may cause damage or injury.

IMPORTANT SAFETY
INSTRUCTIONS
Do not open,tie this appliance if it is damaged, mal[unctioning, partially
disassembled or has missing or broken parts, including a damaged cord or
plug.
Do not store or use gasoline, or other flammable vapors and liquids in the
vicinity of the DishDrawer.
Connect to a properly rated, protected and sized power supply circuit to avoid
electrical overload.
Make sure that the cord is located so that it will not be stepped on, tripped over
or otherwise subject to damage or stress.
Do not install or store the DishDrawer where it will be exposed to temperatures
below freezing or exposed to weather.
Do not use an extension cord or a portable electrical outlet device (e.g. multi
socket outlet box) to connect the DishDrawer to the power supply.
Maintenance
•Do not repair or replace any part of the appliance or attempt any servicing
unless specifically recommended in this Use and Care Manual. We
recommend that you call a Fisher & Paykel Authorized Service Agent.
Keep the floor around your appliance clean and dry to reduce the possibility of
slipping.
Keep the area around /underneath your appliance free from the accumulation
of combustible materials, such as lint, paper, rags and chemicals.
When cleaning the underside of the filter plate, care must be taken on the
sharp outer edge to avoid the risk of cut type injuries.
Operational
•Under no circumstances should you open the drawer whilst the DishDrawer
is in operation. Always use tho Start/Pause button to pause and wait until you
hear the two additional beeps before opening the drawer.

IMPORTANT SAFETY
INSTRUCTIONS
FheDishDrawer must be used with the motor assembly, filter plate, drain filter
and spray arm in place.
When disconnecting the appliance pull the plug rather than the cord or
junction of cord to avoid damage.
Household appliances are not intended to be played with by children.
Children or persons with a disability that may limit their ability to use the
appliance, should have a competent person instruct them in its use. This
person should be satisfied that they can then use the appliance without danger
to themselves or their surroundings.
Close supervision is necessary if this appliance is used by or near children. Do
not allow children to play inside, on or with this appliance or any discarded
appliance.
FheDishDrawer is designed for washing normal household utensils. Items that
are contaminated by gasoline, paint, steel or iron debris, corrosive, acidic or
alkaline chemicals are not to be washed in the DishDrawer.
If the DishDrawer is not being used ior long periods of time, turn the power and
water supply to the DishDrawer off.
SAVE THESE INSTRUCTIONS

CONTROL FUNCTIONS
Whf, re there are two DishDrawe_s in the one cabinet, each drawe_ has its own contro[
pane[ and can run independently of the other.
Figure 1 - Primary Control Panel
Key
1. Power
2. Start/Pause
3. Lock
Primary Control Buttons
Power
The Power button turns the Disl_Drawer on and off.
On
When pressing the Powerbutton, a short series of beeps will be emitted, a green light
above the Start/Pause button will flash.
off
To terminate a wash program, press the Powerbutlon. Any remaining water in the
DishDrawer will be pumped out. The green light above theStart/Pausebutton will
switch off.

Start /Pause
This button has a number ofiunctions. It serves to:
• Start the DishDrawer once the desired wash program has been selected.
• Interrupt the wash program while in operation.
Fopause the DishDrawer, press the Start/Pause button and wait until you
have heard two additional beeps beJore you open the drawer, allowing the lid
seal to deflate. While in pause mode, the light above the Start/Pause button
will flash.
• Restartthe DishDrawer aJterbeing paused.
You may notice a delay aJterthe Start/Pause button has been pressed. During
this time the lid sealwill be inflating.
• One Button Start.
Fhis starts the DishDrawer and will run the last wash program used.
NOTE:
Under no circumstances do we recommend that you open the DishDrawer while in
operation unlessyou have pressedthe Start/Pause button. If the drawer is opened
during the wash program, there isa possibility of getting wet, burnt, or damaging the
DishDrawer. There arc,salety mechanisms in place to stop the DishDrawc, r if it is
opened.
Ifa red light appears above the Start/Pause button, check the secondary control panel
and note which lights arc, lit up. If the red lights above the rinse and l_tstarc,[it this
indicates that the door was opened during the wash program. To rc,move this l_tult,
ensurc, the drawer is dosed and press Power. The DishDrawer will now be ready to
start from the beginning of the wash progr_tm. You may have to add more detergent in
the dispenser and then prc,ss Start/ Pause button to start the DishDrawer. Fhe
DishDrawer will not rc,start where itwas interrupted aJtera Jau[t.
Lock
fhe Lock function disables all the other Junctions on the
DishDrawer. This function is usetul when cleaning the
control panel and can also prevent children from turning
the DishDrawer on or off accidentally. Fhis button can be
used when the DishDrawer is in oper_ttion and will rc,main
active until the Lock isdeactivated.
[o activate this Junction, press and hold the Lock button
until the rc,d light above it appears continuously and is no
longer blinking. All the other buttons arc, now inactive.
Fodeactivate this Iunction, press and hold Lock button
until the rc,d light above this button has disappearc, d.
Figure 2 -Display
showing the lock mode
9

Delay Start
This leature allows you to delay the start of the wash program from one to twelw,
hours. Itis useh_l ifyouwanttotakeadvantageoftheoffpeak power rates. (Check
with your local Electricity Utility if this isavailable), or if you wish to start the
DishDrawer at a later time.
To Activate Delay Start
1. Ensurethe DishDrawer isclosed.
2. Pressand hold the Start/Pause button. Fhe light above the Start/Pause button
will turn orange.
3. Hold or pressthe Start/Pause button and the time will increase in increments
of one hour. The DishDrawer will emit a beep for each hour passe{].
4. Releasethe button when the desired time has been reached.
The DishDrawer will automatically startwhen the time haselapsed.
To cancel the Delay Start, press the Power button or keep pressing until it passes 12
beeps/hour. Fhe light above Start/ Pause button wi[I turn green when the De[ay Start
has been cancelled.
10

Secondary Control Panel
Wash Programs
One advantage of two independent DishDrawe_s is that you carl divide the dish loads
according to need. For example, you can wash pots or heavily soiled items on a Heavy
Plus program in one drawer while washing china or glassware on a Delicate Eco Save
program in the other drawer.
When selecting a wash program ensure the control panel inside the drawer is clean
and dry. Ifnot, wipe with a clean dry cloth.
Figure3 -Secondary Control Panel
Program
[his button advances through the wash programs in sequt,nce.
Fhewash program indicator light can be either red or green. [f the light above the
selected wash program is red, it indicates that you have selected a Plus program. Ifthe
light above the wash program is green, an Eco Save program has been chosen.
Rinse
Rinse can be used Jor dirty dishes that need rinsing and will be washed later. The Eco
Save function has no effect on the Rinse program.
Heavy Wash
rhis wash is rocommendcK] Jor heavily soiled dishes SLichas roasting dishes, pots and
dishes with baked on soil.
Normal Wash
Fhiswash can be usedior normaleveryday dishes.
Fast Wash
this wash is designed ior non greasy, lightly soiled dishes.
Delicate Wash
Fhiswash is a gentle program _or lightly soiled and heat sensitiw" crockery.
Program Modifier
Plus Programs (Red)
rh_,PlusPrograms useshigher wash tempt,ratures and longer wash times to giw" optimum
wash and dry performance. The light above the wash program is red to indicate that this
option has been chosen.
Eco Save (Green) _
Eco Save saw,s on energy, it achiew, sthis by using lower wash tempe_ttures and shorter
times and because of this, dry periormance may be compromised.
II

OPERATING INSTRUCTIONS
1. Ensurc,the filter plate and drain filter is clean and free ofiood debris. Check the
drain filter isflush with the filter plate and the spray arm is correctly on the
impeller.
2. Check there is rinse agent in the dispenser.
3. Remove all food scraps from the dishes, before loading the DishDrawer.
4. Load the dishes.
Overloading the DishDrawer may lead to poor wash periormance. Ensure
there are no items blocking the spray arm path.
S. Pour detergent into the detergent dispenser, then close the dispenser door.
Use the steps on the detergent dispenser as a guide to the correct amount of
detergent to use. Where the detergent manufacturer has made recommendations
on quantities, we suggest you follow their instruction.
6. Select the wash program on the secondary control panel.
rouch the Program button until the desired wash program tight shows on the
panel, rhe wash program has now been selected.
7. Select EcoSave (Optional)
Ifyou would like the wash program to use less energy and time, Eco Save should
be selected by touching this button, rhe wash program light will be green.
8. Close the drawer.
9. Start the Wash Program.
Prossthe Start/Pause button to start the DishDrawer. To pause the
DishDrawer, press the Start/Pause button and wait for two additional beeps
before opening the drawer. When in the pause mode the tight above the
Start/Pause button will be flashing.
10. End of Progr_tm
At the end of the program the DishDrawer will beep six times to let you know
that it has finished and the groen light above the Start/Pause button wil[
disappear. At the end of a wash program it is normal to find some water in the
drain filter area and the drying fan will be on for a short period of time or until the
drawer is opened.
In the event of a power lailure, the DishDrawer will stop until the supply power is
resumed. It will drain the water in the DishDrawer and restart in the same part of the
wash program it was in when the power lailed.
12

USAGE
DishDrawerTM Accessories
The basket isthe basic insert DishDrawer requires
wash dishes. The inserts and racks can be added or
removed to suit your individual needs. Ifyou have two
DishDrawers, some of the parts are interchangable
between the two drawers. For example you can
combine the two Mega Racks into one drawer and wash
all cups and glasses, leaving the other drawer for plates
and larger items.
Purpose of Each Insert
Basket
This is thf, most basic piece and it is essential lor this to
be carefully placed into the DishDrawer first. It holds
some of the inserts in place and keeps the dishes above
the spray arm so it can rotate and spray water onto the
dishes.
Drain Filter Access Panel
The drain filtc,r access panel is designed to giw • access to
the drain filter, the purpose of this insert is to prevent
objects from touching the base of the DishDrawer and
stopping the rotation of the spray arm, but still giving
access to the drain filter.
Cutlery Basket
The cutlery basket is removable and ideally should sit
over the opening of the drain filter in the front right hand
side of the drawer. For maximum wash performance the
ova[ slots should lace the middle of the drawer.
Individual pieces of cutlery, like knives or spoons, can
be placed in the oval slots ior convenience.
Figure 4 - Recommended
Positions for Inserts &
Racks
Figure 5 -Basket & Drain
Filter Access Panel
Figure 6 - Cutlery Basket
13

Plate Insert
The plate insert can be instal led to the left or the right
side of the basket. This insert is capable of supporting
plates and bowls.
Mega Rack
The Mega Rack can be installed to the [eli or tilt, right
side of the basket, ftyou want to wash wine glasses, this
rack should be installed on the [eft side. this rack is
designed to hold a combination of glasses, cups and
small plates. Foinstall this rack, place the outc_rlegs of
this rack on the top of the basket, hook into the mid
section under the middle wire and clip the Mega Rack to
the side of the basket.
When correctly installed this rack should not ieel loose.
It is important to assemble the Mega Rack correctly to
minimize the chance of obstructing the spray arm.
Figure 7 -Accessories in
the DishDrawer
Key
1. Mega Rack
2. Hate Insert
14

DISHDRAWER TM LOADING
Baskets
• Scrape off all [ood scraps and remove any bones, crusts, toothpicks and any
similar items.
• Overloading can lead to poorly washed dishes.
• Small light items should be placed soiled side down oil the basket.
• Plates, bowls and saucers can be slotted into spaces provided.
• Long kitchen utensils can be laid flat oil the large cup inserts.
• Ifthere are no inserts in the basket, large bowls and pots can be placed flat in
the DishDrawer.
• Ensure no items touch or protrude above the top of the drawer as you close it,
as damage to the DishDrawer and dishware may occur.
• Locate sharp items so they are not likely to damage the lid seal. Particular
attention must be paid to knives to ensure they do not dislodge during the
wash to prevent injury to yourself or the DishDrawer.
Please note that the DishDrawer basket and its inserts are not designed to be lifted out
of the Dish Drawer while loaded with dishes.
Figure 8 Figure 9
Examples of how we recommend you load your DishDrawer
,/ ,/
Figure 10 Figure 11
Examples of how NOT to load your DishDrawer
X X
[5

Cup Rack Posts
Cups, glasses and kitchen utensils can be placed on both
sides of the cup racks. For best wash performance ensure
there are no large items blocking the wash water from
reaching the cup racks. See Figures 8 and 9 for the
recommended method of loading the DishDrawer.
Wine glasses can be supported on the [ett hand cup racks
if used in conjLmction with the Mega Rack, see Figurc,12.
Cutlery Baskets
•For best wash performance, mix spoons, kniw, s
and forks within each section of the basket.
alt_mate between handles up and down to prevent
nesting and ensLtrewater circulates Jreely.
We recommend that sharp utensils should have
their handles Jacing Ltp,to redLtce the risk of cut
injuries.
Keep stainless steel from touching silver -mixing
these metals can stain cLtt[ery.
Spray Arms
• Ensurethere are no items blocking the path of the
spray arm.
• Check that no items have slipped through the
cutlery basket.
Figure 12 -
Recommended Placement
for Wine Glasses
Figure 13 -Cutlery Basket
16

Recommended Loading Pattern for 10 Place Settings
Top Basket
Bottom Basket
Figure 14
Cutlery Basket
Figure 15
Figure 16
Detergent Quantities
We, rocommf, nd the use of 5g of deter-
gent in the pre-rinse compartment and
10g in the main wash compartment.
17

DETERGENT AND RINSE AGENT DISPENSER
The detergent and rinse agent dispenser is located on the
inside of the DishDrawer.
Detergent Compartments
Thereare two compartments- one for pre-wash
detergentand the otherfor themain washdetergent.
/I
j2
3/
The pre-wash compartment is the smaller. The size
of the compartments are a guide to detergent usage.
The main wash compartment has steps on the side,
these can be used asa guide ior how much detergent
to use. The lowest step is equivalent to one teaspoon
when the detergent is level with this step, the middle
step isequivalent to two teaspoons and the top step is
equivalent to three teaspoons.
The detergent dispenser is designed ior the use with
powdered detergents, however if liquid detergents are
used we do recommend that it not be lell in the
dispenser ior long periods of time belore operating
the DishDrawer. Fab[etdetergents are not suitable to
be used in the DishDrawer.
Figure 17 -Detergent
& Rinse Agent Dispenser
Key
I. Latch
2. Rinse Agent Indicator
Light
3. Rinse Agent Plug
To Load the Detergent Dispenser
• Pressthe latch down and the door will open.
• Pour detergent
For heavily soiled items, extra detergent can be
placed in the pre-wash detergent compartment.
No detergent is needed for the Rinse program.
• After filling the compartment(s), close the dispenser
door until it dicks shut.
• rhe detergent will automatically be released into
the DishDrawer during the wash program.
Important
Only use detergent recommended for domestic
automatic dishwashers. Handwashing liquids, soap,
laundry detergents or disinlE,ctant will damage the
DishDrawer. Never sprinkle or pour detergent
directly onto any item in the DishDrawer.
WARNING
Dishwasher detergents are strongly alkaline. They can
be dangerous if swallowed. Avoid contact with skin
and eyes. Keep children and infirm person(s) away
from the DishDrawer when the drawer is open.
18
2 3
1
Figure 18
Detergent & RinseAgent
Dispenser
Key
I. Latch
2. Main WashCompartment
3. PreWash Compartment

Rinse Agent Dispenser
Rinseagentgivf,sa streakfreesparklingclean look
to glassand chinaware. It speedsup drying and
helpsprevent metalfrom tarnishing.
We highly recommend that you regularly use liquid
rinse agent to give the best drying results. For best
drying results, periodically check the rinse agent
dispenser to see if it needs filling and fill when
empty.
The rinse agent dispenser is on the inside of the
drawer, located underneath the detergent dispenser.
The dispenser holds approximately 1.7 fluid oz of
rinse agent.
Figure 19 -Filling the
Rinse Agent Dispenser
To Load the Rinse Agent Dispenser
• rurn the plug counte_ clockwise, about one
eighth of a turn and remove.
• Pour the rinse agent into the circular opening.
• rake care not to spill rinse agent into the drawer.
• Wipe any overflow to prevent excess foaming.
• Fit the plug back into the original position.
Rinse Agent Indicator Light
• Ifthe rinse agent indicator light is red, then there is [itde or no rinse agent left in
the dispenser. Rinse agent should be added into the dispenser.
• Ifthe rinse agent window is black, there is enough rinseagent ior the wash.
How Much Rinse Agent to Use
fhf, regulator may nf,ed adjusting to suit your water conditions. The lowest
setting is '1' and the highest is '5' (relbr to Option Adjustment Mode).
• Ifyour dishes have white streaks, or there isexcessive foam in the
DishDrawer, reduce the setting.
• Ifyour dishes have water marks, or if flecks are [ett on glasses a_terdrying,
increase the setting.
f9
