QUICK START GUIDE
EU
DISHDRAWER™ DISHWASHER
DD60DDF*9, DD24DDF*9,
DD60SDF*9 & DD24SDF*9
models

EN 1
FR 10
DE 20
DK 30
NO 40
SE 50

1
EN
YOUR MODEL
DD60DDF*9
DD24DDF*9
DD60SDF*9
DD24SDF*9
Double models
Note: each drawer can run independently of the other drawer.
Single models
Keep this document handy for easy reference.
●For detailed information on the features of your dishwasher, see your ‘User guide’.
●Before using your dishwasher, make sure you read the full ‘User guide’, with special
attention to the ‘Safety and warnings’ section.
●For contact information or if you require service, assistance or replacement parts, see
the end of this document or your ‘Service & warranty’ booklet.

2
EN OPERATING INSTRUCTIONS – STARTING A WASH

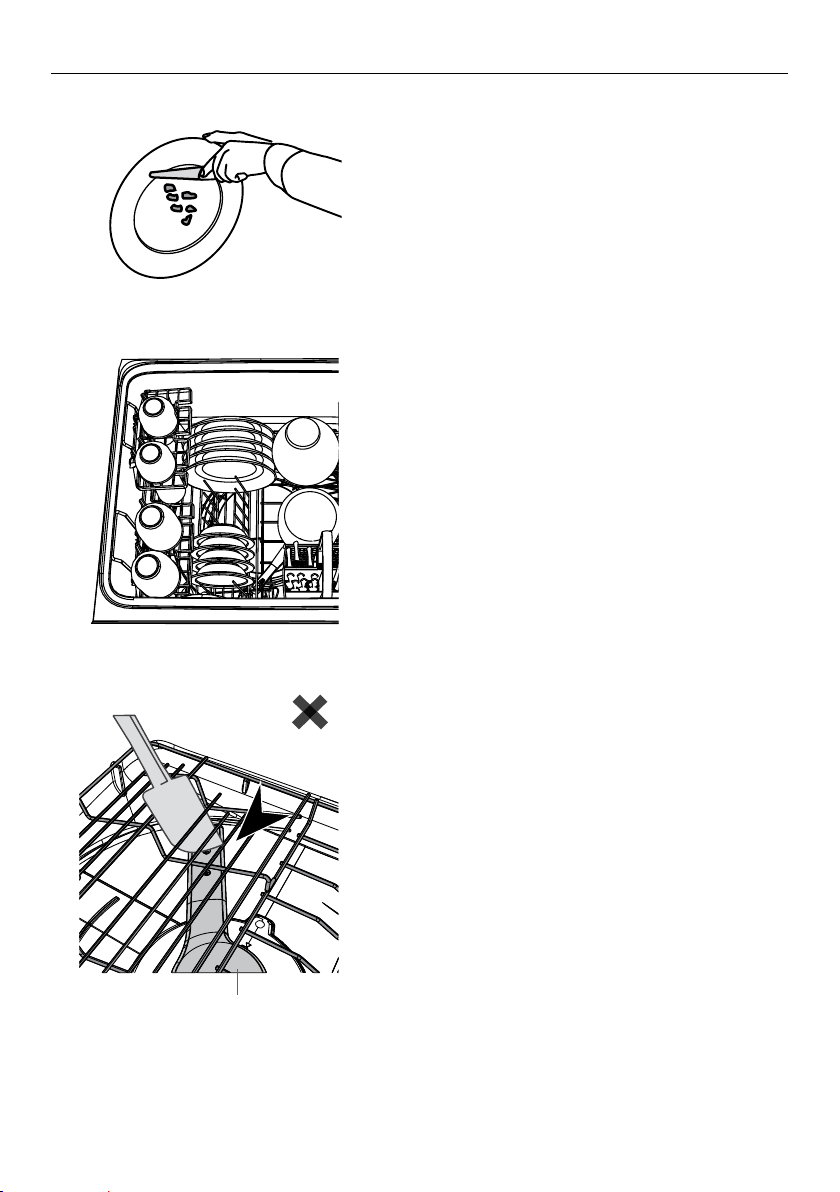

Discard scraps
Scrape large food particles
off (eg bones, fruit stones)
and remove any foreign
objects (eg toothpicks,
strings, paper).
Load dishes carefully
To help with wash
performance,
arrange dishes so they are
evenly spaced and not nesting.
IMPORTANT!
Accommodates plates up to a
max height of 280mm (11”) for
standard tubs or 310mm
(12 1/4”) for tall tubs.
1
2
3
Rotating spray arm
Check spray arm(s) are
mounted correctly and
can rotate fully around
Check the spray arm is
mounted correctly by
physically rotating it
around with your hand.
Before a wash, ensure there
are no items preventing the
spray arm(s) from rotating.

3
EN
OPERATING INSTRUCTIONS – STARTING A WASH
A
B
Start wash or set Delay start
To start wash:
Close the drawer and press OR
Press on the control panel before
closing the door
To set delay start:
Press and hold to set the delay
start time, then close the drawer.
Note: Each tone indicates a 1h delay.

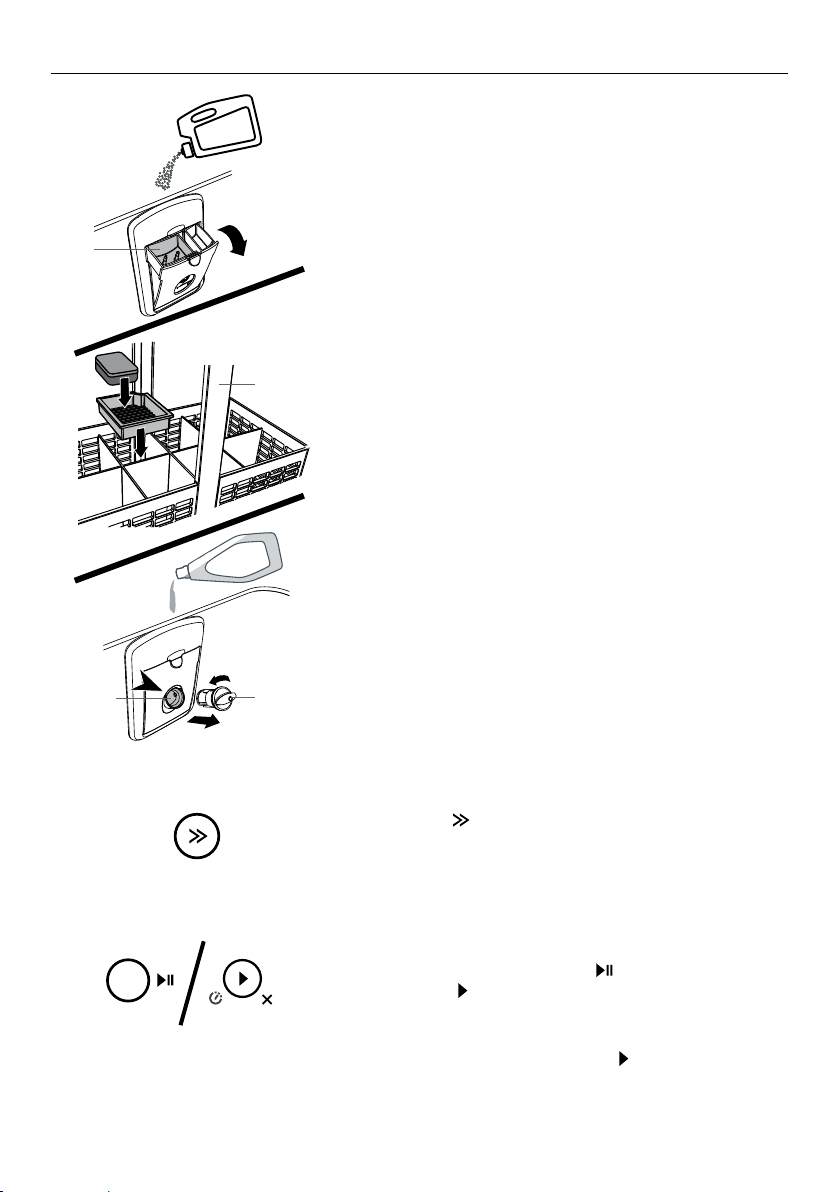

Select wash
Press to select
a wash program.
Check rinse aid
If the indicator on its plug (C) glows
bright red, refill the rinse aid
dispenser (D) with liquid rinse aid.
Make sure you then refit the rinse
aid plug back into its original
position, by rotating the plug back
into an upright position.
4
5
6
Powdered
Detergent
Tablet or gel pouch
C
D
Rinse aid
Door Control Panel
Add detergent
Fill the detergent dispenser (A) with
powdered detergent and close the
dispenser door.
IMPORTANT!
Do not place liquid detergent or
tablets in the detergent dispenser.
If using a tablet or gel pouch, place
it in the cutlery basket (B) or at the
edge of the base rack
(see user guide for details).

4
EN CONTROLS AND INDICATORS
Door Control Panel
DABC
12
3
4
Indicators Description
Off/On
Opening the drawer will automatically turn the dishwasher on.
If the dishwasher is in an idle state, touch any button to reactivate it.
1
2
Wash program indicators
If lit:
The wash program has been selected.
Lock indicator
If lit:
Keylock or childlock is activated.
3
4
Wash modifier indicators
If lit:
The wash modifier has been selected. The
wash program length and temperature will
be modified accordingly.
Delay start indicator
If lit:
Delay start is set. The wash program will
start after the selected time delay (1-12h)
A

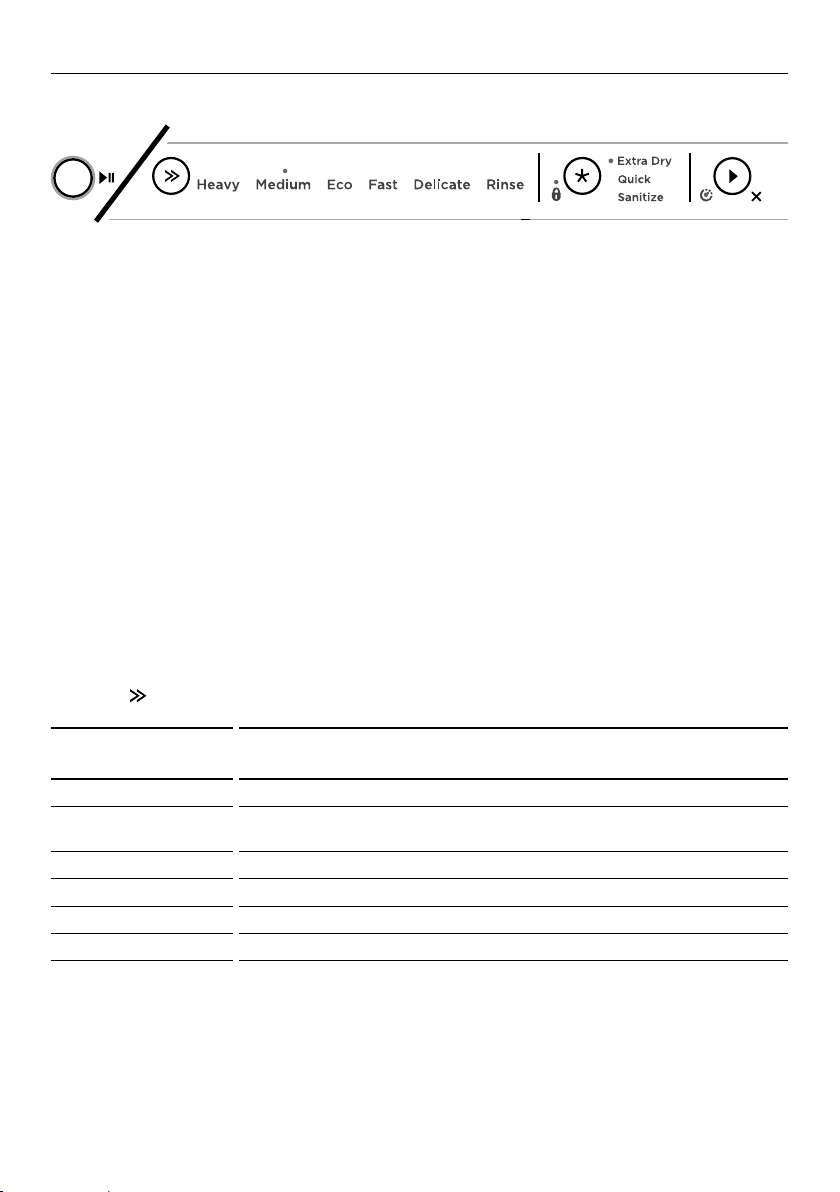

Controls Description
WASH PROGRAM SELECTOR
Press to scroll through the wash program options.
WASH PROGRAM DESCRIPTION
Heavy Heavily soiled pots, pans and dishes.
Medium Dishes that are quite heavily soiled or food soils that have been left to
dry overnight.
Eco (default setting) Normally soiled dishes for optimum water and energy usage.
Fast Lightly soiled dishes.
Delicate Lightly soiled and heat sensitive crockery.
Rinse Prevents odours and soils from drying on dishes.

5
EN
CONTROLS AND INDICATORS
BWASH MODIFIER SELECTOR
Press to scroll through the
wash modifier options.
Note: Not all modifiers are
available for all wash programs.
Keylock
Disables all the buttons
(helpful when cleaning
the dishwasher).
To activate:
Press and hold until you hear
a tone. The lock indicator will
light up.
Childlock
Disables all the buttons and locks
the drawer closed (preventing
unauthorised use by children).
To activate:
Press and hold until you hear
two tones. The lock indicator will
light up.
To cancel keylock/childlock:
If the drawer is open
Press and hold until you hear
a tone. The lock indicator will
go out.
If the drawer is closed
Press and hold until you
hear a tone.
The lock indicator will go out.
C/D START SELECTOR
(either on door or inner control panel)
To start wash:
Close the drawer and press
OR
Press on the control panel before
closing the door
To Pause:
Press
●Wait for three short and one long tone
before opening the drawer. Forcing it open
mid cycle may cause damage or injury.
●If the drawer is not restarted within seven
minutes it will sound intermittently until it
is restarted.
Delay start
Press and hold to set the delay start
time. Each tone indicates a 1h delay (up to
12h). The delay start indicator will light up.
●If you scroll past 12h the dishwasher will
exit delay start.
To re-enter delay start follow step 1 above.
●The wash will start when the delay time is
over, provided the drawer is closed.
DD24 models only US/CA
If drawer is not closed within 4 seconds
of setting delay start, OR If the drawer is
opened after delay start has been set (for
example, to load more dishes), delay start
will be suspended.
To resume:
Press and close the drawer OR close the
drawer and press .
Cancel wash/delay start
Press and hold or .
●If there is any water in the drawer, it will
automatically drain before the dishwasher
turns off.

6
EN DURING AND AFTER THE WASH
During the wash the button on the dishwasher door will be illuminated.
At the end of the wash the dishwasher will beep six times and the button
will stop being illuminated.
You may notice the following noises at the end of the wash. These are all part of
normal operation:
●Both drawers may be draining simultaneously.
●The drying fan may continue to run after a wash program has finished for a set time or
until the drawer is opened.
The fan assists with drying and uses negligible amounts of energy.
For best drying results, we recommend unloading the dishes within a few hours after a
wash program has finished.

7
EN
A neatly arranged
load with evenly
spaced dishes helps
wash performance.
Sharp or pointed
items must be placed
horizontally or with
sharp edges/points
facing down to avoid
risk of injury.
Overcrowding
reduces wash
performance.
Protruding items will
stop the internal lid
of the dishwasher
from sealing properly,
which could result in
a service call.
Ensure there is enough
space between plates.
Mix spoons, knives and
forks within the cutlery
basket to prevent them
from nesting.
If plates and cutlery
are nesting, they
are less likely to be
cleaned well.
Ensure that water
reaches all items on
the racks.
Dishware is blocking
water from reaching
items on the racks.

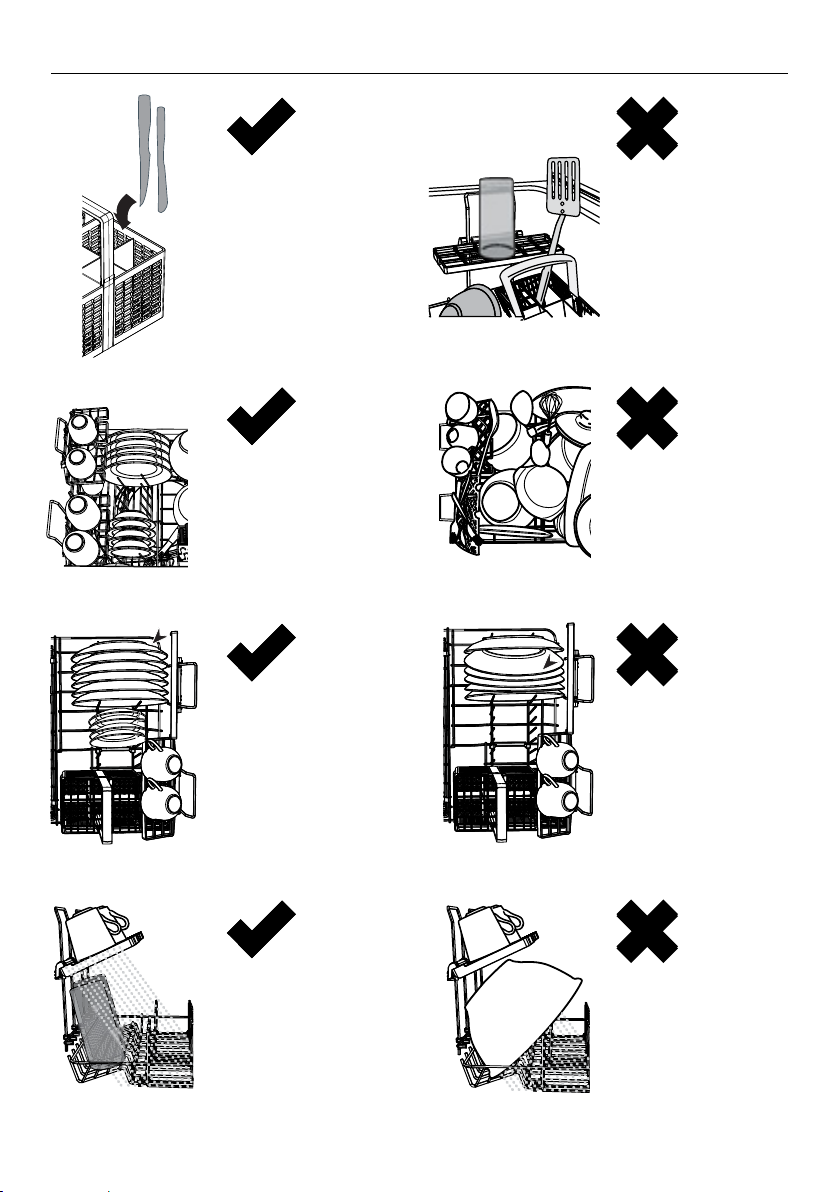

DOS AND DON’TS OF LOADING

8
EN PREFERENCE OPTIONS
You can change the setting of these options to suit your preferences or circumstances.
We recommend selecting the most suitable settings before you start using
your dishwasher.
OPTION WHAT DOES IT DO
Rinse aid Regulates the amount of rinse aid dispensed. Reduce this setting if there is
excess foam after a wash. Increase this setting if dishes are wet or streaky after
a wash.
Water softener
(some models only)
Refer to the ‘Water softener’ section of the ‘User guide’ for details.
Open drawer auto
power-on
(suitable as a
Sabbath option)
Your dishwasher is factory-set to automatically power on for 30 seconds
whenever you open the drawer. You can turn this setting off.
Turn tones off This turns all tones off except for fault alerts.
Closed drawer
autolock
When this setting is on, the drawer will automatically lock 30 seconds after it’s
closed. It can then be unlocked by pressing and holding on the dishwasher
door. Useful in boats or motor homes.
How to change the setting of an option
1CHECK
Check that there is no wash underway, then open the drawer.
2ENTER MENU
To enter the menu: Press and hold the and together for four seconds.
●You are now in the Rinse aid option of the preference options menu.
●To change the Rinse aid setting, go to step 4 now.
3SCROLL TO OPTION
Press to scroll to the next option. The wash modifier indicators will display which
option is selected (see table below).
When you have scrolled to the end of the sequence, the menu will start again with
Rinse aid.
4CHANGE SETTING
Press to change the setting within an option.
The wash program indicators will display which setting is selected (see table below).
5SAVE SETTING & QUIT MENU
Press to save the new setting and quit the preference options menu.
Double models only:
You can use either drawer to change the settings. Changing the settings in one tub will
set your preferences for the whole dishwasher.
