Fisher & Paykel DD60DAW9 User manual

Operating Instructions
Wash Modifiers (some models only)
Along with setting the wash program, you may select one of the following the additional options:
• Extra dry: Increases the final rinse temperature and the length of the drying phase for improved drying
performance.
• Quick: Uses additional water and energy for a faster wash time, while maintaining wash performance.
• Sanitize: Raises the water temperature during the rinse phase to sanitize dishes. Ideal for washing items such
as baby bottles and preserving jars.
• Only one modifier can be set at a time
• Not all modifiers are available for every wash program. If a wash modifier is not available for the
chosen wash program, then that modifier cannot be selected.
DD*C Models
Wash Program Modifier Available
eavy Extra Dry Quick Sanitize
Normal Extra Dry Quick Sanitize
https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O…
Updated: Mon, 11 Nov 2019 03:23:07 GMT
Powered by
1

Wash Program Modifier Available
Normal Eco - - -
Fast Extra Dry - -
Delicate Extra Dry Quick -
Rinse - - -
DD*D & DD*I Models
Wash Program Modifier Available
eavy Extra Dry Quick Sanitize
Medium Extra Dry Quick Sanitize
Eco - - -
Fast Extra Dry - -
Delicate Extra Dry Quick -
Rinse - - -
DD*C Models:

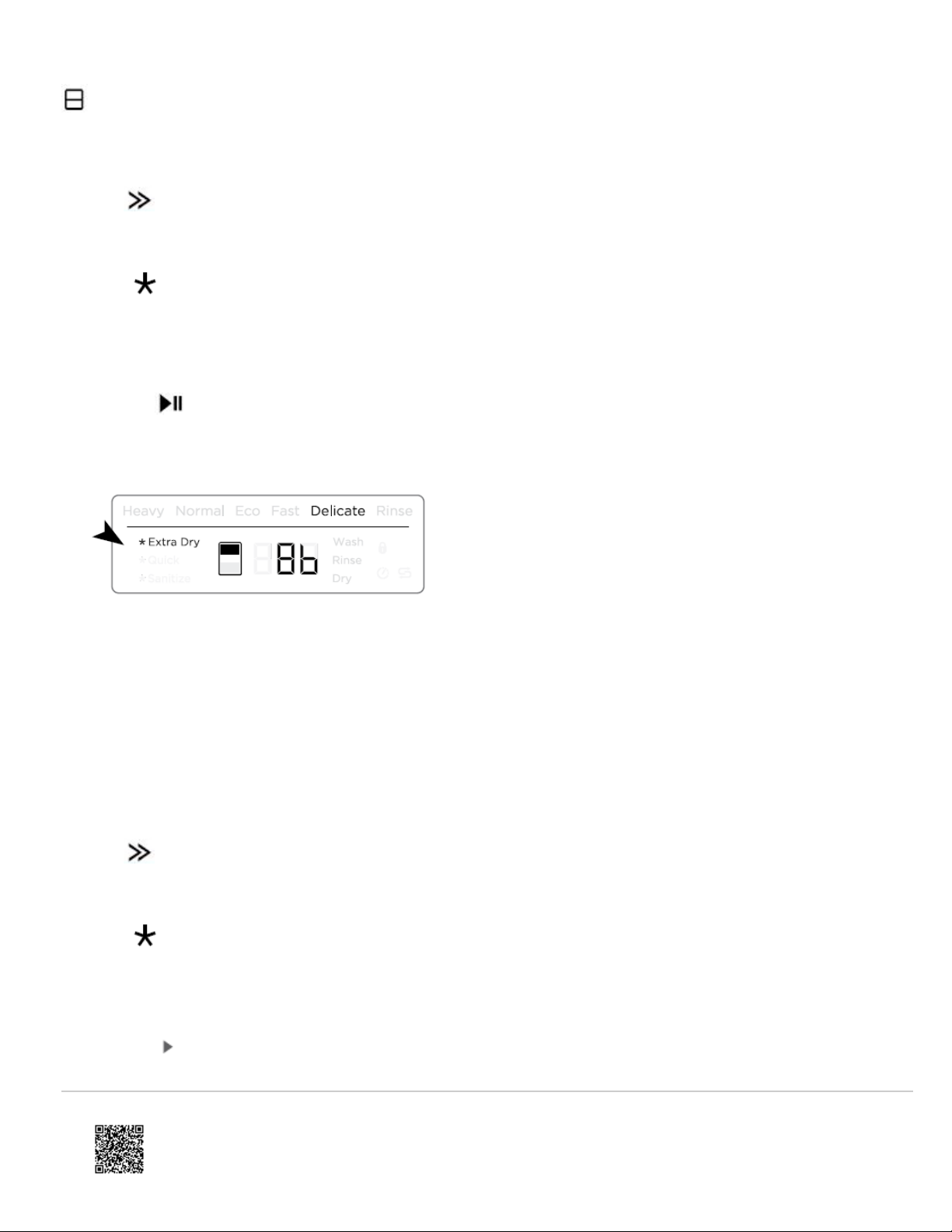

To set a wash modifier
1. Make sure the dishwasher is on and detergent (and rinse aid if necessary) has been added.
Double models only: Check the correct drawer is selected, or press
https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O…
Updated: Mon, 11 Nov 2019 03:23:07 GMT
Powered by
2

to change.
2. Press
to select a wash program.
3. Press
to scroll through the wash modifier options.
◦ The selected wash modifier indicator will light up on the display.
◦ Press
to start the wash
DD*D and DD*I Models:
To set a wash modifier
1. Make sure the dishwasher is on and detergent (and rinse aid if necessary) has been added.
2. Press
to select a wash program.
3. Press
to scroll through the wash modifier options.
◦ The selected wash modifier indicator will light up on the display.
◦ Press
to start the wash and close the drawer.
https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O…
Updated: Mon, 11 Nov 2019 03:23:07 GMT
Powered by
3

Using Sanitize
The sanitize wash modifier adjusts the wash program to meet the conditions required by Section 6, NSF 184 for
sanitization to occur.
While sanitize is running, the wash program is monitored to ensure that these conditions are met.
• Only programs utilizing the sanitize wash modifier are certified to meet the conditions required by
Section 6, NSF 184. Other wash programs may not reach the temperatures required for
sanitization to occur. See table on previous page for wash programs that have sanitize available
• For sanitization to occur, the temperature of the water needs to reach 700C/1580F. Check that all
items are ‘dishwasher safe’ before running the sanitize modifier.
• If the wash is interrupted or the water supply is turned off during the program, then the heating
conditions for sanitization may not be met. You may need to run the program again to ensure
sanitization of your dishes.
At the end of a wash program with sanitize, always check to make sure that sanitization has been successful.
DD*C Models:
If sanitization has been successful:
• The dishwasher will beep
• will show in the display
• The sanitize indicator will remain lit.
• After 30 seconds the display will turn off.
If sanitization has not been successful:
• An alert will sound
https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O…
Updated: Mon, 11 Nov 2019 03:23:07 GMT
Powered by
4

• An alert code will show in the display
• The sanitize indicator will not be lit.
• Check if the water supply has been turned off or
the wash program interrupted.
• Press
once to stop the beeping and then again to clear
the alert code, then run the sanitize cycle again.
See also section ‘ ow to attend to a fault’.
DD*D and DD*I Models:
If sanitization has been successful:
• The wash will finish as normal.
If sanitization has not been successful:
• An alert will sound
• When the drawer is opened the sanitize indicator will flash.
• Check if the water supply has been turned off or the wash program interrupted.
• Press and hold
once to stop the beeping and a second time to clear the flashing alert code.
• Reset sanitize and then run the cycle again.
• See also section ‘ ow to attend to a fault
https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O…
Updated: Mon, 11 Nov 2019 03:23:07 GMT
Powered by
5

Racking Features - Cutlery Basket
• To reduce the risk of injury, we recommend
loading knives and sharp utensils with handles
facing up.
• Mix spoons, knives and forks within each section
to stop cutlery nesting together and to ensure
the water circulates freely.
• Keep stainless steel from touching silver cutlery
to avoid staining.
Removable Anti-nesting Grid
• The anti-nesting grid clips onto the top of the
cutlery basket.
• Use the grid to separate cutlery items and stop
them from nesting together.
https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O…
Updated: Mon, 11 Nov 2019 03:23:07 GMT
Powered by
6

Removable Tablet Tray
If you are using dishwasher tablets or gel packs, place
them on the removable tablet tray, as shown. See also
‘Adding detergent’ for more information
Dishwasher tablets should not
be in direct contact with dishes
or cutlery or placed on the
bottom of the drawer.

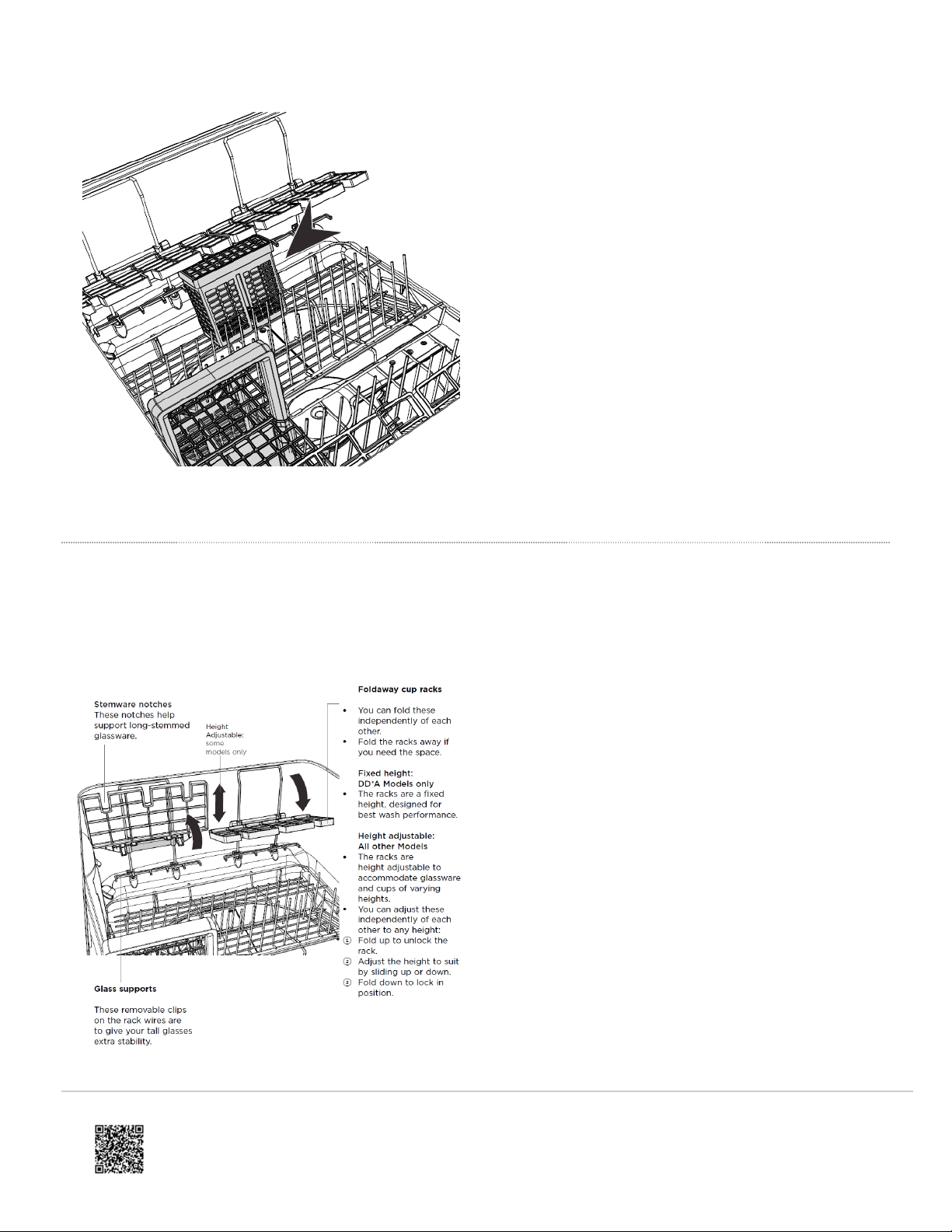

Removable Small Items Container
(some models only)
• Small, light items like baby bottle teats are best
placed into the small items container to prevent
them from being displaced during the wash.
• You can extend your cutlery basket by clipping
the container on its side.
https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O…
Updated: Mon, 11 Nov 2019 03:23:07 GMT
Powered by
7

• To optimize the cutlery space within the basket,
the small items container can be placed
elsewhere in the drawer.
• If you lay the container flat, make sure that the
solid plastic side is facing up.
• If you place a fully laden container under the cup
racks, it is best to leave the rack space directly
above the container empty - there may not be
enough water reaching items that are placed
above.
Racking Features - Foldaway Cup Racks
Racking Features will Vary Depending on Model
https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O…
Updated: Mon, 11 Nov 2019 03:23:07 GMT
Powered by
8

Knife Clip (some models only)
• This clips onto the adjustable racks and supports
knives and other utensils during the wash.
• Always ensure that knife blades are facing down.

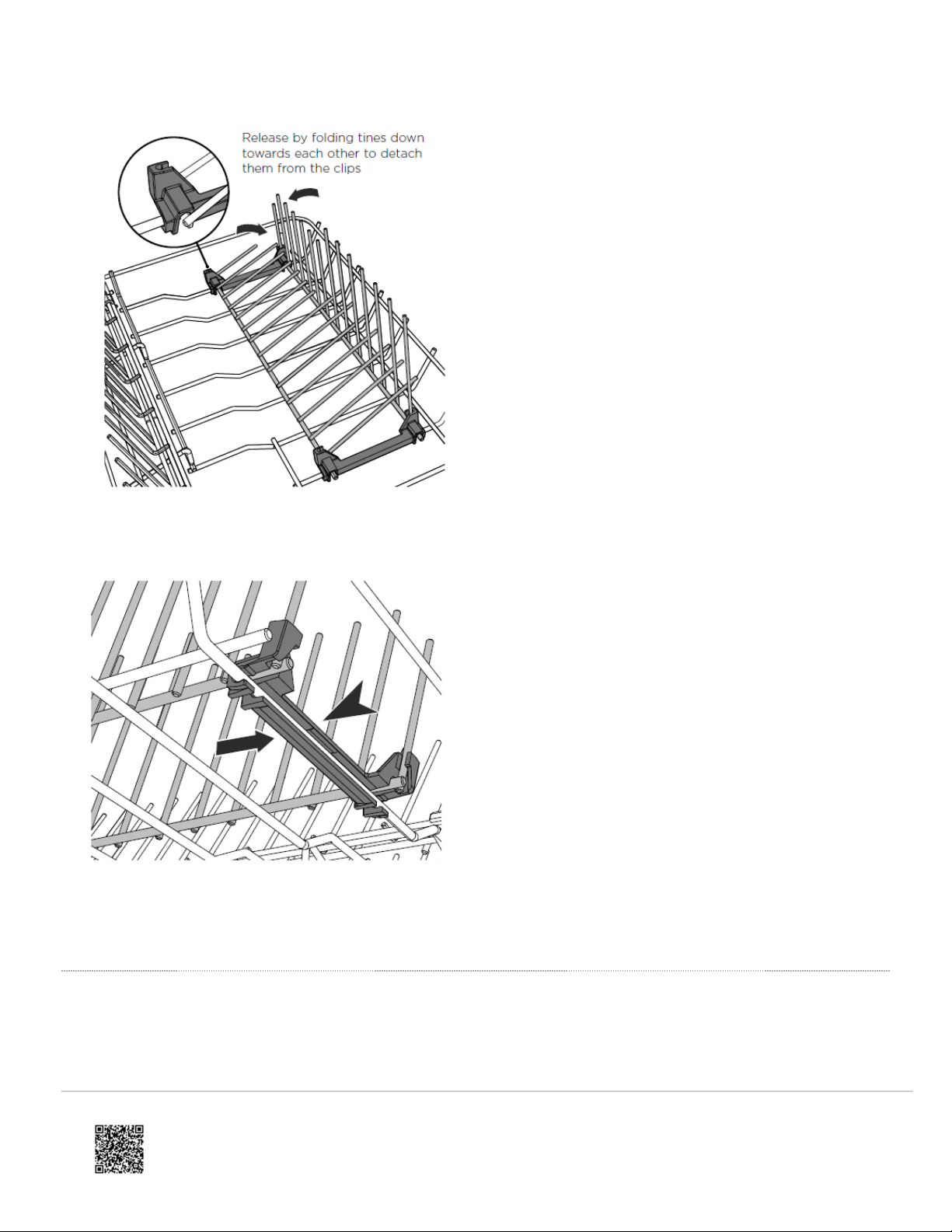

Racking Features - Folding Tine Rack
Folding Tines
• For optimum stability, place larger plates
between the longer tines in the front.
• Fold the tines down if you need the space for
pots or other large items.
• Release by folding tines down towards each
other to detach them from the clips at the rear of
the unit.
https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O…
Updated: Mon, 11 Nov 2019 03:23:07 GMT
Powered by
9

Removing the Folding Tines
The folding tines can be removed if so desired. owever
it is recommended you fold the tines down rather than
remove the whole rack if more space is needed in the
dishwasher.
To remove:
Unclip the folding tine rack at each end by pulling firmly
towards you.
To replace:
Line up the clips with the base rack and push firmly to
click into place.
(DD*A Models Only) Racking Features - Fixed Tine Rack
Removable Fixed Tine Rack
• This rack is your main dish rack. The tine spacing has been optimized for maximum wash performance of plates
https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O…
Updated: Mon, 11 Nov 2019 03:23:07 GMT
Powered by
10

and bowls.
Remove the rack to make space for larger items.
To remove
• Lift the trap door up
• Lift the front of the fixed tine rack up from the
base rack
• Slide the fixed tine rack forward clear of the rear
anchoring loop and lift out.
Fixed tine rack - rear Fixed tine plate rack - front
To replace
• Lift the trap door up
• ook the rear anchoring loop onto the base rack
• Lower the fixed tine rack into place
• Close the trap door to secure.
https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O…
Updated: Mon, 11 Nov 2019 03:23:07 GMT
Powered by
11

(All Other Models) Racking Features - Spacing-Adjustable Tine Rack
Removable Spacing-Adjustable Tine Rack
• Designed to fit deep bowls (wide spacing) or
small plates (narrow spacing), depending on
adjustment.
To Adjust the Tine Spacing
• To adjust between wide and narrow spacings,
slide the tines backward or forward by pushing
or pulling the handle at the front.
https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O…
Updated: Mon, 11 Nov 2019 03:23:07 GMT
Powered by
12

Remove the rack to make space for larger items.
To remove the rack
Grip handles at the front and rear of the rack and pull up
to unclip.
To replace the rack
Align front and rear clips with the base of the basket and
click into place.
Loading Suggestions
When Loading Your Drawer, Make Sure that
• you place items so that water coming from the rotating spray arms below can reach all areas (wash performance
will be reduced if it can’t)
• nothing blocks the water from getting to items on the foldaway cup racks
• glass and other fragile items are stable, so that they do not accidentally topple and break during the wash.
https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O…
Updated: Mon, 11 Nov 2019 03:23:07 GMT
Powered by
13

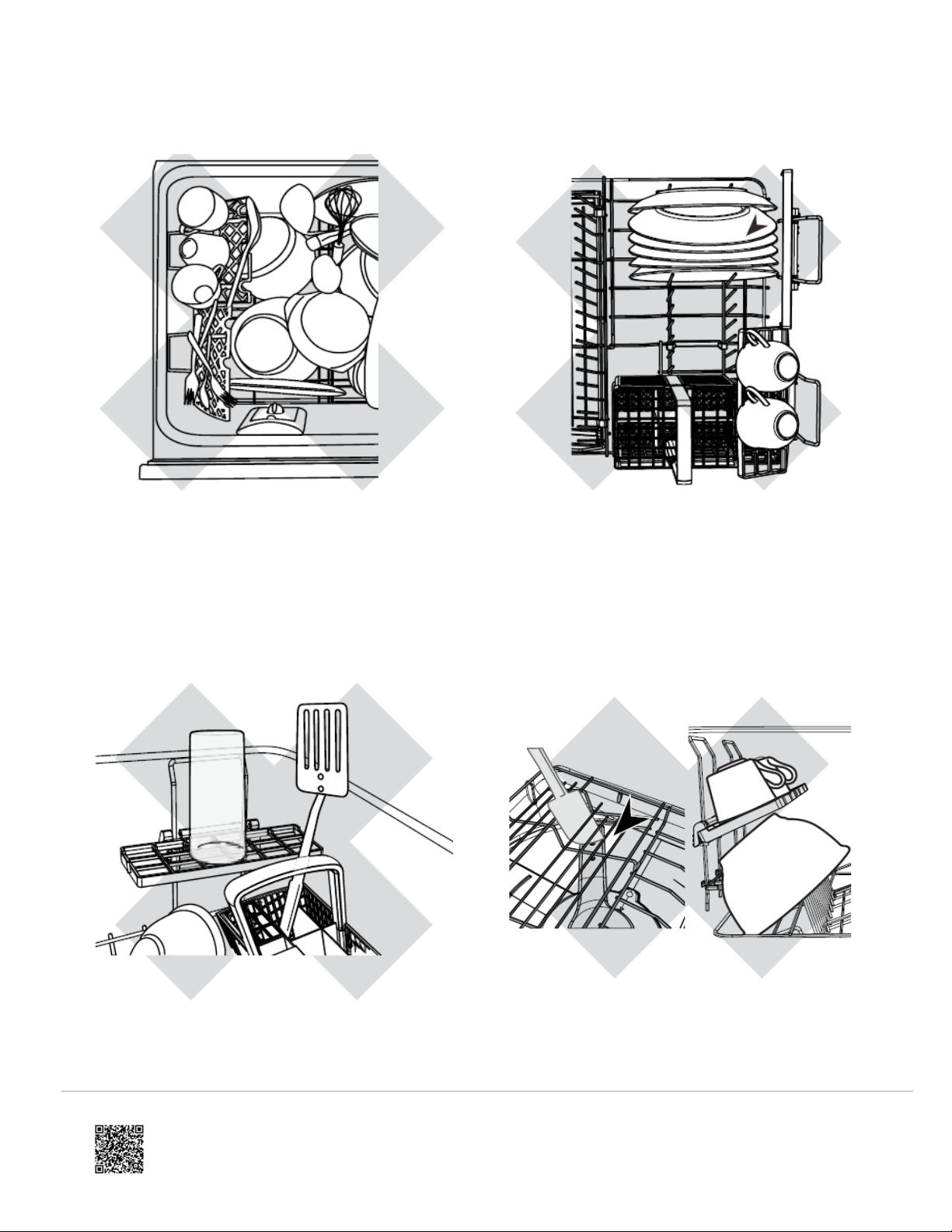

How NOT to Load Your Drawer
• By overcrowding, wash water will not reach
some of the dinnerware.
• Cups, glasses and bowls must have their
openings facing down.
• The plates are nesting together and wash water
may not get through.
• Ensure cutlery are not nesting or stuck together.
They need to be evenly spread out.
• Ensure dishware items are not forced into or • Ensure cutlery has not fallen through the base
https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O…
Updated: Mon, 11 Nov 2019 03:23:07 GMT
Powered by
14

protrude out of the drawer, as this may prevent
the internal lid of the drawer from properly
sealing which could result in a service call.
• Locate sharp items safely to prevent injuring the
user and damage the lid assembly.
• Check the bottom of the cutlery basket to ensure
sharp or slim pointed items have not come
through too far as they may stop spray arm
rotation.
rack and stopped the spray arms from rotating.
• The large bowl is blocking wash water reaching
items on the foldaway cup racks.
• Large utensils should be placed on the foldaway
cup racks so they do not become dislodged and
stop the spray arms from rotating.
• Sharp or pointed items must be placed
horizontally or with sharp edges/points facing
down to avoid risk of injury.
Water ardness and Dishwashing
What is Water Hardness?
ard water is water with a high concentration of minerals such as calcium and magnesium. In soft water, this
concentration is low. Water hardness varies by geographical location.
How does Water Hardness Affect Dishwashing?
• ard water can be detrimental to the performance of your dishwasher. Over time, glassware washed in hard
water will become cloudy and dishes will become spotted or covered in a white film. Using very hard water can
cause dishwasher parts to fail over time.
• Naturally soft or softened water has no detrimental effects if used with the correct amount of detergent.
owever, excess detergent combined with hot, soft water may cause irreversible etching on glassware. Etching
first appears as a rainbow-coloured film and — if allowed to continue — can make glassware permanently
opaque.
What Can I Do to Minimise any Detrimental Effects?
Contact your local water company to find out about water hardness in your area.
• Some models (those with a letter ‘ ’ in the model name) have a built-in water softener.
• Models with water softener are not currently available in New Zealand and Australia.
https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O…
Updated: Mon, 11 Nov 2019 03:23:07 GMT
Powered by
15

If Your Home has Hard Water and Your Dishwasher has No Built-in Water Softener:
• Follow the detergent quantity recommendations on the following pages.
• If available, use a detergent with high phosphate content. Phosphate softens the water and this improves wash
results. If detergent with phosphate is not available, we recommend using multi-purpose tablets.
• Use rinse aid. We recommend you raise the rinse aid setting to 5 to help improve wash performance. See
quickstart guide for instructions.
• Use a dishwasher cleaner/descaler regularly, or whenever you notice a build-up of limescale deposits in your
dishwasher.
If your dishwasher has no built-in water softener and you live in a hard water area, we
recommend fitting a water softener to the household water supply. If the water hardness in
your home is above 250 ppm/14.6 gpg (US), a water softener has to be fitted to maintain
the performance of your dishwasher.
If Your Home has Naturally Soft or Softened Water:
• Avoid using too much detergent. Follow the quantity recommendations on the following pages.
• Ensure the drawer is not overloaded and water can reach all the dishes.
Wash Programs and Detergent Quantities
• Find out about water hardness in your home, then use the table below to determine how much powdered detergent
to use for each wash program. See also section ‘Water hardness and dishwashing’.
• For information on which program to use for your load, see your ‘Quick start guide’. The main powdered detergent
dispenser has markings to help you measure the correct quantities. See following section ‘Adding detergent’.
Water Hardness
parts per million
(ppm)
grains per US gallon
(gpg)
Wash
Programs
Powdered Detergent Quantities (Per Drawer)
US CA
main
detergent dispenser marking
NZ AU
grams
GB IE
grams
https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O…
Updated: Mon, 11 Nov 2019 03:23:07 GMT
Powered by
16

Softer
<100 ppm or
< 6 gpg*
eavy 2/3 20 20
Normal/
Medium 2/3 20 20
Eco 2/3 20 20
Fast 1/3 10 10
Delicate 1/3 10 10
Rinse - - -
100 -150 ppm or
6 - 9 gpg
eavy full 30
Normal/
Medium full 30
Eco full 30
Fast full 30
Delicate full 30
Rinse - -
>150 ppm or
>9 gpg
eavy full 30
Normal/
Medium full 30
Eco full 30
https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O…
Updated: Mon, 11 Nov 2019 03:23:07 GMT
Powered by
17

Harder
Fast full 30
Delicate full 30
Rinse - -
* If you have a household water softener installed or for models with built-in water softeners, use the quantities
recommended for water with a hardness under 100 ppm/6 gpg, irrespective of the water hardness in your area.
See also section ‘Water softener’.
If your water hardness is above 625ppm/36 gpg, we highly recommend you completely fill the main
detergent dispenser for all programs (except Rinse) and the swate
If your water hardness is above 625ppm/36 gpg, the wash performance of your dishwasher will decline.
Adding Detergent
Powdered Dishwasher Detergent
You may see multiple, equally suitable types of dishwasher detergent on the shelves of your
supermarket. Read and follow the detergent manufacturer’s recommendations.
https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O…
Updated: Mon, 11 Nov 2019 03:23:07 GMT
Powered by
18

Filling the Powdered Detergent Dispenser
1. Press the latch down to open the dispenser.
2. Check that the dispenser is empty and dry, then add detergent (do not place solid or liquid tablets in the
dispenser). No detergent is needed for the Rinse program.
3. Close the dispenser until it clicks shut. The detergent will automatically be released into the drawer during the
wash program.
https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O…
Updated: Mon, 11 Nov 2019 03:23:07 GMT
Powered by
19

When washing heavily soiled dishes and in very hard water you may also fill the secondary dispenser
with detergent to aid dishwasher performance.
Pouch Packs of Gel or Powder
You may see multiple, equally suitable types of dishwasher detergent on the shelves of your
supermarket. Read and follow the detergent manufacturer’s recommendations.
Place on tablet tray in cutlery basket
https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O…
Updated: Mon, 11 Nov 2019 03:23:07 GMT
Powered by
20
