Fisher & Paykel DE6060M User manual

INSTALLATION GUIDE / USER GUIDE
NZ AU SG
VENTED CLOTHES DRYER
DE7060M, DE6060M,
DE5060M, DE5060MU & DE4560M models

1
CONTENTS
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this User guide
may not be available in all markets
and are subject to change at any time.
For current details about model and
specification availability in your country,
go to our website fisherpaykel.com or
contact your local Fisher & Paykel dealer.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
fisherpaykel.com
Introduction 2
Safety and warnings 3
Installation instructions 7

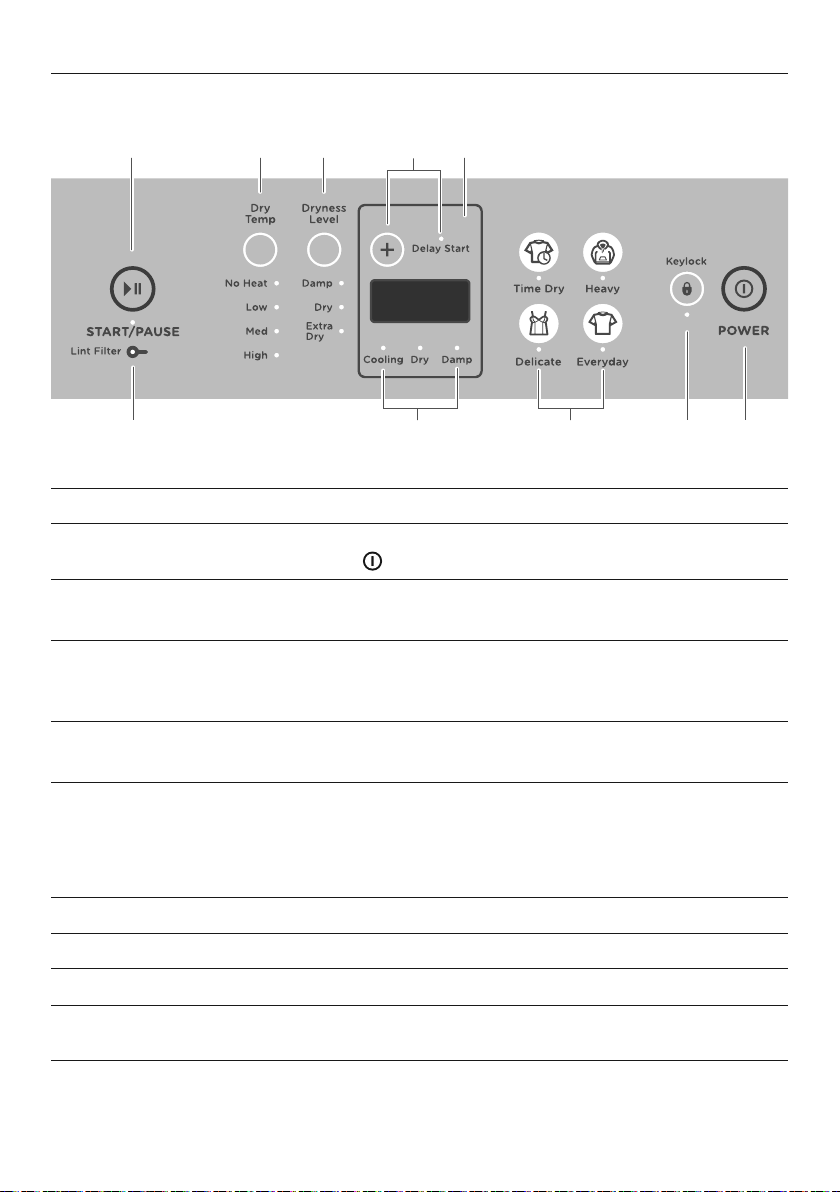

Control panel 15
Drying cycles 19
Sorting and loading 23
Getting started quickly 25
Customising drying cycle 26
Caring for your dryer 28
Before you call for service 29
Fault codes 30
Troubleshooting 31
Manufacturer’s warranty 34
Customer care 36

2
INTRODUCTION
Welcome to your Fisher & Paykel vented dryer
Thank you for purchasing a Fisher & Paykel clothes dryer. We are proud of this dryer
andtrust it will serve you well for many years.
At Fisher & Paykel we aim to provide innovative products that are simple to use,
ergonomic, energy efficient and kind to the environment. Thousands of tonnes of
laundry and 80 years of laundry experience have been programmed into your dryer
tohelp give you the best possible performance.
Your new dryer gives you the convenience of tumble drying and your clothes
the advantage of not being subjected to the harsh overdrying effects of the sun.
Yourclothes will feel softer, retain their shape better and require less ironing.
Thisdryer has been specifically designed to complement our front loading and top
loading Fisher&Paykel washers.
All of our dryers have the ability to automatically sense when your clothes are
dry, meaning your dryer is more efficient, making it kinder on your wallet and
theenvironment.
Please take the time to read these instructions carefully before you begin using your
dryer. Following the advice in this user guide will ensure you get the performance
you expect from your dryer and that you get the best possible results. Keep these
instructions for future reference and pass them on with your dryer, if it changes hands.
We hope you enjoy your new dryer. We have certainly enjoyed designing it for you.
Vented clothes dryer

3
SAFETY AND WARNINGS
Meaning of symbols on the dryer
Warning: Risk of fire/Flammable materials
Read the instructions
!WARNING!
Fire Hazard
zOnly dry fabrics that have been washed with water.
zDo not use heat to dry articles containing foam rubber or similarly
textured rubber–like materials, dry on ‘Air Dry’.
zNever stop a tumble clothes dryer before the end of the drying
cycleunless all items are removed and spread out in order to dissipate
the heat.
zA clothes dryer produces combustible lint; the lint filter must be
cleaned before each drying cycle.
zFailure to follow the warnings outlined in these user instructions can
cause a fire hazard.
zFailure to follow these instructions can result in death or personal injury.
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
zThe appliance must not be supplied through an external switching device, such as a
timer, or connected to a circuit that is regularly switched on and off by a utility.
zWe do not recommend the use of extension cords or portable electrical outlet devices
for safety reasons.
zDo not touch or operate the machine with wet hands or with bare-feet.
zA damaged power cord must be replaced by a Fisher & Paykel trained and supported
service technician, its service agent or similarly qualified persons in order to avoid
a hazard. The appliance must not be operated until it is repaired, as there is risk of
electric shock.
zDo not operate this machine if it has been damaged during transport. Contact your
Fisher&Paykel dealer or Fisher & Paykel trained and supported service technician.

4
SAFETY AND WARNINGS
When using this appliance always exercise basic safety precautions including
the following:
Dryer use
zThis dryer has been designed for domestic use only, not for commercial applications,
such as massage/beauty clinics where there may be increased lint accumulation or
flammable materials in the atmosphere or load.
zThe tumble dryer is intended only for drying textile material washed in water.
zUndergarments that contain metal reinforcements should not be placed in the dryer.
Damage to the dryer can result if the metal reinforcements come loose during drying.
If you wish to dry these items use a drying rack or place in a garment bag.
zCheck and remove all objects from pockets, eg lighters and matches.
zNever dry rubber articles, or any plastic items or film, eg plastic lined tablecloths
andbaby bibs.
zClothes should go through the cool down/airing phase in the final part of the cycle.
This ensures items are left at a temperature where they will not be damaged. Ifforany
reason the dryer is stopped before the cycle has finished, dry clothes should be
removed immediately and not left in the dryer. Clothes should be quickly spread out
flat to cool so heat can dissipate, not left bunched up, eg in a clothes basket.
Do not operate this product without the lint filter in place or allow lint to accumulate
in or around the dryer.
zThis dryer is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless given supervision or instruction concerning the use of the dryer by a person
responsible for their safety.
zChildren should be supervised to ensure they do not play with the dryer.
zUnplug the machine from the power supply when it is not in use.
zDo not swing on or put weight on the door.
zYour dryer is designed to stop operating in the event of power outage.
When power isresumed, the machine will remain off until the ‘Power’ button is
pressed. To restart the dryer, press ‘Power’, select your drying cycle and touch .
zNever attempt to repair the dryer yourself.
zThe only user-removable parts of the dryer are the lint filter, drying rack and
reversible console. No other parts are designed to be removed by anyone other than
aFisher & Paykel trained and supported service technician.
zFor problems that cannot be solved from information in this User Guide, turn off and
unplug your dryer and contact a Fisher & Paykel trained and supported service technician.
zDo not overload your dryer beyond its rated capacity:
Model Maximum capacity
DE4560M 4.5Kg
DE5060M & DE5060MU 5Kg
DE6060M 6Kg
DE7060M 7Kg
zNever put dripping wet clothes in or on top of the dryer as excess water may cause an
electrical hazard.
zDo not under any circumstances dry an electric blanket or any other electrical, plastic
or rubber items in your dryer, unless the care label specifically states it is safe to do
so. Never dry these items at high temperatures.

5
SAFETY AND WARNINGS
zDo not dry curtains in your dryer. Sunlight makes them brittle and they may
disintegrate during drying.
zDo not use the water collected in the water tank for drinking or food processing.
zNever run the dryer without the water tank in place.
zIf the water tank becomes full, the tumble dryer will pause drying and will sound an
alarm. You must empty the water tank before the dryer can continue drying. Empty
the tank, replace it back in the housing then touch to resume the cycle.
Lint
zAccumulated lint in the dryer can become a fire hazard; it also reduces the efficiency
of the dryer by causing longer drying times and increased power consumption.
zClean the lint filter before every load.
zEnsure the area around the dryer is clear of lint.
zAt regular intervals have the interior of the dryer cleaned of any accumulated lint.
This must be done by a Fisher & Paykel trained and supported service technician.
This must be done when the dryer installation is changed from free standing.
zThe dryer exhaust ducting should be inspected and cleaned periodically to remove
accumulated lint.
zIf the lint filter becomes damaged, contact your Fisher & Paykel trained and supported
service technician to arrange getting a new filter. Do not operate your dryer with a
damaged lint filter or without the filter in place, as this will cause damage to your dryer.
Installation
zThe dryer must be installed in a well-ventilated, dust-free environment.
zThe dryer must not be installed on any textured floor coverings (eg carpet, rugs) to
ensure that openings at the base of the machine are not obstructed.
zDo not install the dryer behind a lockable door, sliding door, or behind a door where
the hinge is on the opposite side to that of the dryer in such a way that the full
opening of the door is inhibited. Ensure the dryer door can always be opened fully.
zPlease refer to INSTALLATION INSTRUCTION section of this document for detailed
installation steps.

6
SAFETY AND WARNINGS
Spontaneous combustion
IMPORTANT!
To reduce the risk of fire in a tumble dryer the following should be observed:
zItems that have been spotted or soaked with vegetable oil or cooking oil are a fire
hazard and should not be placed in a tumble dryer.
zOil-affected items can ignite spontaneously, especially when exposed to heat sources
such as a tumble dryer. The items become warm causing an oxidation reaction in the
oil. This oxidation creates heat. If the heat cannot escape the items can become hot
enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat
from escaping creating a fire hazard.
zIf it is unavoidable that fabrics that contain vegetable oil, cooking oil or have been
contaminated by hair care products be placed in a tumble dryer, they should first be
washed in hot water with extra detergent — this will reduce, but not eliminate the fire
hazard. The cool down cycle of the dryer should be used to reduce the temperature
ofthese items. They should not be removed from the tumble dryer and piled or
stacked while hot.
zItems that have previously been cleaned in, washed in, soaked in or spotted with
flammable liquids or solids, eg petrol/gasoline, kerosene, dry cleaning solvents,
vegetable or cooking oil, acetone, denatured alcohol, some brands of spot removers,
turpentine, waxes and wax removers or other flammable or explosive substances
should not be placed in a tumble dryer.
zDo not dry unwashed items in the tumble dryer.
zThe dryer is not to be used if industrial chemicals have been used for cleaning.
zFabric Softeners or similar products should not be used in a tumble dryer to
eliminate the effects of static electricity, unless this practice is specifically
recommended by the manufacturer of the fabric softener product.
zRubber backed articles, foam rubber (latex foam), clothes or pillows fitted with
foam rubber pads, fibreglass, shoes containing rubber, shower caps, babies
waterproof napkin covers and waterproof textiles should not be dried in the dryer.
These materials can when heated produce fire by spontaneous combustion.
zWhen choosing to tumble dry a duvet/doona use low-medium heat only and make
sure the drum is not overloaded due to the risk of overheating and scorching.
zExhaust air must not be discharged into a flue which is used for exhausting fumes
fromappliances burning gas or other fuels.
Disposal
Extreme care must be taken when disposing of your old appliance to avoid hazards.
zWhen disposing of the dryer, it is recommended that the door is removed to avoid
children getting trapped inside, and that the electrical cable is cut off close to the dryer.

7
INSTALLATION INSTRUCTIONS
Read and follow the ‘Safety and warnings’ and ‘Installation instructions’ sections
carefully before using your dryer!
Accessories
Please check you received the following accessories with your Fisher & Paykel dryer.
Youwill find them inside the drum:
z1 x Installation guide/User guide
z1 x Inverted panel
z1 x Duct adapter

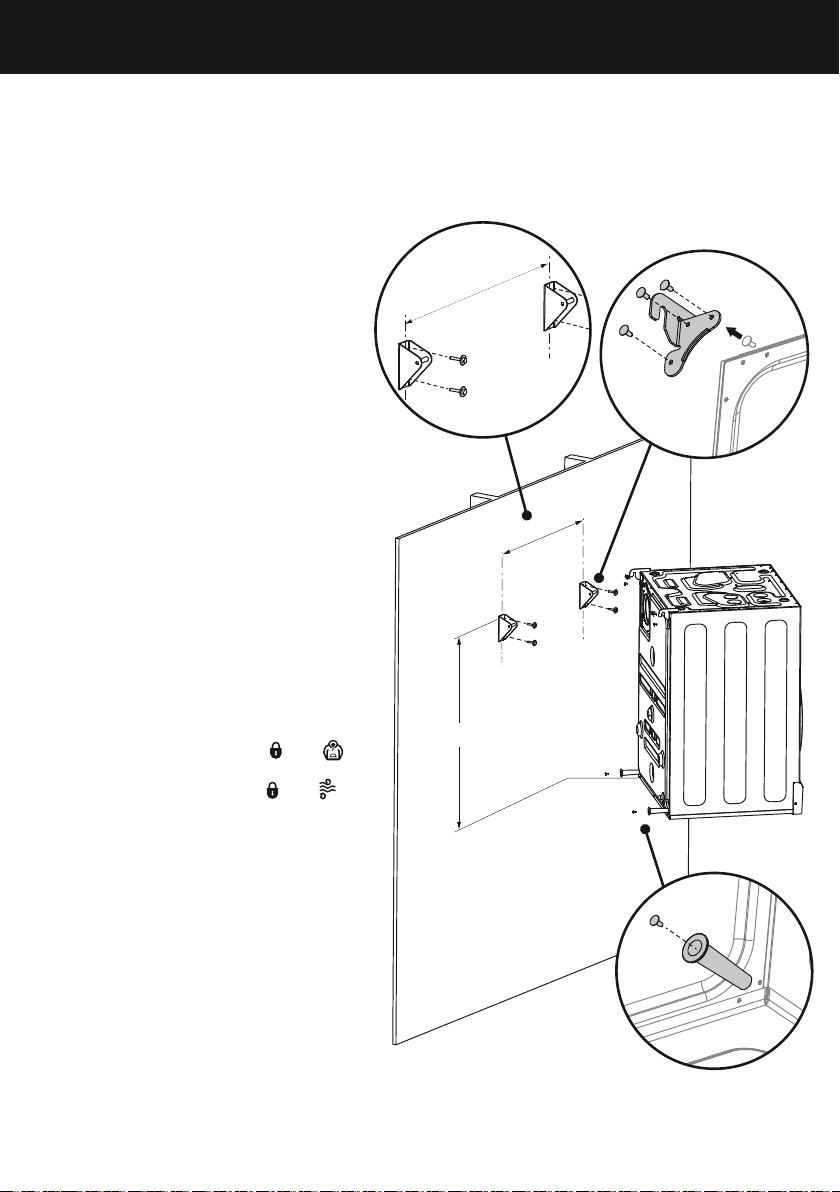

z1 x Wall mounting kit
Unpacking
To ensure the best performance from your new dryer please follow the
instructionsbelow.
Remove all packaging before use
1Remove the outer packaging (including the polystyrene packer and plastic wrapping).
zEnsure packaging materials are kept out of reach of children.
zHelp protect the environment and dispose of the packaging from
around the dryer in an environmentally friendly manner.
2Tilt the dryer backwards and ‘walk’ it off the base one foot at a time.
Not doing so may cause damage to your floor and dryer.
3Remove all packaging and accessories from inside the drum and ensure
you remove protective covers from the door and console.
Location
zThe dryer must be installed in a well-ventilated,
dust-free environment.
zThe dryer must not be installed on any textured
floor coverings (eg carpet, rugs).
zDo not install the dryer behind a lockable door,
slidingdoor, or behind a door where the hinge is
on the opposite side to that of the dryer in such a
way that the full opening of the door is inhibited.
Ensurethe dryer door can always be opened fully.

INSTALLATION INSTRUCTIONS
8
zVenting
zCorrect installation is very important for all dryers to ensure maximum efficiency
andsafety.
z
zNever run the dryer unless the airflow system is free from obstruction.
zThere must be adequate ventilation to avoid the back flow of gases into the room
fromappliances burning fuels, including open fires, when operating the dryer.
zExhaust air must not be discharged into a flue which is used for exhausting fumes
fromappliances burning gas or other fuels.
zExternal venting
zYour dryer has been designed to be vented outside to provide the following advantages:
zEnsures optimum efficiency by preventing recirculation of moist air.
zEliminates condensation on walls and ceilings.
zReduces the chance of lint being sucked into the dryer.
zPrevents lint and other fine particles being blown into the room.
zAll external venting systems must be:
zMade from 100mm diameter flexible foil sleeved with a galvanised metal pipe where
thevent system goes through the wall, or 100mm diameter galvanised metal piping.
zExhausted outside and not into another confined space, eg the roof cavity of a house.
zFitted with a vent cap outside to stop rain water entering the dryer exhaust system.
zAngled to avoid condensation running back into the dryer.
zThe vent system should be a maximum of two metres with no more than three 90° bends.
zVent systems over two metres long require special installation.
Contact a Fisher & Paykel trained and supported service technician.
zInternal venting
zThe dryer is set up in the factory for front venting. If front venting is used there must be
adequate ventilation to avoid the build up of moisture in the room, which can affect the
performance of the dryer. Venting must comply with local by-laws and regulations.

INSTALLATION INSTRUCTIONS
9
Installation options
There are two different ways your dryer can be positioned. Freestanding or inverted
andmounted on a wall.
Freestanding
The dryer stands on the floor and can easily be moved into position.
1Move the dryer into the desired position. Do not lift the dryer by the top panel.
2Have a minimum clearance on all sides of at least 20mm.
3
Have a minimum clearance at the rear of 75mm.
The spacers from the accessory wall mounting kit
can be used to set this distance.
4Install the dryer on a stable and level floor.
Freestanding venting options
Note: the vent system should be less than
twometres long with no more than three 90⁰ bends.
Before a rear venting option is installed the dryer
must be changed from the front venting factory
setup. Remove the outlet grille from the front
left-hand side and replace with the outlet cover
from the rear left-hand side. These covers should be
gently pried at the sides to prevent damage.

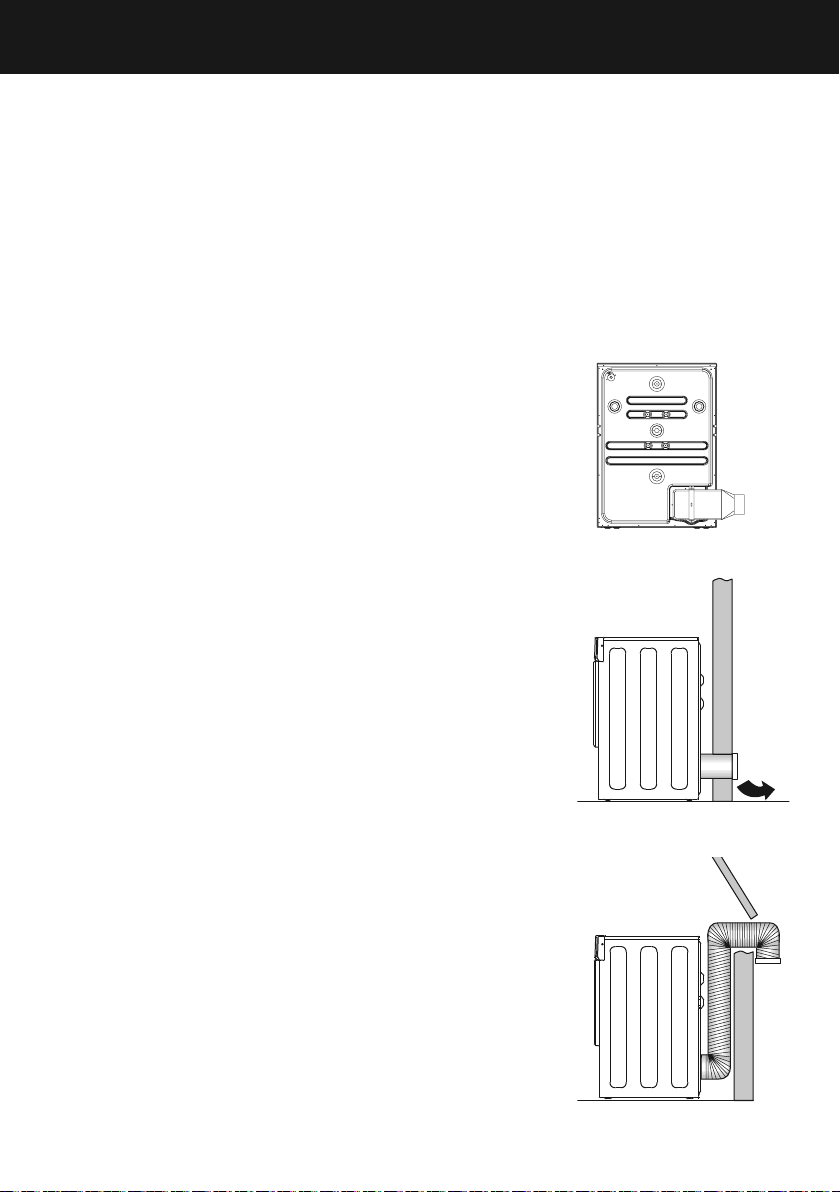

External venting
The dryer is vented with a kit that can be positioned
to remove air to the side.
The dryer is vented directly through the wall using
a ducting kit in combination with the duct adaptor
supplied with the dryer.
The dryer is vented through a window using a
ducting kit in combination with the duct adaptor
supplied with the dryer. This requires the dryer to
be a minimum distance of 140mm from the wall to
ensure the ducting is not restricted with tight bends
or can be crushed.

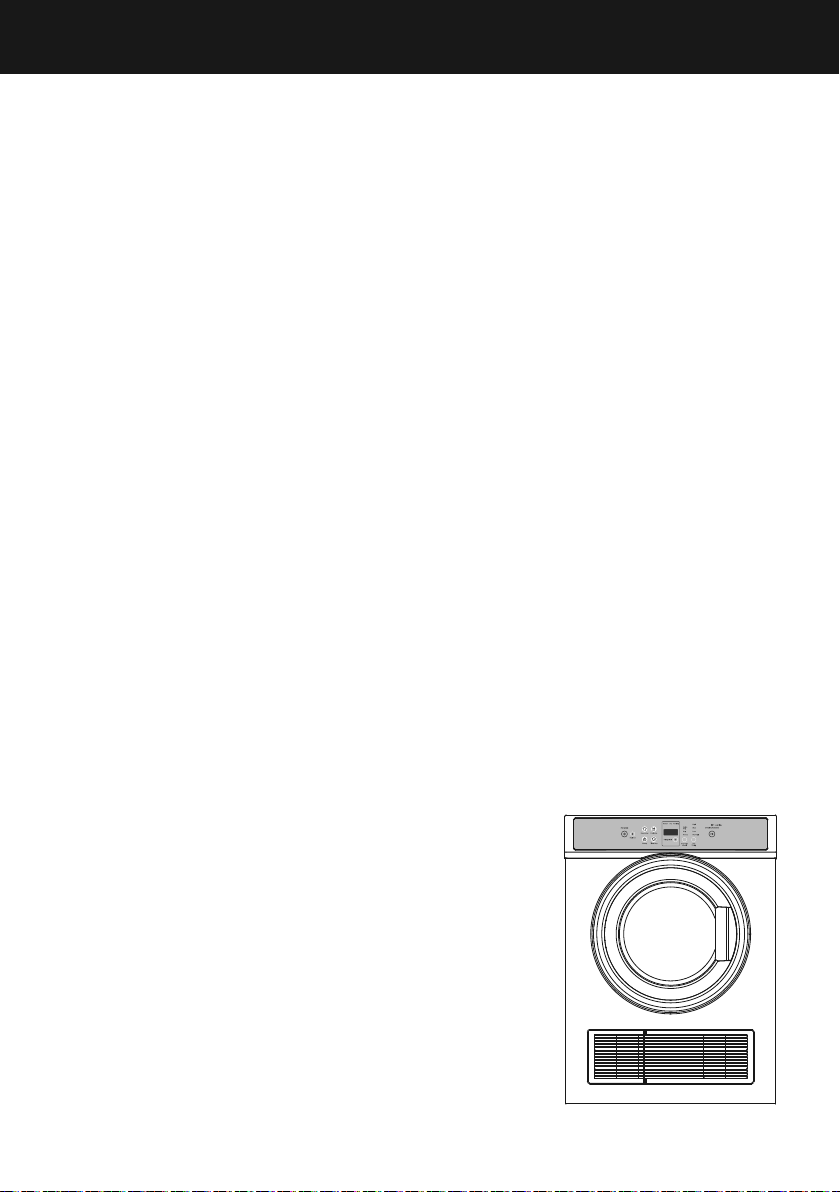

Internal venting
Front venting is the only recommended option for
venting into the room. The dryer is set up for front
venting when it leaves the factory.
Note: where possible all efforts should be made to
vent the dryer externally to avoid moisture build up
around the dryer. External venting with kit part
number PD-F0408
External venting with kit part
number PD-SVHCW4
External venting with kit part
number PD-DK4W

INSTALLATION INSTRUCTIONS
10
Inverted wall mounting installation
Your dryer has been designed to be inverted and mounted on the wall above a
washer or tub. A wall mounting kit must be used. Inverting allows access to the
dryercontrolpanel.
Tools and parts required:
zDrill and 3mm bit
zCross-head screwdriver.
Wall mounting kit includes:
z2 x Plastic spacers
z2 x Wall hanging brackets
z2 x Hanging hook
z4 x Wood screws
z6 x Screws for hanging hooks and plastic spacers.

INSTALLATION INSTRUCTIONS
11
Inverted wall mounting
Min. 50mm clearance
Max. lid open height 880mm min. clearance to ceiling
Min. 50mm clearance
DE7060M = 612mm
DE6060M = 612mm
DE5060M = 612mm
DE5060MU = 612mm
DE4560M = 521mm

INSTALLATION INSTRUCTIONS
12
Wall mounting
1Determine the position of the dryer on the wall and mark the bracket
position. A minimum of 50mm is needed between the top of the dryer
andthe ceiling for ease of installation. If mounting above a washing machine,
allowsufficientroom to open the lid of the washer.
Refer to page 11 for lidclearances.
From centre
of top hole
From bottom
of dryer
C
B
835mm
555mm
A
555mm
2Fix the wall hanging brackets to
the wall securely, ie into the stud.
If the studs are too far apart, fit
a timber slat to the studs and
then mount the brackets to the
slat. Ifa slat is used, install a
second slat behind the spacers
to ensure the dryer is horizontal.
Thedistance between the centre
of each bracket is 555mm (A).
3To install the hooks onto the
dryer, remove one screw from
each side (B), reuse these
screwswith two more (each side)
from the kit to fasten the hooks
in place.
4Remove plastic plugs from the
back of the dryer and screw the
spacers provided in place (C).
5With assistance, mount the dryer
on the wall brackets.
6Fit inverted control panel over
the existing panel.
7Adjust the display to read
correctly on an inverted panel:
zFor DE7060M, DE6060M
andDE5060M press and
for three seconds.
zFor DE4560M press and
for three seconds.
zThe dryer will beep to indicate
you have made a correct
selection, and the display will
change after three seconds.
zRepeat the same steps
to return the panel to the
factorysetting.

INSTALLATION INSTRUCTIONS
13
Before a rear venting option is installed the dryer must be changed from the front
venting factory setup. Remove the outlet grille from the front left-hand side and replace
with the outlet cover from the rear left-hand side. These covers should be gently pried
at the sides to prevent damage.
External venting options
zKits are available that allow the dryer to be vented
upwards or to the side.
zThe dryer can be vented directly through the wall with
a kit, in combination with the ductadaptor supplied
with the dryer.
Note: the vent system should be less than two metres
long with no more than three 90⁰ bends.
Internal venting
Front venting is the only option for internal venting.
The dryer is set up for front venting when it leaves
thefactory.
Note: where possible all efforts should be made to
vent the dryer externally to avoid moisture build up
around the dryer.
Electrical connection
1This appliance must be connected to a
220V – 240V,50Hz, sinusoidal, 10Aelectricalsupply.
2Uncoil the power cord, remove and discard the plastic
pin cover and plug into a powersocket.
3Connect the appliance to an earthed outlet protected
by a fuse of suitable capacity.
zCheck the power cord for damage and make sure it is
not squashed or twisted when installing the dryer.
zAlways remove the power cord from the power socket
by the plug, not by the cord.
External venting with kit part
number PD-DK4W
External venting with kit part
number PD-SVHCW4

INSTALLATION INSTRUCTIONS
14
Completing the installation
Installation test cycle
Ensure the installation test cycle is completed before you dry any items in your dryer.
This checks your dryer is installed correctly and functioning properly prior to use.
1Turn your dryer on by pressing ‘POWER’ .
2Select the ‘Time Dry’ cycle for 30minutes. Ensure the drum is empty and the door is
closed (you will hear it click shut).
3Press , the drum will start rotating.
zObserve the dryer for any problems.
zThe dryer will beep and display any faults on the screen if there are any problems.
Refer to ‘Fault codes’.
4At the completion of the cycle open the door and check that there is warmth inside the
dryer. This indicates the dryer is operating normally.
If there are any problems, you must address these before proceeding with normal use.
The dryer will automatically turn off at the end of the cycle if there are no problems.
Before you start, it is a good idea to go through the following checklist:
1Has the packaging been removed?
2Is the lint filter correctly in place?
3Has the power cord been connected to an appropriate power supply and the power
turned on?
4Have you performed the installation test cycle?
Product specifications
DE4560M
DE5060M
DE5060MU DE6060M DE7060M
Capacity (kg)* 4.5 5 6 7
DIMENSIONS (mm)
Width 600 600 600 600
Depth 481 571 571 571
Height 825 825 825 825
ELECTRICAL
Volts 220 – 240 220 – 240 220 – 240 220 – 240
Hz 50 50 50 50
Amps (maximum) 10 10 10 10
Rated Power (W) 1750 1750 1750 1770
* Capacity refers to the maximum dry weight of items the dryer can dry at any one time.
Rated capacity is determined by a countries performance standards, so similar dryers may have different
capacities for different markets.

15
CONTROL PANEL
1POWER Press to turn the dryer on/off.
2Keylock Press for two seconds to disable all buttons on the display panel,
except ‘POWER’ . This prevents accidental button presses.
3Drying cycles Select your desired drying cycle.
zRed LED illuminates to indicate the selected drying cycle.
4Digital display
screen
Shows the following:
zDelayed start time of the drying cycle.
zNotifications if an error is detected or a warning is necessary.
5Delay Start Press to increase the delay start time for drying cycles.
Note: Delay start is not available for time dry cycles.
6Progress lights The progress lights indicate what stage of the cycle the dryer is
currently at (‘Damp’, ‘Dry’ or ‘Cooling’). All three lights are on at
the beginning of the cycle. The light for the current stage of the
cycle flashes, and each one goes out when that stage of the cycle
iscomplete.
7Dryness Level Allows you to select the level of dryness for your load.
8
Dry Temp Allows you to select the drying temperature for your cycle.
9START/PAUSE Press to start or pause the selected drying cycle.
!0 Lint Filter The lint filter light will flash when the machine is switched on as a
reminder to clear the lint filter before each cycle.
DE7060M, DE6060M and DE5060M models
7 8 9
!0
2 41 35
6

16
CONTROL PANEL
1POWER Press to turn the dryer on/off.
2Keylock Press for two seconds to disable all buttons on the display panel,
except ‘POWER’ . This prevents accidental button presses.
3Drying cycles Select your desired drying cycle.
zRed LED illuminates to indicate the selected drying cycle.
4Digital display
screen
Shows the following:
zDelayed start time of the drying cycle.
zNotifications if an error is detected or a warning is necessary.
5Delay Start Press to increase the delay start time for drying cycles.
Note: Delay start is not available for time dry cycles.
6Progress lights The progress lights indicate what stage of the cycle the dryer is
currently at (‘Damp’, ‘Dry’ or ‘Cooling’). All three lights are on at
the beginning of the cycle. The light for the current stage of the
cycle flashes, and each one goes out when that stage of the cycle
iscomplete.
7Dryness Level Allows you to select the level of dryness for your load.
8
Dry Temp Allows you to select the drying temperature for your cycle.
9START/PAUSE Press to start or pause the selected drying cycle.
!0 Lint Filter The lint filter light will flash when the machine is switched on as a
reminder to clear the lint filter before each cycle.
DE5060MU model
12
9478
!0
5
6 3

17
CONTROL PANEL
1POWER Press to turn the dryer on/off.
2Keylock Press for two seconds to disable all buttons on the display panel,
except ‘POWER’ . This prevents accidental button presses.
3Drying cycles Select your desired drying cycle.
zRed LED illuminates to indicate the selected drying cycle.
4Digital display
screen
Shows the following:
zNotifications if an error is detected or a warning is necessary.
5Progress lights The progress lights indicate what stage of the cycle the dryer is
currently at (‘Damp’, ‘Dry’ or ‘Cooling’). All three lights are on at
the beginning of the cycle. The light for the current stage of the
cycle flashes, and each one goes out when that stage of the cycle
iscomplete.
6START/PAUSE Press to start or pause the selected drying cycle.
7Lint Filter The lint filter light will flash when the machine is switched on as a
reminder to clear the lint filter beforeeach cycle.
DE4560M model
21 4 6
7
3
5

18
CONTROL PANEL
Timed programmes (Time Dry)
When a timed cycle is selected the machine dries for the selected time regardless
ofthelevel of moisture in the load. It is important to check the items throughout the
timed programmes to avoid over drying.
To adjust the length of timed cycles (DE7060M, DE6060M, DE5060M and DE5060MU):
zPress ‘Time Dry’.
zPress ‘Delay Start ’.
To adjust the length of timed cycles (DE4560M):
zPress ‘Time Dry’ to scroll through the time selections available.
Time to go
If you have selected one of the ‘Time Dry’ cycles your dryer displays
approximately how many minutes the cycle has remaining.
The word is displayed on the screen for automatic cycles.
Airing/Cool down (Cooling)
When the dryer has sensed that the load is dry it will
automatically go into an airing or cool down cycle.
During‘Cooling’ the drum tumbles and cool air is blown
through the clothes. This cools the load to reduce creasing
if the clothes are left in the dryer.
Keylock
This option enables you to deactivate the buttons on the display panel, except
for the ‘POWER’ and . This option helps prevent accidental button presses.
To turn Keylock ON or OFF, at any time when the dryer is powered on:
zPress for two seconds.
Note: When activated, the light next to the is illuminated.
If Keylock is activated and the dryer is powered off:
zTo turn your dryer on, press ‘POWER’ , then press for two seconds to turn
Keylock off. Select your drying cycle, any options and then press to start the cycle.
Cool down mode
Time to go
