Fisher & Paykel DE6060P1 User manual

Issue
Rev.
SERVICE MANUAL
WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not
contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products powered by
electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the product or
products dealt with in this service information by anyone else could result in serious injury or death
Electronic Clothes Dryer
Order No. TL1503S001V1.1
DE6060P1
DE6060G1
DE5060G1
Model No.
Service Manual
Model No: DE6060P1/DE6060G1/DE5060G1

Issue
Rev.
Contents
1.Important safety instructions ......................................................................................1
2. Technical data .............................................................................................................2
3.Dimensional drawing...................................................................................................2
4.Names of parts................................................................................................. ............3
5.Usage of the operation knobs.....................................................................................3
..................................................................... ...........................4
.. .......................................... ....................................4
...........
......................................... ....................................5
.................................................................................5
............................
.......................................... ................7
....
................................
....................................................................................8
7.Operating instructions ....................................................….……… …....................... 9
UNPACKING YOUR DRYER
...........................................................................................................14
............................................................... .. ....................................14
9.Circuit diagram

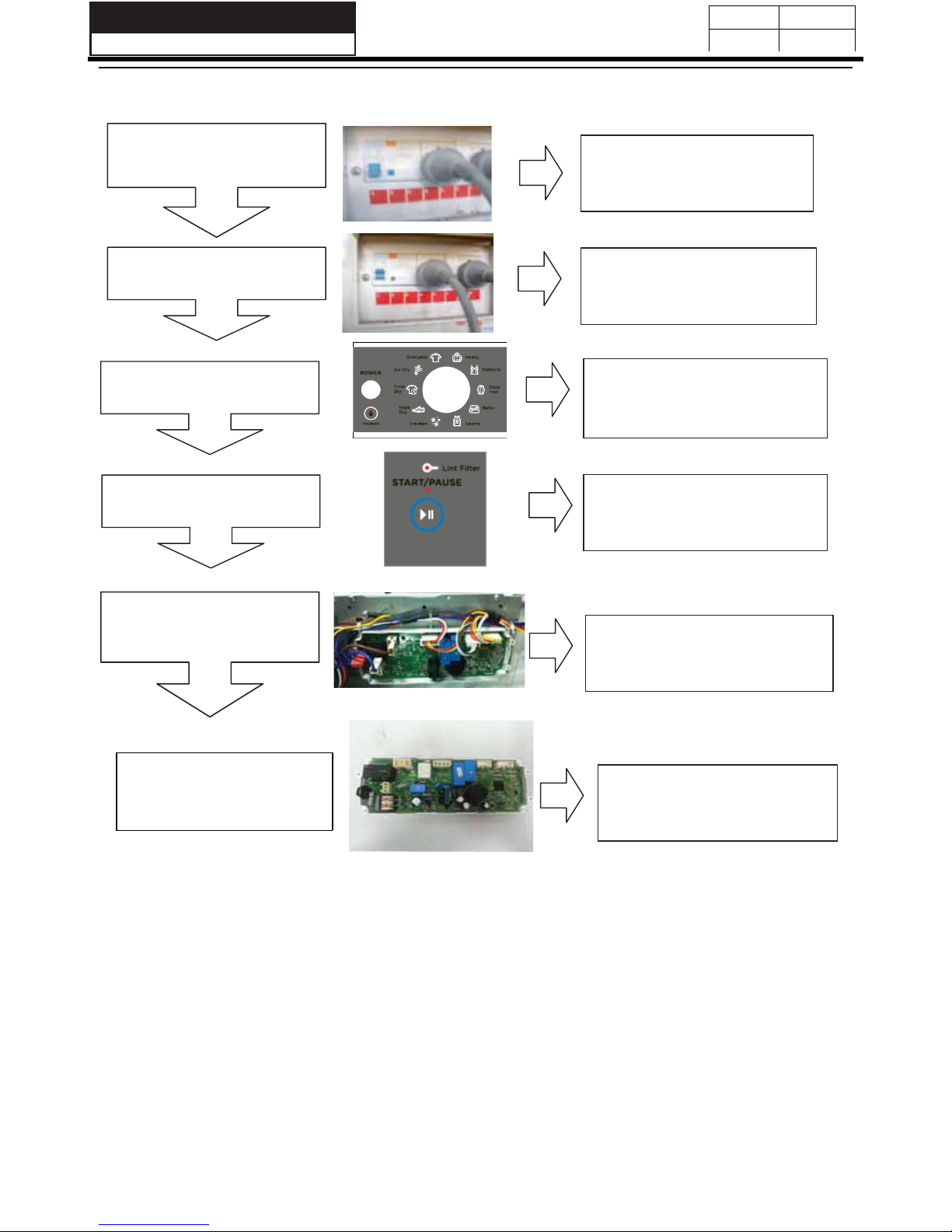

10.Trouble shooting
6.Installation...................
FREE STANDING
INVERTED WALL MOUNTING
STACKING INSTALLATION

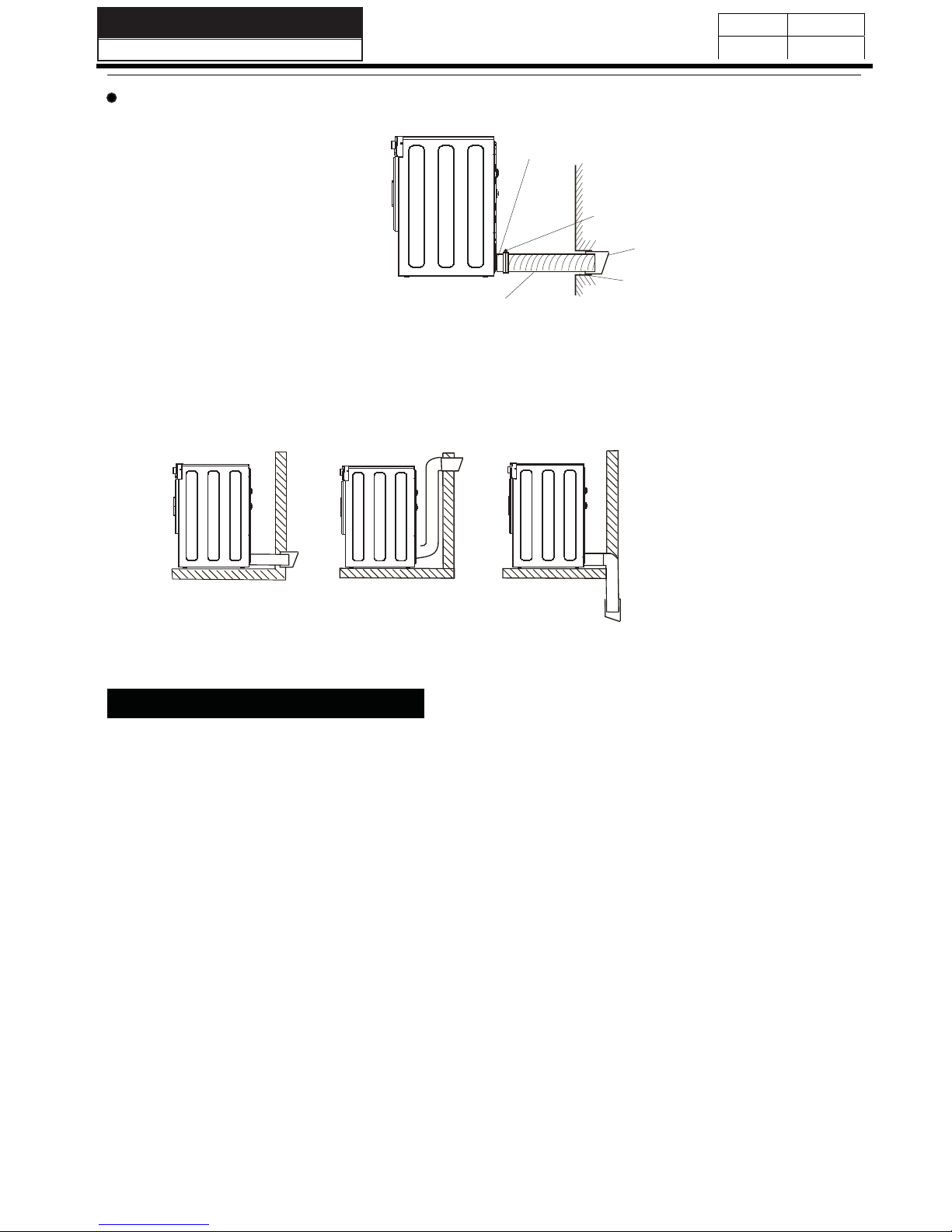

CHANGE THE VENTING MODE
8.Cleaning and maintenance ...........................................… .……… …........................12
Service Manual
Model No: DE6060P1/DE6060G1/DE5060G1

1
Issue
Rev.
1.Important safety instructions
1Read all instructions before using this dryer.
2 The interior of the dryer should be cleaned periodically by qualified service personnel. An excessive
amount of lint build up in the interior of the dryer could result in inefficient drying and pose a possible
fire hazard.
3 The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the
opposite side to that of the tumble dryer in such a way that a full opening of the tumble dryer is restricted.
4 Attention - rear panel can be hot.
5The tumble dryer should not be used if industrial chemicals have been used to clean the dryer.
6 The dryer must only be used for its intended purpose.
7 Clean lint screen before or after each load.
8 This appliance is not intended for use by people (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Young children
should be supervised to ensure that they do not play with the appliance.
9 Do not operate the dryer if any parts are missing or broken.
10 To avoid fire hazard or electrical shock do not use an adaptor plug or extension cord or remove grounding
prong from electrical power cord. Failure to follow this warning can cause serious injury, fire or death.
11 To avoid fire hazard or electrical shock do not reach into the drum while the drum is moving. Wait until the
12 Do not attempt to modify or repair the controls.
13 The final part of a tumble dryer cycle occurs without heat (cool down cycle) to cool items to a temperature
that ensures that they will not be damaged. Never stop a tumble dryer before the end of the drying cycle
unless all items are quickly removed and spread out so that the heat is dissipated.
14 Do not dry items that have been previously cleaned in, washed in, soaked in, or spotted with substances
such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax
removers, etc. Do not store or use these items on or in the vicinity of the dryer. Do not place items
exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical
reaction that could cause a load to catch fire. Oil-affected items can ignite spontaneously, especially
when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation
reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot
enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from escaping and
create a fire hazard. If it is unavoidable that fabrics that contain vegetable or cooking oil or have been
dryer has stopped completely before reaching into the drum.
Warning - To reduce the risk of fire, electric shock, or personal
injuries, the following basic precautions should be followed:
15 Do not dry unwashed items in the tumble dryer.
16 Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
17 To To prevent fire, do not use heat to dry items containing plastic, foam rubber or similarly textured
rubber-like materials, or items containing feathers or down. Items such as foam rubber (latex foam),
shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam
rubber pads should not be dried in the tumble dryer.
18 This dryer must be properly installed in accordance with the installation instructions
before it is used.
contaminated by hair care products be placed in a tumble dryer they should first be washed in hot water
with extra detergent - this will reduce, but not eliminate, the hazard.
Service Manual
Model No: DE6060P1/DE6060G1/DE5060G1

2
Issue
Rev.

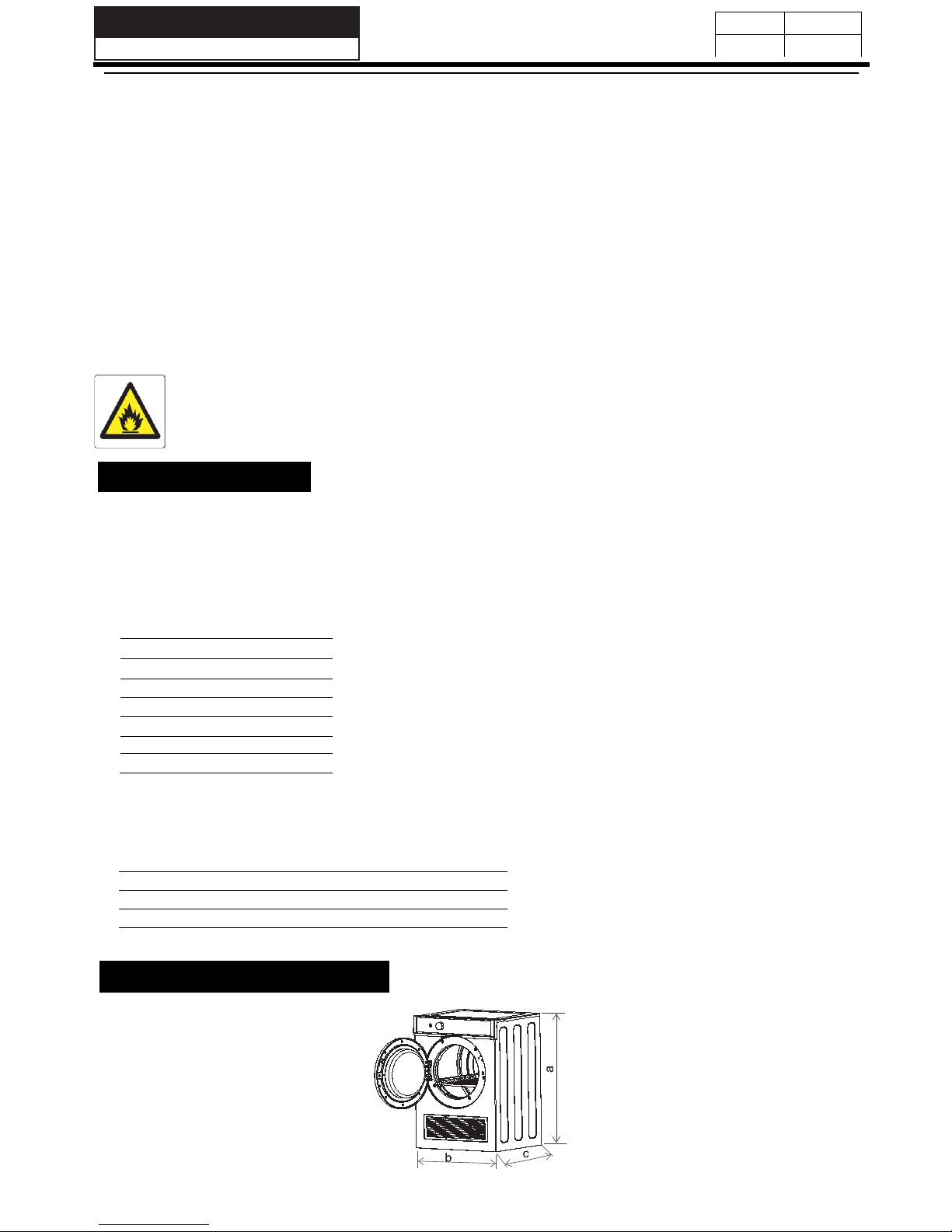

2.Technical data
3.Dimensional drawing
Dimensions
a=830 mm
b=600 mm
c=570 mm
Weight=32 kg
Caution, risk of fire - this is a safety symbol. Failure to follow the warnings
outlined in these user instructions can cause a fire hazard.
19 Do not install or store this dryer where it will be exposed to water and /or the weather.
Keep surrounding areas free from the accumulation of lint, dust and dirt.
20 To prevent shock hazard and assure stability during operation, the dryer must be installed and
electrically grounded by a qualified service person in accordance with local codes.
21 Do not sit on top of the dryer.
22 If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.
23 Always disconnect dryer from electrical supply before attempting any service.
Disconnect power cord by grasping the plug, not the cord. Do not repair or replace any
part of the dryer or attempt any servicing unless specifically recommended in the
user-maintenance instructions.
24
25 Before the dryer is removed from service or discarded, remove the dryer door to
prevent accidental entrapment.
26 Remove all objects from pockets such as lighters and matches.
Heater:
Nominal voltage............................................240V
Total power...................................................1200W+550W
Resistance20ć.........................................28.5±5%Ω
leakage current............................................˘P$
NTC sensor:
Resistance NTC
Motor:
leakage current..............................................˘P$
0ć(30.3-35.1) KΩ
10ć(18.7-21.2) KΩ
25ć(9.5-10.5) KΩ
35ć(6.15-6.9) KΩ
50ć(3.35-3.86) KΩ
70ć(1.6-1.9) KΩ
80ć(1.15-1.37) KΩ
Thermostat2 statesshort circuit or open circuit)............AC250V, 16(7)A, 110-20ć
Thermal cut-off2 states(short circuit or open circuit).......AC250V, 16(7)A, 110ć
Between red wire and orange wire....................62.5Ω
Between red wire and blue wire.....................35.8Ω
Between orange wire and blue wire..................26.8Ω
Resistance20ć
Service Manual
Model No: DE6060P1/DE6060G1/DE5060G1

3
Issue
Rev.

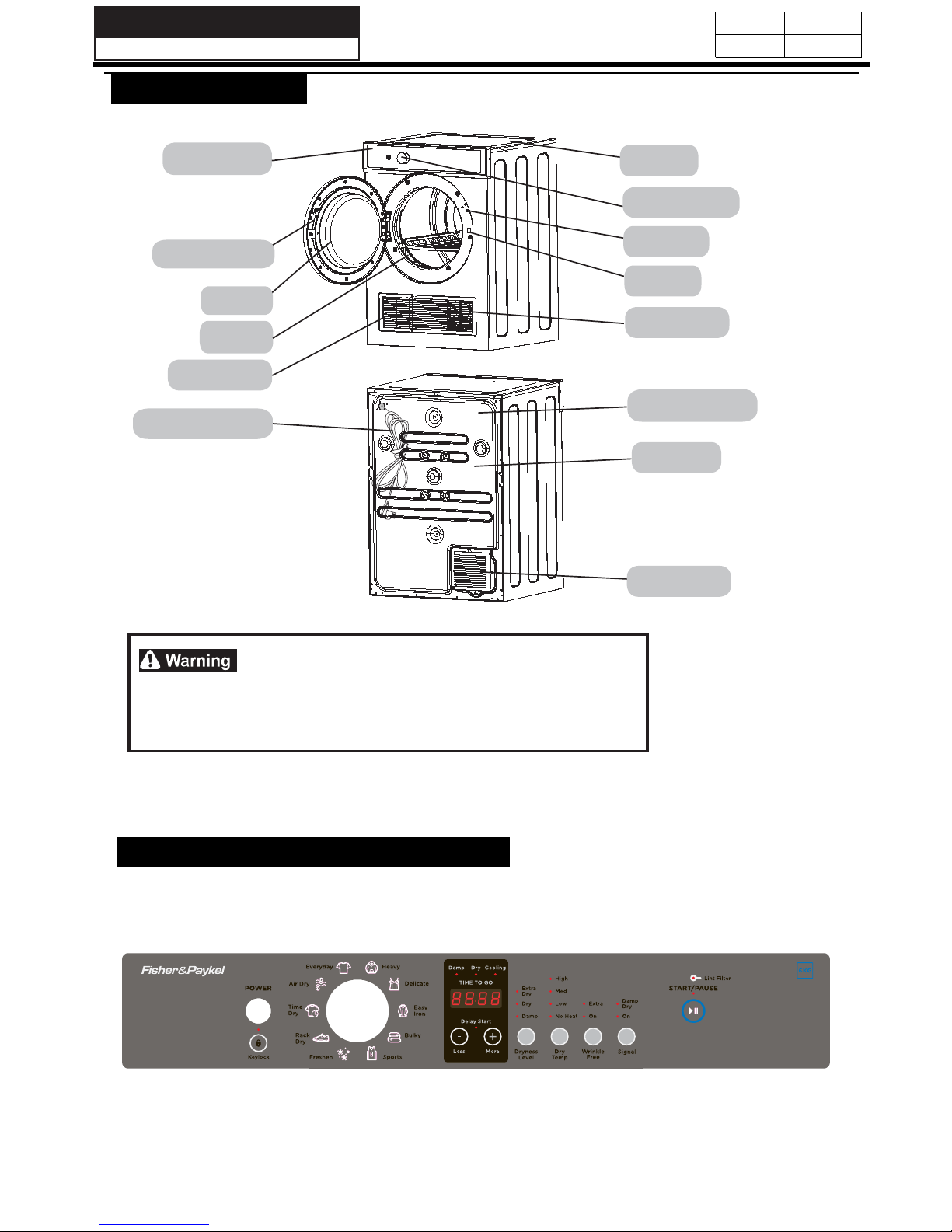

4.Name of parts
5.Usage of the operation knobs
Read all instructions before using this dryer.
This dryer has been designed for domestic use only.
SAVE THESE INSTRUCTIONS.
This diagram may be slightly different from the layout of the dryer you
have just purchased due to technical improvements.
Power supply cord
Model number
and Serial number
Back plate
Air intake grill
Control panel
Program selector
Outlet cover
Lint filter
Top panel
Door switch
Door
Exhaust grill
Door airproof strip
Door latch
Service Manual
Model No: DE6060P1/DE6060G1/DE5060G1

4
Issue
Rev.
Power button
6.Installation
Remove the transport packaging (fig.1)
Remove the tape on the door (fig.2), the wall mounting kit and the inverted panel
film attached to the inside of the drum (fig.3) before starting the dryer.
Packing accessories
Check list of the accessories and materials provided with the machine:
To ensure the dryer operates normally, attention must be paid to the
following:
1. The rear of the dryer must not have any restriction to the intake of fresh air.
fig.1
2. Check the dryer for any damage. If any damage is found do not operate
and contact your supplier or Authorised Service Centre.
3.The dryer must be kept away from flammable substances.
4.The surrounding environment must be dry and ventilated.
5. For best results, the ambient temperature should be between 10 and 35 .
fig.3
UNPACKING YOUR DRYER
Name Quantity
User manual 1
Wall mounting kit 1
Dryer rack 1
Stacking kit 2
Warranty card 1
fig.2
Service Manual
Model No: DE6060P1/DE6060G1/DE5060G1
Press this button to turn the tumble dryer on and off.
Start/Pause button
Press this button to start the tumble dryer. Press this button again during the operation of the
tumble dryer.The indicator light and display screen will start flasing and the tumble dyer will
pause.Press the button again and the program will continue.
Keylock button
Key Lock mode is selected by pressing and holding the key lock button for 2 seconds at any
time the power is on. when the key lock function is activated with the exception of the power
button all other buttons and cycle selection knob will not work. Once the cycle has been started
the only way it can be stopped is to press the power button or key lock button for 2 seconds to
unlock the keys.

5
Issue
Rev.

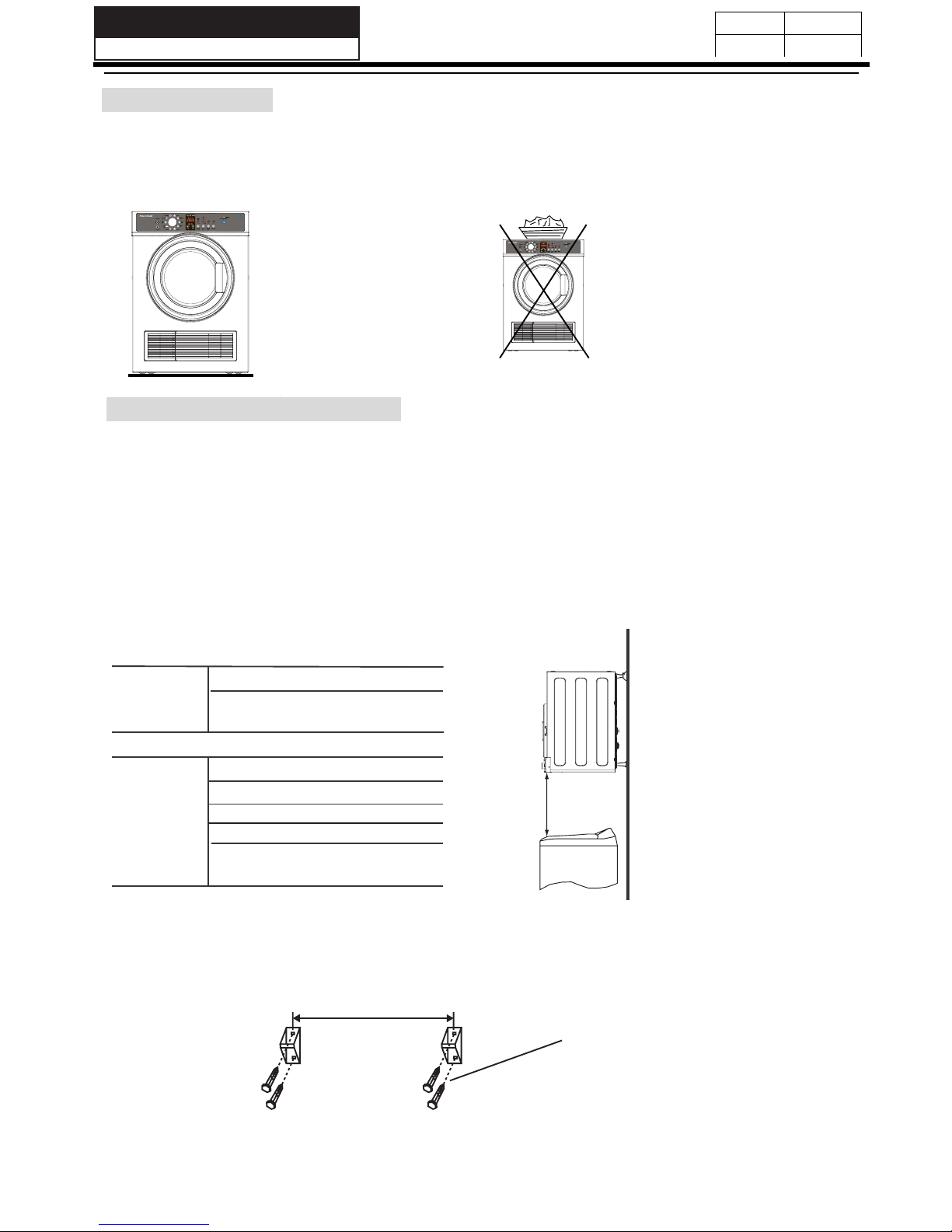

FREE STANDING
The dryer stands on the floor and can easily be moved into position. Ensure
that it is placed on a level floor. Also ensure there is at least 50 mm air
clearance between the back of the dryer and the wall to allow fresh air flow
for efficient operation even using the fronting venting option.
Attention:
Please don’t put a heavy
load on the dryer’s top panel,
such as a basketry full of
wet laundry.
INVERTED WALL MOUNTING
Tools required
For plaster/ Drill & 3mm Bit 1
Wooden wall Philips head screwdriver 1
Wall mounting kit includes
Plastic spacers 2
Wall hanging brackets 2
Hanging hook 2
Wood screws, 12gx50mm 4
Screws for hanging hooks 6
and plastic spacers.
Description
The dryer can be mounted on the wall in the inverted position only by following
these instructions.
Invert the dryer so that the control panel is at the bottom (see figure 4) this
allows easier access to the controls.
1. Determine the location of the dryer on the wall and mark the bracket
position.
A minimum 50 mm is needed between the top of the dryer and the ceiling
for ease of installation;
If mounting above a washing machine, allow sufficient room to open the lid
of the washer.
Minimum lid
clearance
2.Fix the wall hanging brackets to the wall securely (eg. into the stud).
If the studs are too far apart, fit a timber slat to the studs then mount the
brackets onto the slat. The distance between each is 553 mm as per
diagram (Fig.1).
Wood screw
553 mm
Fig.1
Service Manual
Model No: DE6060P1/DE6060G1/DE5060G1

6
Issue
Rev.

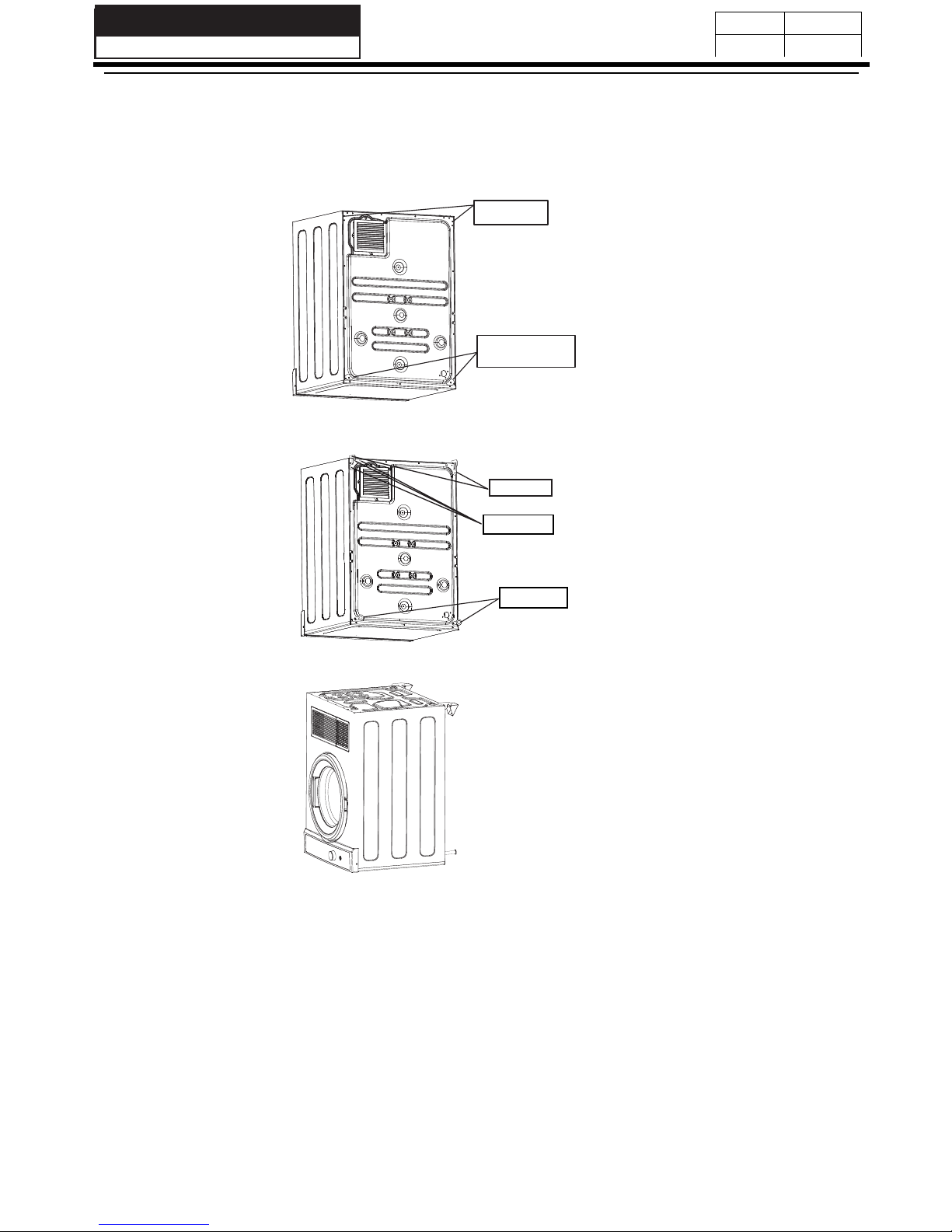

3. Keep the exhaust grill at front of the dryer, Install the hooks to the dryer in the inverted
position. Remove the 2 screws and 2 plastic plugs as indicated in Fig.2.
2 plastic plugs
2 screws
Fig.2
Warning: Ensure that the screw and nut of the Wall Hanging Brackets are
tightened during installation, if required. Regularly check all the
screws and nuts and tighten, if required. Do not overtighten.
4. Align the hooks as shown in fig.3 and refit screws tightly. Install the spacers provided in Fig.3.
2 hooks
3 screws
2 spacers
Fig.3
5. With assistance, mount dryer on wall brackets. See Fig.4.
Fig.4
Caution:
Plug must be accesible after installation.
6. Remove the 2 screws sides of the box fastening the control board, then the control board
can be removed, remove the 6 screws fastening the control panel, then you can remove the control panel,
turn it 180 degrees again after installation to the control board, then the control board is fastened to the
box again, now the operation interface is reversal.
Service Manual
Model No: DE6060P1/DE6060G1/DE5060G1

7
Issue
Rev.
You can use a stacking kit (included as an accessory) if you want to mount your dryer on the top of
a front load washing machine, ensure the washer is the same width as the dryer.
1. Remove 4 screws among screws on the bottom panel (see fig.1), and install the stacking kit
on the bottom panel (see fig.2).
4 Screws stacking kit
Fig.1 Fig.2
STACKING INSTALLATION
2. Install the dryer with stacking kit on the top of the front load washing
machine (Fig.3). Drill two holes on both sides of washer with 2.9mm
diameter drill. Detailed drill position as shown on the stacking kit. Make
sure the included screws are used. Fix the stacking kit on the top
cover of washing machine, as shown on Fig.4.
Dryer
Washer
Stacking kit
Fig.3 Fig.4
Service Manual
Model No: DE6060P1/DE6060G1/DE5060G1

Service Manual
Model No. SDRY60
8
Issue
Rev.
CHANGE THE VENTING MODE
There are three venting options:
Front venting
Note: If the dryer is mounted on the wall advise you use the front venting option.
Rear venting
If you want to choose the rear venting mode, the exhaust grill at the front of the dryer
needs to be replaced with the outlet cover from the back panel of the dryer. Gently
open the grill, using a thin tool such as a key. Next, remove the cover from the
back panel and clip it into the grill space at the front panel. The exhaust grill is not
required when using a flexible hose.
Note: If the dryer used rear venting option without the flexible hose, it must be keeped
away from the wall not less than 50cm.
You can select front venting by use the exhaust grill.

Issue
Rev.
9
Duct hole
Outdoor
Flexible hose
Flexible connector
Flexible hose clip
Connect the narrow end of
connector to the dryer duct pipe
mouth, and then connect the flexible
hose to the wide end of the connector.
Use the clip to fasten connection point
between the flexible hose and
connector (fasten clip with a
screwdriver). Extend the flexible
hose through the duct hole, make sure
the flexible hose is not twisted to allow
the air to be vented outside.
Notes: If duct hole is not available at user's home, make sure the flexible hose
is vented through a window.
Correct fixing mode:
Fig.1 Fig.2 Fig.3
diameter ˚100mm)
The flexible hose should be angled or ensure a vent cap is fitted when vented outside
to avoid water running back into the dryer.
Vent cap
Install the flexible hose(optional flexible hose)
Attention:
1.Before operation, clean off any dust and dirt inside the drum of the dryer with a damp
towel.
2.Clean off any debris on the lint filter and in the duct to increase the drying efficiency.
Turning on power
Before turning on the power of the dryer, check:
- Whether the supply voltage is in accordance with the value indicated on the name plate.
- The dryer must be grounded securely.
Preparation of laundry load
- The dryer can only dry laundry which has been spun dry. Do not put in laundry which
is still dripping wet or has excess water.
- Make sure all pockets are empty before placing laundry in the dryer.
- Pull up zippers, mend loosened fasteners and tie up ribbons to prevent the
laundry from being entangled. If necessary, put small items in a laundry bag.
- To achieve a better drying result ensure the clothes are separated before loading into the
dryer.
7.Operating instructions
- Check whether the laundry to be dried is suitable to be placed in the dryer.
Service Manual
Model No: DE6060P1/DE6060G1/DE5060G1

10
Issue
Rev.
Load to dry
Laundry type Cotton fabric Synthetic fabric
Maximum load 6 kg 3 kg
Warning ：
1. Avoid drying wool, silk and other
delicate fabrics, they maybe damaged.
2. Do not exceed the recommended
load limit. This could damage the
dryer as well as the laundry.
1. Power up
Insert the power plug into an appropriate power outlet that is properly installed and
grounded. Operating power supply: 220-240V~50Hz.
2. Laundry loading
Open the door and load the laundry into the drum of the dryer. For a more energy efficient and better
drying result, make sure the load has been spun dry. Try to loosen the load when placing in the dryer.
Note: Check labels on clothing before placing them in the dryer. Some articles are not
suitable for machine dry. High temperature may damage the fabric.
3. Selecting programme
Turn the program knob to set your desired drying program.
May be tumble dried
Do not tumble dry
Normal drying (high temperature)
Air dry or delicate drying (low temperature)
3. Do not put an excess amount of
laundry into the dryer to avoid
damage to the dryer or laundry.
4. Do not dry shoes or other rubber items
in the dryer.
Service Manual
Model No: DE6060P1/DE6060G1/DE5060G1
Programme
Dryness
Level
FMC Dry
Temp
Wrinkle
free Signal Display Max.
load MFCT
Everyday
/regular
Extra Dry
Dry/Extra Dry
Dry
Damp/Dry
Damp
0.5- 1.5%
1-3%
3-5%
5-7%
7-10%
High
Medium
On
Off
Damp
/Dry
On
Off
Auto 6kg 75 ºC
Heavy Extra Dry
Dry/Extra Dry
Dry
Damp/Dry
Damp
0-1%
0.5-1.5%
1-3%
4-6%
6-10%
High
Medium
On
Off
6kg 80 ºC
Delicate Dry/Extra Dry
Dry
Damp/Dry
Damp
1-2%
2-4%
4-7%
7-10%
Medium
Low
On
Off
4kg 60 ºC

11
Issue
Rev.
5. Program operation
After a program is set, press the “START/PAUSE” button to start the program. If you
want to change the programme after the program has started, first you must press
the “START/PAUSE” button, and then you can choose the program. If you want to
add or remove laundry in standby mode, you can operate directly and then press the
the “START/PAUSE” button to start the dryer.
6. Program completion
If the display screen display “0.09”, the program comes into the cool phase. After the program is
complete, the dryer will stop tumbling and the display screen will
display “End”. Open the door and remove the laundry.
7. Turning off the dryer
Turn the power off at the wall.
Note: Clean the filter after each load.
If the laundry is not removed in time, the dryer will automatically commence an "anti-crease"
protection cycle to keep your laundry from settling in one position and creasing. This cycle
will last an hour unless open the door. The dryer will run with cool air at set intervals. To stop
the anti-crease cycle press the start button or open the door, empty the dryer and turn off as
shown below.
4. Delay setting
You may choose to start the dryer after a preset time. The delay range is between 5min and 12 hours.
Service Manual
Model No: DE6060P1/DE6060G1/DE5060G1
Easy Iron Extra Dry
Dry Extra Dry
Dry
Damp Dry
Damp
1-2%
2-3%
3-4%
4-7%
7-10%
High
Medium
On*
Off
4kg 65 ºC
Bulky Extra Dry
Dry Extra Dry
Dry
Damp Dry
Damp
0.5-1.5%
1-3%
3-5%
5-7%
7-10%
Medium
Low
On
Off
2kg 65 ºC
Sports Dry Extra Dry
Dry
Damp Dry
Damp
1-2%
2-4%
4-7%
7-10%
Medium
Low
On
Off
2kg 60 ºC
Freshen N/A N/A High N/A On
Off
0:15 1-3
garm
ents
75 ºC
Rack Dry N/A N/A Medium
Low
N/A 0:40 N/A 60 ºC
Air Dry N/A N/A No Heat N/A 0:40 3kg N/A
Time Dry N/A N/A High
Med
Low
No Heat
On
Off
0:30 6kg High 75
Mid 65
Low 60

12
Issue
Rev.
WARNING! Unplug the power cord prior to any cleaning
Cleaning the surface
Wipe off any dust or dirt.
Note: Do not use excessive water,a damp cloth is fine.
Do not use solvent.
Do not use spray cleaners when cleaning the interior.
Do not use harsh or abrasive cleaners.
Cleaning the filter screen
To ensure good ventilation during drying, the filter screen must be cleaned before
or after each use.
1. Remove the filter
Pinch the middle of the filter and then gently pull
out the filter screen towards yourself.
2.Cleaning the filter
Remove the lint with a soft brush or vacuum
cleaner. Be careful not to damage the filters.
3. Re-installing the filter
After cleaning filters, put the screen back in place.
Note: Never operate your dryer without the lint filter.
8. Cleaning and maintenance
Service Manual
Model No: DE6060P1/DE6060G1/DE5060G1

13
Issue
Rev.
Cleaning the door airproof strip
Remove the lint with a soft brush or a wet cloth.
Be careful not to damage the airproof strip.
Remove any remaining lint from the lint screen
on the door at the same time.
Cleaning the lint in the exhaust conduit
1. Remove the outlet cover or the exhaust
grill in the trunk.
Note: The door airproof strip must be cleaned
before or after each use, or the dryer
may be aleak from the door in the
operation.
4. Clean the lint in the area of the exhaust
conduit with a soft brush from the hole.
Note: If there is too much lint in the exhaust conduit, it could
result in inefficient drying, it must be cleaned periodically.
3. Clean the lint on the Sensor inner the
exhaust conduit.
hole
2. Take off the filter.
Service Manual
Model No: DE6060P1/DE6060G1/DE5060G1

14
Issue
Rev.
9.Circuit diagram
10.Trouble shooting
If a fault occurs, before contacting Whirlpool customer service,
make the following checks to try and remedy the problem:
Machine does not
switch on, or the
programme does
not start
Problem Explanation / Suggestion
Cause
The product may not have been
plugged in, or turned on
Door is not closed properly
Programme may not have been set
Start/Pause button may not
have been pressed
Make sure the power cord is plugged
in and machine is turned on
Ensure that the loading door is properly closed
Check the programme has been selected
Ensure Start/Pause button has been pressed
Laundry is still wet at
the end of cycle
The filter may need cleaning Clean filter after each load
The machine may be overloaded Check the load does not exceed the
maximum capacity for the product
The programme has been
selected is not correct
Select a suitable programme
according to programme chart
The laundry before being loaded
into machine is not spun dry
Do not put in laundry which is
still dripping wet or has excess water
Drying process takes
too long
The filter may need cleaning Clean filter after each load
Programme has been
interrupted without
any cause
The loading door may be ajar. Ensure the loading door is properly closed
The power supply may have
been cut off to the machine
Ensure there is no power failure,
check the power cord is plugged in
Service Manual
Model No: DE6060P1/DE6060G1/DE5060G1
Door switch NTC1 NTC2
PCB
Motor
Heater1 Heater2
Capacitor
Temperature
limiter
Thermalcut-out
Temperature
limiter
Display
panel
Encoder
Power
switch
DE6060P1
Door switch NTC1 NTC2
PCB
Motor
Heater1 Heater2
Capacitor
Temperature
limiter
Thermalcut-out
Temperature
limiter
Display
panel
Power
switch
DE6060G1/DE5060G1

Issue
Rev.
15
Problem Explanation / Suggestion
Cause
Laundry has shrunk,
become felted, or
deteriorated
A programme not suitable for the
type of laundry may have been used
Select a suitable programme after
checking the care label on your machine
Indicator light
blink rapidly
A fault occurs Switch off power and check
Noises It's normal to hear wind sound
and rubbing nose during drying
process
The dryer is not
placed horizontal
Place the dryer in horizontal floor
Err3
Err4
The NTC1 or the wire is failure
The heater is failure
Replace the NTC1 or check the wire
Switch off power and replace the heater
Service Manual
Model No: DE6060P1/DE6060G1/DE5060G1
Err9
The NTC2 or the wire is failure Replace the NTC2 or check the wire

1.The dryer dose not start
The power supply plug
not inserted correctly <
1
1
<
The local circuit is out
of power
Insert the power plug into an
appropriate receptacle to turn
on the power
Wait for the local circuit on
1
<
Programme knob on 2)) or
the door is not closed
Turn programme knob to choose
the drying program or close the
door
If the Start/Pause button has
been pressed
<
Press the Start/Pause button
to start the dryer
1
<
Rearrange the joint of wire,
make it contacted well (including
the PCB and the power line)
1
Take out of the top panel,
check if the joint of wire is
well
Issue
Rev.
16
Check if the PCB is
burned-out or mangled
Replace the PCB
<
Service Manual
Model No: DE6060P1/DE6060G1/DE5060G1

17
Issue
Rev.
2.The laundry has not been dried thoroughly
Are the exhaust vent, air
intake grill and the lint filter
clogged
1
<Clean the exhaust vent, air
intake grill and the lint filter
Is there too much laundry in
the dryer or the laundry is too
wet
1
<
Reduce the laundry in the
dryer or spin laundry in washer
then place back in dryer
1
<Untwist the items and redry
Check if the heater is heating
if so, the current will be about
8A(10 secs. after a Timed
Program) <
1
Select the drying cycle and
redry the items
Has the laundry became
twisted whilst drying
<
Switch on the power, check if
the Voltage between A1 and
A2 is 230V
1Replace the PCB
<
Cut the power supply and then
take out of the top panel, Check
if the joint of the wire is well 1Rearrange the joint of wire
Service Manual
Model No: DE6060P1/DE6060G1/DE5060G1
A1
A2

18
Issue
Rev.
3.It heats but the drum dose not rotate
Check if the motor fan is running
through the Air intake grill
1
Check if the belt
is broken
Check if the motor or
capacitor is OK
<
<Replace
the belt
1
Replace the motor or
capacitor
1
Check if there is burnt
belt between the belt
and the motor-wheel
Check if the drum locked by
front bearing pads or the
front support
1
<
Replace the front
bearing pads or the
front support
<
Replace
the belt
Check if the heater is OK
The resistance of the heater
is about Ω)
<
1Replace the heater, then check
if it is heating
Check if the thermostat,
terminals or NTC is OK(
the
resistance of the NTC is about
10K when 25°C, or about 6K
when 35°C
)
1
Replace the thermostat, terminals
or NTC
Service Manual
Model No: DE6060P1/DE6060G1/DE5060G1
