Vented clothes dryer
DE5060M and DE4060M models
NZ AU SG ROW
INSTALLATION INSTRUCTIONS
USER GUIDE

1
CONTENTS
Introduction 3
Safety and warnings 4
Installation instructions 7
Getting started quickly 16
Dryer controls 18
Sorting and loading 19
Drying cycles 22
Drying cycle options 24
Cleaning your dryer 27
Before you call for service 28
Troubleshooting 29
Manufacturer’s Warranty 33
Customer Care 35
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may
not be available in all markets and are
subject to change at any time. For current
details about model and specification
availability in your country, please go to
our website www.fisherpaykel.com or
contact your local Fisher & Paykel dealer.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
www.fisherpaykel.com

3
INTRODUCTION
Welcome to your Fisher & Paykel vented dryer.
Thank you for purchasing a Fisher & Paykel clothes dryer. We are proud of this dryer
andtrust it will serve you well for many years.
At Fisher & Paykel we aim to provide innovative products that are simple to use,
ergonomic, energy efficient and kind to the environment. Thousands of tonnes of
laundry and 80 years of laundry experience have been programmed into your dryer
tohelp give you the best possible performance.
Your new dryer gives you the convenience of tumble drying and your clothes the
advantage of not being subjected to the harsh overdrying effects of the sun. Your
clothes will feel softer, retain their shape better and require less ironing. This dryer
has been specifically designed to complement our front loading and top loading
Fisher&Paykel washers.
Your vented dryer has numerous cycles and options so you can perform many drying
tasks with ease, allowing you to spend less time in the laundry. All of our dryers have
the ability to automatically sense when your clothes are dry, meaning your dryer is more
efficient, making it kinder on your wallet and the environment.
Please take the time to read these instructions carefully before you begin using your
dryer. Following the advice in this user guide will ensure you get the performance
you expect from your dryer and that you get the best possible results. Keep these
instructions for future reference and pass them on with your dryer, if it changes hands.
We hope you enjoy your new dryer. We have certainly enjoyed designing it for you.
Vented clothes dryer

SAFETY AND WARNINGS
Meaning of symbols on the dryer
Warning: Risk of fire/Flammable materials
Read the instructions
!WARNING!
Fire Hazard
 Only dry fabrics that have been washed with water.
 Do not use heat to dry articles containing foam rubber or similarly
textured rubber–like materials, dry on ‘Air Dry’.
 Do not stop a tumble clothes dryer before the end of the drying
cycleunless all items are removed and spread out, in order to dissipate
the heat.
 A clothes dryer produces combustible lint; the lint filter must be
cleaned before each drying cycle.
 Failure to follow the warnings outlined in these user instructions can
cause a fire hazard.
 Failure to follow these instructions can result in death or personal injury.
IMPORTANT SAFETY INSTRUCTIONS
WARNING! When using this appliance always exercise basic safety precautions
including the following:
Dryer use
 The tumble dryer is intended only for drying textile material washed in water.
 Undergarments that contain metal reinforcements should not be placed in the dryer.
Damage to the dryer can result if the metal reinforcements come loose during drying.
If you wish to dry these items use a drying rack or place in a garment bag.
 Check and remove all objects from pockets, eg lighters and matches.
 Never dry rubber articles, or any plastic items or film, eg plastic lined tablecloths
andbaby bibs.
 Clothes should go through the cool down/airing phase in the final part of the cycle.
This ensures items are left at a temperature where they will not be damaged. If for
any reason the dryer is stopped before the cycle has finished, dry clothes should be
removed immediately and not left in the dryer. Clothes should be quickly spread out
flat to cool so heat can dissipate, not left bunched up, eg in a clothes basket.
 This dryer has been designed for domestic use only, not for commercial applications,
such as massage/beauty clinics where there may be increased lint accumulation or
flammable materials in the atmosphere or load.
 Do not operate this product without the lint filter in place or allow lint to accumulate
in or around the dryer.
 This dryer is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless given supervision or instruction concerning the use of the dryer by a person
responsible for their safety.
4

5
SAFETY AND WARNINGS
 Children should be supervised to ensure they do not play with the dryer.
 Unplug the machine from the power supply when it is not in use.
 Do not swing on or put weight on the door.
 Your dryer is designed to stop operating in the event of power outage. When power
isresumed, the machine will remain off until the ‘POWER’ button is pressed. To
restart the dryer, press ‘POWER’ , select your drying cycle and press .
 Never attempt to repair the dryer yourself.
 The only user-removable part of the dryer is the lint filter. No other parts are designed
to be removed by anyone other than aFisher & Paykel Authorised Repairer.
 For problems that cannot be solved from information in this User Guide, turn off and
unplug your dryer and contact a Fisher & Paykel Authorised Repairer.
 When disposing of the dryer, it is recommended that the door is removed to avoid
children getting trapped inside, and that the electrical cable is cut off close to the dryer.
IMPORTANT!
We do not recommend the use of extension cords or portable electrical outlet devices
for safety reasons.
Lint
 Accumulated lint in the dryer can become a fire hazard; it also reduces the efficiency
of the dryer by causing longer drying times and increased power consumption.
 Clean the lint filter before every load.
 Ensure the area around the dryer is clear of lint.
 At regular intervals have the interior of the dryer cleaned of any accumulated lint.
This must be done by a Fisher & Paykel trained and supported service technician. This
must be done when the dryer installation is changed from free standing or inverted, or
vice versa.
 The dryer exhaust ducting should be inspected and cleaned periodically to remove
accumulated lint.
Spontaneous combustion
IMPORTANT!
To reduce the risk of fire in a tumble dryer the following should be observed:
 Items that have been spotted or soaked with vegetable oil or cooking oil are a fire
hazard and should not be placed in a tumble dryer.
 Oil-affected items can ignite spontaneously, especially when exposed to heat sources
such as a tumble dryer. The items become warm causing an oxidation reaction in the
oil. This oxidation creates heat. If the heat cannot escape the items can become hot
enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat
from escaping creating a fire hazard.
 If it is unavoidable that fabrics that contain vegetable oil, cooking oil or have been
contaminated by hair care products be placed in a tumble dryer, they should first be
washed in hot water with extra detergent – this will reduce, but not eliminate the fire
hazard. The cool down cycle of the dryer should be used to reduce the temperature
ofthese items. They should not be removed from the tumble dryer and piled or
stacked while hot.
 Items that have previously been cleaned in, washed in, soaked in or spotted with
flammable liquids or solids, eg petrol/gasoline, kerosene, dry cleaning solvents,
vegetable or cooking oil, acetone, denatured alcohol, some brands of spot removers,
turpentine, waxes and wax removers or other flammable or explosive substances
should not be placed in a tumble dryer.
 Do not dry unwashed items in the tumble dryer.

6
SAFETY AND WARNINGS
 The dryer is not to be used if industrial chemicals have been used for cleaning.
 Fabric Softeners or similar products should not be used in a tumble dryer to eliminate
the effects of static electricity, unless this practice is specifically recommended by the
manufacturer of the fabric softener product.
 Rubber backed articles, foam rubber (latex foam), clothes or pillows fitted with foam
rubber pads, fibreglass, shoes containing rubber, shower caps, babies waterproof
napkin covers and waterproof textiles should not be dried in the dryer. These
materials can when heated produce fire by spontaneous combustion.
 The maximum mass of dry textiles depends on your model. DE5060M model is rated
at5 kg. The DE4060M model is rated at 4 kg. Do not overload yourdryer.

7
INSTALLATION INSTRUCTIONS
Please read and follow the ‘Safety and warnings’ and ‘Installation instructions’
sections carefully before using your dryer!
Accessories
Please check you received the following accessories with your Fisher & Paykel dryer.
Youwill find them inside the drum:
 1 x Installation instructions and user guide
 1 x Wall mounting kit
 1 x Duct adapter
 1 x Inverted panel
Unpacking
To ensure the best performance from your new dryer please follow the instructions below.
Removing the packaging
1Remove the outer packaging (including the polystyrene packer and plastic wrapping).
All packaging must be removed prior to use.
IMPORTANT!
 Ensure packaging materials are kept out of reach of children.
 Please help protect the environment and dispose of the packaging from around the
dryer in an environmentally friendly manner.
2Tilt the dryer backwards and ‘walk’ it off the base one foot at a time. Not doing so may
cause damage to your floor and dryer.
3Remove all packaging and accessories from inside the drum and ensure you remove
protective covers from the door and console.
Location
IMPORTANT!
 The dryer must be installed in a well-ventilated, dust-
free environment.
 The dryer must not be installed on any textured floor
coverings (eg carpet, rugs).
 Do not install the dryer behind a lockable door, sliding
door, or behind a door where the hinge is on the
opposite side to that of the dryer in such a way that the
full opening of the door is inhibited. Ensure the dryer
door can always be opened fully.
 Do not install the dryer outside, in a damp place, where
there is a risk of freezing, where it may be rained on, in
direct sunlight or close to a source of heat.
 Do not place your dryer on top of its power cable.

8
TITLE TO GO HERE
INSTALLATION INSTRUCTIONS
Venting
Correct installation is very important for all dryers to ensure maximum efficiency
andsafety.
IMPORTANT!
Never run the dryer unless the airflow system is free from obstruction.
There must be adequate ventilation to avoid the back flow of gases into the room from
appliances burning fuels, including open fires, when operating the dryer.
Exhaust air must not be discharged into a flue which is used for exhausting fumes from
appliances burning gas or other fuels.

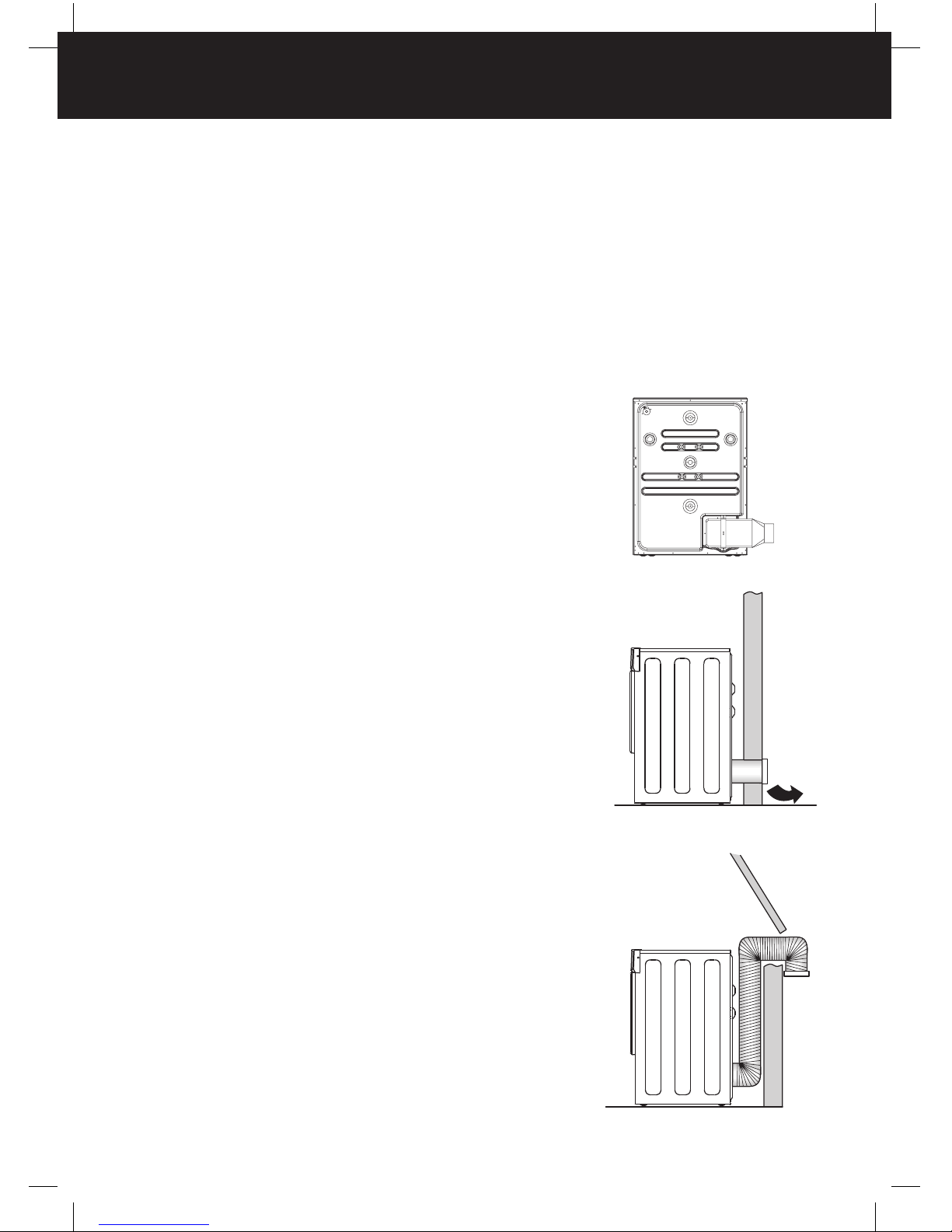

External venting
Your dryer has been designed to be vented outside to provide the following advantages:
 Ensures optimum efficiency by preventing recirculation of moist air.
 Eliminates condensation on walls and ceilings.
 Reduces the chance of lint being sucked into the dryer.
 Prevents lint and other fine particles being blown into the room.
All external venting systems must be:
 Made from 100 mm diameter flexible foil sleeved with a galvanised metal pipe where
thevent system goes through the wall, or 100 mm diameter galvanised metal piping.
 Exhausted outside and not into another confined space, eg the roof cavity of a house.
 Fitted with a vent cap outside to stop rain water entering the dryer exhaust system.
 Angled to avoid condensation running back into the dryer.
 The vent system should be a maximum of two metres with no more than three 90° bends.
 Vent systems over two metres long require special installation. Contact a Fisher & Paykel
Authorised Repairer.
Internal venting
The dryer is set up in the factory for front venting. If front venting is used there must be
adequate ventilation to avoid the build up of moisture in the room, which can affect the
performance of the dryer. Venting must comply with local by-laws and regulations.

9
TITLE TO GO HERE
Installation options
There are two different ways your dryer can be positioned. Freestanding or inverted and
mounted on a wall.
Free standing
The dryer stands on the floor and can easily be moved into position.
1Move the dryer into the desired position. Do not lift the dryer by the top panel.
2Have a minimum clearance on all sides of at least 20 mm.
3
Have a minimum clearance at the rear of 75mm. The spacers from the accessory wall
mounting kit can be used to set this distance.
4Install the dryer on a stable and level floor.
Free standing venting options
Note: the vent system should be a maximum
oftwometres with no more than three 90⁰ bends.
Through-wall venting
The dryer is vented directly through the wall using
Kit part number PD-SVHCW4, in combination with
the duct adaptor supplied with the dryer. The dryer
is vented with a kit that can be positioned to remove
the air to the side. Kit part number PD-DK4W.
Movable venting
The dryer is vented through a window using kit
partnumber PD-F0408, in combination with the
duct adaptor supplied with the dryer. This requires
the dryer to be a minimum distance of 140mm from
the wall to ensure the ducting is not restricted with
tight bends or can be crushed.
Before a rear venting option is installed the dryer
must be changed from the front venting factory
setup. Remove the outlet grille from the front
left-hand side and replace with the outlet cover
from the rear left-hand side. These covers should
begently pried at the sides to prevent damage.

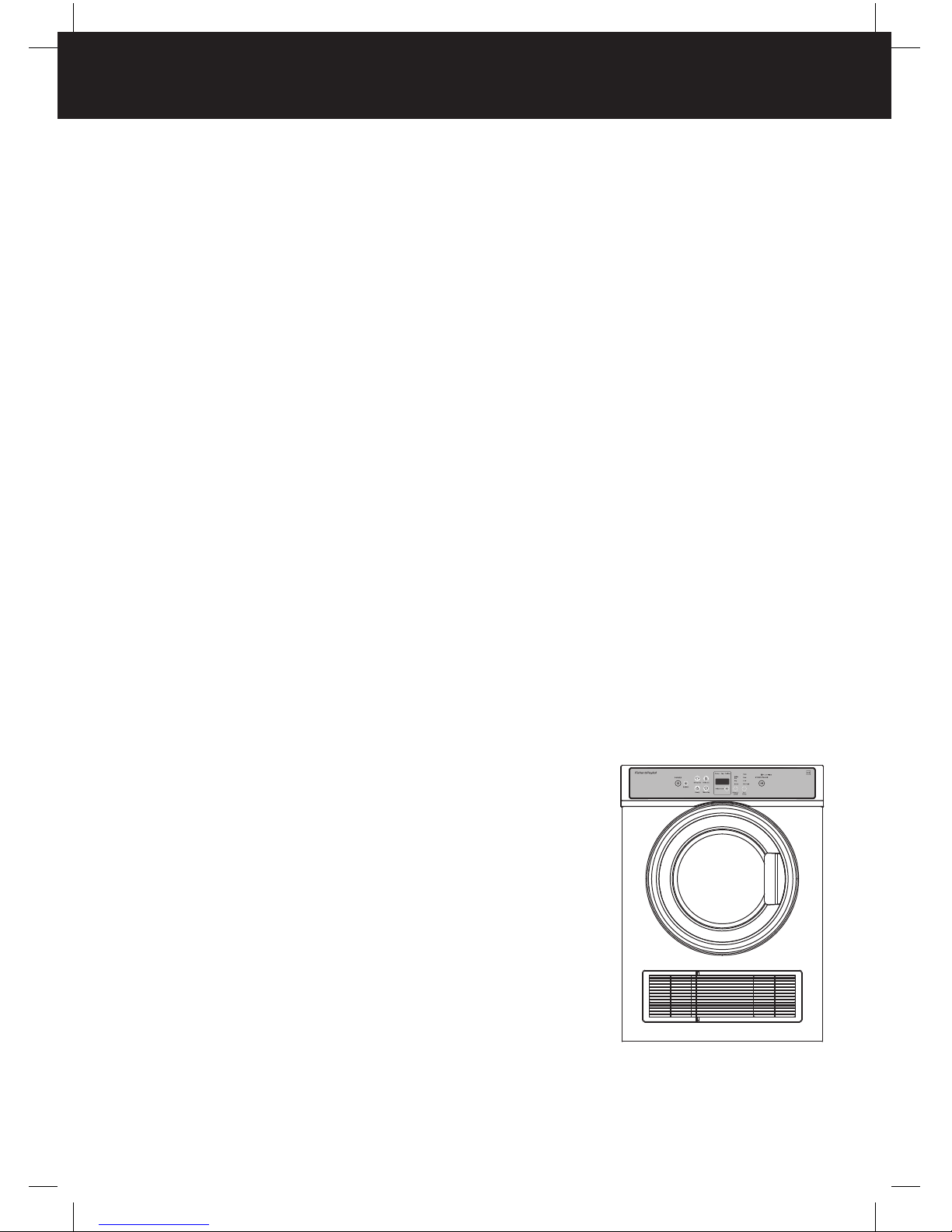

Front venting
Front venting is the only recommended option for
venting into the room. The dryer is set up for front
venting when it leaves the factory.
Note: All efforts should be made to vent the dryer
externally if possible, to avoid moisture build up in
thearea around the dryer.
INSTALLATION INSTRUCTIONS
Movable venting
Through-wall venting
Through-wall venting with kit

10
Inverted wall mounting installation
Your dryer has been designed to be inverted and mounted on the wall above a
washer or tub. A wall mounting kit must be used. Inverting allows access to the
dryer control panel.
Tools and parts required:
 Drill and 3mm bit
 Phillips head screwdriver
Wall mounting kit includes:
 2 x Plastic spacers
 2 x Wall hanging brackets
 2 x Hanging hook
 4 x Wood screws
 6 x Screws for hanging hooks and plastic spacers
INSTALLATION INSTRUCTIONS

11
INSTALLATION INSTRUCTIONS
Inverted wall mounting
Min. 50 mm clearance
Max. lid open height 880 mm min. clearance to ceiling
Min. 50 mm clearance

12
INSTALLATION INSTRUCTIONS
555 mm
835 mm
Mounting dryer on wall
1Determine the position of
the dryer on the wall and
mark the bracket position.
A minimum of 50 mm is
needed between the top
of the dryer and the ceiling
for ease of installation. If
mounting above a washing
machine, allow sufficient
room to open the lid of the
washer. Refer to page 11 for
lid clearances.
2Fix the wall hanging brackets
to the wall securely, eg into
the stud. If the studs are too
far apart, fit a timber slat to
the studs and then mount
the brackets onto the slat.
Add the same slat under the
two spacers. The distance
between the centre of each
bracket is 555 mm (A).
3To install the hooks onto
the dryer, remove one screw
from each side (B), reuse
these with two more (each
side) from the kit to fasten
the hooks in place.
4Remove plastic plugs from
the back of the dryer and
screw the spacers provided
in place (C).
5With assistance, mount the
dryer on the wall brackets.
6Fit inverted control panel
over the existing panel.
555 mm
From centre
of top hole
From bottom
of dryer
C
B
A

13
INSTALLATION INSTRUCTIONS
Before a rear venting option is installed the dryer must be changed from the front
venting factory setup. Remove the outlet grille from the front left-hand side and replace
with the outlet cover from the rear left-hand side. These covers should be gently pried
at the sides to prevent damage.
External venting options
 The dryer can be vented with a kit that can be
positionedtovent upwards or to the side. Kit part
number PD-DK4W.
 The dryer can be vented directly through the wall with
Kitpart number PD-SVHCW4, in combination with the
ductadaptor supplied with the dryer.
Note: the vent system should be a maximum of
twometres with no more than three 90⁰ bends.
Internal venting
Front venting is the only option for internal venting.
The dryer is set up for front venting when it leaves
thefactory.
Note: all efforts should be made to vent the dryer
externally, if possible, to avoid moisture build up in the
areaaround the dryer.
Electrical connection
1This appliance must be connected to a
220V–240V,50Hz, sinusoidal, 10Aelectricalsupply.
2Uncoil the power cord, remove and discard the plastic
pin cover and plug into a powersocket.
3Connect the appliance to an earthed outlet protected
by a fuse of suitable capacity.
 Check the power cord for damage and make sure it is
not squashed or twisted when installing the dryer.
 Always remove the power cord from the power socket
by the plug, not by the cord.
IMPORTANT!
 Do not touch or operate the dryer with wet hands or with bare feet.
 A damaged power cord must be replaced by a Fisher & Paykel Authorised Repairer.
The appliance must not be operated until it is repaired, as there is risk of electric shock.
 Do not operate this dryer if it has been damaged during transport. Contact your
Fisher&Paykel dealer or Fisher & Paykel Authorised Repairer.
Wall mounted ducting
Through-wall mounted ducting

14
INSTALLATION INSTRUCTIONS
Completing the installation
Installation test cycle
IMPORTANT!
Ensure the installation test cycle is completed before you dry any items in your dryer.
This is to check that your dryer is installed correctly and that it is functioning properly
prior to use.
1Turn your dryer on by pressing the ‘POWER’ button.
2Select the ‘Time Dry’ cycle for 30minutes. Ensure the drum is empty and the door is
closed (you will hear it click shut).
3Press the button. The drum will start rotating.
 Observe the dryer for any problems.
 The dryer will beep and display any faults on the screen if there are any problems.
Refer to page 28.
4At the completion of the cycle open the door and check that there is warmth inside the
dryer. This indicates the dryer is operating normally.
IMPORTANT!
If there are any problems, you must address these before proceeding with normal use.
The dryer will automatically turn off at the end of the cycle if there are no problems.
Before you start, it is a good idea to go through the following checklist:
1Has the packaging been removed?
2Is the lint filter correctly in place?
3Has the power cord been connected to an appropriate power supply and the power
turned on?
4Have you performed the installation test cycle?

15
INSTALLATION INSTRUCTIONS
Product specifications
DE5060M DE4060M
Capacity (kg)* 5 4
DIMENSIONS (mm)
Width 600 600
Depth 585 495
Height 830 830
ELECTRICAL
Volts 220 – 240 220 – 240
Hz 50 50
Amps (maximum) 10 10
Rated Power (W) 1750 1750
* Capacity refers to the maximum dry weight of items the dryer can dry at any one time.
Note: some cycles have a lower maximum capacity (see the ‘Drying cycles’ section). Maximum capacity is
according to AS/NZS 2442.1:1996.

16
GETTING STARTED QUICKLY
IMPORTANT!
 Check the lint filter is clean before every load. Ensure it is replaced correctly before
using your dryer.
 The lint filter indicator light will be on at the beginning of every cycle as a reminder to
check the lint filter.
 Sort and load items into the dryer drum, ensuring no items are in the way of the door.
Close the door.
1Press ‘POWER’ to activate your dryer.
2Your dryer will default to the ‘Everyday’ cycle. Select your desired drying cycle by
pressing the cycle button of your choice.
3DE5060M only. Select your preferred drying options, using the SmartTouch™ buttons on
the right hand side of the panel (if you wish to select options different from the default
options for thecycle).
4Press the button to start the cycle.
DE4060M dryer control panel
DE5060M dryer control panel
1 2
1 2

17
GETTING STARTED QUICKLY
 If you make an invalid selection the dryer will beep to alert you.
 When the cycle finishes, your dryer will beep and then turn off automatically.
 If you wish to change a cycle once a drying cycle has started, press the button then
select the new cycle. Press to restart the dryer with the new cycle. This may affect
drying performance.
IMPORTANT!
 If you wish to stop the dryer before the cycle has finished you MUST remove the
clothes IMMEDIATELY and spread them out to cool. DO NOT leave the clothes in the
dryer or bunched up in a clothes basket. Take extreme care as the drum and the load
items may be extremely hot.
 Failure to follow the advice in this guide may result in damage to your garments and
your expectations of drying performance may not be met.
3 4
4

18
DRYER CONTROLS

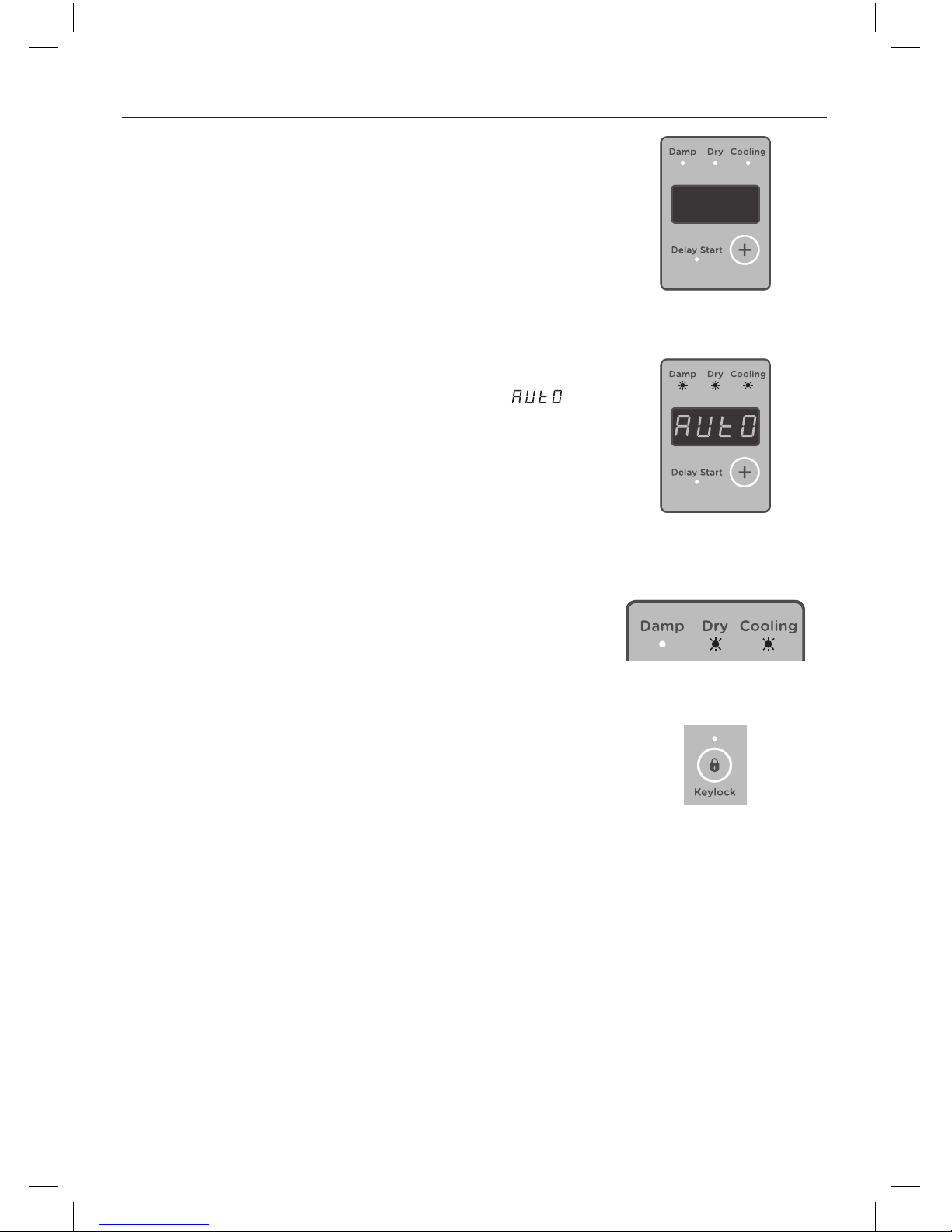

Digital display screen
The digital display screen provides feedback on
how long the drying cycle has to go. If you have
programmed a ‘Delay Start’ (DE5060M only), the time
remaining until the cycle will start will be displayed
here, along with any messages to help you with the
overall running of your dryer (eg user warnings).
Time to go
If you have selected one of the Time Dry cycles your
dryer displays approximately how many minutes the
cycle you are running has remaining. The word
is displayed on the screen for automatic cycles.
Please be aware that a number of factors can
influence the overall cycle time, eg the fabric type
andconstruction of garment, load size, how wet the
load is, etc.
Progress lights
The progress lights indicate what stage of the cycle the
dryer is currently at (‘Damp’, ‘Dry’ or ‘Cooling’). All
three lights are on at the beginning of the cycle. The
light for the current stage of the cycle flashes, and each
one goes out when that stage of the cycle is complete.
Keylock
Keylock can be used to lock the buttons on your dryer.
This will avoid accidental button presses. For more
detail please refer to the 'Drying cycle options' section.
Progress lights
Keylock mode
Digital display screen
Time to go
