Fisher & Paykel AeroSmart DG27C Mounting instructions

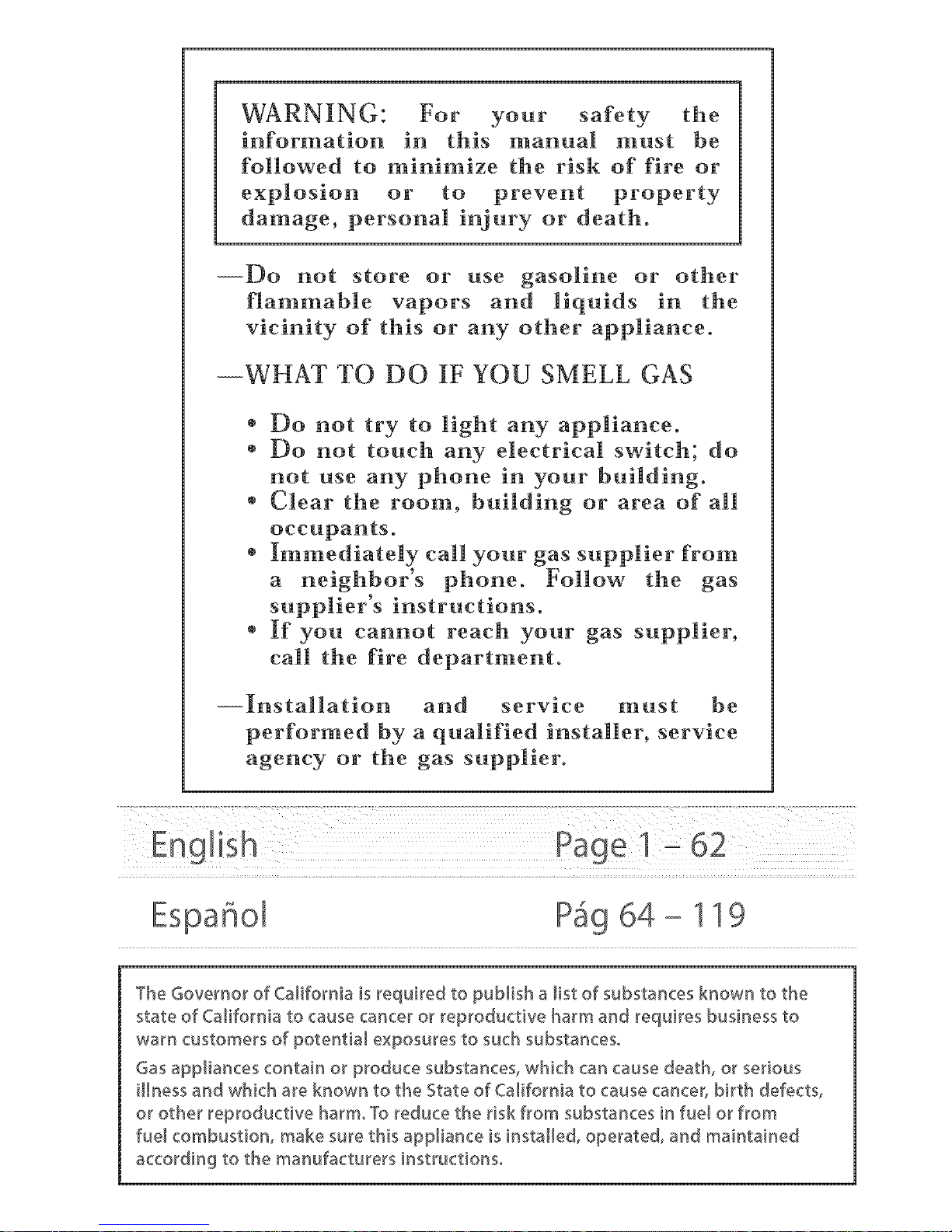

WARNING: For your safety the
information in this manual must be
followed to minimize the risk of fire or
or to
damage, personal injury or death.
--Do not store or use gasoline or other
flammable vapors and in the
vicinity of this or any other appliance.
--WHAT TO DO IF YOU SMELL GAS
*Do not try to light any appliance.
*Do not touch any electrical switch; do
not use any phone in your building°
* Clear the room, building or area of all
* Immediately call your gas supplier from
a s the gas
instructions.
+If you cannot reach your gas supplier,
call the fire department.
and service must be
performed by a qualified installer, service
agency or the gas supplier.
Espa ol 64- 119
The Governor of Ca[+forn+a+srequ+red to publish a [[s't of substances known to the
state of Ca[+forn+ato cause cancer or reproductive harm and requires bus+hess to
warn customers of potential exposures to such substances_
Gas app[iances contain or produce substances, which can cause death, or serious
illness and which are known to the State of California to cause cancer, birth defects,
or other reproductive harm° To reduce the risk from substances in fuel or from
fuel combustion, make sure th+s app[+ance +s+nsta[[ed, operated, and maintained
accord+ng to the manufacturers +nstruct+ons_

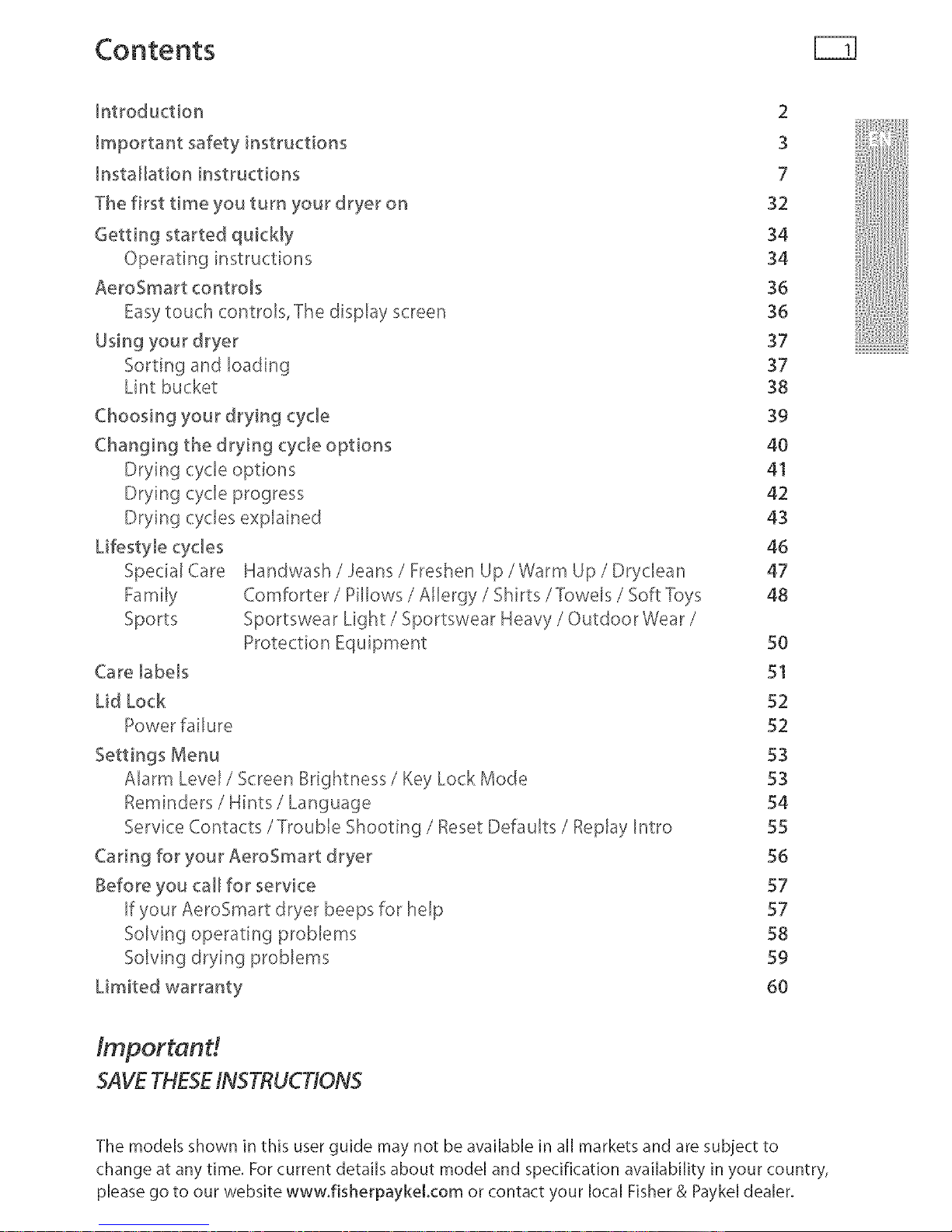

Contents
Introduction
_mportant safety instructions
_nstaHation instructions
The first time you turn your dryer on
Getting started quickly
Operating instructions
AeroSmart controB
Easytouch controls, The d splay screen
Using your dryer
Sort ng and oadng
Lint bucket
Choosing your drying cycle
Changing the drying cycle options
Drying cyce opt ons
Dryng cycle progress
Drying cycles expla ned
Special Care
Care labels
Lid Lock
Power fa lure
Settings Menu
Handwash /Jeans /Freshen Up/Warm Up /Dryclean
Comforter/Pi !ows /Altergy /Shrts/[owes /Soft Toys
Sportswear Lght /Sportswear Heavy /Outdoor Wear /
Protection Equ pment
Alarm Level /Screen Brightness /Key Lock Mode
Bern nders /Hints /Language
Service Contacts/Trouble Shoot ng /Beset Defaults /Replay Intro
Caring for your AeroSmart dryer
Before you call for service
If your AeroSmart dryer beeps for help
Solving ope_at ng problems
So ving dryng problems
Limited warranty
Irnportand
SAVE THESEINSTRUCTIONS
2
3
7
32
34
34
36
36
37
37
38
39
40
41
42
43
46
47
48
50
51
52
52
53
53
54
55
56
57
57
58
59
60
The models shown in this user guide may not be available in all markets and are subject to
change at any time. For current details about model and specification availability in your country,
please go to our website www.fisherpaykel.com or contact your local Fisher & Paykel dealer.

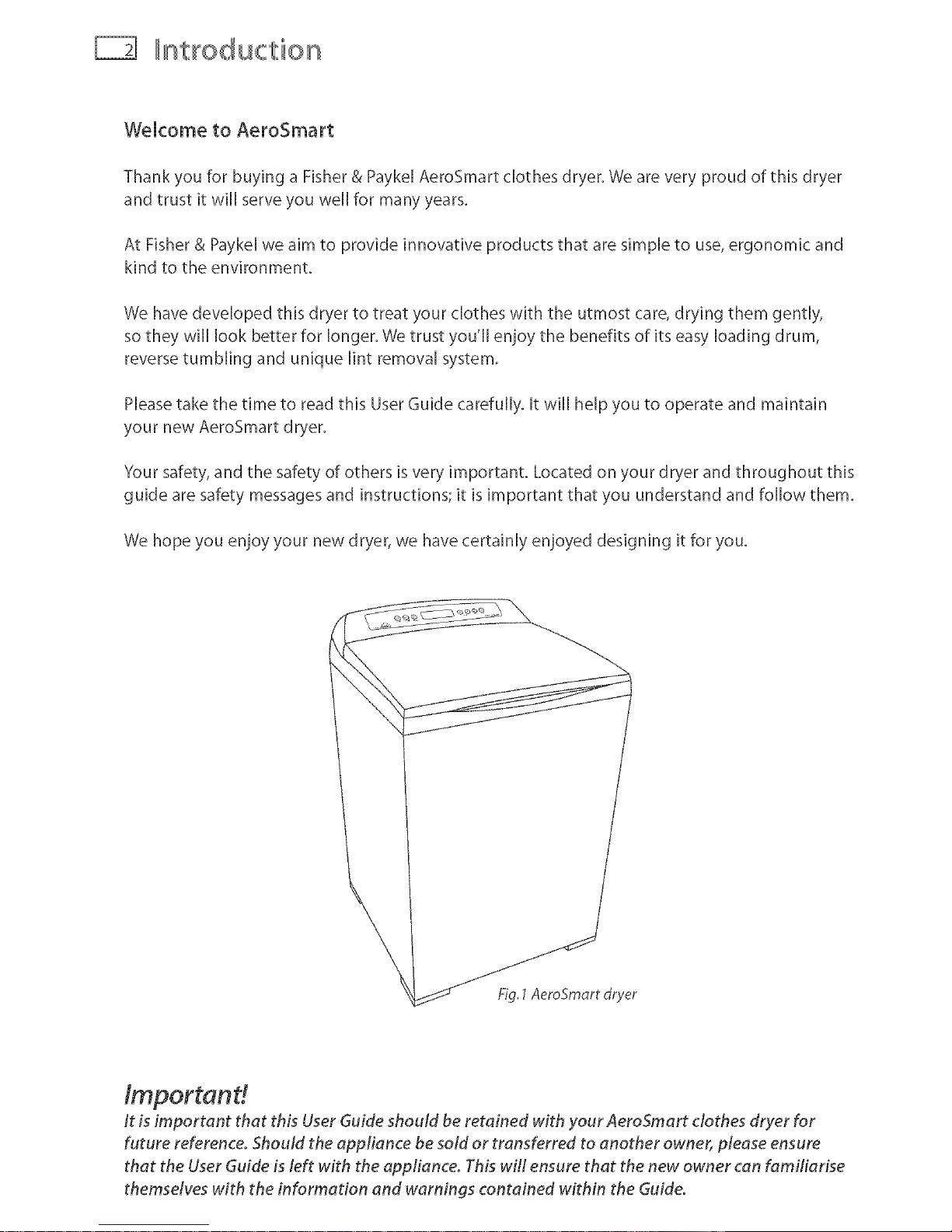

Welcome to AeroSmart
Thank you for buying a Fisher & Paykel AeroSmart clothes dryer. We are very proud of this dryer
and trust it will serve you well for many years.
At Fisher& Paykelwe aim to provide innovative products that are simple to use,ergonomic and
kind to the environment.
We have developed this dryer to treat your clothes with the utmost care, drying them gently,
so they will look better for longer. We trust you'll enjoy the benefits of its easy loading drum,
reverse tumbling and unique lint removal system.
Pleasetake the time to read this UserGuide carefully. It will help you to operate and maintain
your new AeroSmart dryer.
Your safety, and the safety of others is very important. Located on your dryer and throughout this
guide are safety messages and instructions; it is important that you understand and follow them.
We hope you enjoy your new dryer, we have certainly enjoyed designing it for you.
\
Fig. 1AemSmdrt dryer
Importand
It is important that this User Guide should be retained with your AeroSmart clothes dryer for
future reference. Should the appliance be sold or transferred to another owner, please ensure
that the User Guide is left with the @pliance. This will ensure that the new owner can familiarise
themselves with the information and warnings contained within the Guide.

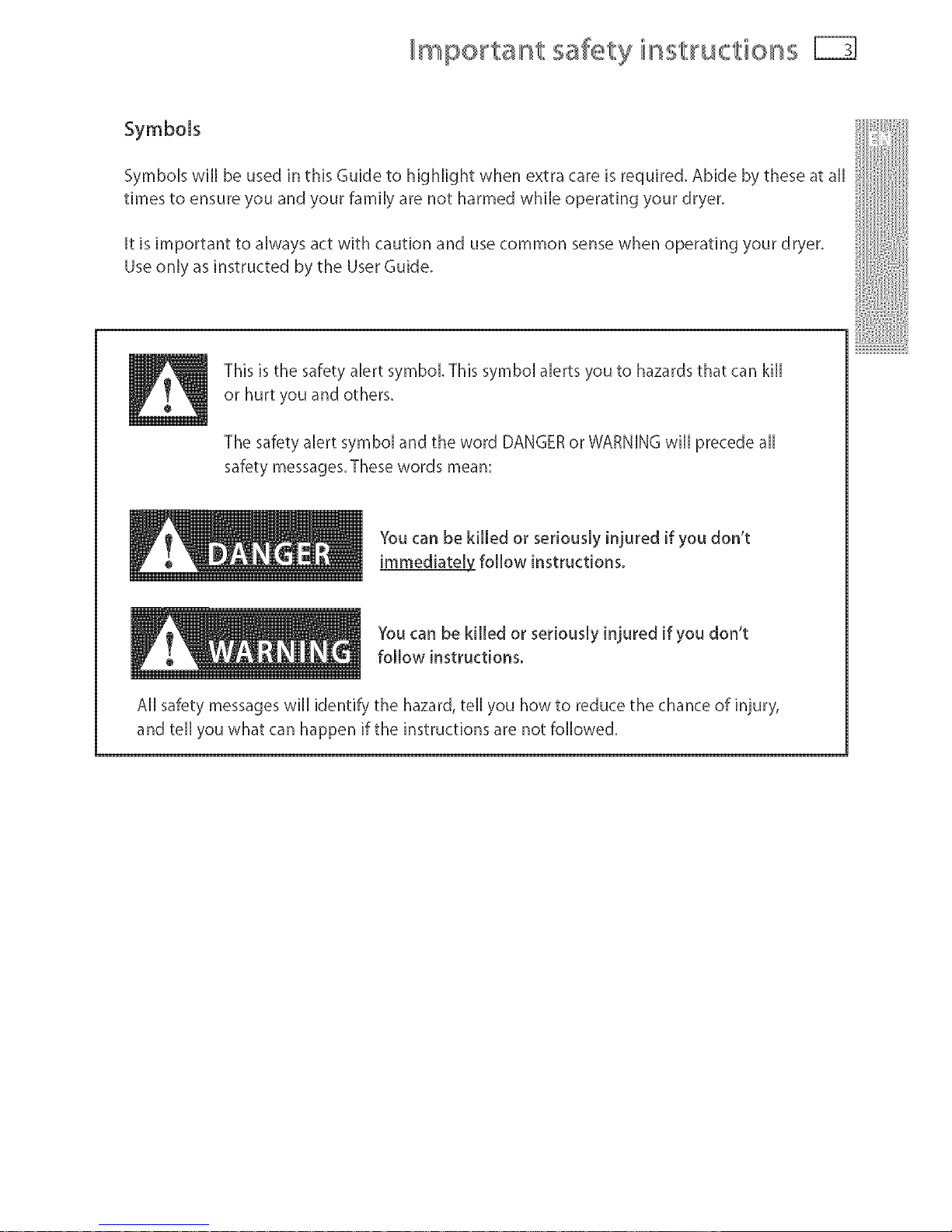

mportant safety instructions
Symbols
Symbols will be used in this Guide to highlight when extra care is required. Abide by these at all
times to ensure you and your family are not harmed while operating your dryer.
It is important to always act with caution and use common sense when operating your dryer.
Use only as instructed by the User Guide.
Thisis the safetyalert symbol.This symbol alerts you to hazardsthat can kill
or hurt you and others.
Thesafetyalert symbol and the word DANGERor WARNINGwill precede all
safety messages.Thesewords mean:
You can be killed or seriously injured if you don't
immediateJ_z follow instructions.
You can be killed or seriously injured if you don't
follow instructions.
All safety messages will identify the hazard, tell you how to reduce the chance of injury,
and tell you what can happen if the instructions are not followed.

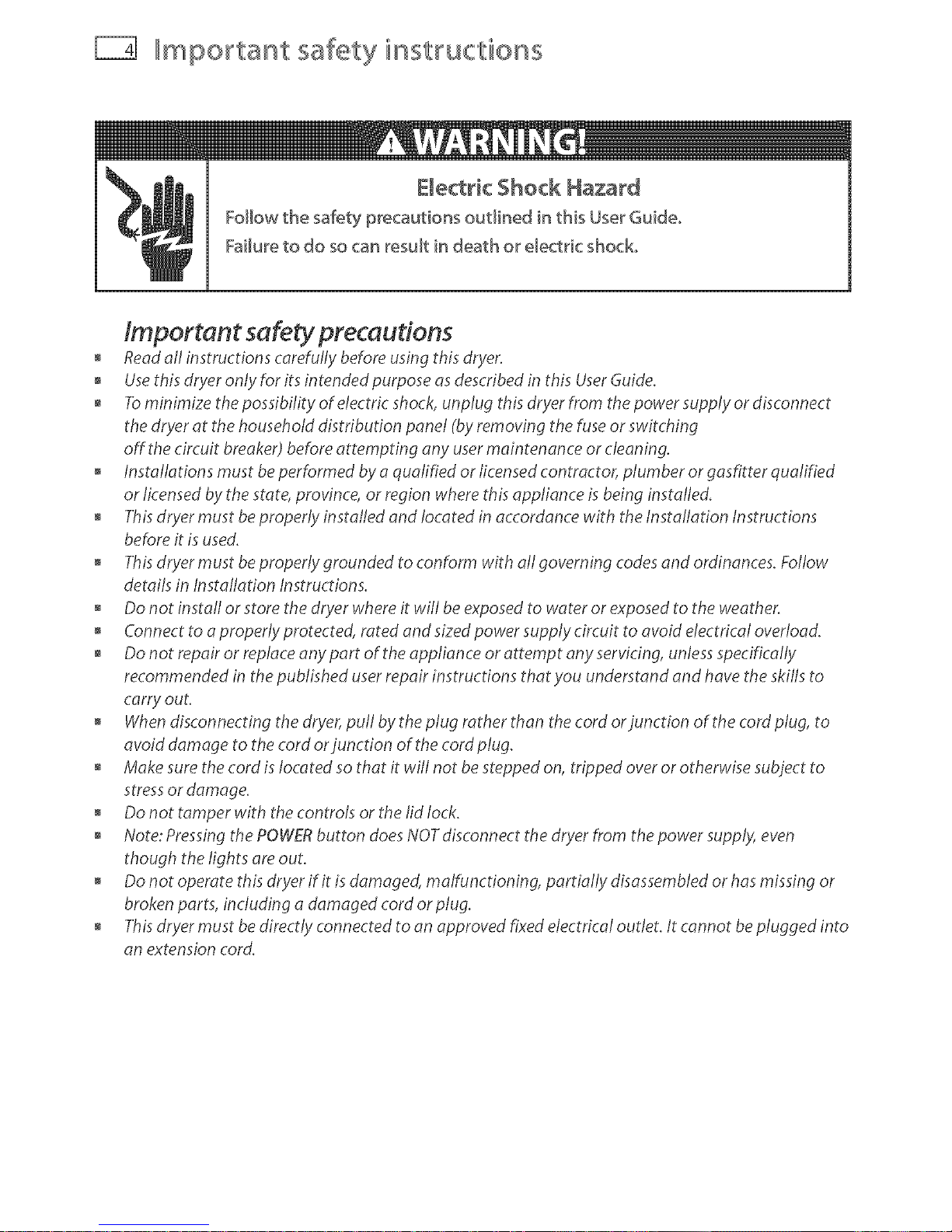

mportant safety instructions
E_ectri¢ Shock Hazard
Follow the safety precautions outlined in this User Guide.
Failure to do so can resuR in death or e_ect_ic shock.
Important safety precaudons
Read aft instructions carefully before using this dryer.
Use this dryer only for its in tended purpose as described in this User Guide.
Tominimize the possibility of electric shock, unplug this dryer from the power supply or disconnect
the dryer at the household distribution panel (by removing the fuse or switching
off the circuit breaker) before attempting any user maintenance or cleaning.
Installations must be performed by aqualified or licensed contractor, plumber or gasfitter qualified
or licensed by the state, province, or region where this appliance is being installed.
This dryer must be properly installed and located in accordance with the Installation Instructions
before it is used.
This dryer must be pr_per_y gr_unded t_ c_nf_rm with a_ g_verning c_des and _rdinances. F_w
details in Installation Instructions.
Do not install or store the dryer where it will be exposed to water or exposed to the weather.
Connect to aproperly protected, rated and sized power supply ckcuit to avoid electrical overload.
Do not repair or replace any part of the appliance or attempt any servicing, unless specificaf/y
recommended in the pubfished user repak instructions that you understand and have the skills to
carry out.
When disconnecting the dryer, pull by the plug rather than the cord or junction of the cord plug, to
avoid damage to the cord or junction of the cord plug.
Make sure the cord is located so that it will not be stepped on, tripped over or otherwise subject to
stress or damage.
Do not tamper with the controls or the lid lock.
Note: Pressing the POWER button does NOT disconnect the dryer from the power supply, even
though the lights are out.
Do not operate this dryer if it is damaged, malfunctioning, partially disassembled or has missing or
broken parts, including adamaged cord or plug.
This dryer must be directly connected to an approved fixed electrical outlet. It cannot beplugged into
an extension cord.

mportant safety instructions
I

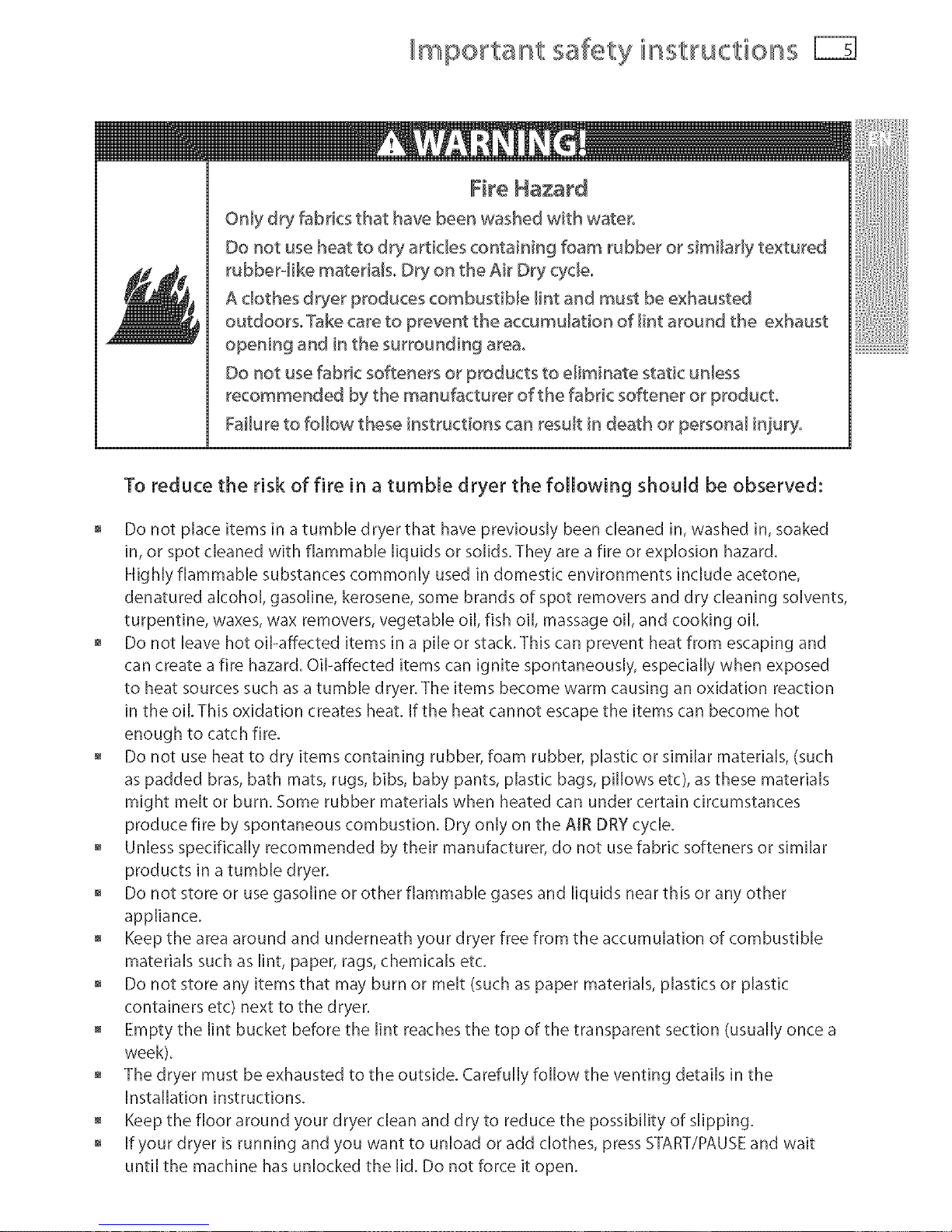

Fire Hazard
Only dry fabrics that have been washed with water°
Do not use heat to dry articles containing foam rubber or similarly textured
rubber4ike materia[so Dry on the Air Dry cydeo
A clothes dryer produces combustible lint and must be exhausted
outdoorsoTake care to prevent the accumulation of Hnt around the exhaust
opening and in the surrounding area°
Do not use fabric softeners or products to eliminate static unless
recommended by the manufacturer of the fabric softener or product°
Failure to follow these instructions can result in death or personal injury°
To reduce the risk of fire in a tumble dryer the following should be observed:
Do not pJace items in a tumbJe dryer that have prevJousJy been cJeaned in, washed in, soaked
in, or spot cJeaned with f[ammabJe [iquids or soJids. They are a fire or expJosJon hazard.
HJghJy fJammabJe substances commonly used in domestic environments [ncJude acetone,
denatured a[coho[, gasoJine, kerosene, some brands of spot removers and dry cJeanJng soJvents,
turpentine, waxes, wax removers, vegetabJe oil, fish oi[, massage oi[, and cooking oil
Do not leave hot oi[-affected items in a pJJeor stack. This can prevent heat from escaping and
can create a fire hazard. Oil-affected items can ignite spontaneously, especially when exposed
to heat sources such as a tumbJe dryer. The items become warm causing an oxidation reaction
in the oil This oxidation creates heat. If the heat cannot escape the items can become hot
enough to catch fire.
Do not use heat to dry items containing rubber, foam rubber, pJastJcor similar materJaJs, (such
as padded bras, bath mats, rugs, bibs, baby pants, pJastJcbags, pJ[Jows etc), as these materials
might meJt or burn. Some rubber materiaJs when heated can under certain circumstances
produce fire by spontaneous combustion. Dry onJy on the AiR DRY cycJe.
UnJess specJficaJ[y recommended by their manufacturer, do not use fabric softeners or similar
products in a tumbJe dryer.
Do not store or use gasoJine or other flammabJe gases and liquids near this or any other
appJiance.
Keep the area around and underneath your dryer free from the accumuJatJon of combustJbJe
materials such as lint, paper, rags, chemJcaJs etc.
Do not store any items that may burn or meJt (such as paper materials, pJastJcs or pJastJc
containers etc) next to the dryer.
Empty the lint bucket before the lint reaches the top of the transparent section (usually once a
week).
The dryer must be exhausted to the outside. CarefuJ[y foJ[ow the venting details in the
[nstaJJat[on instructions.
Keep the floor around your dryer dean and dry to reduce the possibility of slipping.
if your dryer is running and you want to unload or add clothes, press START/PAUSEand wait
until the machine has unlocked the lid. Do not force it open.

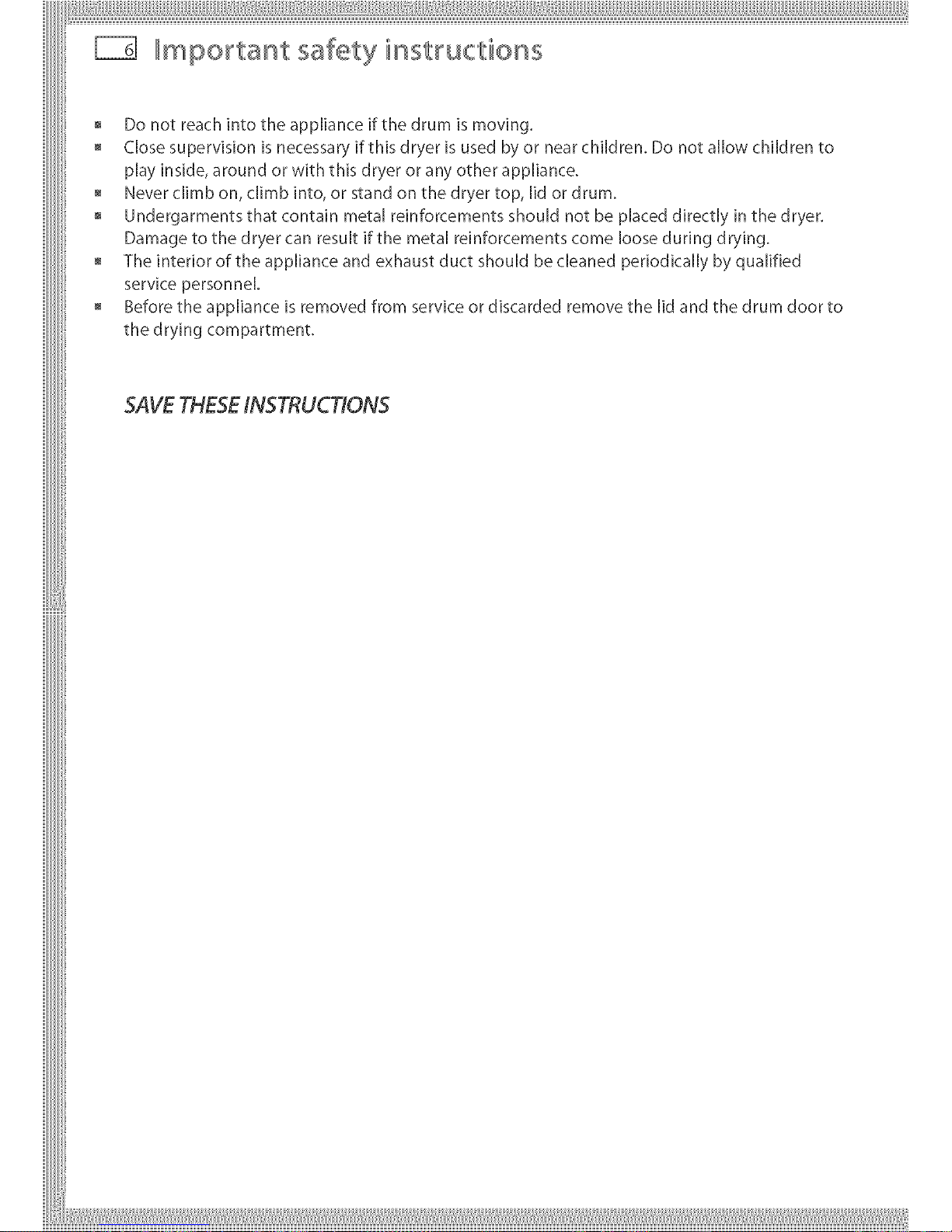

mportant safety instructions
Do not reach into the appliance if the drum is moving.
Close supervision is necessary if this dryer is used by or near children. Do not allow children to
play inside, around or with this dryer or any other appliance.
Never climb on, climb into, or stand on the dryer top, lid or drum.
Undergarments that contain metal reinforcements should not be placed directly in the dryer.
Damage to the dryer can result if the metal reinforcements come loose during drying.
The interior of the appliance and exhaust duct should be cleaned periodically by qualified
service personnel.
Before the appliance is removed from service or discarded remove the lid and the drum door to
the drying compartment.
SAVE THESEINSTRUCTIONS

iiilIIiI_I=IIII _iliiilliiilllililiiilllliiiiiiliill¸_i_i_!_i!=_=i_i_i_ii_i_!_i_ii_i_i_ii_i__i_ill
Installation instructions 771 iii:'
Read the important safety instructions on pages ] - 6 before you start installing the dryer,
Checktomakesureyouhaveallthetoolsandpartsnecessarytocorrectly_nstallthisapp,ance.
roo_oqo_od
=W' nut driver or socket wrench
= Phillips screwdriver ):
Fiat-blade screwdriver
= Adiustab[e wrench 8" or 10" (200 mm or 250 ram)for gas connections
Pipejoint compound (pipe dope or tape) for gas pipe connections that is resistant to _!i[
LP Propane, Butane and Natural Gas (Gas models only)
Level
Caulking gun and compound (for installing new exhaust vent)
= Gloves
Safety glasses
= Knife
pied su_p
2 feet inserts for front feet.
A power supply cord is supplied already connected to the gas dryer (Gas models only)
Check to make sure a[[ parts have been suppled.
Accessories ::i:
Mobile Home Installation Kit Part No 395488
Natural Gas to LP Conversion Kit Part No 395489 (Gas models on[),) ]1
= LPtoNaturalGasConversionKitPartNoSgS490{Gasmodelsonlyt
= KitElement208VPartNoSgSS00{Hectricmodelsonlyt
if you need to purchase a power supply cord kit or power supply cable, they must meet the
requirements outlned on page 21 (power supply). Check with local codes and read electrical, gas
and venting requirements before purchasing parts.

nsta ation instructions

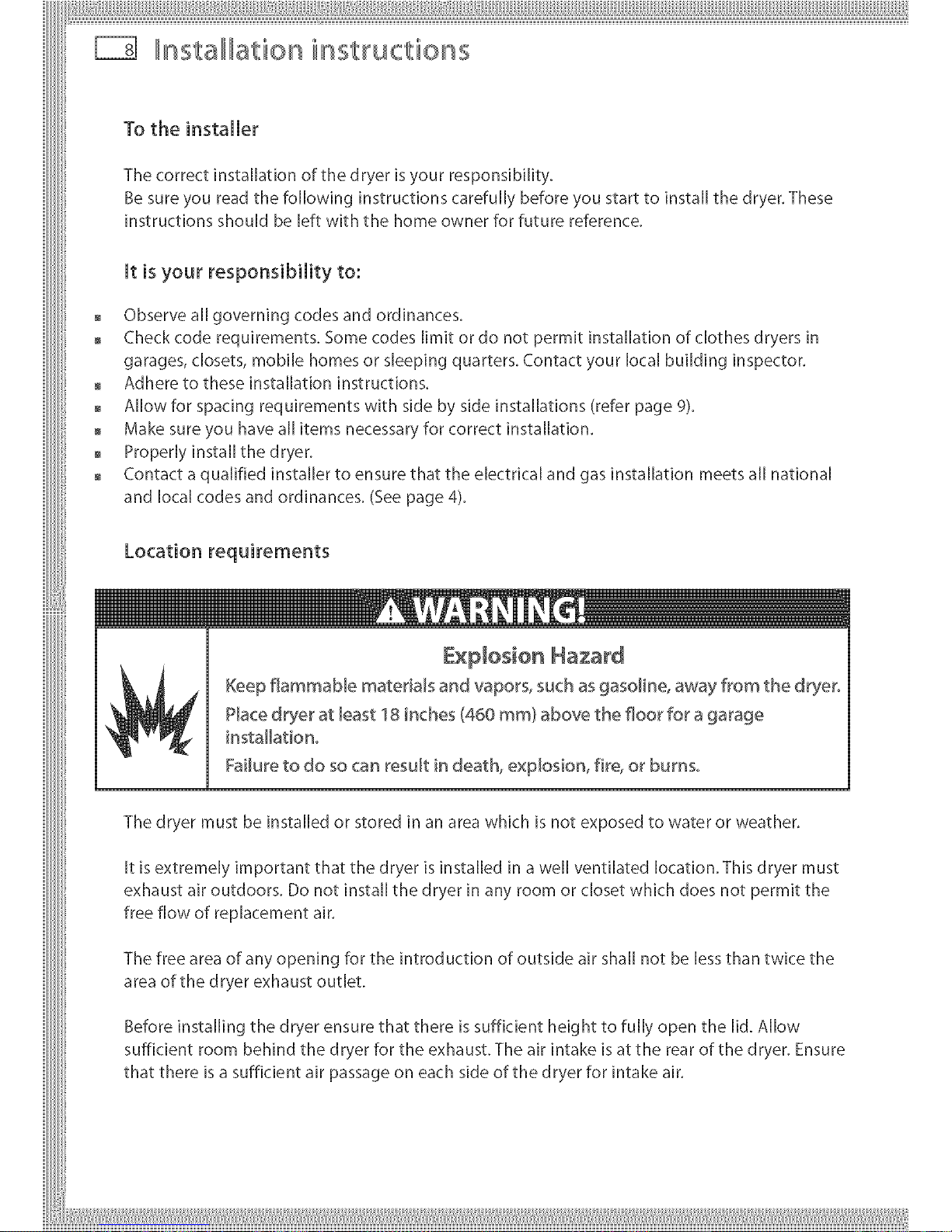

To the installer
The correct installation of the dryer is your responsibility.
Be sure you read the following instructions carefully before you start to install the dryer. These
instructions should be left with the home owner for future reference.
It is your responsibility to:
Observe all governing codes and ordinances.
Check code requirements. Some codes limit or do not permit installation of clothes dryers in
garages, closets, mobile homes or sleeping quarters. Contact your local building inspector.
Adhere to these installation instructions.
Allow for spacing requirements with side by side installations (refer page 9).
Make sure you have all items necessary for correct installation.
Properly install the dryer.
Contact a qualified installer to ensure that the electrical and gas installation meets all national
and local codes and ordinances. (See page 4).
Location requirements
£×D[os[on Hazard
Keep flammaMe materials and vapors, such as gasoline, away from the dryer°
Place dryer at [east 18 inches (460 ram} above the floor for a garage
instaHat[ono
Failure to do so can result in death, explosion, fire, or burns.
The dryer must be installed or stored in an area which is not exposed to water or weather.
it is extremely important that the dryer is installed in a well ventilated location. This dryer must
exhaust air outdoors. Do not install the dryer in any room or closet which does not permit the
free flow of replacement air.
The free area of any opening for the introduction of outside air shall not be less than twice the
area of the dryer exhaust outlet.
Before installing the dryer ensure that there is sufficient height to fully open the lid. Allow
sufficient room behind the dryer for the exhaust. The air intake is at the rear of the dryer. Ensure
that there is a sufficient air passage on each side of the dryer for intake air.

nsta ation i structions

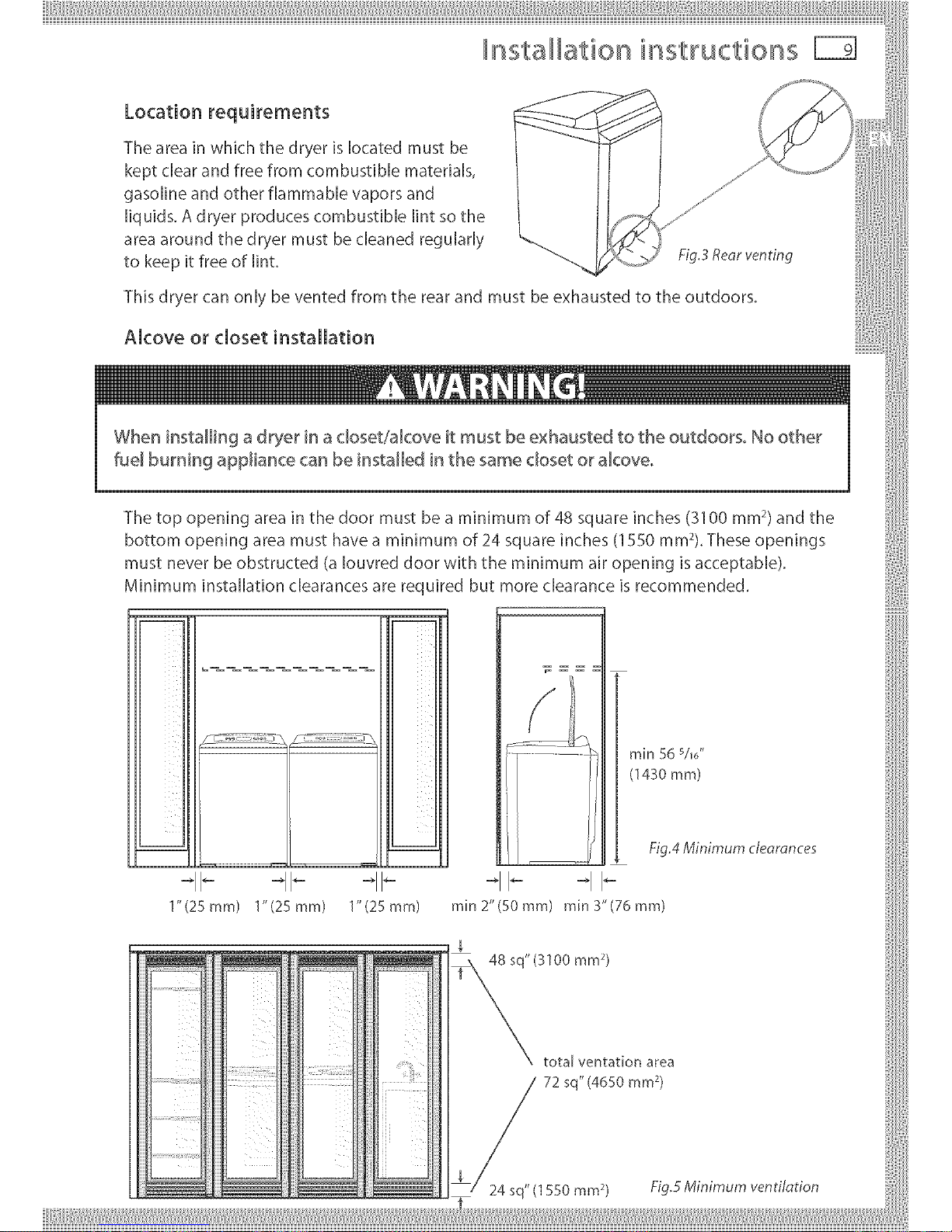

Location requirements
The area in which the dryer is located must be
kept clear and free from combustible materials,
gasoline and other flammable vapors and
liquids. A dryer produces combustible lint so the
area around the dryer must be cleaned regularly
to keep it free of lint, Fig.3 Reer venting
This dryer can only be vented from the rear and must be exhausted to the outdoors.
Alcove or closet installation
When installing adryer in acloset!alcove it must be exhausted to the outdoors° No other
fue_burning appliance can be installed in the same closet or akoveo
The top opening area in the door must be a minimum of 48 square inches (31 O0 mm 2)and the
bottom opening area must have a minimum of 24 square inches (1550 ram2). These openings
must never be obstructed (a [ouvred door with the minimum air opening is acceptable).
Minimum installation clearances are required but more clearance is recommended.

_nsta_ation instructions

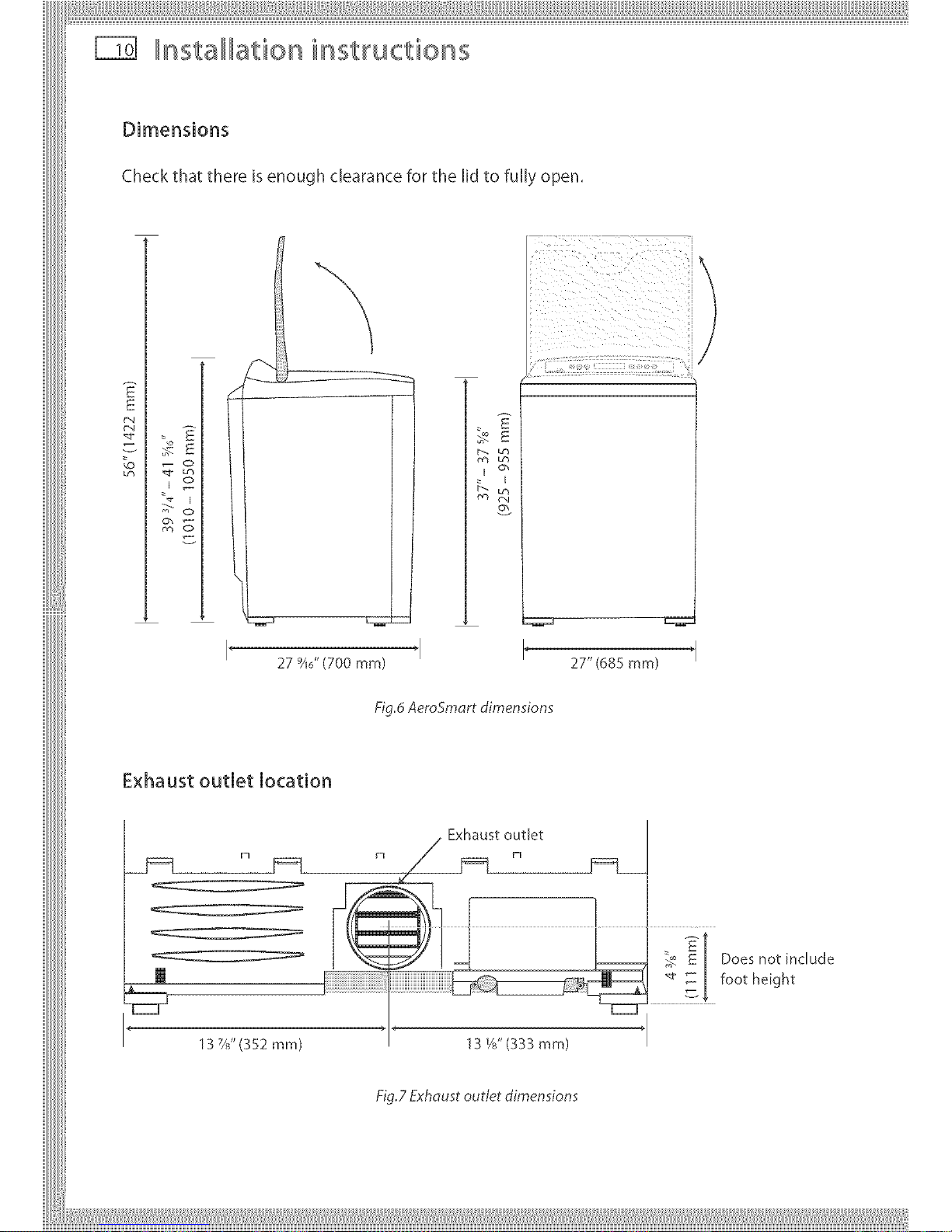

Dimensions
Check that there is enough clearance for the lid to fully open.
o
_g
27 9AJ' (700 mm)
E
_E
Lm
cm
27" (685 mm)
Fig.6 AeroSrndrt dimensions
Exhaust outlet location
rq
13 7/J'(352 mm)
_1 Exhaust outJet
t
13 Ya"(333 ram)
Fig.7 Exhdusr outlet dimensions

Installation instructions [q?l l_
Mobile home installation
The installation of the dryer in a mobile home must conform to the Manufactured Home
Construction and Safety Standard Title 24 CFR, Part 3280 {formerly the Federal Standard for
Mobte Home Construction and Safety, Title 24 HUD (Part 280), 1975} for the United States or }
Standard CAN/CSA -Z240MH for Canada.
When installing a dryer in a mobile home, provisions for anchoring the dryer to the floor must
be made.
A Mobile Home anchoring installation kit is available with instructions (see Accessories page
7). Locate in an area that has adequate outside make up air (a minimum of 72 square inches of
unobstructed opening is required).
MobilehomeinstaUationsmustbeexhaustedtotheoutdoorswiththeexhaustduct
terminationsecurelyfastenedtothemobilehomestructure,usingmaterialsthatwUlnot
supportcombustion.
The exhaust duct must not terminate beneath the mobile home. See the section on exhausting
for more information. (refer to page 12)
iiiiiiiii
The dryer must be £ ....
exhausted outside __outs,de
II w='
t ! [X_ The exhaust vent must be securdy
l J I k_ fastened to a non-combustible
I I I _t portion of the mob/e home
I I l k't structure and must not terminate i
I J I --_ k'_ beneath the mobiJe home,
/enclosedarea[ _h,
f_oor "--d \ i

nsta ation instructions
Fire Hazard
The dryer must be vented to the outdoors.
Use rigid or thick wall flexiMe metal exhaust duct°
Do not use a plastic exhaust duct°
Do not use a meta_ foil exhaust duct°
Failure to follow these instructions can result in death or fire°
The dryer must be exhausted to the outdoors. This w[[[ prevent the build up of lint and moisture
in the room in which it islocated and reducethe riskof fire.
This appliance must always be vented to the outdoors.
Exhaust ducting products can be purchased from your local Appliance store or Hardware store.
Plastic or metal foil flexible duct can kink, sag, be punctured, reduce airflow, extend drying
times and affect dryer operation.
A minimum of 4 inch (100 mm) thick wail flexible metal or rigid galvanised metal duct must be
used. Using ducts larger than 4 inches (100 ram) diameter may result in more lint accumulating.
Using straight rigid metal ducting will minimize lint accumulation. Thick wall flexible metal
ducting may be used but care must be exercised to avoid sharp bends which may squash the
duct and cause blockages. Do not use plastic ducting or thin wail flexible metal ducting.
Use duct tape to secure joints. Do not use screws as they collect [int.
Keep ducting as short and straight as possible. Do not exceed the maximum exhaust duct
lengths stated later in these installation instructions.
Do not exhaust the dryer into any other duct, chimney or gas vent, a wail, a ceiling or any
concealed space in a building. Do not exhaust the dryer under a house or mobile home or a
porch, or into a window well or other area that wi[[ accumulate [int.
The exhaust duct should end with an exhaust hood with a
swing out damper to prevent back drafts and entry of wild
life. Never use exhaust hoods with a magnetic damper. The
hood should have at least 12 inches (305 ram) clearance
between the bottom of the hood and the ground or other
obstruction. The hood opening should point down. Never
install a screen over the exhaust outlet. 12" (305 mm)
Fig.9Exhousthood minimum
ground cteoronce

Installation instructions

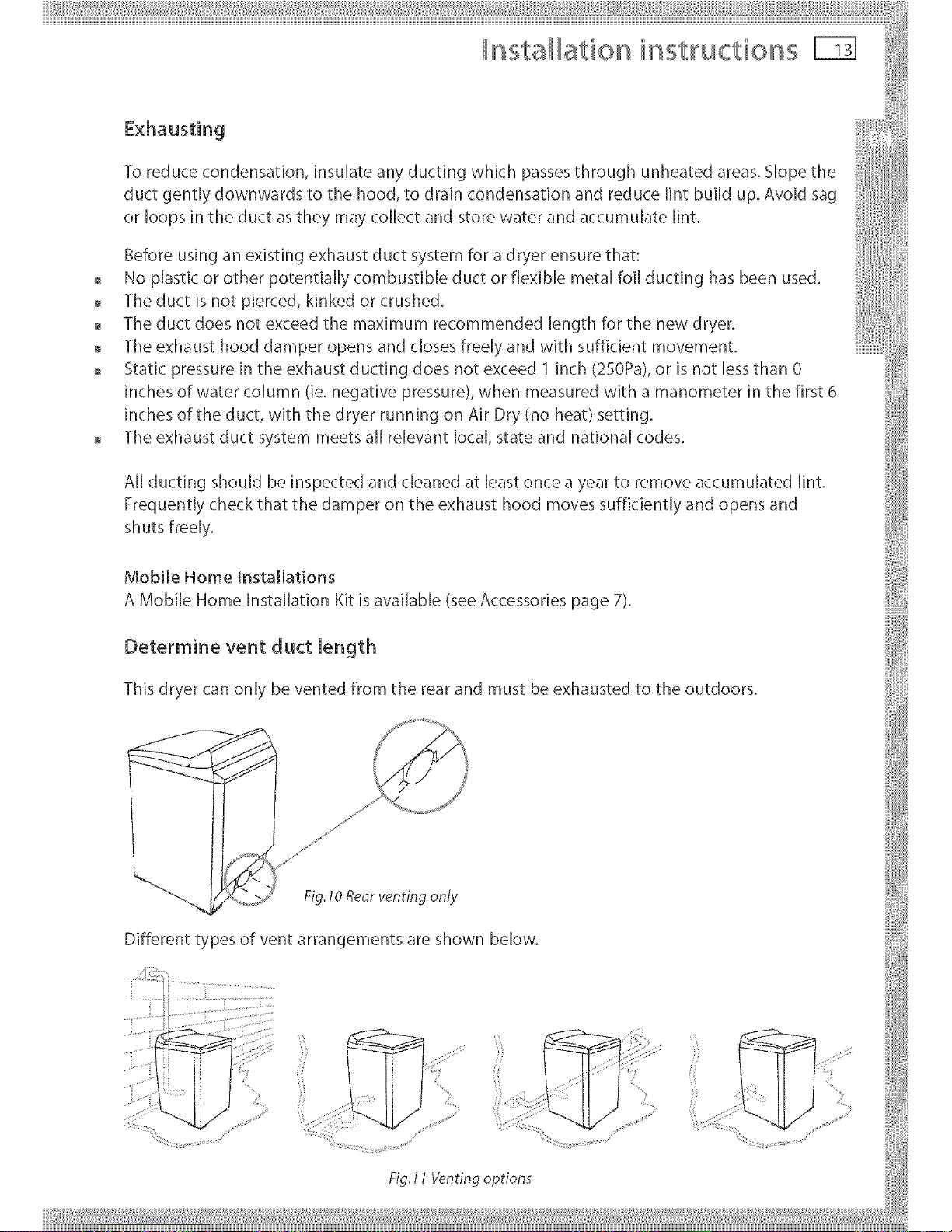

Exha u sting
To reduce condensation, insulate any ducting which passes through unheated areas. Slope the
duct gently downwards to the hood, to drain condensation and reduce lint build up. Avoid sag :[i
or loops in the duct as they may collect and store water and accumulate lint.
tefore using an existing exhaust duct system for a dryer ensure that:
No phstic or other potentially combustible duct or flexible metal foil ducting has been used.
= The duct is not pierced, kinked or crushed.
= The duct does not exceed the maximum recommended length for the new dryer.
= The exhaust hood damper opens and closes freely and with suffident movement.
= Static pressure in the exhaust ducting does not exceed 1 inch (250Pa), or is not less than 0
inches of water column (ie. negative pressure), when measured with a manometer in the first 6
inches of the duct, with the dryer running on Air Dry (no heat)setting.
The exhaust duct system meets all relevant local, state and national codes.
All ducting should be inspected and cleaned at least once a year to remove accumulated lint.
Frequently check that the damper on the exhaust hood moves sufficiently and opens and
shuts freely.
MobHe Home Installations
A Mobile Home Installation Kit is available (see Accessories page 7). ....
i
Determine vent duct length
This dryer can only be vented from the rear and must be exhausted to the outdoors.
[
) i
f
f JJ
/",_ _4' Fig lOReorventingon/y
ifferenttypesofventarrangementsareshownbelow,
go

nsta ation instructions
Choose a route that will provide the straightest and most direct path outdoors. Plan the
installation to use the fewest number of elbows and turns.
When using elbows (rigid duct) or making turns (thick wall flexible metal duct), allow as much
room as possible.With thick wall flexible metal duct bend duct gradually to avoid kinking and
avoid 90°turns.
Fig. 12 Duct configurations

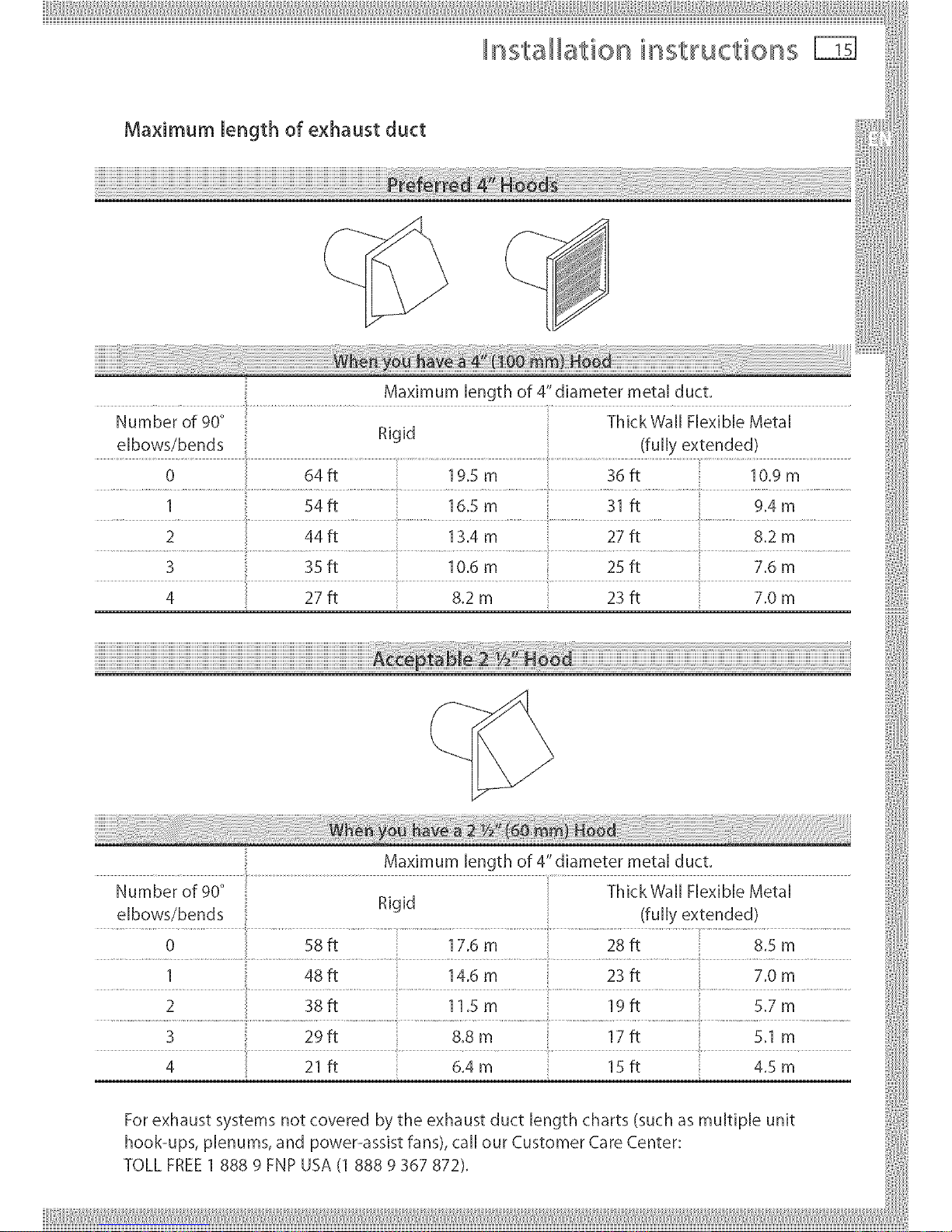

Maximum length of exhaust duct
The maximum length of the exhaust duct system depends upon:
The type of ducts (rigid or thick walled flexible metal).
The number of elbows or bends used.
1 Refer to the exhaust duct length chart that matches your hood type for the maximum duct
lengths you can use. Do not use duct runs longer than specified in the exhaust duct length
charts (refer to page 15).
Exhaust duct systems longer than specified will:
Accumulate lint creating a potential fire hazard.
Shorten the life of the dryer.
Reduce performance, resulting in longer drying times and an increased energy usage.
2
3Determine the number of elbows/bends you will need.
[n the column listing the type of metal duct you are using (rigid or thick wall flexible metal), find
the maximum length of metal duct on the same line as the number of elbows/bends to be used
(refer to page 15).

nsta ation instructions

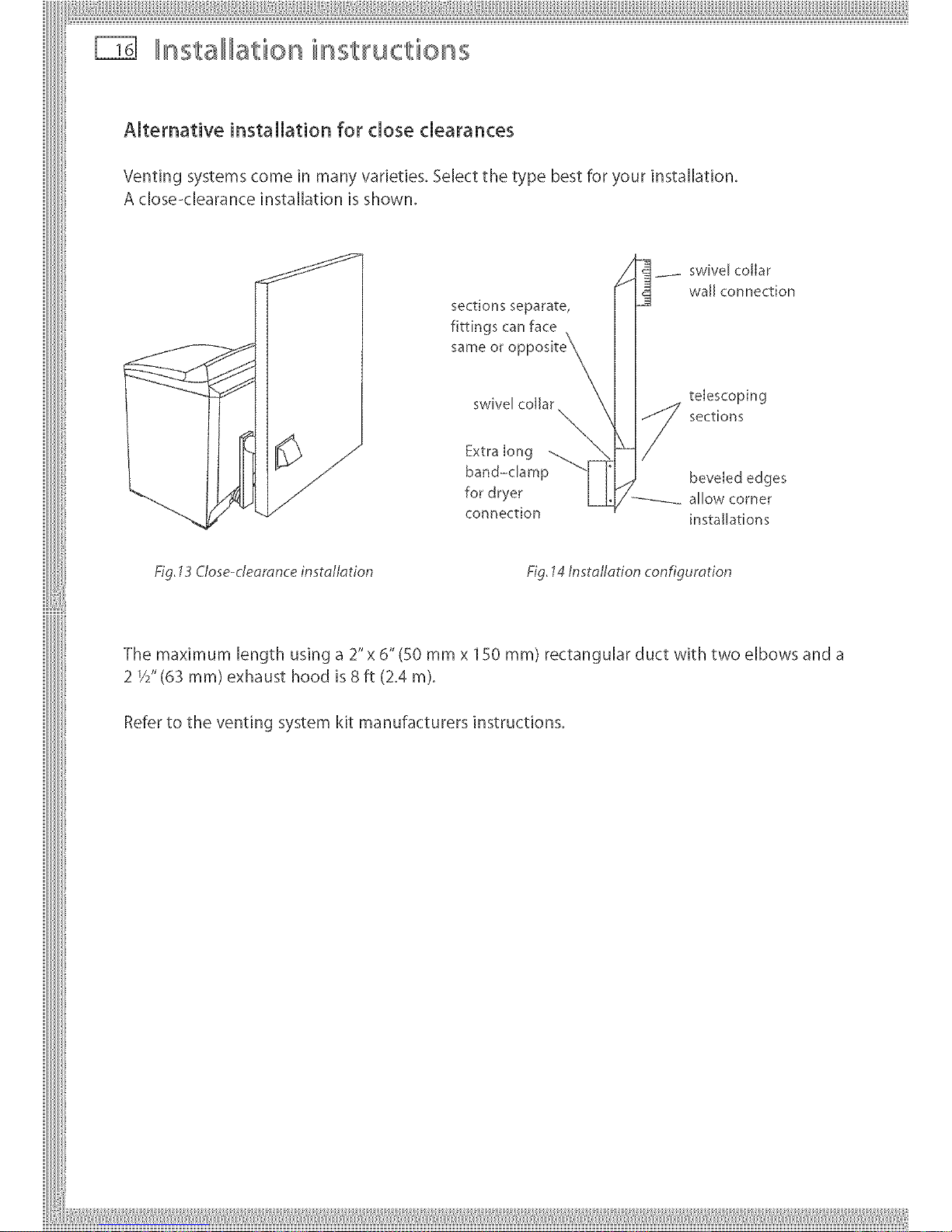

Alternative installation for close clearances
Venting systems come in many varieties. Select the type best for your installation.
A close-clearance installation is shown.
sections separate,
fittings can face
same or o
swiver collar _,
Extra long
band-cramp
for dryer
connection
swivel collar
wall connection
telescoping
_ sections
beveled edges
allow corner
installations
fig, 13 Close-cleorance installation Fig. 14 Installation configuration
The maximum length using a 2"x 6" (50 mmx 150 ram) rectangular duct with two elbows and a
2 1/S'(63 ram) exhaust hood is 8 ft (2.4 m).
Refer to the venting system kit manufacturers instructions.

nsta ation instructions FqT[

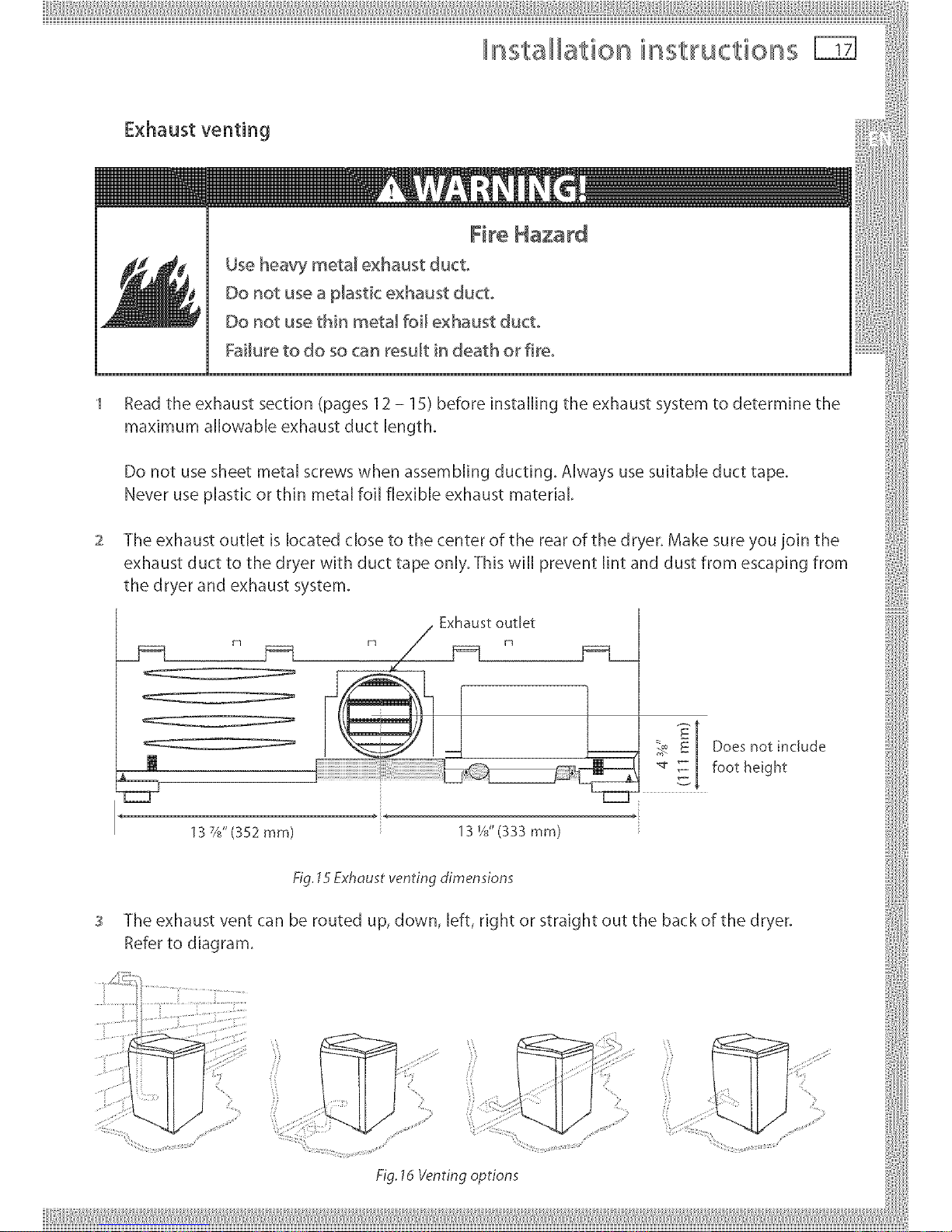

Exhaust venting
Fke Hazard
Use heavy metal exhaust duct°
Do not use a p_astic exhaust duct°
Do not use thin meta_ foi_ exhaust duct°
Failure to do so can result in death or fire°
1 Read the exhaust section (pages 12 - 15) before installing the exhaust system to determine the
maximum allowable exhaust duct length.
Do not use sheet metal screws when assembling duct[ng. Always use suitable duct tape.
Never use plastic or thin metal foil flexible exhaust material
2 The exhaust outlet is located close to the center of the rear of the dryer. Make sure you join the
exhaust duct to the dryer with duct tape only. This wi[[ prevent lint and dust from escaping from
the dryer and exhaust system.

_nsta_ation instructions
Installation
Partsand literature are packaged inside the dryer drum.
_ !_v_v/_'l_t_m_ L_
Excess Weight Hazard
Use two or more people to move and install the dryer°
Fa4ure to do so can result in back or other injury°
Only remove the packaging at the customer's premises. This wi[[ ensure the appliance arrives in
pristine condition and reduces the risk of damage when transporting to the customer's home.
Make sure dryer is in a suitable location for installation.
Consider installing the dryer before the washing machine in a side by side installation, this wi[[
allow better access to electrical and exhaust connections.
Remove packaging
1.
1. Remove straps.
4, Remove the carton
by lifting it off the
product (do not cut
the carton off),
2.
2, Unfold the bottom
flaps on the carton.
5. Remove the basepacker
by tilting the product
back and warking the
product off it.
3.
3, Unfold the top flaps on
the carton, remove top
packer.
6 Remove the drum
packer and the tape
from the lint collector
bucket in the drum.
