Fisher & Paykel DG7027G1 User manual

DG7027G1
Gas Dryer With White Steel Top
Exterior Appearence
Color White
Lid White powder-coated steel
Dimensions
Overall Height (in.) 42-43''
Overall Width (in.) 27''
Overall Depth (in.) (door closed) 29½''
Overall Depth (in.) (90° door open ) 52½''
Features
Energy Source Gas
Dryness Levels 3
Control Display SmartTouch™ Control Panel
Drum Stainless Steel
Drum Light Yes
Wrinkle guard Yes
Damp dry signal Yes
Delay Start Yes
Reversible Door Yes
Drying progress indicator Yes
Time remaining indicator Yes
Capacity
Cubic feet 7.0
Cycles
Dry Cycles 6
Steam cycle No
Regular Yes
Heavy Yes
Delicate Yes
Allergy Yes
Air Dry Yes
Time Dry Yes
Dryer exhaust
Location 4 - Left (2), bottom (1) and rear (1)
Warranty
Complete 2 years warranty Entire Appliance; In-Home; Parts & Labour
Powered by TCPDF (www.tcpdf.org)
The information contained herein is based on sources that we believe to be reliable, but is not guaranteed by us,
may be incomplete or may change without notice

Installation instructions
8
Materials:

4”(102mm) diameter rigid metal duct (recommended).

4”(102mm) diameter UL-listed flexible metal duct (if needed).

4”(102mm) diameter metal elbow(s).

Flexible metal gas line connector (for gas connections only).

Duct or spring clamps(2).

Pipe joint compound (pipe dope or tape) for gas pipe connections, resistant to LP Propane,
butane and natural gas (for gas connections only).

Exhaust/vent hood.

Duct tape.

Soap solution for gas leak detection (for gas connections only).

¾”(19mm) strain relief (electric connections only).

Dryer power cord kit (power cord is not supplied with United States models).
Requirement: UL-rated 120/240V, 30 amp with 3 or 4 prongs. Identify the plug type needed from
the existing house receptacle before purchasing. Length of cord must be at least 5 feet (1.5 m) long.
To the installer
Read these instructions completely and carefully.

These instructions must be left with the home owner for future reference.

Correct installation is the responsibility of the installer.

Installation of this appliance must be performed by a qualified installer.

The dryer must be exhausted to the outdoors.

Remove the door from an old dryer before it is removed and discarded.

The wiring diagram and service information can be found in the control console.

The limited warranty does not cover product failure as a result of improper installation.

The dryer must be installed in a location where the temperature is above 50°F (10°C) to ensure
suitable operation of the dryer control system.

UL-listed duct material must be used. Discard existing plastic or metal foil duct and replace with
UL-listed duct material.

Observe all governing codes and ordinances.

Follow the installation instructions carefully.
Important!

Save these instructions for local electrical inspector’s use.

Observe all governing codes and ordinances.

Install the clothes dryer according to the manufacturer’s instructions and local codes.

Installation instructions 9
Unpacking
To ensure the best performance from the dryer, please follow the instructions below.
WARNING!
Excess Weight Hazard
Use two or more people to move and install the dryer.
Failure to do so can result in back or other injury.
Important!
Only remove the packaging at the customer’s premises.
This will ensure the appliance arrives in pristine condition and reduces the risk of damage during
transportation to the customer’s home.
1. Remove packaging
Remove all of the outer packaging. Dispose of unwanted packaging thoughtfully.
2. Discard packing material from around dryer feet

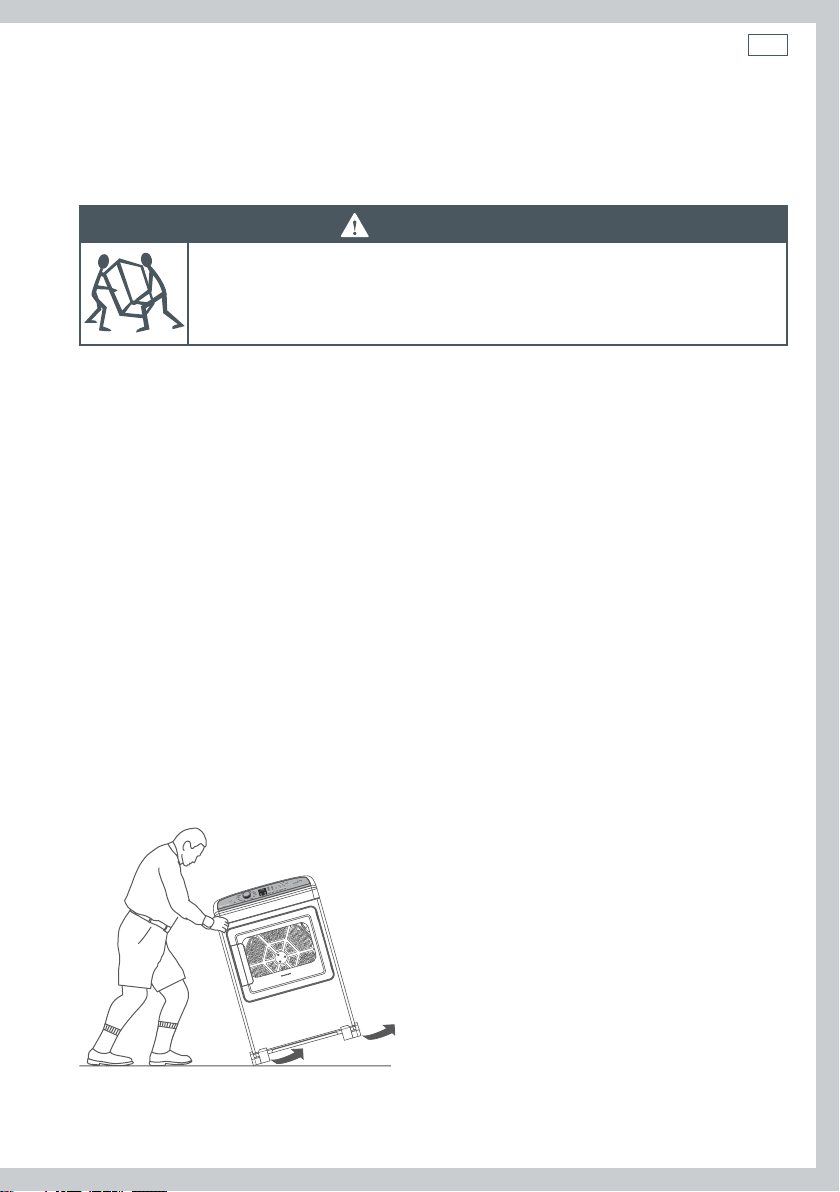

Tilt the dryer sideways and remove the foam shipping pads by pulling at the sides and breaking
them away from the dryer feet. Be sure to remove all the foam pieces before continuing with
installation.
3. Drying rack (selected models only)
Open the door. Remove the tape holding the drying rack in place. Remove the rack and remove
protective tape from ‘legs’ of rack.
4. Accessories
Remove the accessories from inside the dryer.
Fig.2 Unpacking your dryer correctly

10 Installation instructions
Location requirements
WARNING!
Explosion Hazard
Keep flammable materials and vapors, such as gasoline, away from
thedryer.
Place dryer at least 18” (460 mm) above the floor for a garage installation.
Failure to do so can result in death, explosion, fire, or burns.
The dryer must be installed or stored in an area which is not exposed to water or weather.
It is extremely important that the dryer is installed in a well ventilated location. This dryer must
exhaust air outdoors. Do not install the dryer in any room or closet which does not permit the
free flow of replacement air. The free area of any opening for the introduction of outside air shall
not be less than twice the area of the dryer exhaust outlet.
The area in which the dryer is located must be kept clear and free from combustible materials,
gasoline and other flammable vapors and liquids. A dryer produces combustible lint so the area
around the dryer must be cleaned regularly to keep it free of lint.
Make sure dryer is in a suitable location for installation.
Consider installing the dryer before the washing machine in a side by side installation, this will
allow better access to electrical and exhaust connections.

11
Installation instructions
Minimum clearance required other than alcove or closet installation
Allow sufficient room behind the dryer for the exhaust. The air intake is at the rear of the dryer.
Ensure that there is a sufficient air passage on each side of the dryer for intake air.
The minimum clearance to combustible surfaces and for air openings are: 1” (25 mm) clearance
both sides, 2” (51 mm) clearance at the front, and 1” (25 mm) clearance at the rear, or 5” (127mm)
clearance if the dryer exhaust duct is at the rear. Consideration must also be given to provide
adequate clearance for proper operation and service.
29 ½” (743 mm)
27” (683 mm)
41 ½” (1051 mm)*
Fig.3 AeroCare dimensions
52 ½” (1332 mm)
* Excludes adjustable foot height

12 Installation instructions
Requirements for alcove or closet installation
Your dryer is approved for installation in an alcove or closet (as specified on the dryer back).
WARNING!
When installing a dryer in a closet alcove it MUST be exhausted to the outdoors. No
other fuel burning appliance can be installed in the same closet or alcove.
The total ventilation area must be a minimum of 60 sq. in. (387 cm
2
) of open area equally
distributed. If the closet contains both a washer and a dryer, doors must contain a minimum of
120 sq. in. (774 cm
2
) of open area equally distributed. The openings must never be obstructed (a
louvered door with the minimum air opening is acceptable). Minimum installation clearances are
required but more clearance is recommended.

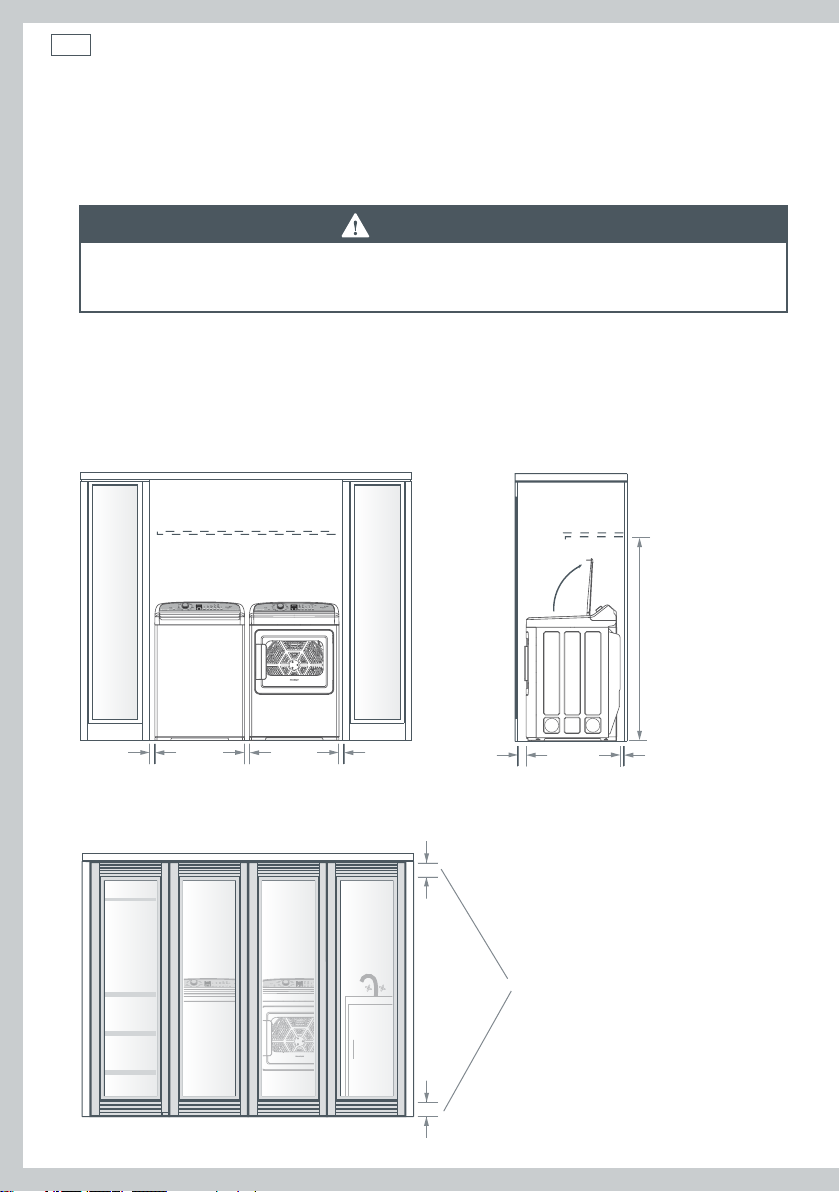

1” (25 mm) 1” (25 mm) 1” (25 mm) min 1” (25 mm)
(rear of product to wall)
minimum clearance
required
56 ⁄” (1430 mm)
total ventilation area
120 in.sq (774 cm)
Fig.4 Minimum clearances
Fig.5 Minimum ventilation
min 2” (50 mm)

13
Installation instructions
Requirements for alcove or closet installation continued

The closet should be vented to the outdoors to prevent gas pocketing in case of a gas leak in the
supply line.

No other fuel-burning appliance shall be installed in the same closet with the dryer (gas models
only).
Note: when the exhaust duct is located at the rear of the dryer, minimum clearance required
from the wall is 5” (127 mm).
Bathroom or bedroom installation
The dryer MUST be vented to the outdoors. See “Exhausting the dryer” (page 26).
Mobile or manufactured home installation
Installation is required to comply with the Manufactured Home Construction & Safety Standard,
title 24CFR, part 3280. If or when such standard is not applicable, installation must comply with
the American National Standard for Mobile Home, ANSI/NFPA No. 501.

The dryer MUST be vented to the outdoors with the termination securely fastened to the mobile
home structure.

Exhaust ducts MUST be securely fastened to a non-combustible portion of the mobile home
structure.

The exhaust MUST NOT be terminated beneath a mobile or manufactured home.

The exhaust duct material MUST BE METAL.

The exhaust duct MUST NOT be connected to any other duct, vent, or chimney, or be vented into
a wall, ceiling or concealed space of a building.

Do not use sheet metal screws or other fastening devices which extend into the interior of the
exhaust vent.
In addition to the above, for gas dryer models:

Kit 14-D346-33 MUST be used to attach the dryer securely to the structure.

Provide an opening with a free area of at least 25 sq. in. (161 cm
2
) for introduction of outside air
into the dryer room.
Residential garage installation
Dryers installed in residential garages must be elevated 18” (460 mm) above the floor.
The installation must conform with local codes or, in the absence of local codes, with the
National Electrical Code, NFPANO.70 (for electric dryers) or National Fuel Gas Code,
ANSIZ223.1/NFPA54 (for gas dryers) in the United States; and the Canadian Electrical Code
CSAC22.1 (for electric dryers) or Natural Gas and Propane Installation Code, CSAB149.1 (for gas
dryers), in Canada.

Installation instructions
14
Connecting a gas dryer (skip for electric dryer)
Refer to page 7 for tools required.
Note: installation and service of this dryer must be performed by a qualified installer, service
agency or the gas supplier.
Gas supply and installation requirements
In the Commonwealth of Massachusetts:

Installation of the dryer must be completed by a plumber or gas fitter licensed by the state.

When using ball-type gas shut-off valves, the t-handle type shall be used.

If using a flexible gas connector, this must not exceed a length of 3 feet in total.
WARNING!
Explosion Hazard
Installations must be performed by a qualified or licensed contractor,
plumber, or gasfitter qualified or licensed by the state, province, or
region where this appliance is being installed.
Use a new AGA or CSA approved gas supply line.
Install a shut-off valve in an accessible place.
Only use a gas shut-off valve approved for use within the state, province,
or region where this appliance is being installed.
Securely tighten all gas connections.
If connecting to LP Gas, have a qualified person make sure gas pressure
does not exceed 13” (330 mm) water column.
Failure to follow these instructions can result in death, explosion, or fire.

Installation instructions 15
WARNING!
To Reduce the Risk of Fire, Electrical Shock and Personal Injury:
Before connecting the dryer turn off circuit breaker(s) or remove the dryer’s circuit
fuses at its electrical box. Ensure the power cord is unplugged from the wall socket.
Ensure the gas shut off valve in the supply line is OFF.
Use only new ducting materials. Remove and discard old flexible gas connector and
duct material.
Gas type
This gas dryer is equipped with a valve and burner assembly for use only with natural gas. Your
local service organization can convert this dryer for use with propane (LP) gas, using conversion
kit WC254C1258A001.
Important!
All conversions must be completed by correctly trained and qualified personnel, in accordance
with all local codes and ordinances.
Pressure testing

The dryer must be disconnected from the gas supply piping system during any pressure testing
of the system at a pressure greater than 0.5psi (3.5kPa).

The dryer must be isolated from the gas supply piping system by closing the equipment shut-off
valve during any pressure testing of the gas supply piping of test pressure equal to or less than
0.5psi (3.5kPa).
Gas supply

A ⁄” National Pipe Taper (NPT) plugged tapping must be installed immediately upstream of the
gas supply connection to the dryer. This must be accessible for test gauge connection. Please
contact your local gas utility if you have questions regarding the installation of the plugged
tapping.

The gas supply line is to be ½” (12.7 mm) rigid pipe. The line must be equipped with an
accessible shut-off which is within 6 feet (1.8 m) of the dryer AND in the same room as the
appliance.

Pipe thread compound appropriate for Natural or Propane (LP) gas must be used.


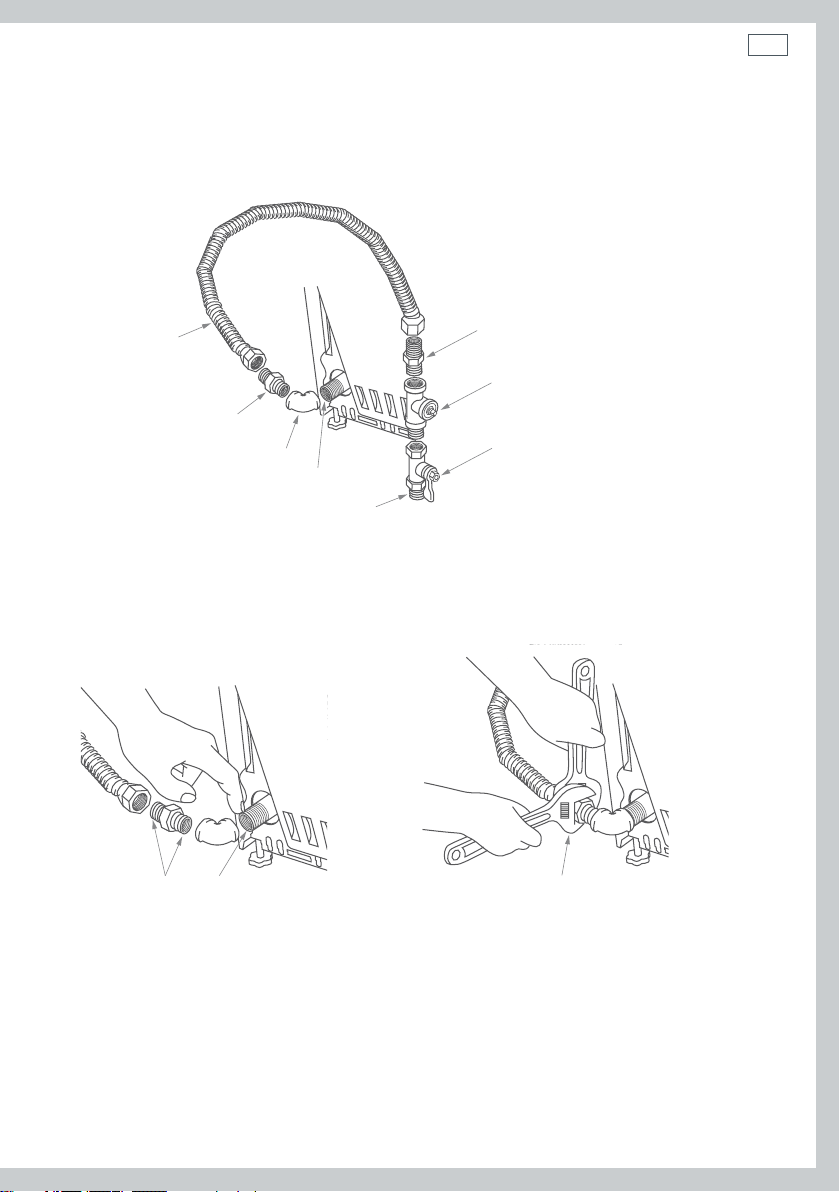

New flexible metal gas line connector should be used to connect the dryer and gas supply.

Installation instructions
16
Elevation adjustment

The input ratings of gas operated clothes dryers are based on their operation at sea level, and
need not be adjusted for operation at or below 2000 ft. (610 m) elevation. For operation at
elevations above 2000feet (610m), input ratings should be reduced at a rate of four percent per
1000feet (305m) elevation above sea level.

Installation must conform to all local codes and ordinances. In the absence of local codes and/or
ordinances, installation shall conform to the National Fuel Gas Code, ANSIZ223.1/NFPA54, or the
Natural Gas and Propane Installation Code, CSAB149.1.
Gas supply connection
Note: add to vertical dimension the
distance between cabinet bottom to floor
⁄” NPT Male thread gas supply
2 ½” (64 mm)
1 ¾” (45 mm)
Fig.6 Gas connection at rear of dryer

Installation instructions 17
Connecting the dryer to the gas supply
Gas connection parts
Ensure you have the following parts before installing the dryer.
Fig.7 Parts required for gas connection
New metal flexible
gas line connector
Adapter
Elbow
⁄” NPT
Adapter
⁄” NPT pipe plug for
checking gas inlet pressure
Shutoff valve
Pipe size at least ½” (12.7 mm)
Connecting to dryer

Install a female ⁄” NPT elbow at the gas inlet end of the dryer.

Attach a ⁄” flare union adapter to the female NPT elbow.
Using two adjustable wrenches tighten
the flexible gas line connection
Fig.9 Tighten connections
Apply pipe compound to the adapter
and dryer gas inlet threads
Fig.8 Attaching elbow and adapter
Important!
Securely hold on to the end of the dryer gas inlet with a pipe wrench to help prevent twisting
the inlet.

Installation instructions
18
Connecting to supply
Fig.10 Connecting supply
Plugged
Tapping
Shutoff valve
Apply pipe
compound to
all male threads
Fig.11 Tightening supply connections
Using two adjustable
wrenches tighten all
connections
Important!
Do not over tighten the connections.
Test for gas leaks
WARNING!
NEVER use an open flame to test for gas leaks.

Turn on the gas (open the gas shut off valve).

All connections should be checked for leaks with a soapy, or equivalent solution. Apply a soap
(or equivalent) solution to the connection points. If leaks are found, close the shut-off valve,
re-tighten the joint, then repeat the test.
Note: Do not use a solution that contains ammonia. This may cause damage to the brass fittings.
Open gas valve
Fig.12 Testing for gas leaks

Installation instructions 19
WARNING!
Fire and Poisoning Hazard
Gas leaks cannot always be detected by the sense of smell.
Use of an approved UL or CSA gas detector is recommended.
If a gas leak is detected follow the“What to do if you smell gas” instructions, stated on
the inside font cover of this user guide.

Installation instructions
20
Electrical connection information for gas dryers
WARNING!
Electrical Shock Hazard
Make sure appliance is wired or plugged into a grounded outlet.
Improper connection of the equipment-grounding conductor can result in
a risk of electric shock. Check with a qualified electrician or service person
if you are in doubt as to whether the appliance is properly grounded.
Do not modify the plug if it will not fit the outlet.
Have the proper outlet installed by a qualified electrician.
Do not use an adaptor.
Do not use an extension cord.
Failure to follow these instructions can result in death, fire or
electricalshock.
The appliance must be electrically grounded in accordance with all local codes and ordinances.
In the absence of local codes, the dryer must be electrically grounded in accordance with the
National Electrical Code, ANSI/NFPANO.70, or the Canadian Electrical Code, CSAC22.1.
Electrical requirements for gas dryers
The power supply must be 120V, 60Hz, and connected to a properly grounded branch circuit,
which is protected by a 15 or 20 amp circuit breaker, or a time-delay fuse.
If the electrical supply provided does not meet specifications outlined above, the installation of
an approved outlet by a licensed electrician is recommended.
Important!
The dryer is supplied with a three-prong (grounding) plug for your
protection against electric shock. The plug should be plugged
directly into a correctly grounded three prong power socket.
DONOT cut or remove the grounding terminal from this plug.
Ensure proper ground exists before use.
If local codes permit, an external
ground wire (not provided), which
meets local codes, may be added by
attaching to the green ground screw
on the rear of the dryer, and to a
grounded metal cold water pipe or
other established ground. Fig.13 Grounding screw
Ensure proper
ground exists
before use

Installation instructions 21
Connecting an electric dryer (skip for gas dryers) – in the United States only
Refer to page 7 for tools required.
Electrical requirements (electric models only)
WARNING!
To reduce the risk of fire, electrical shock & personal injury:
The appliance must be correctly grounded electrically, in accordance with all local
codes and ordinances. In the absence of these, the appliance shall be grounded in
accordance with the National Electrical Code ANSI/NFPA No. 70.
Before connecting the dryer, turn off the circuit breaker(s) or remove the dryer’s circuit
fuses at its electrical box. Ensure the power cord is unplugged from the wall outlet.
DO NOT leave the cover off the terminal block.
Never use an extension cord or adapter plug with the dryer.
Use only new ducting materials. Remove and discard old duct material.
WARNING!
Electric Shock Hazard
Use a new UL/CSA-listed 30-ampere power cord.
Use a UL-listed strain relief.
Disconnect power before making electrical connections.
Connect neutral wire (white or center wire) to center terminal.
On all four wire installations remove the grounding link and connect the
ground wire to the green ground connecting screw.
Connect remaining two supply wires to remaining two terminals.
Securely tighten all electrical connections.
Failure to do so can result in death, fire, or electrical shock.
Note: the wiring diagram is located in the control console.
The dryer must be plugged into or connected to an individual branch circuit, protected by the
correct time delay fuses or circuit breakers. The power supply must be a 3- or 4-wire, single
phase, 120/240 V, 60 Hz, 30 amp circuit.

Installation instructions
22
If your outlet looks like this Choose this power supply cord
3-wire
(NEMA type 10-30R) (See 3-wire connection)
4-wire
(NEMA type 14-30R) (See 4-wire connection)

If a power cord is used, this must be plugged into a 30 amp socket only.

The power cord is NOT supplied with electric model dryers in the United States.
Contact a licensed electrician if the electricity supply does not meet the required specifications.
Grounding instructions
This dryer MUST be connected to a grounded metal, permanent wiring system. Alternatively, an
equipment grounding conductor must be run with the circuit conductors and connected to the
equipment grounding terminal on the dryer.
WARNING!
Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or service representative if you are in
doubt as to whether the appliance is properly grounded.

Installation instructions 23
Connecting the dryer using 4-wire connection (must be used for mobile home installation)
Note: the National Electrical Code requires that new constructions use a 4-wire connection to
an electric dryer (effective as of January 1, 1996). Where local codes do not permit grounding
through the neutral, a 4-wire cord must also be used.
Important!
New constructions must NOT use a 3-wire connection.
1 Turn off the circuit breaker(s) (30 amp).
2 Ensure the dryer cord is unplugged from the wall outlet.
3 Locate and remove the power cord cover at the lower rear of the dryer.
4 Remove and discard the ground strap. Retain the green ground screw for later relocation (Step 7).
5 Install a ¾” (19 mm) UL-recognized strain relief to the entry hole for the power cord. Move the
power cord through the strain relief.
6 Connect the power cord according to the following:
a Connect the two hot lines to the outer screws of the terminal block (labelled L1 and L2).
b Connect the neutral (white) line to the center of the terminal block (labelled N).
7 Use the green ground screw to attach the ground wire of the power cord (ie relocate the green
ground screw to the hole above strain relief bracket).
8 Tighten all three terminal block screws completely.
9 Correctly secure the power cord to the strain relief.
10 Replace the power cord cover.
WARNING!
NEVER leave the power cord cover off the terminal block.
Remove ground strap and discard.
Keep green ground screw
L1
N
L2
Relocate green ground screw here
Strain relief bracket
Green or yellow wire
¾"
(19 mm) , UL recognized strain relief
Hot wire
Hot wire
Cover
Neutral (white)Neutral (white)
Screws (3)Screws (3)

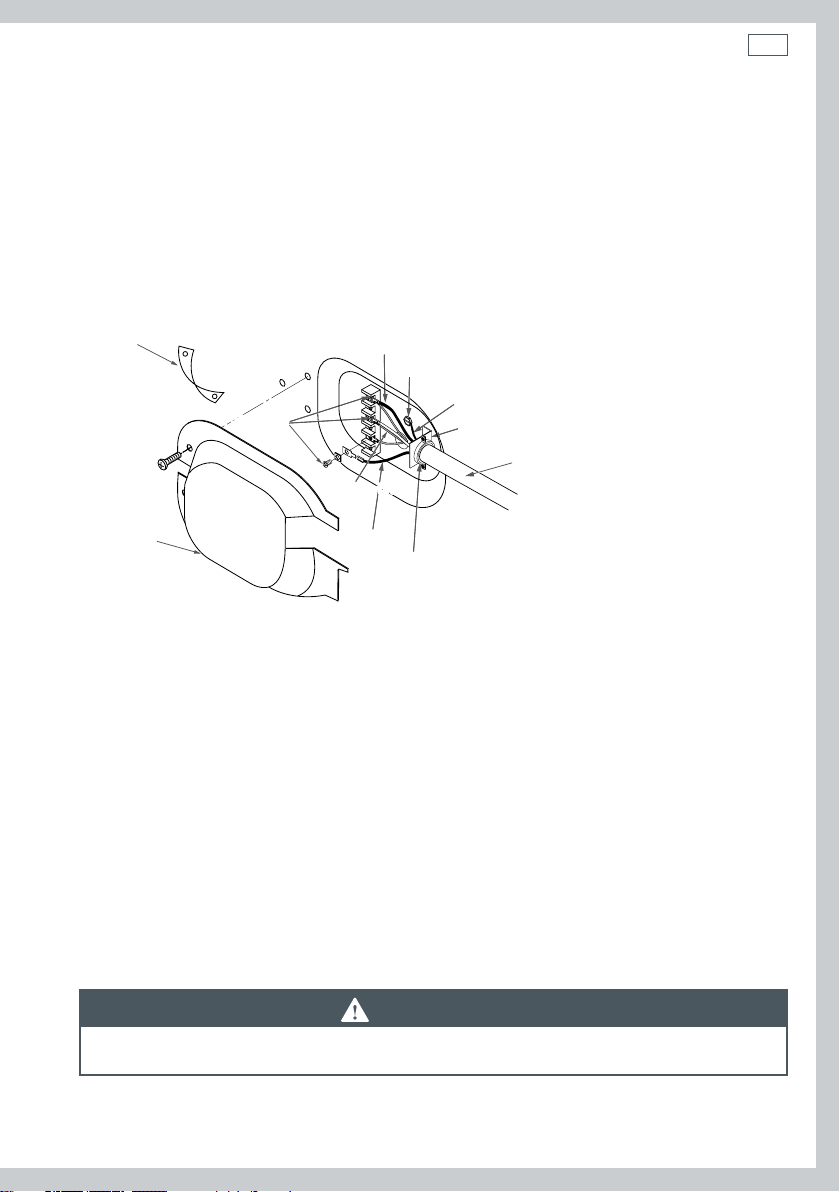

Fig.14 4-wire connections
4#10awg minimum copper conductors,
or 120/240V30amp power supply cord kit
(minlength:5 feet (1.5m)) marked for use with
dryers and provided with closed loop or spade
terminals with upturned ends (not supplied)

Installation instructions
24
Connecting the dryer using 3-wire connection
Important!

DO NOT use in Canada.

DO NOT use for Mobile home installations, on new constructions, or on recreational vehicles.

NOT for use in areas where local codes prohibit grounding through the neutral conduction.
3#10awg minimum copper conductors,
or 120/240V 30 amp power supply cord kit
(minlength5feet (1.5m)) marked for use with
dryers and provided with closed loop or spade
terminals with upturned ends (not supplied)
If required by local codes, install an external ground (not provided) to grounded metal,
a cold water pipe or other established ground as determined by a quali ed electrician.
L1
N
L2
Strain relief bracket
¾" (19 mm), UL recognized strain relief
Hot wire
Hot wire
Cover
Neutral (white)Neutral (white)
Screws (3)Screws (3)
Ground strap
Green ground screw
Fig.15 3-wire connections
1 Turn off the circuit breaker(s) (30 amp).
2 Ensure the dryer cord is unplugged from the wall outlet.
3 Locate and remove the power cord cover at the lower rear of the dryer.
4 Install a ¾” (19 mm) UL-recognized strain relief to the entry hole for the power cord. Move the
power cord through the strain relief.
5 Connect the power cord according to the following:
a Connect the two hot lines to the outer screws of the terminal block (labelled L1 and L2).
b Connect the neutral (white) line to the center of the terminal block (labelled N).
6 Ensure the ground strap is connected to neutral (center) terminal of block, and to the green
ground screw on located on the cabinet rear.
7 Tighten all three terminal block screws completely.
8 Correctly secure the power cord to the strain relief.
9 Replace the power cord cover.
WARNING!
NEVER leave the power cord cover off the terminal block.

Installation instructions 25
Connecting an electric dryer (skip for gas dryers) – in Canada only
Electrical requirements (electric models only)
WARNING!
Electric Shock Hazard
Plug appliance into grounded 4 prong outlet.
Failure to do so can result in death or electric shock.
Note: the wiring diagram is located in the control console.
It is your responsibility to:

Contact a qualified electrical installer.

Ensure the electrical connection is adequate and conforms with Canadian Electrical Code, C22.1
and all local code requirements.

Plug the dryer into, or connect the dryer to an individual branch circuit, which is protected by
the correct time delay fuses or circuit breakers. The power supply must be a 4-wire, single phase,
120/240 V, 60Hz, 30 amp circuit.
This dryer is supplied with a CSA approved power cord (5 feet (1.52 m) in length, intended for
plugging into a 14-30R wall outlet. Ensure the outlet is within reach of the dryer’s final location.
4-wire
(NEMA type 14-30R)
A replacement power cord is available, if required. Use of part number 248C1014G001 (240 V
cord set) is recommended. Contact Fisher & Paykel Customer Care (refer to page 86).
Grounding instructions
This dryer MUST be connected to a grounded metal, permanent wiring system.
WARNING!
Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or service representative if you are
in doubt as to whether the appliance is properly grounded. Do not modify the plug
provided with the dryer.

Installation instructions
26
Exhausting the dryer
Refer to page 7 for tools required.
WARNING!
Fire Hazard
The dryer must be vented to the outdoors.
Use rigid or thick wall flexible metal exhaust duct only.
Do not use a plastic exhaust duct.
Do not use a metal foil exhaust duct.
Failure to follow these instructions can result in death or fire.

This dryer must be vented to the outdoors. This will prevent the build up of lint and moisture in
the room in which it is located and reduce the risk of fire.

Use only 4” (102 mm) rigid metal ducting material for the home exhaust duct.

Use only 4” (102 mm) rigid metal or UL-listed flexible metal (semi-rigid or foil-type) duct material
to connect the appliance to the home exhaust duct. The ducting must be installed according to
the instructions found in the section “Connecting the dryer to the house vent” (page 29).

The dryer must not under any circumstances be exhausted into a chimney, a wall, a ceiling, gas
vent, crawl space, attic, under an enclosed floor, or into any concealed space of a building.

Never vent the dryer into a common duct with an exhaust system originating from a kitchen. The
combination of grease and lint creates a potential fire hazard.

Ducting must be kept as short in length and as straight as possible. Ducts can accumulate lint
and create a potential fire hazard. Do not exceed the maximum exhaust duct lengths stated later
in these installation instructions (page 33).

Never install a screen in or over the dryers exhaust duct. The screen will cause lint to accumulate,
creating a potential fire hazard.

Use duct tape to secure joints in the ducting. Do not use screws as these will extend into the
duct system, accumulate lint and create a potential fire hazard.

Never obstruct incoming or exhausted air.

Ensure access is provided for inspection and cleaning of the exhaust. This is particularly
important at turns and joints. The exhaust system shall be inspected and cleaned annually.

The dryer is set up for rear exhausting. If space available for installation is limited, the dryer can
be vented directly from the sides or bottom of the cabinet. Refer to pages 35 to 38.
