Fisher & Paykel DCS BE1-30 User manual

USER GUIDE
US CA
OUTDOOR GRILL
BE1-0
Models

!DANGER
IF YOU SMELL GAS
• Shut off gas to the appliance.
• Extinguish any open flame.
• Open lid.
• If odor continues, keep away from the
appliance and immediately call your
gas supplier or your fire department.
!WARNING
• Do not store or use gasoline or other
flammable liquids or vapors in the
vicinity of this or any other appliance.
• An LP cylinder not connected for use
must not be stored in the vicinity of
this or any other appliance.

1
CONTENTS
Introduction 3
Safety and warnings 4
Before you begin 9
Lighting instructions 10
Using the grill 12
Leak testing 14
Burner adjustment 15
Care and cleaning 17
Troubleshooting 20
Warranty and service 21

3
INTRODUCTION
Giving you the searing heat and precise control of DCS appliances, the Series 9 All Grill
gives you 525 square inches of flat top grilling space with up 50,000 BTU. Designed with
flexibility in mind, the All Grill can be built-in to match the full suite of professional styled
DCS Series 9 products, or mounted on a freestanding cart to create the complete outdoor
kitchen for your backyard.

4
SAFETY AND WARNINGS
!WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electric shock or death.
• This appliance is equipped with a three-prong or
four-prong grounding plug for your protection
against shock hazard and should be plugged
directly into a properly grounded power outlet.
• Never remove the grounding plug or use with
a 2 prong adapter.
• Use only extension cords with a 3 prong
grounding plug, rated for the power of the
equipment, and approved for outdoor use with a
W-A marking.
• Do not immerse cord or plugs in water or other
liquid.
!WARNING!
Fire Hazard
Failure to follow this advice may result in a
fire causing death or serious injury.
• This unit is for outdoor use only. Do not operate
under unprotected combustible construction. Do
not use in buildings, garages, sheds, breezeways,
covered structures or other such enclosed areas.
• Never store a spare LP cylinder under or near
this unit. Do not fill the gas tank more than 80%
of its total capacity.
• Do not use aluminium foil to line drip pans,
grates or radiant trays. This can interfere with
combustion, air flow or trap excessive heat in
the control area. The result of this can be melted
dials or damaged ignition components.

5
SAFETY AND WARNINGS
!WARNING!
Hot Surface Hazard
Failure to follow this advice may result in fire,
burns, scalds or personal injury.
• Accessible parts may become hot during use.
• When in use, do not touch the burner, grate,
or immediate surrounding area as these areas
become extremely hot. Clean the with caution.
• Never let clothing or other flammable materials
come in contact with or get too close to any
grate, burner or hot surface until it has cooled.
• Never lean over an open unit. When lighting a
burner, always pay close attention to what you
are doing. Be certain you are pushing the burner
dial when you attempt to light.
• Never operate the unit without a drip tray. Let hot
grease cool before attempting to handle it. Avoid
letting grease deposits collect in the drip pan.
• Ensure all controls are turned off and the unit is
cool before using any type of aerosol cleaner on or
around the product. The chemical that produces
the spraying action could, in the presence of heat,
ignite or cause metal to corrode
• Keep any electrical supply cord and the fuel
supply hose away from any heated surfaces.
!WARNING!
Excessive weight Hazard
Failure to follow this advice may result in
personal injury.
• Two or more people are required to move and
install this unit.

6
SAFETY AND WARNINGS
WARNING!
To reduce the risk of fire, injury to persons or damage when using the appliance, follow the
important safety instructions listed below. Read all the guidance before using the appliance.
Do not use an outdoor cooking gas appliance for purposes other than intended.
Servicing
zzDo not repair or replace any part of the appliance unless specifically recommended in
the user guide. All other servicing should be undertaken be a Fisher & Paykel trained and
supported service technician or qualified person.
zzOnly use the product with the type of gas specified on the rating plate. To change gas
type a factory conversion kit is required.
Fire Hazard
zzUse only in well ventilated areas.
zzNever leave the product unattended when in use.
zzAlways remove the cover before lighting. Do not replace cover during cooking or before
appliance has cooled.
zzDo not use a flame to check for gas leaks.
zzDo not attempt to disconnect any gas connections while your appliance is in use or the
gas supply is on.
zzNever connect an unregulated gas line to the appliance.
zzHave an ABC rated Fire Extinguisher accessible – never attempt to extinguish a grease fire
with water or other liquids.
Storage
zzWhen not in use, ensure the gas supply is turned off at the supply cylinder.
zzKeep appliance covered when not in use
zzStorage of the appliance indoors is permissible only if the cylinder is disconnected and
removed from the unit.
zzCylinders must be stored outdoors, out of reach of children and must not be stored in a
building, garage, or any other enclosed area.
!WARNING!
Explosion Hazard
Failure to follow this advice may result in
injury or death
• If you smell gas, do not use the appliance.
• Do not use water on grease fires, a violent
steam explosion may result. Turn all burners off,
then smother fire or flame or use dry chemical
or foam-type extinguisher.
• Do not heat unopened food containers such as
cans – build up of pressure may cause container
to burst and result in injury.

7
SAFETY AND WARNINGS
zzDo not store a full LP tank in direct sunlight.
zzAfter a period of storage or non-use, the appliance should be checked for gas leaks,
deterioration, proper assembly, and burner obstructions before use.
General Use
zzThis appliance is not intended to be installed in or on recreational vehicles, trailers or
boats.
zzAfter lighting burners, ensure they are operating correctly.
zzWhen using the appliance, be sure that all parts of the unit are firmly in place and that
everything is stable.
zzOn cart mounted units, never move without first allowing the appliance to cool,
disconnecting the cable and ensuring that the gas supply is turned off.
zzDo not move the appliance during use.
zzChildren should not be left alone or unattended in an area where the product is being
used. Never allow them to sit, stand or play on or around the unit at any time.
zzDo not store items of interest to children around or below the appliance.
zzNever use the appliance in a windy area.
zzTo put out flare-ups, adjust the controls to lower the temperature.
zzDo not obstruct the flow of combustion and ventilation to the appliance.
zzSpiders and insects can nest in the burners or openings and can block or restrict the
burner. This can cause a flash back to the control panel which can cause a fire.
zzDo not try lighting this appliance without reading the lighting instruction in the user
guide.
zzDo not locate, store or operate the appliance on a slope.
zzThis product must be installed by a licensed plumber or gas fitter when installed within
the Commonwealth of Massachusetts.
zzNever use a dented or rusty LP tank. Keep the ventilation openings of the cylinder
enclosure free and clear from debris.
zzClean and perform general maintenance on the appliance regularly. Watch for corrosion,
cracks, or insect activity. Check the regulator, hoses, burner ports, air shutter, and
venturi/valve section carefully. Always turn off gas at the source prior to inspecting.
zzYou must inspect the unit at least once a year or immediately if the smell of gas is
present in conjunction with the burner flames appearing yellow, the appliance does not
reach temperature or heats unevenly or the unit makes popping noises.
zzDo not smoke while leak testing and extinguish all open flames.
zzWhen cleaning the burners centre the burner onto the orifice correctly and ensure they
are level before lighting to prevent fire hazard or explosion. Refer to the user guide for
detailed guidance.
zzUse only a Ground Fault Interrupter (GFI) protected circuit with this outdoor cooking
gas appliance.
zzUnplug from the outlet when not in use and before cleaning. Allow to cool before
putting on or taking off parts.
zzDo not operate the appliance with a damaged cord, plug, or after the appliance
malfunctions or has been damaged in any manner. Contact the manufacturer for repair.
zzDo not let the cord hang over the edge of a table or touch hot surfaces.
zzWhen connecting, first connect plug to the appliance then plug appliance into the
outlet.
zzDo not place the unit directly on the ground or other surface without support. This will
prevent damage to the regulator/hose assembly.

8
SAFETY AND WARNINGS
Gas requirements
zzThis appliance can be used with any brand of 20lb LP gas tank provided it is
compatible with a proper retention device (not supplied).
zzThe LP gas cylinder must be:
zzDesigned for use with a Type 1 system only.
zzConstructed and marked in accordance with the Specifications for LP gas Cylinders
of the U.S. Department of Transportation (D.O.T.) or the Standard for Cylinders,
Spheres and Tubes for Transportation of Dangerous Goods and Commission, CAN/
CSA-B339
zzProvided with a listed overfilling prevention device.
zzProvided with a cylinder connection device compatible with the connection for
outdoor cooking gas appliances
zzThe cylinder must be provided with a shut-off valve terminating in an LP gas supply
cylinder valve outlet specified, as applicable, for connection Type 1.
zzDo not change the regulator/hose assembly from that supplied with the unit or attempt
to use a Type 1 equipped regulator/hose assembly with a standard 510 POL tank/valve
assembly.
zzNever use a cylinder with a damaged valve. The cylinder that is used must have a collar
to protect the cylinder valve.
zzAn installer-supplied gas shut-off valve must be installed in an easily accessible location
zzAll installer supplied parts must conform to local codes, or in the absence of local
codes, with the National Electrical Code, ANSI/NFPA 70 or the Canadian Electrical
Code, CSA C22.1, and the National Fuel Gas Code, ANSI Z223.1 or CSA-B149.1 Natural
Gas Installation Code or CSA-B149.2 Propane Installation Code.
zzIn Massachusetts such shut-off valves should be approved by the Board of State
Examiners or Plumbers & Gas Fitters.
zzAll pipe sealants must be an approved type and resistant to the actions of LP gases.
Never use pipe sealant on flare fittings.
zzA dented or rusty LP tank may be hazardous and should be checked by your LP
supplier.
zzAlways check for leaks after every LP tank change.
zzGas leak testing must be carried out by a qualified technician.
zzFor LP units, check with a full cylinder.
zzDo not use the appliance until all connections have been checked and do not leak.
zzBefore each use, inspect the gas supply piping or hose prior to turning the gas
ON. If there is evidence of cuts, wear, or abrasion, it must be replaced prior to use.
The pressure regulator and hose assembly supplied with the unit must be used. If
replacements are needed, contact customer care at www.dcsappliances.com

9
zzEnsure the installer has completed the final checklist in the installation guide.
zzRead this guide, taking special note of the safety and warnings section.
zzRemove all packaging and dispose of it responsibly. Recycle items that you can.
Grill Features
1 Control dials
2 Dual-sided grates
3 Drip pan
Not shown: lid
BEFORE YOU BEGIN
1 1
3
2
Grill layout
Each grill section consists of a burner, heat baffles, ceramic rods encased in a radiant tray,
and a heat retaining grate. Each burner is rated at 25,000 Btu/hr or 26,5MJ/h.
Discoloration of the grates is normal after use.
Seasoning the grates
Season your grates before first use and then periodically to protect the grate surface from
corrosion, and to stop food sticking.
1 Pour two teaspoons of vegetable oil on a soft cloth and rub on both sides of the
grates. Only a light coating is needed.
2 Turn the dial to a medium heat setting. Some smoke may be visible during the
preheating stage.
3 Turn the dial to OFF when the oil begins to smoke and allow the grill to cool.
4 Repeat as needed.
Dial halos
When a dial is in use, an orange halo
around that dial will illuminate. This will
change from orange to white if the dial
is turned to OFF but another dial remains
active. If all dials are turned OFF, all halos
will dim.
Multiple DCS Series 9 products may
be linked together to allow for cross-
product halo illumination. To allow for
this functionality, an approved DCS
kit is required and can be purchased
separately from your local DCS dealer.

10

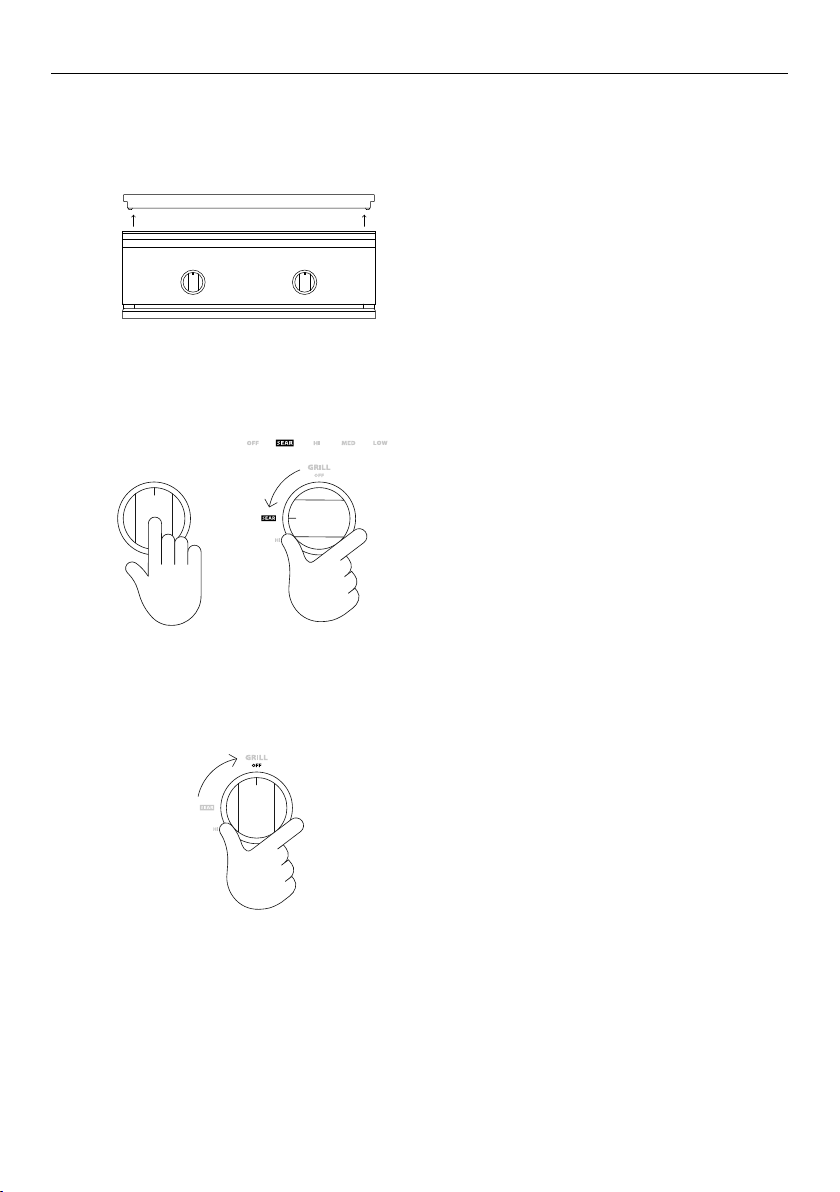

LIGHTING INSTRUCTIONS
Push in and hold the selected dial for 2
seconds before turning to SEAR. Hold for 5
seconds to light the selected burner.
If burner does not light in 5 seconds,
turn dial back to OFF and wait 5 minutes
before trying again. This will allow any
accumulated gas to dissipate.
2
3
1Remove the cover and any cooking utensils.
Ensure the drip pan is in place.
If you are using propane gas, a slight pop or flash may occur at the burner ports a few
seconds after the burner has been turned OFF. This is normal for propane gas.

11

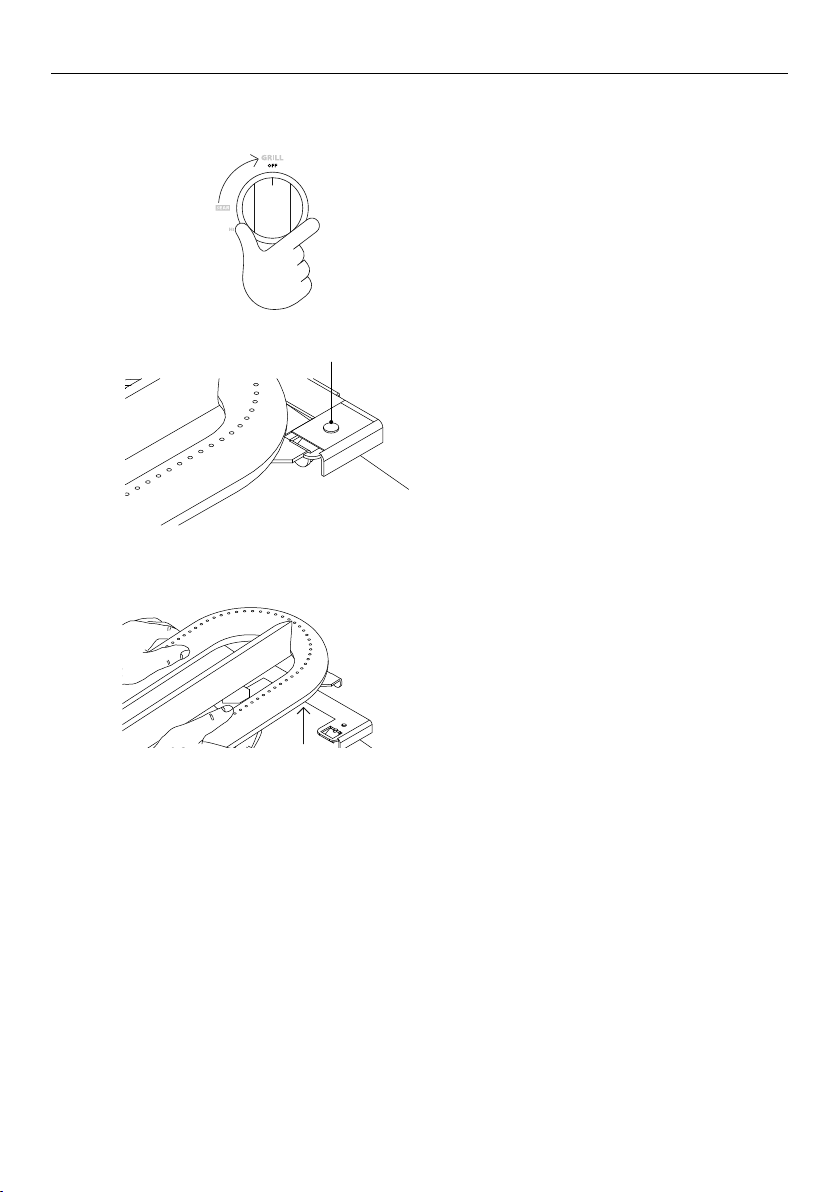

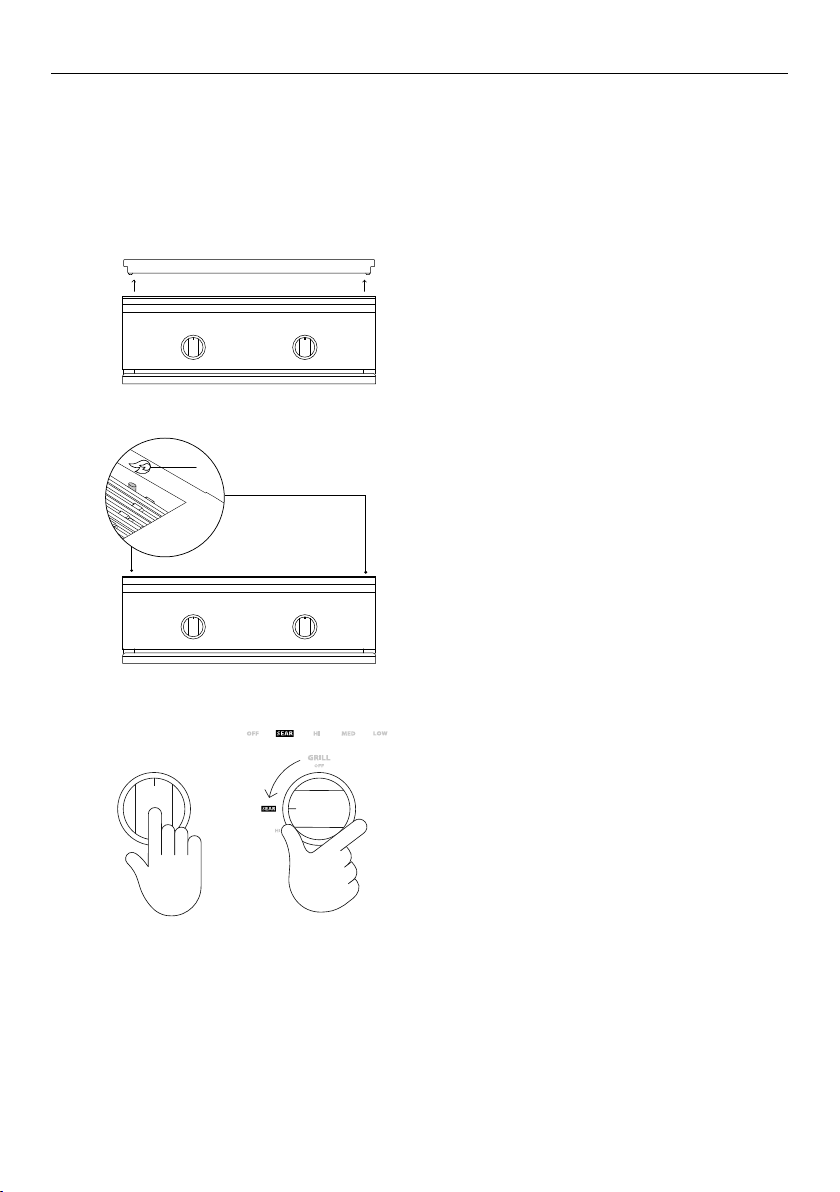

Manual lighting
If the burner will not light after several attempts, the burner can be manually lit. If you have
attempted to light the burner with the ignition, allow 5 minutes for any accumulated gas to
dissipate.
Hold a match over the hole located on the
top left for burner on the left, or the right
hole for the right burner.
Push and turn the corresponding control
dial to SEAR. If the burner does not light in
5 seconds, turn dial back to OFF and wait 5
minutes before trying again.
2
1
3
LIGHTING INSTRUCTIONS
Remove the cover and any cooking utensils.
Ensure the drip pan is in place.

12
1
USING THE GRILL
Light the grill burners following the lighting
instructions and preheat.
Place food on the grill and cook to the
desired level. You can adjust the heat
setting during cooking if needed.
2
Using the grill
When finished
Turn control dial to OFF and shut the main gas supply. Allow the grill to cool and clean after
each use.
Remove the cover and any cooking utensils.
Ensure the drip pan is in place.

13
USING THE GRILL
W SHAPED GRATE RADIUS GRATE
Chicken Lobster
Steaks Shrimp
Bread Scallops
Sausages Flat breads
Dual-sided grates
The dual-sided grate provides cooking options for food of varying textures. One side has a
W-shaped surface that creates nice sear lines for steaks, chicken, chops and routes oil and
grease away from food. The other side has a radius surface area providing more support for
handling of delicate food items.
Grilling guidelines
Grilling requires high heat for searing and browning. Most foods are cooked at the MED
to HI heat setting for the entire cooking time, however, when grilling large pieces of meat
or poultry, it may be necessary to turn the heat to LOW after the initial browning. Foods
cooked for a long time or basted with a sugary marinade may need a lower heat setting
near the end of the cooking time.

14
LEAK TESTING
1
2
Prepare soap solution by combining
one part liquid detergent and one
part water. Pour into a spray bottle.
Ensure all control valves are in the
OFF position before turning the gas
supply ON.
Check all connections from the
supply line or LP cylinder by
applying the solution around the
connection, tubing and end of the
manifold. Soap bubbles will appear
where a leak is present.
A complete gas tightness check must be performed at the installation site. Periodically
check the whole system for leaks, or immediately if the smell of gas is present.
When using a LP gas cylinder ensure it is installed in a vertical position to provide the
required vapor withdrawal.
If a leak is present
Immediately turn the gas supply OFF and tighten any leaking connections. Turn gas ON,
and recheck. If you cannot stop a gas leak turn the gas supply OFF and call your local gas
utility or the dealer you purchased the appliance from. Only parts recommended by the
manufacturer should be used on the unit, substitution can void the warranty.
Changing the LP cylinder
Ensure the main tank valve is turned off before turning the coupler counter clockwise, the
inlet will then disengage. Remove the inlet from the tank valve opening. Your local LP filling
station should be equipped with the proper equipment to fill your tank.
Do not attempt to remove, repair or replace the regulator/hose assembly. This must be
done by qualified and licensed technician only.
leak points
leak points
NG:
leak points
LP:

15

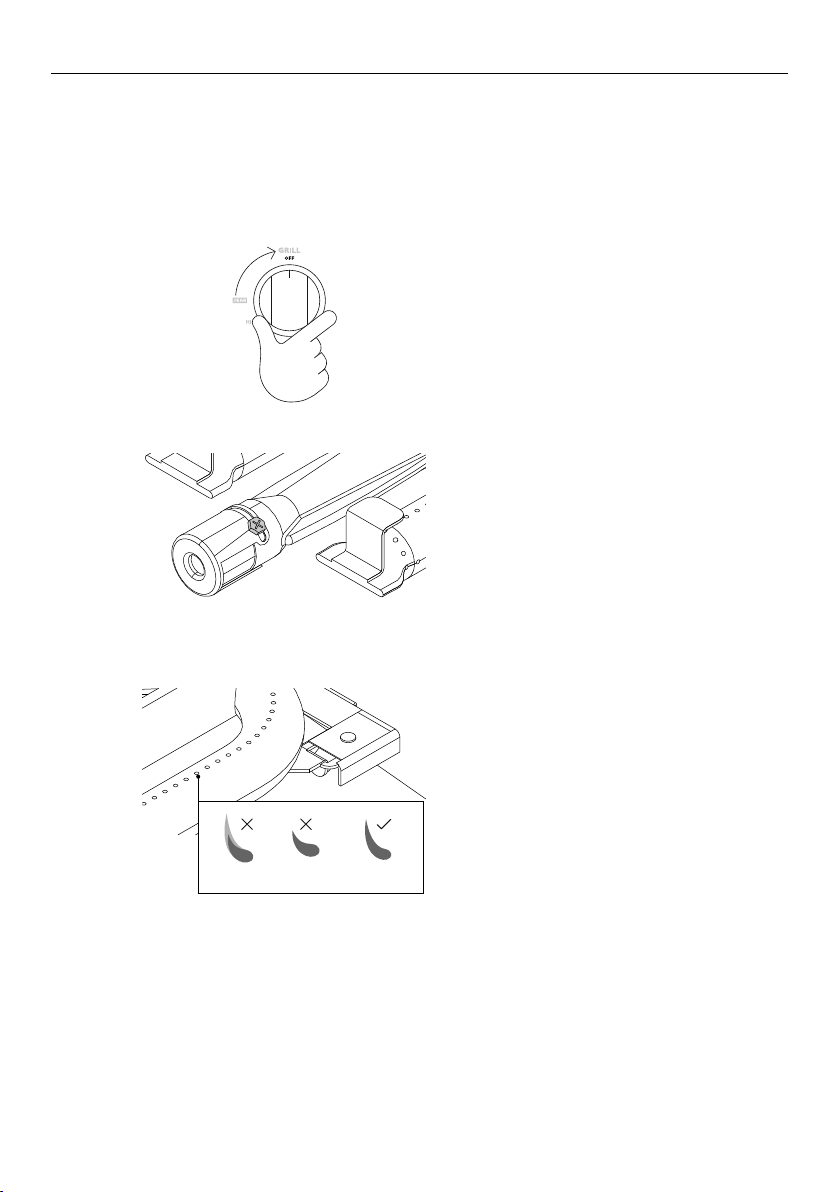

BURNER ADJUSTMENT
Flames should be blue and stable with no yellow tips, excessive noise or lifting (Note: LP
units may have some yellow tipping). If any of these conditions exist, check the air shutter
and burner ports are clear. If cleaning these does not improve performance, the air shutter
can be adjusted as per the instructions below.
1
3
2
Reinstall the U-burner and light
to check. If the flame is blue and
stable, remove the burner, tighten
the air shutter screw and replace all
parts. If flame is still unstable, repeat
the above steps.
Ensure the grill is OFF and cool.
To access the air shutters, remove
the grate, radiant and U-burner.
With a screw driver, loosen the lock
screw on the face of the air shutter
so it can be adjusted. If the flame is
yellow turn the air shutter counter-
clockwise, if the flame is noisy and
tends to lift turn the air shutter
clockwise.
Flame height adjustment
yellow tips noisy/lifting blue + stable

16
The valves on the grill feature an adjustable low setting. Due to fluctuations in gas pressure,
or heating value you may want to increase or decrease gas flow in the low position. If the
gas type has been converted from natural to LP or vice-versa, the low flame setting must be
reviewed and adjusted.
1
3
4
2
Remove the dial.
Hold the valve shaft with pliers, insert
a flat-tipped screwdriver into the shaft
and, while viewing the burner, adjust
to a minimum stable flame.
Turn the control dial counter-
clockwise to the lowest setting.
BEZEL FRONT VIEW
Push in and hold the selected dial
for 2 seconds before turning to
SEAR. Hold for 10 seconds to light
the selected burner.
BURNER ADJUSTMENT
Low flame adjustment

17
CARE AND CLEANING
Regulator and hose replacement
The pressure regulator and hose assembly supplied with the unit must be used. If
replacements are needed, contact customer care at dcsappliances.com.
Resetting the flow control
Failure to follow the steps in the order shown may cause the Flow Limiting Device to
activate resulting in extremely low gas flow and irregular operation.
1 All dials must be in the OFF position.
2 Attach regulator hose assembly to the tank and open the LP tank valve (minimum of
two full turns).
Cleaning grill grates
The grill grates must be re-seasoned after cleaning to prevent rust stains.
Full clean
zzThe easiest way to clean the grill is immediately after cooking is completed.
zzWear a mitt to protect your hand from the heat and steam.
zzDip a soft brass bristle brush in a mixture of 2 cups of water and 1/2 cup of vinegar and
scrub the grill while still hot. The steam created will assist in the cleaning process. Any
food particles loosened in the process will fall onto the ceramic rods and burn off or fall
into the drip pan.
Sear clean
Turn burners on HI for 15-20 minutes to burn any remaining food particles. After turning the
grill OFF, use a bristle brush to remove any remaining food particles or ash.
Ceramic rods
If grease can be seen on the rods or there are a lot of flare-ups during cooking, turn the
rods over and heat on HI for 30 minutes.
304 Stainless steel
The grill is made from non-rusting and non-magnetic stainless steel. After initial use, areas
of the grill may discolor from the intense heat given off by the burners, this is normal.
Grease can gather on the surfaces of the stainless steel and bake on to the surface and give
the appearance of rust. To remove baked on grease use an abrasive pad in conjunction with
a stainless steel cleaner. Always rub in the direction of the grain.
Note: Stainless steel tends to corrode in presence of chlorides and sulfides especially in
coastal areas. To ensure corrosion prevention, wash all stainless steel surfaces every three
to four weeks with fresh water and stainless cleaner. Keep grill covered when not in use.

18
Removing the burners for cleaning
CARE AND CLEANING
3
Use a screw driver to open the bracket
slot at the rear of the unit
2
1
Ensure the grill is OFF and cool.
Remove the grill grates, then lift
out the radiant tray.
Press the bracket down while pulling
the burner back and up. This should
remove the burner from the bracket
at the rear and the opening in the
control panel.
Angle the burner sideways to remove.
Burner cleaning
Clean the exterior of the burner with a stainless steel wire brush. Clear stubborn scale
with a metal scraper. Clear any clogged ports with a straightened paper clip. Never use
a wooden toothpick as it may break off and clog the port. Shake out any debris through
the air shutter. Use a flashlight to inspect the burner inlet to ensure it is not blocked. If
obstructions can be seen, use a metal wire to remove.
With the burner removed, remove the orifice and shine a flashlight through the opening to
ensure there is no blockage. Use a needle to clear any debris. Be extremely careful not to
enlarge the hole or break the needle.
remove screw
