Fisher & Paykel ActiveSmart E402B Mounting instructions

E402B, E442B, E522B, RF540A
Ice & Water refrigerator
Installation instructions
and user guide (EN)
Ice & Water køleskab
Installationsanvisninger
og brugsanvisning (DA)
Ice & Water-kylskåp
Installationsinstruktioner
och användarmanual (SV)
Ice & Water -kühlschrank
Installationsanweisungen
und Bedienungshandbuch (DE)
Ice & Water-kjøleskap
Installasjonsanvisninger
og brukerhåndbok (NO)
Koelkast met waterdispenser en ijsblokjesmaker
Installatievoorschriften
en gebruiksaanwijzing (NL)
Réfrigérateur Ice & Water
Conseils d’installation
et guide d’utilisation (FR)
Frigorifero Ice & Water
Istruzioni per l’installazione
e guida per l’utente (IT)
Ψυγείο Ice & Water
Οδηγίες εγκατάστασης
και οδηγίες χρήσης (EL)

EN English Page 1 – 41
DA Dansk Side 43 – 83
SV Svenska Sidan 85 – 125
DE Deutsch Seite 127 – 167
NO Norsk Side 169 – 209
NL Nederlands Pagina 211 – 251
FR Français Page 253 – 293
IT Italiano Pagina 295 – 335
EL Ελληνικά Σελίδα 337 – 377

1
Contents
Safety and warnings 2
Installation instructions 4
All about the display 14
Using your water dispenser 16
Using your ice maker 17
Using the display options 18
Fast Freeze and Bottle Chill 18
The temperature of your refrigerator and freezer 19
Settings 20
User warnings 21
Active Smart™ special features 22
Water filter 25
Active Smart™ maintenance 27
Cleaning and caring for your refrigerator 28
On vacation/holiday 31
Refrigerator sounds 32
Storing food in your refrigerator 33
Storing food in your freezer 35
Problem solving checklist 37
Customer care 41
Filter performance data sheet 378
Important!
SAVE THESE INSTRUCTIONS
The models shown in this User Guide may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please visit our local website listed on the back cover
or contact your local Fisher & Paykel dealer.
Note that the word “refrigerator”, throughout this User Guide, refers to combination refrigerator/
freezer products.
EN

2Safety and warnings
WARNING!
Electric Shock Hazard
Read and follow the SAFETY AND WARNINGS outlined in this User Guide
before operating this appliance.
Failure to do so can result in death, electric shock, fire or injury to persons.
To reduce the risk of fire, electric shock, or injury to persons read the IMPORTANT SAFETY
INSTRUCTIONS before operating this appliance.
Use this appliance only for its intended purpose as described in this User Guide.
Important!
When using this appliance always exercise basic safety precautions including the following:
Danger
This appliance is not intended for use by young children or infirm persons without supervision.
Young children should be supervised to ensure they do not play with the appliance.
Risk of child entrapment. Before you throw away your old refrigerator:
– Take off the doors
– Leave the shelves in place so that children may not easily climb inside.
Disposal
Extreme care must be taken when disposing of your old appliance to avoid hazards. The
refrigerant gas must be safely removed and for the safety of young children, remove doors.
Your Fisher & Paykel Appliances Authorised Service Centre will be able to give advice on
environmentally friendly methods of disposing of your old refrigerator.
Electrical
This appliance must be properly installed in accordance with the installation instruction before
it is used.
Never unplug your refrigerator by pulling on the power cord.
Always grip the plug firmly and pull straight out from the outlet.
Do not plug in any other appliance at the same power point as your refrigerator or use
extension cords or double adapters.
Repair or replace immediately all electric service cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion along its length or at either the plug
or appliance end.
If the power supply cord is damaged, it must only be replaced by your Fisher & Paykel
Appliances Authorised Service Centre because special purpose tools are required.

3
Safety and warnings
When moving your appliance away from the wall, be careful not to roll over or damage
the power cord.
Unplug your refrigerator before cleaning or replacing the lightbulb.
Storing food and drinks
Never store volatile or flammable materials in your refrigerator as they may explode.
Never freeze liquids in glass containers. Liquid expands during freezing, which may cause the
container to explode.
Never freeze carbonated drinks. They may explode.
Do not consume food if it is too cold. Food removed from the freezer compartment may be
cold enough to cause damage when brought into contact with bare skin e.g. frozen
ice cubes.
Power Failure – Food safety
Do not refreeze frozen foods that have thawed completely. Follow the recommendations below
if you discover food in your freezer has thawed:
1) Ice crystals still visible – food may be refrozen but should be stored for a shorter period than
recommended.
2) Thawed but refrigerator cold – refreezing generally not recommended. Fruits and some
cooked food can be refrozen but use as soon as possible. Meat, fish, poultry – use immediately
or cook then refreeze. Vegetables – discard as they usually go limp and soggy.
3) Thawed and warmer than 5˚C (41˚F). Discard all food.
Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.
Cleaning
Many commercially available cleaning products contain solvents which may attack plastic
components of your refrigerator and cause them to crack. Please refer to the cleaning care
section of this booklet for further advice.
SAVE THESE INSTRUCTIONS
EN

4Installation instructions
Contents of filter kit
1
4 m (13 ft) white 6 mm (¼”) tubing
2
1 x 200 mm (8”) blue tubing
3
1 x pressure reducing valve (PRV)
4
1 x double sided foam
5
2 x locking keys
6
1 x water filter cartridge and head (where fitted).
7
1 x tap connection – 15 mm (½”) BSP
1234567
Important!
It is imperative the pressure reducing valve (PRV) is fitted prior to the filter. This valve ensures
the water will not flow back into the mains from the refrigerator water system. If the PRV is not
fitted to the connection line your Ice & Water refrigerator features may not function in some
circumstances.
It is recommended that an authorised plumber in your state or town is used to install the water
connection.
The new tubings supplied with the machine are to be used, old tubings should not be used.
Installation precautions/warning
DO NOT use with water that is microbiologically unsafe or of unknown quality without
adequate disinfection before or after the system.
WARNING – connect to potable water supply only.
DO NOT install on line pressure above 900 kPa (130 psi) or below 150 kPa (22 psi).
DO NOT use on hot water supply (38°C [100°F max.]).
DO NOT install near electrical wires or water pipes that will be in the path of drilling when
selecting the location of filter system.
DO NOT mount filter in such a position so that it will be struck by other items, such as
wastebaskets, etc.
DO NOT install the filter in direct sunlight as prolonged exposure to light can weaken plastic
components.
DO NOT install in a location that is susceptible to freezing temperatures as damage to the
housing could occur.
DO NOT screw filter to fridge.
AVOID contamination of pipes during installation.
DO NOT use copper tubing. The plastic tubing supplied should always be used.
Fig.1 Water connection kit

5
Installation instructions
Installation instructions:
1
Ensure that refrigerator is not plugged into a power supply.
2
Locate isolation tap for water connection – cold water feed
only (dishwasher or sink mixer taps) – if you can’t find the
connection tap, contact an authorised plumber in your state
or town to fit your water connection. Tee and tap fitting is
not supplied.
3

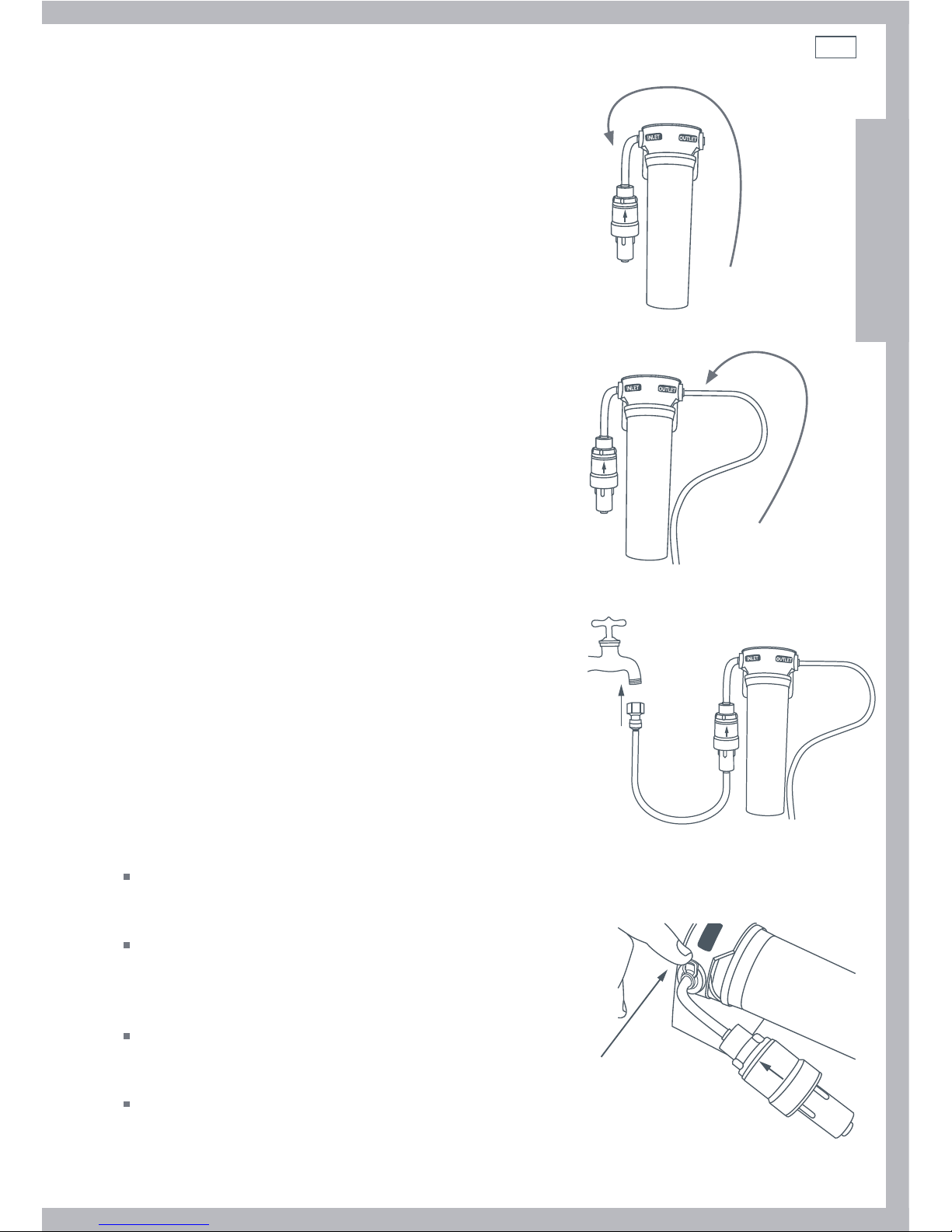

Connect the 200 mm (8”) blue tubing to the outlet of the
PRV (blue collet) and the inlet connection of the water filter
cartridge as shown in Diagram 1. Gently pull on both ends
to ensure it is locked.
4
Connect the white 6 mm (¼”) tubing to the outlet of the
water filter cartridge as shown in Diagram 2. Gently pull to
ensure it is locked.
5
Measure the required length of tubing to run from the PRV
to the water connection point.
6
Cut the tubing making sure the ends are square and clean.
7
Connect the tubing to the tap connection and the base
of the PRV (white collet) and then to the tap as shown in
Diagram 3. Please note that the tap connection supplied
should fit most installation situations. If your tap requires
a different fitting, please contact an authorised plumber in
your state or town to purchase the correct fitting.
8
Connect one locking key to each side of the water filter
cartridge in between the cartridge and the locking collet as
shown in Diagram 4.
9
To flush the water filter and check for leaks, aim the end of
the tubing into a bucket, turn isolating tap on and run at
least 8-10 litres (8-10 qt) of water through. Once complete,
turn isolating tap off.
10
Locate desired position for water filter noting carefully the
following points:
It is recommended to fit the water filter in a vertical
orientation with the water filter head at the top. This will
minimise water leakage when replacing cartridge.
Ensure the filter is in a convenient location to access
every 6 months for replacement. We suggest that
this location is beside the water filter supply tap in the
cupboard beside the refrigerator.
A minimum clearance of 64 mm (2 ½”) from the
bottom of the filter cartridge is required to perform
cartridge removal.
Do not screw water filter to refrigerator.
Diagram 1
Diagram 2
Diagram 3
INLET
Diagram 4
Fig.2 PRV connection
Fig.3 Waterline connection
Fig.4 Tap connection
Fig.5 Locking key
EN

6Installation instructions
11

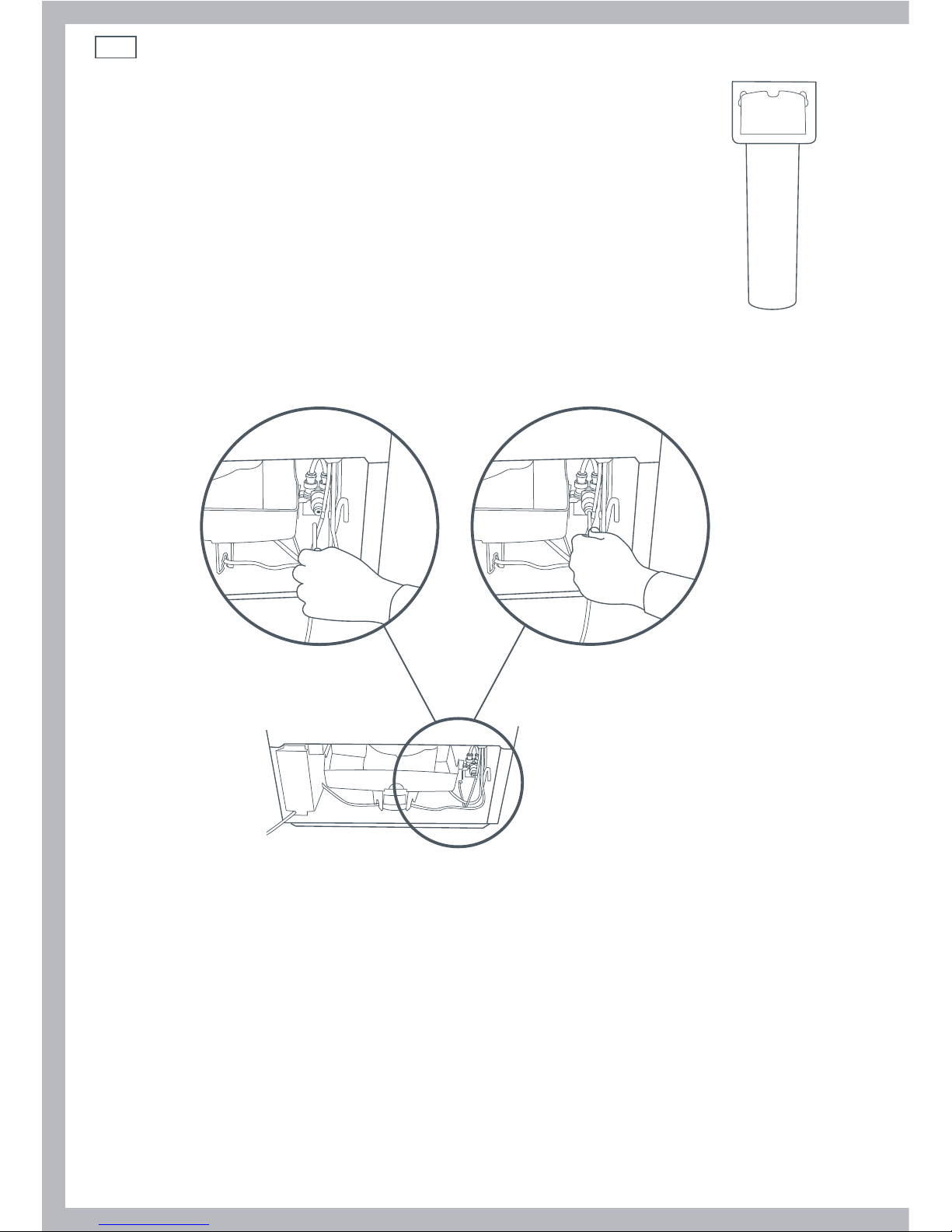

Attach double sided foam to the back of the water filter head as shown
in Diagram 5. Write the date to be replaced on the filter (date installed +
6 months). Remove double sided foam backing and attach filter to the
desired position as located in step 10 (refer to previous page).
12
Run the 6 mm (¼”) tubing to back of the fridge ensuring there is enough
tubing to pull out the refrigerator for service.
13
Connect tubing into the water (solenoid) valve located on the right hand
side of the unit (compressor) compartment as shown in Diagram 7. Beware
of hot pipes.
14
Pull gently on tubing to ensure it is locked in as shown in Diagram 8.
15
The completed installation should look like Diagram 9 on page 7.
Diagram 7
Diagram 6
Diagram 8
16
Turn isolating tap on and check that all connections are dry and free of drips.
17
Coil water line tubing behind the fridge. Push your refrigerator into place being careful not to
kink or squash the water line running into the water (solenoid) valve.
18
The first time you require water out of the dispenser, there will be a delay while the water
reservoir fills up.
19
Run a further 8-10 litres (8-10 qt) through the system to ensure the reservoir is flushed out.
20
You are now ready to enjoy chilled water and ice dispensing from your Active Smart™ refrigerator.
Diagram 5
Fig.6 Double sided
foam attachment
Fig.7 Waterline connection
to refrigerator

7
Installation instructions
Important!
All connections must be checked for leaks.
If unsure of connection process and/or leaks then contact your local plumber to install and check
the system for you.
Ensure white 6 mm (¼”) tubing is routed away from sharp objects, sharp corners (beware of
kinking tube as this will stop water flow), clear of the refrigerator unit compartment and not in a
location where it can be squashed.
Ensure all push-fit connections are firmly pushed into place. The tube should push in 20 mm (¾”)
before reaching the stop.
If tubing is removed at any point, re-cut the end and re-insert. Tubing must be fully inserted to
avoid leaks.
To remove tube from connection points, turn off the isolating tap, push in the collet and gently
pull tubing at the same time.
Diagram 9
System tested and certified by NSF International against NSF/ANSI Standard 53 for the reduction
of Asbestos, Atrazine, Benzene, Cyst, Carbofuran, Lead, Lindane, Mercury, P-Dichlorobenzene,
Toxaphene & Turbidity; against Standard NSF/ANSI 42 for the reduction of Chlorine Taste and
Odour and Nominal Particulate Class I to a capacity of 2,838 Litres (750 gallons).
Fig.8 Connection to water supply
EN

8Installation instructions
Please follow the steps for installation to ensure your appliance operates correctly.
1. Power
The appliance must be installed so the plug is accessible.
To ensure that the appliance is not accidentally switched off, connect your refrigerator to its own
power point. Do not plug in any other appliance at this power point or use extension cords and
double adaptors, as the combined weight of both power cords can pull the double adaptor from
a wall outlet socket.
For power requirements, refer to the information on the serial plate located at the front bottom
right-hand side of the refrigerator when the door is open.
It is essential that the appliance be properly grounded (earthed).
2. Location
Your refrigerator should not be located in direct sunlight or next to any heat generating
appliance such as a cooktop, oven or dishwasher.

9
Installation instructions
E402B, E442B, E522B RF540A
Flush with refrigerator chassis – full door rotation
Flush with refrigerator door – 90˚ door rotation (for full
drawer/shelf access, the doors need to be open past 90˚)
Flush with refrigerator door – 90˚ door rotation (for full
drawer/shelf access, the doors need to be open past 90˚)
Flush with refrigerator door – full door rotation
Flush with refrigerator chassis – full door rotation
Flush with refrigerator door – full door rotation
EN

10 Installation instructions
3. Ventilation and installation
To ensure adequate ventilation for your refrigerator see recommended cabinetry
dimensions below.
The appliance is intended to be placed against a wall with a free distance not exceeding 75 mm.
These measurements do not include space for the water filter at the back of the cabinet as we
recommend that the filter is placed as close to the incoming water supply as possible.
Cabinetry dimensions (mm) (including
minimum air clearances) E402B E442B E522B RF540A
A inside height 1745 1745 1745 1810
Flush with refrigerator chassis – full door rotation
B inside width 675 720 830 940
C inside depth 620 620 620 620
Flush with refrigerator door – 90° door rotation (for full drawer/shelf access, the doors need to
be open past 90˚)
D inside width 680 725 835 950
E inside depth flush to curved door – 675 675 –
F inside depth flush to flat door 690 690 690 690
Flush with refrigerator door – full door rotation
G inside width 795 840 950 1180
H inside depth flush to curved door 675 675 675 –
I inside depth flush to flat door 690 690 690 690
Minimum clearances
J side clearance 20 20 20 20
K side clearance – hinge side flush with
door – 90° rotation 25 25 25 25
L side clearance – hinge side flush with
door – full rotation 230 230 230 230
M rear clearance (incl. evaporator tray) 30 30 30 30
N vent 50 50 50 50

11
4. Installation
Your Fisher & Paykel Active Smart™ refrigerator
is fitted with front and rear rollers, designed for
moving the product in the forwards and
backwards direction.
Avoid moving the product in a sideways direction as
this may damage the rollers or the floor
covering/surface.
A
Your refrigerator will arrive with the front feet
wound up making moving the product into its final
location a simple task.
B
Roll the refrigerator into its final position making
sure there is the correct air gap between the
product and surrounding cabinetry. See minimum
clearance in cabinetry dimensions table (refer to page 10).
(RF540A only)
C
Adjust the front feet down until the refrigerator is leaning
backward with the front approximately 10 mm higher than
the back. This will ensure a good door closing action. (Refer
to Fig.9).
D
Aligning your refrigerator with cabinetry.
Align the sides of the refrigerator with the cabinetry by
adjusting the hinge side front foot.
Adjust the handle side foot until it touches the floor and
takes a small amount of weight.
Once the refrigerator is in place and aligned with
cupboards/alcove push gently on the front top and check if
the product is rocking or stable.

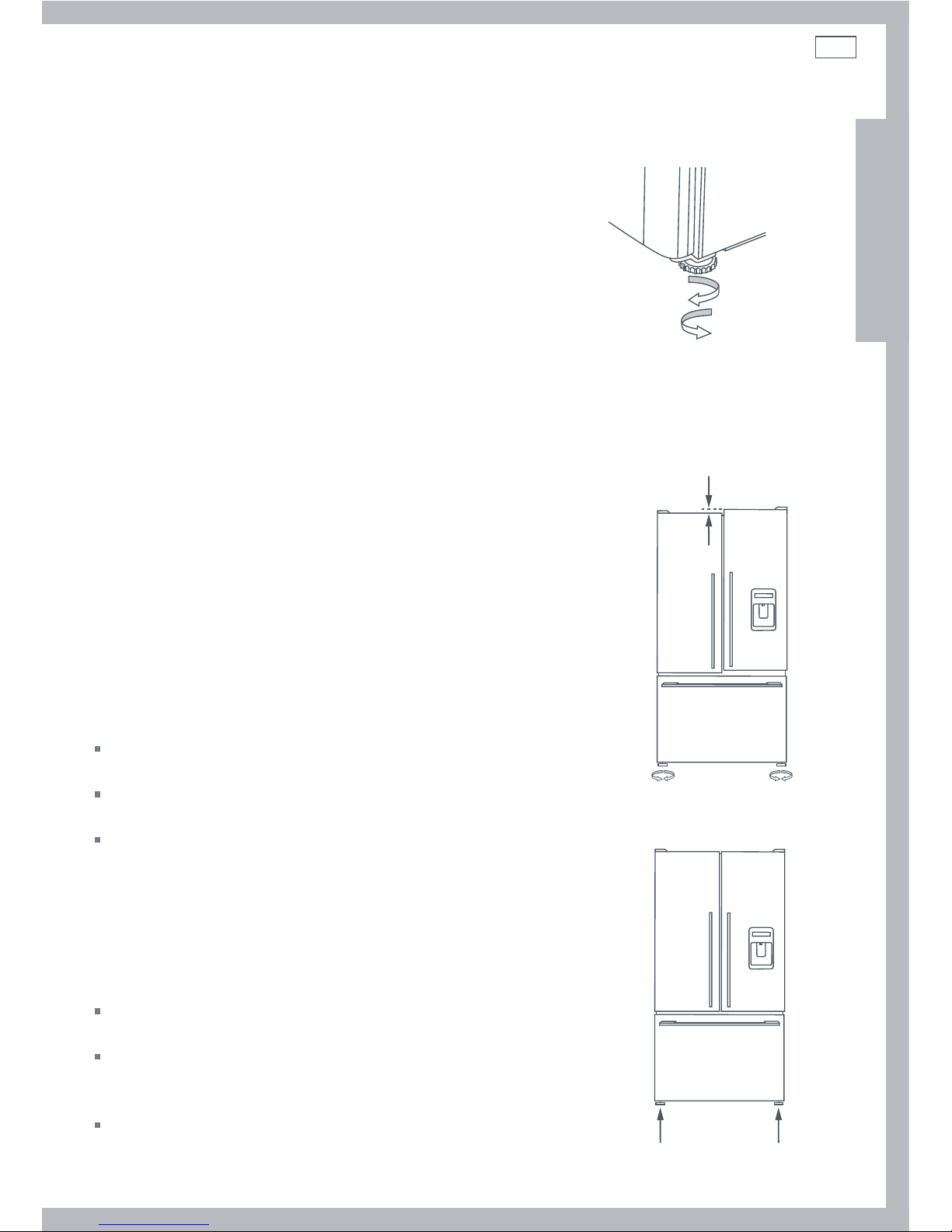

5. Levelling of refrigerator door
(RF540A only)
For uneven surfaces, front feet can be used to align the
2 doors.
If left hand door is too low, then unscrew the left hand foot
to lift up the cabinet until the two doors top edges
are aligned.
If right hand door is higher, then adjust the right hand foot
in the same way. Fig.11 Even door alignment
Fig.10 Uneven door alignment
Raise the front of
the refrigerator
Lower the front
of the refrigerator
Fig.9 Refrigerator feet
Installation instructions
EN

12 Installation instructions
6. What to do if your product is unstable
E
Gently push the refrigerator back until the rear rollers
contact floor.
Measure the gap under the front foot, which has come
off the floor.
Obtain some solid packing material (hardwood, plastic
etc) which fits firmly into the gap under the foot.
Note: Do not use metallic materials that may corrode,
stain and/or damage floor coverings.
F
Wind both front feet up and roll the product out of
position.
Place the packing material in the location diagonally
opposite the front roller that lifts off the floor.
Make sure the packing material stays in place when the
product is pushed back into position.
Ideally, the packing material is large enough to rest
against the back wall so as to prevent it moving when
the cabinet is pushed into position.
Wall behind refrigerator
This foot lifts off the floor when pushing
gently on the top front of the refrigerator
Packing material goes under rear roller
diagonally opposite front foot that lifts
Fig.13 Stabilizing your refrigerator
G
Roll the refrigerator back into position and adjust front feet as per step D. (Check alignment and
door closing action are satisfactory).
Make small adjustments to front feet where necessary.
Check that the product is stable (all 4 feet are on the floor). If not return to step E and repeat
steps F and G.
This foot lifts off the floor when
top front is gently pushed back
Example only
Un-level floor
Fig.12 Unstable refrigerator

13
Installation instructions
EN
Before placing food in the fresh food or freezer compartments
Remove all packaging. Ensure that all transit clips are removed from the refrigerator. These are
small rubber stops located at the back of the shelves.
Allow the refrigerator and freezer to run empty for 2 – 3 hours to allow each compartment to
cool to the appropriate temperature.
Clean the inside of the appliance with a mix of warm water and a little liquid detergent and a
soft cloth to remove manufacturing and transportation dust.
The appliance may have an odour on its initial operation, but this will go when the refrigerator
and freezer have cooled sufficiently.
Energy efficiency
Do not cover your appliances with any material that will prevent air from flowing around the
cabinet sides.
Do not leave the door open for any longer than is necessary.
Allow good clearances in front of the air ducts within the cabinet for maximum cold air
distribution.
Moving or storing your refrigerator
If your refrigerator is turned off for any reason, wait 10 minutes before turning it back on. This
will allow the refrigeration system pressures to equalise before restarting.
Moving your refrigerator
Turn off the appliance and unplug from the power point. Remove all food.
Turn the adjustable feet to the right as far as they will turn (see page 11).
Ease the refrigerator out of its position. Tuck the power cord away and tape the doors closed.
Tape the shelves in place. If the cabinet needs to be placed at an angle or laid down, carefully
lay it on its side (the right hand side when viewed from the front).
Relocate and install. If the appliance has been left on its side for any length of time, leave it
standing upright for at least 10 minutes before turning on.
Storing your refrigerator
When storing your cleaned appliance, leave the doors open. This allows air to circulate and
prevents the build up of bacteria and moulds.
Before using again, clean well using a mixture of warm water and baking soda (add 1 teaspoon
of baking soda to each 500 ml of water). Rinse with clean water.
Holiday time
We recommend you leave your refrigerator operating while you are on holiday.

14 All about the display
4 5 6 7 8
132
Keys
1. Main menu
2. Arrow keys
3. Key and Dispenser Lock
Fig.14 Electronic control panel

15
All about the display
Display features
4. Freezer Functions (page 18)
Bottle Chill (page 18)
Fast Freeze (page 18)
5. Dispensing water (page 16)
6. Temperature (page 19)
7. Ice (page 17)
8. Settings/User alerts (pages 20 – 21)
Key Silent Mode (page 20)
Dispenser and Key Lock (page 20)
Sabbath Mode (page 20)
Filter Reset (page 21)
Service/Fault Diagnosis (page 21)
EN

16 Using your water dispenser
First use
After installation, allow approximately a one minute delay
while the dispensing pad is pushed until water is dispensed.
This will allow the tank to fill completely.
After you fill the tank, dispense and discard 8 – 10 L (8 – 10 qt)
to flush the tank out.
Important!
Do not put hands, fingers or objects up the dispenser opening.
Fig.15 Water Dispenser

17
Using your ice maker
Ice maker
First use
When you first turn your refrigerator on, the ice maker will be off.
To turn on use the button to scroll to the screen.
Use the
or buttons to turn the ice maker on or off.
Ice maker is on.
Ice maker is off.
If the bin is full of ice, or inserted incorrectly, the ice maker will
not operate. When inserted correctly the scoop will be on the
right hand side (refer to Fig.17). If all bins are removed the ice
maker will not operate.
Discard the first bin of ice cubes made.
We recommend that you turn the ice maker off if:
– The water supply is off for several hours,
– The ice storage bin is to be removed for a period of time,
– You are going on holiday/vacation.
Information about your ice maker
The ice cube tray will fill with water once the freezer has reached
the correct temperature.
Ice making will continue until the storage bin is full.
Ice making will resume when the ice is used.
Your Ice & Water product comes with a smaller ice bin inside the
larger freezer bin. Attached to this is a scoop, which is for hygienic
access to the ice.
If a large amount of ice is required, remove the smaller storage bin
and allow ice to fall into the larger bin.
Important!
Avoid contact with the moving parts of the ejector mechanism, and
do not place your fingers on the automatic ice making mechanism
while the refrigerator is plugged in.
Do not consume coloured ice cubes – contact local authorised
service centre.
Ensure the ice maker is connected to the filter and to a drinkable
water supply only.
Installation of the water connection to the ice maker must be
completed by a qualified service technician or a qualified plumber
(see installation instructions). Fig.17 Ice storage bin and
scoop in correct position
E402B, E442B, E522B
RF540A
Fig.16 Turning
ice maker on
EN

18 Using the display options
Fast Freeze
This feature drops the freezer to it’s coldest temperature for 12 hours and then returns to
normal.
To activate, use the button until the Fast Freeze icon ( ) is showing on the
screen. Then use the or buttons until the snowflakes ( ) are displayed
on the Fast Freeze screen. The animating snowflakes indicate that Fast Freeze has been
activated.
To deactivate manually, use the button to scroll to the Fast Freeze icon ( ) on the
screen. Then use the and until there are no snowflakes ( ) present on the screen.
Bottle Chill
Bottle Chill cools drinks more rapidly, it will remind you to remove your bottle by sounding an
alarm. The user alarm will continue to sound until any key on the panel is pressed.
Recommended times:
20 minutes 25 minutes 30 minutes
To activate, use button until the bottle chill icon ( ) is showing on the
screen. Then use the or buttons until the snowflakes ( ) and the
minute timer ( ) are displayed on the Bottle Chill screen.
Then use the button to select 10, 15, 20, 25 or 30 minutes as displayed on the Bottle Chill
screen. After several seconds, the snowflakes will then animate as the timer counts down.
An alarm will sound after the amount of time selected has elapsed.
Press any button on the display to silence the alarm. Remember to remove the beverage from
the freezer.
To deactivate Bottle Chill manually, use the button to scroll to the bottle chill icon ( )
on the screen, then use the and buttons until no minutes are shown on
the screen and the snowflakes ( ) are no longer visible.
Important!
Do not leave the bottle inside the freezer longer than the time needed for chilling as glass bottles
may explode.
