Fisher & Paykel ActiveSmart E522B Mounting instructions

P4g 45 _88

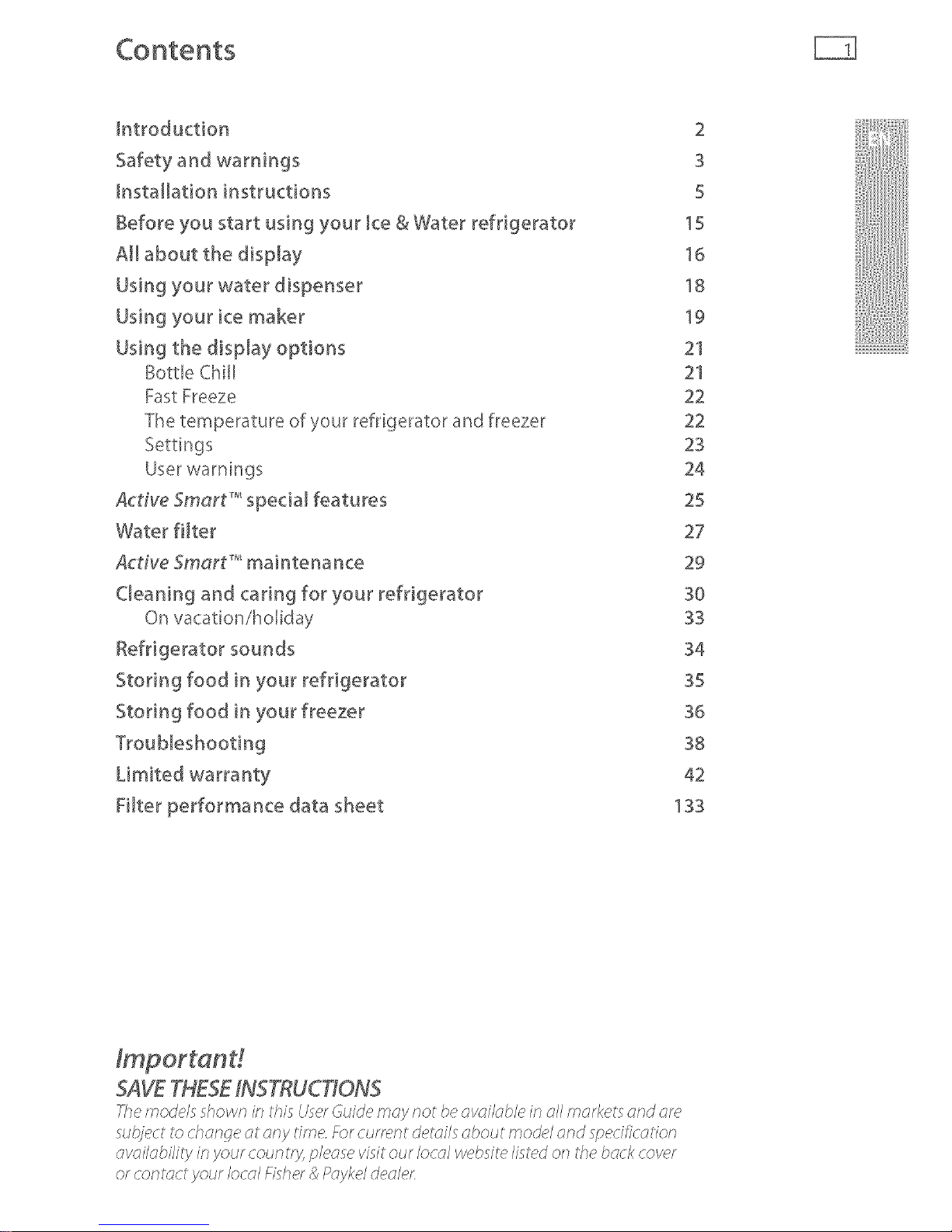

_ntroduction
Safety and warnings
_nstallation instructions

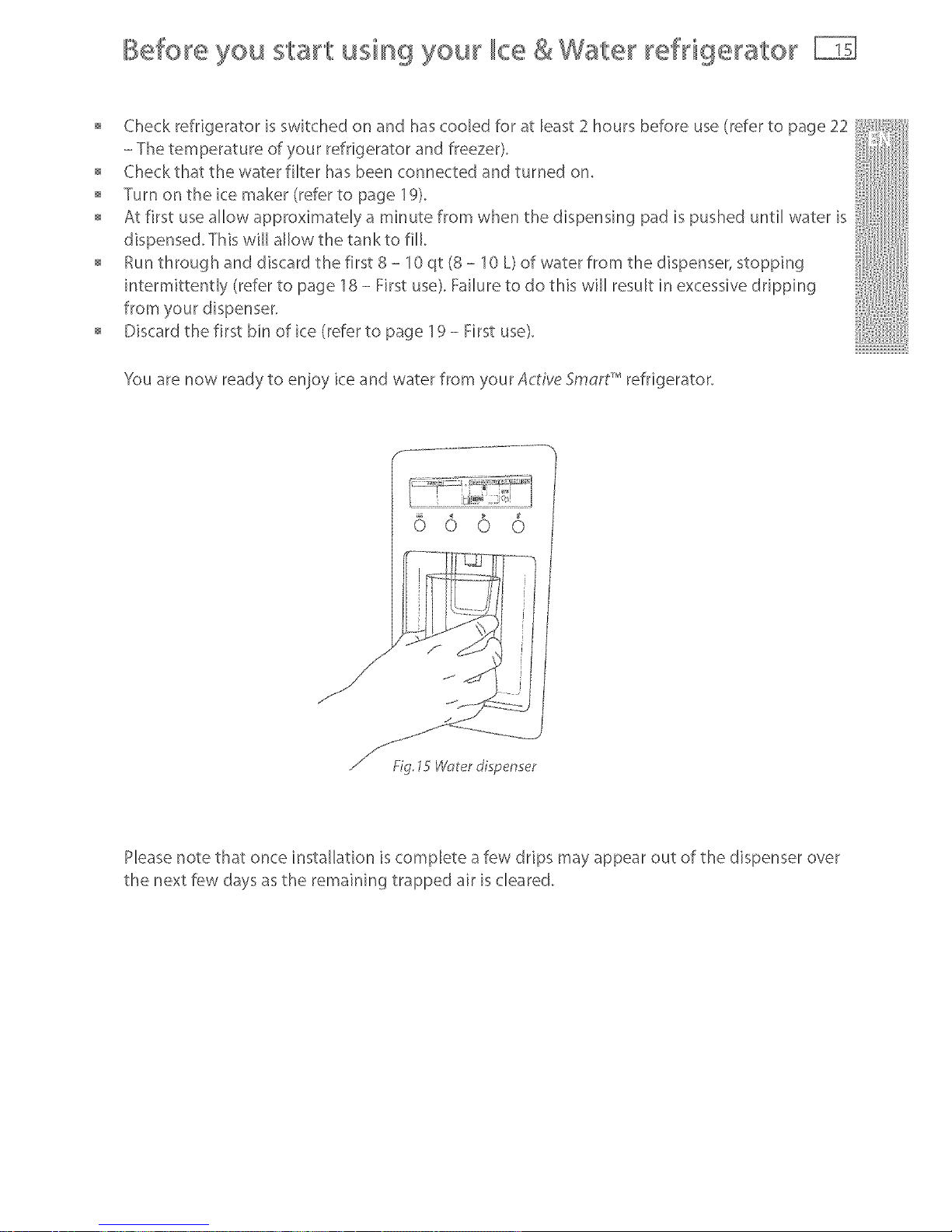

Before you start using your Ice & Water refrigerator

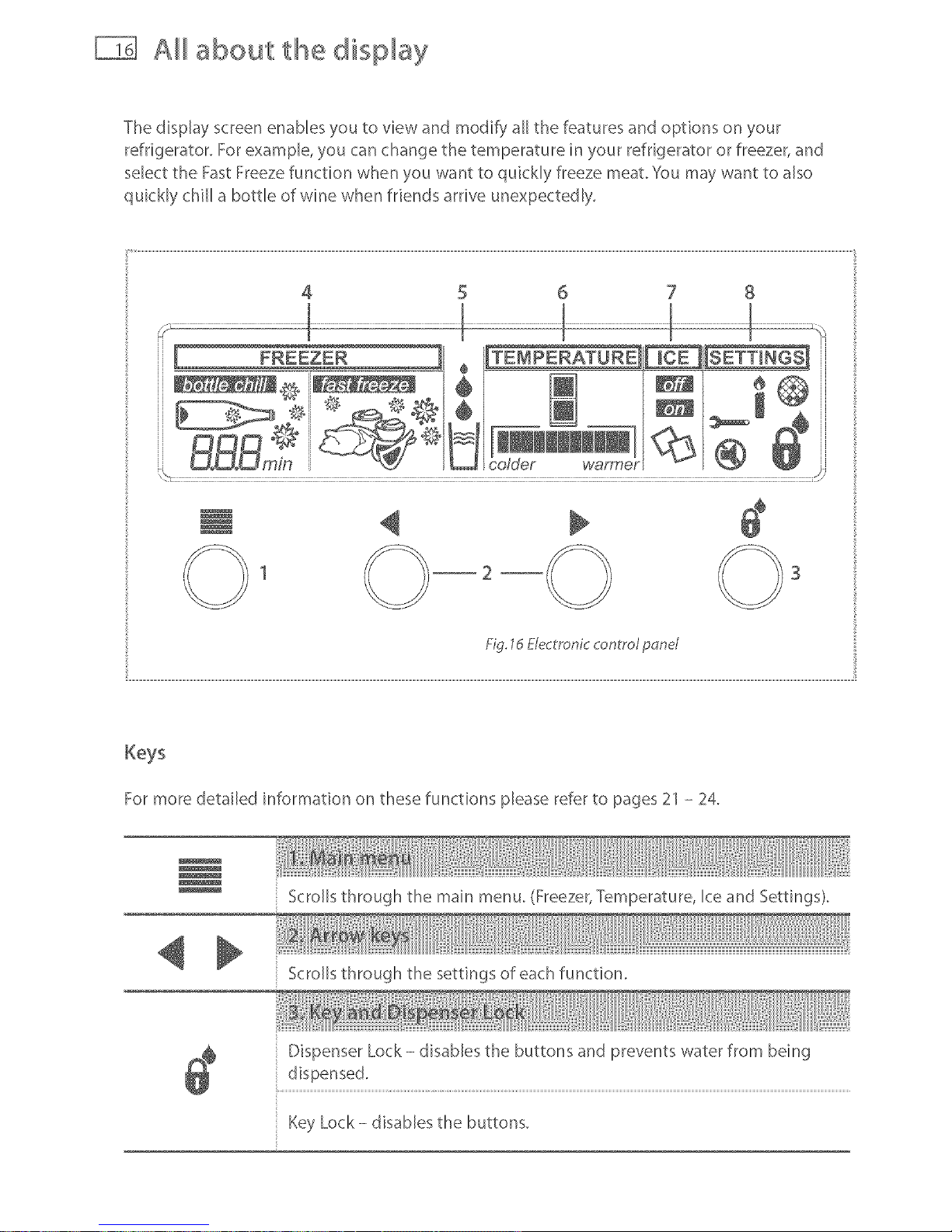

AH about the display
Using your water dispenser
Using your ice maker

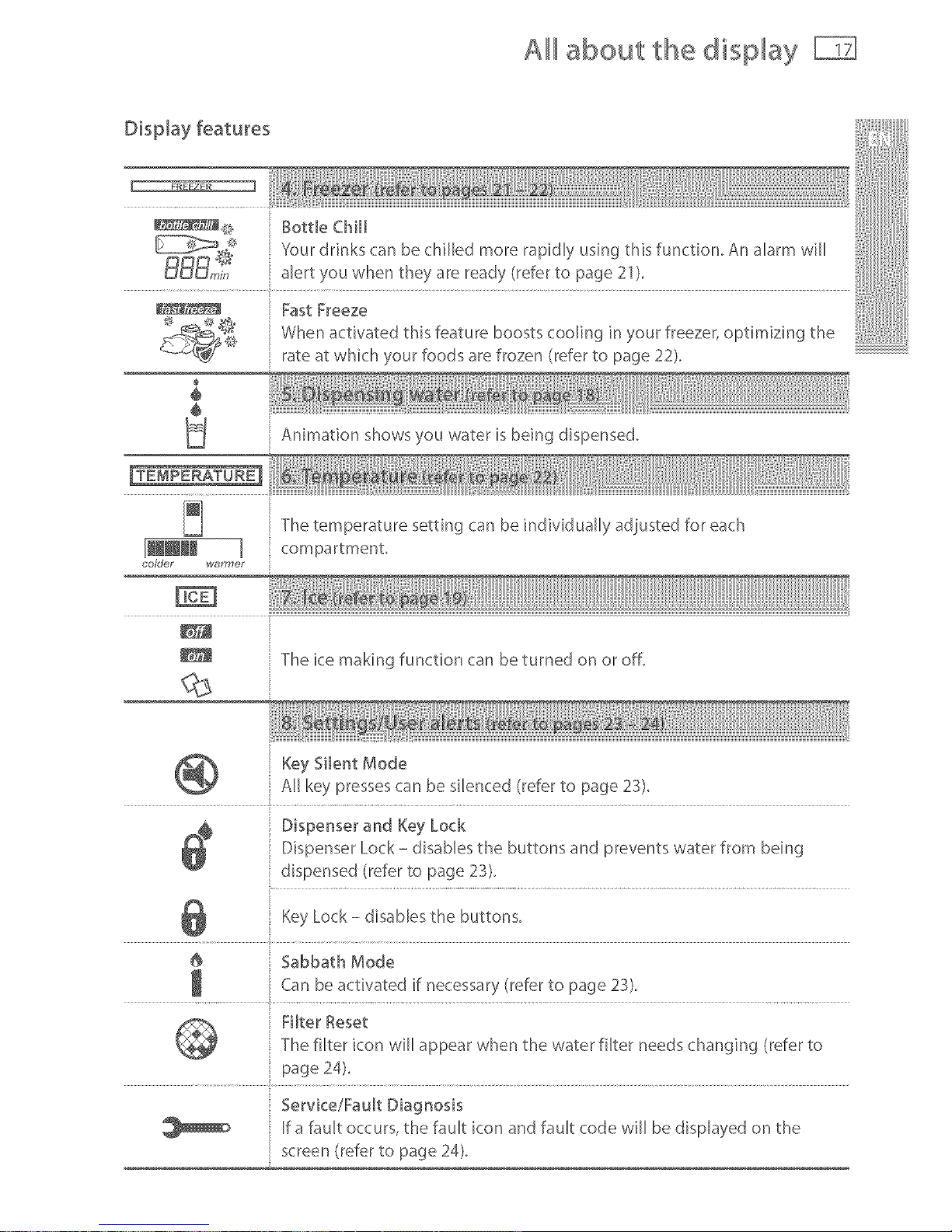

Using the display options
Bottle Chl!
Fast Freeze
The temperature of your refr gerator and freezer
Active Smart _' special features
Water filter
Active Smart _' maintenance
Cleaning and caring for your refrigerator
On vacat on/hoIiday
Refrigerator sounds
Storing food in your refrigerator
Storing food in your freezer
Limited warranty
Filter performance data sheet
2
3
5
15
16
18
19
21
21
22
22
23
24
25
27
29
30
33
34
35
36
38
42
133
SAVE THESEINSTRUCTIONS
sut_j_,(t toch(_g_ st (;£y tim_.fbr curmt_tdelcJ[Isc;t_ou8modelcmd p_d_co8io£
c;w[/ob[/[ty [r7your courttG p/_os_visitour/occ;/webs[t_.,/M_.'don thebookcover
or contc_ctyour /occ;/Usher&P;_ykelde(;le_

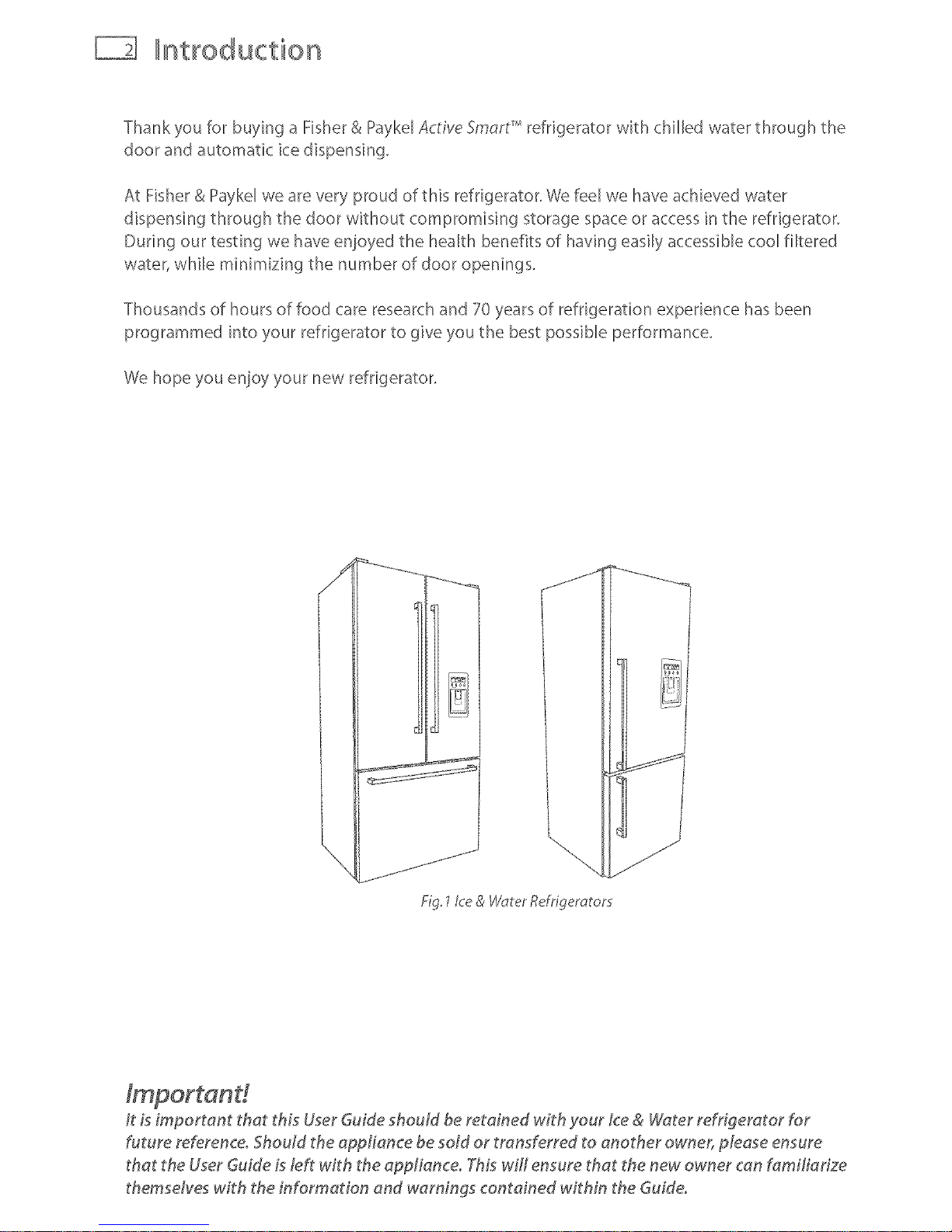

Thank you for buying a Fisher & Paykd Active Smart '_refrigerator with chilled water through the
door and automatic ice dispensing.
At Fisher & Paykel we are very proud of this refrigerator. We feel we have achieved water
dispensing through the door without compromising storage space or access in the refrigerator.
During our testing we have enjoyed the health benefits of having easily accessible cool filtered
water, while minimizing the number of door openings.
Thousands of hours of food care research and 70 years of refrigeration experience has been
programmed into your refrigerator to give you the best possible performance,
We hope you enioy your new refrigerator,
Fig, 7Ice & Water Refrigerators
It Lsimportant that this User Guide shoMd be retained with your £e & Water refrigerator for
future reference° Should the appfiance be sold or transferred to another owner, please ensure
that the User Guide Lste# with the applianCeo ThL_wilt ensure that the new owner can familiarize
themsdves with the information and warnings contained within the Guide.

Safety and warnings
Electdc Shock Hazard
Read and follow the SAFETYAND WARNINGSoutlined in this User Guide
before operating this app[ianceo
Failure to do so can result in death, electric shock fire or injury to persons°
Use this appliance only for its intended purpose as described in this User Guide,
When using this appliance Mways exercise basic safety precautions including the foflowing:
This appliance is not intended for use by chitdren or infirmed persons without supervision° This
is espedally important when using the freezer drawer compartment. Young children shoMd be
supervised to ensure they do not play with the appliance.
Risk of ch#d entrapment° Before you throw away your old refr@erator or &eezer:
-Take offthe doors
-Leave the shrives in place so that children may not easily climb inside°
Extreme care must be taken when disposing of your old appliance to avoid hazards° The
re&@erant gas must be safdy removed and for the safety of young children, remove doors.
}&ourFisher & Paykd Appliances Authorized Service Center wifl be abte to give advice on
env#onmentaNy &iendly methods of disposing of your old refrigerator or freezer,
Electrical
This appJiance must be property instafied in accordance with the instafladon instructions before
it is used°
Never unplug your refrigerator or freezer by pulting on the power cord,
Always grip the plug firmly and pun straight out from the oudet socket°
Do not plug in any other appliance at the same power point oudet socket as your refrigerator or
freezer is using° Do not use extension cords or douMe adapters with these products°
Repair or replace immediately aft dectric service cords that have become frayed or otherwise
damaged, Do not use acord that shov_s cracks or abrasion Mong its tength or at either the plug
or appliance an&
if the power supply cord is damaged) it must only be replaced by your Fisher & Paykel Appliances
Authorized Service Center because speda_ purpose too_s are required.

Safety and warnings
When moving your appliance away from the wall, be careful not to roll over or damage the
power cord,
Unplug your refrigerator or freezer before cleaning or repladng the interior t@htbutb.
Storing food and drinks
Never store volatile or flammable materials in your refrigerator or freezer as they may explode.
Never freeze tiquids in glass containers. Liquid expands during #eezin¢ which may cause the
container to expk_de.
Never freeze carbonated drinks. They may explode.
Do not consume food ff it is too cold, Food removed f_om the freezer compartment may be cold
enough to cause damage when brought into contact with bare skin, eg. frozen ice cubes.
Power failure - food safety
Do not regeeze gozen foods that have thawed completely, Follow the recommendations below ff
_ou discover food in your geezer has thawed:
1)ice crystals still visible -food may be refrozen but should be stored for ashorter period than
recommended.
2) Thawed but refrigerator cold ,- refreezing generally not recommended, Fruits and some
cooked food can be refrozen but use as soon as possible. Meat, fish, poultry ,_use immediately or
cook then refreeze. Vegetables -discard as they usually go limp and soggy,
3) Thawed and warmer than 41 °F (5°G. Discard a# food,
Do not refreeze frozen foods that have thawed completely, The food may be dangerous to eat.
Many commercially available cleaning products contain solvents wh£h may attack plastic
components of your refrigerator or freezer and cause them to crack° Please refer to the cleaning
care section of this booklet for further advice.

_nsta_ation instructions

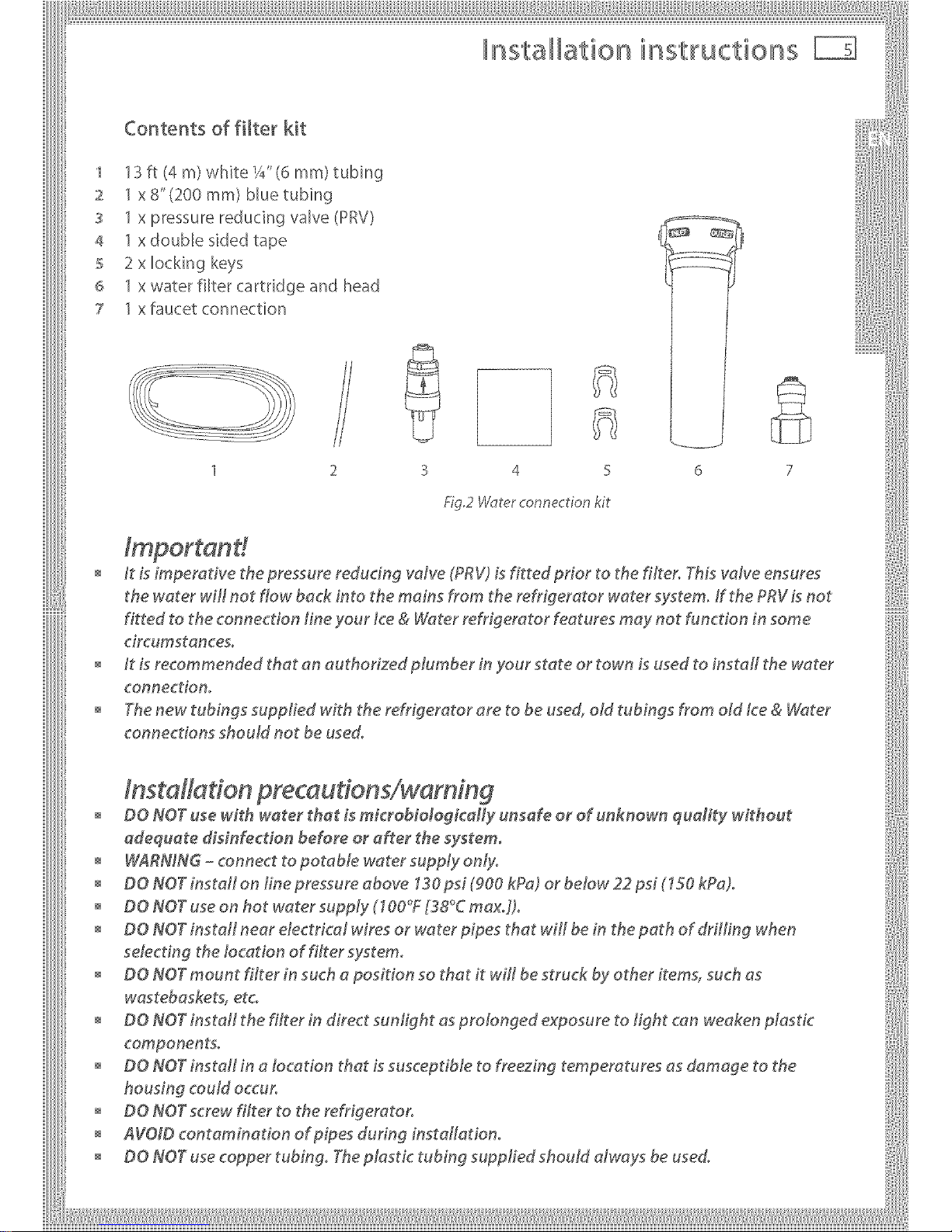

Contents of filter kit
1 13 ft (4 m) white ¼"(6 ram) tubing
2 1 x8"(200 ram) bluetubing
s 1 x pressure reducing valve (PRV)
4 1 x double sided tape
s 2 xlocking keys
6 1 x water filter cartridge and head
7 1 xfaucet connection
It is imperative the pressure redudng vaIve (PR_ js _tted p_r t_ the _Iter° Thjs vaIve ensures
the water will not flow back into the mains from the retTigerator water system, ff the PRV is not
fitted to the connection tine your ice &Water retTigerator t_atures may not funcdon in some i
circumstances.
it L_recommended thatan authorizedplumber inyour stateor town L_used toinstallthewater
connection.
, The new tubings suppliedwith the refrigerator are to be used, old tubings from old Ice & Water
connectionsshodd notbeused.
oInstaHadonprecaudon#waming
DO NOT use with wa_er that is microbiologicaHy unsafe or of unknown quality without
.dequate disinfection before or after the system.
oWARNING-connecttopotabtewatersupptyonly.
oDo.oTinstaNontinepressuroaho_J30£_i(_00kPa_orbeto.,22psi,:_50k_a_. i
oDONOTuseonhotwatersupply(looFr38cma_4_.
oDONOTinstaNnearelectricalwiresorwaterpipesthatwittbeinthepathofdriNingwhen
selectingthelocationoffiltersystem, ii[
DO NOT mount fitter in such aposition so that it wilt be struck by other items, such as
wastebaskets,etc. _/
, DO NOT instatl the filter in direct sunlight as prolonged exposure to light can weaken plastic
components. //:
oDONOTinstaNinatocationthatissusceptibletofreezingtemperaturesasdamagetothe _:
housingcoutdoccur.
oDO,OTscre,,filtertotherefrigerator.
AVOID contamination of pipes during installation.
DO NOT use copper tubing. The plastic tubing supplied should always be used.

Installation instructions

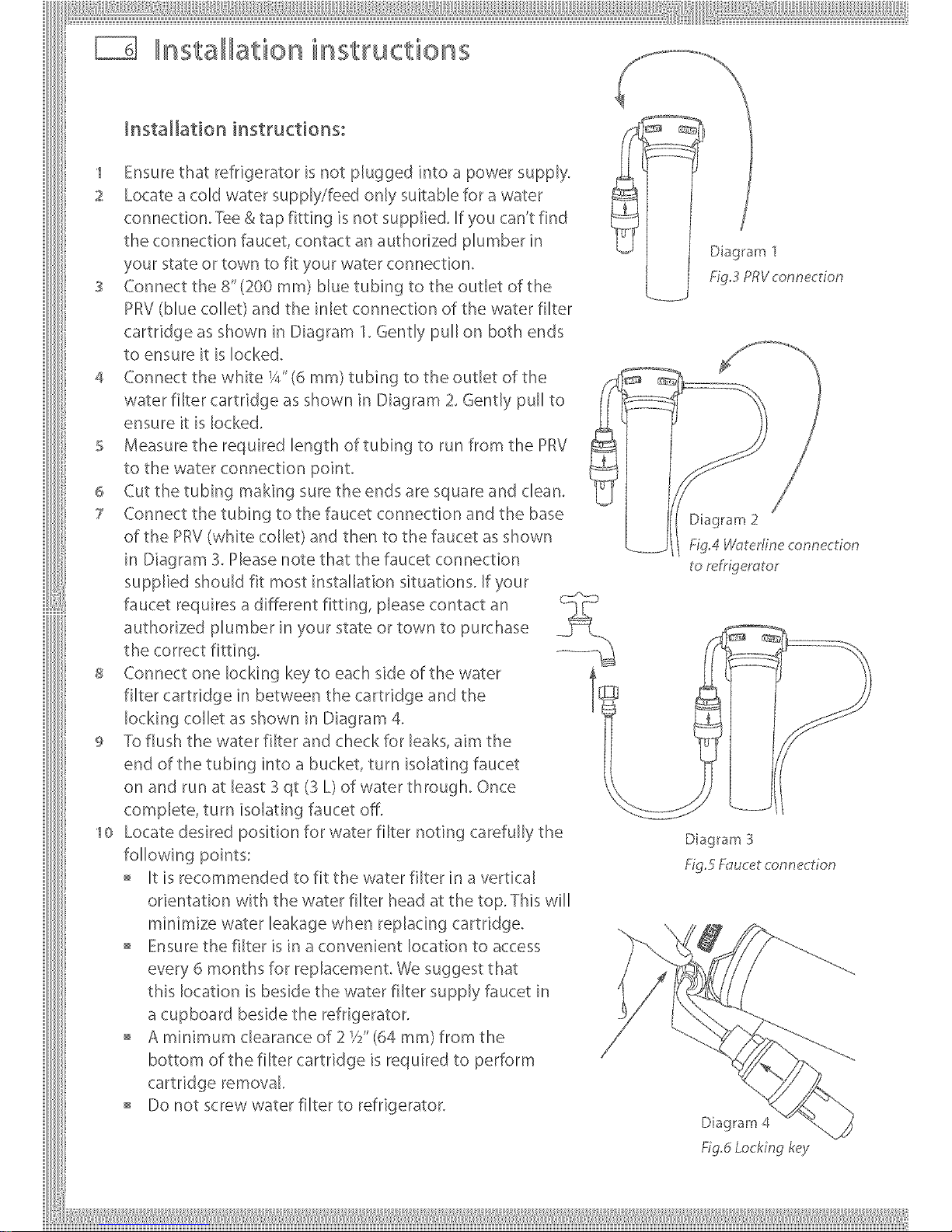

Installation instructions:
1 Ensure that refrigerator is not plugged into a power supply.
2 Locate a cold water supply/feed only suitable for a water
connection.]ee & tap fitting is not suppled. If you can't find
the connection faucet, contact an authorized plumber in
your state or town to fit your water connection.
s Connect the 8" (200 ram) blue tubing to the outlet of the
PRV (blue collet) and the inlet connection of the water filter
cartridge as shown in Diagram 1. Gently pull on both ends
to ensure it is locked.
4 Connect the white ¼"(6 ram) tubing to the outlet of the
water filter cartridge as shown in Diagram 2. Gently pull to
ensure it is locked.
5 Measure the required length of tubing to run from the PRV
to the water connection point.
6 Cut the tubing making sure the ends are square and dean.
7 Connect the tubing to the faucet connection and the base
of the PRV (white toilet) and then to the faucet as shown
in Diagram 3. Please note that the faucet connection
supplied should fit most installation situations. If your
faucet requires a different fitting, please contact an
authorized plumber in your state or town to purchase
the correct fitting.
s Connect one locking key to each side of the water
filter cartridge in between the cartridge and the
locking collet as shown in Diagram 4.
To flush the water filter and check for leaks, aim the
end of the tubing into a bucket, turn isolating faucet
on and run at least 3 qt (3 L) of water through. Once
complete, turn isolating faucet off.
lo Locate desired position for water filter noting carefully the
following points:
It is recommended to fit the water filter in a vertical
orientation with the water filter head at the top. This will
minimize water leakage when replacing cartridge.
Ensure the filter is in a convenient location to access
every 6 months for replacement. We suggest that
this location is beside the water filter supply faucet in
a cupboard beside the refrigerator.
A minimum clearance of 2 V£'(64 ram) from the
bottom of the filter cartridge is required to perform
cartridge removal.
Do not screw water filter to refrigerator.
Diagram 2
Fig4 Waterlineconnection
to reg_igemtor
t
Diagram 3
F-ig.5Faucetconnection

Installation i structions

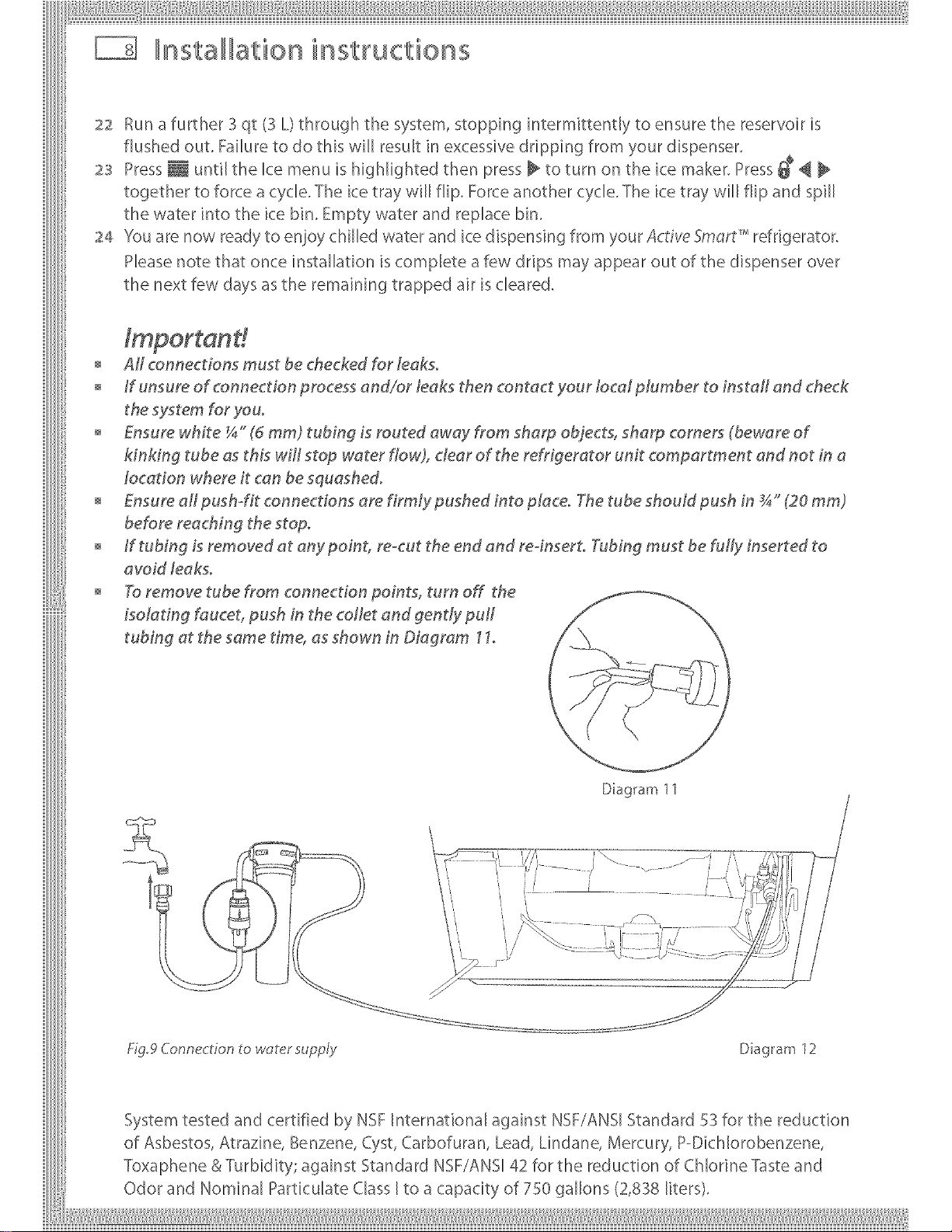

22 Run a further 3 qt (3 L) through the system, stopping intermittently to ensure the reservoir is
flushed out. Failure to do this will result in excessive dripping from your dispenser.
23 Press _ until the Ice menu is highlighted then press _ to turn on the ice maker. Press _ _
together to force a cycle. The ice tray will flip. Force another cycle. The ice tray will flip and spill
the water into the ice bin. Empty water and replace bin.
24 You are now ready to enjoy chilled water and ice dispensing from your Active 5murt _rdrigerator.
Please note that once installation is complete a few drips may appear out of the dispenser over
the next few days as the remaining trapped air is cleared.
oAll connections must be checked for leaks,
if unsure of connection process and/or leaks then contact your tocM plumber to instafl and check
the system for you°
Ensure white W' (6 ram) tubing is routed away from sharp objects, sharp corners (beware of
kinking tube as this wifl stop water flow), dear of the refrigerator unit compartment and not in a
tocation where it can be squashed°
Ensure Mt push-fit connecdons are firmty pushed into placeo The tube should push in ¾" (2Omm)
before reaching the stop,
if tubing is removed at any point, re-cut the end and re,dnsert. Tubing must be fully inserted to
avoid leaks.
To remove tube from connection points, turn off the
isolating faucet, push in the coffer and gendy puff
tubing at the same time, as shown in Diagram 11.
Diagram 11
",,, iLi /
Fig,9 Connection to w¢_tersupply Diagram "l2
System tested and certified by NSF International against NSF/ANS[ Standard 53 for the reduction
of Asbestos, Atrazine, Benzene, Cyst, Carbofuran, Lead, Lindane, Mercury, P-Dich[orobenzene,
Toxaphene &Turbidity; against Standard NSF/ANS[ 42 for the reduction of Ch[odne Taste and
Odor and Nominal Particulate Class [to a capacity of 750 gallons (2,838 liters).

nsta ation instructions

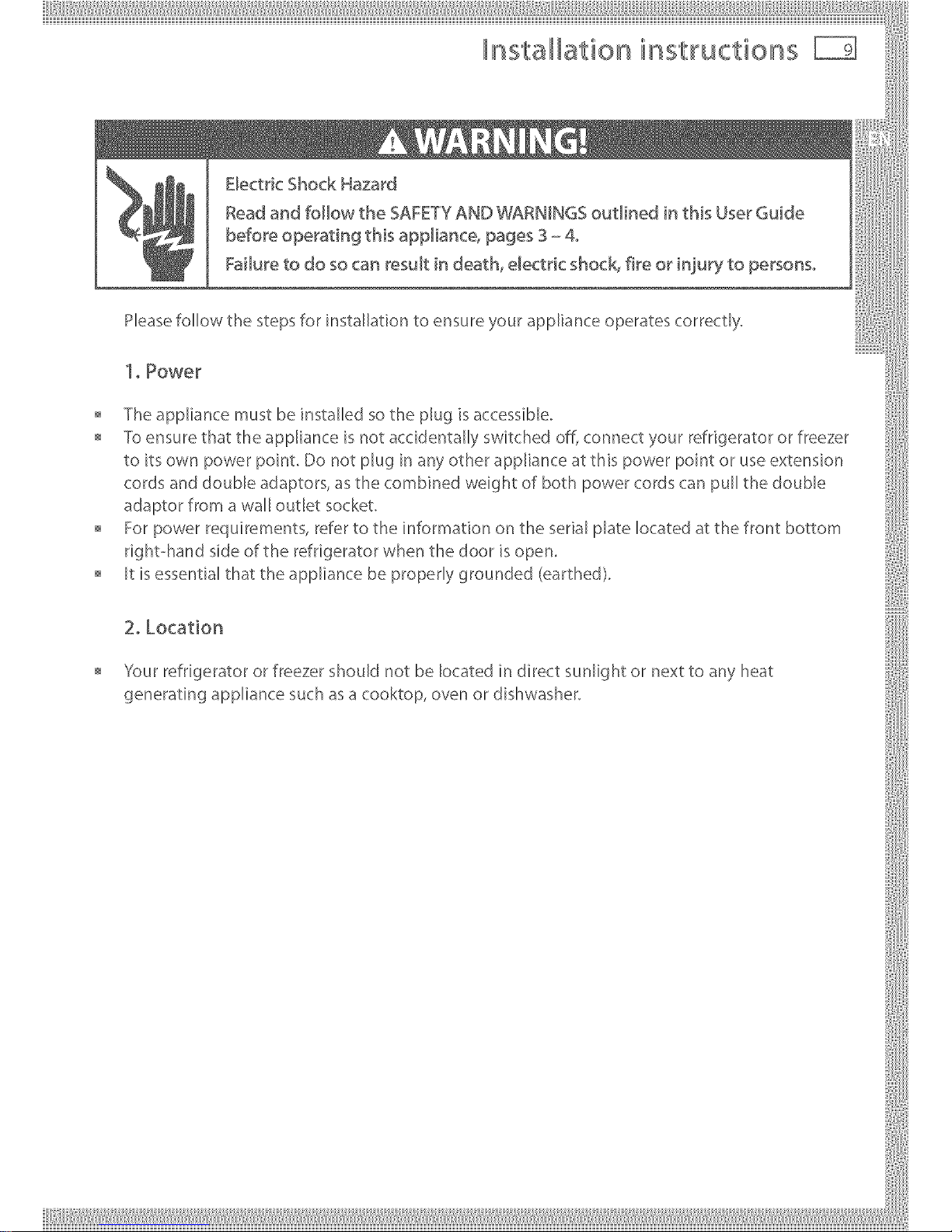

Electric Shock Hazard
Read and follow the SAFETYAND WARNINGSoutlined in this User Guide
before operating this appliance, pages 3- 4o
Failure to do so can result in death, electric shock fire or injury to persons°
Please follow the steps for installation to ensure your appliance operates correctly.
1oPower
o The appliance must be installed so the plug is accessible.
To ensure that the appliance is not accidentally switched off, connect your refrigerator or freezer
to its own power point. Do not plug in any other appliance at this power point or use extension
cords and double adaptors, as the combined weight of both power cords can pull the double
adaptor from a wall outlet socket.
For power requirements, refer to the information on the serial plate located at the front bottom
right-hand side of the refrigerator when the door is open.
It is essential that the appliance be properly grounded (earthed).
2, Location
generating appliance such as a cooktop, oven or dishwasher.

_nsta_ation instructions
E522B
::::::::::::::::::::::::
_ ii _
[t
[
_iLM

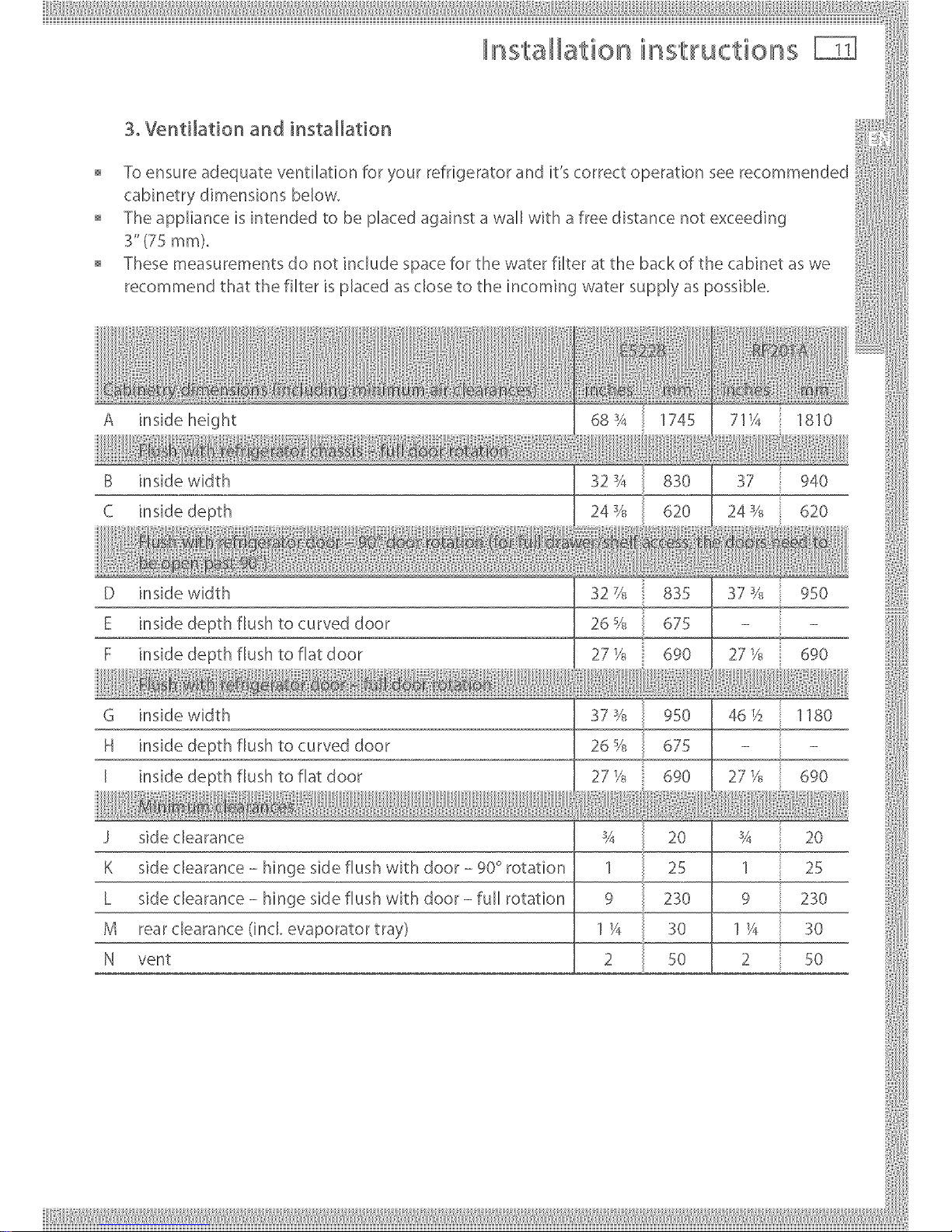

Flush wth refrigerator chassis - full door rotation
,I _Idi-
Flush with refrigerator door - 90° door rotation (for full
drawer/shelf access, the doors need to be open past 90 °)
iDI
:::::::::::::::::::::::::::::::::::::
M
[E/r
Fush wth refrigerator door - fuji door rotation
, J- G -.i
i P!- -1 L i..
L" s
RF201A
AI • iY
N
[lilly
iili _T
[
I[M
Flush wth refrigerator chassis - full door _otation
Flush with refrigerator door - g0° door rotation (for full
drawer/shelf access the doors need to be open past 90 °)
I D i
i _!KI_ -IKi--
i_...............?C_--
'i•_ "• Li¸¸'
Hush with refr gerator door - full door _otation
i L .I
\• / s

_nsta_ation instructions
3, Ventilation and installation
To ensure adequate ventilation for your refrigerator and it's correct operation see recommended
cabinetry dimensions below.
The appliance is intended to be placed against a wall with a free distance not exceeding
3" (75ram),
These measurements do not include space for the water filter at the back of the cabinet as we
recommend that the filter is placed as close to the incoming water supply as possible.
A inside height 71¼ 1810
B inside width 37
C inside depth 24 %
940
620
D inside width 32 7/_ 835 37 s/6 950
finsidedepthflushto curved door 22_ 675 _ :
F inside depthflush tOflatdoor 27 Y8 690 27 It 690 _::
G inside width 37% 950 46_A 1180 ]
Hinsidedepth flush tO curved door 26 % 675 -:-
I insidedepthflushtoflatdoor 690
J s_dedearance _ _ 20 _ 20
Ksideclearance- hinge side flush with door - 90 rotation 1 25 1 25
Lsideclearance- hinge sideflushwith door- fullrotation 9 230 9 i: 230 $:
P,/1rear clearance(ind.evaporatortray) It_ 30 1_ _ 30 :
N vent 2 50 2 : 50 :

nsta ation instructions

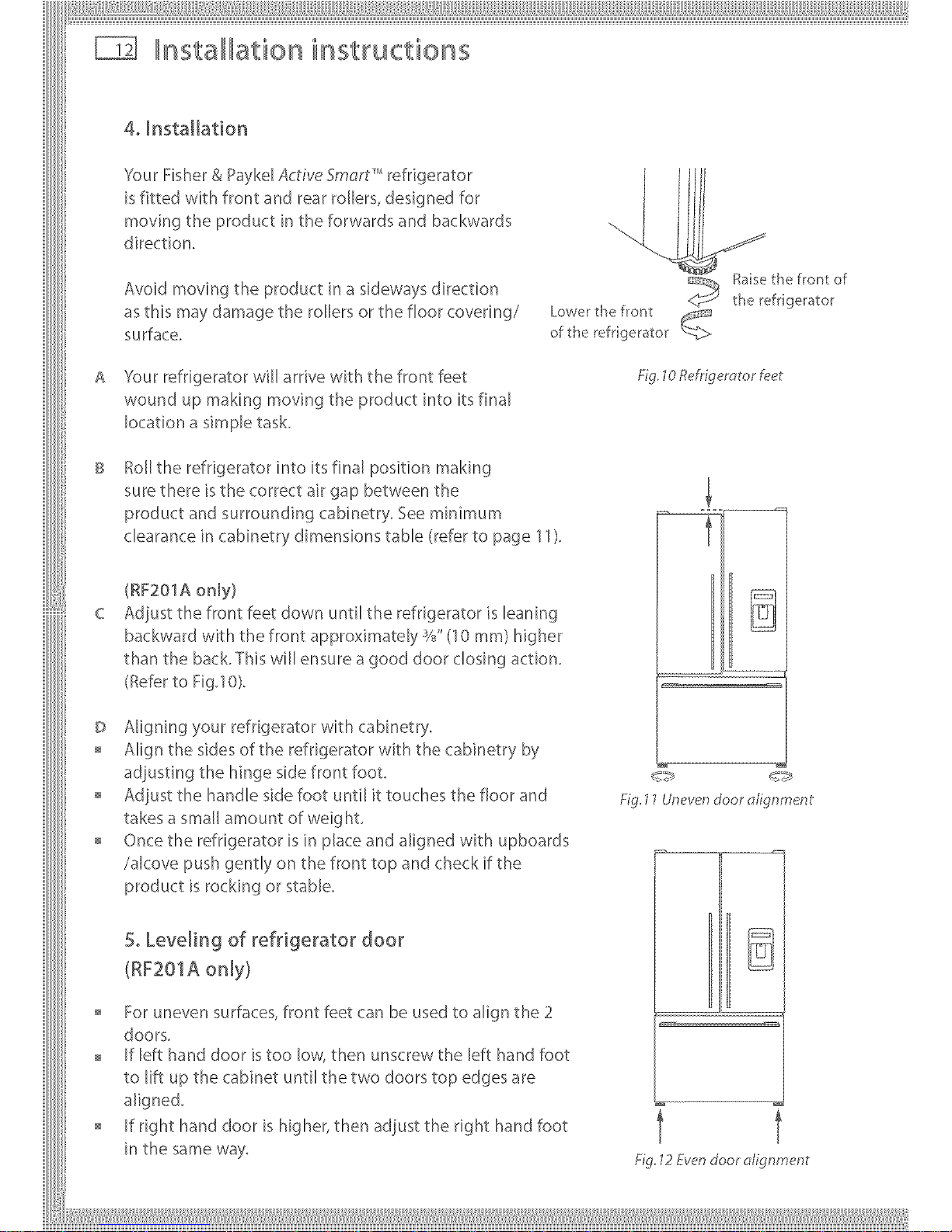

4oinstallation
",/our Fisher & Payke[ Active Smart _refrigerator
is fitted with front and rear railers, designed for
moving the product in the forwards and backwards
direction.
Avoid moving the product in a sideways direction
as this may damage the rollers or the floor covering/
surface.
Lower the front
of the _efdge{ato{
Raise the front of
the _eflige{ator
",,!our refrigerator will arrive with the front feet
wound up making moving the product into its final
location a simple task.
Fig, l ORefrigerator feet
Roll the refrigerator into its final position making
sure there is the correct air gap between the
product and surrounding cabinetry. See minimum
clearance in cabinetry dimensions table (refer to page 11).
(RF2OIA only}
Adjust the front feet down until the refrigerator is leaning
backward with the front approximately %" (10 ram) higher
than the back. This will ensure a good door closing action.
(Refer to Fig.lO).
D Aligning your refrigerator with cabinetry,
Align the sides of the refrigerator with the cabinetry by
adiusting the hinge side front foot,
Adjust the handle side foot until it touches the floor and
takes a small amount of weight,
Once the refrigerator is in place and aligned with upboards
/alcove push gently on the front top and check if the
product is rocking or stable.
5oLeveling of refrigerator door
(RF201A only)
For uneven surfaces, front feet can be used to align the 2
doors_
If left hand door is too low, then unscrew the left hand foot
to lift up the cabinet until the two doors top edges are
aligned,
If right hand door is higher, then adjust the right hand foot
in the same way,
c_ C_
Fig 71 Uneven door alignment
t
Fi .12Evendoor alignment

iiiliiii,I=IIII' ilii_iii'liilii=i_illiiiiliiiil¸liiil¸liiiliiliiliiilll¸Iililiiil¸Iiliiil¸Iiliiil¸Iiliiil¸II iiiiIiliiiiliiil¸Iiliiil¸Iiliiil¸IIII iiliiii!!il
Ilstallatiol instructions i_:i

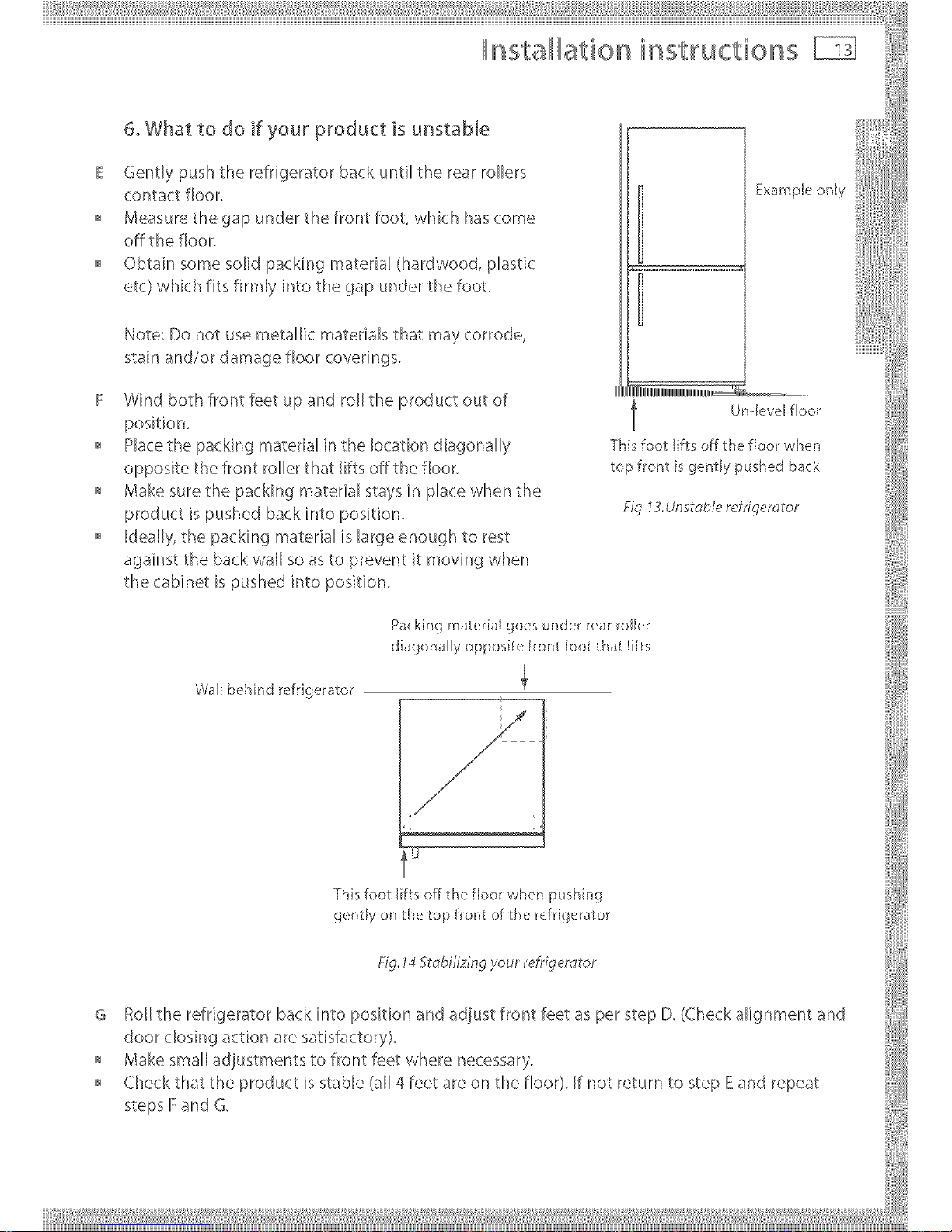

E Gently push the refrigerator back untilthe rear rollers I I }!::} i
contact=oor. II Examp_on,y
= Measurethegapunderthefrontfoot,whichhascome II
offthe floor. I I
Obtain some solid packing material (hardwood, plastic I
etc>,,.,h_chf_tsf_rm_;,_ntothegapunderthefoot. /
1
Note:Donotuse_etaU,cmater,a_sthatma;,'corrode, II I
stainandJordamagef_oorco,,er_nr_s. .........................
W_ndbothfrontfeetupandrolltheproductoutof '"="""___
position. T un- eve Too_
Place the packing material in the location diagonally ThBfoot lifts off the floo_ when ::
opposite the front roller that lifts off the floor, top font isgently pushed back
o Make sure the packing material stays in place when the
productispushedback into position, y,_ 7.:_.Unst_b/erdr,_er_tor
= IdeaUy,thepackinr_materialislargeenouU_torest
against the back wall so as to prevent it moving when
the cabinet is pushed into position.
Packing matedal goes unde_ rear _olIer
diagonal y oppos te fiont foot that lifts
wallb_h_dr_frig_rator liiii
G fioll the refrigerator back into position and adjust front feet as per step D. (Check alignment and
doorclosingactionaresatisfactory>.
= MakesmaUadiustmentstofron_feetwherenecessary.
Check that the product is stable (all 4 feet are on the floor). If not return to step Eand repeat
stepsFandQ.

_nsta_ation instructions
Before placing food in the fresh food or freezer compartments
Remove all packaging. Ensure that all transit clips are removed from the refrigerator. These are
small rubber stops located at the back of the shelves.
Clean the inside of the appliance with a mix of warm water, a little liquid detergent and a soft
cloth to remove manufacturing and transportation dust.
Allow the refrigerator and freezer to run empty for 2 - Bhours to allow each compartment to
cool to the appropriate temperature.
The appliance may have an odor on its initial operation, but this will go when the refrigerator
and freezer have cooled sufficiently.
Energy efficiency
Do not cover your appliances with any material that will prevent air from flowing around the
cabinet sides.
Do not leave the door open for any longer than is necessary.
Allow good clearances in front of the air ducts within the cabinet for maximum cold air
distribution.
Moving or storing your refrigerator
........................If your refrigerator or freezer is turned off for any reason, wait 10 minutes before turning it back }
On. This will allow the refrigeration sy'stem pressures to equalize before restarting. ,/
oo,,oto,
Turn Off the appliance and unplug from the power point. Remove all food.
Turn the adjustable feet to the right as far as they will turn (refer to page 12).
Ease the refrigerator out of its position. Tuck the power cord away and tape the doors closed.
Tape the shelves in [)lace. If the cabinet needs to be placed at an angle or laid down, carefully
layitonitsside(therighthandsidewhenviewedfromthefront/,
o RelocateandinstaU.Iftheappliancehasbeenleftor,itssideforanyh_gthoftime,leaveit
standinguprightforatleast10minutesbeforeturningon.
s_or_,,gyourrefrigeratororfreezer :i
o Whenstoring;,'ourcleanedappliance,leavethedoorsopen.Th_sallowsa_rtoc_rculateand 1i
prevents the build up of bacteria and moulds.
Before using again, clean well using a mixture of warm water and baking soda (add 1teaspoon
of baking soda to each 1 pint (500 ml)of water). Rinse with clean water.
Holiday time
WerecommendyouleaveyourrefrigeratororfreezeroperatingwhUeyouareor,holiday.

Before you start using your ke & Water refrigerator
Check refrigerator is switched on and has cooled for at least 2 hours before use (refer to page 22
- The temperature of your refrigerator and freezer).
Check that the water filter has been connected and turned om
Turn on the ice maker (refer to page 19).
At first use allow approximately a minute from when the dispensing pad is pushed until water is
dispensed. This will allow the tank to fi&
Run through and discard the first 8 - 10 qt (8 - 10 L) of water from the dispenser, stopping
intermittently (refer to page 18 - First use). Failure to do this will result in excessive dripping
from your dispenser.
Discard the first bin of ice (refer to page 19 - First use).
You are now ready to enjoy ice and water from your Active 5mart r'' refrigerator.
6
_"<q_ lF W_rerdispenser
Please note that once installation is complete a few drips may appear out of the dispenser over
the next few days as the remaining trapped air is cleared.

A_ about the display
The display screen enables you to view and modify all the features and options on your
refrigerator. For example, you can change the temperature in your refrigerator or freezer, and
select the Fast Freeze function when you want to quickly freeze meat. You may want to also
quickly chill a bottle of wine when friends arrive unexpectedly.
4 5 6 7 8
t .l. J ,
_::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::7::::::::::::::::::::::::_:
3
Fig. ?6 Electronic control panel
For more detailed information on these functions please refer to pages 21 -24.
Scrolls through the main menu, (Freezer, ]emperature, Ice and Settings),
Scrolls through the settings of each function,
Dispenser Lock - disables the buttons and prevents water from being
dispensed.
Key Lock- disables the buttons,

about the display
Display features
l _EEZER ]
@ Botde Chill
Your drinks can be chilled more rapidly using this function. An alarm will
£££,_uW alert you when they are ready (refer to page 21).
Fast Freeze
When activated this feature boosts cooling in your freezer, optimizing the
rate at which your foods are frozen (refer to page 22).
$
÷
colder wag'met
Animation shows you water is being dispensed.
The temperature setting can be individually adjusted for each
compartment.
The ice making function can be turned on or off.
Key Silent Mode
All key presses can be silenced (refer to page 23).
Dispenser and Key Lock
Dispenser Lock - disables the buttons and prevents water from being
dispensed (refer to page 23).
Key Lock - disables the buttons.
6Sabbath Mode
Can be activated if necessary (refer to page 23).
Filter Reset
The filter icon will appear when the water filter needs changing (refer to
page 24).
Service/Fault Diagnosis
If a fault occurs, the fault icon and fault code will be dispByed on the
screen (refer to page 24).

Using you wate dispense
Dispensing pad
",,!ourwater dispenser has been designed for one handed operation. Simply push your glass up
against the dispenser pad located at the back of the dispenser area. This pad requires only a
gentle press to activate.
Please remember that pressing very hard against the dispensing pad will not make the
dispenser operate faster or produce greater quantities of water.
First use
After installation, on the first use, allow approximately a one minute delay while the dispensing
pad is pushed until water is dispensed. This will allow the tank to fill completdy.
After you fill the tank for the first time, dispense and discard approximately 8 - 10 qt (8 - 10 L)
stopping intermittently to flush the tank out.
$
¢Dispensing
To dispense water push the dispensing pad gently, using 5 6 (_ _}
a glass or container,
When you dispense water, a light will appear above the
dispensing area, and on the display screen, The water fill
icon tl will also appear.
To stop the flow of water, simply pull your glass away
from the dispensing pad.
To avoid damage to property or per.sonal injury do not
put hand.s, fingers or objects up the dLspenser opening.
_i_i_/, 17 Wc,ter di pen er
Please note that once installation is complete a few drips may appear out of the dispenser over
the next few days as the remaining trapped air is cleared.
