Fisher & Paykel RX611DUX Mounting instructions

Side by side refrigerator
RX611DUX, RX628DX
and RX628DW models
NZ AU
INSTALLATION INSTRUCTIONS
USER GUIDE

1
CONTENTS
Introduction 2
Safety and warnings 3
Installation instructions 6
Moving and storing your appliance 15
About your refrigerator – Ice & Water 16
About your refrigerator – Non Ice & Water 17
Operating instructions – Ice & Water control panel 18
Operating instructions – Non Ice & Water control panel 22
Using your water dispenser / Ice maker – Ice & Water 25
Special features 27
Cleaning Care – Exterior 28
Cleaning Care – Interior 29
Storing food in your refrigerator 30
Storing food in your freezer 32
Troubleshooting 34
Manufacturer’s Warranty 38
Customer Care 40
ImpORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please go to our website www.fisherpaykel.com or contact
your local Fisher & Paykel dealer.
Note that the word “refrigerator”refers to combination refrigerator/freezer products.

2
Thank you for buying a Fisher & Paykel side by side refrigerator.
This refrigerator combines size and storage space with the latest features and functions.
Many hours have been spent researching how you, our customer, use your refrigerator
and what we can do to make life easier for you.
As your life changes, so can your refrigerator. This book explains the features and
functions, and will help you get the most out of your refrigerator.
We hope you enjoy your new refrigerator.
INTRODUCTION
RX611DUX RX628DW/RX628DX

3
SAFETY AND WARNINGS
!WARNING!
Electric Shock Hazard
Read and follow the SAFETY AND WARNINGS outlined in this user
guide before operating this appliance.
Failure to do so can result in death, electric shock, fire or injury to
persons.
R600a
This refrigerator contains flammable refrigerant Isobutane (R600a).
Use this appliance only for its intended purpose as described in this user guide.
IMPORTANT SAFETY INSTRUCTIONS
WARNING! When using this appliance always exercise basic safety precautions
including the following:
 This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
 Young children should be supervised to ensure they do not play with the appliance.
 The manufacturer’s installation instructions for product and cabinetry ventilation must
be followed when installing the appliance.
 Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear
of obstruction.
 Do not use mechanical devices or other means to accelerate the defrosting process.
 Do not damage the refrigerant circuit.
 In case of damage to the refrigerant circuit, ventilate the area by opening all windows.
Do not operate electrical equipment or any other equipment that may produce
arcs, sparks or flames in the area. Contact your Fisher & Paykel Authorised Repairer
immediately to arrange for the appliance to be repaired.
 It is hazardous for anyone other than an authorised service person to service this
appliance. In Queensland the authorised service person must hold a gas work licence
or authorisation for hydrocarbon refrigerants to carry our service or repairs which
involve removal of covers.

4
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
Electrical
 This appliance must be installed in accordance with the installation instructions
beforeuse.
 Never unplug your refrigerator by pulling on the power cord.
 Always grip the plug firmly and pull straight out from the outlet.
 Do not plug in any other appliance at the same power point as your refrigerator or
use extension cords or double adapters.
 Repair or replace immediately all electric service cords that have become frayed or
otherwise damaged. Do not use a cord that shows cracks or abrasion along its length
or at either the plug or appliance end.
 If the power supply cord is damaged, it must only be replaced by your Fisher & Paykel
Authorised Repairer because special purpose tools are required.
 When moving your appliance away from the wall, be careful not to roll over or
damage the power cord.
 Do not use electrical appliances inside the food storage compartments of the
appliance.
ImpORTANT!
Your refrigerator is designed to operate for many years without the need for service
checks. However, if your refrigerator is malfunctioning, have it attended to by your
Fisher & Paykel Authorised Repairer as soon as possible. All electrical repairs must be
carried out by an adequately trained service technician or qualified electrician.
Cleaning
 Many commercially available cleaning products contain solvents which may attack
plastic components of your refrigerator and cause them to crack. Please refer to the
cleaning care section of this booklet for further advice.
Disposal
 Extreme care must be taken when disposing of your old appliance to avoid hazards:
– The flammable refrigerant gas must be safely removed.
– The thermal insulation foam contained in this appliance is produced by
flammable insulation blowing gases, any exposed foam may be highly flammable
and must be carefully treated during disposal.
– The doors should be removed and the shelves left in place so that children may
not easily climb inside.
 Your Fisher & Paykel Authorised Repairer will be able to give advice on
environmentally friendly methods of disposing of your old refrigerator or freezer.
Storing food and drinks
 Do not store explosive substances such as aerosol cans with a flammable propellant in
this appliance.
 Never store volatile or flammable materials in your refrigerator as they may explode.
 Never freeze liquids in glass containers. Liquid expands during freezing, which may
cause the container to explode.
 Never freeze carbonated drinks. They may explode.
 Do not consume food if it is too cold. Food removed from the freezer compartment
may be cold enough to cause damage when brought into contact with bare skin,
egfrozen ice cubes.

5
IMPORTANT SAFETY INSTRUCTIONS
Power failure – food safety
 Do not refreeze frozen foods that have thawed completely. The food may be
dangerous to eat. Follow the recommendations below if you discover food in your
freezer has thawed:
– Ice crystals still visible – food may be refrozen but should be stored for a shorter
period than recommended.
– Thawed but refrigerator cold – refreezing generally not recommended. Fruits
and some cooked food can be refrozen but use as soon as possible. Meat, fish,
poultry – use immediately or cook then refreeze. Vegetables – discard as they
usually go limp and soggy.
– Thawed and warmer than 5°C – discard all food.
SAFETY AND WARNINGS

6
INSTALLATION INSTRUCTIONS
Please follow the installation steps below to ensure your appliance operates correctly.
Power
 The appliance must be installed so the plug is accessible.
 To ensure that the appliance is not accidentally switched off, connect your refrigerator
to its own power point. Do not plug in any other appliance at this power point or use
extension cords and double adaptors, as the combined weight of both power cords can
pull the double adaptor from a wall outlet socket.
 For power requirements, refer to the information on the serial plate located on the left
hand side of the fridge compartment.
 It is essential that the appliance is properly grounded (earthed).
 Connect the appliance to the electrical supply (220-240 V~50 Hz) with the plug and lead,
which are fitted.
 Connections to the mains supply should be in accordance with local regulations.
Location
 Your refrigerator should not be located in direct sunlight or next to any heat generating
appliance such as a cooktop, oven or dishwasher.
 This appliance is intended to be used in household and similar applications such as
– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
Ice & Water (Ice & Water models only)
 Your Ice & Water refrigerator must be installed by an authorised plumber or
Fisher&Paykel Authorised Repairer as incorrect plumbing can lead to water leaks.
 Fisher & Paykel Appliances does not accept responsibility for damage (including water
damage) caused by faulty installation or plumbing.

7
INSTALLATION INSTRUCTIONS

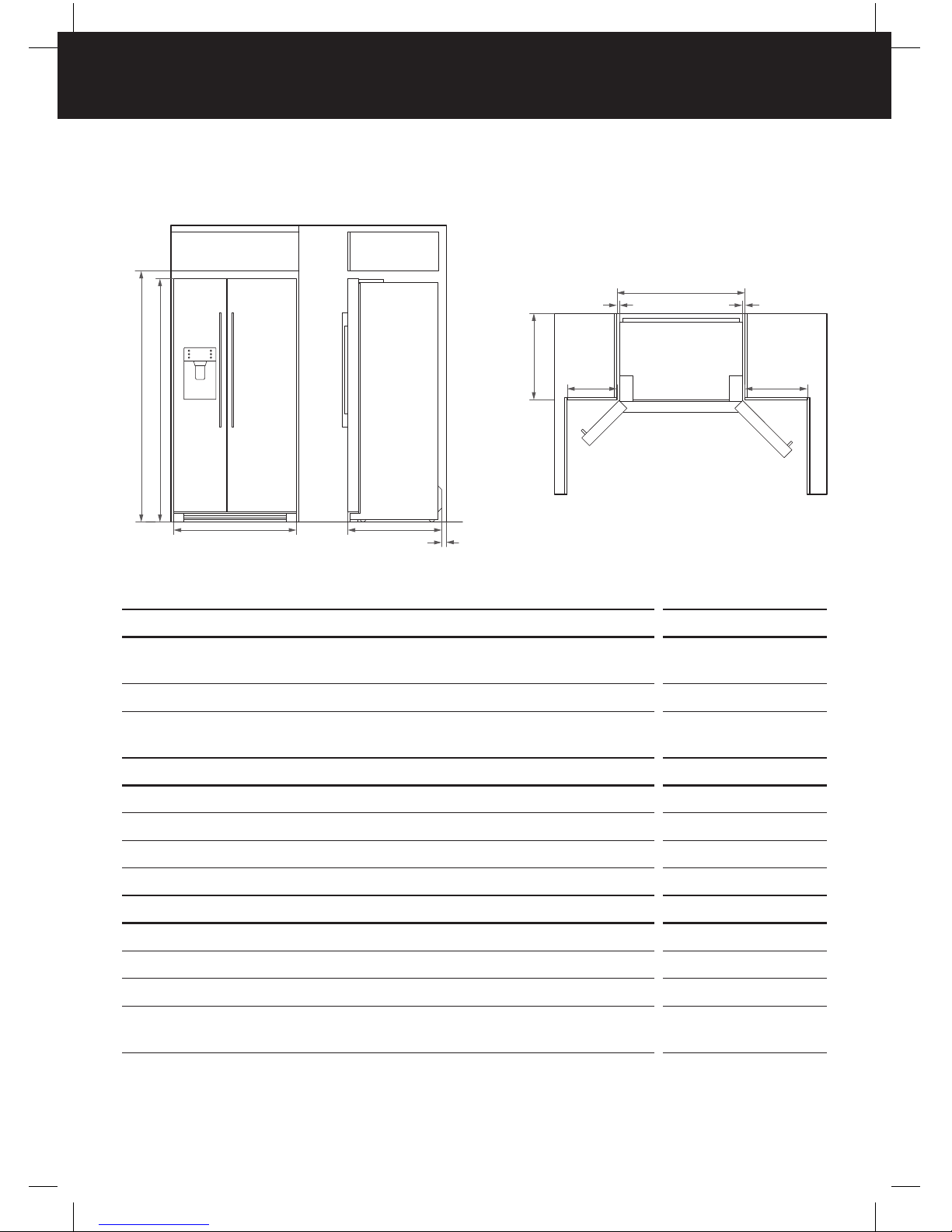

Product and cabinetry dimensions
PRODUCT DIMENSIONS mm
AOverall height of product
(to top of hinge)
1795
BOverall width of product 910
COverall depth of product
(excludes handle, includes rear cover)
700
CABINETRY DIMENSIONS
DInside height of cavity 1845
Flush with refrigerator chassis – full door rotation
EInside width 941
FInside depth 635
MINIMUM CLEARANCES
GSide clearance 20
HRear clearance 30
IDoor clearance - hinge side flush with chassis – full rotation 460
JDoor clearance - hinge side flush with chassis – full rotation
(Small Door)
365
FRONT VIEW PROFILE VIEW
PLAN VIEW
FLUSH WITH REFRIGERATOR CHASSIS – FULL ROTATION
BH
c
D A
G G
E
F
JI
FRONT VIEW PROFILE VIEW
PLAN VIEW
FLUSH WITH REFRIGERATOR CHASSIS – FULL ROTATION
BHc
D A
G G
E
F
JI

8
INSTALLATION INSTRUCTIONS

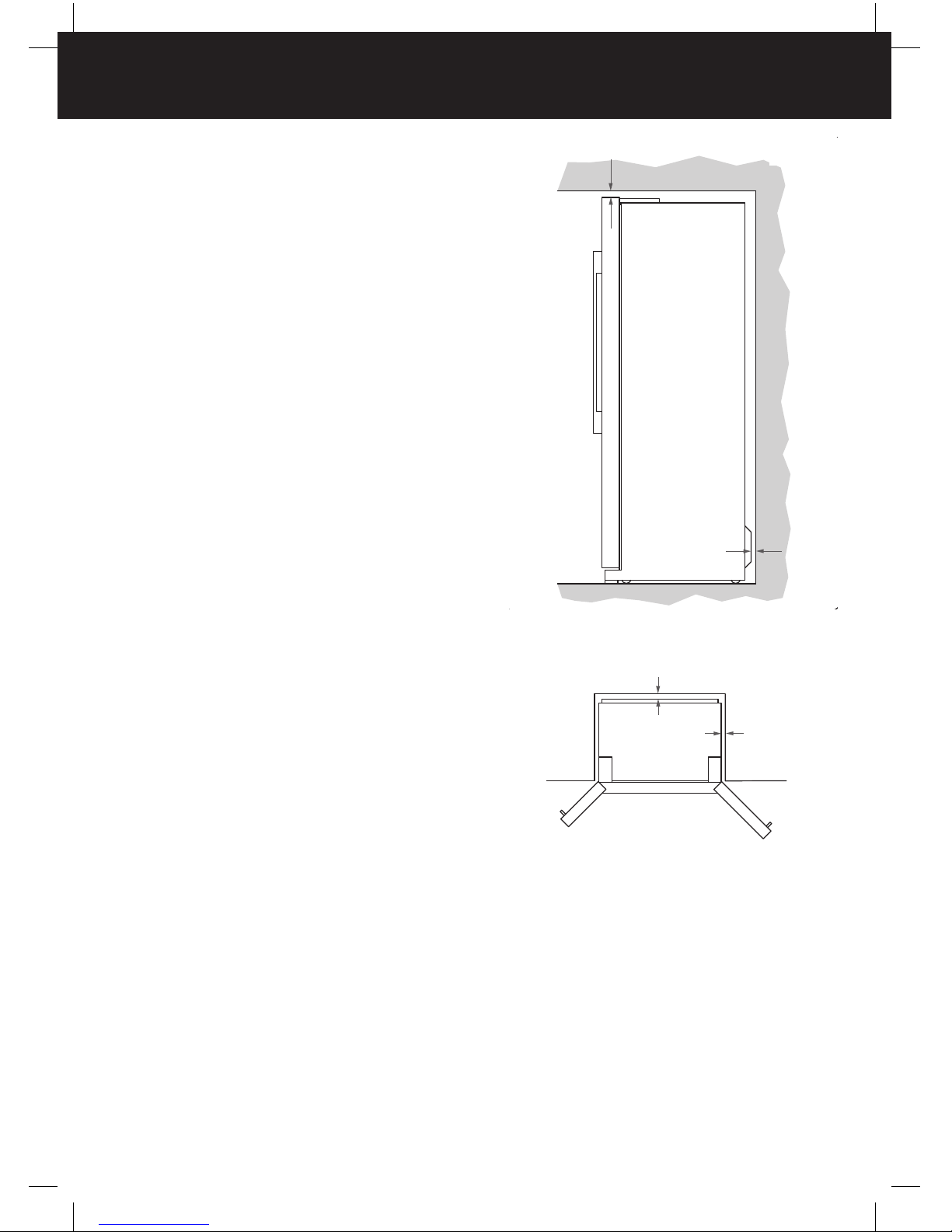

Positioning your appliance
Choosing the right location
This appliance should be installed in
a room that is dry and well ventilated.
To provide adequate ventilation,
make sure the refrigerator is at least
20mm clear on all sides from kitchen
cabinetry, and 30mm from the back
wall. Any units placed above the
appliance must be clear by 50mm to
allow sufficient ventilation.
If locating the refrigerator close to a
corner, sufficient spacing must be left
for opening the doors and removing
the shelves.
This appliance should be at least
100mm from any electric or gas
cooker. If this is not possible, make
sure that appropriate insulation is used
(eg insulated wall).
Avoid exposing the appliance to direct
sunlight, and sources of heat (such as
radiators, heaters or cookers).
Locating this appliance in a cold
environment (such as a shed, outhouse
or garage) may compromise its
performance. A consistent room
temperature of 10°C or above is
recommended to ensure optimum
performance and food care.
50 mm
30 mm
30 mm
20 mm
Installation distance
Door rotation installation distance
50 mm
30 mm
30 mm
20 mm

9
INSTALLATION INSTRUCTIONS
Removing and installing the doors
ImpORTANT!
 In the event that you need to remove the refrigerator doors, please follow the door
removal and installation instructions below.
 It is suggested for your safety to have two or more people to assist you in completing
the tasks below to avoid injury, product damage or property loss.
 Ensure both power and water to the refrigerator are turned off.

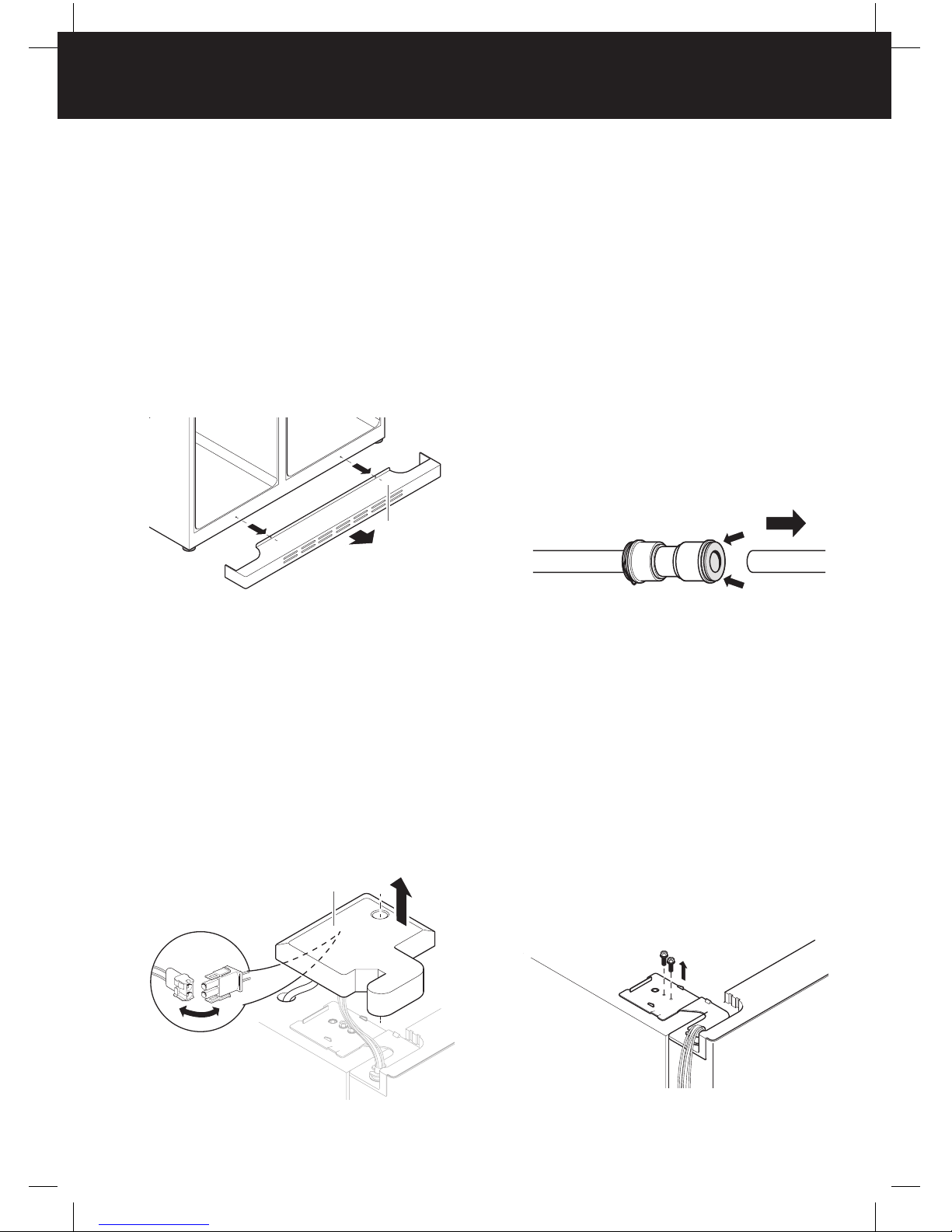

First step to removing fridge and freezer door
1Undo the 2screws holding kick-strip in position and remove (Fig.1).
2Release the water coupler: press and hold in the collet as shown (Fig.2) and remove the
water tube.
ArtNo.600-0048 - DxD water connect
Fig. 2 Releasing water couplerFig. 1 Removing kick-strip
Kick-strip
(Doors omitted for clarity)

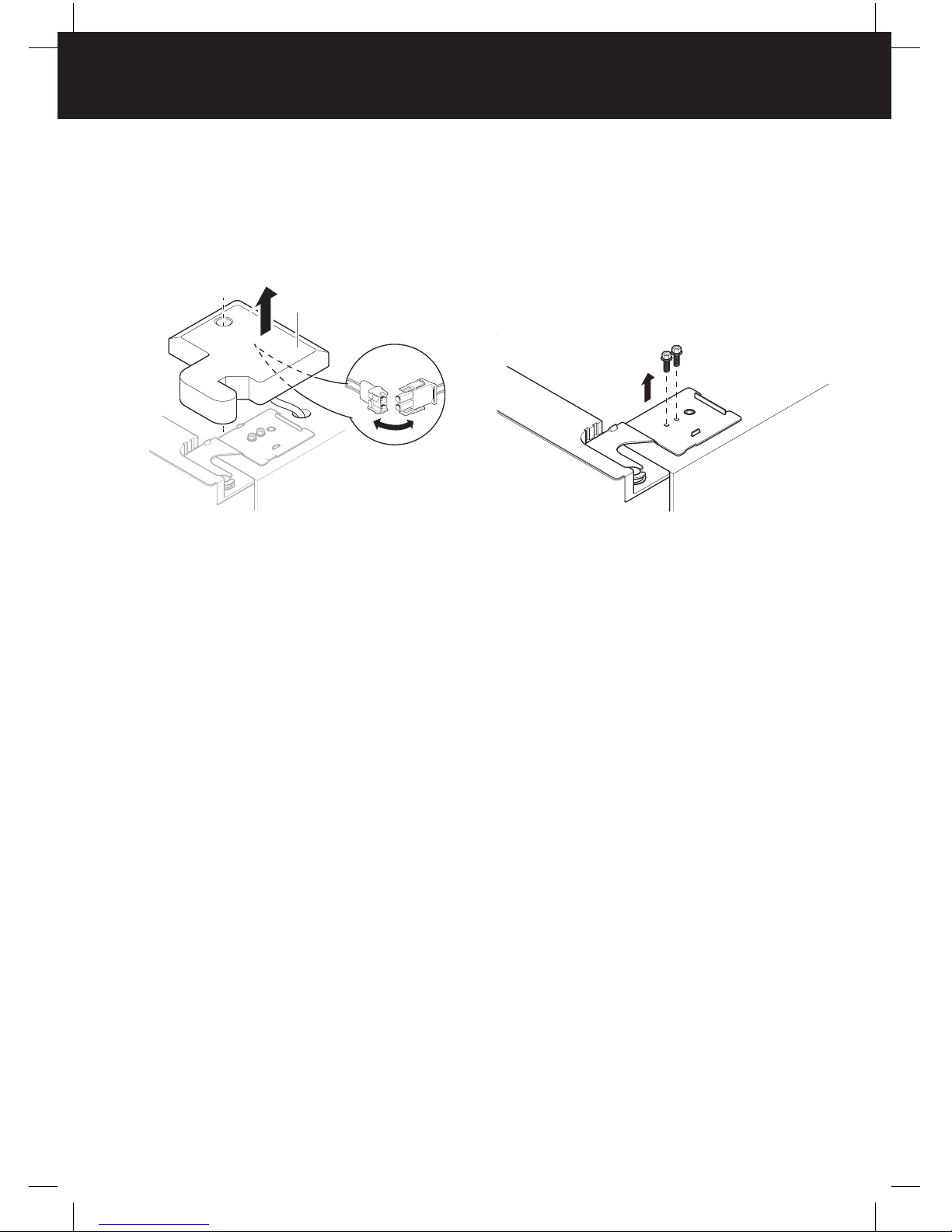

The freezer door
1Undo the hinge cover screw and remove the cover (Fig.3), the clips holding the cover
must be released first. Unclip the front section of the hinge cover, then push the cover
towards the centre of the appliance and pull upwards to release.
2Disconnect wires held together with clips (Fig.3).
3Undo the screws holding down hinge bracket. Do not disconnect the earth wire from the
screw (Fig.4).
4Lift freezer door and thread the water tube up through the lower hinge.
5Pull the door up and then away from the cabinet.
ArtNo.600-0048 - DxD water connect
Fig. 4 Removing hinge screws
ArtNo.600-0048 - DxD water connect
Fig. 3 Removing hinge cover
Hinge cover

10
INSTALLATION INSTRUCTIONS
The fridge door
1Undo the hinge cover screw and remove the cover (Fig. 5), the clips holding the cover
must be released first. Unclip the front section of the hinge cover, then push the cover
towards the centre of the appliance and pull upwards to release.
2Undo screws holding down the hinge bracket (Fig. 6).
3Pull the door up and then away from the cabinet.
ArtNo.600-0048 - DxD water connect
Fig. 6 Removing hinge screws
ArtNo.600-0048 - DxD water connect
Fig. 5 Removing hinge cover
Hinge cover
Refitting the doors
Refit the doors by reversing the removal steps. It is essential that when you replace the
freezer door you replace the earth wire.

11
INSTALLATION INSTRUCTIONS

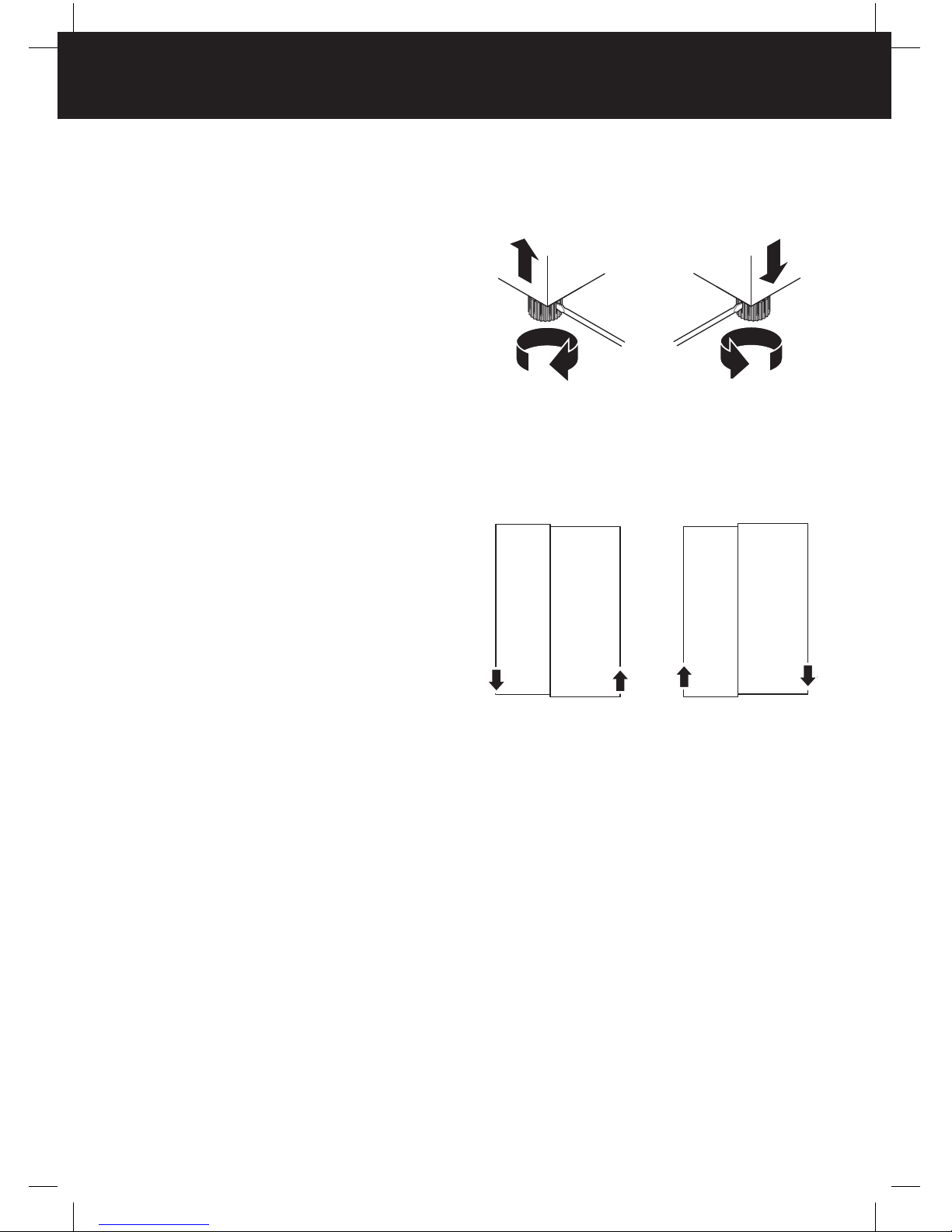

Levelling the refrigerator and
adjusting the doors
Make sure that the appliance is on
solid level flooring. If the refrigerator
is placed on a plinth, the plinth must
be flat and constructed from strong,
fire resistant materials.
The refrigerator may require some
alignment before connecting to the
power supply.
This refrigerator has front adjustable
feet, which can be used to level the
appliance.
Insert a suitable flat-head
screwdriver into the slots of the
adjustable feet. Wind to the left to
raise the foot and to the right to
lower the foot.
Levelling the doors
To raise the left-hand door wind
the left-hand foot to the left.
To raise the right-hand door, wind
the right-hand foot to the left.
ArtNo.600-0035 - Adjust
sting the feet
Fig.4-10
Fig.4-11
Fig.4-9
Handle
Standoff bar
Grub screw
Fig.4-12
Screw cover
Levelling doors
ArtNo.600-0035 - Adjust
sting the feet
Fig.4-10
Fig.4-11
Fig.4-9
Handle
Standoff bar
Grub screw
Fig.4-12
Screw cover
Clockwise to raise feet
ArtNo.600-0035 - Adjust
sting the feet
Fig.4-10
Fig.4-11
Fig.4-9
Handle
Standoff bar
Grub screw
Fig.4-12
Screw cover
Counter-clockwise to
lower feet.

12
INSTALLATION INSTRUCTIONS
Water supply connection
ImpORTANT!
 It is recommended to have this product installed by a qualified technician.
 DO NOT use with water that is microbiologically unsafe or of unknown quality.
 WARNING – connect to potable water supply only to ensure water hygiene in the
icemaker and water dispenser.
 DO NOT install on line pressure above 600kPa or below 150kPa.
 DO NOT use on hot water supply (25°Cmax).
 DO NOT cut any length of tube shorter than 500mm.
 DO NOT install near electrical wires or water pipes that will be in the path of drilling
when selecting the location of the filter system.
 DO NOT mount the filter in such a position that it will be struck by other items, such
as wastebaskets, etc.
 DO NOT install the filter or any water tubing in direct sunlight as prolonged exposure
to light can weaken plastic components.
 DO NOT install the filter in a location that is susceptible to freezing temperatures as
damage to the filter housing could occur.
 DO NOT screw the filter to the refrigerator.
 DO NOT install the filter or any water tubing in high temperature areas eg in a ceiling
cavity.
 AVOID contamination of pipes during installation.
 DO NOT use copper tubing. The plastic tubing supplied should always be used.
 DO NOT continuously dispense water for a period longer than 1 minute.
 The water connection instructions are intended for the professional installer.

13
INSTALLATION INSTRUCTIONS
Fitting the water filter
1 Measure out and cut the length of tube
required from the filter to the refrigerator,
and from the filter to the water supply.
When cutting, make sure tube ends are
square and clean.
2Push fit one of the tubes into the water
filter (Fig. 7).
3Secure the tube to the filter by sliding
a locking clip into the groove as shown
(Fig. 8).
4Repeat the procedure on the other end of
the filter.
5Connect the end into the plastic adaptor
(Fig. 9). Screw the adaptor onto a suitable
½ BSP connector water outlet.
6Open the water valve to flush 10L of water
through the filter to remove any trapped
air. Check leakage in the water tube
connections.
7Access the water valve assembly at the
back of the refrigerator. Push the tube into
the valve assembly (Fig. 10).
Before you start using the water dispenser
Before first use, run through and discard
the first 3L of water from the dispenser,
stopping intermittently to remove trapped
air in the system. Do not press for more
than 1minute to prevent overheating of the
pad activator solenoid.
Note: there will be a delay while the tank
fills until water is dispensed.
ImpORTANT!
 All connections must be checked for leaks.
 Ensure white 6mm tubing is routed away from sharp objects, sharp corners (beware
of kinking tube as this will stop water flow), clear of the refrigerator unit compartment
and not in a location where it can be squashed.
 Ensure all push-fit connections are firmly pushed into place.
 If tubing is removed at any point, re-cut the end and re-insert. Tubing must be fully
inserted to avoid leaks.
 To remove tube from connection points, turn off the isolating tap, gently push the
dispensing pad using a glass or container to remove static line pressure push in the
collet and gently pull tubing at the same time.

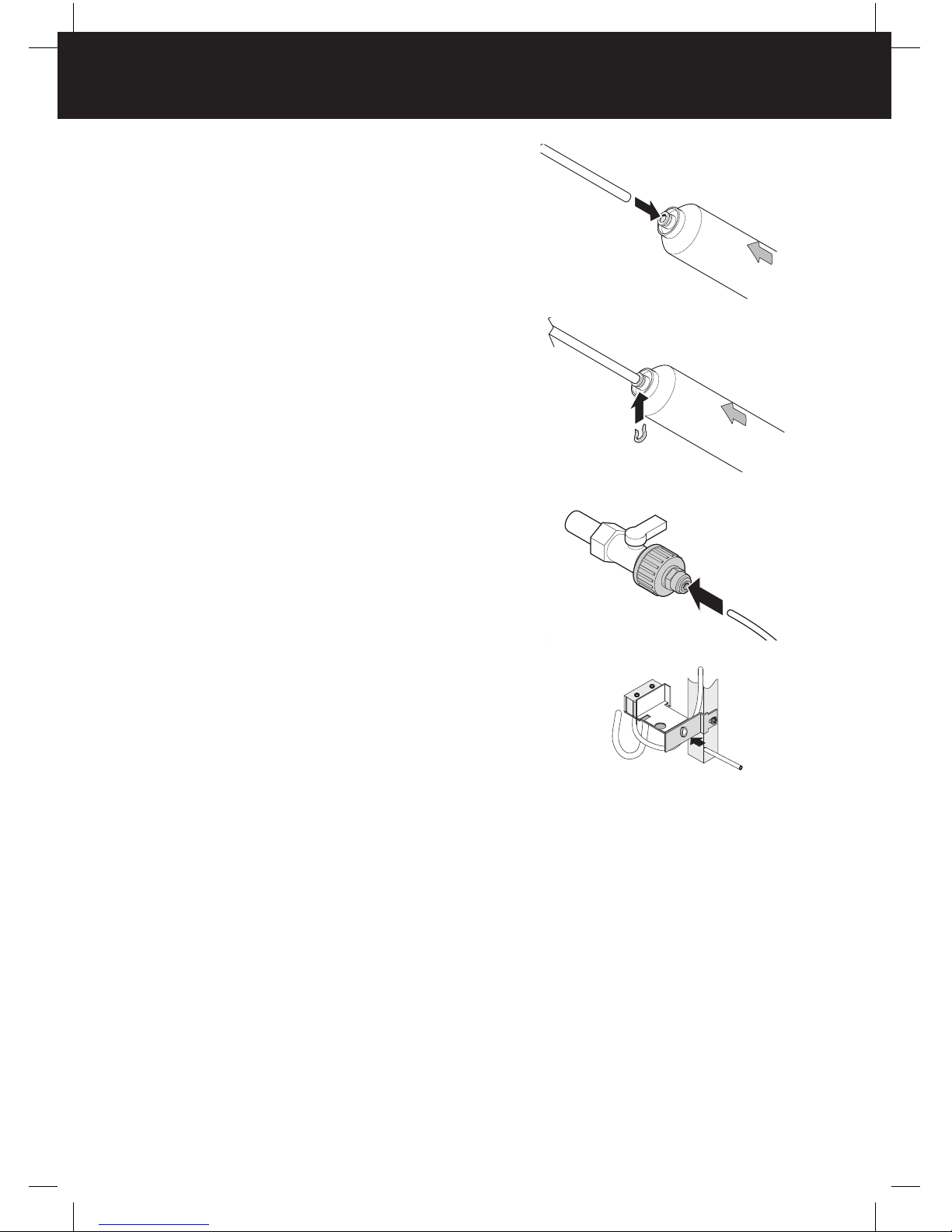

Fig. 7 Filter connection
Fig. 8 Locking clip
Fig. 9 Waterline connection
Fig. 10 Valve assembly

15
MOVING AND STORING YOUR APPLIANCE
If your refrigerator is turned off for any reason, wait 10minutes before turning it back
on. This will allow the refrigeration system pressures to equalise before restarting.
Moving your appliance
 Turn off the appliance and unplug from the power point. Remove all food.
 Ease the appliance out of its position. Tuck the power cord away, if applicable tape the
shelves in place and tape the doors closed. If the cabinet needs to be placed at an angle
or laid down, carefully lay it on its side (the right-hand side when viewed from the front).
 Relocate and install. If the appliance has been left on its side for any length of time,
leave it standing upright as long as possible (at least a few hours) before turning it on.
Storing your appliance
 When storing your cleaned appliance, leave the door(s) open. This allows air to circulate
and prevents the build up of bacteria and moulds.
 Before using again, clean well using a mixture of warm water and baking soda (add 1tsp
of baking soda to each 500ml of water). Rinse with clean water.
Holiday time
We recommend you leave your refrigerator operating while you are on holiday.
 Turn the ice maker off on the control panel.
 Shut off the water supply to the refrigerator.
 On your return, turn on the water supply to the refrigerator.
 Dispense 3L of water and discard to ensure the water tank is refilled with fresh water.
 Turn on the ice maker.
 Discard the first 3harvests of ice.

ABOUT YOUR REFRIGERATOR – ICE & WATER
1Ice maker/ice box
2Freezer main shelves
3Ice & water dispenser
4Freezer light
5Freezer drawers
6Freezer door shelves
7Fridge light
8Fridge door shelves
9Fridge main shelves
!0 Vegetable drawers
!1 Fridge drawer
1
2
3
4
5
6
7
8
9
!0
!1
Internal view
16
RX611DUX

17
ABOUT YOUR REFRIGERATOR – NON ICE & WATER
1Freezer light
2Freezer door shelves
3Freezer main shelves
4Ice trays
5Ice box
6Freezer drawers
7Fridge light
8Fridge door shelves
9Fridge main shelves
!0 Vegetable drawers
!1 Fridge drawer
1
2
3
4
5
6
7
8
9
!0
!1
Internal view
RX628DX and RX628DW

18
OPERATING INSTRUCTIONS – ICE & WATER CONTROL PANEL
Ice & water control panel
1
3
5
2
4
6
7 7 7 8 9
!0 !1 !2 !3
1Water and ice dispenser button
2Ice maker on/off button
3Freezer temperature button
4Fridge temperature button
5Function select button
6Function set button
7Dispenser status icons
8Filter change status icon
9Ice maker on status icon
!0 Max Cool icon
!1 Fast Freeze icon
!2 Holiday icon
!3 Lock icon
Lock function
This feature will lock the temperature
and function settings preventing these
from being changed. This is useful when
cleaning your refrigerator. When locked,
the Lock icon will blink and a beep
willsound.
To lock
Press and hold Function Set for
3seconds. The Lock icon will appear and
the refrigerator settings will be locked.
To unlock
Press and hold Function Set for
3seconds. The Lock icon will turn off
and the refrigerator settings will be unlocked.
Ice & water control panel
Lock
