INSTALLATION INSTRUCTIONS
USER GUIDE
INSTRUCTIONS D’INSTALLATION
GUIDE D’UTILISATION
ActiveSmart™ refrigerator
Ice & Water and Non-Ice & Water
Réfrigérateur ActiveSmart™
Ice & Water et autres
RF135B, E522B, RF170W, RF170A, RF201A models
Modèles RF135B, E522B, RF170W, RF170A, RF201A

1
CONTENTS
Introduction 3
Safety and warnings 4
Installation instructions 7
Moving or storing your appliance 21
Door conversion 22
Soft closing refrigerator door feature 22
ActiveSmart™ operating instructions 23
All about the external display (Ice & Water models only) 27
Using your water dispenser (Ice & Water models only) 28
Water filter (Ice & Water models only) 29
Using your ice maker (Ice & Water models only) 31
ActiveSmart™ special features (all models) 33
Cleaning and caring for your refrigerator 36
Storing food in your refrigerator 40
Storing food in your freezer 42
ActiveSmart™ user warnings and sounds 44
Troubleshooting 45
Limited warranty 50
Filter performance data sheet 107
ImpORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may
not be available in all markets and are
subject to change at any time. For current
details about model and specification
availability in your country, please go to our
website www.fisherpaykel.com or contact
your local Fisher & Paykel dealer.
Note that the word ‘refrigerator’, throughout
this user guide, refers to the combination of
refrigerator/freezer products.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
www.fisherpaykel.com
EN

3
INTRODUCTION
Thank you for buying a Fisher & Paykel ActiveSmart™ refrigerator.
At Fisher & Paykel we are very proud of this refrigerator. This refrigerator combines size
and storage space with the latest features and functions.
Thousands of hours of food care research and refrigeration experience has been
programmed into your refrigerator to give you the best possible performance.
We hope you enjoy your new refrigerator.
Note: non Ice & Water models do not have an external water dispenser.

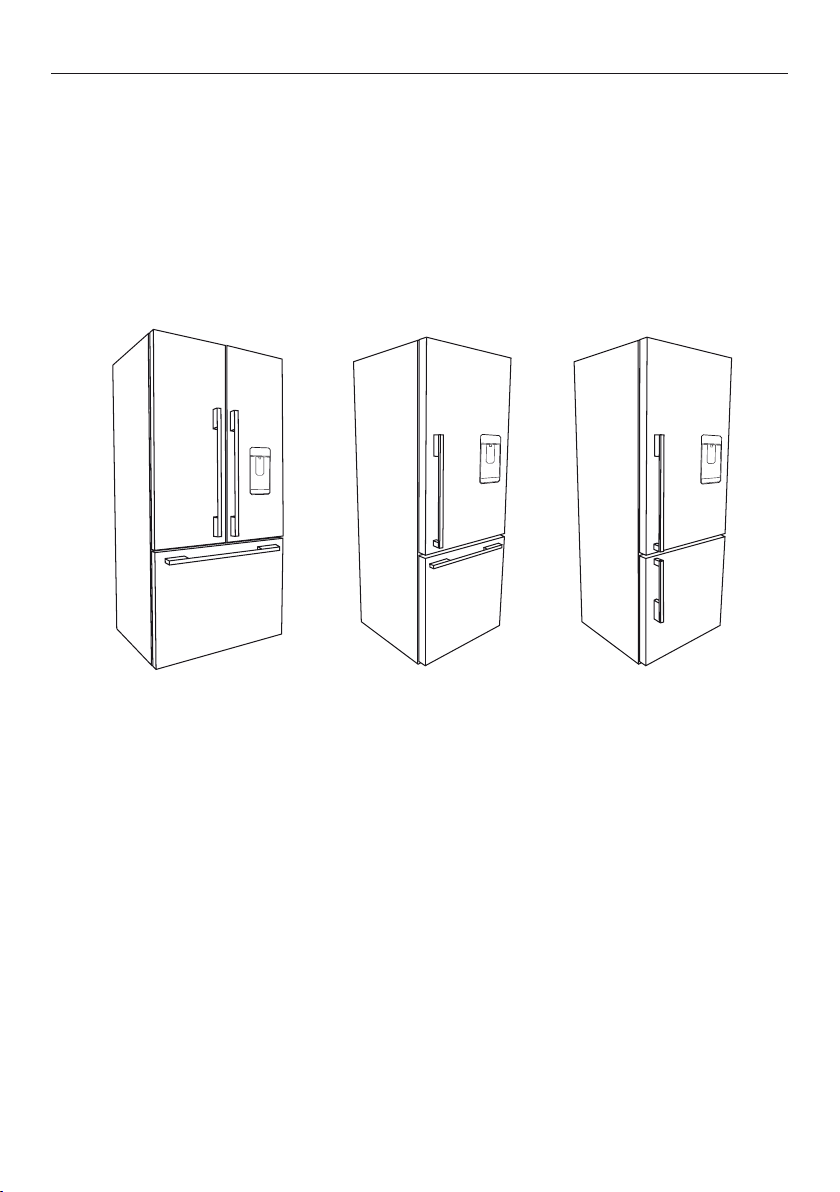

Refrigerator French door
and freezer drawer
Refrigerator door
and freezer door
Refrigerator door
and freezer drawer
EN

4
SAFETY AND WARNINGS
!WARNING!
Electric Shock Hazard
Read and follow the safety and warnings outlined in this user guide before
operating this appliance.
Failure to do so can result in death, electric shock, fire or injury to persons.
Use this appliance only for its intended purpose as described in this user guide.
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
When using this appliance always exercise basic safety precautions including the
following:
Danger
 This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
 Young children should be supervised to ensure they do not play with the appliance.
 Refer to the stability bracket and leaflet supplied to avoid hazard due to instability of
the appliance.
 The manufacturer’s installation instructions for product and cabinetry ventilation must
be followed when installing the appliance.
 Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear
of obstruction.
 Do not use mechanical devices or other means to accelerate the defrosting process.
 Do not damage the refrigerant circuit.
 In case of damage to the refrigerant circuit, ventilate the area by opening all windows.
Do not operate electrical equipment or any other equipment that may produce arcs,
sparks or flames in the area. Contact your Fisher & Paykel Authorized Service Agent
immediately to arrange for the appliance to be repaired.
Disposal
 Extreme care must be taken when disposing your old appliance to avoid hazards:
– The refrigerant gas must be safely removed
– The doors should be removed and the shelves left in place so that children may
not easily climb inside.
 Your Fisher & Paykel Authorized Service Agent will be able to give advice on
environmentally friendly methods of disposing of your old refrigerator or freezer.

5
SAFETY AND WARNINGS
Cleaning
Many commercially available cleaning products contain solvents which may attack
plastic components of your refrigerator and cause them to crack. For further advice
please refer to section ‘Cleaning and caring for your refrigerator’.
Electrical
 This appliance must be installed in accordance with the installation instructions
beforeuse.
 Never unplug your refrigerator by pulling on the power cord.
 Always grip the plug firmly and pull straight out from the outlet.
 Do not plug in any other appliance at the same power point as your refrigerator or use
extension cords or double adapters.
 Repair or replace immediately all electric service cords that have become frayed or
otherwise damaged. Do not use a cord that shows cracks or abrasion along its length
or at either the plug or appliance end.
 If the power supply cord is damaged, it must only be replaced by your Fisher & Paykel
Authorized Service Agent because special purpose tools are required.
 When moving your appliance away from the wall, be careful not to roll over or
damage the power cord.
 Do not use electrical appliances inside the food storage compartments of the
appliance.
 Do not remove the rear compartment cover. This can only be removed by Fisher &
Paykel Authorized Service Agents.
IMPORTANT!
Your refrigerator is designed to operate for many years without the need for service
checks. However, if your refrigerator is malfunctioning, have it attended to by
your Fisher & Paykel Authorized Service Agent as soon as possible. All electrical
repairs must be carried out by an adequately trained service technician or qualified
electrician.
Storing food and drinks
 DO NOT store explosive substances such as aerosol cans with a flammable propellant
in this appliance.
 Never store volatile or flammable materials in your refrigerator as they may explode.
 Never freeze liquids in glass containers. Liquid expands during freezing, which may
cause the container to explode.
 Never freeze carbonated drinks. They may explode.
 Do not consume food if it is too cold. Food removed from the freezer compartment
may be cold enough to cause damage when brought into contact with bare skin, eg
frozen ice cubes.
EN

6
SAFETY AND WARNINGS
Power failure – food safety
 Do not refreeze frozen foods that have thawed completely. The food may be
dangerous to eat. Follow the recommendations below if you discover food in your
freezer has thawed:
– Ice crystals still visible – food may be refrozen but should be stored for a shorter
period than recommended.
– Thawed but refrigerator cold – refreezing generally not recommended. Fruits
and some cooked food can be refrozen but use as soon as possible. Meat, fish,
poultry – use immediately or cook then refreeze. Vegetables – discard as they
usually go limp and soggy.
– Thawed and warmer than 41°F (5°C) – discard all food.
SAVE THESE INSTRUCTIONS

7
INSTALLATION INSTRUCTIONS
Please follow the installation steps below to ensure your appliance operates correctly.
1. Power
 The appliance must be installed so the plug is accessible.
 To ensure that the appliance is not accidentally switched off, connect your refrigerator
to its own power point. Do not plug in any other appliance at this power point or use
extension cords and double adaptors, as the combined weight of both power cords can
pull the double adaptor from a wall outlet socket.
 For power requirements, refer to the information on the serial plate located at the front
bottom right-hand side of the refrigerator when the door is open.
 It is essential that the appliance is properly grounded (earthed).
2. Location
Your refrigerator should not be located in direct sunlight or next to any heat generating
appliance such as a cooktop, oven or dishwasher.
3. Ice & Water (Ice & Water models only)
 Your Ice & Water refrigerator must be installed by an authorized plumber or Fisher &
Paykel Authorized Service Agent as incorrect plumbing can lead to water leaks.
 Fisher & Paykel Appliances does not accept responsibility for damage (including water
damage) caused by faulty installation or plumbing.
EN

8
INSTALLATION INSTRUCTIONS
Product and cabinetry dimensions
4. Freezer door models (RF135B, E522B)
(Ice & Water and non Ice & Water)
If integrating your refrigerator, please follow
installation instructions provided with the
integration kits.
D A
BC P
R
Q
Q
F
PM
E
M
S
H/I
P
G
M N
TK/L
PM
J
O
Flush with refrigerator chassis – full door rotation
D A
BC P
R
Q
Q
F
PM
E
M
S
H/I
P
G
M N
TK/L
PM
J
O
Flush with refrigerator door – full door rotation
D A
BC P
R
Q
Q
F
PM
E
M
S
H/I
P
G
M N
T
K/L
PM
J
O
Flush with refrigerator door – 90° door rotation
D A
BC P
R
Q
Q
F
PM
E
M
S
H/I
P
G
M N
T
K/L
PM
J
O
6 7 8 9
DRAWING: 838587
PART: 838587
Y
X
vW
U
RF135B E522B
PRODUCT DIMENSIONS inches mm inches mm
AOverall height of flat door product 67⁄ 1715 67⁄ 1715
AOverall height of curved door product – – 66⁄ 1700
AOverall height of curved door with
ice & water product – – 67⅛ 1705
BOverall width of product 25 635 31⁄ 790
COverall depth of flat door product
(excludes handle, includes rear compartment cover) 27⅜ 695 27⅜ 695
COverall depth of curved door product
(excludes handle, includes rear compartment cover) – – 28⁄ 715
110VAC cord and water inlet dimensions

9
INSTALLATION INSTRUCTIONS EN
RF135B E522B
CABINETRY DIMENSIONS (including minimum clearances) inches mm inches mm
DInside height of cavity 68⁄ 1735 68⁄ 1735
Flush with refrigerator chassis – full door rotation
EInside width 26⁄ 675 32⁄ 830
FInside depth 24⁄ 620 24⁄ 620
Flush with refrigerator door – full door rotation
GInside width 31⁄ 790 37⁄ 945
HInside depth flush to curved door – – 26⁄ 680
IInside depth flush to flat door 27⅜ 695 27⅜ 695
Flush with refrigerator door – 90° door rotation
(for full drawer/shelf access, the doors need to be open past 90°)
JInside width 29⅓ 745 35⁄ 900
KInside depth flush to curved door – – 26⁄ 680
LInside depth flush to flat door 27⅜ 695 27⅜ 695
MINIMUM CLEARANCES
MSide clearance ⁄ 20 ⁄ 20
NSide clearance – hinge side
flush with door – full rotation 5⁄ 135 5⁄ 135
OSide clearance – hinge side
flush with door – 90° rotation 3⁄ 90 3⁄ 90
PRear clearance (incl. rear compartment cover) 1⁄ 30 1⁄ 30
QVent – around top of cupboard (optional) 1⅓ 50 1⅓ 50
RTop clearance – above refrigerator cabinet 1⅓ 50 1⅓ 50
SDoor clearance – hinge side
flush with chassis – full rotation 20⁄ 520 25⁄ 645
TDoor clearance – hinge side
flush with door – full rotation 15⁄ 405 20⅞ 530

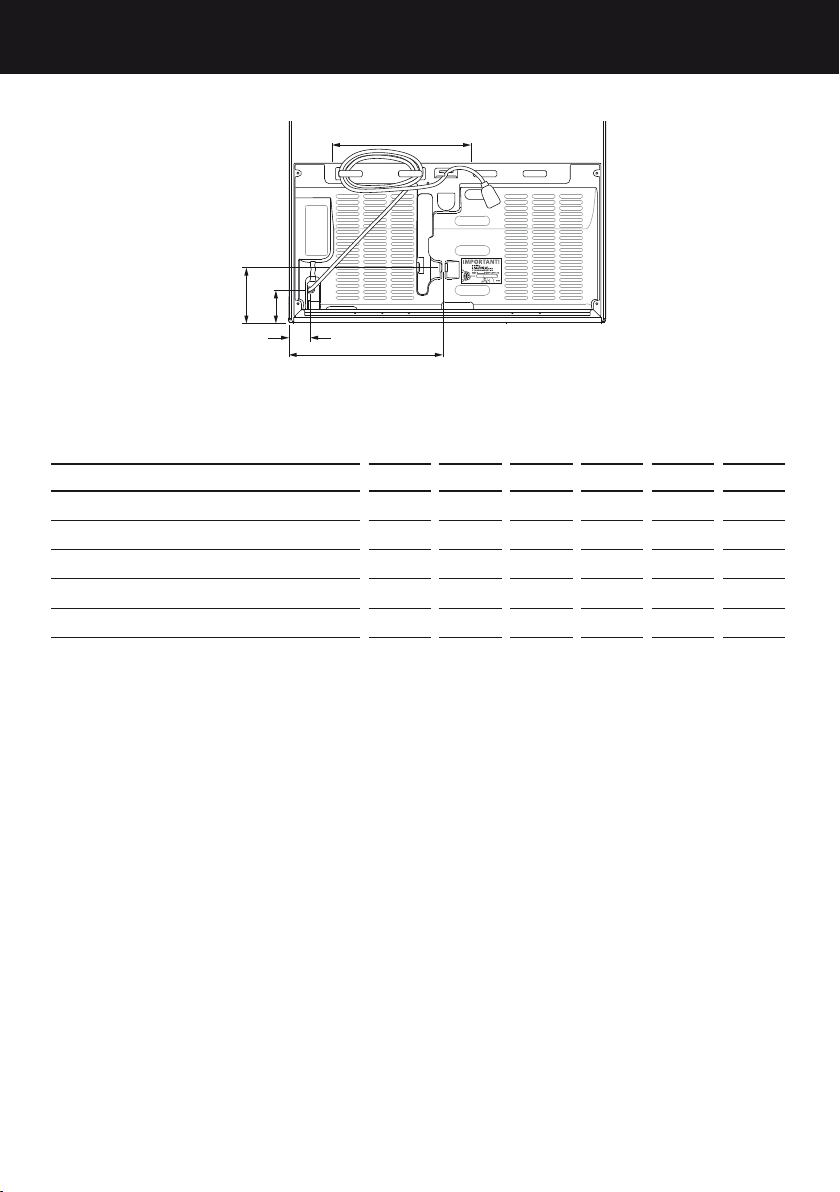

110VAC AND WATER INLET DIMENSIONS
UPower cord 40 1016 40 1016
VWater inlet to bottom 5127 5127
W110VAC to bottom 376 376
X110VAC to edge 2 51 2 51
YWater inlet to edge 13 330 16 406
Note: these drawings and dimensions are also true for Ice & Water models.

10
INSTALLATION INSTRUCTIONS
Product and cabinetry dimensions
5. Freezer drawer models (RF170W, RF170A, RF201A)
(Ice & Water and non Ice & Water)
D A
B C P
Q
Q
R
F
P
H/I
P
E
M M
S
M
G
N
TK/L
P
J
M O
Flush with refrigerator chassis – full door rotation
D A
B C P
Q
Q
R
F
P
H/I
P
E
M M
S
M
G
N
TK/L
P
J
M O
Flush with refrigerator door – full door rotation
D A
B C P
Q
Q
R
F
P
H/I
P
E
M M
S
M
G
N
T
K/L
P
J
M O
Flush with refrigerator door – 90° door rotation
D A
B C P
Q
Q
R
F
P
H/I
P
E
M M
S
M
G
N
T
K/L
P
J
M O
D A
B C P
R
Q
Q
F
PM
E
M
S
H/I
PN N
G
T
P
K/L
J
N O
Flush with refrigerator chassis – full door rotation
D A
B C P
R
Q
Q
F
PM
E
M
S
H/I
PN N
G
T
P
K/L
J
N O
Flush with refrigerator door – full door rotation
D A
B C P
R
Q
QF
PM
E
M
S
H/I
PN N
G
T
P
K/L
J
N O
Flush with refrigerator door – 90° door rotation
D A
B C P
R
Q
QF
PM
E
M
S
H/I
PN N
G
T
P
K/L
J
N O
RF170A/RF201ARF170W

11
INSTALLATION INSTRUCTIONS
Note: these drawings and dimensions are also true for Ice & Water models.
RF170W RF170A RF201A
PRODUCT DIMENSIONS inches mm inches mm inches mm
AOverall height of product 67⁄ 1715 67⁄ 1715 70⁄ 1790
BOverall width of product 31⁄ 790 31⁄ 790 35⁄ 900
C
Overall depth of product
(excludes handle, includes rear
compartment cover)
27⅜ 695 27⅜ 695 27⅜ 695
CABINETRY DIMENSIONS (including minimum air clearances)
DInside height of cavity 68⁄ 1735 68⁄ 1735 71¼ 1810
Flush with refrigerator chassis – full door rotation
EInside width 32⁄ 830 32⁄ 830 37 940
FInside depth 24⁄ 620 24⁄ 620 24⁄ 620
Flush with refrigerator door – full door rotation
GInside width 37⁄ 945 41⁄ 1060 46⁄ 1170
HInside depth flush to curved door ––––––
IInside depth flush to flat door 27⅜ 695 27⅜ 695 27⅜ 695
Flush with refrigerator door – 90° door rotation
(for full drawer/shelf access, the doors need to be open past 90°)
JInside width 35⁄ 900 39⅓ 1015 44⁄ 1125
KInside depth flush to curved door ––––––
LInside depth flush to flat door 27⅜ 695 27⅜ 695 27⅜ 695
MINIMUM CLEARANCES
MSide clearance ⁄ 20 ⁄ 20 ⁄ 20
NSide clearance – hinge side
flush with door – full rotation 5⁄ 135 5⁄ 135 5⁄ 135
OSide clearance – hinge side
flush with door – 90° rotation 3⁄ 90 3⁄ 90 3⁄ 90
PRear clearance
(incl. rear compartment cover) 1⁄ 30 1⁄ 30 1⁄ 30
QVent – around top of cupboard
(optional) 1⅓ 50 1⅓ 50 1⅓ 50
RTop clearance – above refrigerator
cabinet 1⅓ 50 1⅓ 50 1⅓ 50
SDoor clearance – hinge side
flush with chassis – full rotation 25⁄ 645 12⁄ 325 14⅜ 365
TDoor clearance – hinge side
flush with door – full rotation 20⅞ 530 8⁄ 210 9⁄ 250
EN

12
INSTALLATION INSTRUCTIONS
RF170W RF170A RF201A
110VAC AND WATER INLET DIMENSIONS inches mm inches mm inches mm
UPower cord 40 1016 40 1016 40 1016
VWater inlet to bottom 5127 5127 5127
W110VAC to bottom 376 376 376
X110VAC to edge 2 51 2 51 2 51
YWater inlet to edge 16 406 16 406 18 457
Note: these drawings and dimensions are also true for Ice & Water models.
6 7 8 9
DRAWING: 838587
PART: 838587
Y
X
vW
U
110VAC cord and water inlet dimensions

13
INSTALLATION INSTRUCTIONS
6. Connecting water (Ice & Water models only)

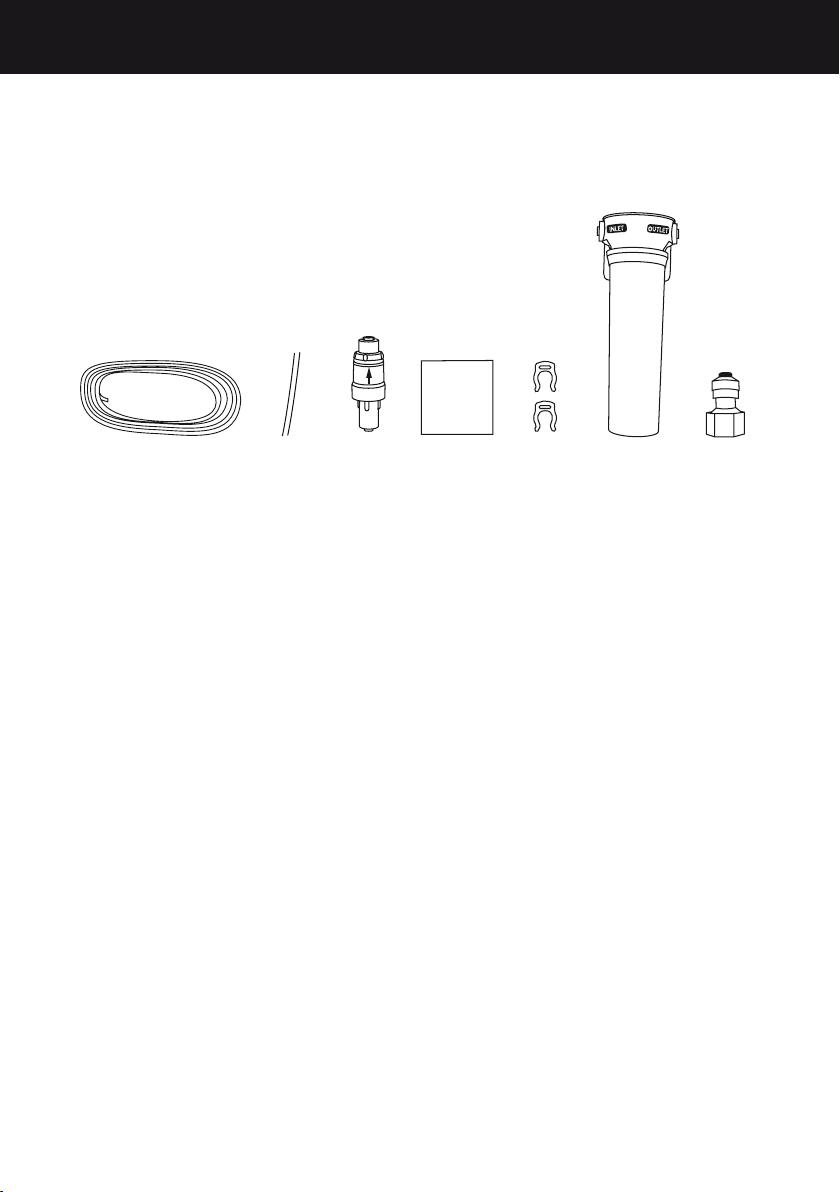

Contents of filter kit
113 ft (4 m) white ¼” (6 mm) tubing
21 x 8” (200 mm) blue tubing
31 x pressure reducing valve (PRV)
41 x double sided tape
52 x locking keys
61 x water filter cartridge and head
71 x faucet connection
1 2 3 4 5 6 7
IMPORTANT!
 It is imperative the pressure reducing valve (PRV) is fitted prior to the filter. If the PRV
is not fitted to the connection line, the Ice & Water features may not function in some
circumstances.
 The water connection to your Ice & Water refrigerator must be installed by an
authorized plumber or Fisher & Paykel Authorized Service Agent.
 The water connection instructions below are intended only for the professional installer.
 The new tubings supplied with the refrigerator are to be used, old tubings from old
Ice & Water connections should not be used.
INSTALLATION PRECAUTIONS/WARNING
 DO NOT use with water that is microbiologically unsafe or of unknown quality without
adequate disinfection before or after the system.
 WARNING – connect to potable water supply only.
 DO NOT install on line pressure above 119 psi (827 kPa) or below 22 psi (150 kPa).
 DO NOT use on hot water supply (100°F [38°C max.]).
 DO NOT cut any length of tube shorter than 8” (200 mm).
 DO NOT install near electrical wires or water pipes that will be in the path of drilling
when selecting the location of filter system.
 DO NOT mount filter in such a position so that it will be struck by other items, such as
wastebaskets, etc.
 DO NOT install the filter or any water tubing in direct sunlight as prolonged exposure
to light can weaken plastic components.
 DO NOT install in a location that is susceptible to freezing temperatures as damage to
the housing could occur.
 DO NOT screw filter to the refrigerator.
 DO NOT install the filter or any water tubing in high temperature areas eg in a ceiling
cavity.
 AVOID contamination of pipes during installation.
 DO NOT use copper tubing. The plastic tubing supplied should always be used.
 DO NOT continuously dispense water for longer than 2 minutes.
EN

14
INSTALLATION INSTRUCTIONS
Installation instructions:
1Ensure the refrigerator is NOT plugged into a
powersupply.
2Locate a cold water supply/feed only suitable
for a water connection. Tee and tap fitting is
not supplied.
3Connect the 8” (200mm) blue tubing to the
outlet of the PRV (blue collet) and the inlet
connection of the water filter cartridge as
shown in Diagram 1. Gently pull on both ends to
ensure it is locked.
4Connect the white ¼” (6mm) tubing to the
outlet of the water filter cartridge as shown in
Diagram2. Gently pull to ensure it is locked.
5Measure the required length of tubing to run
from the PRV to the water connection point (no
less than 10” (250mm)).
6Cut the tubing making sure the ends are square
and clean.
7Connect the tubing to the faucet connection
and the base of the PRV (white collet) and then
to the faucet as shown in Diagram3. Please
note that the faucet connection supplied should
fit most installation situations.
8Connect one locking key to each side of the
water filter cartridge in between the cartridge
and the locking collet as shown in Diagram4.
9To flush the water filter of any trapped air,
harmless carbon fines and to also check for
leaks, aim the end of the tubing into a bucket,
turn isolating faucet on and run at least 10qt
(10L) of water through. Once complete, turn
isolating faucet off.
!0 Locate desired position for water filter noting
carefully the following points:
 It is recommended to fit the water filter in a
vertical orientation with the water filter head
at the top. This will minimize water leakage
when replacing cartridge.
 Ensure the filter is in a convenient location to
access every 6 months for replacement. We
suggest that this location is beside the water
filter supply faucet in a cupboard beside the
refrigerator.
 A minimum clearance of 2½” (64mm) from
the bottom of the filter cartridge is required
to perform cartridgeremoval.
 Do not screw water filter to refrigerator.
Diagram 2
Waterline connection to
refrigerator
INLET
Diagram 4
Locking key
PRV connection
Diagram 1
Diagram 3
Faucet connection

15
INSTALLATION INSTRUCTIONS EN
!1 Attach double sided foam to the
back of the water filter head as
shown in Diagram5. Write the date
to be replaced on the filter (date
installed +6months). Remove the
double sided foam backing and
attach the filter to the desired
position, reinforcing the filter with
the screws provided as located in
step10 (refer to the previous page).
!2 Run the ¼” (6mm) tubing to the
back of the refrigerator ensuring
there is enough tubing to pull the
refrigerator out for service.
!3 Using the measurement guide
located on the rear compartment
cover as shown in Diagram 6. Mark
out ⅝”(16mm), on the end of the
tubing as shown in Diagram7.
!4 Insert the tubing marked ⅝” (16mm)
into the water (solenoid) valve up
to the marked line as shown in
Diagram8.
!5 Pull gently on tubing to ensure it is
locked in as shown in Diagram9.
!6 The completed installation should
look like Diagram11 on page16.
!7 Turn the isolating faucet on and
check that all connections are dry
and free of drips.
!8 Coil water line tubing behind the
refrigerator. Pushyour refrigerator
into place being careful notto
kink or squash the water line tube
running into the water (solenoid)
valve.
!9 Read pages 16–17 carefully and
then turn refrigeratoron.
Diagram 5
Double sided foam
attachment
Waterline connection to refrigerator
6 7 8 9
DRAWING: 838587
PART: 838587
Diagram 9
Diagram 6
6 7 8 9
DRAWING: 838587
PART: 838587
Diagram 7
6 7 8 9
DRAWING: 838587
PART: 838587
6 7 8 9
DRAWING: 838587
PART: 838587
Diagram 8

16
INSTALLATION INSTRUCTIONS
IMPORTANT!
 All connections must be checked for leaks.
 Ensure white ¼” (6mm) tubing is routed away from sharp objects, sharp corners
(beware of kinking the tube as this will stop water flow), clear of the refrigerator rear
compartment and not in a location where it can be kinked or squashed.
 Ensure all push-fit connections are firmly pushed into place. The tube should push in
⅝” (16mm) before reaching the stop.
 If tubing is removed at any point, re-cut the end and re-insert. Tubing must be fully
inserted to avoid leaks.
 To remove tube from connection points first turn off the isolating faucet. Gently push
the dispensing pad a few times using a glass or container to remove the static line
pressure. Push in the collet firmly while pulling back on the tubing at the same time,
as shown in Diagram10.
System tested and certified by NSF International against NSF/ANSI Standard 53 for the
reduction of Asbestos, Atrazine, Benzene, Cyst, Carbofuran, Lead, Lindane, Mercury,
P-Dichlorobenzene, Toxaphene & Turbidity; against Standard NSF/ANSI42 for the
reduction of Chlorine Taste and Odor and Nominal Particulate Class I to a capacity of
750gallons (2,838liters).
6 7 8 9
DRAWING: 838587
PART: 838587
Diagram 11
Diagram 10
Connection to water supply

17
INSTALLATION INSTRUCTIONS EN
Before you start using your Ice & Water refrigerator
 Check your refrigerator is switched on.
 Check that the isolation tap has been connected and turned on.
 Run through and discard the first 3qt (3liters) of water from your water dispenser,
stopping intermittently to remove trapped air in the system. Failure to do this will result
in excessive dripping from your dispenser.
Note: there will be a 1–2 minute delay while the tank fills until water is dispensed.
 Turn the ice maker on by pressing the button. The light above the button will be
illuminated when the ice maker is on.
 Press and hold the , and buttons together for 4seconds and then close the
refrigerator compartment door to force an ice maker cycle. The ice tray will flip twice.
Repeat to force another ice maker cycle. The ice tray will flip twice and spill water into
the ice bin. Empty the water, dry and replace the bin. Note that the ice tray will not flip
until the refrigerator compartment door is closed.
 Allow at least 2hours for your refrigerator to cool before use.
 Please discard the first 3harvests of ice (8cubes per harvest).
You are now ready to enjoy ice and water from your ActiveSmart™ refrigerator.
Water dispenser
Please note that once installation is complete a few drips may appear out of the
dispenser over the next few days as the remaining trapped air is cleared.

18
INSTALLATION INSTRUCTIONS
7. Installation (all models)
Your Fisher & Paykel ActiveSmart™ refrigerator
is fitted with front and rear rollers, designed
for moving the product in the forwards and
backwards direction.
Avoid moving the product in a sideways direction
as this may damage the rollers or the floor
covering/surface.
AYour refrigerator will arrive with the front feet
wound up making moving the product into its
final location a simple task.
BRoll the refrigerator into its final position making
sure there is the correct air gap between the
product and surrounding cabinetry. See minimum
clearance in cabinetry dimensions table.
CAdjust the front feet down until the refrigerator
is leaning backward with the front approximately
½”(10mm) higher than the back. This will ensure a
good door closing action.
(Non French door models only)
DAligning your refrigerator with cabinetry.
 Align the sides of the refrigerator with the
cabinetry by adjusting the hinge side front foot.
 Adjust the handle side foot until it touches the
floor and takes a small amount of weight.
 Once the refrigerator is in place and aligned with
cupboards/alcove gently push on the front top
and check if the product is rocking or stable.
8. Levelling of refrigerator doors
(French door models only)
 For uneven surfaces, front feet can be used to align
the 2 doors.
 If left hand door is too low, then unscrew the left
hand foot to lift up the cabinet until the two doors
top edges are aligned.
 If right hand door is too low, then adjust the right
hand foot in the same way.
Even door alignment
Uneven door alignment
Raise the front of
the refrigerator
Lower the front
of the refrigerator
Refrigerator feet

19
INSTALLATION INSTRUCTIONS EN
9. What to do if your product is unstable
AGently push the refrigerator back until the rear
rollers contact the floor.
 Measure the gap under the front foot, which has
come off the floor.
 Obtain some solid packing material (hardwood,
plastic,etc) which fits firmly into the gap under
the foot.
Note: do not use metallic materials that may
corrode, stain and/or damage floor coverings.
BWind both front feet up and roll the product out
ofposition.
 Place the packing material in the location
diagonally opposite the front roller that lifts off
the floor.
 Make sure the packing material stays in place
when the product is pushed back into position.
 Ideally, the packing material is large enough to
rest against the back wall so as to prevent it
from moving when the cabinet is pushed into
position.
Wall behind refrigerator
For example: if this foot lifts off the floor when
pushing gently on the top front of the refrigerator
Packing material goes under rear roller
diagonally opposite front foot that lifts
Stabilizing your refrigerator
CRoll the refrigerator back into position and adjust front feet as per step 7C.
(Check alignment and door closing action are satisfactory).
 Make small adjustments to front feet where necessary.
 Check that the product is stable (all 4 feet are on the floor). If not, repeat
9Aand 9B.
This foot lifts off the floor when
top front is gently pushed back
Example only
Unlevel floor
Unstable refrigerator

20
INSTALLATION INSTRUCTIONS
Before placing food in the fresh food or freezer compartments
 Remove all internal packaging. Ensure that all transit clips are removed from the
refrigerator. These are small rubber stoppers located at the back of the shelves.
 Clean the inside of the appliance with a mix of warm water and a small amount of liquid
detergent, and a soft cloth to remove manufacturing and transportation dust.
 Allow the refrigerator and freezer to run empty for 2–3 hours to allow each
compartment to cool to the appropriate temperature.
 The appliance may have an odor on its initial operation, but this will go when the
refrigerator and freezer have cooled sufficiently.
Energy efficiency
For the most energy efficient use of your appliance:
 Ensure your refrigerator has adequate ventilation.
 Do not cover your appliance with any material that will prevent air from flowing around
the cabinet sides.
 Ensure you vacuum around the appliance to remove dust and possible pet hair
accumulation. Also keep the appliance and it’s cabinetry free of dust by wiping down
with a dry, lint-free cloth (refer to section ‘Cleaning and caring for your refrigerator’,
‘Rear compartment cover’).
 Allow good clearances in front of air ducts within the cabinet for maximum cold air
distribution.
 Cool hot foods down before placing them in the appliance.
 Do not overfill the compartments.
 Keep door openings to a minimum.
 Select a temperature setting that isn’t too cold.
 Check your door seals for leaks.
