USER GUIDE
NZ AU GB IE HK SG IN US
ACTIVESMART™
INTEGRATED REFRIGERATOR
RS90A, RS9120W,
RS6A72, RS6A80 & RS6W80 models

1
CONTENTS
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may
not be available in all markets and are
subject to change at any time. For current
details about model and specification
availability in your country, please go to our
website fisherpaykel.com or contact your
local Fisher & Paykel dealer.
Note that the word ‘refrigerator’, throughout
this user guide, refers to the combination of
refrigerator/freezer products.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
fisherpaykel.com
Introduction 3
Safety and warnings 4
Storage features 10
RS90, RS36A72 and RS36A80 models 10
RS9120W and RS36W80 models 12
ActiveSmart™ special features 14
Control panel 14
External display (Ice & Water models only) 15
Humidity control system 16
Fast Freeze 17
Ice On/Off 17
Ice Boost 17
Bottle Chill 17
Operating instructions 18
Cleaning care 23
Food care 28
User warnings and sounds 29
Troubleshooting 30
European Directive 2012/19/EU on
Waste Electrical and Electronic Equipment (WEEE) 34
Service & Warranty 35

3
INTRODUCTION
Thank you for buying this Fisher & Paykel integrated refrigerator.
Introducing the next generation in Fisher & Paykel refrigeration. With new flush-fit
design and the ability to easily slide into existing kitchen spaces or be integrated behind
kitchen cabinetry, these family-sized fridges offer a seamless look to the kitchen while
providing excellent food care with ActiveSmart™ technology.
As your life changes, so can your refrigerator. This book explains the features and
functions, and will help you get the most out of your refrigerator.
We hope you enjoy your new integrated refrigerator.
Note: Not all models are available in all countries.
RS9120W/RS36W80J
RS9120WU/RS36W80URS36A80U
RS36A80J
RS36A72U1 (with RD3672U SS Door skin) RS36A72J1 (with RD3672 SS Door skin)
RS36A80U1 (with RD3680U SS Door skin) RS36A80J1 (with RD3680 SS Door skin)
RS36A80U1 (with RD3684U SS Door skin) RS36A80U1 (with RD3684 SS Door skin)
RS36A72J1 (shown with custom panels)
RS36A80J1 (shown with 80’’ custom panels)
RS36A80U1 (shown with 84’’ custom panels)
RS90AU/RS36A72U
RS90A/RS36A72J
RS36A72U1 (with RD3672U SS Door skin) RS36A72J1 (with RD3672 SS Door skin)
RS36A80U1 (with RD3680U SS Door skin) RS36A80J1 (with RD3680 SS Door skin)
RS36A80U1 (with RD3684U SS Door skin) RS36A80U1 (with RD3684 SS Door skin)
RS36A72J1 (shown with custom panels)
RS36A80J1 (shown with 80’’ custom panels)
RS36A80U1 (shown with 84’’ custom panels)
RS36A72U1 (with RD3672U SS Door skin) RS36A72J1 (with RD3672 SS Door skin)
RS36A80U1 (with RD3680U SS Door skin) RS36A80J1 (with RD3680 SS Door skin)
RS36A80U1 (with RD3684U SS Door skin) RS36A80U1 (with RD3684 SS Door skin)
RS36A72J1 (shown with custom panels)
RS36A80J1 (shown with 80’’ custom panels)
RS36A80U1 (shown with 84’’ custom panels)
RS36A72U1 (with RD3672U SS Door skin) RS36A72J1 (with RD3672 SS Door skin)
RS36A80U1 (with RD3680U SS Door skin) RS36A80J1 (with RD3680 SS Door skin)
RS36A80U1 (with RD3684U SS Door skin) RS36A80U1 (with RD3684 SS Door skin)
RS36A72J1 (shown with custom panels)
RS36A80J1 (shown with 80’’ custom panels)
RS36A80U1 (shown with 84’’ custom panels)
RS36W72RU1 (with RD3672RU SS Door skin) RS36W72RJ1 (with RD3672R SS Door skin)
RS36W80RU1 (with RD3680RU SS Door skin) RS36W80RJ1 (with RD3680R SS Door skin)
RS36W80RU1 (with RD3684RU SS Door skin) RS36W80RU1 (with RD3684R SS Door skin)
RS36W72RU1 (with RD3672RU SS Door skin) RS36W72RJ1 (with RD3672R SS Door skin)
RS36W80RU1 (with RD3680RU SS Door skin) RS36W80RJ1 (with RD3680R SS Door skin)
RS36W80RU1 (with RD3684RU SS Door skin) RS36W80RU1 (with RD3684R SS Door skin)

4
SAFETY AND WARNINGS
!WARNING!
Electric Shock Hazard
Read and follow the safety and warnings
outlined in this user guide before operating
this appliance.
Failure to do so can result in death, electric
shock, fire or injury to persons.
R600a
This refrigerator may contain flammable
refrigerant isobutane (R600a).
Use this appliance only for the intended purpose
as described in the user guide.
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
When using this appliance always exercise basic
safety precautions including the following:
• This appliance is not intended for use by persons
(including children under the age of 8 years) with
reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless
they have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
• Young children should be supervised to ensure
they do not play with the appliance.
• The manufacturer’s installation instructions
for product and cabinetry ventilation must be
followed when installing the appliance.

5
SAFETY AND WARNINGS
• To avoid hazard due to instability of the
appliance,it must be fixed in accordance with
installation instructions.
• Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of
obstruction.
• Do not use mechanical devices or other means to
accelerate the defrosting process.
• Do not damage the refrigerant circuit.
• In case of damage to the refrigerant circuit,
ventilate the area by opening all windows. Do
not operate electrical equipment or any other
equipment that may produce arcs, sparks or flames
in the area. Contact your Fisher & Paykel Authorized
Repairer immediately to arrange for the appliance
to be repaired.
• It is hazardous for anyone other than an authorized
service person to service this appliance. In
Queensland, the authorized service person must
hold a gas work license or authorization for
hydrocarbon refrigerants to carry our service or
repairs which involve removal of covers.
• Connect to potable water supply only.
Electrical
• This appliance must be installed in accordance with
the installation instructions beforeuse.
• To allow disconnection of the appliance from
thesupply after installation, incorporate a switch in
the fixed wiring in accordance with thewiringrules.
•Never unplug your refrigerator by pulling on the
power cord. Always grip the plug firmly and pull
straight out from the outlet.

6
SAFETY AND WARNINGS
• Do not plug in any other appliance at the same
power point as your refrigerator or use extension
cords or double adapters.
• Repair or replace immediately all electric service
cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or
abrasion along its length or at either the plug or
appliance end.
• If the power supply cord is damaged, it must only
be replaced by your Fisher & Paykel Authorized
Repairer because special purpose tools are
required.
• When moving your appliance away from the wall,
be careful not to roll over or damage the power
cord.
• Do not use electrical appliances inside the food
storage compartments of the appliance.
IMPORTANT!
Your refrigerator is designed to operate for
many years without the need for service checks.
However, if your refrigerator is malfunctioning,
have it attended to by your Fisher & Paykel
Authorized Repairer as soon as possible.
All electrical repairs must be carried out by
an adequately trained service technician or
qualifiedelectrician.
Cleaning
•Many commercially available cleaning products
contain solvents that may attack the plastic
components of your refrigerator and cause them
tocrack.

7
SAFETY AND WARNINGS
• Avoid using anti-bacterial cleaning products on
either the interior or exterior of the cabinet as
they may cause rusting of metal components and
cracking of plastic components.
• Please refer to the ‘Cleaning care’ section of this
user guide for further information.
Disposal
• Extreme care must be taken when disposing of
your old appliance to avoid hazards:
– The flammable refrigerant gas must be safely
removed.
– The thermal insulation foam in this appliance
contains flammable insulation blowing gases,
any exposed foam may be highly flammable
and must be carefully treated during disposal.
– The doors and panels should be removed and
the shelves left in place so that children may
not easily climb inside.
• Your Fisher & Paykel Authorized Repairer will be
able to give advice on environmentally friendly
methods of disposing of your old refrigerator or
freezer.
Storing food and drinks
• Do not store explosive substances such as
aerosol cans with a flammable propellant in this
appliance.
•Never store volatile or flammable materials in
your refrigerator as they may explode.
• Never freeze liquids in glass containers. Liquid
expands during freezing, which may cause the
container to explode.

8
SAFETY AND WARNINGS
• Never freeze carbonated drinks. They may explode.
• Do not consume food if it is too cold. Food
removed from the freezer compartment may be
cold enough to cause damage when brought into
contact with bare skin, egfrozen ice cubes.
Power failure – food safety
• Do not refreeze frozen foods that have thawed
completely. The food may be dangerous to eat.
Follow the recommendations below if you discover
food in your freezer has thawed:
– Ice crystals still visible – food may be refrozen
but should be stored for a shorter period than
recommended.
– Thawed but refrigerator cold – refreezing
generally not recommended. Fruits and some
cooked food can be refrozen but use as soon
aspossible.
Meat, fish, poultry – use immediately or cook
then refreeze.
Vegetables – discard as they usually go limp
and soggy.
– Thawed and warmer than 5°C – discard all food.

9
SAFETY AND WARNINGS
Ice making
IMPORTANT!
• Avoid contact with the moving parts of the ice maker
ejector mechanism, and do not place your fingers
on the automatic ice-making mechanism while the
appliance is inoperation.
• Do not use ice cubes that may have become
discolored, usually with a green-blue color. If such
discoloration is noted, discard the ice cubes and
contact your Fisher&Paykel trained and supported
service technician.

10

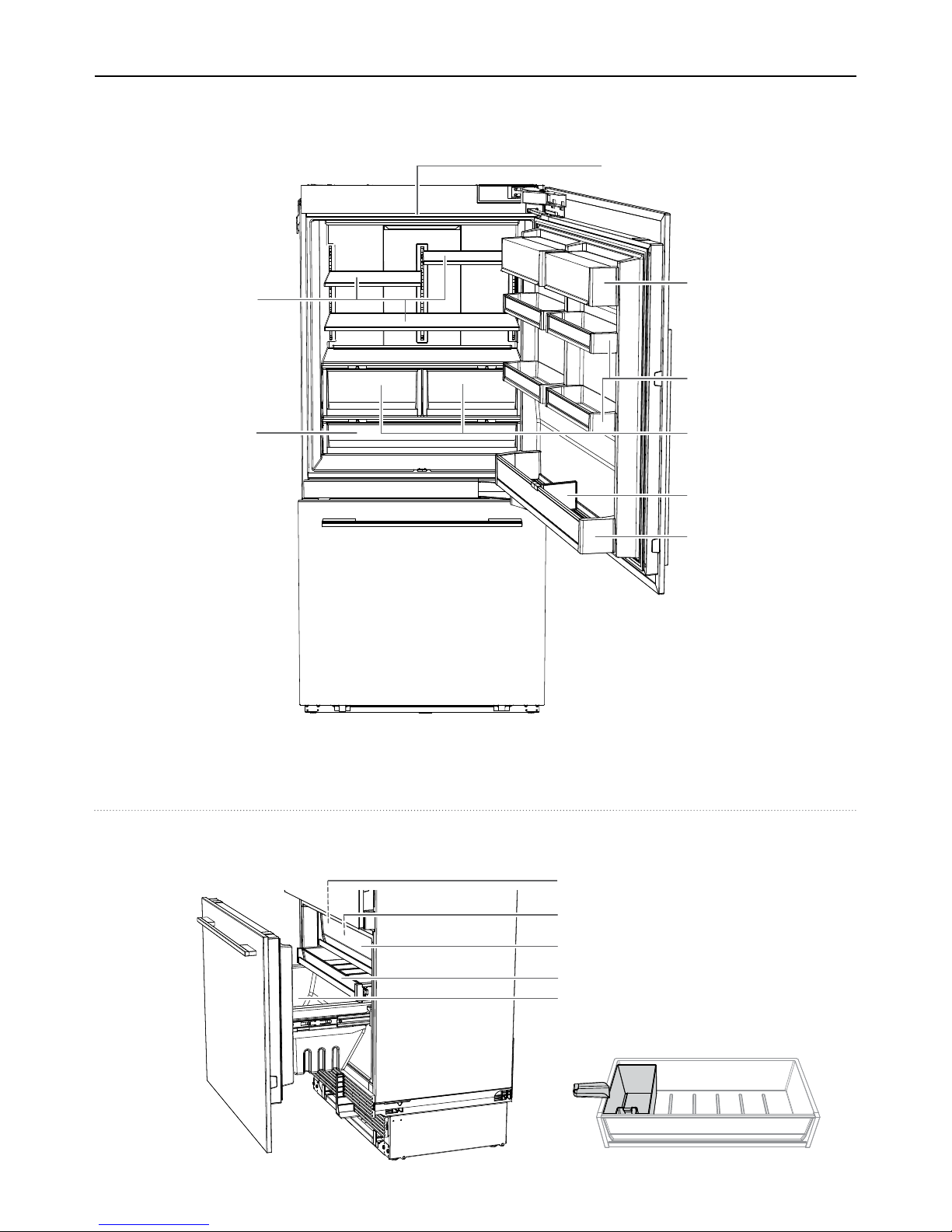

STORAGE FEATURES
Accessories (not shown)
 Single bottle holders
Freezer compartment
Acessories (not shown)
 Manual ice tray with lid (non-Ice & Water models only)
Ice maker (top left of freezer)
(Ice & Water models only)
Ice storage bin with scoop
Mid tray
Large bottom bin
Top bin
RS90, RS36A72 and RS36A80 models
Refrigerator compartment
Full-width cantilever glass shelves
Half-width cantilever glass shelves
Fruit and vegetable bins
with humidity control lids
Slim bin with humidity control lid
Water tank
(Ice & Water models only)
Dairy
shelf
Door
shelves
Dairy shelf

11
STORAGE FEATURES
RS90, RS36A72 and RS36A80 models
REFRIGERATOR COMPONENTS
Fruit and vegetable bins
with humidity control lids
 Store all fruits and vegetables in separate bins without
external packaging.
 Separate the fruits and vegetables to prevent ethylene-
sensitive produce from ripening too quickly, and help
extend their storage life.
Slim bin with humidity
control lid
 The slim bin stores long vegetables which cannot fit in
the fruit and vegetable bins.
 Also used for storing deli items and beverages, or for
defrosting foods.
Cantilever glass shelving  Heat treated safety glass.
 Can be removed and positioned at heights to suit your
storage requirements.
 The half-width shelves can be positioned side by side,
best when storing large items such as platters.
 Maximize the storage space when storing items of
varying heights by positioning the half-width shelves at
different levels.
Dairy shelf and door
shelves
 The top shelves are dairy compartments, designed to
store butter and cheeses.
 The middle shelves are designed for general items,
condiments and drinks.
 The bottom shelves are designed to store large drinks or
those drinks you require frequent access to.
 Clear windows give ultimate visibility to what is being
stored in the door shelves.
 Adjustable door shelves with dividers.
Single bottle holders
(not shown)
 Placed along the length of any shelf to store a variety of
bottles.
 Store bottles with the neck facing the front of the
refrigerator.
 Unused bottle holders can be stacked up on top of one
another to maximize shelf space.
FREEZER COMPONENTS
Shelving  Selectable shelf heights.
 Heat treated safety glass.
 Adjustable door shelf dividers.
Ice maker (Ice & Water
models only)
 Removable ice container.
 Hygienic ice scoop.
Freezer bins  Allow for easy storage of frozen food items.

12
STORAGE FEATURES
Accessories (not shown)
 Single bottle holders
Water tank
(Ice & Water model only)
Large aluminum
extrusion door shelf
Fruit and vegetable
bins with humidity
control lids
Cantilever glass
shelving
Door shelves
Bottle divider
Slim bin with
humidity control lid
Dairy shelf
Ice storage bin and scoop
Freezer compartment
Ice maker (top left of freezer)
Ice storage bin with scoop
Top bin
Mid tray
Large bottom bin
RS9120W and RS36W80 models
Refrigerator compartment

13
STORAGE FEATURES
RS9120W and RS36W80 models
REFRIGERATOR COMPONENTS
Fruit and vegetable bins
with humidity control lids
 Store all fruits and vegetables in separate bins without
external packaging.
 Separate the fruits and vegetables to prevent ethylene-
sensitive produce from ripening too quickly, and help
extend their storage life.
Slim bin with humidity
control lid
 The slim bin stores long vegetables which cannot fit in
the fruit and vegetable bins.
 Also used for storing deli items and beverages, or for
defrosting foods.
Cantilever glass shelving  Heat treated safety glass.
 Can be removed and positioned at heights to suit your
storage requirements.
 The half-width shelves can be positioned side by side,
best when storing large items such as platters.
 Maximize the storage space when storing items of
varying heights by positioning the half-width shelves at
different levels.
Dairy shelf and door
shelves
 The top shelves are dairy compartments, designed to
store butter and cheeses.
 The middle shelves are designed for general items,
condiments and drinks.
 The bottom shelves are designed to store large drinks or
those drinks you require frequent access to.
 Clear windows give ultimate visibility to what is being
stored in the door shelves.
 Adjustable door shelves with dividers.
Single bottle holders
(not shown)
 Placed along the length of any shelf to store a variety of
bottles.
 Store bottles with the neck facing the front of the
refrigerator.
 Unused bottle holders can be stacked up on top of one
another to maximize shelf space.
FREEZER COMPONENTS
Shelving  Selectable shelf heights.
 Heat treated safety glass.
 Adjustable door shelf dividers.
Ice maker (Ice & Water
models only)
 Removable ice container.
 Hygienic ice scoop.
Freezer bins  Allow for easy storage of frozen food items.

14
ACTIVESMART™ SPECIAL FEATURES
Control panel
The control panel enables
you to view and modify all
the features and options of
yourrefrigerator.
Control panel
for Ice & Water models
Control panel
for non-Ice & Water models
SmartTouch™ CONTROL PANEL FEATURES
Compartment Allows you to select which compartment to adjust the
temperature.
Alarm mute Deactivates the door alarm for 20minutes.
Colder Reduces the temperature of compartments.
Warmer Increases the temperature of compartments.
Fast Freeze Boosts the freezing speed by dropping the freezer to its
coldest temperature for 12hours.
Bottle Chill Allows you to rapidly chill your beverage for a set time of
15minutes.
Ice On/Off Indicates when automatic ice maker is on or off.
Ice Boost Increases ice production up to 30% from standard ice
making, and deactivates automatically after 24hours.
Key lock Allows you to disable the buttons on the control panel.
Faults Indicates when an error occurs after you open the fresh
food compartment door.
Filter change
indicator
Icon will illuminate indicating that water filter requires
changing.
Sabbath mode All alarms, lights and displays are deactivated for
80hours.
Key mute Allows you to silence all button presses.

15
ACTIVESMART™ SPECIAL FEATURES
External display (Ice & Water models only)
The external display enables you to lock the water dispenser, indicates to you when
‘Bottle Chill’ is activated and when your water filter requires changing.
EXTERNAL DISPLAY FEATURES
Dispenser lock button
and LED light
Locks/unlocks the water dispenser.
When locked the LED above the button will
illuminate.
Bottle Chill indicator Icon will illuminate indicating when ‘Bottle Chill’ is
activated and flashes when beverage is ready.
Filter change
indicator
Icon will illuminate indicating when water filter
requires changing.

16
ACTIVESMART™ SPECIAL FEATURES
Humidity control system
Humidity control lids
 The control lids are fitted to the fruit and vegetable bins and slim bin of your refrigerator.
 These lids seal the bins and provide a humid microclimate to extend the storage times
of fruit and vegetables.
 The lids have specially designed grooves that retain moisture to prevent condensation
from dripping onto the fruits and vegetables at times of high humidity.
Humidity slide
 Each bin has an adjustable humidity slide that enables you to choose a fruit or
vegetable setting depending on your storage needs.
 If there is too much water in the bins (due to high humidity), the control can be
adjustedtowards the fruit setting to reduce drips of water and/or wipe the water
dry (if required).
 Be aware that a small amount of water in the bins is beneficial for fruit and vegetable
storage.
 We recommend using the vegetable setting when you store ethylene-sensitive
vegetables such as lettuce, spinach, broccoli, cabbage, carrots.
 We recommend using the fruit setting when you store high-ethylene fruits such as
citrus fruits, stone fruits and some tropical fruits.
 We recommend adjusting the humidity slide to the center when you store both fruits
and vegetables.
 We recommend storing all fruits and vegetables without external packaging and in
separate bins.
– Separating the fruits and vegetables prevent ethylene-sensitive produce from
ripening too quickly, and help extend their storage life.
Humidity control graphic

17
ACTIVESMART™ SPECIAL FEATURES
Fast Freeze
‘Fast Freeze’ boosts the freezing speed by dropping the freezer to its coldest temperature
for 12hours. This helps retain the freshness, texture and taste during the freezing process.
 To activate, press on the control panel. The light above illuminates to indicate this
feature is activated.
Ice On/Off
The ice maker is off when you turn on your refrigerator for the first time after installation.
 To activate your automatic ice maker, press once. The light above illuminates to
indicate the Ice maker is on.
Ice Boost
Increases ice production by up to 30%, and deactivates automatically after 24hours.
 The ‘Ice Boost’ feature is off when you turn on your ice maker for the first time.
 To activate, press . The light above will illuminate when the ‘Ice Boost’ feature is on.
 To deactivate ‘Ice Boost’ feature manually, press again. The light above button will
not illuminate.
 Activating the ‘Ice Boost’ feature will automatically turn on the ice maker.
 Deactivating the ice maker automatically deactivates the ‘Ice Boost’ feature.
Bottle Chill
This feature allows you to rapidly chill your beverage for 15minutes. The time taken to
chill depends on the size of your beverage. If your beverage is not cold enough, return it
to the freezer and reset the ‘Bottle Chill’ feature.
 To activate, press . The light above will illuminates to indicate this feature is activated.
For Ice & Water model, the icon will illuminate on the external display.
 An alarm will sound after 15minutes to remind you to remove your beverage from
thefreezer.
To silence the alarm—Automatic ice model
Open the fresh food compartment door and press the button on the controlpanel.
To silence the alarm—Ice & Water model:
Open the fresh food compartment door and press the button on the controlpanel, or
press the button once on the external display.
 When ‘Bottle Chill’ is deactivated, the light above will not illuminate and the icon is not
visible on the external display (Ice & Water model only).

18
OPERATING INSTRUCTIONS
Temperature control
 Once you turn on your refrigerator for the first time, the cooling system will
automatically cool all compartments to their set temperatures.
 This will take between 2–3 hours
 The control panel enables you to change and control the temperatures of both
compartments accurately and independently regardless of the temperature or humidity
of the surroundings whether it is summer or winter.
 We recommend checking the operation of your refrigerator once every 4hours for the
first 24hours.
 If at any time you notice that the refrigerator is not cooling properly, call your installer/
Fisher & Paykel trained and supported service technician to verify the unit is operating
properly. Take immediate steps to prevent food from spoiling by storing in another
refrigerator or freezer.
Adjusting the fresh food compartment temperature
When the fresh food compartment door is opened, the interior light automatically
illuminates. The temperature for this compartment will show as a series of lights.
 To increase the temperature, press . This will increase the number of lights.
 To decrease the temperature, press . This will decrease the number of lights.
 Fewer lights illuminated indicates a colder temperature for the compartment selected.
Adjusting the freezer compartment temperature
 Press once, the freezer compartment light will be illuminated.
 To increase the temperature, press . This will increase the number of lights.
 To decrease the temperature, press . This will decrease the number of lights.
 Fewer lights illuminated indicates a colder temperature for the compartment selected.
Note: successively pressing will automatically scroll between compartments. When
the door is re-opened the control panel will return automatically to the fresh food
compartment setting.
