Fisher & Paykel RS2474B User manual

INTEGRATED
REFRIGERATOR & FREEZER
INTEGRATED REFRIGERATOR FREEZER
RS2474B models
INTEGRATED REFRIGERATOR
RS2474S models
INTEGRATED FREEZER
RS2474F models
USER GUIDE
USER GUIDE
US CA

3
CONTENTS
Registration
To register your product visit our website: fisherpaykel.com/register
Safety and warnings 5
Before you begin 10
Control panel 12
Food modes 13
Features 14
Settings 15
Wi-Fi connection 16
Adjusting the temperature 17
Food mode presets 18
Changing features 19
Changing settings 20
Water dispenser 21
Ice maker 22
Storage features 23
Care and cleaning 24
Food care 28
User warnings and sounds 29
Troubleshooting 30
Service & warranty 33

5
SAFETY AND WARNINGS
WARNING!
Electric Shock Hazard
Failure to do so can result in death, electric
shock, fire or injury to persons.
• Read and follow the safety and warnings
outlined in this user guide before operating this
appliance.
WARNING!
This appliance contains flammable
refrigerant isobutane (R600a).
READ AND SAVE THIS GUIDE
WARNING!
Read entire manual. Failure to follow all guides and rules could cause personal injury or
property damage. When using this appliance, always exercise basic safety precautions
including thefollowing:
General Use
zThis product has been designed for use in a normal domestic (residential) environment.
zChildren should be supervised to ensure that they do not play with the appliance.
zCleaning and user maintenance shall not be undertaken by children without supervision.
zThis appliance can be used by children aged from 8years and above and persons
withreduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
theappliance in a safe way and understand the hazards involved.
zThe manufacturer’s installation instructions for product and cabinetry ventilation
mustbe followed when installing the appliance.
zTo avoid hazard due to instability of the appliance, it must be fixed in accordance
withinstallation instructions.
zKeep ventilation openings, in the appliance enclosure or the built-in structure,
clearofobstruction.
zDo not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
zDo not damage the refrigerant circuit.
zIn case of damage to the refrigerant circuit, ventilate the area by opening all windows.
zDo not operate electrical equipment or any other equipment that may produce arcs,
sparks or flames in the area. Contact your Fisher & Paykel trained and supported
service technician immediately to arrange for the appliance to be repaired.
zConnect to potable water supply only.

6
SAFETY AND WARNINGS
zThis refrigerating appliance is intended to be used at ambient temperatures ranging
from 61 °F (16 °C) to 100 °F (38 °C). The product performance may be compromised
when operating outside of this temperature range.
zFor storage of general household foods in the most efficient manner, it is recommended
to use the product in the factory configuration supplied. Moving the shelves and bins
will have a minimal impact on efficiency.
zIt is hazardous for anyone other than a Fisher & Paykel trained and supported service
technician to service this appliance.
zEnsure the installer has completed the final checklist in the installation guide.
Electrical
zThis appliance must be installed in accordance with the installation instructions
before use.
zTo allow disconnection of the appliance from the supply after installation, incorporate a
switch in the fixed wiring in accordance with the wiring rules.
zNever unplug your refrigerator by pulling on the power cord. Always grip the plug
firmly and pull straight out from the outlet.
zDo not plug in any other appliance at the same power point as your refrigerator or use
extension cords or double adapters.
zRepair or replace immediately all electric service cords that have become frayed or
otherwise damaged. Do not use a cord that shows cracks or abrasion along its length or
at either the plug or appliance end.
zIf the power supply cord is damaged, it must only be replaced by your Fisher & Paykel
trained and supported service technician because special purpose tools are required.
When moving your appliance away from the wall, be careful not to roll over or damage
the power cord.
zWARNING: Do not use electrical appliances inside the food storage compartments of
the appliance, unless they are of the type recommended by the manufacturer.
zWhen positioning the appliance, ensure the power cord is not trapped or damaged.
zDo not locate multiple portable socket-outlets or portable power supplies at the rear of
the appliance.
Food safety
zRegularly clean accessible draining systems and surfaces that come in contact
with food.
zEnsure any raw meat or fish is stored in sealed containers to prevent
cross-contamination.
zImmediately clean any drips or spills on surfaces.
zIf the appliance will be left empty for long periods, switch off, defrost, clean, dry, and
leave the door open to prevent mould developing within the appliance.
zOpening the door for long periods can cause a significant increase of the temperature
in the compartments of the appliance.
Storing food and drinks/wine
zDo not store explosive substances such as aerosol cans with a flammable propellant
inthis appliance.
zNever store volatile or flammable materials in your appliance as they may explode.
zNever freeze liquids in glass containers. Liquid expands during freezing, which may
cause the container to explode.
zNever freeze carbonated drinks. They may explode.

7
SAFETY AND WARNINGS
Servicing
zYour refrigerator is designed to operate for many years without the need for service
checks. However, if your refrigerator is malfunctioning, have it attended to by your
Fisher & Paykel trained and supported service technician as soon as possible. All
electrical repairs must be carried out by an adequately trained service technician or
qualified electrician.
zThe LED light cannot be serviced by the user. Contact your Fisher & Paykel Dealer or
Fisher & Paykel trained and supported service technician.
zIf you suspect that the product is not getting cold — items such as ice cream are
melting— remove all perishable food and store in another appliance or cooler to prevent
spoilage. Immediately call for a service technician.
Cleaning
zUse mild dish-washing liquid with warm water and a lint-free cloth to clean the product.
zAvoid using anti-bacterial cleaning products on either the interior or exterior
of the cabinet as they may cause rusting of metal components and cracking of
plasticcomponents.
Disposal
zExtreme care must be taken when disposing of your old appliance to avoid hazards:
zThe flammable refrigerant gas must be safely removed by a qualified servicetechnician.
zThe thermal insulation foam in this appliance may contain flammable insulationblowing
gases, any exposed foam may be highly flammable andmustbe carefully treated
during disposal.
zWARNING: Risk of child entrapment. Before you throw away your old refrigerator or
freezer, the doors and panels should be removed and the racks left in place so that
children may not easily climb inside.
zConsult your local energy authority or local codes as to the best way to dispose ofyour
old appliance.
zRemove all packaging and dispose of it responsibly. Recycle items that you can.
Water connection
zThe water connection to your Ice & water refrigerator must be installed by an
authorised plumber or Fisher & Paykel trained and supported service technician.
zInstallation and use MUST comply with all state and local plumbing codes. Check
with your local public works department for plumbing codes. You must follow their
guidelines as you install the water filtration system.
zIf the water tank has not been used for an extended period of time, or has developed
an unpleasant taste or odour, flush the water system. If the problem persists, replace
the water filter cartridge. For more information go to fisherpaykel.com/water-filter.
zTo avoid serious illness or death, only connect your water filter to safe drinking water.
zThe water filter cartridge needs to be changed when the replacement indicator icon
illuminates. This will happen every six months.
zIf the water filtration system has been allowed to freeze, replace filter cartridge. Failure
to replace the disposable filter at recommended intervals may lead to reduced filter
performance and failure of the filter, causing property damage from water leakage
or flooding.
zIn cases of excessively reduced filter life — we recommend that you consult a local
plumber or your water supplier for advice on suitable filtration requirements for the
water supplied to your home.

8
SAFETY AND WARNINGS
zFilter replacement is the consumer’s responsibility and will not be covered by the
warranty except in the case of faulty parts or materials within the filter cartridge.
zIf the water has not created ice for some time or ice has an unpleasant taste or odour
dispose of ice and flush the water system. If unpleasant taste or odour persists, replace
the water filter cartridge. For more information go to fisherpaykel.com/water-filter.
zUse new tubing supplied with the refrigerator. DO NOT reuse old tubing from old water
and ice connections.
zYour water filtration system can withstand up to 120psi (827kPa) of water pressure.
zIf a pressure limiting valve is supplied, ensure that it is installed before installing the
water filtration system. DO NOT install if water pressure exceeds 120psi (827kPa).
To reduce the risk associated with property damage due to water leakage or flooding:
zDO NOT install systems in areas where ambient temperatures may go above 100°F
(38°C) or drop below 33°F (0.6°C).
zDO NOT install on hot water supply lines. The maximum operating water temperature of
this filter system is 100°F (38°C).
zDO NOT install where water hammer conditions may occur. If water hammer conditions
exist, you must install a water hammer arrester.
WARNING!
To reduce the risk associated with choking:
zDO NOT allow children under 3 years of age to have access to small parts during the
installation of the water filter.
Ice making
zAvoid contact with the moving parts of the ice maker ejector mechanism, and do not
place your fingers on the automatic ice-making mechanism while the appliance is
inoperation.
zAt first use or after water filter has been replaced, there may be discolouration in the
first bin of ice cubes. Discard the discoloured ice cubes. If discolouration continues in
succeeding bins, contact your Fisher & Paykel trained and supported service technician
Power failure
zIn the event of a power interruption, the appliance will automatically save the current
temperature settings. When power is recovered, the appliance will revert to the current
temperature settings only.
zMost power failures are corrected within a short period of time. 1 – 2 hours loss of power
will not affect the appliance’s temperatures.
zTo avoid sudden change of temperature while the power is off, you should avoid
opening the door. A refrigerator will keep food safe for up to 4 hours during a power
outage. Keep the door closed as much as possible. Discard refrigerated perishable food
such as meat, poultry, fish, eggs, and leftovers after 4 hours without power.

9
SAFETY AND WARNINGS
IMPORTANT!
This device complies with part 15 of the FCC Rules. Operation is subject to the
following conditions:
zThis device may not cause harmful interference.
zThis device must accept any interference received, including interference that may
cause undesired operation.
zDo not change or modify the wireless communication device in any way. Changes or
modifications not expressly approved by Fisher & Paykel could void the user’s authority
to operate the equipment.
WARNING: The incorporated Wi-Fi module in this appliance is to operate only from
channel 1 to channel 11 as per FCC rules.
This device contains licence-exempt transmitter /receiver that comply with Innovation,
Science and Economic Development Canada’s licence-exempt RSS(s). Operation is
subject to the following two conditions:
zThis device may not cause interference.
zThis device must accept any interference, including interference that may cause
undesired operation of the device.

10
BEFORE YOU BEGIN

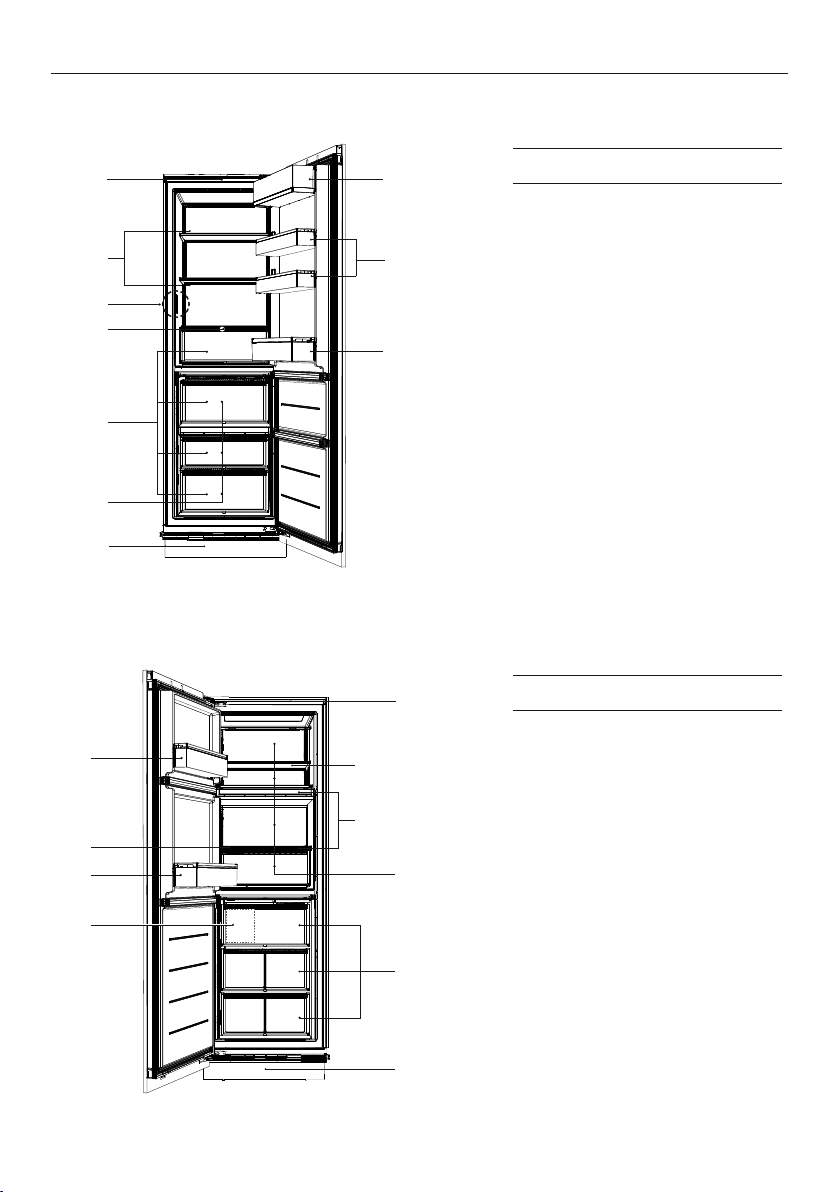

Triple Zone Refrigerator (RS2474S3)
Triple Zone Freezer (RS2474F3)
Features
1 Control panel
2 Pocket shelf
3 Adjustable shelving
4 Fixed shelves
5 Bottle holder accessory
6 Bottle shelf
7 Variable temperature zones
8 Automatic ice maker
(not shown)*
9 Freezer bins
!0 Water filter (not shown)
*Located inside freezer bin.
1
2
6
3
4
5
8
7
2
7
6
4
3
8
5
1Features
1 Control panel
2 Dairy compartment
3 Adjustable shelving
4 Door shelves
5 Internal water dispenser*
6 Bottle holder accessory
7 Bottle shelf
8 Humidity control bins
9 Variable temperature zones
!0 Water filter (not shown)
*Located in inner left side wall of the
top compartment.
!0
9
!0
9

11
Bottom mount refrigerator (RS2474B)
BEFORE YOU BEGIN
Features
1 Control panel
2 Dairy compartment
3 Adjustable shelving
4 Door shelves
5 Internal water dispenser*
6 Bottle holder accessory
7 Bottle shelf
8 Humidity control bin
9 Ice maker (not shown)
!0 Freezer bins
!1 Water filter (not shown)
*Located in inner left side wall of the
top compartment.
1
5
34
8
6
7
2
9
!0
!1

12
CONTROL PANEL
Bottom mount Refrigerator Freezer
Triple Zone Refrigerator / Freezer

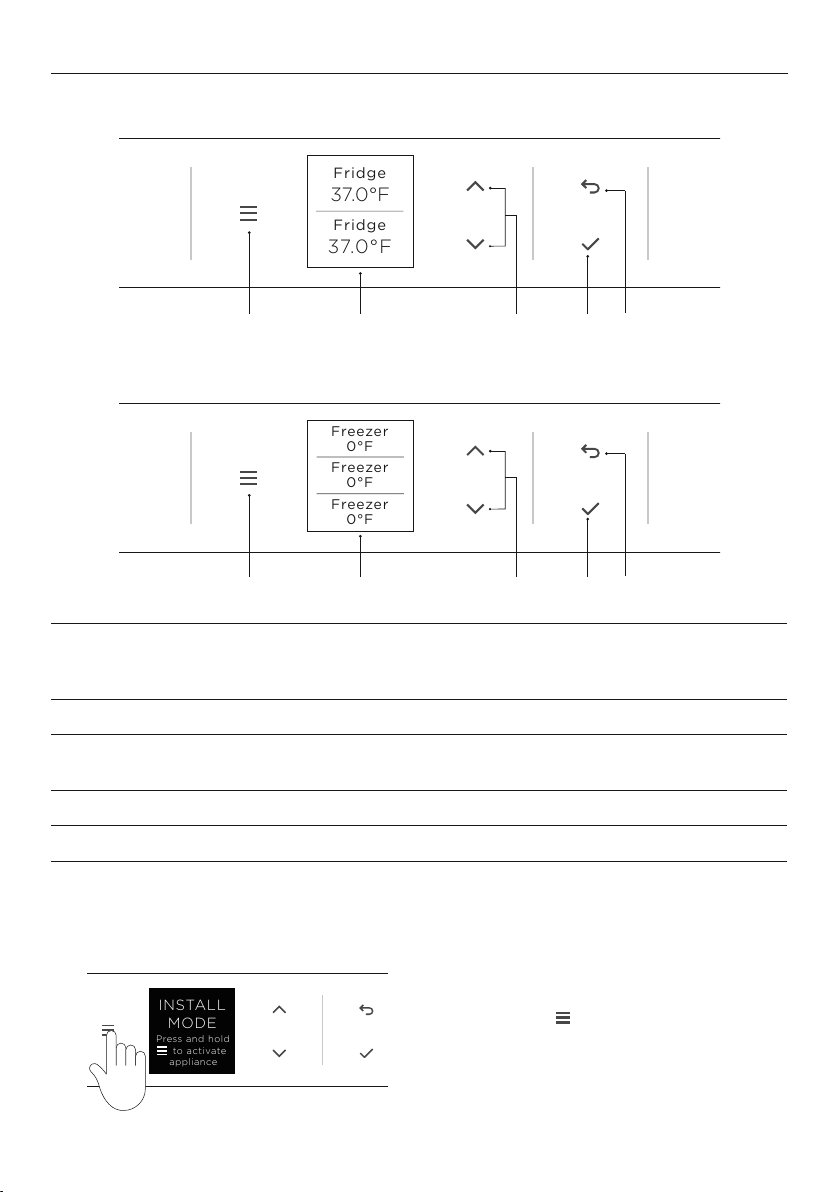

1 Menu Press to access product features and settings, or to return to
standby. If the display has been locked, hold for two seconds
to unlock.
2 Display screen Displays product features and settings.
3 Scroll Press to select food modes and adjust temperatures. Enables you
to scroll through the menu, features and settings.
4 Select Press to confirm and activate the selected features and settings.
5 Back Press to go back to the previous menu.
4321 5
4321 5
0°F
Freezer
Freezer
0°F
Freezer
0°F
0°F
37.0°F
Freezer
Fridge
37.0°F
Fridge
Fridge
37.0°F
Fridge
37.0°F
0°F
0°F
Freezer
Freezer
37.0°F
37.0°F
Fridge
Fridge
0°F
Freezer
Freezer
0°F
Freezer
0°F
0°F
37.0°F
Freezer
Fridge
37.0°F
Fridge
Fridge
37.0°F
Fridge
37.0°F
0°F
0°F
Freezer
Freezer
37.0°F
37.0°F
Fridge
Fridge
Install mode
When the product is first delivered it is in Install Mode to help assist installers.
Press and hold
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
to activate the appliance
and display the menu.
MODE
INSTALL
Press and hold
to activate
appliance

13
FOOD MODES
Variable temperature zones
Separate food modes, in both fridge and freezer, allow you adjust the temperature
independently for optimal storage.
FOOD MODES DESCRIPTION TYPES OF FOOD
TO STORE
PANTRY
(12°C/54°F)
PANTRY mode provides a cool, dark
place for a wide variety of foods
that perish quickly or may spoil
at room temperature, but are too
sensitive to be stored at normal
refrigerator temperatures.
Bananas, avocados, tomatoes
tropical fruits, root vegetables.
Dry food items such as grains,
flours, sugars, crackers, cereal,
baked goods, tortillas, wraps
and breads.
Spreads, preserves, honey,
tropical fruits, nuts and seeds,
chocolate and fresh herbs.
Wine
FRIDGE
(3°C/37°F)
The ideal mode for fresh, everyday
foods. This mode offers a higher
relative humidity than many other
refrigerators allowing fresh foods such
as fruits and vegetables, meats and
cheeses to stay fresher for longer.
Fruit and vegetables, dairy
products, jams and chutneys/
preserves, meats and drinks.
CHILL
(-0.5°C/31°F)
CHILL mode is an extension of FRIDGE
mode, providing the perfect storage
zone for highly perishable food to
ensure they retain their vital freshness
and quality. These items will last slightly
longer here compared with storage at
FRIDGE mode.
Highly perishable meats,
poultryand seafood.
Alcoholic beverages such
asbeer.
SOFT FREEZE
(-9°C/16°F)
SOFT FREEZE mode is an extension
of your refrigerator, extending the
shelf life of perishable items while
maintaining the quality. SOFT FREEZE
mode allows easy portioning of food
and the ability to heat, cook or serve
foods straight from the compartment
without waiting for it to thaw.
Meats, seafood, soups, sauces,
pureed foods, bread, desserts
and pastries.
Soft Freeze mode is not
recommended for storage
of creamy desserts such as
ice cream.
FREEZER
(-18°C/0°F)
FREEZER mode is for general frozen
food items that require storage
between 1–12 months.
Meat, poultry, seafood, pre-
cooked foods and leftovers,
some fruits and vegetable,
ice cream, and other
frozen desserts.
Not all food modes available on every model.
Some food modes cannot be used in combination.

14
FEATURE DESCRIPTION
ICE Turns on or off your automatic ice maker in the bottom compartment.
Your ice maker is designed to automatically dispense ice into the ice
storage bin below until it detects the bin is full. The more ice you use,
the more it makes.
Before first use the automatic ice system must be flushed. Refer to your
install guide for further information.
ICE BOOST Increases ice production and deactivates automatically after 24hours.
MAX COLD Boosts the cooling speed by dropping a compartment or the whole
refrigerator to its coldest temperature for a set time.
Durations to comply with: Pantry - 6 hours, fridge - 6 hours,
chill - 4 hours, soft freeze - 12 hours & freezer - 24 hours.
Use MAX COLD when you are adding food items to your appliance such
as after grocery shopping. This feature will ensure your food is chilled
or frozen within the shortest period of time, locking in freshness and
extending the shelf life of your food.
BOTTLE CHILL Rapidly chills your beverages in the freezer for 15 minutes. Depending on
the size of your beverage, the default time may not be enough to chill
your beverage. If your beverage is notcold enough after the set time,
return it to the compartment and reset the BOTTLE CHILL feature.
WATER DISPENSER Enables you to lock and unlock the water dispenser.
DOOR ALARM Allows you to temporarily stop door alarms. It will automatically disable
after 20 minutes or when the doors are closed.
DISPLAY LOCK/UNLOCK Enables you to disable the buttons on the control panel. This is useful
when cleaning your appliance.
SABBATH In SABBATH, alarms, lights and displays are deactivated for 80 hours:
zThe interior light will not turn on when you open the refrigerator.
zThe door alarms will not operate.
zThe display will not illuminate, except the SABBATH.
zThe control panel will not operate.
zSabbath mode automatically deactivates after 80 hours.
If you turn off your refrigerator while in SABBATH, it will resume
automatically once the refrigerator is switched on again.
Not all features available on every model.
FEATURES

15
SETTINGS
SETTING DESCRIPTION
WI-FI SETUP May enable you to connect to your home wireless network and operate
remotely using the app.
WATER FILTER TIMER
RESET
Enables you to reset the water filter replacement reminders.
FORCE ICE FLIP Enables you to force the ice tray to flip. This is used when flushing the
water filter after a vacation or when the filter has been replaced.
DISPLAY SOUND Enables you to silence all control panel sounds.
DISPLAY BRIGHTNESS Enables you to adjust the brightness of the display on the control panel.
TEMPERATURE UNITS Enables you to change the unit of temperature shown on the display
screen between Celsius (°C) and Fahrenheit (°F).
WATER FILTER REMINDERS Enables a notification to indicate when the water filter must be replaced.
FACTORY RESET Enables you to reset your appliance to the default factory settings.

16
Setup
Wi-Fi
Settings
37.0°F
Fridge
Pantry
54.0°F
Chill
32.0°F
Setup
Wi-Fi
Settings
37.0°F
Fridge
Pantry
54.0°F
Chill
32.0°F
Setup
Wi-Fi
Settings
37.0°F
Fridge
Pantry
54.0°F
Chill
32.0°F
Getting started
Your appliance may be connected to your home wireless network and operated remotely
using the app.
zEnsure your home Wi-Fi network is turned on.
zYou will be given step by step guidance on both your appliance and mobile device.
zIt may take up to 10 minutes to connect your appliance.
1
2
4
3
Press
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
to display the menu.
Press
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
or
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
to scroll through the list and
select SETTINGS.
Press
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
to confirm.
Press
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
or
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
to scroll through the list and
select WI-FI SETUP. Press
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
to confirm.
WI-FI CONNECTION
Connecting to Wi-Fi
Illustrations may differ from your purchased appliance.
Follow the prompts on screen and in
the app to complete set-up.
On your mobile device:
1 Download the app from www.fisherpaykel.com/connect
2 Register and create an account.
3 Add your appliance and set up the Wi-Fi connection.
Setup
Wi-Fi
Settings
37.0°F
Fridge
Pantry
54.0°F
Chill
32.0°F
Wi-Fi
CONNECTED
CONNECTED
Wi-Fi
GE_MODULE_03D4
TBPHMPNQ
Connect
To complete
connection,
follow the app
instructions

17
ADJUSTING THE TEMPERATURE
From the idle screen, press
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
or
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
to
select the desired compartment.
Press
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
to confirm the selection.
Press
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
to confirm.
A confirmation screen will appear and the
change will be reflected on the idle screen.
Press
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
or
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
to increase or decrease
the temperature.
Adjusting the temperature from quick access
When you turn on your appliance for the first time, the cooling system will automatically
cool all compartments to their defaultfood mode and temperature (Fridge and 3C for
refrigerators and Freezer and -18C for freezers). This will take about 2-3 hours.
The temperature can be adjusted to user’s preference. Follow the steps below to quickly
adjust the temperature of the food mode in each compartment.
Illustrations may differ from your purchased appliance.
37.0°F
Fridge
Pantry
54.0°F
Chill
32.0°F
37.0°F
Fridge
Pantry
54.0°F
Chill
28.0°F
32°F
Chill
28°F
Chill
32°F
Chill
1
2
3
4
32°F
Chill
Chill
32°F

18
FOOD MODE PRESETS
Food modes have been grouped into preset combinations. Ensure each compartment is
running the intended food mode and is appropriate for the foods being stored. Ensure the
appropriate food mode has been selected for the food types you wish to store. Refer to
‘Food modes’ and ‘Food care’ for information.
Press
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
Press
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
to select the desired
Food Mode combination.
Press
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
or
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
to scroll through the
preset combinations.
1
2
3
4
The active Food Mode preset will show first
in the list of presets, and be reflected by a
dot adjacent to the preset number.
5
Press
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
or
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
to scroll through the list
to Food Mode Presets.
Press
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
to confirm.
The food mode combination in use will be
shown on the idle screen.
6
Food Mode
Presets
PRESET 9
Fridge
Chill
Pantry
PRESET 9
Fridge
Chill
Pantry
37.0°F
Fridge
Pantry
54.0°F
Chill
32.0°F
PRESET 9
SET
37.0°F
Fridge
Pantry
54.0°F
Chill
32.0°F
Food Mode
Presets
PRESET 9
Fridge
Chill
Pantry
PRESET 9
Fridge
Chill
Pantry
37.0°F
Fridge
Pantry
54.0°F
Chill
32.0°F
PRESET 9
SET
37.0°F
Fridge
Pantry
54.0°F
Chill
32.0°F
Food Mode
Presets
PRESET 9
Fridge
Chill
Pantry
PRESET 9
Fridge
Chill
Pantry
37.0°F
Fridge
Pantry
54.0°F
Chill
32.0°F
PRESET 9
SET
37.0°F
Fridge
Pantry
54.0°F
Chill
32.0°F
Food Mode
Presets
PRESET 9
Fridge
Chill
Pantry
PRESET 9
Fridge
Chill
Pantry
37.0°F
Fridge
Pantry
54.0°F
Chill
32.0°F
PRESET 9
SET
37.0°F
Fridge
Pantry
54.0°F
Chill
32.0°F
Food Mode
Presets
PRESET 9
Fridge
Chill
Pantry
PRESET 9
Fridge
Chill
Pantry
37.0°F
Fridge
Pantry
54.0°F
Chill
32.0°F
PRESET 9
SET
37.0°F
Fridge
Pantry
54.0°F
Chill
32.0°F
Food Mode
Presets
PRESET 9
Fridge
Chill
Pantry
PRESET 9
Fridge
Chill
Pantry
37.0°F
Fridge
Pantry
54.0°F
Chill
32.0°F
PRESET 9
SET
37.0°F
Fridge
Pantry
54.0°F
Chill
32.0°F

19
CHANGING FEATURES
Press
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
to display the menu.
Press
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
or
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
to scroll through the
list and select the required feature.
Press
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
to confirm.
Press
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
or
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
to select the
desired compartment if
applicable for the feature.
Press
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
to activate/deactivate
the feature.
Illustrations may differ from your purchased appliance.
37.0°F
Fridge
Pantry
54.0°F
Chill
32.0°F
Max Cold
OFF
OFF
Upper
Max Cold
Upper: ON
37.0°F
Fridge
Pantry
54.0°F
Chill
32.0°F
Max Cold
OFF
OFF
Upper
Max Cold
Upper: ON
37.0°F
Fridge
Pantry
54.0°F
Chill
32.0°F
Max Cold
OFF
OFF
Upper
Max Cold
Upper: ON
1
2
3
4
Max Cold
ON

20
CHANGING SETTINGS
Press
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
to display the menu.
Press
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
or
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
to scroll through
the list and locate SETTINGS.
Press
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
to confirm.
Press
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
or
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
to scroll through the list and
locate the desired setting.
Press
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
to change the setting or to
enter the setting for more setting options.
Press
Fridge
3.0 °C
Fridge
3.0 °C
Fridge
5.0 °C
to confirm the selection.
37.0°F
Fridge
Pantry
54.0°F
Chill
32.0°F
Settings
OFF
Sound
Display
OFF
Sound
Display
37.0°F
Fridge
Pantry
54.0°F
Chill
32.0°F
Settings
OFF
Sound
Display
OFF
Sound
Display
37.0°F
Fridge
Pantry
54.0°F
Chill
32.0°F
Settings
OFF
Sound
Display
OFF
Sound
Display
1
2
3
4
37.0°F
Fridge
Pantry
54.0°F
Chill
32.0°F
Settings
OFF
Sound
Display
OFF
Sound
Display
