Fisher & Paykel ActiveSmart RF170B User manual

INSTALLATION GUIDE / USER GUIDE
US CA
RF135B, RF170B, RF170W,
RF170A & RF201A models
ACTIVESMART™ REFRIGERATOR
ICE & WATER, AUTOMATIC ICE
AND NON-ICE & WATER MODELS

1
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide
may not be available in all markets
and are subject to change at any time.
For current details about model and
specification availability in your country,
go to our website fisherpaykel.com or
contact your local Fisher & Paykel dealer.
Note: the word ‘refrigerator’, throughout
this user guide, refers to the combination
of refrigerator/freezer products.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
fisherpaykel.com
Introduction 3
Safety and warnings 4
Installation instructions 9
Moving or storing your appliance 23
ActiveSmart™ operating instructions 24
Temperature control (all models) 24
All about the external display (Ice & Water models only) 28
Using your water dispenser (Ice & Water models only) 29
Water filter (Ice&WaterandAutomaticIcemodelsonly) 30
Using your ice maker (Ice&WaterandAutomaticIcemodelsonly) 31
ActiveSmart™ special features 32
Cleaning and caring for your refrigerator 35
Storing food in your refrigerator 39
Storing food in your freezer 41
ActiveSmart™ user warnings and sounds 43
Troubleshooting 44
Service and warranty 49
CONTENTS

3
INTRODUCTION
Thank you for buying a Fisher & Paykel ActiveSmart™ refrigerator.
At Fisher & Paykel we are very proud of this refrigerator. This refrigerator combines
size and storage space with the latest features and functions.
Thousands of hours of food care research and refrigeration experience has been
programmed into your refrigerator to give you the best possible performance.
We hope you enjoy your new refrigerator.
Note: Automatic Ice and non-Ice & Water models do not have an external water dispenser.
Refrigerator French door
and freezer drawer
Refrigerator door
and freezer door
Refrigerator door
and freezer drawer
ActiveSmart™ refrigerators have two handle options, shown below.
Recessed handlesDesigner handles

4
! WARNING!
Electric Shock Hazard
Read and follow the safety and warnings outlined in this user guide
before operating this appliance.
Failure to do so can result in death, electric shock, fire or injury to persons.
Use this appliance only for the intended purpose as described in the user guide.
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
When using this appliance always exercise basic safety precautions including
the following:
 This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
 Children should be supervised to ensure they do not play with the appliance.
 The manufacturer’s installation instructions for product and cabinetry
ventilation must be followed when installing the appliance.
 To avoid hazard due to instability of the appliance, it must be fixed in
accordance with installation instructions.
 Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
 Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
 Do not damage the refrigerant circuit.
 In case of damage to the refrigerant circuit, ventilate the area by opening all
windows. Do not operate electrical equipment or any other equipment that
may produce arcs, sparks or flames in the area. Contact your Fisher & Paykel
trained and supported service technician immediately to arrange for the
appliance toberepaired.
 Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
SAFETY AND WARNINGS

5
Electrical
 This appliance must be installed in accordance with the installation instructions
beforeuse.
 To allow disconnection of the appliance from the supply after installation,
incorporate a switch in the fixed wiring in accordance with the wiring rules.
 Never unplug your refrigerator by pulling on the power cord. Always grip the
plug firmly and pull straight out from the outlet.
 Do not plug in any other appliance at the same power point as your refrigerator
or use extension cords or double adapters or ungrounded (two prong) adapters.
 Repair or replace immediately all electric service cords that have become
frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion
along its length or at either the plug or appliance end.
 If the power supply cord is damaged, it must only be replaced by your
Fisher&Paykel trained and supported service technician because special
purpose tools are required.
 When moving your appliance away from the wall, be careful not to roll over or
damage the power cord.
 Follow the National Electrical Code and all local codes and ordinances when
installing this product.
 Warning: Ground Fault Circuit Interrupters (GFCI) may trip during normal
operation of your refrigerator and interrupt the power supply. The use of a
GFCI is not recommended with this product.
IMPORTANT!
Your refrigerator is designed to operate for many years without the need for
service checks. However, if your refrigerator is malfunctioning, have it attended
to by your Fisher & Paykel trained and supported service technician as soon
as possible. All electrical repairs must be carried out by an adequately trained
service technician or qualified electrician.
Cleaning
 Many commercially available cleaning products contain solvents that may
attack the plastic components of your refrigerator and cause them tocrack.
 Avoid using anti-bacterial cleaning products on either the interior or exterior
of the cabinet as they may cause rusting of metal components and cracking of
plasticcomponents.
 Please refer to the ‘Cleaning and caring for your refrigerator’ section of this
user guide for further information.
SAFETY AND WARNINGS

6
Disposal
Extreme care must be taken when disposing of your old appliance to
avoidhazards:
– The flammable refrigerant gas must be safely removed.
– The thermal insulation foam in this appliance contains flammable
insulation blowing gases, any exposed foam may be highly flammable
andmust be carefully treated during disposal.
– The refrigerator doors and/or door panel set(s) should be removed and
the shelves left in place so that children may not easily climb inside.
 Your Fisher & Paykel trained and supported service technician will be able
to give advice on environmentally friendly methods of disposing of your old
refrigerator orfreezer.
Storing food and drinks
 Do not store explosive substances such as aerosol cans with a flammable
propellant in this appliance.
 Never store volatile or flammable materials in your refrigerator as they
mayexplode.
 Never freeze liquids in glass containers. Liquid expands during freezing,
which may cause the container to explode.
 Never freeze carbonated drinks. They may explode.
 Do not consume food if it is too cold. Food removed from the freezer
compartment may be cold enough to cause damage when brought into
contact with bare skin, egfrozen ice cubes.
Power failure – food safety
 Do not refreeze frozen foods that have thawed completely. The food may be
dangerous to eat. Follow the recommendations below if you discover food
in your freezer has thawed:
– Ice crystals still visible – food may be refrozen but should be stored
for a shorter period than recommended.
– Thawed but refrigerator cold – refreezing generally not recommended.
Fruits and some cooked food can be refrozen but use as soon as possible.
Meat, fish, poultry – use immediately or cook then refreeze.
Vegetables – discard as they usually go limp and soggy.
– Thawed and warmer than 41°F (5°C) – discard all food.
SAFETY AND WARNINGS

7
Water filter
IMPORTANT!
 The water connection to your Ice & water refrigerator must be installed
by an qualified plumber or Fisher & Paykel trained and supported service
technician and comply with all state and local laws.
 Installation and use MUST comply with all state and local plumbing codes.
Check with your local public works department for plumbing codes.
You must follow their guidelines as you install the water filtration system.
 To avoid serious illness or death, only connect your water filter to safe
drinking water.
 The water filter cartridge needs to be changed when the replacement
indicator icon illuminates. This will happen every 6 months.
 If the water filtration system has been allowed to freeze, replace filter cartridge.
Failure to replace the disposable filter at recommended intervals may lead to
reduced filter performance and failure of the filter, causing property damage
from water leakage or flooding.
 In cases of excessively reduced filter life — we recommend that you consult
a local plumber or your water supplier for advice on suitable filtration
requirements for the water supplied to your home.
 Filter replacement is the consumer’s responsibility and will not be covered
by the warranty except in the case of faulty parts or materials within the
filter cartridge.
 If the water has not created ice for some time or ice has an unpleasant taste
or odour dispose of ice and refer to ‘Automatic ice’ for flushing instructions.
If unpleasant taste or odour persists, you may wish to fit a new filter cartridge.
 Use new tubing supplied with the refrigerator. DO NOT reuse old tubing from
old water and ice connections.
 Your water filtration system can withstand up to 120psi (827kPa) of water
pressure. Ensure the supplied pressure reducing valve is installed before
installing the water filtration system. DO NOT install if water pressure exceeds
120psi (827kPa).
To reduce the risk associated with property damage due to water leakage
or flooding:
 DO NOT install systems in areas where ambient temperatures may go
above 100°F (38°C) or drop below 33°F (0.6°C).
 DO NOT install on hot water supply lines. The maximum operating water
temperature of this filter system is 100°F (38°C).
 DO NOT install where water hammer conditions may occur. If water hammer
conditions exist, you must install a water hammer arrester.
SAFETY AND WARNINGS

8
WARNING!
To reduce the risk associated with choking:
 DO NOT allow children under 3 years of age to have access to small parts
during the installation of the water filter.
Ice making
IMPORTANT!
 Avoid contact with the moving parts of the ice maker ejector mechanism,
and do not place your fingers on the automatic ice- making mechanism
while the appliance is inoperation.
 Do not use ice cubes that may have become discoloured, usually with a
green-blue colour. If such discolouration is noted, discard the ice cubes
and contact your Fisher&Paykel trained and supported service technician.
SAFETY AND WARNINGS

9
INSTALLATION INSTRUCTIONS
Please follow the installation steps below to ensure your appliance operates correctly.
1. Power
 The appliance must be installed so the plug is accessible.
 To ensure that the appliance is not accidentally switched off, connect your refrigerator
to its own power point. Do not plug in any other appliance at this power point or use
extension cords and double adaptors, as the combined weight of both power cords can
pull the double adaptor from a wall outlet socket.
 For power requirements, refer to the information on the serial plate located at the front
bottom right-hand side of the refrigerator when the door is open.
 It is essential that the appliance is properly grounded (earthed).
2. Location
 Your refrigerator should not be located in direct sunlight or next to any heat generating
appliance such as a cooktop, oven or dishwasher.
3. Ice & Water and Automatic Ice models
 Your Ice & Water and Automatic Ice refrigerator must be installed by an authorized
plumber or Fisher & Paykel trained and supported service technician as incorrect
plumbing can lead to water leaks.
 Fisher & Paykel Appliances does not accept responsibility for damage (including water
damage) caused by faulty installation or plumbing.

10
INSTALLATION INSTRUCTIONS
4. Product and cabinetry dimensions
If integrating your refrigerator, please follow installation instructions provided with the
integration kits.
Freezer door models (RF135B and RF170B)
(Ice & Water, Automatic Ice and non-Ice & Water models)
PLAN VIEW
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
K
E
F
N
Q
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
G
K L
H
N
R
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
K M
I
J
N
N
B C
D
A
O
O
P
K
Flush with refrigerator chassis — full door rotation
PLAN VIEW
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
K
E
F
N
Q
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
G
K L
H
N
R
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
K M
I
J
N
N
B C
D A
O
O
P
K
Flush with refrigerator door — full door rotation
PLAN VIEW
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
K
E
F
N
Q
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
G
KL
H
N
R
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
K M
I
J
N
N
B C
D A
O
O
P
K
Flush with refrigerator door — 90° door rotation
PLAN VIEW
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
K
E
F
N
Q
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
G
K L
H
N
R
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
K M
I
J
N
N
B C
D A
O
O
P
K

11
INSTALLATION INSTRUCTIONS
RF135B RF170B
PRODUCT DIMENSIONS inches (mm) inches (mm)
AOverall height of product 673/4” (1720) 673/4” (1720)
BOverall width of product 25” (635) 311/8” (790)
COverall depth of product (excludes handle, includes rear
compartment cover) 273/8” (695) 273/8” (695)
CABINETRY DIMENSIONS (including minimum clearances)inches (mm) inches (mm)
DInside height of cavity 681/8” (1730) 681/8” (1730)
Flush with refrigerator chassis—full door rotation
EInside width 269/16” (675) 3211/16” (830)
FInside depth 247/16” (620) 247/16” (620)
Flush with refrigerator door—full door rotation
GInside width 311/8” (790) 373/16” (945)
HInside depth flush to door 273/8” (695) 273/8” (695)
Flush with refrigerator door—90° door rotation
(for full drawer/shelf access, the doors need to be open past 90°)
IInside width 295/16” (745) 357/16” (900)
JInside depth flush to door 273/8” (695) 273/8” (695)
MINIMUM CLEARANCES inches (mm) inches (mm)
KSide clearance 13/16” (20) 13/16” (20)
LSide clearance — hinge side flush with door — full rotation 55/16” (135) 55/16” (135)
MSide clearance — hinge side flush with door — 90° rotation 39/16” (90) 39/16” (90)
NRear clearance (incl. rear compartment cover) 13/16” (30) 13/16” (30)
OVent — around top of cupboard (optional) 2” (50) 2” (50)
PTop clearance — above refrigerator cabinet 2” (50) 2” (50)
QDoor clearance — hinge side flush with chassis — full rotation 201/2” (520) 253/8” (645)
RDoor clearance — hinge side flush with door — full rotation 1515/16” (405) 207/8” (530)

12
INSTALLATION INSTRUCTIONS
4. Product and cabinetry dimensions
If integrating your refrigerator, please follow installation instructions provided with the
integration kits.
Freezer drawer models (RF170W, RF170A, RF201A)
(Ice & Water, Automatic Ice and non-Ice & Water models)
D
A
B C N
O
O
P
F
N
H
N
E
K K
Q
K
G
L
RJ
N
I
K M
Flush with refrigerator door — full door rotation
D A
B C N
O
O
P
F
N
H
N
E
K K
Q
K
G
L
R
J
N
I
K M
Flush with refrigerator door — 90° door rotation
D A
B C N
O
O
P
F
N
H
N
E
K K
Q
K
G
L
R
J
N
I
K
M
D
A
B C N
P
O
O
F
NK
E
K
Q
H
NL L
G
R
N
J
I
L M
Flush with refrigerator door — full door rotation
D A
B C N
P
O
OF
NK
E
K
Q
H
NL L
G
R
N
J
I
L M
Flush with refrigerator door — 90° door rotation
D A
B C N
P
O
OF
NK
E
K
Q
H
NL L
G
R
N
J
I
L
M
RF170A, RF201ARF170W
D A
B C N
O
O
P
F
N
H
N
E
K K
Q
K
G
L
RJ
N
I
K M
Flush with refrigerator chassis — full door rotation
D A
B C N
P
O
O
F
NK
E
K
Q
H
NL L
G
R
N
J
I
L M
Flush with refrigerator chassis — full door rotation

13
INSTALLATION INSTRUCTIONS
RF170A, RF201A
RF170W RF170A RF201A
PRODUCT DIMENSIONS inches (mm) inches (mm) inches (mm)
AOverall height of product 673/4” (1720) 673/4” (1720) 703/4” (1800)
BOverall width of product 311/8” (790) 311/8” (790) 357/16” (900)
COverall depth of product (excludes
handle, includes rear compartment cover) 273/8” (695) 273/8” (695) 273/8” (695)
CABINETRY DIMENSIONS
(including minimum air clearances)inches (mm) inches (mm) inches (mm)
DInside height of cavity 681/2” (1740) 681/2” (1740) 717/16” (1815)
Flush with refrigerator chassis—full door rotation
EInside width 3211/16” (830) 3211/16” (830) 37” (940)
FInside depth 247/16” (620) 247/16” (620) 247/16” (620)
Flush with refrigerator door—full door rotation
GInside width 373/16” (945) 413/4” (1060) 461/16” (1170)
HInside depth flush to door 273/8” (695) 273/8” (695) 273/8” (695)
Flush with refrigerator door—90° door rotation
(for full drawer/shelf access, the doors need to be open past 90°)
IInside width 357/16” (900) 3915/16” (1015) 445/16” (1125)
JInside depth flush to door 273/8” (695) 273/8” (695) 273/8” (695)
MINIMUM CLEARANCES inches (mm) inches (mm) inches (mm)
KSide clearance 13/16” (20) 13/16” (20) 13/16” (20)
LSide clearance — hinge side flush with
door — full rotation 55/16” (135) 55/16” (135) 55/16” (135)
MSide clearance — hinge side flush with
door — 90° rotation 39/16” (90) 39/16” (90) 39/16” (90)
NRear clearance (incl. compartment cover) 13/16” (30) 13/16” (30) 13/16” (30)
OVent — around top of cupboard (optional) 2” (50) 2” (50) 2” (50)
PTop clearance — above refrigerator cabinet 2” (50) 2” (50) 2” (50)
QDoor clearance — hinge side flush with
chassis — full rotation 253/8” (645) 1213/16” (325) 143/8” (365)
RDoor clearance — hinge side flush with
door — full rotation 207/8” (530) 81/4” (210) 913/16” (250)

14
INSTALLATION INSTRUCTIONS
RF135B RF170W
RF170B
RF170A RF201A
110VAC AND WATER INLET DIMENSIONS inches (mm) inches (mm) inches (mm) inches (mm)
SPower cord 40” (1016) 40” (1016) 40” (1016) 40” (1016)
TWater inlet to bottom 5” (127) 5” (127) 5” (127) 5” (127)
U110VAC to bottom 3” (76) 3” (76) 3” (76) 3” (76)
V110VAC to edge 2” (51) 2” (51) 2” (51) 2” (51)
WWater inlet to edge 13” (330) 16” (406) 16” (406) 18” (457)
110VAC cord and water inlet dimensions
6789
DRAWING: 838587
PART: 838587
W
V
TU
S
5. Rear compartment cover dimensions

15
INSTALLATION INSTRUCTIONS
6. Connecting water (Ice & Water and Automatic Ice models)

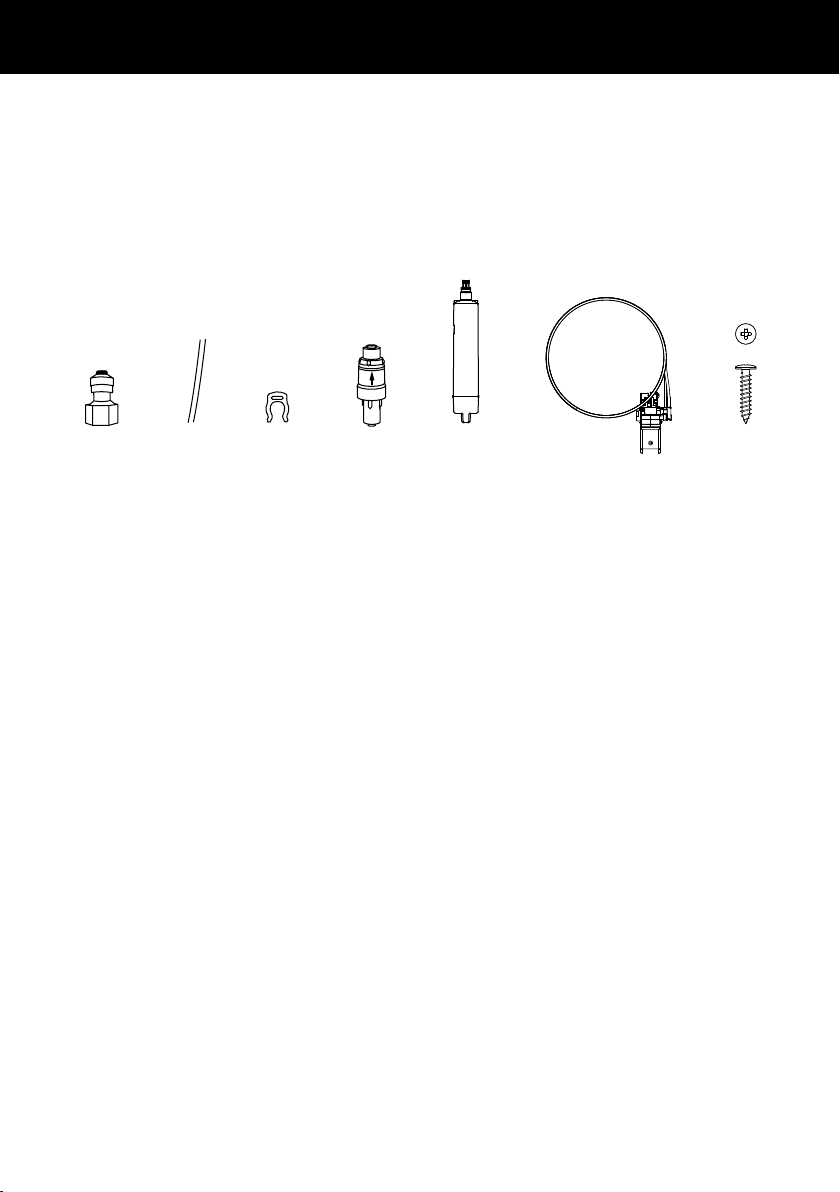

Contents of filter kit
A1 x faucet connection
B1 x short tubing
C1 x locking key
D1 x pressure reducing valve (PRV)
E1 x water filter cartridge
F1 x wall mounting bracket, filter head and tubing
G2 x screws
IMPORTANT!
 A pressure reducing valve (PRV) must be fitted prior to the water filter.
The PRV protects your refrigerator from damage. If the PRV is not fitted
to the connection line your warranty will be void and the product may leak.
 The water connection instructions below are intended only for the professional
installer.
 The new tubing supplied with the refrigerator is to be used, old tubing from
old water and ice connections should not be used.
 Ensure the inlet tubing is correctly connected to the PRV. Failure to do so
may result in serious injury.
 Replacement parts are available through Customer Care or online at
fisherpaykel.com (this service is available to selected markets only).
INSTALLATION PRECAUTIONS/WARNING
 DO NOT cut any length of tube shorter than 19 11/16” (500mm).
 DO NOT install near electrical wires or water pipes that will be in the path
of drilling when selecting the location of filter system.
 DO NOT mount the water filter in such a position so that it will be struck
by other items, such as wastebaskets.
 DO NOT install the water filter or any water tubing in direct sunlight as
prolonged exposure to light can weaken plastic components.
 DO NOT install in a location that is susceptible to freezing temperatures
as damage to the housing could occur.
 DO NOT screw water filter mounting bracket to the refrigerator.
 DO NOT install the filter or any water tubing in high temperature areas
eg in a ceiling cavity.
 AVOID contamination of pipes during installation.
 DO NOT continuously dispense water for longer than 2minutes.
BA
¾” OD x 3/16”ID
Flat Washer
#10-32
Pan Head
Pozi Drive
Wall Plug
#8 x 3/4”
Truss Head
Philips Drive
Self Tapping Screw
¼-20 x ½”
Pan Head
Philips Drive
Machine Screw
M4 x8
Pan Head
Torx Drive
Machine Screw
#10x 3”
Countersunk
Pozidrive
Self tapping Screw
FP Pro Hood Fasteners
GC FD E

16
INSTALLATION INSTRUCTIONS

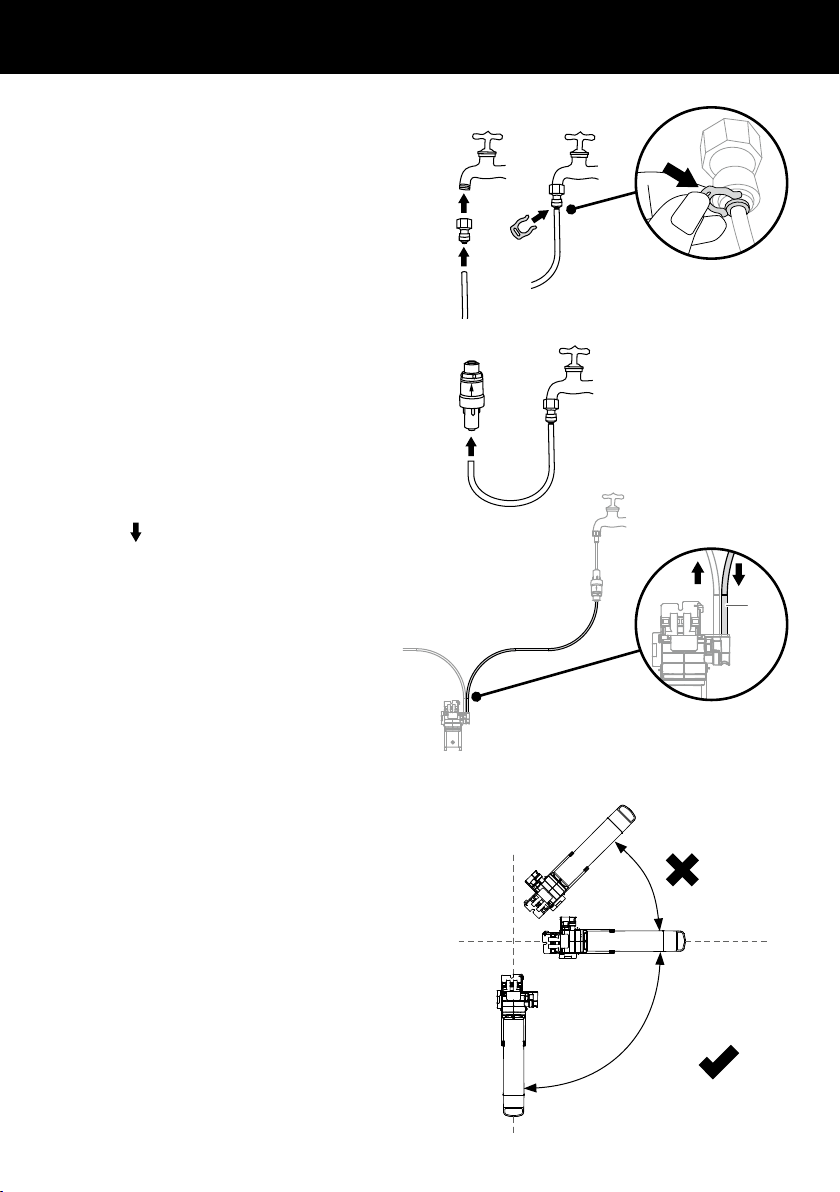

Installation instructions:
1Ensure the refrigerator is NOT plugged into
a powersupply.
2Locate a cold water supply/feed that is
suitable for a water connection.
3Connect the faucet connection fitting (A)
to the faucet. Connect the short tubing (B)
to the outlet of the faucet and secure with
the locking key (C) (refer to Diagram 1)
4Connect the inlet of the PRV (D) to the
tubing connected to the faucet (refer to
Diagram 2). Ensure the arrow on the PRV is
pointing away from the faucet. The arrow
indicates the direction of waterflow.
5Connect the inlet tube from the filter head
to the PRV (refer to Diagram 3). The inlet
tube can be identified by the downward
arrow on the filter head and a red mark
on the tube.
IMPORTANT!
Ensure the outlet tubing is correctly
connected to the refrigerator water valve.
Refer to Diagram 3.
6Determine the mounting position for the
water filter noting the following:
 The water filter MUST not be mounted
with the filter head position below the
base of the filter (refer to Diagram 4).
We recommend fitting the water filter
in a vertical orientation with the filter
head at the top. This will minimise water
leakage during replacement of the water
filter.
 Ensure the water filter is in a convenient
location to access every 6months
for replacement. We recommend that
this location is beside the water filter
supply faucet in a cupboard beside the
refrigerator.
 A minimum clearance of 2” (50mm)
from the bottom of the water filter is
required to perform filter removal.
Diagram 1
Inlet
tube
Diagram 2
Diagram 3
0° – 90°
Diagram 4
water flow
from PRV
water flow to
refrigerator

17
INSTALLATION INSTRUCTIONS
7Attach the wall mounting bracket with the
two screws provided, attach the bottom
screw first then the top screw (refer to
Diagram5).
8Insert the filter water into the filter head.
Push the filter firmly into the filter head
and turn in a clockwise direction until it
locks into place (refer to Diagram 6).
9To flush the water filter of any trapped air,
harmless carbon fines and check for leaks:
Aim the end of the filter outlet tubing into
a bucket, turn on the faucet and run 2 gal
(8L) of water through. Once complete, turn
the faucet off.
Note: Further flushing is required before
first use of your ice or water functions,
please refer to ‘Before you start using
theIce & Water or Automatic Ice function’
fordetails.
!0 Run the 1/4” (6mm) tubing to the back of the refrigerator ensuring there is
enough tubing to pull the refrigerator out for service.
!1 Using the measurement guide shown in Diagram 7, mark out 5/8” (16mm),
on the end of the tubing as shown in Diagram 8.
!2 Insert the outlet tubing to the water (solenoid) valve up to the marked line.
The outlet tube can be identified by the upward arrow on the filter head
and a blue mark on the tube.
!3 Pull gently on tubing to ensure it is locked in as shown in Diagram 10.
!4 Turn the faucet on and check that all connections are dry and free of drips.
!5 Coil water line tubing behind the refrigerator. Pushyour refrigerator into
place being careful notto kink or squash the water line tube.
!6 Read pages 16–17 carefully and then turn refrigeratoron.
Diagram 7
Diagram 9 Diagram 10Diagram 8
Completed installation
Diagram 5
¾”OD x 3/16”ID
FlatWasher
#10-32
PanHead
PoziDrive
WallPlug
#8x 3/4”
TrussHead
PhilipsDrive
SelfTapping Screw
¼-20x ½”
PanHead
PhilipsDrive
MachineScrew
M4x8
PanHead
TorxDrive
MachineScrew
#10x3”
Countersunk
Pozidrive
Selftapping Screw
FP Pro Hood Fasteners
¾”OD x 3/16”ID
FlatWasher
#10-32
PanHead
PoziDrive
WallPlug
#8x 3/4”
TrussHead
PhilipsDrive
SelfTapping Screw
¼-20x ½”
PanHead
PhilipsDrive
MachineScrew
M4x8
PanHead
TorxDrive
MachineScrew
#10x3”
Countersunk
Pozidrive
Selftapping Screw
FP Pro Hood Fasteners
Diagram 6

18
INSTALLATION INSTRUCTIONS
IMPORTANT!
 All connections must be checked for leaks.
 Ensure 1/4” (6mm) tubing is routed away from
sharp objects, sharp corners (beware of kinking
the tube as this will stop water flow), clear of the
refrigerator rear compartment and not in a location
where it can be kinked or squashed.
 Ensure all push-fit connections are firmly pushed into place.
The tube should push in 5/8” (16mm) before reaching
the stop.
 If tubing is removed at any point, re-cut the end and re-insert.
Tubing must be fully inserted to avoid leaks.

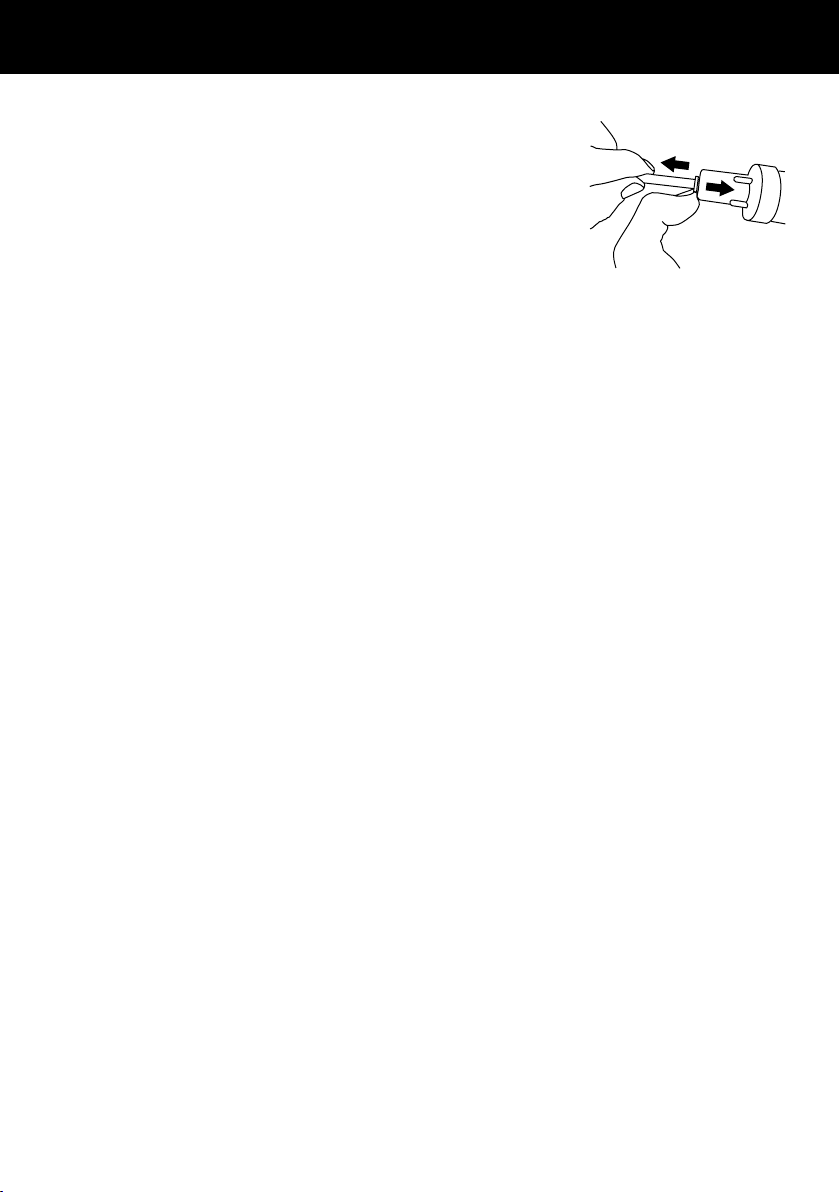

 To remove tube from connection points first turn off the isolating faucet.
Gently push the dispensing pad a few times using a glass or container
to remove the static line pressure. Push in the collet firmly while pulling back
on the tubing at the same time, as shown in Diagram11.
847200 - Certified by: IAPMO R&T against NSF/ANSI Standards 43, 53, 401 and
CSA B4831.1 for the reduction of claims specified on the performance data sheet
and at iapmort.org. 847200 compounds certified under NSF/ANSI 401 have been
deemed as incidental contaminants/emerging compounds. Incidental contaminants
are those compounds that have been detected in drinking water supplies at trace
levels. While occurring at only trace levels, these compounds can affect the public
acceptance of drinking quality water.”
847201 - Certified by: IAPMO R&T against NSF/ANSI Standards 43 and CSA B4831.1 for
the reduction of claims specified on the performance data sheet and at iapmort.org.
Rated capacity:
847200 – 102 gallons (386 litres)
847201 – 170 gallons (643.5 litres)
Diagram 11
