Fisher & Paykel ActiveSmart RS36A72U User manual

ActiveSmart™ Built-in refrigerator
RS36A72J and RS36A72U models
RS36A80J and RS36A80U models
US CA
USER GUIDE

1
CONTENTS
Introduction 3
Safety and warnings 4
Moving and storing your appliance 7
Storage features list 8
Operating instructions 9
Special functions 11
External display – Ice & Water models only 13
Using your water dispenser – Ice & Water models only 14
Water filter 15
Using your Ice maker 17
ActiveSmart™ refrigerator special features 19
Cleaning care – Exterior 21
Cleaning care – Interior 24
Storing food in your refrigerator 26
Storing food in your freezer 28
Defrosting food in your refrigerator 30
User warnings and sounds 31
Troubleshooting 32
Service and Warranty 36
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may not be available in all markets and are subject
to change at any time. For current details about model and specification availability
in your country, please go to our website www.fisherpaykel.com or contact your local
Fisher&Paykeldealer.
Note that the word ‘refrigerator’, throughout this user guide, refers to the combination of
refrigerator/freezer products.

3
INTRODUCTION
Thank you for buying this Fisher & Paykel Built-in refrigerator.
Introducing the next generation in Fisher & Paykel refrigeration. With new flush-fit
design and the ability to easily slide into existing kitchen spaces or be integrated behind
kitchen cabinetry, these family-sized fridges offer a seamless look to the kitchen while
providing excellent food care with ActiveSmart™ technology.
As your life changes, so can your refrigerator. This book explains the features and
functions, and will help you get the most out of your refrigerator.
We hope you enjoy your new Built-in refrigerator.
* All models shown with Fisher & Paykel EZKleen stainless steel door panel sets.
RS36A72U (Ice & Water model)*
RS36A72U1 (with RD3672U SS Door skin) RS36A72J1 (with RD3672 SS Door skin)
RS36A80U1 (with RD3680U SS Door skin) RS36A80J1 (with RD3680 SS Door skin)
RS36A80U1 (with RD3684U SS Door skin) RS36A80U1 (with RD3684 SS Door skin)
RS36A72J1 (shown with custom panels)
RS36A80J1 (shown with 80’’ custom panels)
RS36A80U1 (shown with 84’’ custom panels)
RS36A80U (Ice & Water model)*
RS36A72U1 (with RD3672U SS Door skin) RS36A72J1 (with RD3672 SS Door skin)
RS36A80U1 (with RD3680U SS Door skin) RS36A80J1 (with RD3680 SS Door skin)
RS36A80U1 (with RD3684U SS Door skin) RS36A80U1 (with RD3684 SS Door skin)
RS36A72J1 (shown with custom panels)
RS36A80J1 (shown with 80’’ custom panels)
RS36A80U1 (shown with 84’’ custom panels)
RS36A72J (with internal Ice maker)*
RS36A72U1 (with RD3672U SS Door skin) RS36A72J1 (with RD3672 SS Door skin)
RS36A80U1 (with RD3680U SS Door skin) RS36A80J1 (with RD3680 SS Door skin)
RS36A80U1 (with RD3684U SS Door skin) RS36A80U1 (with RD3684 SS Door skin)
RS36A72J1 (shown with custom panels)
RS36A80J1 (shown with 80’’ custom panels)
RS36A80U1 (shown with 84’’ custom panels)
RS36A80J (with internal Ice maker)*
RS36A72U1 (with RD3672U SS Door skin) RS36A72J1 (with RD3672 SS Door skin)
RS36A80U1 (with RD3680U SS Door skin) RS36A80J1 (with RD3680 SS Door skin)
RS36A80U1 (with RD3684U SS Door skin) RS36A80U1 (with RD3684 SS Door skin)
RS36A72J1 (shown with custom panels)
RS36A80J1 (shown with 80’’ custom panels)
RS36A80U1 (shown with 84’’ custom panels)

4
SAFETY AND WARNINGS
!WARNING!
Electric Shock Hazard
Read and follow the safety and warnings outlined in this user guide
before operating this appliance.
Failure to do so can result in death, electric shock, fire or injury to persons.
Use this appliance only for the intended purpose as described in the user guide.
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
When using this appliance always exercise basic safety precautions including the
following:
 This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
 Children should be supervised to ensure they do not play with the appliance.
 The manufacturer’s installation instructions for product and cabinetry ventilation must
be followed when installing the appliance.
 To avoid hazard due to instability of the appliance, it must be fixed in accordance with
installation instructions.
 Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear
of obstruction.
 Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
 Do not damage the refrigerant circuit.
 In case of damage to the refrigerant circuit, ventilate the area by opening all windows.
Do not operate electrical equipment or any other equipment that may produce arcs,
sparks or flames in the area. Contact your Fisher & Paykel Authorized Service Agent
immediately to arrange for the appliance to be repaired.
 Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
Electrical
 This appliance must be installed in accordance with the installation instructions
beforeuse.
 To allow disconnection of the appliance from the supply after installation, incorporate
a switch in the fixed wiring in accordance with the wiring rules.
 Never unplug your refrigerator by pulling on the power cord. Always grip the plug
firmly and pull straight out from the outlet.
 Do not plug in any other appliance at the same power point as your refrigerator or
use extension cords or double adapters or ungrounded (two prong) adapters.
 Repair or replace immediately all electric service cords that have become frayed or
otherwise damaged. Do not use a cord that shows cracks or abrasion along its length
or at either the plug or appliance end.

5
SAFETY AND WARNINGS
 If the power supply cord is damaged, it must only be replaced by your Fisher&Paykel
Authorized Service Agent because special purpose tools are required.
 When moving your appliance away from the wall, be careful not to roll over or
damage the power cord.
 Follow the National Electrical Code and all local codes and ordinances when installing
this product.
 Warning: Ground Fault Circuit Interrupters (GFCI) may trip during normal operation
of your refrigerator and interrupt the power supply. The use of a GFCI is not
recommended with this product.
IMPORTANT!
Your refrigerator is designed to operate for many years without the need for service
checks. However, if your refrigerator is malfunctioning, have it attended to by your
Fisher & Paykel Authorized Service Agent as soon as possible. All electrical repairs
must be carried out by an adequately trained service technician or qualified electrician.
Cleaning
 Many commercially available cleaning products contain solvents that may attack the
plastic components of your refrigerator and cause them tocrack.
 Avoid using anti-bacterial cleaning products on either the interior or exterior
of the cabinet as they may cause rusting of metal components and cracking of
plasticcomponents.
 Please refer to the ‘Cleaning care’ section of this user guide for further information.
Disposal
Extreme care must be taken when disposing of your old appliance to avoid hazards:
– The flammable refrigerant gas must be safely removed.
– The thermal insulation foam in this appliance contains flammable insulation
blowing gases, any exposed foam may be highly flammable and must be
carefully treated during disposal.
– The refrigerator doors and/or door panel set(s) should be removed and the
shelves left in place so that children may not easily climb inside.
 Your Fisher & Paykel Authorized Service Agent will be able to give advice on
environmentally friendly methods of disposing of your old refrigerator or freezer.
Storing food and drinks
 Do not store explosive substances such as aerosol cans with a flammable propellant in
this appliance.
 Never store volatile or flammable materials in your refrigerator as they may explode.
 Never freeze liquids in glass containers. Liquid expands during freezing, which may
cause the container to explode.
 Never freeze carbonated drinks. They may explode.
 Do not consume food if it is too cold. Food removed from the freezer compartment
may be cold enough to cause damage when brought into contact with bare skin,
egfrozen ice cubes.

6
SAFETY AND WARNINGS
Power failure – food safety
 Do not refreeze frozen foods that have thawed completely. The food may be
dangerous to eat. Follow the recommendations below if you discover food in your
freezer has thawed:
– Ice crystals still visible – food may be refrozen but should be stored for a shorter
period than recommended.
– Thawed but refrigerator cold – refreezing generally not recommended. Fruits
and some cooked food can be refrozen but use as soon as possible. Meat, fish,
poultry – use immediately or cook then refreeze. Vegetables – discard as they
usually go limp and soggy.
– Thawed and warmer than 41°F (5°C) – discard all food.

7
MOVING AND STORING YOUR APPLIANCE
TO ENSURE YOUR APPLIANCE OPERATES CORRECTLY PLEASE REFER TO THE
INSTALLATION INSTRUCTIONS BOOKLET SUPPLIED WITH THIS PRODUCT.
If your refrigerator is turned off for any reason, wait 10minutes before turning it back
on. This will allow the refrigeration system pressures to equalize before restarting.
Moving your appliance
 Turn off the appliance at the isolating switch and unplug from the power point. Remove
all food.
 Refer to the installation instructions to free the refrigerator from its surrounds. Gently
ease the appliance out of its position, switch isolating faucet off and disconnect water
fittings; and tuck the power cord away.
 If applicable, tape the shelves in place and tape the doors closed. If the cabinet needs to
be placed on an angle or laid down, carefully lay it on its side (the right-hand side when
viewed from the front).
 Relocate and install. If the appliance has been left on its side for any length of time,
leave it standing upright as long as possible (at least a few hours) before turning it on.
 If the product has been transported upright then it can be switched on after 10minutes.
Storing your appliance
 When storing your cleaned appliance, leave the door(s) open. This allows air to circulate
and prevents the build up of bacteria and molds.
 Before using again, clean well using a mixture of warm water and baking soda (add 1tsp
of baking soda to each 16.9oz (500ml) of water). Rinse with clean water.
Holiday time
We recommend you leave your refrigerator operating while you are on holiday.
Removeall perishable food.
 Turn the ice maker off on the internal control panel.
 Shut off the water supply to the refrigerator.
 On your return, turn on the water supply to the refrigerator.
 Turn on the ice maker.
 Discard the first 24hours of ice harvest.
For Ice & Water models
Dispense 4qt (4L) of water and discard to ensure the water tank is refilled with
freshwater.

8
STORAGE FEATURES LIST
* All storage features are the same for RS36A72J, RS36A72U, RS36A80J and RS36A80Umodels.
Refrigerator compartment*
Accessories (not shown)
 Single bottle holders
Freezer compartment*

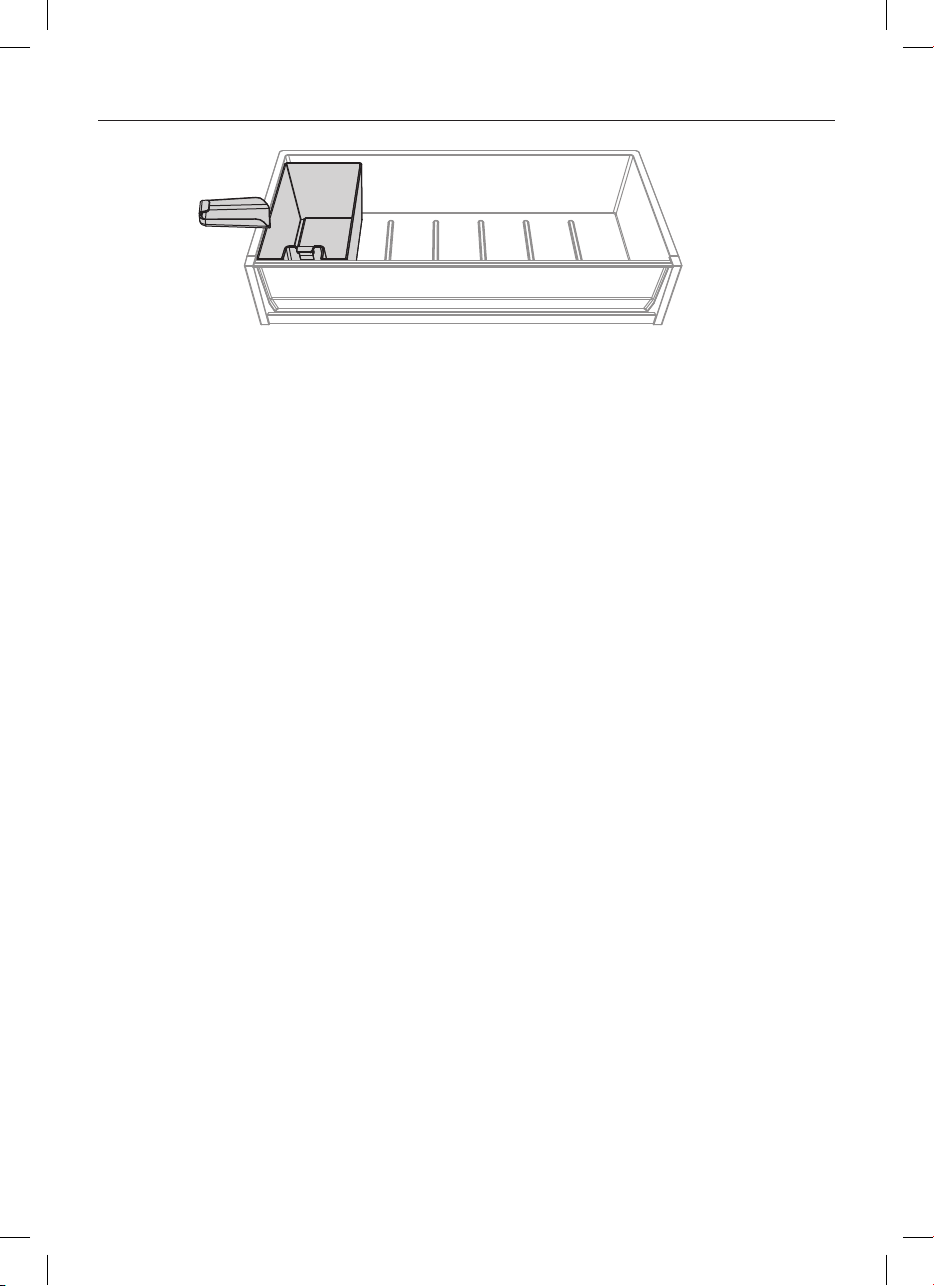

Ice maker (top left of freezer)
Dairy shelf
Slim bin with
humidity
control lid
Large door shelf
Water tank
(Ice & Water models only)
Dairy shelf
Large door shelf
Fruit and vegetable
bins with humidity
control lids
Mid door shelves
Half-width cantilever
glass shelves
Full-width cantilever
glass shelves
Mid door shelves
Ice storage bin with scoop
Top bin
Mid tray
Large bottom bin

9
OPERATING INSTRUCTIONS
Internal control panel
The internal control panel enables you to view and modify all
the features and options of yourrefrigerator.
Temperature control
 When the refrigerator is first turned on, the cooling systemwill
automatically cool both refrigerator and freezercompartments
to their set temperatures. This will take between 2–3hours.
 The two compartment temperatures are accurately and
independently controlled and do not change with the
temperature or humidity of the surroundings, whether
summeror winter.
 If you wish to alter the temperature of either the fresh food
compartment or freezer compartment, this can be easily done
by using the internal control panel located on the right hand
side of the refrigerator compartment.
Adjusting the fresh food compartment temperature
When the fresh food compartment door(s) are opened the interior light automatically
illuminates. Thetemperature for this compartment will show as a series of lights.
 To increase the temperature press the button, this will increase the number of lights.
 To decrease the temperature press the button, this will decrease the number of lights.
 Fewer lights illuminated indicates a colder temperature for the compartment selected.
Adjusting the freezer compartment temperature
 Press the button once, the freezer compartment light will be illuminated.
 To increase the temperature press the button, this will increase the number of lights.
 To decrease the temperature press the button, this will decrease the number of lights.
 Fewer lights illuminated indicates a colder temperature for the compartment selected.
 Note: successively pressing the button will scroll between compartments.
 When the door is re-opened the control panel will return automatically to the fresh food
compartment setting.
Alarm Mute
For times when you require the door to be opened longer than normal eg when
cleaning the interior of your refrigerator the ‘Alarm Mute’ can be activated to silence the
door alarm for 20minutes.
 To activate, press the button once. The ‘Alarm Mute’ light will be illuminated when the
function is activated.
 ‘Alarm Mute’ will deactivate after 20minutes and the door alarms will return to normal.
 To deactivate ‘Alarm Mute’ manually, press the button again. When ‘Alarm Mute’ is
deactivated the light is off.
Note: when the fresh food or freezer compartment door is left open for longer periods
of time food quality and/or safety may be compromised.
Internal control panel
for all models

10
OPERATING INSTRUCTIONS
Key mute
Key mute allows you to silence all button presses.
 To activate key mute, press and hold the button for 4seconds.
 The icon on the internal control panel will be illuminated.
 The keys will be silenced when key mute is activated.
 Door alarms and ‘Bottle Chill’ alarm will still operate.
 Key mute will not automatically deactivate. To manually deactivate, press and hold
the button for 4seconds.
 The icon will no longer be illuminated.
Key lock
Key lock allows you to disable the buttons on the internal control panel. This is useful
when cleaning your refrigerator.
 To activate key lock press and hold the and buttons for 4seconds.
 The icon on the internal control panel will be illuminated.
 Pressing any of the buttons will cause several beeps to tell you that they are disabled.
 Key lock will not automatically deactivate. To manually deactivate, press and hold
the and buttons for 4seconds.
 The icon will no longer be illuminated.
Sabbath mode
In Sabbath mode alarms, lights and displays are deactivated for 80hours.
 To activate Sabbath mode press and hold , and buttons for 4seconds.
 The icon on the internal control panel will be illuminated.
Once in Sabbath mode:
 The interior light will not turn on when the refrigerator is opened.
 The door alarm will not operate.
 The display will not illuminate, except the Sabbath mode icon.
 The internal and external control panel will not operate.
 Sabbath mode will automatically deactivate after 80 hours.
 To deactivate manually, press and hold , and for 4 seconds.
 The icon on the internal control panel will no longer be illuminated.
Note: If power is turned off the refrigerator will automatically continue in Sabbath mode
once power is restored.

11
SPECIAL FUNCTIONS
Bottle Chill
This function allows you to chill your beverages rapidly in the freezer without the worry
of forgetting them. The timer is set for 15minutes however the time taken to chill
depends on the size of your beverage. If after 15minutes your beverage is not cold
enough, simply place it back in the freezer and reset the ‘Bottle Chill’ function.
 To activate, press the button on the internal display. The ‘Bottle Chill’ light above the
button will be illuminated when the function is activated. For Ice & Water models the
icon will also be illuminated on the external display.
 An alarm will sound after 15minutes has elapsed reminding you to remove your
beverage from the freezer.
To silence the alarm – with internal Ice maker models:
Open the fresh food compartment door and press the button on the internal
controlpanel.
To silence the alarm – with Ice & Water models:
Open the fresh food compartment door and press the button on the internal
controlpanel or press the button once on the external display.
 To deactivate ‘Bottle Chill’ before 15minutes has elapsed, press the button on the
internal control panel. When ‘Bottle Chill’ is deactivated the light above the button will
no longer be illuminated, and the icon is not visible on the external display (Ice &
Water models only).
 If you would like your beverage colder, place it back into the freezer and reset the
‘Bottle Chill’ function.
Fast Freeze
We have created the ‘Fast Freeze’ feature to help your get the best possible results
when freezing fresh food. ‘Fast Freeze’ boosts the freezing speed by dropping the
freezer to its coldest temperature for 12hours, which helps to ensure vital freshness,
texture and taste are retained during the freezing process.
 To activate, press the button on the internal display. The ‘Fast Freeze’ light above the
button will be illuminated when the function is activated.
 To deactivate before the 12hours has elapsed, press the button again. When ‘Fast
Freeze’ is deactivated the light above the button will no longer be illuminated.
 For best results we recommend that you activate the function before it is required eg
before grocery shopping. Alternatively, activate it when placing food in the freezer.

12
SPECIAL FUNCTIONS
Door alarms
 If the fresh food compartment door is left open the alarm will beep after 90seconds,
and if the freezer door is left open the alarm will beep after 60seconds.
 While either door remains open, subsequent beeps will sound every 30seconds for
5minutes.
 A continuous alarm will sound if either of the doors have been left open for 5minutes or
longer and the interior compartment light(s) will turn off. The alarm will stop only when
the door(s) is closed.
Note: If ‘Alarm Mute’ has been activated the door alarms will be silenced for 20minutes.
After 5minutes of the doors being left open the compartment light will turn off however
the normal door alarms will be suspended. The light above the button will illuminate
to indicate that the appliance is in this mode.
Ice Boost
This function is designed to be used for times when you require more ice eg when you
are having a party. The ‘Ice Boost’ function will increase ice production up to 30%* from
standard ice making and deactivates automatically after 24hours.
 When you first turn on your ice maker, the ‘Ice Boost’ function will be off.
 To turn this function on, press the button. The light above the button will be
illuminated when the ‘Ice Boost’ function is on.
 To manually deactivate this feature press the button again. The light above the
button will no longer be illuminated.
 Activating the ‘Ice Boost’ function will automatically turn ON ice maker.
 Deactivating ice maker will automatically deactivate the ‘Ice Boost’ function.
* Dependent on your current temperature settings.

13
EXTERNAL DISPLAY – ICE & WATER MODELS ONLY
The external display enables you to lock the water dispenser, indicates to you when
‘Bottle Chill’ is activated and when your water filter requires changing.
EXTERNAL DISPLAY FEATURES
Dispenser lock button
and LED light
Locks/unlocks the water dispenser.
When locked the LED above the button will
illuminate.
Bottle Chill indicator Icon will illuminate indicating when ‘Bottle Chill’ is
activated and flashes when beverage is ready.
Filter change
indicator
Icon will illuminate indicating when water filter
requires changing.

14
USING YOUR WATER DISPENSER – ICE & WATER MODELS ONLY
TO ENSURE YOUR APPLIANCE OPERATES CORRECTLY PLEASE REFER TO THE
INSTALLATION INSTRUCTIONS BOOKLET SUPPLIED WITH THIS PRODUCT.
Before using your water dispenser
Ensure your ice and water system has been correctly installed by following the
installation instructions booklet supplied.
To flush the water filtration system:
 Ensure your refrigerator is switched on, and the isolation
faucet has been connected and turned on.
 Run your water dispenser pad until water dispenses, this
will displace trapped air in the water tank and filter system.
This will take at least 2minutes. Once water has dispensed,
rest the dispenser pad for 2minutes.
 Dispense and discard 4qt (4L) of water, then rest the
dispenser pad for a further 2 minutes.
 Dispense and discard a further 4qt (4L) of water. Failure to
do this will result in excessive dripping from your dispenser.
 Please note, once installation is complete a few drips may
appear out of the dispenser over the next few days to clear
the remaining trapped air.
 Ensure your refrigerator has cooled for at least 2 hours
before use.
You are now ready to enjoy water from your water dispenser.
Dispensing
 Your water dispenser has been designed for one-handed operation.
 To dispense water, gently press the dispensing pad using a glass or container.
 To stop the flow of water, simply pull your glass away from the dispensing pad.
 Please remember that pressing very hard against the dispensing pad will not encourage
the dispenser to operate faster or produce greater quantities of water.
IMPORTANT!
To avoid damage to property or personal injury do not put hands, fingers or objects
up the dispenser opening.
Dispenser lock
The dispenser lock located on the external display can be
activated to prevent water from being dispensed. This is
useful when you are cleaning the external display or when
there are small children around.
 To activate dispenser lock press the button for 4seconds.
The LED above the button will illuminate.
 When the dispenser pad is pressed several beeps will sound
indicating to the user that water cannot be dispensed.
 To deactivate dispenser lock and allow water dispensing,
press the button for 4seconds. The LED above the button
will no longer illuminate. Dispenser lock
Water dispenser

15
WATER FILTER
All the water supplied to your refrigerator is filtered through a filter cartridge, this helps
remove unwanted impurities and is located behind the kickstrip grille. To maintain water
quality we recommend replacing the filter cartridge every 6 months.
 When the filter cartridge requires replacing, the filter change icon will illuminate on
the internal control panel and/or external display. The icon will flash as a reminder on
the external display whenever water is dispensed.
 Replacement filter cartridges (part number: 839041) can be purchased through
Fisher&Paykel Customer Care Center or online at www.fisherpaykel.com (this service is
available to selected markets only).
IMPORTANT!
 To avoid serious illness or death, do not use the water filter where water is unsafe or
of unknown quality.
 If the water filtration system has been allowed to freeze, replace the filter cartridge
and flush the water system following the instructions on the previous page.
 The water filter cartridge needs to be changed when the filter change icon illuminates
on the internal control panel and external display.
To remove the old water filter cartridge
RS36A72J and RS36A72U models only
1Remove kickstrip grille by inserting fingers into the
left and right square openings on the grille. Pull
towards you. The filter is located on the left-hand side.
2Pull freezer drawer slightly open in order to fit filter
cartridge tool.
3Align the filter cartridge tool to the filter and turn
90°anti-clockwise to loosen, as shown onthe right.
4Pull the filter cartridge tool and filter towards you
to remove.
– When the filter is removed a few drops of water
may be present. This is quite normal.
– Discard the old filter.
RS36A80J and RS36A80U models only
1Remove the air flow divider by pulling towards you.
2Remove the top kickstrip grille by inserting fingers into the left and right hand square
openings on the grille. Pull towards you. The filter is located on the left-hand side.
3Pull freezer drawer slightly open in order to fit filter cartridge tool.
4Align the filter cartridge tool to the filter and turn 90° anti-clockwise to loosen, as
shown above.
5Pull the filter cartridge tool and filter towards you to remove.
– When the filter is removed a few drops of water may be present. This is quite normal.
– Discard the old filter.
Disengaging filter cartridge

16
WATER FILTER
To install new filter cartridge
1Pull freezer drawer slightly open in order to fit filter
cartridge tool. Remove the red protective cap on the
spigot head. Align the filter cartridge tool over the filter.
2Insert the filter cartridge and tool into the bottom left of
the product, as shown on the right.
3Firmly push the cartridge in until the filter head cannot
be pushed any further. Turn 90°clockwise to tighten as
shown on the right.
4Remove filter cartridge tool and close freezer drawer.
Replace kickstrip grille by aligning securing hooks.
Push grille firmly onto product until it clips securely.
RS36A80J and RS36A80U models only, replace air
flow divider. Align the divider underneath the grille tabs
indicator and clip onto the vanes of the bottom grille.
5Reset the filter change icon on the display, thiswill remind you when the filter next
requiresreplacing. Please refer to the next pagefor activation.
6Flush the water filter of any trapped air, harmless carbon fines and to also check for
leaks. Dispense 4qt (4L) of water anddiscard.
7A few drops of water may appear out of the dispenser over the next few days as the
remaining trapped air is cleared.
To reset the filter change icon
We recommend the water filter be used from the time of installation, and the change
filter icon be reset only when a replacement is installed. Do not reset the change filter
icon before the filter is changed or the filter monitoring will be inaccurate.
 To reset, press the and buttons for 4 seconds on the internal control panel.
 The filter icon on the internal control panel and/or external display will no longer
illuminate.
To disable the filter change icon
If the change filter icon is disabled you will not be reminded of when to next change your
filter cartridge. We only recommend disabling this function when no filter cartridge is fitted.
 To disable, press the , and buttons for 4 seconds.
 We recommend that you do not disable the filter change icon if you have a filter
cartridge fitted to the connection.
IMPORTANT!
 The rate of water flow through the water dispenser can slow down as the filter
cartridge accumulates any sediment which may be present in the water supplied to
your home. This varies depending upon your local water quality, which may require
your filter cartridge to be changed more frequently.
 In cases of excessively reduced filter life we recommend that you consult a local
plumber or your water supplier for advice on suitable filtration requirements for the
water supplied to your home.
 Filter replacement is the consumer’s responsibility and will not be covered by the
Manufacturer’s Warranty except in the case of faulty parts or materials within the
filtercartridge.
 If the water has not been dispensed for some time or water has an unpleasant taste or
odor, flush system by dispensing 4qt (4L) of water.
 If unpleasant taste or odor persists, you may wish to fit a new filter cartridge.
Engaging filter cartridge

17
USING YOUR ICE MAKER
TO ENSURE YOUR APPLIANCE OPERATES CORRECTLY PLEASE REFER TO THE
INSTALLATION INSTRUCTIONS BOOKLET SUPPLIED WITH THIS PRODUCT.
Ice On/Off
Your automatic ice maker is designed to dispense ice cubes into the ice storage bin
below until it senses the bin is full. If you require more ice, the storage bin can be
removed and ice will dispense into the top freezer bin.
Before you start using you automatic ice maker
 When you first turn your refrigerator on after installation, the ice maker will be off.
 To activate your automatic ice maker, press the ‘Ice On/Off’ button once. The LED
light above the button will illuminate indicating ice maker is on.
 Press and hold the , and together for 4seconds then close the doors. The ice
tray will flip twice and empty the water into the bin below. The ice tray will flip only after
the doors are closed.
 Force another cycle, this step helps remove any manufacturing and transportation dust
in the ice tray.
 Empty the water and correctly replace the bin, ensuring the scoop is located at the front
of the bin.
 Once your ice maker is in operation, discard the first 24hours of ice harvest. This will
flush away any impurities in the water line and ensure that you get the best quality ice.
We recommend that you also do this after vacations or extended periods of not using ice.
 We recommend that you turn the ice maker off if:
– The water supply is going to be off for several hours,
– The ice storage bin is to be removed for a period of time,
– You are going on holiday/vacation.

18
USING YOUR ICE MAKER
Information about your automatic ice maker
 Your product comes with an ice storage bin located inside the top freezer bin, and a
hygienic scoop for ice. This scoop provides hygienic access to clean, clear ice cubes.
 Your automatic ice maker will produce approximately eight cubes of ice every
3–4hours, depending on the freezer compartment temperature and the number of
door openings.
 The ice cube tray will fill with filtered water.
 When cubes are frozen, they will be dispensed from the ice tray and into the ice storage
bin below.
 Ice making will continue until the storage bin is full, and only resume once you start to
use the stored ice.
 When the ‘Ice Boost’ function is activated, ice production will increase up to 30%* from
standard ice making. This function automatically deactivates after24 hours.
 If large amounts of ice are required, remove the ice storage bin and allow ice to fill the
top freezer bin.
 For maximum ice storage, level the stored cubes with the ice scoop.
 If ice is not used often, old cubes will become cloudy, taste stale, will shrink and may
stick together. Empty the ice storage bin periodically and wash in lukewarm water. Dry
thoroughly and place back into the correct position.
IMPORTANT!
 Avoid contact with the moving parts of the ice maker ejector mechanism, and do not
place your fingers on the automatic ice making mechanism while the refrigerator is
inoperation.
 Do not use ice cubes that may have become discolored, usually with a green-
blue color. If such discoloration is noted, discard the ice cubes and contact your
Fisher&Paykel Authorized Service Agent.
 Ensure the ice maker is connected to the filter cartridge and to a potable water
supplyonly.
 Installation of the water connection to the ice maker must be completed by a qualified
service technician or a qualified plumber.
Ice storage bin and scoop
* Dependent on your current temperature settings.
