Installation instructions
and User guide
ActiveSmart™ refrigerator
Réfrigérateur ActiveSmart™ Instructions d’installation
et Guide d’utilisation
RF170 & RF135 models
RF170 & RF135 modèles

English Page 1 – 28
Français Page 29 – 56

1
Contents
Introduction 2
Safety and warnings 3
Installation instructions 5
Moving or storing your refrigerator 11
Ice & Water refrigerators –
please refer to supplement Ice & Water User Guide
ActiveSmart™ operating instructions 12
ActiveSmart™ special features 14
Cleaning care 17
Storing food in your refrigerator 20
Storing food in your freezer 22
Troubleshooting 24
Limited warranty 26
Important!
SAVE THESE INSTRUCTIONS
The models shown in this User Guide may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please visit our local website listed on the back cover
or contact your local Fisher & Paykel dealer.
US
CA
Important!
This User Guide is to be used for all refrigerator/freezers. It contains all the general information
required for the operation of your refrigerator/freezer.
A User Guide is provided with the Ice & Water refrigerator. This booklet contains additional
specific information about the ice and water functions on the refrigerator

2
US
CA
Introduction
Thank you for buying this Fisher & Paykel ActiveSmart™ refrigerator. At Fisher & Paykel we aim to
provide innovative products that are simple to use, ergonomic and kind to the environment.
This refrigerator combines size and storage space with the latest features and functions.
Thousands of hours of food care research and 75 years of refrigeration experience has been
programed into your refrigerator to give you the best possible performance.
We hope you enjoy your new refrigerator.

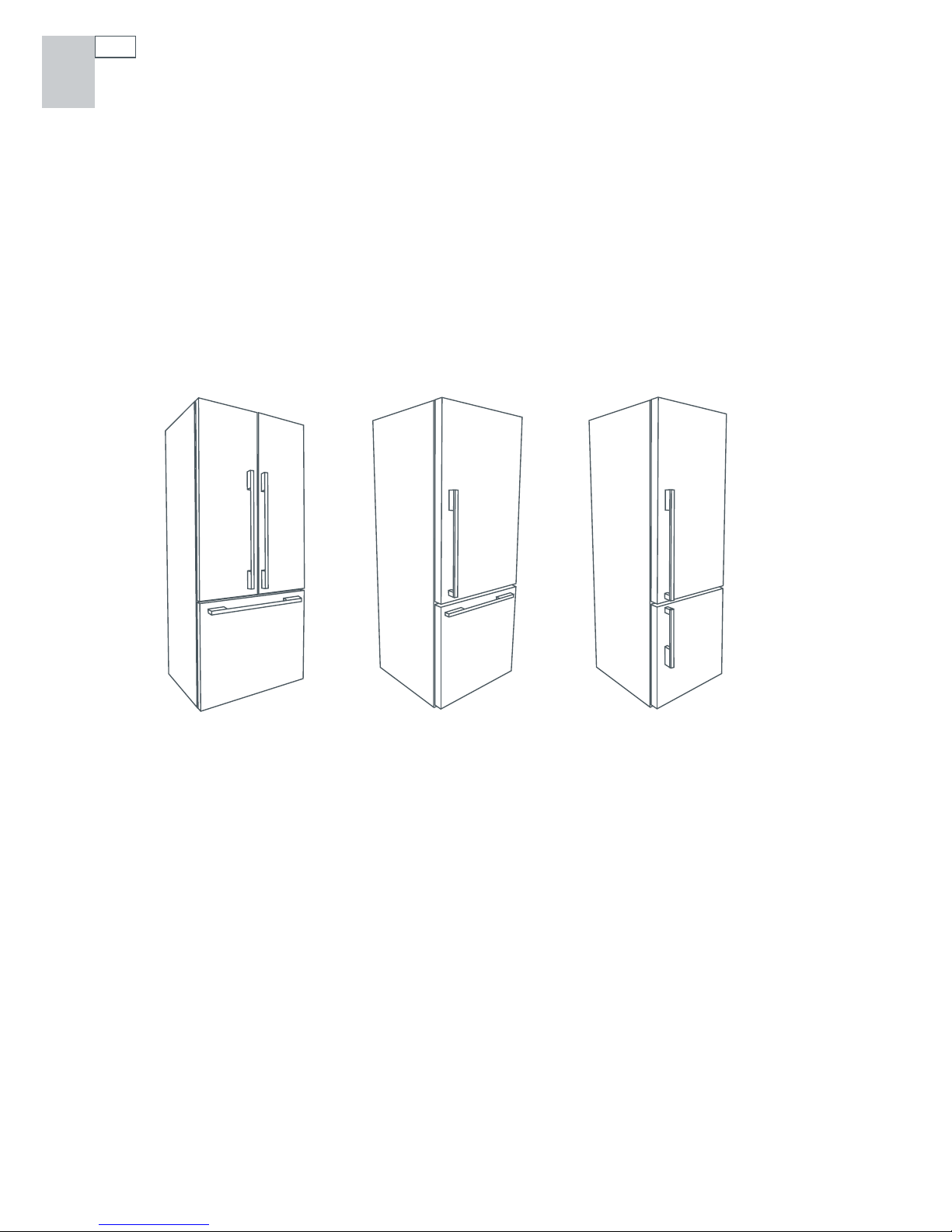

Fig.1 ActiveSmart™ Refrigerators
Refrigerator French door
and freezer drawer
Refrigerator door
and freezer door
Refrigerator door
and freezer drawer

3
US
CA
Safety and warnings
WARNING!
Electric Shock Hazard
Read and follow the SAFETY AND WARNINGS outlined in this User Guide
before operating this appliance.
Failure to do so can result in death, electric shock, fire or injury to persons.
Use this appliance only for its intended purpose as described in this User Guide.
Important safety precautions
Warning
When using this appliance always exercise basic safety precautions including the following:
Danger

Refer to the stability bracket and leaflet supplied to avoid hazard due to instability of the
appliance.

This appliance is not intended for use by young children or infirm persons without supervision.

Young children should be supervised to ensure they do not play with the appliance.
Disposal

Extreme care must be taken when disposing your old appliance to avoid hazards:
– The refrigerant gas must be safely removed
– The doors should be removed and the shelves left in place so that children may not easily
climb inside.

Your Fisher & Paykel Appliances Authorized Service Center will be able to give advice on
environmentally friendly methods of disposing of your old refrigerator or freezer.
Electrical

This appliance must be properly installed in accordance with the installation instruction before
it is used.

Never unplug your refrigerator by pulling on the power cord.

Always grip the plug firmly and pull straight out from the outlet.

Do not plug in any other appliance at its power point or use extension cords or double adapters.

Repair or replace immediately all electric service cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion along its length or at either the plug
or appliance end.
If the power supply cord is damaged, it must only be replaced by your Fisher & Paykel Appliances
Authorized Service Center because special purpose tools are required.

4
US
CA
Safety and warnings

When moving your appliance away from the wall, be careful not to roll over or damage the power
cord.

Unplug your refrigerator before cleaning or replacing the lightbulb.

Do not use electical appliances inside the food storage compartments of the appliance.
Important!
Your refrigerator is designed to operate for many years without the need for service checks.
However, if your refrigerator is malfunctioning, have it attended to by your
Fisher & Paykel Appliances Authorized Service Center as soon as possible. All electrical repairs
must be carried out by an adequately trained service technician or qualified electrician.
Storing food and drinks

Never store volatile or flammable materials in your refrigerator or freezer as they may explode.

Never freeze liquids in glass containers. Liquid expands during freezing, which may cause the
container to explode.

Never freeze carbonated drinks. They may explode.

Do not consume food if it is too cold. Food removed from the freezer compartment may be cold
enough to cause damage when brought into contact with bare skin e.g. frozen ice cubes.
Power failure – food safety

Do not refreeze frozen foods that have thawed completely, the food may be dangerous to eat.
Follow the recommendations below if you discover food in your freezer has thawed:
1) Ice crystals still visible – food may be refrozen but should be stored for a shorter period than
recommended.
2) Thawed but refrigerator cold – refreezing generally not recommended. Fruits and some
cooked food can be refrozen but use as soon as possible. Meat, fish and poultry – use
immediately or cook then refreeze. Vegetables – discard as they usually go limp and soggy.
3) Thawed but warmer than 41°F/5°C – discard all food.
Important!
Cleaning

Many commercially available cleaning products contain solvents which may attack plastic
components of your refrigerator or freezer and cause them to crack. Please refer to the cleaning
care section of this booklet for further advice.
SAVE THESE INSTRUCTIONS

5
US
CA
Installation instructions
Please follow the steps for installation to ensure your appliance operates correctly.
1. Power

The appliance must be installed so the plug is accessible.

To ensure that the appliance is not accidentally switched off, connect your refrigerator or freezer
to its own power point. Do not plug in any other appliance at this power point or use extension
cords and double adaptors, as the combined weight of both power cords can pull the double
adaptor from a wall outlet socket.

For power requirements, refer to the information on the serial plate located at the front bottom
right-hand side of the refrigerator when the door is open.

It is essential that the appliance be properly grounded (earthed).
2. Location

Your refrigerator or freezer should not be located in direct sunlight or next to any heat
generating appliance such as a range or dishwasher.

6
US
CA
Installation instructions
RF135B & RF170W RF170A
Flush with refrigerator chassis – full door rotation
Flush with refrigerator door – 90° door rotation
Flush with refrigerator chassis – full door rotation
Flush with refrigerator door – full door rotation
Flush with refrigerator door – 90° door rotation
Flush with refrigerator door – full door rotation
AD
B
C N
N K L
J
H
G
R
P
O
OF
NK K
E
Q
N K M
I
D
B
C N
A
P
O
O
H
N K L N K
J
M
I
R
G
F
N K K
Q
E
D
B
C N
A
P
O
O
H
N K L N K
J
M
I
R
G
F
N K K
Q
E
D
B C N
A
P
O
O
H
N K L N K
J
M
I
R
G
F
N K K
Q
E
D
B C N
A
P
O
O
H
N K L
N K
J
M
I
R
G
F
N K K
Q
E
D
B C N
A
P
O
O
H
N K L
N K
J
M
I
R
G
F
N K K
Q
E
D A
B C N
P
O
O
F
N K K
E
Q
H
N L L
G
R
J
N L M
I
D A
B C N
P
O
O
F
N K K
E
Q
H
N L L
G
R
J
N L M
I
D A
B C N
P
O
O
F
N K K
E
Q
H
N L L
G
R
J
N L M
I
D A
B C N
P
O
O
F
N K K
E
Q
H
N L L
G
R
J
N L M
I
Your handles may differ slightly from the drawings above.

7
US
CA
3. Ventilation and installation

To ensure adequate ventilation for your refrigerator or freezer see recommended cabinetry
dimensions below.

If building the appliance into a cupboard, follow installation instructions provided with the
integration kits.
Product dimensions
RF135B RF170W RF170A
inches mm inches mm inches mm
A Overall height of product 67 ⁄ 1715 67 ⁄ 1715 67 ⁄ 1715
B Overall width of product 25 635 31 ⁄ 790 31 ⁄ 790
C
Overall depth of product (excludes handle, includes
evaporator) 27 ⁄ 695 27 ⁄ 695 27 ⁄ 695
Cabinetry dimensions (including minimum air clearances)
D Inside height of cavity 68 ⁄ 1735 68 ⁄ 1735 68 ⁄ 1735
Flush with refrigerator chassis – full door rotation
E Inside width 26 ⁄ 675 32 ⁄ 830 32 ⁄ 830
F Inside depth 24 ⁄ 620 24 ⁄ 620 24 ⁄ 620
Flush with refrigerator door – full door rotation
G Inside width 31 ⁄ 790 37 ⁄ 945 41 ⁄ 1060
H
Inside depth flush to flat door 27 ⁄ 695 27 ⁄ 695 27 ⁄ 695
Flush with refrigerator door – 90° door rotation
(for full drawer/shelf access, the doors need to be open past 90°)
I
Inside width 29 ⁄ 745 35 ⁄ 900 40 1015
J
Inside depth flush to flat door 27 ⁄ 695 27 ⁄ 695 27 ⁄ 695
Minimum clearances
K
Side clearance ⁄ 20 ⁄ 20 ⁄ 20
L
Side clearance – hinge side flush with door – full rotation 5 ⁄ 135 5 ⁄ 135 5 ⁄ 135
M
Side clearance – hinge side flush with door – 90° rotation 3 ⁄ 90 3 ⁄ 90 3 ⁄ 90
N
Rear clearance (incl. evaporator tray) 1 ⁄ 30 1 ⁄ 30 1 ⁄ 30
O
Vent – around top of cupboard (optional) 250 250 250
P
Top clearance – above refrigerator cabinet 250 250 250
Q Door clearance – hinge side flush with chassis – full rotation 25 ⁄ 645 25 ⁄ 645 12 ⁄ 325
R Door clearance – hinge side flush with door – full rotation 20 ⁄ 530 20 ⁄ 530 8 ⁄ 210
Installation instructions

8
US
CA
Installation instructions

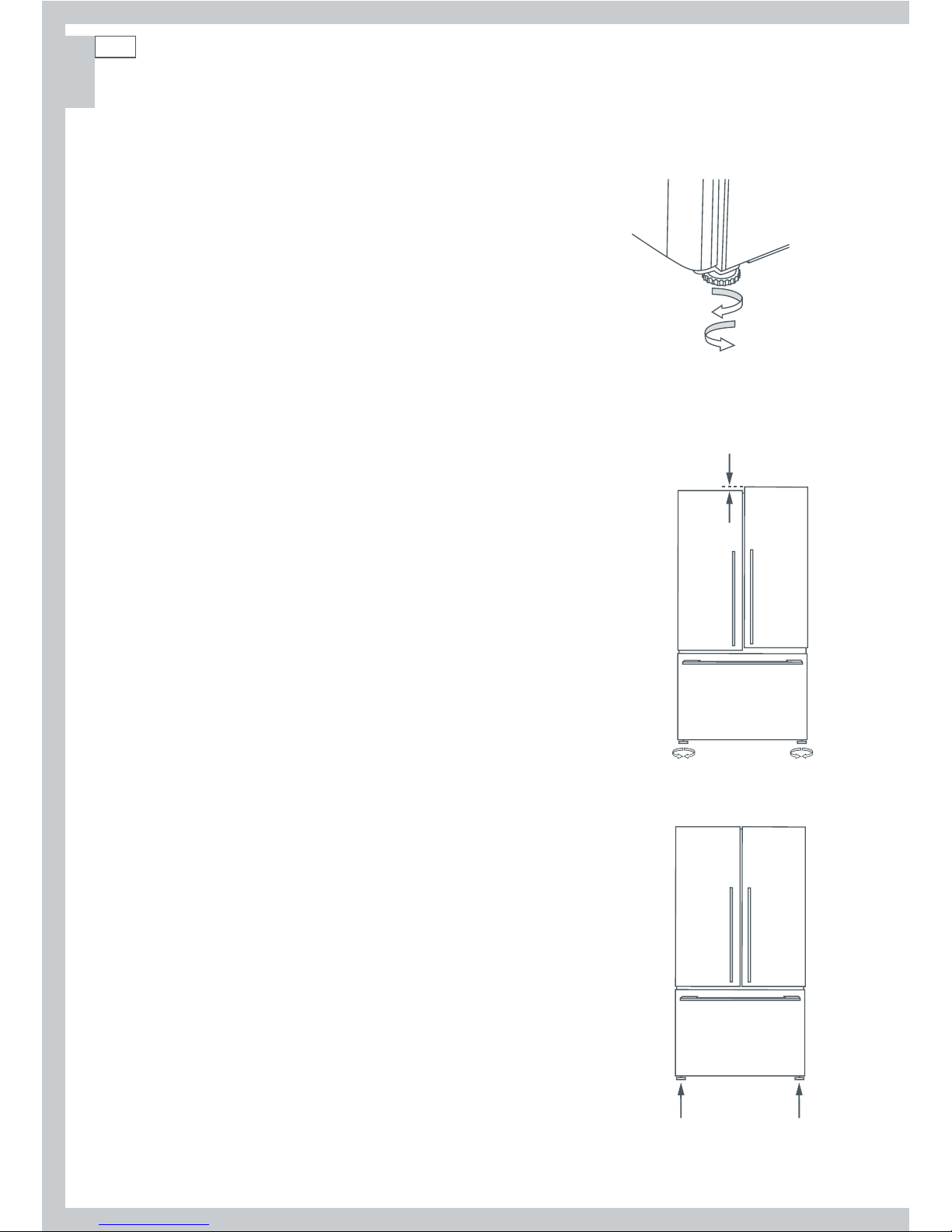

Lower the front
of the refrigerator
Fig.2 Refrigerator feet
Raise the front of
the refrigerator
Fig.4 Even door alignment
Fig.3 Uneven door alignment
4. Installation
Your Fisher & Paykel ActiveSmart™ refrigerator is fitted
with front and rear rollers, designed for moving the
product in the forwards and backwards direction.
Avoid moving the product in a sideways direction
asthis may damage the rollers or the floor
covering/surface.
A Your refrigerator will arrive with the front feet wound
up making moving the product into its final location
a simple task.
B Roll the refrigerator into its final position making sure
there is the correct air gap between the product and
surrounding cabinetry. See minimum clearance in
cabinetry dimensions table (refer to page 7).
(French Door models only)
C Adjust the front feet down until the refrigerator
is leaning backward with the front approximately
/”(10mm) higher than the back. This will ensure
agood door closing action (refer to Fig.2).
D Aligning your refrigerator with cabinetry.

Align the sides of the refrigerator with the cabinetry
byadjusting the hinge side front foot.

Adjust the handle side foot until it touches the floor and
takes a small amount of weight.

Once the refrigerator is in place and aligned with
cupboards/alcove, push gently on the front top and
check if the product is rocking or stable.
5. Leveling of refrigerator door
(French door models only)

For uneven surfaces, front feet can be used to align the
2 doors.

If left hand door is too low, then unscrew the left hand
foot to lift up the cabinet until the two doors top edges
are aligned.

If right hand door is too low, then adjust the right hand
foot in the same way.

9
US
CA
Installation instructions
6. What to do if your product is unstable
E Gently push the refrigerator back until the rear rollers
contact the floor.

Measure the gap under the front foot, which has come
off the floor.

Obtain some solid packing material (hardwood,
plastic,etc) which fits firmly into the gap under the foot.
Note: do not use metallic materials that may corrode,
stain and/or damage floor coverings.
F Wind both front feet up and roll the product out
ofposition.

Place the packing material in the location diagonally
opposite the front roller that lifts off the floor.

Make sure the packing material stays in place when the
product is pushed back into position.

Ideally, the packing material is large enough to rest
against the back wall so as to prevent it moving when
the cabinet is pushed into position.
Wall behind refrigerator
For example: if this foot lifts off
the floor when pushing gently on
the top front of the refrigerator
Packing material goes under rear roller
diagonally opposite front foot that lifts
Fig.6 Stabilizing your refrigerator
G Roll the refrigerator back into position and adjust front feet as per step D . (Check alignment and
door closing action are satisfactory).

Make small adjustments to front feet where necessary.

Check that the product is stable (all 4 feet are on the floor). If not return to step E and repeat
steps
F and G .
This foot lifts off the floor when
top front is gently pushed back
Example only
Un-level floor
Fig.5 Unstable refrigerator

10
US
CA
Installation instructions
Before placing food in the fresh food or freezer compartments

Remove all packaging. Ensure that all transit clips are removed from the refrigerator. These are
small rubber stops located at the back of the shelves.

Allow the refrigerator and freezer to run empty for 2 – 3 hours to allow each compartment to
cool to the appropriate temperature.

Clean the inside of the appliance with warm water and a little liquid detergent to remove
manufacturing and transportation dust.

The appliance may have an odor on its initial operation, but this will go when the refrigerator
and freezer have cooled sufficiently.
Energy efficiency
For the most energy efficient use of your appliance:

Ensure your refrigerator has adequate ventilation as recommended in the installation
instructions.

Do not cover your appliances with any material that will prevent air from flowing around the
cabinet sides.

Allow good clearances in front of the air ducts within the cabinet for maximum cold
air distribution.

Cool hot foods down before placing them in the appliance.

Do not overfill the compartments.

Keep door openings to a minimum.

Select a temperature setting that isn’t too cold.

Check your door seals for leaks.

11
US
CA
Moving or storing your refrigerator
If your refrigerator or freezer is turned off for any reason, wait 10 minutes before turning it back
on. This will allow the refrigeration system pressures to equalise before restarting.
Moving your refrigerator

Turn off the appliance and unplug from the power point. Remove all food.

Turn the adjustable feet to the right as far as they will turn (see page 8).

Ease the refrigerator out of its position. Tuck the power cord away and tape the doors closed.
Tape the shelves in place. If the cabinet needs to be placed at an angle or laid down, carefully lay
it on its side (the right hand side when viewed from the front).

Relocate and install. If the appliance has been left on its side for any length of time, leave it
standing upright for at least 10 minutes before turning on.
Storing your refrigerator or freezer

When storing your cleaned appliance, leave the door(s) open. This allows air to circulate and
prevents the build up of bacteria and moulds.

Before using again, clean well using a mixture of warm water and baking soda (add 1 teaspoon
of baking soda to each 1 pint (500 ml) of water). Rinse with clean water.
Vacation time

We recommend you leave your refrigerator or freezer operating while you are on vacation.

12
US
CA
ActiveSmart™ operating instructions
For information on the operation of the Ice & Water control panel please refer to the
Ice & Water User Guide.
Temperature control

When the refrigerator is first turned on, the powerful cooling system will automatically cool both
refrigerator and freezer compartments to their set temperatures. This will take between 2 – 3 hours.

The two compartment temperatures are accurately and independently controlled and do not
change with the temperature or humidity of the surroundings; whether summer or winter.

If you wish to alter the temperature of either the fresh food compartment or freezer
compartment, this can be easily done by using the Control panel located at the back of the fresh
food compartment.

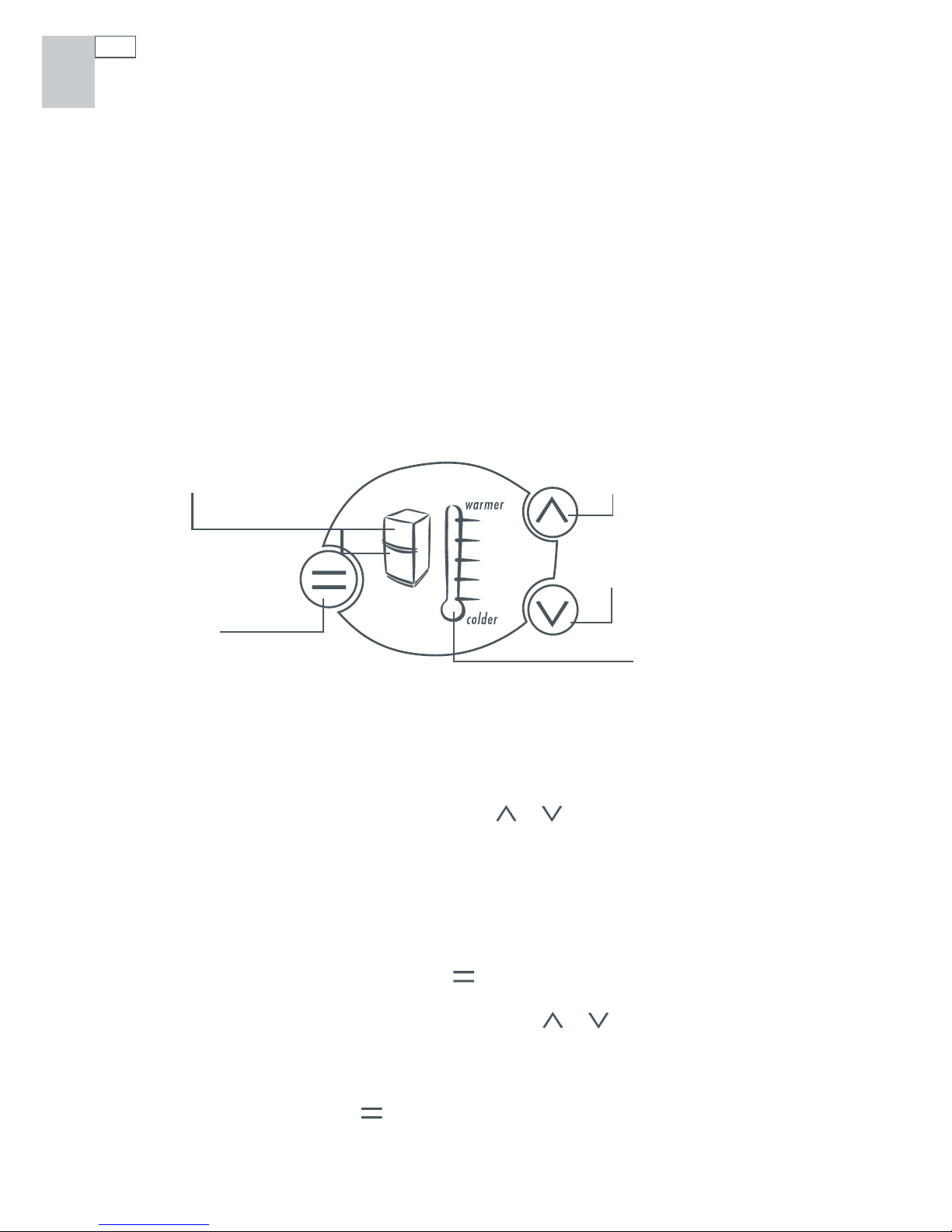

Control panel to adjust temperatures
Fresh food and freezer
compartment indicator
Compartment
select button
Increase temperature button
Decrease temperature button
Temperature indicator
(thermometer)
Fresh food compartment

The fresh food compartment light on the refrigerator diagram will be showing. The temperature
indicator illustrated by a thermometer will show the temperature setting for this compartment
as a series of lights.

The temperature may be altered by pressing the or buttons. One press on either of these
buttons will produce a dimmer light which indicates a small change in temperature.

Pressing either button twice gives a brighter light and indicates a greater change in temperature.
Fewer lights on the thermometer means a cooler temperature for the compartment selected.
Freezer foods compartment

To adjust the freezer temperature press the button until the light flashes on the freezer
compartment indicator.

The freezer temperature can be altered by pressing the or buttons.

One press on either of these buttons will produce a dimmer light which indicates a small change
in temperature. Pressing either button twice gives a brighter light and indicates a greater change
in temperature.
Note: successively pressing the button will automatically select between the compartments,
a return to the fresh food compartment will be accompanied by a longer beep.

When the door is reopened the control panel will return automatically to the fresh food
compartment setting.
Fig.7 Control panel

13
US
CA
ActiveSmart™ operating instructions
Sabbath mode

To activate Sabbath mode, open both the fresh food and freezer compartment doors and then
hold the button on the temperature control panel for 10seconds.

Both the fresh food and freezer compartment indicators will be illuminated indicating the
refrigerator is in Sabbath mode.
When the product is in Sabbath mode:

The fresh food and freezer compartment indicator lights will be illuminated.

The light will not operate when the door is opened.

The door alarm will not operate.

The display will not function except to indicate Sabbath mode is active as stated above.

Opening the door will not affect the compressor or fans.

If the power to the refrigerator is turned off whilst in this mode, the product will continue in
Sabbath mode when the power is restored.

Sabbath mode will automatically de-activate 80 hours after activation.

To de-activate earlier than 80 hours press the compartment select button on the temperature
control panel for 10 seconds.
Normal refrigerator sounds
ActiveSmart™ refrigerators, with their excellent energy ratings and cooling performance, can
produce sounds somewhat different to your old refrigerator.
Normal operational sounds include:

Fan air flow sound. ActiveSmart™ refrigerators have fans which change speed depending on
demand. During cooling periods, such as after frequent door openings, fans circulate the
cold air in the refrigerator and freezer compartments producing some air flow sound. This is
quite normal.

Cracking or popping which may sound like ice coming off the evaporator. This occurs when the
defrost function is operating.

Running water sound. This is the liquid refrigerant in the system and can be heard as a boiling
or gurgling noise.

An audible hissing sound after closing the freezer door. This is due to the pressure difference
between the warm air that has entered the cabinet and suddenly cooled, and the outside
air pressure.

Louder noise on refrigerator start up. This is the sound of the compressor ramping up to speed.
It is normal for this sound to occur for less than 1 minute.

Other strange sounds may be heard for the following reasons:
– Cabinet not level
– Floor uneven or weak
– Bottles or jars rattling on shelves

14
US
CA
ActiveSmart™ special features
Fruit and vegetable bins and humidity control lid
The vegetable bins feature a unique lid which provides two functions:

The humidity lid seals the bins and provides a humid microclimate to extend storage times of
fruits and vegetables.

The humidity lid prevents condensation, which forms at high humidities from dripping down
onto the fruit and vegetables by retaining it in the grooves of the lid.
Fruit and vegetable bins and humidity slide

Each fruit and vegetable bin has a humidity adaptor control that can be adjusted to fruit or
vegetables depending on what is stored in the bins.

If possible try to store fruit and vegetables separately. This will help extend their storage life.

If there is a mixture of fruit and vegetables in the bin adjust the position of the control to the
center.

If there is too much water in the bins the control can be adjusted towards the setting with fewer
drips (fruit setting) and/or the water can be wiped out as required.

Remember a small amount of water in the bins is beneficial for fruit and vegetable storage.

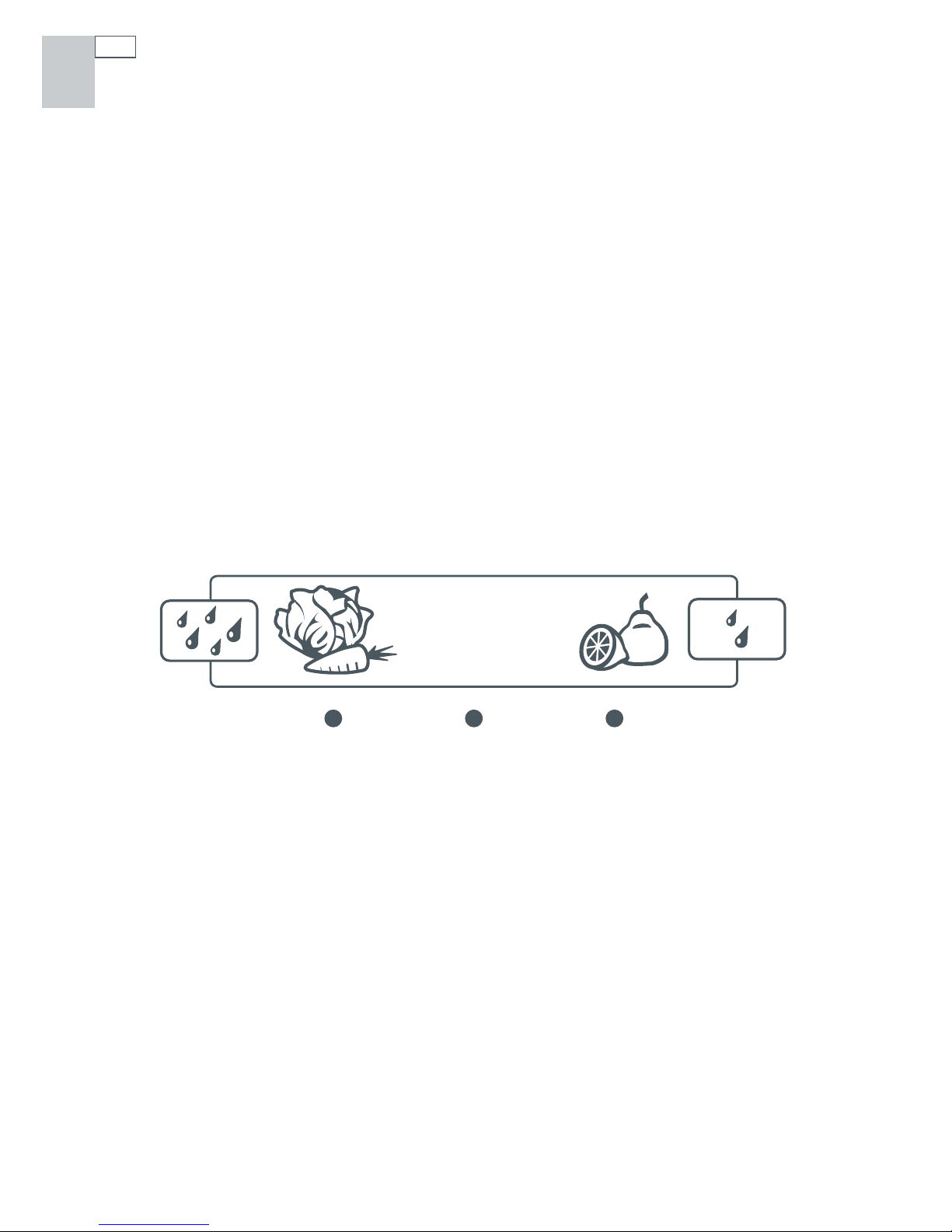

Fig.8 Humidity Control graphic
Salad greens

Lettuce

Spinach

Broccoli

Cabbage

Carrots
Mixed fruit
& vegetables
Fruit with
skin/peel

Oranges

Lemons

Limes
SUITABLE FOR:
Ice trays and lid

To empty the ice cubes into the lid, hold the tray and lid together and twist to dislodge the cubes.

Refill the ice tray with water, place lid containing ice cubes on top and store in the freezer.

Ice cubes are best stored in a closed container or plastic bag as they readily absorb odors and
tastes from other foods.

15
US
CA
ActiveSmart™ special features
Bottle holder (where fitted)

Your refrigerator will come with 2 – 4 single bottle holders (depending on what model
refrigerator you have). The bottle holders can be used to store a variety of bottles.

To position the bottle holder in your refrigerator, simply slot the back edge of the bottle holder
onto the back trim of any shelf in the fresh food compartment.

Unused bottle holders can be stacked up on top of one another so they do not take up
unnecessary shelf space.

Bottles are best stored with the neck of the beverage facing the front of the refrigerator.
Door alarms

If the fresh food compartment door is left open the refrigerator will beep after 90 seconds.

If the freezer door is left open the refrigerator will beep after 60 seconds.

While either door remains open, subsequent beeps will sound every 30 seconds for 5 minutes.

A continuous alarm will sound if the door has been left open for 5 minutes or longer and the
interior light will turn off.

The alarm will stop when the door is closed.
Fault alarms

If the electronic controller detects a fault from which it is unable to recover an alarm will sound.

When the fresh food compartment door is opened a fault code (specific pattern of lights) will
flash red and green on the Control panel to alert you to the fault. The audible alarm will stop
when any button is pressed but the lights will remain flashing.

If such a fault occurs, call your Fisher & Paykel Appliances Authorized Service Center
immediately; the fault code will help the service person find and remedy the cause of failure.

16
US
CA
ActiveSmart™ special features
Manual ice system – freezer drawer models only
An ice storage bin which sits inside the upper top freezer bin provides storage for and gives you
access to clean, clear ice cubes.
Information about your manual ice system

To make ice, take the ice tray and lid from on top of the ice storage bin. Remove the lid from the
ice tray and fill the tray with water. Place the lid back on the ice tray and carefully position it back
on the ice storage bin.

Once the ice is solid, take the ice tray and lid off the ice storage bin, remove the lid from the tray
and twist the ice tray at each end. Turn the ice tray over the ice storage bin to dislodge the cubes
into the bin.

Fill the ice tray with clean water and repeat to fill the ice storage bin.

Attached to the ice storage bin is the ice scoop which provides hygienic access to ice.

To access ice cubes, take the ice tray and lid from the top of the ice storage bin and place on a
flat surface. Take the scoop from the front of the bin, scoop cubes into vessel and then replace
the scoop, tray and lid back to the top of the bin.

For maximum ice storage, level the stored cubes with the ice scoop.

If ice is not used often, old cubes will become cloudy, taste stale, will shrink and may stick
together. Empty the ice storage bin periodically and wash in lukewarm water. Dry thoroughly
and place back in the correct position.
Ice trays and lid (all other models)

To empty the ice cubes into the lid, hold the tray and lid together and twist to dislodge.

Refill the ice tray with water, place lid containing ice cubes on top and store in the freezer.

Ice cubes are best stored in a closed container or plastic bag as they readily absorb odors and
tastes from other foods.
Fig.9 Upper left freezer bin, ice storage bin, ice tray,
lid and scoop in correct position
Fig.10 Accessing your ice

17
US
CA
Cleaning care – exterior/interior
Exterior
Stainless exterior door

It is important when cleaning the exterior door surface of your refrigerator, to only use liquid
dishwashing detergent dissolved in warm water.

Dry the door with a clean, lint free cloth.

The use of any abrasive or stainless steel cleaners and solvents will damage the door surface.
Other exterior surfaces

Clean all other exterior surfaces with warm water and detergent.

If necessary, clean the magnetic door gasket with an old toothbrush, warm water and detergent.
Water Evaporator Tray

The water evaporator tray is found above the compressor at the back of the refrigerator or
freezer. The tray may require infrequent cleaning.

Carefully move the refrigerator or freezer out from the wall.

Switch off the appliance.

We do not recommend that you remove the evaporator tray. If cleaning is required, excess water
can be soaked up from the evaporator tray using a sponge. Wipe out with warm water and
detergent or disinfectant.

Switch on the appliance.
Interior

It is important to keep the interior of the refrigerator and freezer clean to help prevent food from
becoming contaminated during storage.

The amount and types of food stored determines how often cleaning should be carried out
(ideally once every 1 to 2 weeks) in the refrigerator.

Remove the shelves from cabinet and door. Wash shelves and storage bins in warm water and
detergent; rinse in clean water and dry before replacing.

Wipe over the interior surfaces with warm water and detergent or baking soda dissolved in warm
water (add 1 teaspoon of baking soda to each 1 pint (500 ml) of water). Rinse with clean water.

To help remove “old stale refrigerator” smells add a few drops of vanilla essence or vinegar to the
water before cleaning.

Clean exterior surfaces with warm water and detergent. Use a toothbrush for the magnetic
door gasket.

Do not use harsh, abrasive cloths or cleaners or highly perfumed, strong smelling cleaners or
solvents on any part of the refrigerator or freezer.

18
US
CA
Cleaning care – special features
To remove trays or fixed bins

For ease of removal, empty food from
tray/bin first.

Hold the center front of the tray/bin
handle.

Lift vertically to unclip from the runners
and pull tray/bin towards you to remove.

Push runners back into refrigerator.
To replace trays or fixed bins

With the runners pushed back into the refrigerator, place the tray/bin on top of the runners.
Push the tray/bin back slowly until you feel it clip back onto the runners.
Important!

Ensure that trays and bins are securely clipped onto the runners before use.

Bin and tray runners are pre-lubricated, and will not need to be re-lubricated during their life. Do
not attempt to clean grease from the runners, as this will affect their ability to function. Do not
immerse runners in water.
Glass shelves
Clean with warm water and detergent or a glass cleaner. If cleaning the shelves without
removing from the cabinet use only warm water and detergent as a glass cleaner can damage
the plastic components of your refrigerator.
Bottle holder (where fitted)
Clean with warm water and detergent. The use of abrasive cleaners and solvents may
causedamage.
Permanently fixed bins and trays (Freezer drawer models only)
The freezer bins and trays in this model are permanently fixed. They cannot be removed from the
freezer compartment. To clean, simply wipe with a soft, damp cloth.
Important!
Many commercially available cleaning products contain solvents that may attack the plastic
components of your freezer and cause them to crack. It is important to use only warm water and
a small amount of liquid dishwashing detergent on any plastic components inside and outside
your freezer. Avoid using anti-bacterial cleaning products on either the interior or exterior of the
cabinet as they may cause rusting of metal components and cracking of plastic components.

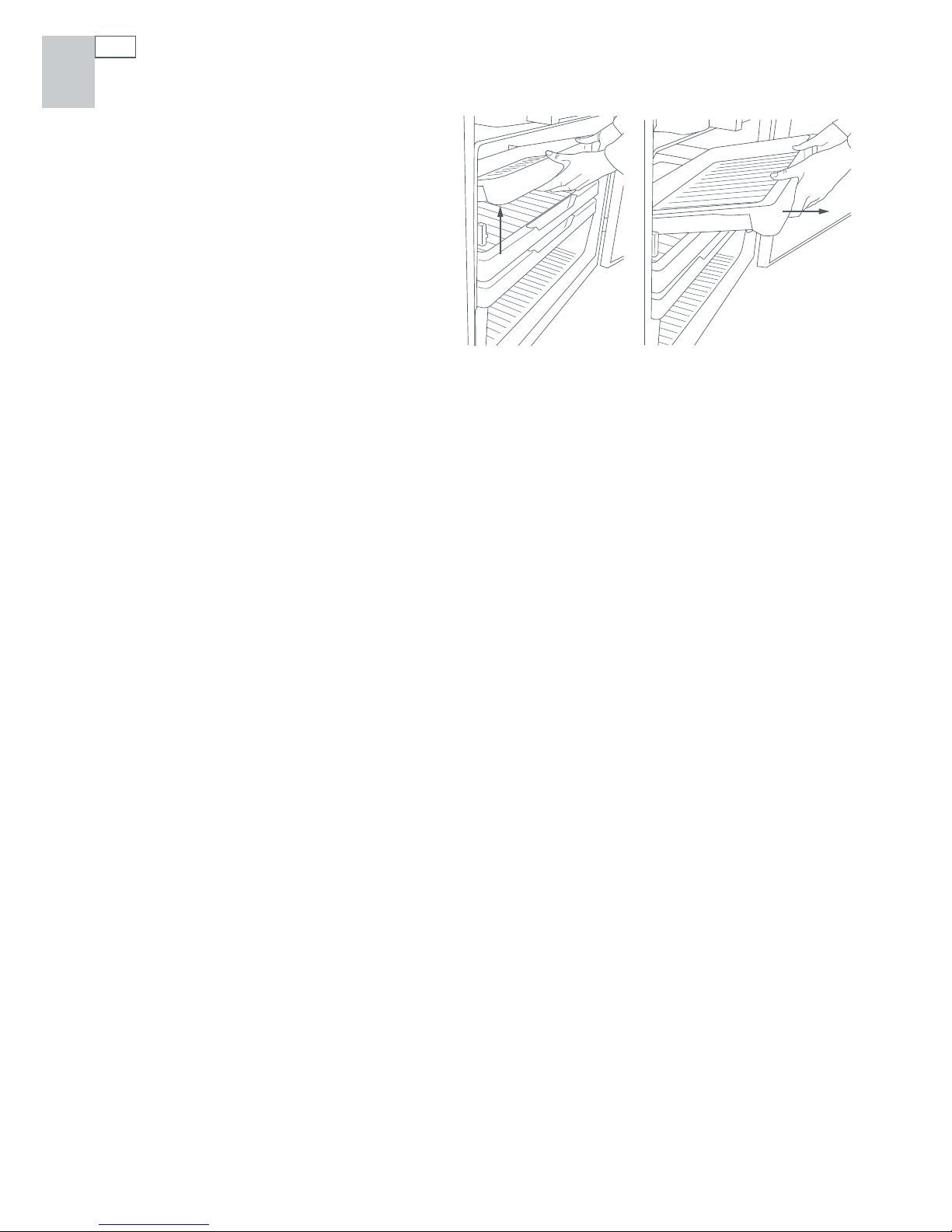

Fig.11 Tray removal
