Fisher & Paykel ACTIVESMART RS80A User manual

USER GUIDE
NZ AU BI HK SG IN
ACTIVESMART™
INTEGRATED REFRIGERATOR
FRENCH DOOR REFRIGERATOR FREEZER
RS80A & RS90A
BOTTOM MOUNT REFRIGERATOR FREEZER
RS9120W

3
CONTENTS
Registration
To register your product visit our website: fisherpaykel.com/register
4
9
11
12
13
25
26
31
32
33
37
Safety and warnings
Before you begin

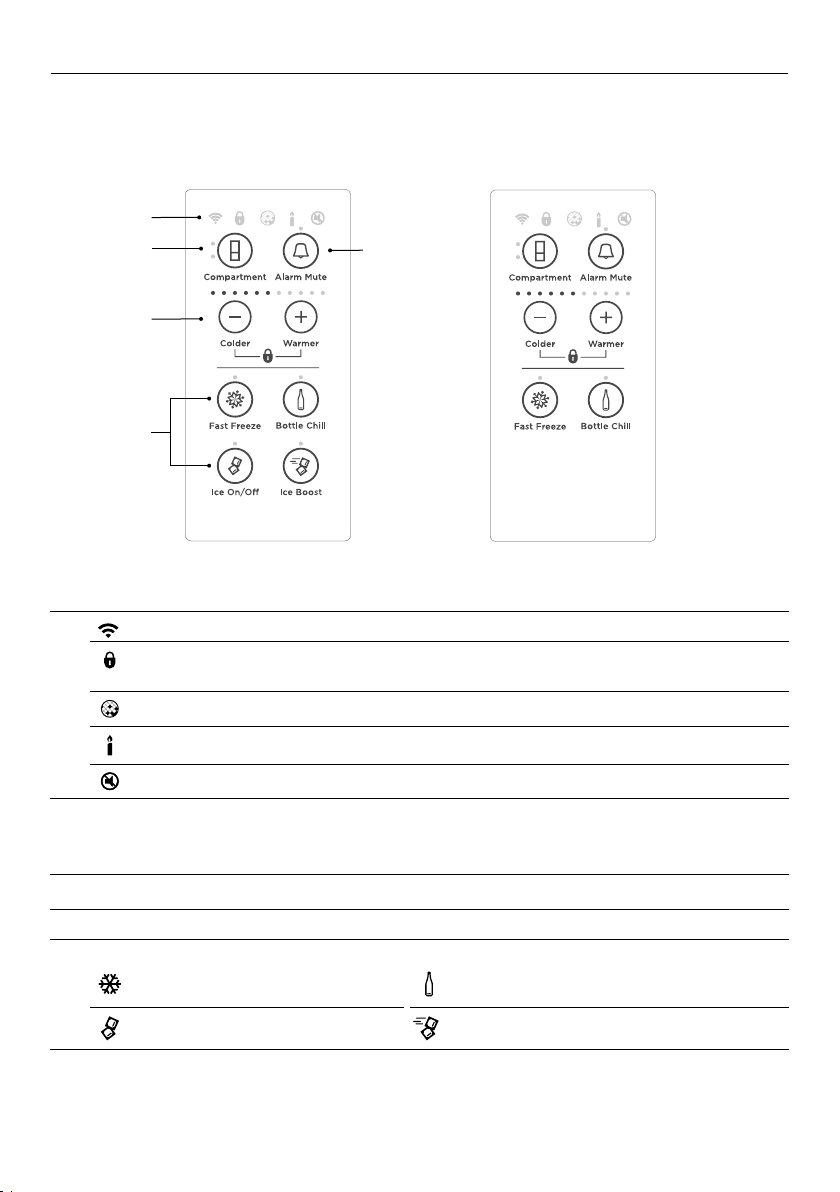

Using the control panel
Storage features
Using your appliance
WiFi connection
Cleaning and care
Food care
User warnings and sounds
Troubleshooting
Service & Warranty
European Directive 2012/19/EU on
Waste ElectricalandElectronic Equipment(WEEE) 38

4
!WARNING!
Electric Shock Hazard
Failure to do so can result in death, electric
shock, fire or injury to persons.
• Read and follow the safety and warnings
outlined in this user guide before operating this
appliance.
!WARNING!
This appliance contains flammable
refrigerant isobutane (R600a).
SAFETY AND WARNINGS

5
READ AND SAVE THIS GUIDE
WARNING!
Read entire manual. Failure to follow all guides and rules could cause personal injury or
property damage. When using this appliance, always exercise basic safety precautions
including thefollowing:
General Use
zThis product has been designed for use in a normal domestic (residential) environment.
zChildren aged 3 to 8 years may load and unload this appliance under supervision.
zChildren should be supervised to ensure that they do not play with the appliance.
zCleaning and user maintenance shall not be undertaken by children without supervision.
zThis appliance can be used by children aged from 8years and above and persons
withreduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
theappliance in a safe way and understand the hazards involved.
zThe manufacturer’s installation instructions for product and cabinetry ventilation
mustbe followed when installing the appliance.
zTo avoid hazard due to instability of the appliance, it must be fixed in accordance
withinstallation instructions.
zKeep ventilation openings, in the appliance enclosure or the built-in structure,
clearofobstruction.
zDo not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
zDo not damage the refrigerant circuit.
zIn case of damage to the refrigerant circuit, ventilate the area by opening all windows.
zDo not operate electrical equipment or any other equipment that may produce arcs,
sparks or flames in the area. Contact your Fisher & Paykel trained and supported
service technician immediately to arrange for the appliance to be repaired.
zConnect to potable water supply only
zThis refrigerating appliance is intended to be used at ambient temperatures ranging
from 16 °C to 38 °C. The product performance may be compromised when operating
outside of this temperature range.
zIt is hazardous for anyone other than a Fisher & Paykel trained and supported service
technician to service this appliance. In Queensland – the authorized Service Person
MUST hold a Gas Work Authorisation for hydrocarbon refrigerants, to carry out
Servicing or repairs which involve the removal of covers.
Electrical
zThis appliance must be installed in accordance with the installation instructions before
use.
zTo allow disconnection of the appliance from the supply after installation, incorporate a
switch in the fixed wiring in accordance with the wiring rules.
zNever unplug your refrigerator by pulling on the power cord. Always grip the plug
firmly and pull straight out from the outlet.
zDo not plug in any other appliance at the same power point as your refrigerator or use
extension cords or double adapters.
zRepair or replace immediately all electric service cords that have become frayed or
otherwise damaged. Do not use a cord that shows cracks or abrasion along its length or
at either the plug or appliance end.
SAFETY AND WARNINGS

6
zIf the power supply cord is damaged, it must only be replaced by your Fisher & Paykel
trained and supported service technician because special purpose tools are required.
zWhen moving your appliance away from the wall, be careful not to roll over or damage
the power cord.
zWARNING: Do not use electrical appliances inside the food storage compartments of
the appliance, unless they are of the type recommended by the manufacturer.
zWhen positioning the appliance, ensure the power cord is not trapped or damaged.
zDo not locate multiple portable socket-outlets or portable power supplies at the rear
of the appliance.
Food safety
zRegularly clean accessible draining systems and surfaces that come in
contact with food.
zEnsure any raw meat or fish is stored in sealed containers to prevent
cross-contamination.
zImmediately clean any drips or spills on surfaces.
zIf the appliance will be left empty for long periods, switch off, defrost, clean, dry, and
leave the door open to prevent mould developing within the appliance.
zOpening the door for long periods can cause a significant increase of the temperature
in the compartments of the appliance.
Storing food and drinks/wine
zDo not store explosive substances such as aerosol cans with a flammable propellant
inthis appliance.
zNever store volatile or flammable materials in your appliance as they may explode.
zNever freeze liquids in glass containers. Liquid expands during freezing, which may
cause the container to explode.
zNever freeze carbonated drinks. They may explode.
Servicing
zYour refrigerator is designed to operate for many years without the need for service
checks. However, if your refrigerator is malfunctioning, have it attended to by your
Fisher & Paykel trained and supported service technician as soon as possible. All
electrical repairs must be carried out by an adequately trained service technician or
qualified electrician.
zThe LED light cannot be serviced by the user. Contact your Fisher & Paykel Dealer or
Fisher & Paykel trained and supported service technician.
zIf you suspect that the product is not getting cold — items such as ice cream are
melting— remove all perishable food and store in another appliance or cooler to prevent
spoilage. Immediately call for a service technician.
Cleaning
zUse mild dish-washing liquid with warm water and a lint-free cloth to clean the product.
zAvoid using anti-bacterial cleaning products on either the interior or exterior
of the cabinet as they may cause rusting of metal components and cracking of
plasticcomponents.
Disposal
zExtreme care must be taken when disposing of your old appliance to avoid hazards:
zThe flammable refrigerant gas must be safely removed by a qualified servicetechnician.
SAFETY AND WARNINGS

7
zThe thermal insulation foam in this appliance may contain flammable insulationblowing
gases, any exposed foam may be highly flammable andmustbe carefully treated
during disposal.
zWARNING: Risk of child entrapment. Before you throw away your old refrigerator or
freezer, the doors and panels should be removed and the racks left in place so that
children may not easily climb inside.
zConsult your local energy authority or local codes as to the best way to dispose
ofyour old appliance.
Water connection
zThe water connection to your Ice & water refrigerator must be installed by an
authorised plumber or Fisher & Paykel trained and supported service technician.
zInstallation and use MUST comply with all state and local plumbing codes. Check
with your local public works department for plumbing codes. You must follow their
guidelines as you install the water filtration system.
zIf the water tank has not been used for an extended period of time, or has developed
an unpleasant taste or odour, flush the water system. If the problem persists, replace
the water filter cartridge and refer to the flushing instructions detailed in section
‘Flushing through the water dispenser.
zTo avoid serious illness or death, only connect your water filter to safe drinking water.
zThe water filter cartridge needs to be changed when the replacement indicator icon
illuminates. This will happen every six months.
zIf the water filtration system has been allowed to freeze, replace filter cartridge.
Failure to replace the disposable filter at recommended intervals may lead to reduced
filter performance and failure of the filter, causing property damage from water
leakage or flooding.
zIn cases of excessively reduced filter life — we recommend that you consult a local
plumber or your water supplier for advice on suitable filtration requirements for the
water supplied to your home.
zFilter replacement is the consumer’s responsibility and will not be covered by the
warranty except in the case of faulty parts or materials within the filter cartridge.
zIf the water has not created ice for some time or ice has an unpleasant taste or odour
dispose of ice and refer to ‘Automatic ice’ for flushing instructions. If unpleasant taste
or odour persists, you may wish to fit a new filter cartridge.
zUse new tubing supplied with the refrigerator. DO NOT reuse old tubing from old water
and ice connections.
zYour water filtration system can withstand up to 827kPa of water pressure.
zEnsure the supplied pressure limiting valve is installed before installing the water
filtration system. DO NOT install if water pressure exceeds 827kPa.
To reduce the risk associated with property damage due to water leakage or flooding:
zDO NOT install systems in areas where ambient temperatures may go above 38°C or
drop below 0°C.
zDO NOT install on hot water supply lines. The maximum operating water temperature of
this filter system is 38°C.
zDO NOT install where water hammer conditions may occur. If water hammer conditions
exist, you must install a water hammer arrester.
WARNING!
To reduce the risk associated with choking:
zDO NOT allow children under 3 years of age to have access to small parts during the
installation of the water filter.
SAFETY AND WARNINGS

8
Ice making
zAvoid contact with the moving parts of the ice maker ejector mechanism, and do
not place your fingers on the automatic ice- making mechanism while the appliance
is inoperation.
zAt first use or after water filter has been replaced, there may be discolouration in the
first bin of ice cubes. Discard the discoloured ice cubes. If discolouration continues in
succeeding bins, contact your Fisher & Paykel trained and supported service technician.
Power failure
zIn the event of a power interruption, the appliance will automatically save the current
temperature settings. When power is recovered, the appliance will revert to the current
temperature settings only.
zMost power failures are corrected within a short period of time. 1 – 2 hours loss of
power will not affect the appliance’s temperatures.
zTo avoid sudden change of temperature while the power is off, you should avoid
opening the door. A refrigerator will keep food safe for up to 4 hours during a power
outage. Keep the door closed as much as possible. Discard refrigerated perishable food
such as meat, poultry, fish, eggs, and leftovers after 4 hours without power.
SAFETY AND WARNINGS

9

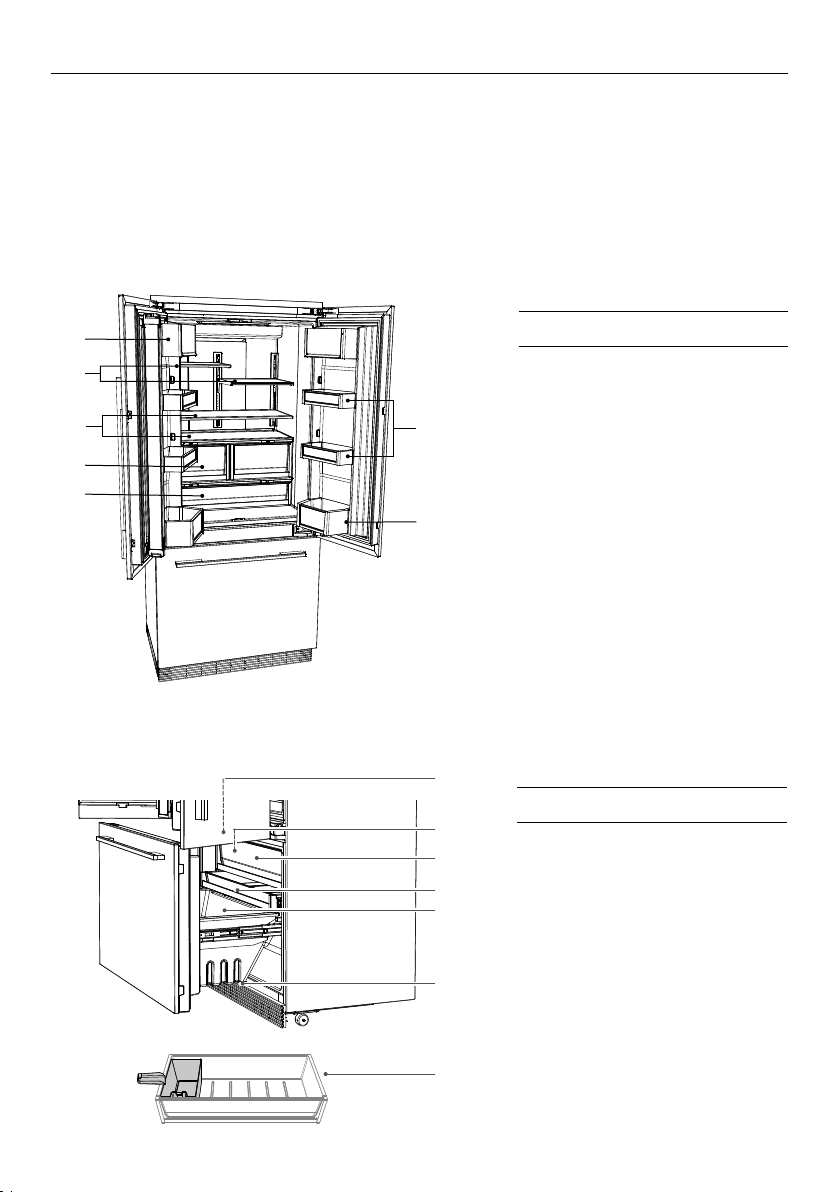

Freezer compartment
Freezer features
1 Ice maker*
2 Ice storage bin with scoop
3 Top bin
4 Mid tray
5 Large bottom bin
6 Water filter
7 Manual ice tray with lid**
* Top left of freezer (Ice& Water models only)
**Non-Ice & Water models only
Refrigerator compartment
BEFORE YOU BEGIN
zEnsure the installer has completed the final checklist in the installation guide.
zRead this guide, taking special note of the safety and warnings section.
zRemove all packaging and dispose of it responsibly. Recycle items that you can.
RS80 and RS90 models
Refrigerator features
1 Dairy shelf
2 Half-width cantilever glass
shelves
3 Full-width cantilever glass
shelves
4 Fruit and vegetable bins
with humidity control lids
5 Slim bin with humidity
control lid
6 Door shelves
7 Dairy compartment
1
2
3
4
5
7
6
1
2
3
4
5
6
7

10
Freezer compartment
Freezer features
1 Ice maker*
2 Ice storage bin with scoop
3 Top bin
4 Mid tray
5 Large bottom bin
6 Water filter
7 Manual ice tray with lid**
* Top left of freezer (Ice& Water models only)
**Non-Ice & Water models only
Refrigerator compartment
RS9120W model
BEFORE YOU BEGIN
Refrigerator features
1 Dairy shelf
2 Slim bin with humidity
control lid
3 Dairy shelf
4 Door shelves
5 Fruit and vegetable bins
with humidity control lids
6 Bottle divider
7 Large aluminium extrusion
door shelf
3
1
2
4
5
6
7
1
2
3
4
5
7
6

11
The control panel enables you to view and modify all the features and options of
yourrefrigerator. Extra features available on selected models.
Ice & Water models Non-Ice & Water models
1
2
4
5
3
1WiFi illuminates when functionality is activated.
Illuminates to indicate that the keys on the control panel are locked. Allows you
to disable the buttons on the control panel.
Illuminates when the water filter needs replacing.
IIluminates to indicate that Sabbath mode is activated.
Illuminates to indicate key press sounds are deactivated.
2Allows you to select the compartment to adjust the temperature.
zUpper light to indicate the refrigerator compartment is selected.
zLower light to indicate the freezer compartment is selected.
3Alarm mute deactivates the door alarm for 20minutes.
4Allows you to adjust the temperature of the selected compartment.
5Allows you to select features:
FAST FREEZE BOTTLE CHILL
ICE ON/OFF ICE BOOST
USING THE CONTROL PANEL

12
STORAGE FEATURES
REFRIGERATOR
Fruit and vegetable bins/Slim bin
with humidity control lids
Separate fruits and vegetables to prevent the ethylene-sensitive
produce from ripening too quickly-helps to extend their storage life.
Also used for storing deli items and beverages, or fordefrosting
foods.
Slim bin with humidity control lid The slim bin stores long vegetables which cannot fitin the fruit and
vegetable bins.
Also used for storing deli items and beverages, or fordefrosting
foods.
Cantilever glass shelving Heat-treated safety glass
Can be removed and positioned at heights to suit your storage
requirements.
The half-width shelves can be positioned side by side; best when
storing large items such as platters.
Maximize the storage space when storing items of varying heights
by positioning the half-width shelves at different levels.
Dairy shelf and door shelves The top door shelf is a dairy compartment for storing butter and
cheeses.
The middle shelves are designed for general items, condiments and
drinks.
The bottom shelves are designed to store large drinks or those
drinks you require frequent access to.
Clear windows give ultimate visibility to what is being stored in the
door shelves.
Adjustable door shelves with dividers.
Single bottle holders Placed along the length of any shelf to store a varietyof bottles.
Store bottles with the neck facing the front of therefrigerator.
Unused bottle holders can be stacked on top ofone another to
maximize shelf space.
FREEZER
Ice maker
(Ice & Water models only)
Removable ice container.
Hygienic ice scoop.
Freezer bins Allow for easy storage of frozen food items.

13
How to adjust the temperature — Refrigerator compartment
Press until the refrigerator compartment
light is illuminated, indicated by the top light.
Press to increase the temperature,
press to decrease the temperature.
1
2
Temperature control (all models)
When you turn your refrigerator on for the first time, the cooling system will automatically
cool all compartments to their recommended temperatures as displayed by 6 LEDs — 3°C
refrigerator and -18°C freezer. This will take between 2-3 hours.
For storage of general household foods in the most efficient manner, it is recommended to
use the product in the factory configuration supplied. Moving the shelves and bins will have
a minimal impact on efficiency.
The internal control panel enables you to change and control the temperature of all
compartments accurately and independently. The internal control panel default setting is to
show the set temperature for the refrigerator compartment.
For common foodstuffs, the factory default setting provides the optimum setting
for foodcare.
Press once to adjust the freezer
compartment temperature.
The freezer compartment light will illuminate.
How to adjust the temperature — Freezer compartment
Press to increase the temperature,
press to decrease the temperature.
1
2
USING YOUR APPLIANCE

14
Key mute
To activate/deactivate KEY MUTE, press for
fourseconds.
Once KEY MUTE is activated the icon on
the internal control panel illuminates, all key
sounds are silenced.
Door alarms and the BOTTLE CHILL alarm are
still operational.
Door alarms
If the refrigerator compartment door is left open, the alarm will beep after 90seconds, if
the freezer door is left open the alarm will beep after 60seconds. If either of the doors
remains open, subsequent beeps will sound every 30 seconds for fiveminutes.
Alarm mute
Key lock
KEY LOCK allows you to disable the buttons on the internal control panel. This is useful
when cleaning your refrigerator.
To activate/deactivate KEY LOCK, press and
together for fourseconds.
When KEY LOCK is activated the icon on
the internal control panel will illuminate.
Pressing any of the buttons will sound several
beeps to tell you that they are disabled.
To activate/deactivate ALARM MUTE, press
once. The light above the button will
illuminate to indicate the refrigerator is
muted.
ALARM MUTE will automatically deactivate
after 20minutes or when the door is closed.
USING YOUR APPLIANCE

15
Sabbath mode
In SABBATH MODE, alarms, lights and displays are deactivated for 80 hours.
Once in Sabbath mode:
zThe interior light will not turn on when you open the refrigerator.
zThe door alarms will not operate.
zThe display will not illuminate, except the Sabbath mode icon.
zThe internal and external control panels will not operate.
zSabbath mode automatically deactivates after 80 hours.
To activate/deactivate SABBATH MODE, press
, and together for fourseconds. The
icon on the internal control panel will
illuminate when SABBATH MODE is activated.
1
If you turn off your refrigerator while in SABBATH MODE it will resume automatically once
the refrigerator is switched on again.
USING YOUR APPLIANCE

16

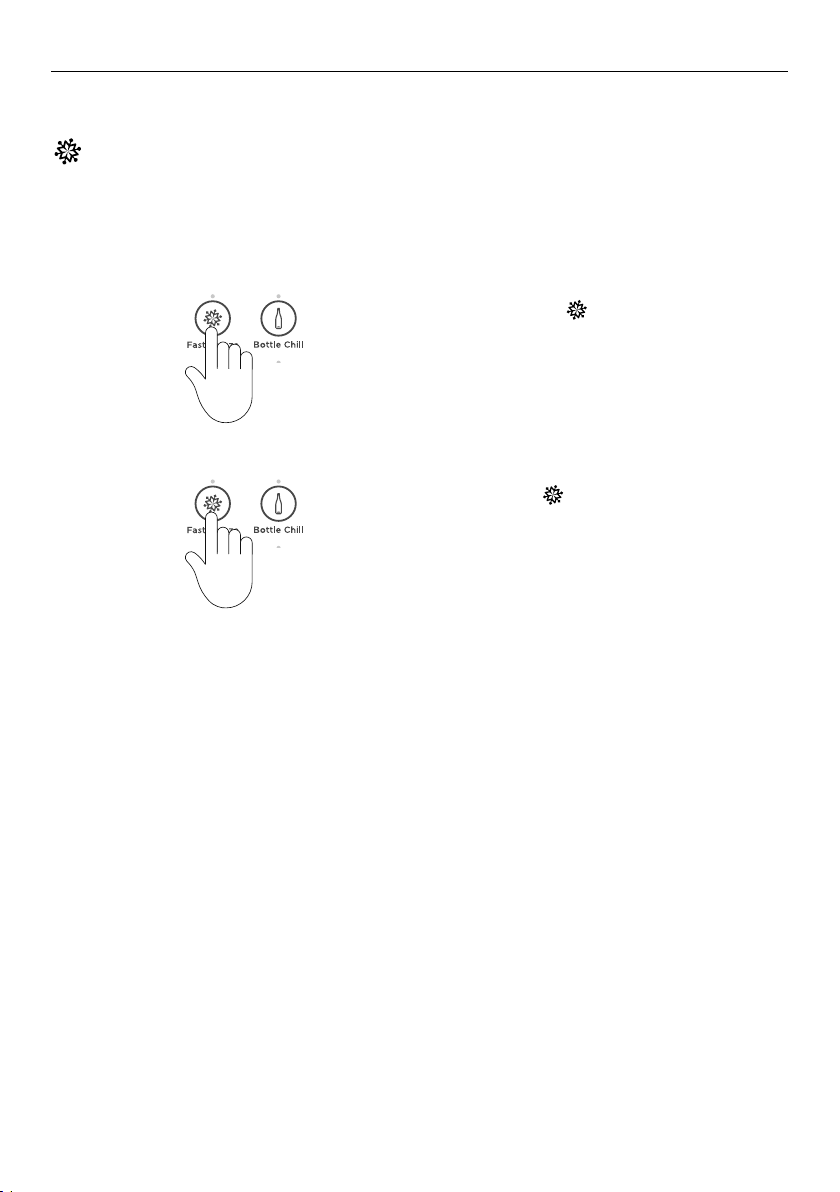

Fast Freeze
For best results, activate the function before it is required. Alternatively, activate it
whenplacing food into the freezer.
2
To activate, press on the internal display.
The FAST FREEZE light will illuminate.
To deactivate before the 24hours has
elapsed, press again.
When FAST FREEZE is deactivated the light
is off.
1
Features
FAST FREEZE boosts freezing speed by dropping to its coldest temperature for 24 hours,
helping retain freshness, texture and taste during the freezing process.
USING YOUR APPLIANCE

17
1
BOTTLE CHILL rapidly chills your beverages in the freezer for a set time of 15 minutes.
Depending on bottle size, you may need to return it to the freezer and reset.
Bottle Chill
To activate, press on the control panel.
The BOTTLE CHILL light will illuminate.
The icon will illuminate on the external
display (Ice & Water models only).
An alarm will sound after 15minutes to
remind you to remove your beverage.
For non water-dispensing models
Open the refrigerator compartment door
and press anybutton on the control panel to
silence the alarm.
2
4
To deactivate BOTTLE CHILL before 15minutes,
press the button on the control panel.
When BOTTLE CHILL is deactivated, the
light will not illuminate and the icon is not
visible on the external display (Ice & Water
model only).
For water-dispensing models
The icon will flash on the external display.
Press on the external display to silence the
alarm.
3
USING YOUR APPLIANCE

18
2
Ice Ice Boost
When you first turn your ice maker on, ICE
BOOST is off.
To activate, press . The light above the
button will illuminate.
ICE BOOST will pause once your ice bin is full.
To manually deactivate press again.
The light will not illuminate.
Activating ICE BOOST will automatically turn
on ice making.
Deactivating ice making automatically
deactivates ICE BOOST.
1
ICE BOOST increases ice production by up to 30% and will automatically deactivate after 24
hours.
USING YOUR APPLIANCE
IceOn/Off
ICE ON/OFF activates automatic ice - this is only available in the lower compartment.
Your ice maker is designed to automatically dispense ice into the ice storage bin below
until it detects the bin is full. The more ice you use, the more it makes. Before first use the
automatic ice systems needs to be flushed.
To activate/deactive, press .
When the ice maker is activated the light will
illuminate.
1

19
Information about your ice maker
Your automatic ice maker will produce approximately eight cubes of ice every 3 – 4hours,
depending on the freezer compartment temperature and the number of door openings.
The ice cube tray will fill with water. When cubes are frozen, they will be ejected from the
ice tray into the ice storage bin. Ice making will continue until the storage bin is full. Ice
making will resume once you start to use the stored ice.
Your Ice & Water product comes with a smaller ice bin inside the larger freezer bin.
Attached to the ice storage bin is the scoop for the ice. This scoop provides hygienic access
to the ice. If a large amount of ice is required, remove an ice storage bin and allow ice to fall
into the larger bin. For maximum ice storage, level the stored cubes with the ice scoop.
If ice is not used often, old cubes will become cloudy, taste stale, will shrink and may
stick together. Empty the ice storage bin periodically and wash in lukewarm water. Dry
thoroughly and place back into the correct position.
Turn your ice maker off if:
zThere is no water supply for several hours.
zYou are removing the ice storage bin for a period of time.
zYou are going on holiday/vacation.
USING YOUR APPLIANCE

20
1Dispenser lock button
and LED light
Locks/unlocks the water dispenser. The LED above the lock
button will illuminate when dispenser is locked.
2Bottle Chill indicator Icon will illuminate when BOTTLE CHILL isactivated and
flashes when the beverage is ready.
3Filter change indicator Icon will illuminate when water filter requires changing.
4Drip tray The drip tray is designed to fit into the bottom of the water
dispenser panel to capture any odd drips of water that may
fall after dispensing.
Water dispenser (Ice & Water models only)
To dispense water, gently press the
dispensing pad with a glass or container.
To stop the flow of water, simply pull your
glass or container away from the dispensing
pad.
Pressing hard against the dispensing pad
will not increase the flow or dispense more
water.
Dispensing
Your water dispenser is designed for one-handed operation.
3 2 1
4
USING YOUR APPLIANCE
