14
INSTALLATION INSTRUCTIONS
Flush with refrigerator door — full door rotation
Flush with refrigerator door — 90° door rotation
RF523MRF523G
Flush with refrigerator chassis — full door rotation
RF523GDX1 GB/SG
RF172GDJX1 US

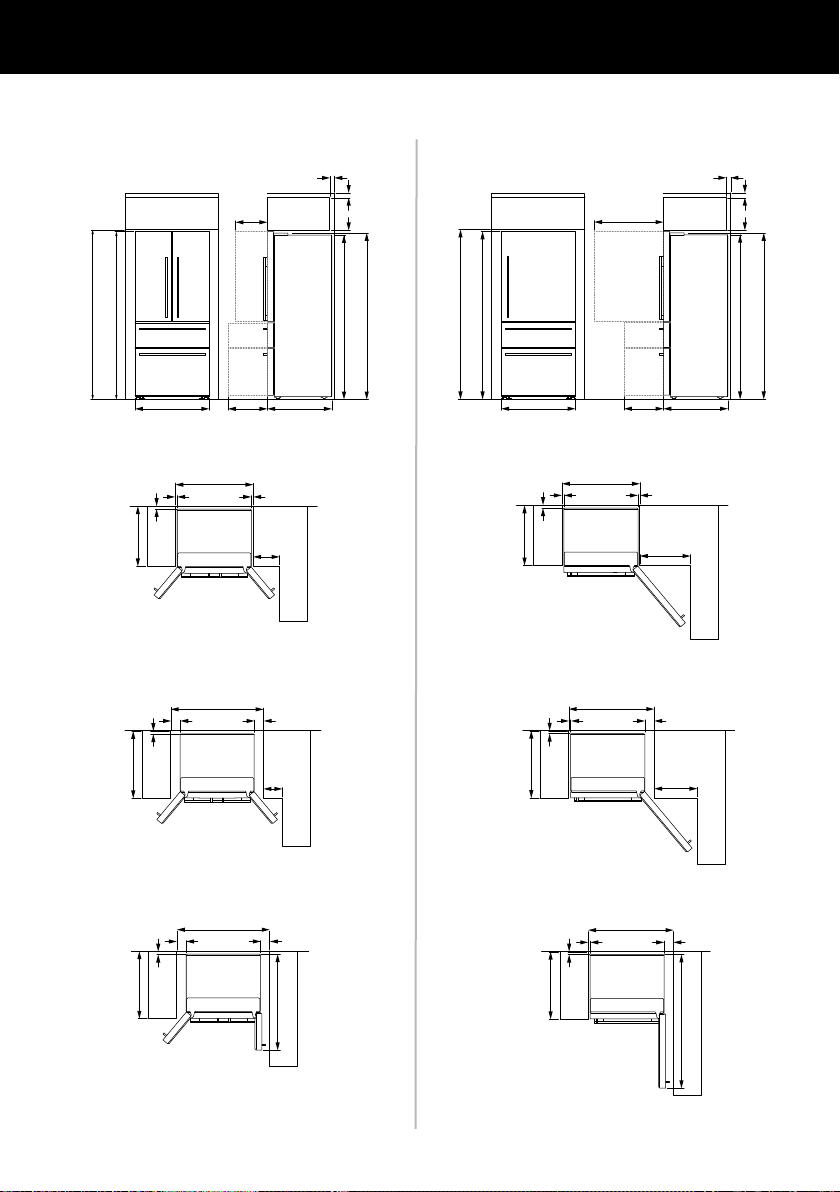

PRODUCT SIZE & GAPS
SOURCE:
FP CAD files: Victor Tan (dimensional), Stuart Smith (visual)
SCALE: 50% reduction of 1 : 10
DATE: 22.05.2017
PRODUCT DIMENSIONS (mm)
A Overall height of product 1790
b Overall width of product 790
c Overall depth of product (excludes handle) 688
r Depth with door open - from rear of fridge - 90° rotation 1026
s Depth with door open - from flush with door - 90° rotation 338
t Depth of open drawer - from flush with door (excludes handle) 420
u Height to top of chassis 1754
v Height to top of hinge cover 1775
K Side clearance 20
L Side clearance - hinge side flush with door - full rotation 100
M Side clearance - hinge side flush with door - 90° rotation 100
N Rear clearance 30
O Vent (above refrigerator cabinet or around top of cupboard) 50
P Door clearance - hinge side flush with chassis - full rotation 280
Q Door clearance - hinge side flush with door - full rotation 200
CABINETRY DIMENSIONS (mm)
D Inside height of cavity 1810
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
E Inside width 830
F Inside depth 640
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
G Inside width 990
H Inside depth flush to flat door 718
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
I Inside width 990
J Inside depth flush to flat door 718
FRONT VIEW PROFILE VIEW
MODELS THAT DRAWING USED FOR: MINIMUM CLEARANCES (mm)
PLAN VIEW
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
I A G H
ET
TT
Flush with refrigerator chassis — full door rotation
Flush with refrigerator door — full door rotation
Flush with refrigerator door — 90° door rotation
RF523MRDX1 AA/GB/SG
RF172MRDJX1 US
PRODUCT SIZE & GAPS
SOURCE:
FP CAD files: Victor Tan (dimensional), Stuart Smith (visual)
SCALE: 50% reduction of 1 : 10
DATE: 22.05.2017
PRODUCT DIMENSIONS (mm)
A Overall height of product 1790
b Overall width of product 790
c Overall depth of product (excludes handle) 688
r Depth with door open - from rear of fridge - 90° rotation 1426
s Depth with door open - from flush with door - 90° rotation 738
t Depth of open drawer - from flush with door (excludes handle) 420
u Height to top of chassis 1754
v Height to top of hinge cover 1775
K Side clearance 20
L Side clearance - hinge side flush with door - full rotation 100
M Side clearance - hinge side flush with door - 90° rotation 100
N Rear clearance 30
O Vent (above refrigerator cabinet or around top of cupboard) 50
P Door clearance - hinge side flush with chassis - full rotation 540
Q Door clearance - hinge side flush with door - full rotation 460
CABINETRY DIMENSIONS (mm)
D Inside height of cavity 1810
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
E Inside width 830
F Inside depth 640
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
G Inside width 910
H Inside depth flush to flat door 718
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
I Inside width 910
J Inside depth flush to flat door 718
FRONT VIEW PROFILE VIEW
MODELS THAT DRAWING USED FOR: MINIMUM CLEARANCES (mm)
PLAN VIEW
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
I A G H
B F c
T
E
RF523GDX1 GB/SG
RF172GDJX1 US
PRODUCT SIZE & GAPS
SOURCE:
FP CAD files: Victor Tan (dimensional), Stuart Smith (visual)
SCALE: 50% reduction of 1 : 10
DATE: 22.05.2017
PRODUCT DIMENSIONS (mm)
A Overall height of product 1790
b Overall width of product 790
c Overall depth of product (excludes handle) 688
r Depth with door open - from rear of fridge - 90° rotation 1026
s Depth with door open - from flush with door - 90° rotation 338
t Depth of open drawer - from flush with door (excludes handle) 420
u Height to top of chassis 1754
v Height to top of hinge cover 1775
K Side clearance 20
L Side clearance - hinge side flush with door - full rotation 100
M Side clearance - hinge side flush with door - 90° rotation 100
N Rear clearance 30
O Vent (above refrigerator cabinet or around top of cupboard) 50
P Door clearance - hinge side flush with chassis - full rotation 280
Q Door clearance - hinge side flush with door - full rotation 200
CABINETRY DIMENSIONS (mm)
D Inside height of cavity 1810
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
E Inside width 830
F Inside depth 640
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
G Inside width 990
H Inside depth flush to flat door 718
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
I Inside width 990
J Inside depth flush to flat door 718
FRONT VIEW PROFILE VIEW
MODELS THAT DRAWING USED FOR: MINIMUM CLEARANCES (mm)
PLAN VIEW
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
I A G H
B CF
ET
TT
K
P
U
P
J
S
RF523GDX1 GB/SG
RF172GDJX1 US
PRODUCT SIZE & GAPS
SOURCE:
FP CAD files: Victor Tan (dimensional), Stuart Smith (visual)
SCALE: 50% reduction of 1 : 10
DATE: 22.05.2017
PRODUCT DIMENSIONS (mm)
A Overall height of product 1790
b Overall width of product 790
c Overall depth of product (excludes handle) 688
r Depth with door open - from rear of fridge - 90° rotation 1026
s Depth with door open - from flush with door - 90° rotation 338
t Depth of open drawer - from flush with door (excludes handle) 420
u Height to top of chassis 1754
v Height to top of hinge cover 1775
K Side clearance 20
L Side clearance - hinge side flush with door - full rotation 100
M Side clearance - hinge side flush with door - 90° rotation 100
N Rear clearance 30
O Vent (above refrigerator cabinet or around top of cupboard) 50
P Door clearance - hinge side flush with chassis - full rotation 280
Q Door clearance - hinge side flush with door - full rotation 200
CABINETRY DIMENSIONS (mm)
D Inside height of cavity 1810
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
E Inside width 830
F Inside depth 640
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
G Inside width 990
H Inside depth flush to flat door 718
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
I Inside width 990
J Inside depth flush to flat door 718
FRONT VIEW PROFILE VIEW
MODELS THAT DRAWING USED FOR: MINIMUM CLEARANCES (mm)
PLAN VIEW
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
I A G H
B CF
ET
TT K
M
S
L
V
Q
Q
RF523GDX1 GB/SG
RF172GDJX1 US
PRODUCT SIZE & GAPS
SOURCE:
FP CAD files: Victor Tan (dimensional), Stuart Smith (visual)
SCALE: 50% reduction of 1 : 10
DATE: 22.05.2017
PRODUCT DIMENSIONS (mm)
A Overall height of product 1790
b Overall width of product 790
c Overall depth of product (excludes handle) 688
r Depth with door open - from rear of fridge - 90° rotation 1026
s Depth with door open - from flush with door - 90° rotation 338
t Depth of open drawer - from flush with door (excludes handle) 420
u Height to top of chassis 1754
v Height to top of hinge cover 1775
K Side clearance 20
L Side clearance - hinge side flush with door - full rotation 100
M Side clearance - hinge side flush with door - 90° rotation 100
N Rear clearance 30
O Vent (above refrigerator cabinet or around top of cupboard) 50
P Door clearance - hinge side flush with chassis - full rotation 280
Q Door clearance - hinge side flush with door - full rotation 200
CABINETRY DIMENSIONS (mm)
D Inside height of cavity 1810
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
E Inside width 830
F Inside depth 640
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
G Inside width 990
H Inside depth flush to flat door 718
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
I Inside width 990
J Inside depth flush to flat door 718
FRONT VIEW PROFILE VIEW
MODELS THAT DRAWING USED FOR: MINIMUM CLEARANCES (mm)
PLAN VIEW
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
I A G H
B CF
ET
TT K
M
O
N
D
S
Q R
RF523MRDX1 AA/GB/SG
RF172MRDJX1 US
PRODUCT SIZE & GAPS
SOURCE:
FP CAD files: Victor Tan (dimensional), Stuart Smith (visual)
SCALE: 50% reduction of 1 : 10
DATE: 22.05.2017
PRODUCT DIMENSIONS (mm)
A Overall height of product 1790
b Overall width of product 790
c Overall depth of product (excludes handle) 688
r Depth with door open - from rear of fridge - 90° rotation 1426
s Depth with door open - from flush with door - 90° rotation 738
t Depth of open drawer - from flush with door (excludes handle) 420
u Height to top of chassis 1754
v Height to top of hinge cover 1775
K Side clearance 20
L Side clearance - hinge side flush with door - full rotation 100
M Side clearance - hinge side flush with door - 90° rotation 100
N Rear clearance 30
O Vent (above refrigerator cabinet or around top of cupboard) 50
P Door clearance - hinge side flush with chassis - full rotation 540
Q Door clearance - hinge side flush with door - full rotation 460
CABINETRY DIMENSIONS (mm)
D Inside height of cavity 1810
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
E Inside width 830
F Inside depth 640
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
G Inside width 910
H Inside depth flush to flat door 718
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
I Inside width 910
J Inside depth flush to flat door 718
FRONT VIEW PROFILE VIEW
MODELS THAT DRAWING USED FOR: MINIMUM CLEARANCES (mm)
PLAN VIEW
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
I A G H
B F c
T
TT
E
K
P P
U
J
S
RF523MRDX1 AA/GB/SG
RF172MRDJX1 US
PRODUCT SIZE & GAPS
SOURCE:
FP CAD files: Victor Tan (dimensional), Stuart Smith (visual)
SCALE: 50% reduction of 1 : 10
DATE: 22.05.2017
PRODUCT DIMENSIONS (mm)
A Overall height of product 1790
b Overall width of product 790
c Overall depth of product (excludes handle) 688
r Depth with door open - from rear of fridge - 90° rotation 1426
s Depth with door open - from flush with door - 90° rotation 738
t Depth of open drawer - from flush with door (excludes handle) 420
u Height to top of chassis 1754
v Height to top of hinge cover 1775
K Side clearance 20
L Side clearance - hinge side flush with door - full rotation 100
M Side clearance - hinge side flush with door - 90° rotation 100
N Rear clearance 30
O Vent (above refrigerator cabinet or around top of cupboard) 50
P Door clearance - hinge side flush with chassis - full rotation 540
Q Door clearance - hinge side flush with door - full rotation 460
CABINETRY DIMENSIONS (mm)
D Inside height of cavity 1810
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
E Inside width 830
F Inside depth 640
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
G Inside width 910
H Inside depth flush to flat door 718
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
I Inside width 910
J Inside depth flush to flat door 718
FRONT VIEW PROFILE VIEW
MODELS THAT DRAWING USED FOR: MINIMUM CLEARANCES (mm)
PLAN VIEW
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
I A G H
B F c
T
TT
E
K
M
K
Q
V
S
RF523MRDX1 AA/GB/SG
RF172MRDJX1 US
PRODUCT SIZE & GAPS
SOURCE:
FP CAD files: Victor Tan (dimensional), Stuart Smith (visual)
SCALE: 50% reduction of 1 : 10
DATE: 22.05.2017
PRODUCT DIMENSIONS (mm)
A Overall height of product 1790
b Overall width of product 790
c Overall depth of product (excludes handle) 688
r Depth with door open - from rear of fridge - 90° rotation 1426
s Depth with door open - from flush with door - 90° rotation 738
t Depth of open drawer - from flush with door (excludes handle) 420
u Height to top of chassis 1754
v Height to top of hinge cover 1775
K Side clearance 20
L Side clearance - hinge side flush with door - full rotation 100
M Side clearance - hinge side flush with door - 90° rotation 100
N Rear clearance 30
O Vent (above refrigerator cabinet or around top of cupboard) 50
P Door clearance - hinge side flush with chassis - full rotation 540
Q Door clearance - hinge side flush with door - full rotation 460
CABINETRY DIMENSIONS (mm)
D Inside height of cavity 1810
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
E Inside width 830
F Inside depth 640
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
G Inside width 910
H Inside depth flush to flat door 718
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
I Inside width 910
J Inside depth flush to flat door 718
FRONT VIEW PROFILE VIEW
MODELS THAT DRAWING USED FOR: MINIMUM CLEARANCES (mm)
PLAN VIEW
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
I A G H
B F c
T
TT
E
K
M
O
D
N
P R
S
Product and cabinetry dimensions
