Fisher & Paykel E522BLE4 User manual

US CA
ActiveSmart™ refrigerator
Ice & Water and Non-Ice & Water
RF135B, E522B, RF170W,
RF170A, RF201A models
Réfrigérateur ActiveSmart™
Ice & Water et autres
Modèles RF135B, E522B, RF170W,
RF170A, RF201A
Installation instructions
and User guide
Instructions d’installation
et Guide d’utilisation

Important!
It is important that this User Guide is retained with your refrigerator for future reference.
Should the appliance be sold or transferred to another owner, please ensure that the
User Guide is left with the appliance. This will ensure that the new owner can familiarize
themselves with the information and warnings contained within the Guide.
English Page 1 – 48
Français Page 50 – 98

1
Contents
Important!
SAVE THESE INSTRUCTIONS
The models shown in this User Guide may not be available in all markets and are subject to change at any time.
For current details about model and specification availability in your country, please visit our local website listed
on the back cover or contact your local Fisher & Paykel dealer. Note that the word “refrigerator”, throughout this
User Guide, refers to combination refrigerator/freezer products.
Introduction 2
Safety and warnings 3
Installation instructions 5
Moving or storing your appliance 18
Door conversion 19
Soft closing refrigerator door feature 19
ActiveSmart™ operating instructions 20
All about the external display (Ice & Water models only) 24
Using your water dispenser (Ice & Water models only) 25
Water filter (Ice & Water models only) 26
Using your ice maker (Ice & Water models only) 28
ActiveSmart™ special features (all models) 30
Cleaning and caring for your refrigerator 33
Storing food in your refrigerator 37
Storing food in your freezer 39
ActiveSmart™ user warnings and sounds 41
Troubleshooting 42
Limited warranty 46
Filter performance data sheet 99
US
CA

2
Thank you for buying a Fisher & Paykel ActiveSmart™ refrigerator.
At Fisher & Paykel we are very proud of this refrigerator. This refrigerator combines size and
storage space with the latest features and functions.
Thousands of hours of food care research and 75 years of refrigeration experience has been
programmed into your refrigerator to give you the best possible performance.
We hope you enjoy your new refrigerator.
Note: non Ice & Water models do not have an external water dispenser.

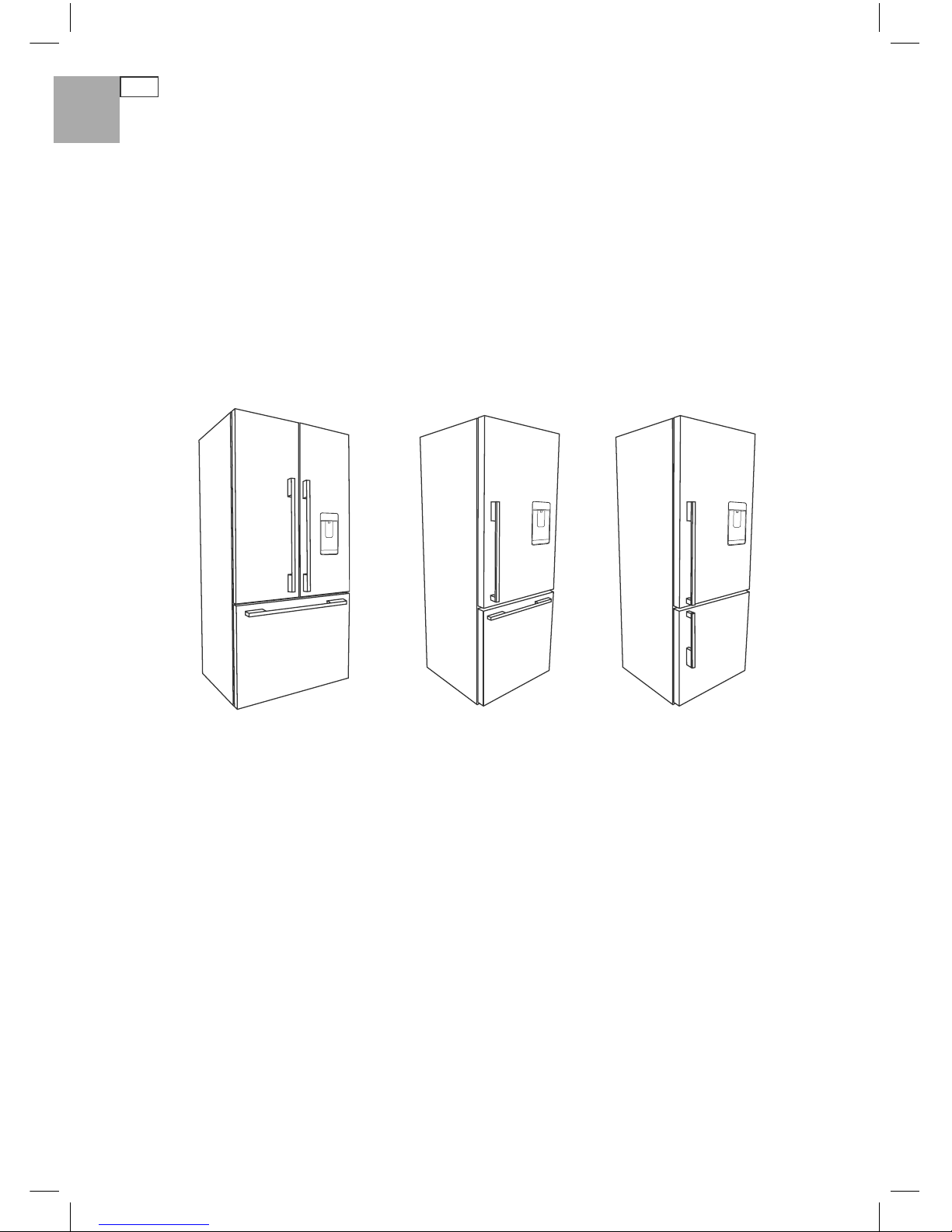

Fig.1 ActiveSmart™ refrigerators
Refrigerator French door
and freezer drawer
Refrigerator door
and freezer door
Refrigerator door
and freezer drawer
Introduction
US
CA

3
Safety and warnings
WARNING!
Electric Shock Hazard
Read and follow the SAFETY AND WARNINGS outlined in this User Guide
before operating this appliance.
Failure to do so can result in death, electric shock, fire or injury to persons.
Use this appliance only for its intended purpose as described in this User Guide.
Important safety precautions
Warning
When using this appliance always exercise basic safety precautions including the following:
Danger

This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.

Young children should be supervised to ensure they do not play with the appliance.

Refer to the stability bracket and leaflet supplied to avoid hazard due to instability of the appliance.

The manufacturer’s installation instructions for product and cabinetry ventilation must be followed
when installing the appliance.

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

Do not use mechanical devices or other means to accelerate the defrosting process.

Do not damage the refrigerant circuit.

In case of damage to the refrigerant circuit, ventilate the area by opening all windows. Do not
operate electrical equipment or any other equipment that may produce arcs, sparks or flames
in the area. Contact your Fisher & Paykel Authorized Service Agent immediately to arrange for the
appliance to be repaired.
Disposal

Extreme care must be taken when disposing your old appliance to avoid hazards:
– The refrigerant gas must be safely removed
– The doors should be removed and the shelves left in place so that children may not easily climb inside.

Your Fisher & Paykel Authorized Service Agent will be able to give advice on environmentally
friendly methods of disposing of your old refrigerator or freezer.
Cleaning

Many commercially available cleaning products contain solvents which may attack plastic
components of your refrigerator and cause them to crack. Please refer to the cleaning care section
of this booklet for further advice.
US
CA

4Safety and warnings
Electrical

This appliance must be installed in accordance with the installation instructions before use.

Never unplug your refrigerator by pulling on the power cord.

Always grip the plug firmly and pull straight out from the outlet.

Do not plug in any other appliance at the same power point as your refrigerator or use extension
cords or double adapters.

Repair or replace immediately all electric service cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion along its length or at either the plug
or appliance end.

If the power supply cord is damaged, it must only be replaced by your Fisher & Paykel Authorized
Service Agent because special purpose tools are required.

When moving your appliance away from the wall, be careful not to roll over or damage the power
cord.

Do not use electrical appliances inside the food storage compartments of the appliance.
Important!
Your refrigerator is designed to operate for many years without the need for service checks.
However, if your refrigerator is malfunctioning, have it attended to by your Fisher & Paykel
Authorized Service Agent as soon as possible. All electrical repairs must be carried out by an
adequately trained service technician or qualified electrician.
Storing food and drinks

DO NOT store explosive substances such as aerosol cans with a flammable propellant in this
appliance.

Never store volatile or flammable materials in your refrigerator as they may explode.

Never freeze liquids in glass containers. Liquid expands during freezing, which may cause the
container to explode.

Never freeze carbonated drinks. They may explode.

Do not consume food if it is too cold. Food removed from the freezer compartment may be cold
enough to cause damage when brought into contact with bare skin, eg frozen ice cubes.
Power failure – food safety

Do not refreeze frozen foods that have thawed completely. Follow the recommendations below if
you discover food in your freezer has thawed:
1) Ice crystals still visible – food may be refrozen but should be stored for a shorter period than
recommended.
2) Thawed but refrigerator cold – refreezing generally not recommended. Fruits and some
cooked food can be refrozen but use as soon as possible. Meat, fish, poultry – use immediately
or cook then refreeze. Vegetables – discard as they usually go limp and soggy.
3) Thawed and warmer than 41°F (5°C) – discard all food.

Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.
SAVE THESE INSTRUCTIONS
US
CA

5
Installation instructions
Please follow the installation steps below to ensure your appliance operates correctly.
1. Power

The appliance must be installed so the plug is accessible.

To ensure that the appliance is not accidentally switched off, connect your refrigerator to its
own power point. Do not plug in any other appliance at this power point or use extension cords
and double adaptors, as the combined weight of both power cords can pull the double adaptor
from a wall outlet socket.

For power requirements, refer to the information on the serial plate located at the front bottom
right-hand side of the refrigerator when the door is open.

It is essential that the appliance is properly grounded (earthed).
2. Location

Your refrigerator should not be located in direct sunlight or next to any heat generating
appliance such as a cooktop, oven or dishwasher.
3. Ice & Water (Ice & Water models only)

Your Ice & Water refrigerator must be installed by an authorized plumber or Fisher & Paykel
Authorized Service Agent as incorrect plumbing can lead to water leaks.

Fisher & Paykel Appliances does not accept responsibility for damage (including water damage)
caused by faulty installation or plumbing.
US
CA

6Installation instructions
4. Ventilation and installation – Freezer door models
(RF135B, E522B) (Ice & Water and non Ice & Water)
For all products with a freezer ‘door’ refer to page 6 – 7 for installation instructions. For all
products with a freezer ‘drawer’ (RF170W, RF170A and RF201A) refer to pages 8 – 9 for installation
instructions.

To ensure adequate ventilation for your refrigerator or vertical freezer, see recommended
cabinetry dimensions below.

If integrating your refrigerator, please follow installation instructions provided with the
integration kits.

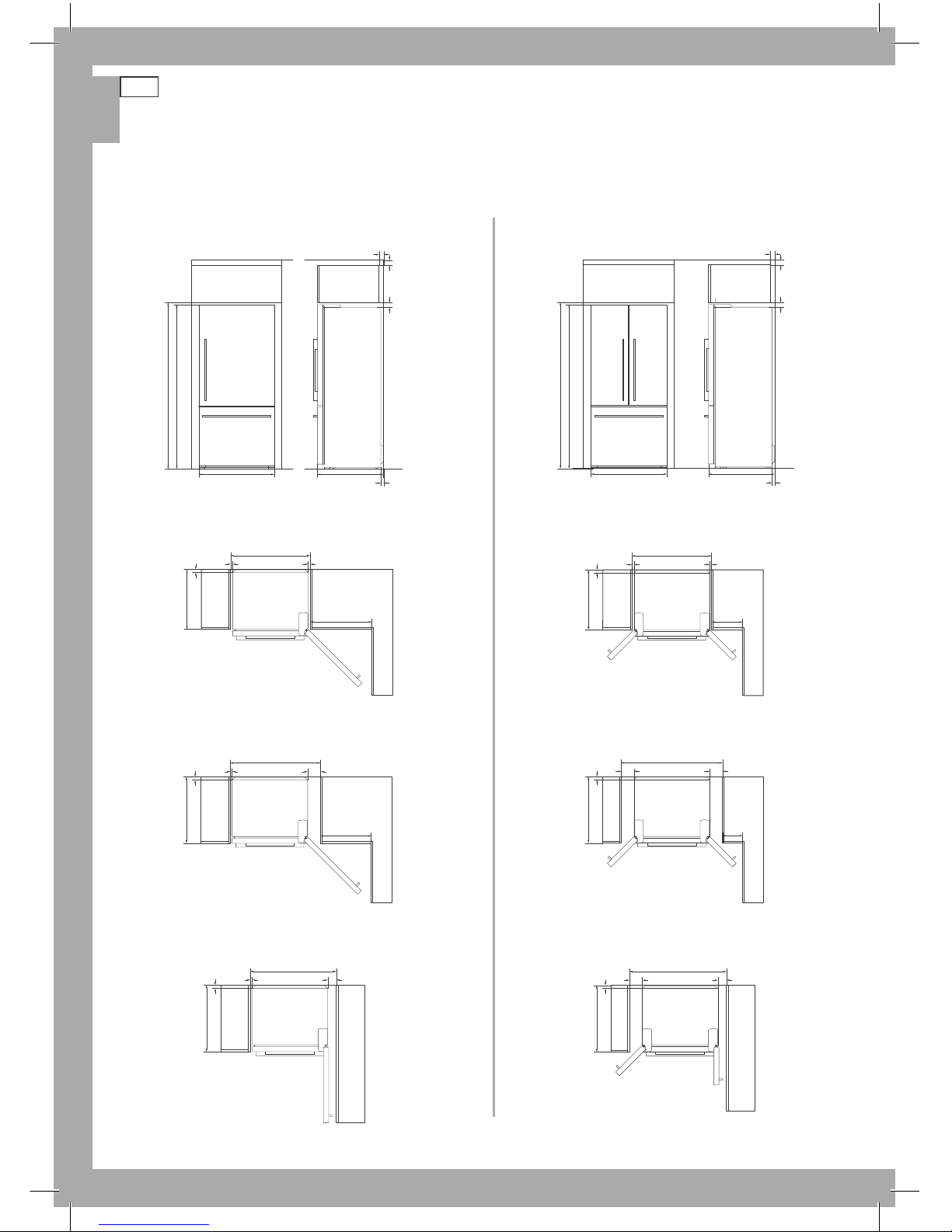

Flush with refrigerator door – 90° door rotation
PLAN VIEW
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
FRONT VIEW PROFILE VIEW
D A
BC P
R
Q
Q
F
P M M
S
E
H/I
P M N
T
G
P M
K/L
O
J
Flush with refrigerator chassis – full door rotation
PLAN VIEW
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
FRONT VIEW PROFILE VIEW
D A
BC P
R
Q
Q
F
P M M
S
E
H/I
P M N
T
G
P M
K/L
O
J
Flush with refrigerator door – full door rotation
PLAN VIEW
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
FRONT VIEW PROFILE VIEW
D A
BC P
R
Q
Q
F
P M M
S
E
H/I
P M N
T
G
P M
K/L
O
J
PLAN VIEW
FLUSH WITH REFRIGERATOR CHASSIS – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR – FULL DOOR ROTATION
PLAN VIEW
FLUSH WITH REFRIGERATOR DOOR - 90° DOOR ROTATION
FRONT VIEW PROFILE VIEW
D A
BC P
R
Q
Q
F
P M M
S
E
H/I
P M N
T
G
P M
K/L
O
J
Note: these drawings and dimensions are also true for Ice & Water models.
US
CA

7
Installation instructions
RF135B E522B
Product dimensions inches mm inches mm
A
overall height of flat door product 67 ⁄ 1715 67 ⁄ 1715
A
overall height of curved door product – – 66 ⁄ 1700
A
overall height of curved door with ice & water product – – 67 ⁄ 1705
B
overall width of product 25 635 31 ⁄ 790
C
overall depth of flat door product
(excludes handle, includes evaporator) 27 ⁄ 695 27 ⁄ 695
C
overall depth of curved door product
(excludes handle, includes evaporator) – – 28 ⁄ 715
Cabinetry dimensions (including minimum clearances)
D
inside height of cavity 68 ⁄ 1735 68 ⁄ 1735
Flush with refrigerator chassis – full door rotation
E
inside width 26 ⁄ 675 32 ⁄ 830
F
inside depth 24 ⁄ 620 24 ⁄ 620
Flush with refrigerator door – full door rotation
G
inside width 31 ⁄ 790 37 ⁄ 945
H
inside depth flush to curved door – – 26 ⁄ 680
I
inside depth flush to flat door 27 ⁄ 695 27 ⁄ 695
Flush with refrigerator door – 90° door rotation
(for full drawer/shelf access, the doors need to be open past 90°)
J
inside width 29 ⁄ 745 35 ⁄ 900
K
inside depth flush to curved door – – 26 ⁄ 680
L
inside depth flush to flat door 27 ⁄ 695 27 ⁄ 695
Minimum clearances
M
side clearance ⁄ 20 ⁄ 20
N
side clearance – hinge side flush with door – full rotation 5 ⁄ 135 5 ⁄ 135
O
side clearance – hinge side flush with door – 90° rotation 3 ⁄ 90 3 ⁄ 90
P
rear clearance (incl. evaporator tray) 1 ⁄ 30 1 ⁄ 30
Q
vent – around top of cupboard (optional) 1 ⁄ 50 1 ⁄ 50
R
top clearance – above refrigerator cabinet 1 ⁄ 50 1 ⁄ 50
S
door clearance – hinge side
flush with chassis – full rotation 20 ⁄ 520 25 ⁄ 645
T
door clearance – hinge side
flush with door – full rotation 15 ⁄ 405 20 ⁄ 530
US
CA

8Installation instructions
RF170W
5. Ventilation and installation – Freezer drawer models
(RF170W, RF170A, RF201A) (Ice & Water and non Ice & Water)
Flush with refrigerator chassis – full door rotation
Flush with refrigerator door – 90° door rotation
Flush with refrigerator chassis – full door rotation
Flush with refrigerator door – full door rotation
Flush with refrigerator door – 90° door rotation
Flush with refrigerator door – full door rotation
D
B
C P
A
R
Q
Q
H/I
P M N P M
K/L
O
J
T
G
F
P M M
S
E
D
B
C P
A
R
Q
Q
H/I
P M N P M
K/L
O
J
T
G
F
P M M
S
E
D
B C P
A
R
Q
Q
H/I
P M N P M
K/L
O
J
T
G
F
P M M
S
E
D
B C P
A
R
Q
Q
H/I
P M N
P M
K/L
O
J
T
G
F
P M M
S
E
D
B C P
A
R
Q
Q
H/I
P M N
P M
K/L
O
J
T
G
F
P M M
S
E
D A
B C P
R
Q
Q
F
P M M
E
S
H/I
P N N
G
T
K/L
P N O
J
D A
B C P
R
Q
Q
F
P M M
E
S
H/I
P N N
G
T
K/L
P N O
J
D A
B C P
R
Q
Q
F
P M M
E
S
H/I
P N N
G
T
K/L
P N O
J
D A
B C P
R
Q
Q
F
P M M
E
S
H/I
P N N
G
T
K/L
P N O
J
Note: these drawings and dimensions are also true for Ice & Water models.
RF170A/RF201A
US
CA

9
Installation instructions
To ensure adequate ventilation for your refrigerator see recommended cabinetry dimensionsbelow.
RF170W RF170A RF201A
Product dimensions inches mm inches mm inches mm
A
overall height of product 67 ⁄ 1715 67 ⁄ 1715 70 ⁄ 1790
B
overall width of product 31 ⁄ 790 31 ⁄ 790 35 ⁄ 900
C
overall depth of product
(excludes handle, includes evaporator) 27 ⁄ 695 27 ⁄ 695 27 ⁄ 695
Cabinetry dimensions (including minimum air clearances)
D
inside height of cavity 68 ⁄ 1735 68 ⁄ 1735 71 ¼ 1810
Flush with refrigerator chassis – full door rotation
E
inside width 32 ⁄ 830 32 ⁄ 830 37 940
F
inside depth 24 ⁄ 620 24 ⁄ 620 24 ⁄ 620
Flush with refrigerator door – full door rotation
G
inside width 37 ⁄ 945 41 ⁄ 1060 46 ⁄ 1170
H
inside depth flush to curved door ––––––
I
inside depth flush to flat door 27 ⁄ 695 27 ⁄ 695 27 ⁄ 695
Flush with refrigerator door – 90° door rotation
(for full drawer/shelf access, the doors need to be open past 90°)
J
inside width 35 ⁄ 900 39 ⁄ 1015 44 ⁄ 1125
K
inside depth flush to curved door ––––––
L
inside depth flush to flat door 27 ⁄ 695 27⁄ 695 27 ⁄ 695
Minimum clearances
M
side clearance ⁄ 20 ⁄ 20 ⁄ 20
N
side clearance – hinge side
flush with door – full rotation 5 ⁄ 135 5 ⁄ 135 5 ⁄ 135
O
side clearance – hinge side
flush with door – 90° rotation 3 ⁄ 90 3 ⁄ 90 3 ⁄ 90
P
rear clearance (incl. evaporator tray) 1 ⁄ 30 1 ⁄ 30 1 ⁄ 30
Q
vent – around top of cupboard (optional) 1 ⁄ 50 1 ⁄ 50 1 ⁄ 50
R
top clearance – above refrigerator cabinet 1 ⁄ 50 1 ⁄ 50 1 ⁄ 50
S
door clearance – hinge side
flush with chassis – full rotation 25 ⁄ 645 12 ⁄ 325 14 ⁄ 365
T
door clearance – hinge side
flush with door – full rotation 20 ⁄ 530 8 ⁄ 210 9 ⁄ 250
US
CA

10 Installation instructions
Contents of filter kit
1 13 ft (4 m) white ¼” (6 mm) tubing
2 1 x 8” (200 mm) blue tubing
3 1 x pressure reducing valve (PRV)
4 1 x double sided tape
5 2 x locking keys
6 1 x water filter cartridge and head
7 1 x faucet connection
Important!

It is imperative the pressure reducing valve (PRV) is fitted prior to the filter. This valve ensures the
water will not flow back into the mains from the refrigerator water system. If the PRV is not fitted
to the connection line, the Ice & Water features may not function in some circumstances.

The water connection to your Ice & Water refrigerator must be installed by an authorized
plumber or Fisher & Paykel Authorized Service Agent.

The water connection instructions below are intended only for the professional installer.

The new tubings supplied with the refrigerator are to be used, old tubings from old Ice & Water
connections should not be used.
Installation precautions/warning

DO NOT use with water that is microbiologically unsafe or of unknown quality without
adequate disinfection before or after the system.

WARNING – connect to potable water supply only.

DO NOT install on line pressure above 119 psi (827 kPa) or below 22 psi (150 kPa).

DO NOT use on hot water supply (100°F [38°C max.]).

DO NOT cut any length of tube shorter than 8” (200 mm).

DO NOT install near electrical wires or water pipes that will be in the path of drilling when
selecting the location of filter system.

DO NOT mount filter in such a position so that it will be struck by other items, such as
wastebaskets, etc.

DO NOT install the filter or any water tubing in direct sunlight as prolonged exposure to light
can weaken plastic components.

DO NOT install in a location that is susceptible to freezing temperatures as damage to the
housing could occur.

DO NOT screw filter to the refrigerator.

DO NOT install the filter or any water tubing in high temperature areas eg in a ceiling cavity.

AVOID contamination of pipes during installation.

DO NOT use copper tubing. The plastic tubing supplied should always be used.

DO NOT continuously dispense water for longer than 2 minutes.
Fig.2 Water connection kit
1 234567
US
CA

11
Installation instructions

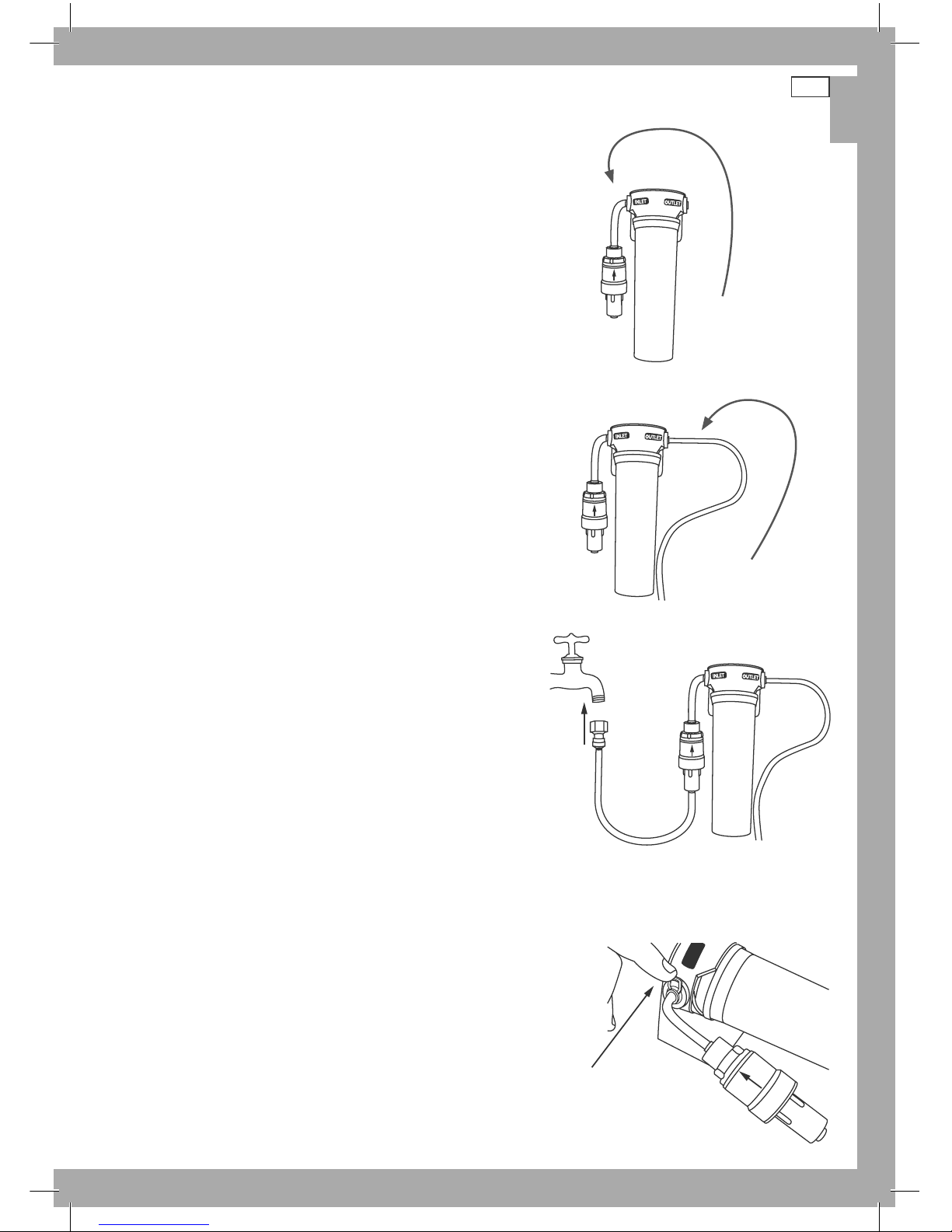

Installation instructions:
1 Ensure the refrigerator is NOT plugged into a powersupply.
2 Locate a cold water supply/feed only suitable for a water
connection. Tee and tap fitting is not supplied.
3 Connect the 8” (200 mm) blue tubing to the outlet of the
PRV (blue collet) and the inlet connection of the water filter
cartridge as shown in Diagram 1. Gently pull on both ends to
ensure it is locked.
4 Connect the white ¼” (6 mm) tubing to the outlet of the
water filter cartridge as shown in Diagram 2. Gently pull to
ensure it is locked.
5 Measure the required length of tubing to run from the PRV
to the water connection point (no less than 10” (250 mm)).
6 Cut the tubing making sure the ends are square and clean.
7 Connect the tubing to the faucet connection and the base
of the PRV (white collet) and then to the faucet as shown in
Diagram 3. Please note that the faucet connection supplied
should fit most installation situations.
8 Connect one locking key to each side of the water filter
cartridge in between the cartridge and the locking
collet as shown in Diagram 4.
9 To flush the water filter of any trapped air, harmless
carbon fines and to also check for leaks, aim the end
of the tubing into a bucket, turn isolating faucet on
and run at least 10 qt (10 L) of water through. Once
complete, turn isolating faucet off.
10 Locate desired position for water filter noting carefully
the following points:

It is recommended to fit the water filter in a
vertical orientation with the water filter head at the
top. This will minimize water leakage when replacing
cartridge.

Ensure the filter is in a convenient location to access
every 6 months for replacement. We suggest that this
location is beside the water filter supply faucet in a
cupboard beside the refrigerator.

A minimum clearance of 2 ½” (64 mm) from the
bottom of the filter cartridge is required to perform
cartridgeremoval.

Do not screw water filter to refrigerator.
Diagram 2
Fig.4 Waterline connection
to refrigerator
INLET
Diagram 4
Fig.6 Locking key
Fig.3 PRV connection
Diagram 1
Diagram 3
Fig.5 Faucet connection
US
CA

12 Installation instructions

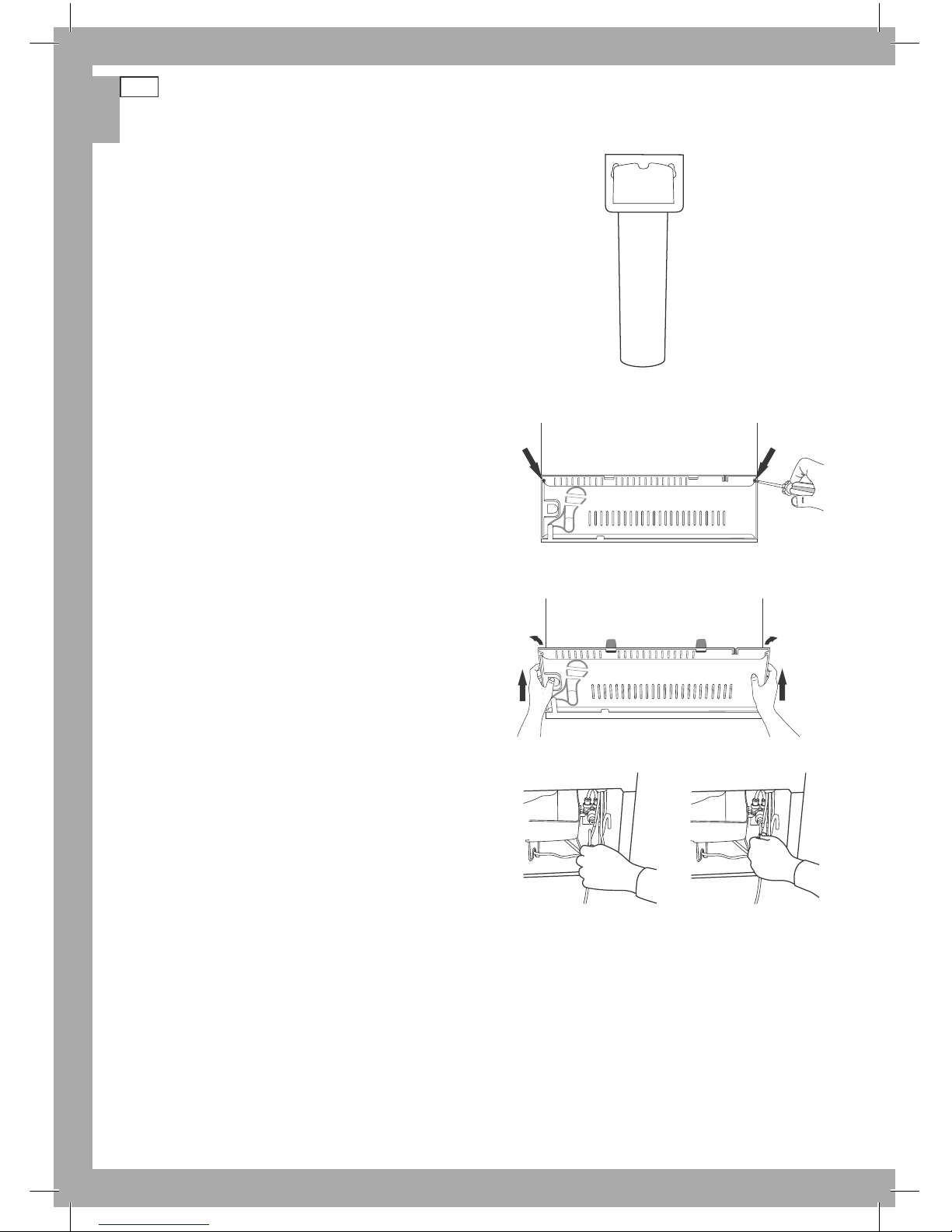

11 Attach double sided foam to the back of the
water filter head as shown in Diagram 5. Write
the date to be replaced on the filter (date
installed +6months). Remove double sided foam
backing and attach filter to the desired position
as located in step 10 (refer to previous page).
12 Run the ¼” (6 mm) tubing to back of the
refrigerator ensuring there is enough tubing to
pull out the refrigerator for service.
13 Remove compressor compartment cover by
removing screw at the top of each side of the
cover as shown in Diagram 6. Lift and tilt the
compressor compartment cover to remove as
shown in Diagram 7.
14 Connect tubing into the water (solenoid)
valve located on the right hand side of the
unit (compressor) compartment as shown in
Diagram8. Beware of hotpipes.
15 Pull gently on tubing to ensure it is locked in as
shown in Diagram 9.
16 Place compressor compartment cover back into
position, run the ¼” (6 mm) tubing through
the space provided at the top right hand side
of the compressor compartment cover in an
upward direction and rescrew the compressor
compartment cover.
17 The completed installation should look like
Diagram11 on page 13.
18 Turn isolating faucet on and check that all
connections are dry and free of drips.
19 Coil water line tubing behind the refrigerator.
Pushyour refrigerator into place being careful
notto kink or squash the water line running into
the water (solenoid) valve.
20 Read pages 13 – 14 carefully and then turn
refrigeratoron.
Fig.8 Waterline connection to refrigerator
Diagram 5
Fig.7 Double sided
foam attachment
Diagram 7
Diagram 9
Diagram 8
Diagram 6
US
CA

13
Installation instructions
Important!

All connections must be checked for leaks.

Ensure white ¼” (6 mm) tubing is routed away from sharp objects, sharp corners (beware of
kinking tube as this will stop water flow), clear of the refrigerator unit compartment and not in a
location where it can be squashed.

Ensure all push-fit connections are firmly pushed into place. The tube should push in ¾” (20 mm)
before reaching the stop.

If tubing is removed at any point, re-cut the end and re-insert. Tubing must be fully inserted to
avoid leaks.

To remove tube from connection points, turn off the isolating faucet, push in the collet and
gently pull tubing at the same time, as shown in Diagram 10.
Fig.9 Connection to water supply
Diagram 11
Diagram 10
System tested and certified by NSF International against NSF/ANSI Standard 53 for the reduction
of Asbestos, Atrazine, Benzene, Cyst, Carbofuran, Lead, Lindane, Mercury, P-Dichlorobenzene,
Toxaphene & Turbidity; against Standard NSF/ANSI 42 for the reduction of Chlorine Taste and
Odor and Nominal Particulate Class I to a capacity of 750 gallons (2,838 liters).
US
CA

14 Installation instructions
Before you start using your Ice & Water refrigerator

Check your refrigerator is switched on and has cooled for at least 2 hours before use (refer to
page 21 – The temperature of your refrigerator and freezer).

Check that the isolation tap has been connected and turned on.

The first time you use your water dispenser, there will be a 1 – 2 minute delay while the tank
fills until water is dispensed. Run through and discard the first 3 qt (3 liters) of water, stopping
intermittently to remove trapped air in the system. Failure to do this will result in excessive
dripping from your dispenser.

Turn the ice maker on by pressing the button (refer to pg 28). The light above the button
will be illuminated when the ice maker is on.

Press and hold the , and buttons together for 4 seconds and then close the
refrigerator compartment door to force an ice maker cycle. The ice tray will flip twice. Repeat to
force another ice maker cycle. The ice tray will flip twice and spill water into the ice bin. Empty
the water, dry and replace the bin. Note that the ice tray will not flip until the refrigerator
compartment door is closed.

Please discard the first 3 harvests of ice (8 cubes per harvest).
You are now ready to enjoy ice and water from your ActiveSmart™ refrigerator.
Fig.10 Water dispenser
Please note that once installation is complete a few drips may appear out of the dispenser over
the next few days as the remaining trapped air is cleared.
US
CA

15
Installation instructions
7. Installation (all models)
Your Fisher & Paykel ActiveSmart™ refrigerator
is fitted with front and rear rollers, designed
for moving the product in the forwards and
backwards direction.
Avoid moving the product in a sideways direction
as this may damage the rollers or the floor
covering/surface.
A Your refrigerator will arrive with the front feet
wound up making moving the product into its
final location a simple task.
B Roll the refrigerator into its final position making
sure there is the correct air gap between the product
and surrounding cabinetry. See minimum clearance in
cabinetry dimensions table (refer to page 6).
C Adjust the front feet down until the refrigerator is leaning
backward with the front approximately ½” (10 mm) higher
than the back. This will ensure a good door closing action.
(Refer to Fig.11).
(Non French door models only)
D Aligning your refrigerator with cabinetry.

Align the sides of the refrigerator with the cabinetry by
adjusting the hinge side front foot.

Adjust the handle side foot until it touches the floor and
takes a small amount of weight.

Once the refrigerator is in place and aligned with
cupboards/alcove gently push on the front top and check
if the product is rocking or stable.
8. Levelling of refrigerator doors
(French door models only)

For uneven surfaces, front feet can be used to align the
2 doors.

If left hand door is too low, then unscrew the left hand
foot to lift up the cabinet until the two doors top edges
are aligned.

If right hand door is too low, then adjust the right hand
foot in the same way (refer to figures 12 and 13).
Fig.13 Even door alignment
Fig.12 Uneven door alignment
Raise the front of
the refrigerator
Lower the front
of the refrigerator
Fig.11 Refrigerator feet
US
CA

16 Installation instructions
9. What to do if your product is unstable
A Gently push the refrigerator back until the rear rollers
contact the floor.

Measure the gap under the front foot, which has come
off the floor.

Obtain some solid packing material (hardwood,
plastic,etc) which fits firmly into the gap under the foot.
Note: do not use metallic materials that may corrode,
stain and/or damage floor coverings.
B Wind both front feet up and roll the product out
ofposition.

Place the packing material in the location diagonally
opposite the front roller that lifts off the floor.

Make sure the packing material stays in place when the
product is pushed back into position.

Ideally, the packing material is large enough to rest
against the back wall so as to prevent it from moving
when the cabinet is pushed into position.
Wall behind refrigerator
For example: if this foot lifts off the floor when
pushing gently on the top front of the refrigerator
Packing material goes under rear roller
diagonally opposite front foot that lifts
Fig.15 Stabilizing your refrigerator
C Roll the refrigerator back into position and adjust front feet as per step 7C . (Check alignment
and door closing action are satisfactory).

Make small adjustments to front feet where necessary.

Check that the product is stable (all 4 feet are on the floor). If not, repeat 9A and 9B .
This foot lifts off the floor when
top front is gently pushed back
Example only
Unlevel floor
Fig 14.Unstable refrigerator
US
CA

17
Installation instructions
Before placing food in the fresh food or freezer compartments

Remove all internal packaging. Ensure that all transit clips are removed from the refrigerator.
These are small rubber stoppers located at the back of the shelves.

Clean the inside of the appliance with a mix of warm water and a small amount of liquid
detergent, and a soft cloth to remove manufacturing and transportation dust.

Allow the refrigerator and freezer to run empty for 2 – 3 hours to allow each compartment to
cool to the appropriate temperature.

The appliance may have an odor on its initial operation, but this will go when the refrigerator
and freezer have cooled sufficiently.
Energy efficiency
For the most energy efficient use of your appliance:

Ensure your refrigerator has adequate ventilation as recommended in the installation
instructions.

Do not cover your appliance with any material that will prevent air from flowing around the
cabinet sides.

Allow good clearances in front of air ducts within the cabinet for maximum cold air distribution.

Cool hot foods down before placing them in the appliance.

Do not overfill the compartments.

Keep door openings to a minimum.

Select a temperature setting that isn’t too cold.

Check your door seals for leaks.
US
CA

18 Moving or storing your appliance
If your refrigerator is turned off for any reason, wait 10 minutes before turning it back on. This
will allow the refrigeration system pressures to equalize before restarting.
Moving your refrigerator

Turn off the appliance and unplug from the power point. Remove all food.

Turn the adjustable feet to the right as far as they will turn (refer to page 15).

Ease the refrigerator out of its position. Tuck the power cord away, tape the shelves in place and
tape the doors closed. If the cabinet needs to be placed at an angle or laid down, carefully lay it
on its side (the right hand side when viewed from the front).

Relocate and install. If the appliance has been left on its side for any length of time, leave it
standing upright as long as you can (a few hours) before turning on.
Storing your refrigerator

When storing your cleaned appliance, leave the doors open. This allows air to circulate and
prevents the build up of bacteria and moulds.

Before using again, clean well using a mixture of warm water and a small amount of liquid
dishwashing detergent. Rinse with clean water and dry with a soft lint-free cloth.
Holiday time
We recommend you leave your refrigerator operating while you are on holiday.
US
CA
